APB95456-00A4RRemote Control Toy Receiver

RE: 49MHz Toy Skateboard(01u0762-3)From: Christine Vu Sent: Monday, July 02, 2001 4:14 PM To: Mike Kuo Subject: FW: 49MHz Toy Skateboard(01u0762-3) Importance: High Hello Mike, Here is the letter from Frank Winkler at Mattel which approved the modifications that we did on this EUT. Thanks, Christine Vu -----Original Message----- From: Winkler, Frank [mailto:[email protected]] Sent: Friday, June 01, 2001 10:34 AM To: 'Kerwin Corpuz' Cc: 'Chuck Cowden'; 'Christine Vu' Subject: RE: 49MHz Toy Skateboard(01u0762-3) Hi Kerwin, We made the same modifications to a unit we had here and the results were good. The changes did not effect the control range. We approve the changes and test results. Please release the report. Thanks again for all your help. Best regards, Frank -----Original Message----- From: Winkler, Frank Sent: Thursday, May 31, 2001 4:41 PM To: 'Kerwin Corpuz' Cc: Chuck Cowden; Christine Vu Subject: RE: 49MHz Toy Skateboard(01u0762-3) Hi Kerwin, Thanks for the good news. We need to evaluate the effect the below modification has on the control range before we can give approval. I will check if we have another model here , so that we can make the same changes, and evaluate. Otherwise, we may need you to send the modified model back to us for our evaluation. I'll let you know soon. Best regards, Frank -----Original Message----- From: Kerwin Corpuz [mailto:[email protected]] Sent: Wednesday, May 30, 2001 11:16 PM To: '[email protected]' Cc: Chuck Cowden; Christine Vu Subject: 49MHz Toy Skateboard(01u0762-3) HI Frank, here is the passing radiated emission data. Modifications made are replacing the value of R113 from 820 ohm to 4.7k ohm and R114 from 180k ohm to 330k ohm. Worse emission is 51.09 MHz @ -0.84 dB. Please let me know if this is OK because I cannot release the report until I have your approval. Kerwin Corpuz Compliance Certification Services Tel:(408)463-8118 Fax:(408)463-8123 E-mail: [email protected]

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB95456-00A4R FCC ID LABEL

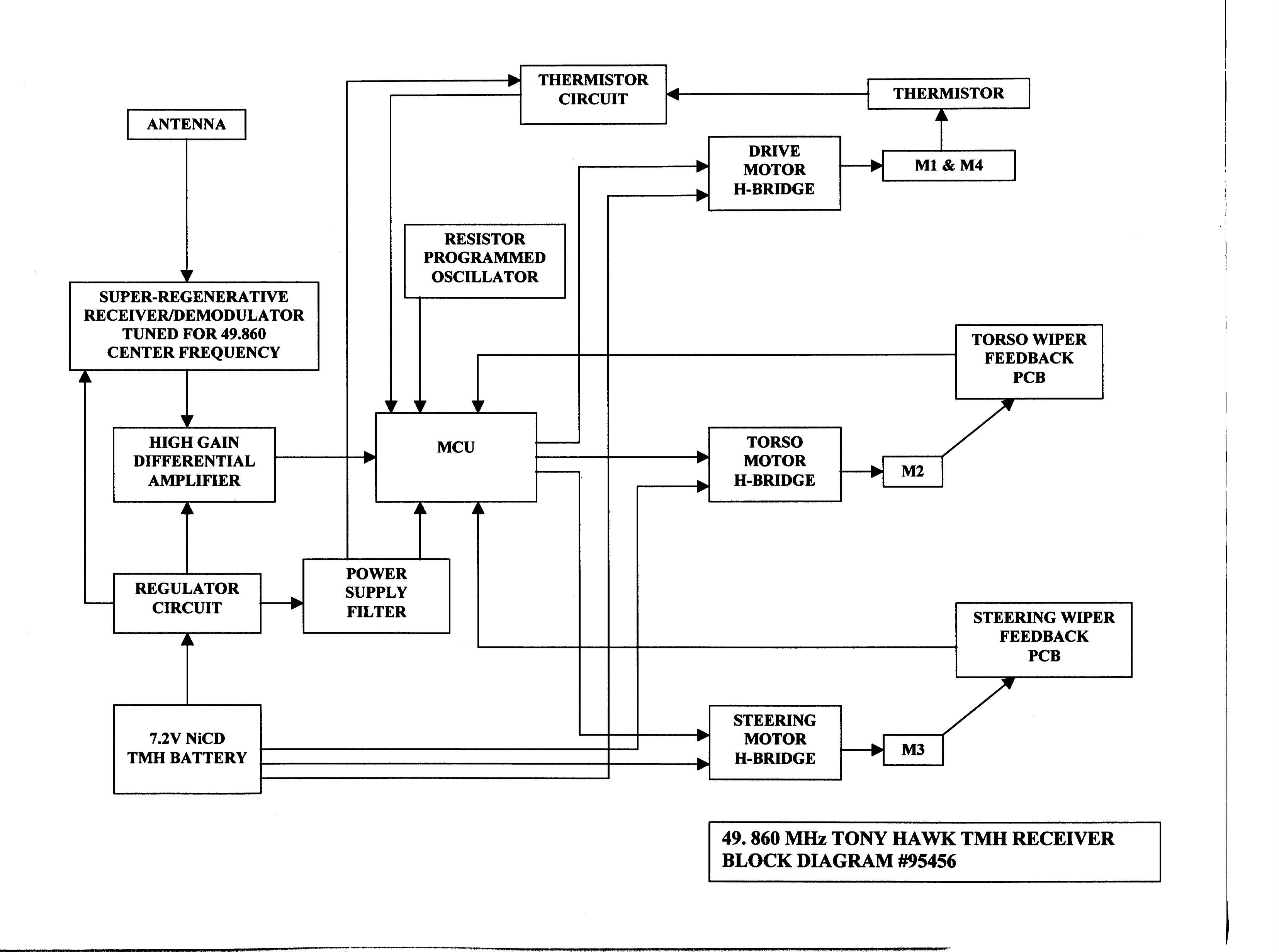

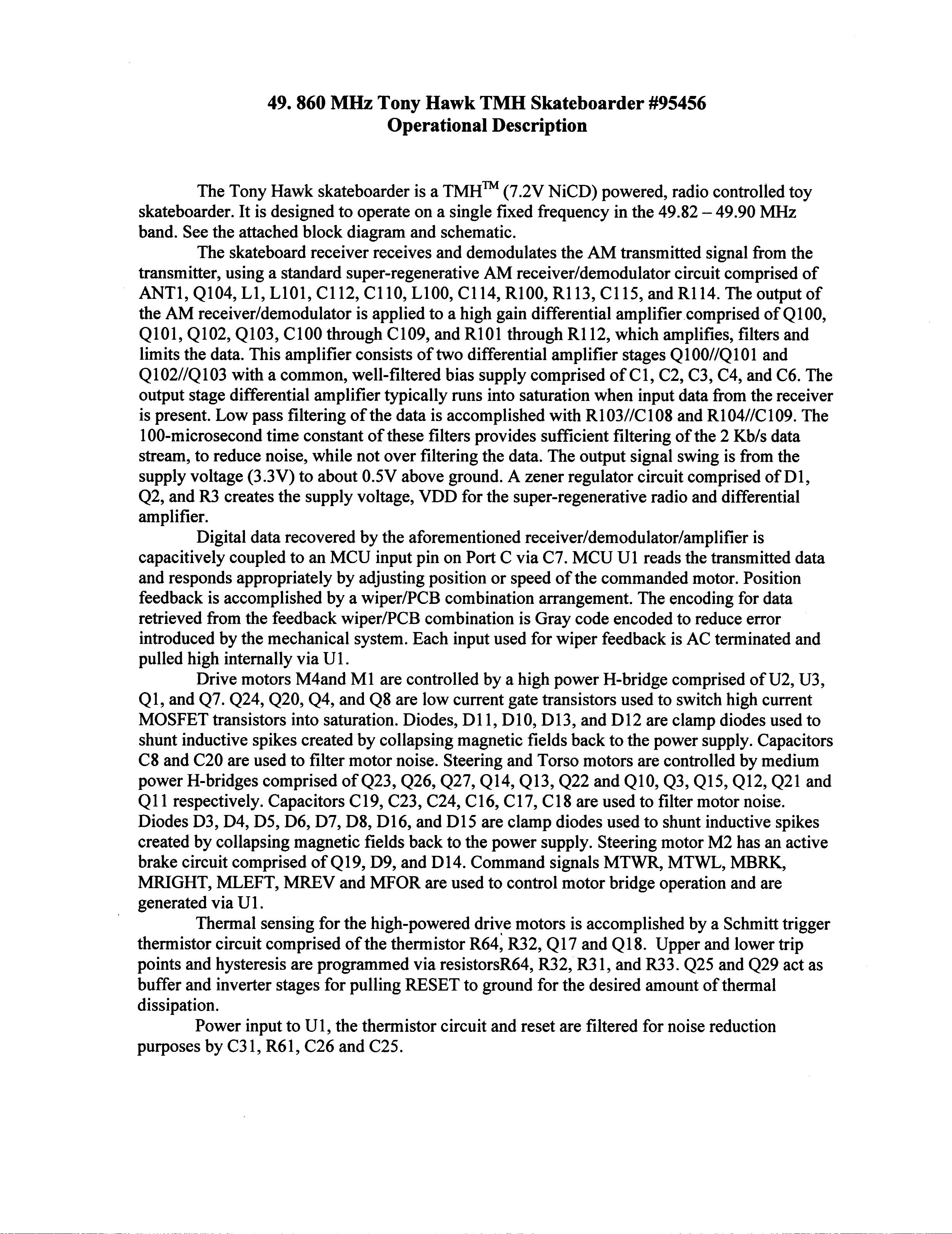

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR 49MHz RADIO CONTROL TOY SKATEBOARDER (RECEIVER) MODEL NO: 95456-9019-49R BRAND NAME: TYCO R/C-TMH TONY HAWKS SKATEBOARDER FCC ID NO: APB95456-00A4R REPORT NO: 01U0762-3 DATE: JUNE 22, 2001 Prepared for MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 TABLE OF CONTENTS 1.VERIFICATION OF COMPLIANCE...........................................................................................................1 2.PRODUCT DESCRIPTION.................................................................................................................................2 3.TEST FACILITY.........................................................................................................................................................2 4.MEASUREMENT EQUIPMENT USED......................................................................................................3 5.TEST CONFIGURATION.....................................................................................................................................3 6.TESTS CONDUCTED..............................................................................................................................................3 7. RADIATED EMISSION TEST PROCEDURE........................................................................................4 8.COHERENT TESTS..................................................................................................................................................4 9.EQUIPMENT MODIFICATIONS...................................................................................................................5 10. TEST CONFIGURATION PHOTOS (RADIATED EMISSION TEST).................................6 • TEST DATA o Cohered Emission Plot o Radiated Emission Data • PROPOSED FCC ID LABEL FORMAT • AUTHORIZATION LETTER • SCHEMATIC DIAGRAM • USER MANUAL • EUT PHOTOGRAPHS REPORT NO: 01U0762-3 FCC ID: APB95456-00A4R DATE: JUNE 22, 2001 EUT: 49 MHz RADIO CONTROL TOY SKATEBOARDER (RECEIVER) PAGE NO: COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1 1.VERIFICATION OF COMPLIANCE COMPANY NAME:MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA CONTACT PERSON:FRANK WINKLER, SENIOR PROJECT ENGINEER TELEPHONE NO.:(856) 840-1259 EUT DESCRIPTION:49MHz RADIO CONTROL TOY SKATEBOARDER (RECEIVER) MODEL NAME/NUMBER:95456-9019-49R BRAND NAME:TYCO R/C-TMH TONY HAWKS SKATEBOARDER SERIAL NUMBER:N/A FCC ID:APB95456-00A4R DATE TESTED :MAY 30, 2001 REPORT NUMBER:01U0762-3 TYPE OF EQUIPMENTRADIO CONTROL RECEIVER (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE49 MHz SUPERREGENERATE RECEIVER MEASUREMENT PROCEDUREANSI 63.4 / 1992 LIMIT TYPECERTIFICATION FCC RULECFR 47, PART 15.109 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested and/or Reviewed By:Approved & Released For CCS By: KERWIN CORPUZSTEVE CHENG ASSOCIATE EMC ENGINEEREMC ENGINEERING MANAGER COMPLIANCE CERTIFICATION SERVICESCOMPLIANCE CERTIFICATION SERVICES REPORT NO: 01U0762-3 FCC ID: APB95456-00A4R DATE: JUNE 22, 2001 EUT: 49 MHz RADIO CONTROL TOY SKATEBOARDER (RECEIVER) PAGE NO: COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2 2.PRODUCT DESCRIPTION MATTEL MT. LAUREL, Model TYCO R/C-TMH TONY HAWKS SKATEBOARDER is the receiving portion of a remote control toy. The associated Transmitter is manufactured by MATTEL MT. LAUREL, Model No 95456-9519-49T: FCC ID APB95456-00A4T. 3.TEST FACILITY The 3 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facilities was submitted to the Commission on May 27, 1994. The measuring instrument, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. REPORT NO: 01U0762-3 FCC ID: APB95456-00A4R DATE: JUNE 22, 2001 EUT: 49 MHz RADIO CONTROL TOY SKATEBOARDER (RECEIVER) PAGE NO: COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 3 4.MEASUREMENT EQUIPMENT USED TEST EQUIPMENTS …

Text truncated - open the document above for the full version.

REPORT NO: 01U0762-3 FCC ID: APB95456-00A4R DATE: JUNE 22, 2001 EUT: 49 MHz RADIO CONTROL TOY SKATEBOARDER (RECEIVER) PAGE NO: COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 6 10.TEST CONFIGURATION PHOTOS (Radiated Emission Test)
