APB95456-00A4TRemote Control Toy Transmitter

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB95456-00A4T FCC ID LABEL

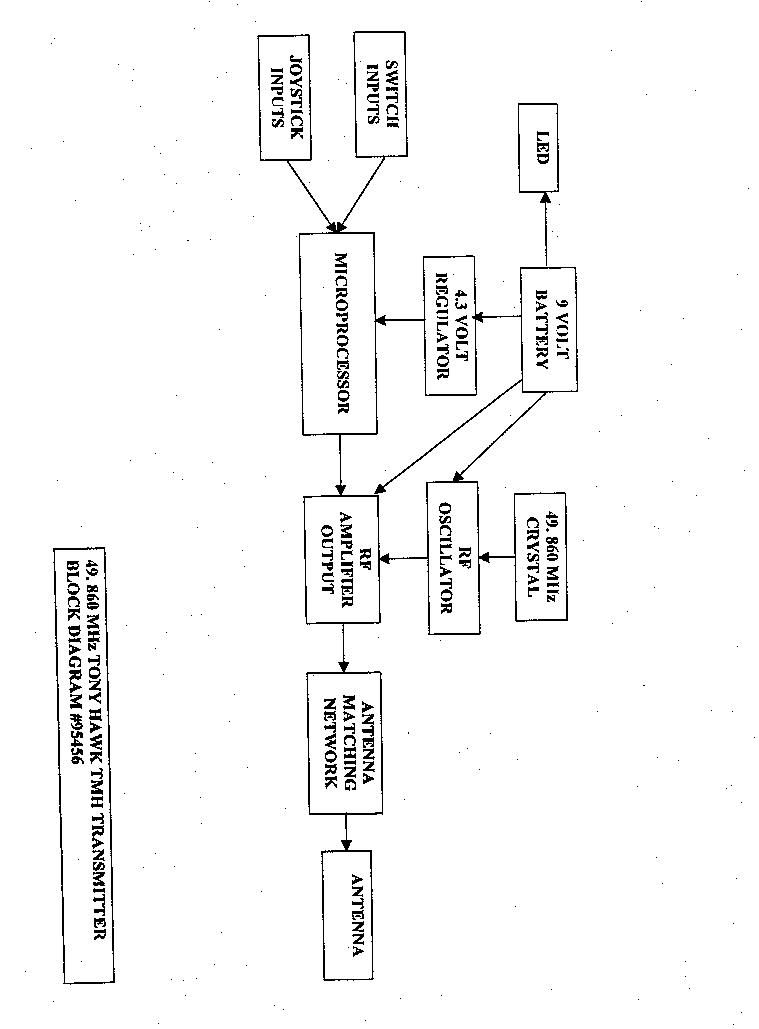

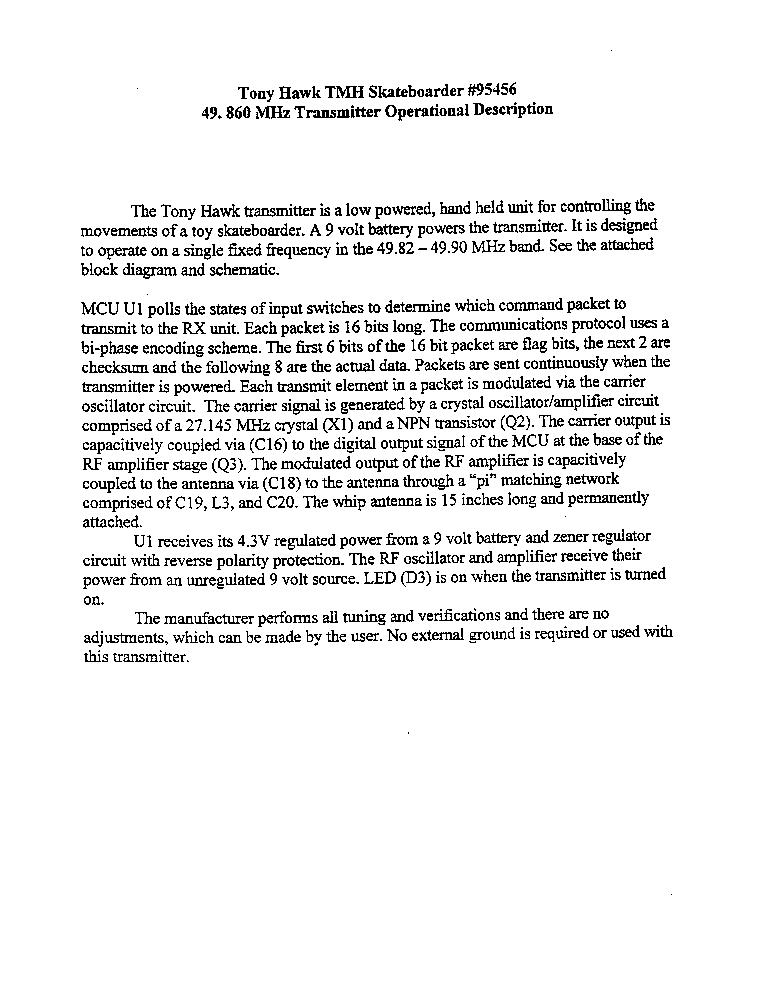

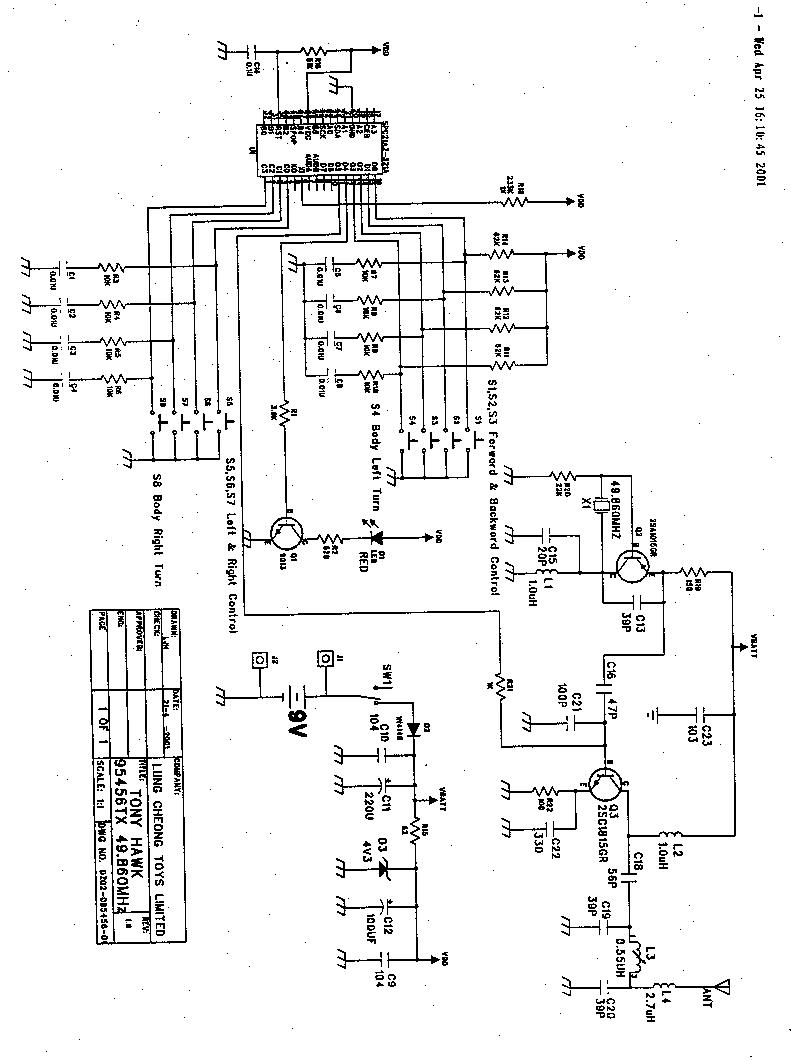

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 49MHz RADIO CONTROL TRANSMITTER MODEL NO: 95456-9519-49T BRAND NAME: TYCO R/C-TMH TONY HAWKS SKATEBOARDER FCC ID NO: APB95456-00A4T REPORT NO: 01U0762-2 ISSUE DATE: MAY 14, 2001 Prepared for MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO:01U0762-2 FCC ID: APB95456-00A4T DATE: MAY 14, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE............................................................ 2 2. PRODUCT DESCRIPTION.......................................................................... 3 3. TEST FACILITY ........................................................................................ 3 4. MEASUREMENT STANDARDS ................................................................. 3 5. TEST METHODOLOGY ............................................................................. 3 6. MEASUREMENT EQUIPMENT USED ........................................................ 4 7. TEST PROCEDURES AND TEST RESULTS................................................. 5 Radiated Emission Test Result( 15.235 (a)) Radiated Emission Test Result( 15.235 (b)) 8. RADIATED EMISSION TEST SETUP PHOTO.............................................. 6 EXHIBITS 1. Proposed FCC ID Label Format 2. Authorization Letter 3. EUT Photographs 4. Schematic Diagram 5. User Manual REPORT NO:01U0762-2 FCC ID: APB95456-00A4T DATE: MAY 14, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA CONTACT PERSON : FRANK WINKLER, SENIOR PROJECT ENGINEER TELEPHONE NO. : (856) 840-1259 EUT DESCRIPTION : 49MHz RADIO CONTROL TRANSMITTER MODEL NAME/NUMBER : 95456-9519-49T BRAND NAME : TYCO R/C-TMH TONY HAWKS SKATEBOARDER SERIAL NUMBER : N/A FCC ID : APB95456-00A4T DATE TESTED : MAY 03, 2001 REPORT NUMBER : 01U0762-2 TYPE OF EQUIPMENT RADIO CONTROL EQUIPMENT TYPE 49.86 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.235 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: Approved & Released For CCS By: MIKE ZHU STEVE CHENG SENIOR EMC ENGINEER EMC ENGINEERING MANAGER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO:01U0762-2 FCC ID: APB95456-00A4T DATE: MAY 14, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. PRODUCT DESCRIPTION CHASSIS TYPE PLASTIC Fundamental Frequency 49.86 MHz Power Source 9VOLT BATTERY Transmitting Time CONTINUOUS Type of Antenna PERMANENTLY ATTACHED No. of Channel 1 NO. OF LAYER 1 Associated Receiver APB95456-00A4R 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27, 1994. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) REPORT NO:01U0762-2 FCC ID: APB95456-00A4T DATE: MAY 14, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 6. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Serial No. Cal Due Date H.P. 8568B Spectrum Analyzer 2841A04227 01/18/02 H.P. 8447D Pre-Amplifier 2944A06589 09/19/01 H.P. 85650A Quasi-Peak Detector 12616-127 05/04/02 SCHAFFNER- CHASE CBL6112B Antenna, Bilog 2586 12/11/01 BATTERY Energizer 9Volt Nicad or 9V Alkaline (4 x AA) 6LR61-6AM6 N/A N/A REPORT NO:01U0762-2 FCC ID: APB95456-00A4T DATE: MAY 14, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 5 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the wr…

Text truncated - open the document above for the full version.

REPORT NO:01U0762-2 FCC ID: APB95456-00A4T DATE: MAY 14, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 6 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. RADIATED EMISSION TEST SETUP PHOTOS
