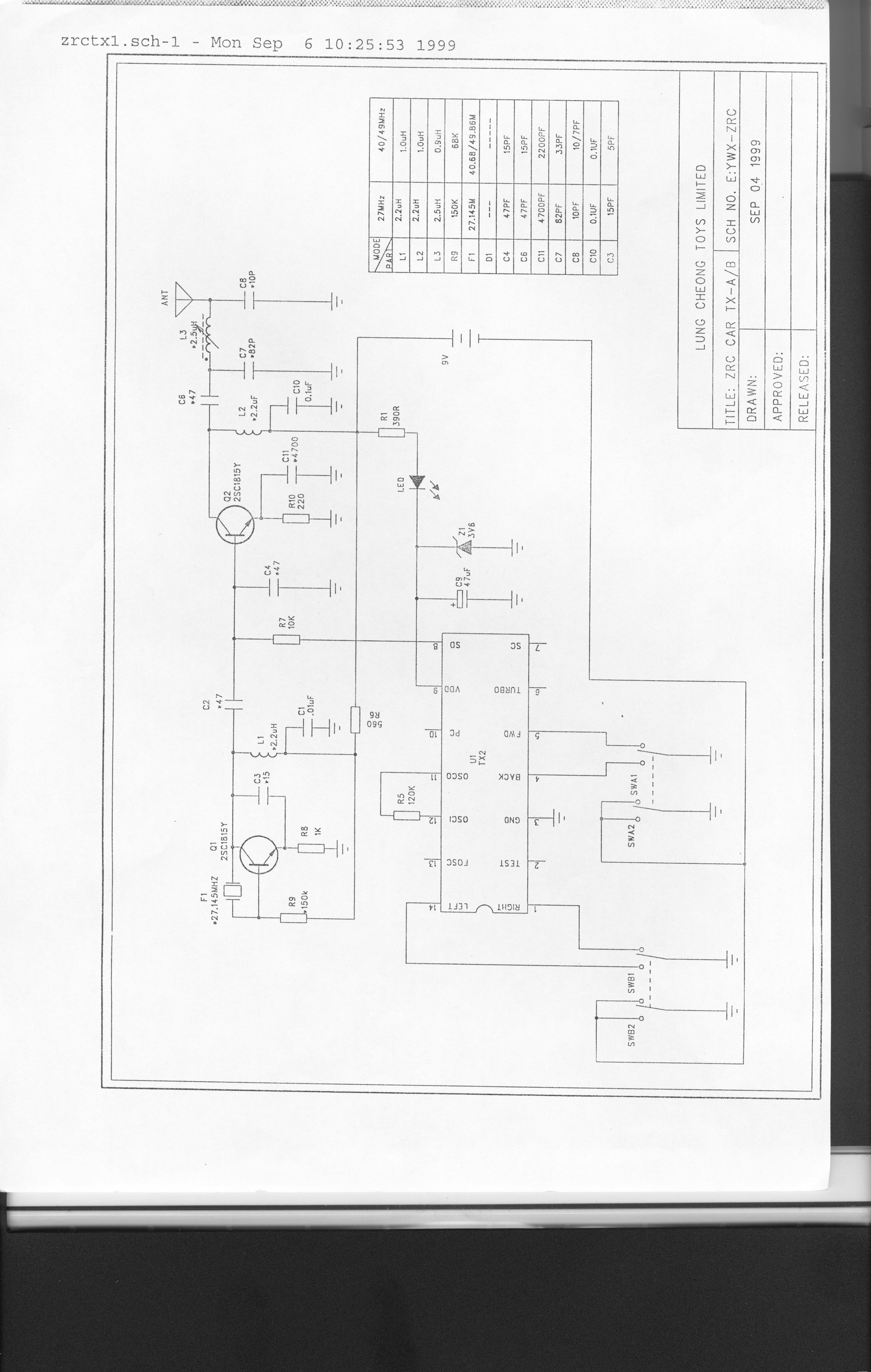

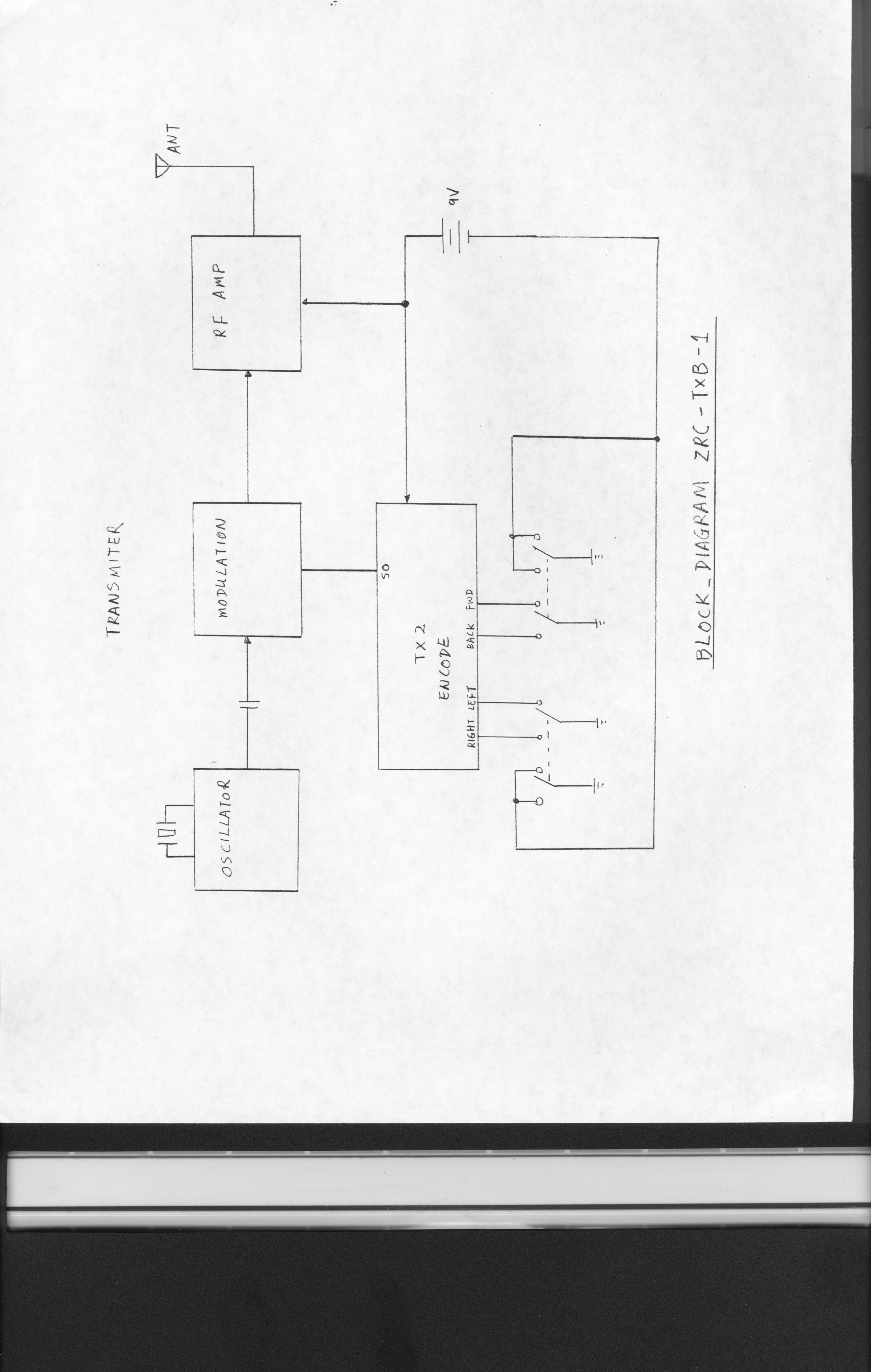

APB96426-99A2TRC Toy Car Transmitter

PROPOSED FCC ID LABEL AND LOCATION MATTEL, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB96426-99A2T FCC ID LABEL FCC ID

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR RC TOY CAR TRANSMITTER MODEL NO: 96426 FCC ID NO: APB96426-99A2T REPORT NO: 99U0599-1 ISSUE DATE: OCTOBER 04, 1999 Prepared for MATTEL, INC. 333 CONTINENTAL BLVD. EL SEGUNDO, CA 90245 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:99U0599-1 FCC ID:APB96426-99A2T DATE:OCTOBER 04, 1999 EUT: RC TOY CAR TRANSMITTER COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be repruduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1.VERIFICATION OF COMPLIANCE................................................................... 1 2.PRODUCT DESCRIPTION................................................................................. 2 3.TEST FACILITIES ........................................................................................... 2 4.MEASUREMENT STANDARDS ....................................................................... 2 5.TEST METHODOLOGY .................................................................................... 2 6.MEASUREMENT EQUIPMENT USED .............................................................. 3 7.PPOWERLINE RFI LIMITS .............................................................................. 3 8.RADIATED EMISSION LIMITS ....................................................................... 3 9.TEST SETUP AND CONFIGURATION ............................................................. 4 10.EQUIPMENT MODIFICATIONS ....................................................................... 5 11.TEST PROCEDURE AND RESULT .................................................................. 5 11.1 Radiated Emission Test............................................................................. 6 EXHIBIT 1. Proposed FCC ID Label Format 2. Agent Authorization Letter Attachment • EUT Photographs • Schematic Diagram REPORT NO:99U0599-1 FCC ID:APB96426-99A2T DATE:OCTOBER 04, 1999 EUT: RC TOY CAR TRANSMITTER PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be repruduced except in full, without the written approval of CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME:MATTEL, INC. 333 CONTINENTAL BLVD. EL SEGUNDO, CA 90245 USA CONTACT PERSON:VLADIMIR SOSNOVSKY / PROJECT ENGINEER TELEPHONE NO.:(310) 252-5595 EUT DESCRIPTION:RC TOY CAR TRANSMITTER MODEL NAME/NUMBER :96426 BRAND NAME:RACIN RATZ SERIAL NUMBER:1 FCC ID:APB96426-99A2T DATE TESTED :OCTOBER 04, 1999 REPORT NUMBER:99U0599-1 TYPE OF EQUIPMENTREMOTE CONTROL EQUIPMENT TYPE27 MHZ TRANSMITTER MEASUREMENT PROCEDUREANSI 63.4 / 1992 LIMIT TYPECERTIFICATION FCC RULECFR 47, PART 15.227 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:99U0599-1 FCC ID:APB96426-99A2T DATE:OCTOBER 04, 1999 EUT: RC TOY CAR TRANSMITTER PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be repruduced except in full, without the written approval of CCS. 2.Product Description CHASSIS TYPE PLASTIC Fundamental Frequency 27.145 MHz Power Source 9V Battery CHIPSET BRAND AND PART NO ZRC-TXB-1 Transmitting Time CONTINUOUS BOARD REVISION NO 1.0 NO. OF LAYER 1 Local Osc. 27.145 MHz 3.Test Facility The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4.Measurement Standards The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5.Test Methodology For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) REPORT NO:99U0599-1 FCC ID:APB96426-99A2T DATE:OCTOBER 04, 1999 EUT: RC TOY CAR TRANSMITTER PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be repruduced except in full, without the written approval of CCS. 6.Measurement Equipment Used ManufacturerModel Number DescriptionCal Due Date H.P.8568ASpectrum Analyzer (100Hz - 1.5GHz) 7/01/00 EATON94455-1Antenna (25 - 200MHz) 8/12/00 EMCO3146Antenna (200-1000 MHz) 8/12/00 H.P.8447DPreamplifier (0.1 - 1300 MHz) 09/3/00 7.POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 kHZ TO 30 MHz SECTION 15.205 AND SECTION 15.209, 15.221, 15.223, 15.225 OR 15.227, AS APPROPRIATE. BATTERY POWER NO REQUIRED. 8.RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209. RESTRICTED BANDS OF OPERATION SECTION 15.205 OPERATION WITHIN THE BAND 26.96 - 27.28 MHZ SECTION 15.227 REPORT NO:99U0599-1 FCC ID:APB96426-99A2T DATE:OCTOBER 04, 1999 EUT: RC TOY CAR TRANSMITTER PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be repruduced except in full, without the written approval of CCS. 9.…

Text truncated - open the document above for the full version.

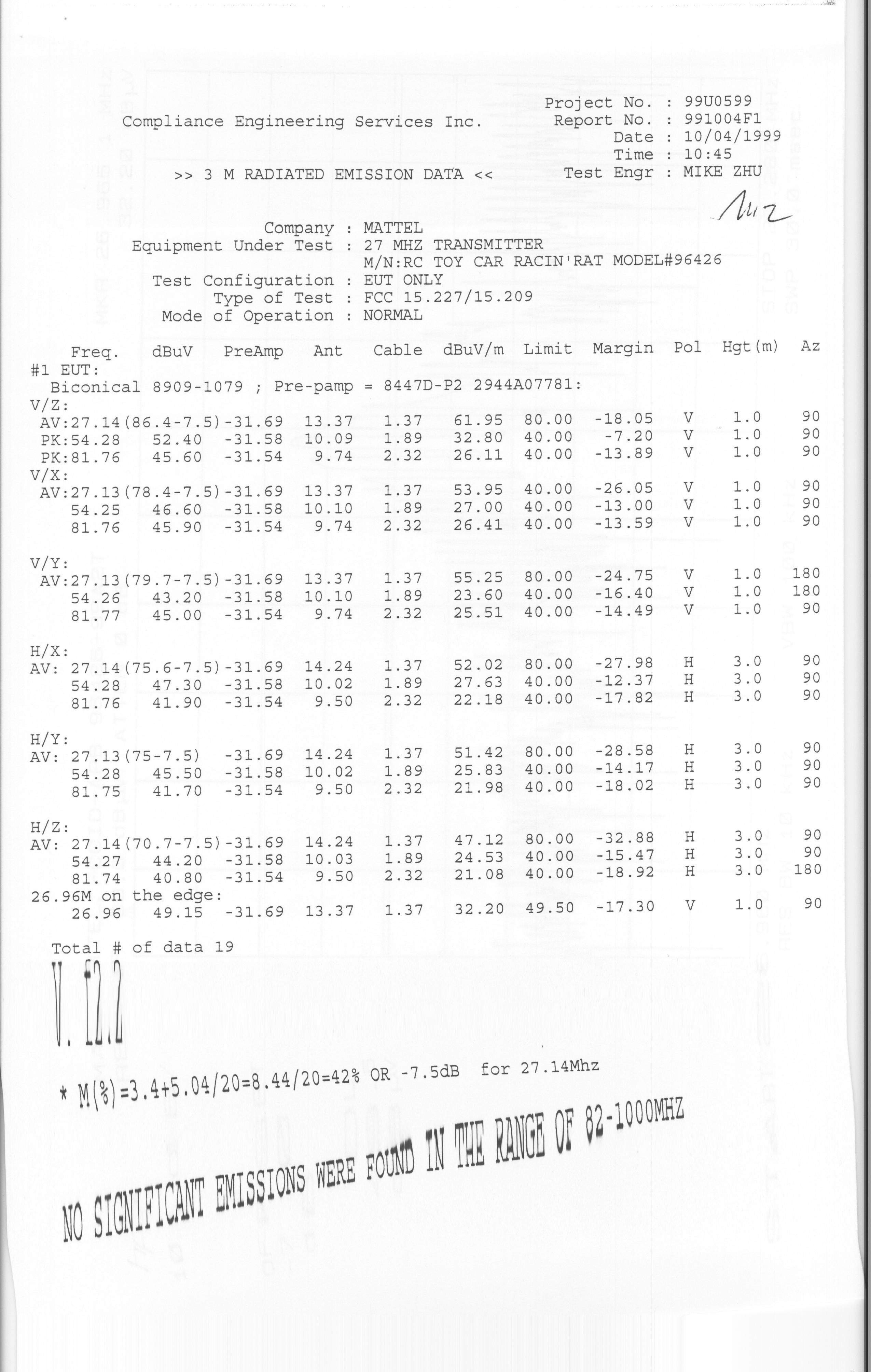

Project No. : 99U0599 Compliance Engineering Services Inc. Report No. : 991223 Date : 12/23/1999 Time : 13:48 >> 3 M RADIATED EMISSION DATA << Test Engr : MIKE / THU Company : MATTEL Equipment Under Test : 27 Mhz Transmitter RC Car Racin'Rat M/N: 96426 Test Configuration : EUT only Type of Test : FCC CLASS B Mode of Operation : Normal Freq. dBuV PreAmp Ant Cable dBuV/m Limit Margin Hgt(m) Az Active Loop Antenna M/N:102615 ; Pre-pamp = 8447D-P8 2944A06589: Center of Loop Antenna: EUT @ X-Position (Lay Down) AV:27.14 (80.9-7.5) -27.28 9.00 1.29 56.41 80.00 -23.56 1.0 90 EUT @ Y-Position (Straight Stand) AV:27.14 (78.7-7.5) -27.28 9.00 1.29 54.21 80.00 -25.79 1.0 90 EUT @ Z-Position (Side Stand) AV:27.14 (83.7-7.5) -27.28 9.00 1.29 59.21 80.00 -20.79 1.0 90 Side of Loop Antenna: EUT @ X-Position (Lay Down) AV:27.14 (79.7-7.5) -27.28 9.00 1.29 55.21 80.00 -24.79 1.0 90 EUT @ Y-Position (Straight Stand) AV:27.14 (77.5-7.5) -27.28 9.00 1.29 53.01 80.00 -26.99 1.0 90 EUT @ Z-Position (Side Stand) AV:27.14 (82.7-7.5) -27.28 9.00 1.29 58.21 80.00 -21.79 1.0 90 Loop Antenna Parallel with Ground Plane: EUT @ X-Position (Lay Down) AV:27.14 (72.6-7.5) -27.28 9.00 1.29 48.11 80.00 -31.89 1.0 90 EUT @ Y-Position (Straight Stand) AV:27.14 (72.5-7.5) -27.28 9.00 1.29 48.01 80.00 -31.99 1.0 90 EUT @ Z-Position (Side Stand) AV:27.14 (75.3-7.5) -27.28 9.00 1.29 50.81 80.00 -29.19 1.0 90 * M(%)=3.4+5.04/20=8.44/20=42% or -7.5dB for 27.14Mhz Total # of data 9 V. 112999b
