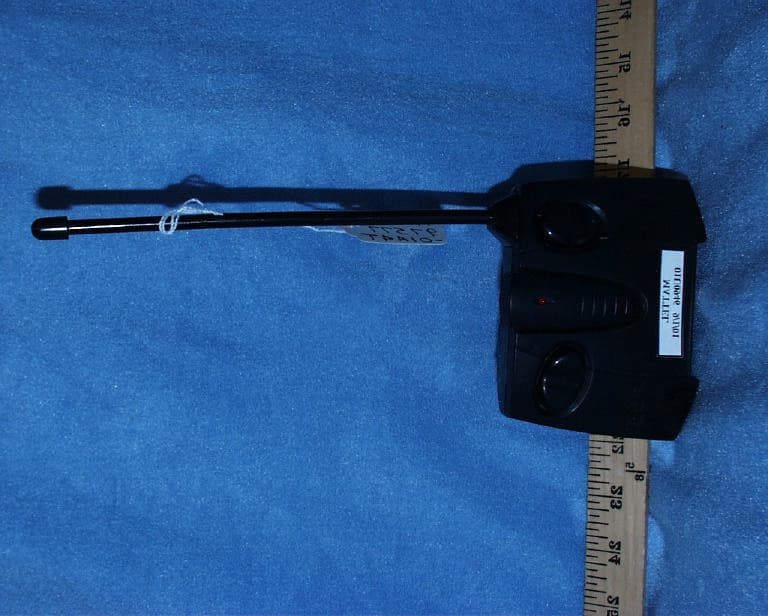

APB97577-01A4TRadio Control Toy Transmitter

I II III IV V Please read thoroughly and retain for future reference. º ¹ · ̧¶ FORWARD RIGHT TURN REVERSE LEFT TURN STUNT PAK BARREL BLAST STUNT PAK BARREL BLAST ™ ¶ · ̧ CAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. 97577-0920G1 © 2000 Mattel, Inc., Mt. Laurel, NJ 08054 U.S.A. PRINTED IN CHINA. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. Retain this address for future reference: Mat- tel U.K., Ltd., Vanwall Business Park, Maiden- head SL6 4UB. Mattel Australia Pty., Ltd., Richmond, Victoria 3121 - Consumer Advisory Service: 1800 800 812 (valid only in Australia). Mattel East Asia Limited, 930 Ocean Centre, Harbour City, HK, China. COMPLIANCE WITH FCC REGULATIONS THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION OF THIS DEVICE IS SUBJECT TO THE FOLLOWING TWO CONDI- TIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY HARM- FUL INTERFERENCE THAT MAY CAUSE UNDE- SIRED OPERATION. This device generates and uses radio fre- quency energy and if not used properly may cause interference to radio and television reception. It has been tested and found to comply with the limits set by the FCC, which are designed to provide reasonable protec- tion against such interference. CAUTION:Changes or modifica- tions not expressly approved by the manufac- turer responsible for compliance could void the user’s authority to operate the equipment. 90-DAY LIMITED WARRANTY TYCO ® R/C PRODUCTS Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days (unless specified in alternate warranties) from the date of purchase. Mattel will repair or replace the product, at our sole option, in the event of such a defect within the warranty period. In the event of a defect covered under this warranty, first call the toll-free number listed below. Many problems can be solved in this manner. If necessary, you will be instructed to return the product, postage prepaid and insured, to the address below. Enclose your name, address, dated sales receipt, and a brief explanation of the defect. Repair or replacement, and return shipment, will be free of charge. Please return only the defective part or unit, packed securely. This warranty does not cover damage resulting from unauthorized modification, accident, misuse or abuse. If the product is returned with- out a dated sales receipt the product may be excluded from coverage under this warranty. Mattel’s liability for defects in material and workmanship under this warranty shall be limited to repair or replacement, at our sole option, and in no event shall we be responsible for incidental, consequential, or contingent damages (except in those states that do not allow this exclusion or limitation). This warranty is exclusive, and is made in lieu of any express or implied warranty. Valid only in U.S.A.This warran- ty gives you specific legal rights and you may have other rights, which vary from state to state. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusions or limitations may not apply to you. TOLL-FREE NUMBER: 1-888-557-TYCO (8926) (valid only in U.S.A.) Hours: 8:00 A.M. - 6:00 P.M. Eastern Time; Monday - Friday. Expect some delay in January following the holiday season. Please be patient and keep trying the toll-free number. ADDRESS FOR RETURNS: CONSUMER RELATIONS, 636 GIRARD AVENUE, EAST AURORA, NY 14052, I. BATTERY INSTALLATION (Transmitter & Vehicle) ¶Push vehicle battery door in direction of arrow and swing open. Install 2 AA alka- line batteries, with polarity (+/-) as shown inside battery compartment. Close battery door. ·Push transmitter battery door open. Install 1 9V battery, with polarity (+/-) as shown inside battery compartment. Close battery door. II. OPERATION ¶FORWARD · REVERSE ̧ LEFT TURN ¹ RIGHT TURN III. COOL DAREDEVIL STUNTS You can assemble your Stunt Pak™ set in lots of different ways – for wild stunts and jumps! ¶ · ̧ Try these cool layouts and stunts – then invent your own! Use the ramps with the hoops – or by themselves! For the coolest stunts and jumps, back up a few feet and then drive forward toward the ramp! Your maximum jump distance depends on vehicle speed, battery power and driving surface. Experi- ment to see how far you can jump! IV. BATTERY INFORMATION Bent or dirty contacts may result in loss of power. If battery does not fit correctly, gen- tly bend back metal contact as shown. BATTERY SAFETY INFORMATION • Insure that battery polarity is correct. • Use only batteries of the type recommend- ed (or equivalent). • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon- zinc), or rechargeable (nickel-cadmium) batteries. • Remove used-up batteries immediately. Remove batteries if vehicle will not be used for a long period. • Do not recharge non-rechargeable batter- ies. • Do not short-circuit terminals. • Remove rechargeable batteries before recharging (if the batteries are designed to be removable). • Recharge batteries only under adult super- vision (if the batteries are designed to be removable). • Dispose of batteries safely. Do not dispose of batteries (or products containing non- replaceable batteries) in fire, as batteries may explode or leak. Battery Performance Note: For best performance use alkaline batteries (where disposable batteries are called for). If your vehicle is supplied with standard (carbon-zinc) batteries for initial use and/or demonstration purposes, we recommend replacing them with alkaline batteries when necessary. Battery life may vary depending on battery brand. V. QUICK TIPS ¶When your vehicle starts to lose power, it may lose functions or performance. It's time for fresh batteries. Your vehicle's running time may change depending on your driving style. ·Radio interference can make your vehicle run badly. Interference ca…

Text truncated - open the document above for the full version.

Model Name: STUNT PACK 49MHz TX Model Number: #97577

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB97577-01A4T FCC ID LABEL FCC ID LABEL

Stunt Pack Truck 49.860 MHz Mattel Part # 97577 Transmitter FCC ID: APB97577-01A4T 09/17/01 STUNT PACK TRUCK #97577 49.860 MHz TRANSMITTER OPERATIONAL DESCRIPTION The Stunt Pack Truck radio control transmitter is a low powered, hand held unit for controlling the movement of a toy truck. The transmitter is powered by a 9 volt battery. It is designed to operate on a single fixed frequency in the 49.82-49.90 MHz band. See the attached block diagram and schematic. Input switches trigger an integrated circuit ( TX2 ) which produces the digital control signals which will modulate the carrier signal. The carrier signal is generated by a crystal oscillator/ amplifier circuit comprised of a 49.860 MHz crystal ( X1 ) and a npn transistor ( Q1 ). The RF carrier signal is modulated by the digital control signal at the base of an RF amplifier stage ( Q2 ). The modulated output of the RF amplifier stage is capacitively coupled ( via C7 ) to the antenna through a “ pi “ matching network comprised of C8, T1 and C9. The whip antenna is 8 inches long and permanently attached. All tuning and verifications are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this transmitter.

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 49MHz RADIO CONTROL TRANSMITTER MODEL NO: 97577-49T BRAND NAME: TYCO R/C-STUNT PACK TX FCC ID NO: APB97577-01A4T REPORT NO: 01U0946-1 ISSUE DATE: SEPTEMBER 5, 2001 Prepared for MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO:01U0946-1 FCC ID: APB97577-01A4T DATE: SEPTEMBER 5, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 1 OF 16 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE............................................................ 2 2. PRODUCT DESCRIPTION.......................................................................... 3 3. TEST FACILITY ........................................................................................ 3 4. MEASUREMENT STANDARDS ................................................................. 3 5. TEST METHODOLOGY ............................................................................. 3 6. MEASUREMENT EQUIPMENT USED ........................................................ 4 7. TEST PROCEDURES AND TEST RESULTS................................................. 5 Radiated Emission Test Result( 15.235 (a)) Radiated Emission Test Result( 15.235 (b)) 8. RADIATED EMISSION TEST SETUP PHOTO.............................................. 11 APPENDIX 1. Proposed FCC ID Label Format 2. Authorization Letter 3. EUT Photographs 4. Schematic Diagram 5. User Manual REPORT NO:01U0946-1 FCC ID: APB97577-01A4T DATE: SEPTEMBER 5, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 2 OF 16 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA CONTACT PERSON : FRANK WINKLER, SENIOR PROJECT ENGINEER TELEPHONE NO. : (856) 840-1259 EUT DESCRIPTION : 49MHz RADIO CONTROL TRANSMITTER MODEL NAME/NUMBER : 97577-49T BRAND NAME : TYCO R/C- STUNT PACK TX SERIAL NUMBER : N/A FCC ID : APB97577-01A4T DATE TESTED : August 30, 2001 REPORT NUMBER : 01U0946-1 TYPE OF EQUIPMENT RADIO CONTROL EQUIPMENT TYPE 49.86 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.235 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: Reviewed & Released For CCS By: PETE KREBILL THU TRAN ASSOCIATE EMC ENGINEER SENIOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO:01U0946-1 FCC ID: APB97577-01A4T DATE: SEPTEMBER 5, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 3 OF 16 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. PRODUCT DESCRIPTION CHASSIS TYPE PLASTIC Fundamental Frequency 49.86 MHz Power Source 9VOLT BATTERY Transmitting Time CONTINUOUS Type of Antenna PERMANENTLY ATTACHED No. of Channel 1 NO. OF LAYER 1 Associated Receiver APB97577-01A4R 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27, 1994. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) REPORT NO:01U0946-1 FCC ID: APB97577-01A4T DATE: SEPTEMBER 5, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 4 OF 16 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 6. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Serial No. Cal Due Date H.P. 8568B Spectrum Analyzer 2841A04227 01/18/02 H.P. 8447D Pre-Amplifier 2944A06589 09/19/01 H.P. 85650A Quasi-Peak Detector 12616-127 05/04/02 SCHAFFNER- CHASE CBL6112B Antenna, Bilog 2586 12/11/01 BATTERY Energizer 9Volt Nicad or 9V Alkaline (4 x AA) 6LR61-6AM6 N/A N/A REPORT NO:01U0946-1 FCC ID: APB97577-01A4T DATE: SEPTEMBER 5, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 5 OF 16 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except …

Text truncated - open the document above for the full version.

REPORT NO:01U0946-1 FCC ID: APB97577-01A4T DATE: SEPTEMBER 5, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 11 OF 16 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSION TEST SETUP PHOTOS REPORT NO:01U0946-1 FCC ID: APB97577-01A4T DATE: SEPTEMBER 5, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 12 OF 16 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS.
