APB97595-01A2TRadio Control Toy Transmitter

Keep these instructions for future reference: they contain important information. STUNT SCOOTER STUNT SCOOTER GET STARTED! Your vehicle has an amazing Gyro Stabilizer that makes it easy to drive – and lets it perform amazing stunts! The stabilizer safely spins at high speed inside the rear wheel, and it works like a gyroscope to help keep your vehicle upright. 1. GET SET! Energize the gyro stabilizer! Hold the vehicle off the ground and push the left control control up. Once the stabilizer spins up to full speed, you’ll be able to hear it – and if you twist the vehicle from side to side you’ll really feel it working! Be sure to hold the vehicle by the rider figure, keeping your fingers clear of the wheels. 2. LAUNCH IT! Now gently hand-launch your vehicle. Set it on the ground and give it a gentle push while pushing the left control up. Now you’re ready for the coolest stunts! I. CONTENTS VEHICLE Left control: forward & braking Your transmitter is equipped with a special automatic ON battery- saving feature. Just turn your vehicle ON. Then push either transmitter control and you will be able to run and control your vehicle. Right control: turning Flex antenna TRANSMITTER (1)STUNT SCOOTER Vehicle (1) Transmitter CAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow.

ON/OFF Switch Gyro Stabilizer (inside rear wheel) Powerful Motor Battery Holder SIDE VIEW BOTTOM VIEW Battery Holder Screws (2) II. QUICK START Please read this Owner’s Manual thoroughly. 1.Start with a fresh set of batteries. 2.Turn vehicle switch ON. Press transmitter controls to run and control your vehicle. 3.When you’re done driving, turn vehicle switch OFF. Remove all batteries for storage. nMulti function n Available in 2 frequencies: 27 MHz and 49 MHz (refer to labels on transmitter & vehicle for frequency) nRange up to 30’/9m FEATURES Steering Adjuster (adjust, if nec- essary, to keep vehicle running straight) 2 3 IV. QUICK TIPS ∂ When your vehicle starts to lose power, it may lose functions or performance. It’s time for fresh batteries. Your vehicle’s running time may change depending on your driving style. Â Radio interference can make your vehicle run badly. Interference can be caused by other R/C vehi- cles running on the same frequency; electrical wires; large buildings; or CB radios. Try to stay away from these! ’Point your transmitter antenna up - not down toward your vehicle. If your vehicle gets too far away, it won’t work properly. pDon’t drive your vehicle in sand or through water or snow. If your vehicle does get wet, wipe with a towel and allow to dry completely. ÚDon’t store your vehicle near heat or in direct sun- light. Always turn switch OFF and remove all batter- ies for storage. FORWARD LEFT TURNRIGHT TURN III. OPERATING YOUR VEHICLE BRAKING Úp∂ Â ’ © 2001 Mattel, Inc., Mt. Laurel, NJ 08054 U.S.A. PRINTED IN CHINA. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. Retain this address for future reference: Mattel U.K., Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Mattel Australia Pty., Ltd., Richmond, Victoria 3121 - Consumer Advisory Service: 1800 800 812 (valid only in Australia). Mattel East Asia Limited, 930 Ocean Centre, Harbour City, HK, China. COMPLIANCE WITH FCC REGULATIONS THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION OF THIS DEVICE IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY HARMFUL INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. This device generates and uses radio frequency energy and if not used properly may cause interference to radio and television reception. It has been tested and found to comply with the limits set by the FCC, which are designed to provide reasonable pro- tection against such interference. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. 8 90-DAY LIMITED WARRANTY TYCO ® R/C PRODUCTS Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days (unless specified in alternate warranties) from the date of purchase. Mattel will repair or replace the product, at our sole option, in the event of such a defect within the warranty period. In the event of a defect covered under this warranty, first call the toll-free number listed below. Many problems can be solved in this manner. If necessary, you will be instructed to return the product, postage prepaid and insured, to the address below. Enclose your name, address, dated sales receipt, and a brief explanation of the defect. Repair or replacement, and return shipment, will be free of charge. Please return only the defective part or unit, packed securely. This warranty does not cover damage resulting from unauthorized modification, accident, misuse or abuse. If the product is returned with- out a dated sales receipt the product may be excluded from coverage under this warranty. Mattel’s liability for defects in material and workmanship under this warranty shall be limited to repair or replacement, at our sole option, and in no event shall we be responsible for incidental, consequential, or contingent damages (except in those states that do not allow this exclusion or limitation). This warranty is exclusive, and is made in lieu of any express or implied warranty. Valid only in U.S.A.This warran- ty gives you specific legal rights and you may have other rights, which vary from state to state. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusions or limitations may not apply to you. TOLL-FREE NUMBER: 1-888-557-TYCO (8926) (valid only in U.S.A.) Hours: 8:00 A.M. - 6:00 P.M. Eastern Time; Monday - Friday. Expect some delay in January following the holiday season. Please be patient and keep trying the toll-free number. ADDRESS FOR RETURNS: CONSUMER RELATIONS, 636 GIRARD AVENUE, EAST AURORA, NY 14052,

TX097-SCH.sch-1 - Wed Aug 15 13:14:44 2001

REPORT NO: 01U0958-1 FCC ID: APB97595-01A2T DATE: AUGUST 31, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER PAGE NO: 13 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 12. Appendix External & Internal Photos REPORT NO: 01U0958-1 FCC ID: APB97595-01A2T DATE: AUGUST 31, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER PAGE NO: 14 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document.

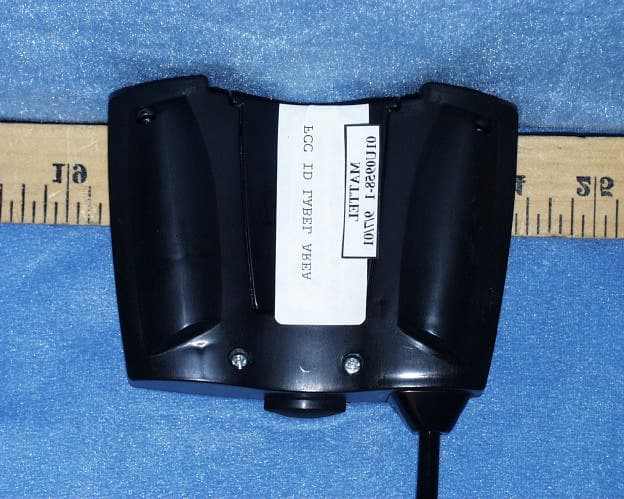

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB97595-01A2T FCC ID LABEL

REPORT NO: 01U0958-1 FCC ID: APB97595-01A2T DATE: AUGUST 31, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER PAGE NO: 15 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 01U0958-1 FCC ID: APB97595-01A2T DATE: AUGUST 31, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER PAGE NO: 16 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 01U0958-1 FCC ID: APB97595-01A2T DATE: AUGUST 31, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER PAGE NO: 17 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document.

Stunt Scooter 27.145 MHz Mattel Part # 97595 Transmitter FCC ID: APB97595-01A2T 09/17/01 STUNT SCOOTER # 97595 27.145MHz TRANSMITTER OPERATIONAL DESCRIPTION The Stunt Scooter radio control transmitter is a low powered, hand held unit for controlling the movementof a toy scooter. The transmitter is powered by a 9 volt battery. It is designed to operate on a single fixed frequency in the 26.96 – 27.28 MHz band. See the attached block diagram and schematic. Input switches trigger an integrated circuit ( U1 ) which produces the digital control signals which will modulate the carrier signal. The carrier signal is generated by a crystal oscillator/ amplifier circuit comprised of a 27.145 MHz crystal ( X1 ) and a npn transistor ( Q1 ). The RF carrier signal is modulated by the digital control signal at the base of an RF amplifier stage ( Q2 ). The modulated output of the RF amplifier stage is capacitively coupled ( via C7 ) to the antenna through a “ pi “ matching network comprised of C8, L1 and C9. The whip antenna is 8 inches long and permanently attached. All tuning and verifications are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this transmitter.

Tx097b.sch-1 - Wed Aug 15 08:04:19 2001

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 27 MHz RADIO CONTROLTRANSMITTER MODEL NO: 97595-27T BRAND NAME: TYCO R/C – STUNT SCOOTER TX FCC ID NO: APB97595-01A2T REPORT NO: 01U0958-1 ISSUE DATE: SEPTEMBER 7, 2001 Prepared for MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 01U0958-1 FCC ID: APB97595-01A2T DATE: SEPTEMBER 7, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE...............................3 2. PRODUCT DESCRIPTION.....................................4 3. TEST FACILITY...........................................4 4. MEASUREMENT STANDARDS...................................4 5. TEST METHODOLOGY........................................4 6. MEASUREMENT EQUIPMENT USED...............................5 7. POWERLINE RFI LIMIT.....................................5 8. RADIATED EMISSION LIMITS................................5 9. SYSTEM TEST CONFIGURATION................................6 10. EQUIPMENT MODIFICATION..................................7 11. TEST PROCEDURE AND RESULT................................7 12. Appendix...............................................13 External & Internal Photos..............................13 Schematics.............................................18 Block Diagram..........................................18 User Manual............................................18 REPORT NO: 01U0958-1 FCC ID: APB97595-01A2T DATE: AUGUST 31, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER PAGE NO: 3 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL MOUNT LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA CONTACT PERSON : FRANK WINKLER/ SENIOR PROJECT ENGINEER TELEPHONE NO. : 856-840-1259 EUT DESCRIPTION : 27 MHz RADIO CONTROL TRANSMITTER MODEL NAME/NUMBER : 97595-27T BRAND NAME : TYCO R/C – STUNT SCOOTER TX SERIAL NUMBER : N/A FCC ID : APB97595-01A2T DATE TESTED : SEPTEMBER 5, 2001 REPORT NUMBER : 01U0958-1 TYPE OF EQUIPMENT RADIO CONTROL EQUIPMENT TYPE 27 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.227 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: Approved & Released For CCS By: MIKE ZHU THU CHAN SENIOR EMC ENGINEER SENIOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 01U0958-1 FCC ID: APB97595-01A2T DATE: AUGUST 31, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER PAGE NO: 4 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION CHASSIS TYPE PLASTIC Fundamental Frequency 27.145 MHz Power Source ONE 9 VOLT BATTERY Transmitting Time CONTINUOUS Type of antenna PERMANENTLY ATTACHED Local Osc. 27.145MHz 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) REPORT NO: 01U0958-1 FCC ID: APB97595-01A2T DATE: AUGUST 31, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER PAGE NO: 5 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 6. MEASUREMENT EQUIPMENT USED 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURR…

Text truncated - open the document above for the full version.

REPORT NO: 01U0958-1 FCC ID: APB97595-01A2T DATE: AUGUST 31, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER PAGE NO: 6 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION The EUT was configured for testing in a typical fashion (as a customer would normally use it). Radiated Open Site Test Set-up
