APB97596-01A4RRadio Control Toy Receiver

Keep these instructions for future reference: they contain important information. STUNT SCOOTER STUNT SCOOTER GET STARTED! Your vehicle has an amazing Gyro Stabilizer that makes it easy to drive – and lets it perform amazing stunts! The stabilizer safely spins at high speed inside the rear wheel, and it works like a gyroscope to help keep your vehicle upright. 1. GET SET! Energize the gyro stabilizer! Hold the vehicle off the ground and push the left control control up. Once the stabilizer spins up to full speed, you’ll be able to hear it – and if you twist the vehicle from side to side you’ll really feel it working! Be sure to hold the vehicle by the rider figure, keeping your fingers clear of the wheels. 2. LAUNCH IT! Now gently hand-launch your vehicle. Set it on the ground and give it a gentle push while pushing the left control up. Now you’re ready for the coolest stunts! I. CONTENTS VEHICLE Left control: forward & braking Your transmitter is equipped with a special automatic ON battery- saving feature. Just turn your vehicle ON. Then push either transmitter control and you will be able to run and control your vehicle. Right control: turning Flex antenna TRANSMITTER (1)STUNT SCOOTER Vehicle (1) Transmitter CAUTION: Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow.

ON/OFF Switch Gyro Stabilizer (inside rear wheel) Powerful Motor Battery Holder SIDE VIEW BOTTOM VIEW Battery Holder Screws (2) II. QUICK START Please read this Owner’s Manual thoroughly. 1.Start with a fresh set of batteries. 2.Turn vehicle switch ON. Press transmitter controls to run and control your vehicle. 3.When you’re done driving, turn vehicle switch OFF. Remove all batteries for storage. nMulti function n Available in 2 frequencies: 27 MHz and 49 MHz (refer to labels on transmitter & vehicle for frequency) nRange up to 30’/9m FEATURES Steering Adjuster (adjust, if nec- essary, to keep vehicle running straight) 2 3 IV. QUICK TIPS ∂ When your vehicle starts to lose power, it may lose functions or performance. It’s time for fresh batteries. Your vehicle’s running time may change depending on your driving style. Â Radio interference can make your vehicle run badly. Interference can be caused by other R/C vehi- cles running on the same frequency; electrical wires; large buildings; or CB radios. Try to stay away from these! ’Point your transmitter antenna up - not down toward your vehicle. If your vehicle gets too far away, it won’t work properly. pDon’t drive your vehicle in sand or through water or snow. If your vehicle does get wet, wipe with a towel and allow to dry completely. ÚDon’t store your vehicle near heat or in direct sun- light. Always turn switch OFF and remove all batter- ies for storage. FORWARD LEFT TURNRIGHT TURN III. OPERATING YOUR VEHICLE BRAKING Úp∂ Â ’ © 2001 Mattel, Inc., Mt. Laurel, NJ 08054 U.S.A. PRINTED IN CHINA. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. Retain this address for future reference: Mattel U.K., Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Mattel Australia Pty., Ltd., Richmond, Victoria 3121 - Consumer Advisory Service: 1800 800 812 (valid only in Australia). Mattel East Asia Limited, 930 Ocean Centre, Harbour City, HK, China. COMPLIANCE WITH FCC REGULATIONS THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION OF THIS DEVICE IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY HARMFUL INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. This device generates and uses radio frequency energy and if not used properly may cause interference to radio and television reception. It has been tested and found to comply with the limits set by the FCC, which are designed to provide reasonable pro- tection against such interference. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. 8 90-DAY LIMITED WARRANTY TYCO ® R/C PRODUCTS Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days (unless specified in alternate warranties) from the date of purchase. Mattel will repair or replace the product, at our sole option, in the event of such a defect within the warranty period. In the event of a defect covered under this warranty, first call the toll-free number listed below. Many problems can be solved in this manner. If necessary, you will be instructed to return the product, postage prepaid and insured, to the address below. Enclose your name, address, dated sales receipt, and a brief explanation of the defect. Repair or replacement, and return shipment, will be free of charge. Please return only the defective part or unit, packed securely. This warranty does not cover damage resulting from unauthorized modification, accident, misuse or abuse. If the product is returned with- out a dated sales receipt the product may be excluded from coverage under this warranty. Mattel’s liability for defects in material and workmanship under this warranty shall be limited to repair or replacement, at our sole option, and in no event shall we be responsible for incidental, consequential, or contingent damages (except in those states that do not allow this exclusion or limitation). This warranty is exclusive, and is made in lieu of any express or implied warranty. Valid only in U.S.A.This warran- ty gives you specific legal rights and you may have other rights, which vary from state to state. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusions or limitations may not apply to you. TOLL-FREE NUMBER: 1-888-557-TYCO (8926) (valid only in U.S.A.) Hours: 8:00 A.M. - 6:00 P.M. Eastern Time; Monday - Friday. Expect some delay in January following the holiday season. Please be patient and keep trying the toll-free number. ADDRESS FOR RETURNS: CONSUMER RELATIONS, 636 GIRARD AVENUE, EAST AURORA, NY 14052,

-1 - Thu Aug 16 10:15:06 2001

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB97596-01A4R FCC ID LABEL

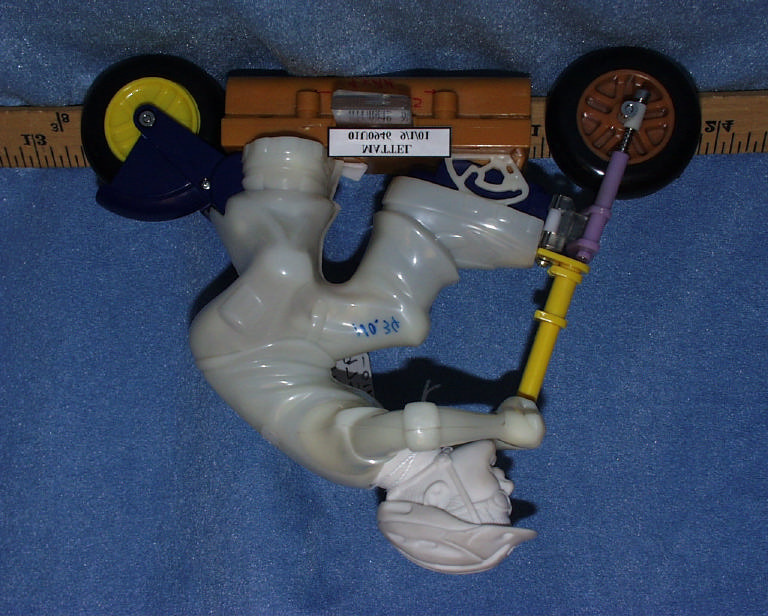

Stunt Scooter 49.860 MHz Mattel Part # 97596 Receiver FCC ID: APB97596-01A4R 09/17/01 STUNT SCOOTER # 97596 49.860MHz RECEIVER OPERATIONAL DESCRIPTION The Stunt Scooter is a radio controlled toy scooter . It operates on 6 volts supplied by four 1.5 volt alkaline AA batteries. It is designed to operate on a single fixed frequency in the 49.82-49.90 MHz band. See the attached block diagram and schematic. The modulated RF signal from the transmitter induces an electrical signal into the scooter’s permanently attached internal wire antenna . The electrical signal is selectively amplified by a super regenerative input circuit ( Q1,L2,L3,C2-C5 ). The signal is then capacitively coupled ( via C8 ) to an integrated circuit ( RX2 ) were the signal is further amplified and decoded. A digital output from the RX2 drives a transistor drive circuit ( Q3,Q5 ) for controlling the speed of the drive motor. Another digital output from RX2 drives a second transistor pair ( Q4,Q6 ) to provide dynamic braking of the drive motor. A pair of digital outputs from RX2 drives a full H-bridge drive circuit ( Q9-Q12 ) for controlling the speed and direction of the steering motor. All tuning and verifications are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this receiver.

FCC-49M.sch-1 - Thu Aug 16 15:46:56 2001

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR 49 MHz RADIO CONTROL SCOOTER (RECEIVER) MODEL NO: 97596-49R BRAND NAME: TYCO R/C-STUNT SCOOTER FCC ID NO: APB97596-01A4R REPORT NO: 01U0946-4 DATE: AUGUST 31, 2001 Prepared for MATTEL MT. LAUREL 6000 MIDATLANTIC AVENUE MOUNT LAUREL, NJ 08054 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE...........................................................................................................3 2. PRODUCT DESCRIPTION.................................................................................................................................4 3. TEST FACILITY.........................................................................................................................................................4 4. MEASUREMENT EQUIPMENT USED......................................................................................................5 5. TEST CONFIGURATION....................................................................................................................................5 6. TESTS CONDUCTED..............................................................................................................................................5 7. RADIATED EMISSION TEST PROCEDURE.......................................................................................6 8. COHERENT TESTS..................................................................................................................................................6 9. EQUIPMENT MODIFICATIONS...................................................................................................................7 10. TEST CONFIGURATION PHOTOS (RADIATED EMISSION TEST).................................8 • TEST DATA o Coherent Emission Plot o Radiated Emission Data • PROPOSED FCC ID LABEL FORMAT • AUTHORIZATION LETTER • SCHEMATIC DIAGRAM • USER MANUAL • EUT PHOTOGRAPHS REPORT NO: 01U0946-4 FCC ID: APB97596-01A4R DATE: AUGUST 31, 2001 EUT: 49 MHz RADIO CONTROL TOY (RECEIVER) Page 3 of 17 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL MT. LAUREL 6000 MIDATLANTIC AVENUE MOUNT LAUREL, NJ 08054 USA CONTACT PERSON : FRANK WINKLER/SENIOR PROJECT ENGINEER TELEPHONE NO. : (856) 840-1149 EUT DESCRIPTION : 49 MHz RADIO CONTROL SCOOTER (RECEIVER) MODEL NAME/NUMBER : 97596-49R BRAND NAME : TYCO R/C-STUNT SCOOTER FCC ID : APB97596-01A4R DATE TESTED : AUGUST 31, 2001 REPORT NUMBER : 01U0946-4 TYPE OF EQUIPMENT RADIO CONTROL RECEIVER (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE 49 MHz SUPERREGENERATE RECEIVER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.109 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: Approved & Released For CCS By: MIKE ZHU THU CHAN SENIOR EMC ENGINEER SENIOR EMC ENGINNER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 01U0946-4 FCC ID: APB97596-01A4R DATE: AUGUST 31, 2001 EUT: 49 MHz RADIO CONTROL TOY (RECEIVER) Page 4 of 17 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION MATTEL MT. LAUREL, Model TYCO R/C-STUNT SCOOTER is the receiving portion of a remote control toy. The associated Transmitter is manufactured by MATTEL MT. LAUREL, Model No 97576-27T, FCC ID APB97577-01A4T. 3. TEST FACILITY The 3 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facilities was submitted to the Commission on May 27, 1994. The measuring instrument, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. REPORT NO: 01U0946-4 FCC ID: APB97596-01A4R DATE: AUGUST 31, 2001 EUT: 49 MHz RADIO CONTROL TOY (RECEIVER) Page 5 of 17 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 4. MEASUREMENT EQUIPMENT USED TEST EQUIPMENTS LIST Name of Equipment Manufacturer Model No. Serial No. Due Date Spectrum Analyzer HP 0.1K - 1.5GHz 856…

Text truncated - open the document above for the full version.

REPORT NO: 01U0946-4 FCC ID: APB97596-01A4R DATE: AUGUST 31, 2001 EUT: 49 MHz RADIO CONTROL TOY (RECEIVER) Page 8 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 10. TEST CONFIGURATION PHOTOS (Radiated Emission Test)
