Indoor WiFi AP Quick installation Guide 0 Copyright This DOCUMENT is copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Telnet. Notice Telnet reserves the right to change specifications without prior notice. While the information in this document has been compiled with great care, it may not be deemed an assurance of product characteristics. Telnet shall be liable only to the degree specified in the terms of sale and delivery. The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from Telnet. 1 Contents Copyright Notice Contents .................................................................................... 1 1. About this Guide .................................................................... 2 2. What’s in the box? .................................................................. 2 3. Connectors & LED Indicators ................................................... 3 4. Connect IDU to ODU ............................................................... 5 5. Easy Setup .............................................................................. 6 6. Wi-Fi Setting ........................................................................... 7 7. Make Phone Call ..................................................................... 8 2 1. About this Guide This document provides information and procedures on installation/configuration of LTE Indoor CPE. You could utilize the theoretical information in this guide to setup your device. This Quick Installation Guide covers the basic installation of the Indoor Gateway. 2. What’s in the box? Here's a quick checklist of everything inside your box. Before installing the ODU, please check you have all of these items listed below. If any of these items is missing or damaged, please contact your LTE service provider. The LTE Indoor CPE Quick installation Guide Power Adapter Power Plug (EU)/ Power Plug (US) 3 3. Connectors & LED Indicators IDU Rear Panel IDU Front Panel 4 IDU LED Indicators: No. Type Color Action Description 1 Power Green Solid ON Power on OFF Power off 2 System Green Solid ON System is booting OFF System is disabled 3 LTE Signal Strength Green Solid ON Display signal strength 1 LED: 0<=CINR<8 2 LED: 8<=CINR<24 3 LED: 24<=CINR OFF No signal 4 WAN Green Solid ON LTE is connected Green Blinking LTE is transmitting data OFF LTE is disabled 5 LAN1&2 Green Solid ON LAN is connected Green Blinking LAN is transmitting data OFF LAN is disabled 6 WPS Green Blinking WPS is connecting OFF WPS is disabled 7 WLAN Green Solid ON WiFi is enabled Green Blinking WiFi is transmitting data OFF WiFi is disabled 8 Phone VoIP Green Solid ON VoIP Registered/ Off-hook/ Busy Green Blinking Incoming call ringing New incoming call during conversation Incoming voice mail waiting OFF VoIP not registered / VoIP disabled 5 4. Connect IDU to ODU DO NOT CONNECT A COMPUTER OR A SWITCH DIRECTLY TO THE IDU’S POE PORT DUE TO THE HIGH POE POWER (56V). Connect the IDU, ODU & IDU Hardware Connections 1. Connect the CAT 5 Ethernet cable which is already connected to the ODU to the IDU’s RJ-45(WAN) POE port.(Suggest to use Cat5E shielded Patch Cable, and must not exceed 100m). 2. Connect the Ethernet cable from computer to one of the IDU’s Ethernet Ports. 3. Connect the RJ11 (Phone Line cable) to the Phone Port for using VoIP. 4. Connect the supplied power adapter to this IDU device. The Power LED will remain steady green when device is ready. ODU IDU 1. CAT 5 (or Cat5E) Outdoor Shielded Patch Ethernet cable (not Included) for connecting IDU and ODU 2. CAT5 8-wire Ethernet cable (not included) for connecting IDU and PC 3. One RJ-11 phone cable (not included) for connecting IDU and Phone CAUTION 6 5. Easy Setup Physical connection as following (Refer to Installing Device Instruction). .Make sure there is a SIM in ODU(SIM CARD SLOT). .Connect IDU(WAN) and ODU(RJ45 & POE POWER SLOT) via Ethernet cable. .Use power adapter to connect IDU(Power). .Connect IDU(ETHERNET PORTS) and PC via Ethernet cable. Please follow the steps below to configure your device through the web interface: Step1: Open the Web browser (Internet Explorer) and enter the default IP address of the ODU CPE, which is : http://192.168.254.251 Default username/password: admin/admin Step2: The page shown here gets displayed in your browser after login; you can now configure the device settings. Signal Strength indicator on the upper-left corner of webpage. Mode: LTE Operator: APN Name Signal: (More bar means better signal) (Disconnect, no signal) 7 6. Wi-Fi Setting Step1: Select WIFI from main menu. Then screen will display the default setting of SSID, radio channel, working mode, and SSID broadcast. Step2: You could specify a radio channel, working mode, bandwidth in Settings page. 8 7. Make Phone Call The VoIP settings should be provided by your VoIP service provider. VoIP doesn’t support “flash + number” feature. Using a telephone connected to the PHONE port on IDU device, and making a call to another phone (either an Internet phone, or a regular PSTN number). If you are able to call the other number, your VoIP setup is working properly. Follow these directions to make calls over the Internet:  To dial a SIP number, press the numbers on your phone’s keypad to make the call.  To call regular telephone numbers, use your VoIP service provider’s dialing plan.  For call forward service, contact your service provider to know if they support this feature.  To receive a call through the IDU, the other party must have your SIP number and a SIP account of their own. 9 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Pa…

Text truncated - open the document above for the full version.

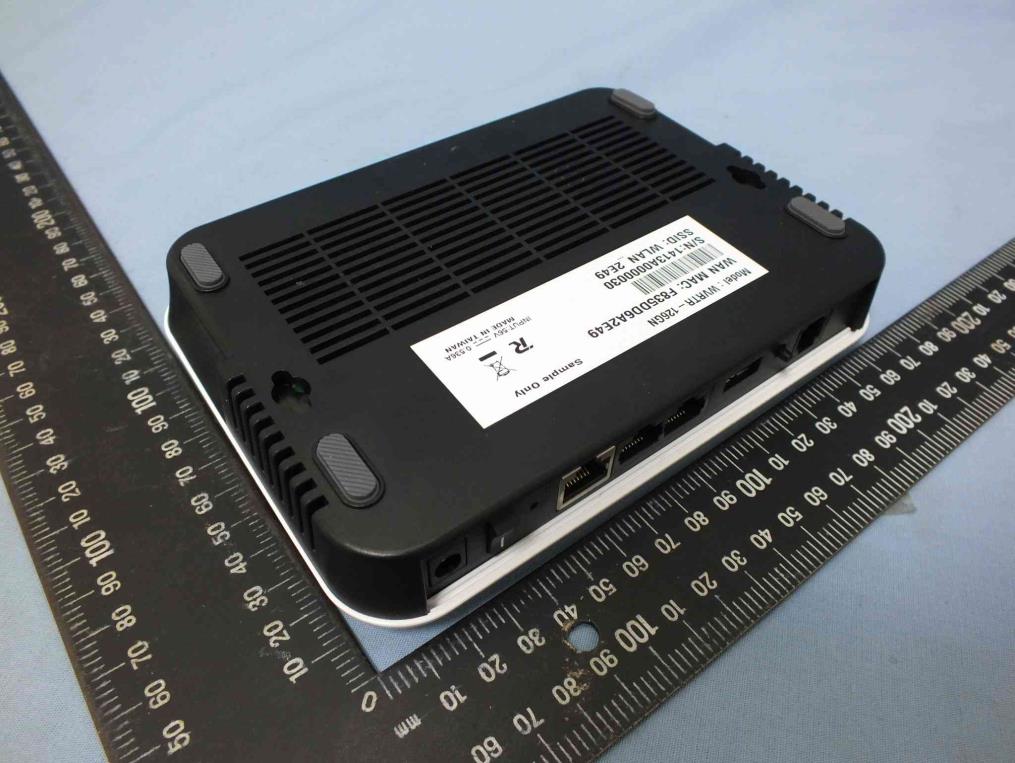

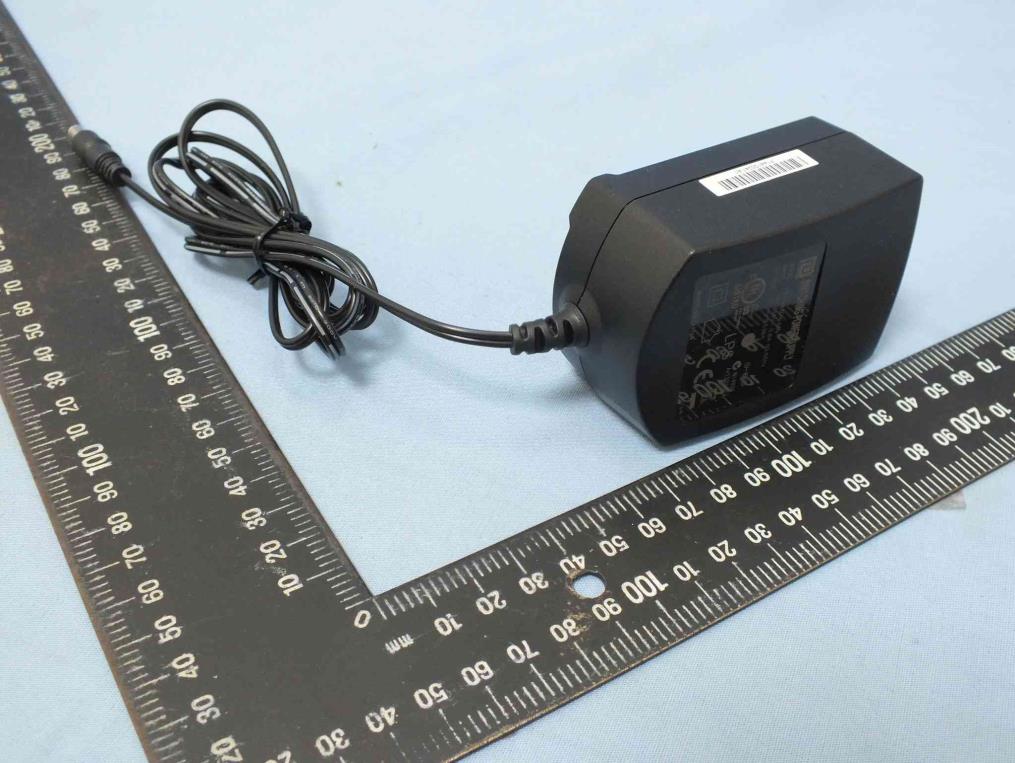

Project No.: EP551901 Page No. : 1 of 9 Photographs of EUT Project No.: EP551901 Page No. : 2 of 9 Project No.: EP551901 Page No. : 3 of 9 Project No.: EP551901 Page No. : 4 of 9

Project No.: EP551901 Page No. : 5 of 9 Project No.: EP551901 Page No. : 6 of 9 Project No.: EP551901 Page No. : 7 of 9 Project No.: EP551901 Page No. : 8 of 9 Project No.: EP551901 Page No. : 9 of 9

Report No.: FA551901 Page : 1 of 5 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : ARA-2D1VWIFIAP Equipment : DM-CPE7000-Indoor-2D-1V-WiFi-AP Model No. : WVRTR-126GN Brand Name : Telrad Applicant : Telrad Networks Ltd Address : Industrial Center PO Box 6118, Lod, 711600 Israel Standard : 47 CFR FCC Part 2.1091 Received Date : May 19, 2015 Tested Date : May 20 ~ May 27, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA551901 Page : 2 of 5 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 4 2 TEST LABORATORY INFORMATION ................................................................................................. 5 Report No.: FA551901 Page : 3 of 5 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA551901 Rev. 01 Initial issue Jun. 12, 2015 Report No.: FA551901 Page : 4 of 5 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 23.29 3.8 20 0.102 1 Report No.: FA551901 Page : 5 of 5 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR551901 Page : 1 of 63 Report Version: Rev. 01 FCC Test Report FCC ID : ARA-2D1VWIFIAP Equipment : DM-CPE7000-Indoor-2D-1V-WiFi-AP Model No. : WVRTR-126GN Brand Name : Telrad Applicant : Telrad Networks Ltd Address : Industrial Center PO Box 6118, Lod, 711600 Israel Standard : 47 CFR FCC Part 15.247 Received Date : May 19, 2015 Tested Date : May 20 ~ May 27, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR551901 Page : 2 of 63 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 6dB and Occupied Bandwidth .............................................................................................................. 15 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 20 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 22 3.6 Emissions in Non-Restricted Frequency Bands ................................................................................... 50 4 TEST LABORATORY INFORMATION ............................................................................................... 63 Report No.: FR551901 Page : 3 of 63 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR551901 Rev. 01 Initial issue Jun. 12, 2015 Report No.: FR551901 Page : 4 of 63 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.306MHz 51.08 (Margin -9.00dB) - QP Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 34.53MHz 38.97 (Margin -1.03dB) - QP Pass 15.247(b)(3) Maximum Output Power Max Power [dBm]: 28.38 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR551901 Page : 5 of 63 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 2 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 2 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 MCS 0-15 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Model Brand Type Gain (dBi) Connector Remark 1 A8-A006-00184 TSKY PIFA 3.8 IPEX PLUG --- 2 A8-A006-00183 TSKY PIFA 3.8 IPEX PLUG --- 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 56Vdc from adapter 1.1.4 Accessories Accessories No. Equipment Description 1 AC Adapter Brand Name: PHIHONG Model Name: PSAA30R-560 Power Rating: I/P: 100-240Vac, 50-60Hz, 0.8A O/P: 56Vdc, 0.536A Power Line: 1.5m non-shielded w/o core Report No.: FR551901 Page : 6 of 63 Report Version: Rev. 01 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 802.11 b / g / n HT20 802.11n HT40 Channel Frequency(MHz) Channel Frequency(MHz) 1 2412 3 2422 2 2417 4 2427 3 2422 5 2432 4 2427 6 2437 5 2432 7 2442 6 2437 8 2447 7 2442 9 2452 8 2447 --- --- 9 2452 --- --- 10 2457 --- --- 11 2462 --- --- 1.1.6 Test Tool and Duty Cycle Test Tool RT5x9x, Version: V1.0.8.0 AP Duty Cycle and Duty Factor Mode Duty cycle (%) Duty factor (dB) 11b 100.00% 0.00 11g 100.00% 0.00 HT20 100.00% 0.00 HT40 100.00% 0.00 Rep…
