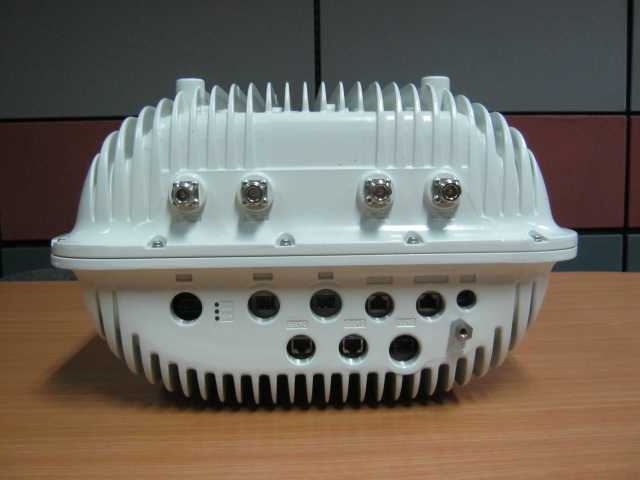

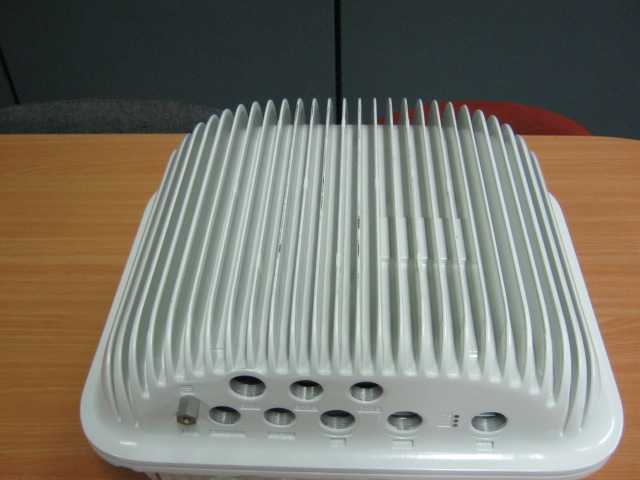

ARA-COMPACT23XBreezeCompact 3000 Base Station

BreezeCOMPACT SYSTEM MANUAL r Release Version: 5.0 August 2014 DN115004 We’re on your wavelength. BreezeCOMPACT System Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Legal Rights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BreezeCOMPACT System ManualBreezeCOMPACT System Manual 3 Legal Rights © Copyright 2015. Telrad Networks Ltd. All rights reserved. The material contained herein is proprietary, privileged, and confidential and owned by Telrad Networks or its third-party licensors. No disclosure thereof shall be made to third parties without the express written permission of Telrad Networks Ltd. Telrad Networks Ltd. reserves the right to alter the equipment specifications and descriptions in this publication without prior notice. No part of this publication shall be deemed to be part of any contract or warranty unless specifically incorporated by reference into such contract or warranty. Trade Names 4Motion ® and/or other products and Telrad Networks/or services referenced herein are either registered trademarks, trademarks or service marks of Telrad Networks Ltd. All other names are or may be the trademarks of their respective owners. Statement of Conditions The information contained in this manual is subject to change without notice. Telrad Networks Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this manual or equipment supplied with it. Warranties and Disclaimers All Telrad Networks Ltd. (“Telrad Networks“) products purchased from Telrad Networks or through any of Telrad Networks's authorized resellers are subject to the following warranty and product liability terms and conditions. Exclusive Warranty (a) Telrad Networks warrants that the Product hardware it supplies and the tangible media on which any software is installed, under normal use and conditions, will be free from significant defects in materials and workmanship for a period of fourteen (14) months from the date of shipment of a given Product to Purchaser (the "Warranty Period"). Telrad Networks will, at its sole option and as Purchaser's sole remedy, repair or replace any defective Product in accordance with Telrad Networks' standard R&R procedure. (b) With respect to the Firmware, Telrad Networks warrants the correct functionality according to the attached documentation, for a period of fourteen (14) months from invoice date (the "Warranty Period"). During the Warranty Period, Telrad Networks may release to its Customers firmware updates, which include additional performance improvements and/or bug fixes, upon availability (the "Warranty"). Bug fixes, temporary patches and/or workarounds may be supplied as Firmware updates. Additional hardware, if required, to install or use Firmware updates must be purchased by the Customer. Telrad will be obligated to support solely the two (2) most recent Software major releases. TELRAD NETWORKS SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY PURCHASER'S OR ANY THIRD PERSON'S MISUSE, NEGLIGENCE, IMPROPER INSTALLATION OR IMPROPER TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER HAZARD. Legal Rights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BreezeCOMPACT System ManualBreezeCOMPACT System Manual 4 Disclaimer (a) The Software is sold on an "AS IS" basis. Telrad Networks, its affiliates or its licensors MAKE NO WARRANTIES, WHATSOEVER, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THE SOFTWARE AND THE ACCOMPANYING DOCUMENTATION. TELRAD NETWORKS SPECIFICALLY DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT WITH RESPECT TO THE SOFTWARE. UNITS OF PRODUCT (INCLUDING ALL THE SOFTWARE) DELIVERED TO PURCHASER HEREUNDER ARE NOT FAULT-TOLERANT AND ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE IN APPLICATIONS WHERE THE FAILURE, MALFUNCTION OR INACCURACY OF PRODUCTS CARRIES A RISK OF DEATH OR BODILY INJURY OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE ("HIGH-RISK ACTIVITIES"). HIGH-RISK ACTIVITIES MAY INCLUDE, BUT ARE NOT LIMITED TO, USE AS PART OF ON-LINE CONTROL SYSTEMS IN HAZARDOUS ENVIRONMENTS REQUIRING FAIL-SAFE PERFORMANCE, SUCH AS IN THE OPERATION OF NUCLEAR FACILITIES, AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR TRAFFIC CONTROL, LIFE SUPPORT MACHINES, WEAPONS SYSTEMS OR OTHER APPLICATIONS REPRESENTING A SIMILAR DEGREE OF POTENTIAL HAZARD. TELRAD NETWORKS SPECIFICALLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR HIGH-RISK ACTIVITIES. (b) PURCHASER'S SOLE REMEDY FOR BREACH OF THE EXPRESS WARRANTIES ABOVE SHALL BE REPLACEMENT OR REFUND OF THE PURCHASE PRICE AS SPECIFIED ABOVE, AT TELRAD NETWORKS'S OPTION. TO THE FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES AND REMEDIES SET FORTH IN THIS AGREEMENT ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING BUT NOT LIMITED TO WARRANTIES, TERMS OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY, CORRESPONDENCE WITH DESCRIPTION, NON-INFRINGEMENT, AND ACCURACY OF INFORMATION GENERATED, ALL OF WHICH ARE EXPRESSLY DISCLAIMED. TELRAD NETWORKS' WARRANTIES HEREIN RUN ONLY TO PURCHASER, AND ARE NOT EXTENDED TO ANY THIRD PARTIES. TELRAD NETWORKS NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. Limitation of Liability (a) TELRAD NETWORKS SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY THIRD PARTY, FOR ANY LOSS OF PROFITS, LOSS…

Text truncated - open the document above for the full version.

Date:May 10, 2015 To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to act on our behalf regarding the FCC ID Certification Processfor the following application: FCC ID:ARA-COMPACT23X Thank you, Klara Milman Project Manager Telrad Networks Ltd.

Date:May 10, 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:ARA-COMPACT23X Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: CONF APPENDIX CMP3000-B40-2300-2400MHz BlkDia.pdf CONF APPENDIX CMP3000-B40-2300-2400MHz PartsLst.pdf CONF APPENDIX CMP3000-B40-2300-2400MHzSchem The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Klara Milman Project Manager Telrad Networks Ltd.

CUS 30 FCC ID:ARA-COMPACT23X IP67 IC: 899A-COMPACT23X HVIN: CMP3000-B40 Product: CMP3000-B40-2300-2400MHZ -48Vdc, 4A This device complies with part 15 of the FCC rules. OperaƟon is subject to the following two condiƟons: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operaƟon. ID: 510852643

BreezeCompact2.3G TechnicalDescription BreezeCompact2.3GBasestationisahighcapacity,IPservicesorientedBroadbandWirelessAccesssystem. BreezeCompact2.3GisdigitalmodulatedTDDsystemcovering2305-2315MHzand 2350-2360 MHZrange.Thesystemcontainsanall outdoorbasestationunit. Thebasicbasestationsystemconfigurationiscontainspowersupply,MODEMandbasedonRFICradio. ThefollowingdescribesthetransmitpathandreceivepathoftheBreezeCompact2.3G. Note:TheODUconsistsoffouridenticalRFradiopathsbasedontwoidenticalRFICchipsets,allpathsterminatedwithantennaports. OnlytworadiopathsthatbasedononeRFICaredescribedinthedetailedblockdiagram. The DC voltage applied to the final RF amplifying deviceis 28VDC. Transmitmode: Thesignalflowintransmitmodeisasfollowed.TheIQsignalpassesfromtheModemtoradiopart,andconvertedtorequiredRFfrequencyby RFICthenthesignalpassesthrucomboBalun+BPF,GVA-63+ and MGA635P8amplifiers,amplifiedagainbyMGA-22033,then passesthru cable to high power cardandamplifiedagainbyBLF6G27-10G and BLF7G27L-90P. Theamplifiedsignalpassesthrucirculator and cavity filter (2305-2315MHzand 2350-2360MHz)directlytoantennaport. Receivemode: Thesignalflowinthereceivemodeisasfollowed.Theunitantennareceivesthesignal.Thereceivedsignalpassesthrucavity filter (2305-2315MHz and 2350-2360MHz),circulator andTX/RXswitch. TheLNAMGA635P8,comboBalun+BPFdirectlytotheRFIC,converted toIQsignalanddirectedtotheModem.

2 1 cm mW R.F Exposure/Safety Calculation for CMP3000-B40-2300-2400MHz The E.U.T. ispolemounted. Calculation of Maximum Permissible Exposure (MPE) Based on Section 1.1307(b)(1) Requirements (a)FCC limit at2300-2400MHz is: Using table 1 of Section 1.1310limit for general population/uncontrolled exposures, the above level is an average over 30 minutes. (b)The power density produced by the E.U.T. is P t -Transmitted Peak Power (worst case) G T -Antenna Gain,dBi R-Distance from Transmitter S-MPE =1 2 4R GP S tt   4 tt GP R (c)The calculated minimum distance between the EUT antenna and the general public is: ModulationBW Operation Freq MIMO Pt MIMO Pt Antenna Type G T G T RS (Hz)(MHz) (dBm)(mW)(dBi)numeric(cm) (mW) QPSK 5M2307.546.0740458External15.636.33900.768373 5M2312.545.9739537External15.636.33900.750881 10M2310.045.9739537External15.636.33900.750881 5M2352.545.9739537External15.636.33900.750881 5M2357.545.9239084External15.636.33900.742278 10M2355.046.0540272External15.636.33900.76484 ModulationBW Operation Freq MIMO Pt MIMO Pt Antenna Type G T G T RS (Hz)(MHz) (dBm)(mW)(dBi)numeric(cm) (mW) 16QAM 5M2307.545.9739537External15.636.33900.750881 5M2312.545.9038905External15.636.33900.738878 10M2310.046.0239995External15.636.33900.75958 5M2352.545.9239084External15.636.33900.742278 5M2357.545.9038905External15.636.33900.738878 10M2355.046.3843451External15.636.33900.825215 ModulationBW Operation Freq MIMO Pt MIMO Pt Antenna Type G T G T RS (Hz)(MHz) (dBm)(mW)(dBi)numeric(cm) (mW) 64QAM 5M2307.546.0740458External15.636.33900.768373 5M2312.545.9739537External15.636.33900.750881 10M2310.045.2533497External15.636.33900.63617 5M2352.545.9539355External15.636.33900.747425 5M2357.545.9539355External15.636.33900.747425 10M2355.045.2033113External15.636.33900.628878

Test Report E150741.03 Telrad Networks Ltd. Page 1 of 189 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 18 June 2015 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report For Telrad Networks Ltd. Equipment under test: BreezeCompact 3000 Base Station CMP3000-B40-2300-2400MHz Tested by: _____________________________ M. Zohar Approved by: _____________________________ D. Shidlowsky This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E150741.03 Telrad Networks Ltd. Page 2 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Telrad Networks Ltd. BreezeCompact 3000 Base Station FCC ID: ARA-COMPACT23X IC: 899A-COMPACT23X This report concerns: Original Grant: X Class II change: Class I change: Equipment type: Licensed Non-Broadcast Transmitter (TNB) Limits used: 47CFR Parts 2, 27 RSS-195, Issue 2, April 2014 SRSP-516, Issue 1, April 2014 Measurement procedure used is ANSI C63.4-2009. Substitution Method used as in ANSI/TIA-603-C: 2004 Application for Certification Applicant for this device: prepared by: (different from "prepared by") R. Pinchuck Klara Milman ITL (Product Testing) Ltd. Telrad Networks Ltd. 1 Bat Sheva St. 1 Batsheva St. Lod 7120101 Lod, 7120101 Israel Israel e-mail [email protected] Tel: +972-73-246-7651 Fax: +972-73-246-7504 e-mail: [email protected] Test Report E150741.03 Telrad Networks Ltd. Page 3 of 189 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information ................................................................................. 5 1.2 List of Accreditations ......................................................................................... 6 1.3 Product Description ........................................................................................... 7 1.4 Test Methodology .............................................................................................. 7 1.5 Test Facility ....................................................................................................... 7 1.6 Measurement Uncertainty ................................................................................. 7 2. SYSTEM TEST CONFIGURATION --------------------------------------------------------------------- 8 2.1 Justification ........................................................................................................ 8 2.2 EUT Exercise Software ..................................................................................... 8 2.3 Special Accessories .......................................................................................... 8 2.4 Equipment Modifications ................................................................................... 8 2.5 Configuration of Tested System ........................................................................ 9 3. TEST SET-UP PHOTOS ----------------------------------------------------------------------------------11 4. PEAK OUTPUT POWER ---------------------------------------------------------------------------------14 4.1 Test Specification ............................................................................................ 14 4.2 Test Procedure ................................................................................................ 14 4.3 Test Results..................................................................................................... 14 4.4 Test Equipment Used; Peak Output Power .................................................... 53 5. AVERAGE POWER SPECTRAL DENSITY ---------------------------------------------------------55 5.1 Test Specification ............................................................................................ 55 5.2 Test Procedure ................................................................................................ 55 5.3 Test Results..................................................................................................... 55 5.4 Test Equipment Used; Peak Output Power .................................................... 94 6. PEAK TO AVERAGE POWER RATIO ---------------------------------------------------------------96 6.1 Test Specification ............................................................................................ 96 6.2 Test Procedure ................................................................................................ 96 6.3 Test Results..................................................................................................... 96 6.4 Test Equipment Used; 0.1% PAPR ............................................................... 103 7. OCCUPIED BANDWIDTH ----------------------------------------------------------------------------- 105 7.1 Test Specification .......................................................................................... 105 7.2 Test Procedure .............................................................................................. 105 7.3 Test Results................................................................................................... 105 7.4 Test Equipment Used; Occupied Bandwidth ................................................. 115 8. SPURIOUS EMISSIONS AT ANTENNA TERMINALS ----------------------------------------- 117 8.1 Test Specification .......................................................................................... 117 8.2 Test Procedure .............................................................................................. 117 8.3 Test Results................................................................................................... 117 8.4 Test Equipment Used; Out of Band Emission at Antenna Terminals ........... 153 9. BAND EDGE SPECTRUM ----------------------------------------------------------------------------- 155 9.1 Test Specificati…

Text truncated - open the document above for the full version.

Test Report E150741.03 Telrad Networks Ltd. Page 55 of 189 FCC ACC M Ver 1.1 05Mayl 2000 5. Average Power Spectral Density 5.1 Test Specification FCC Part 27.50(a)(1)(A) 5.2 Test Procedure The method that used as detailed in FCC KDB 971168. Average PSD in any 1MHz must not exceed 400 Watts (56dBm) and in any 5MHz, must not exceed 2000 Watts (63dBm). The E.U.T. antenna terminal was connected to the Spectrum Analyzer through an external attenuator, D.C block and an appropriate coaxial cable (loss=31.1dB). Duty cycle was calculated for total EIRP (1.9dB). The E.U.T. RF output was modulated. Special attention was taken to prevent Spectrum Analyzer RF input overload. The Spectrum Analyzer was set to 1000 kHz RBW. The output power level was measured at the low, mid and high channels of each modulation. For PSD in any 5MHz the equation: 10 log� 5푀푀푀푀푀푀 1푀푀푀푀푀푀 �= 7푑푑푑푑. This factor was added to the test results in 1MHz. The total results were compared to the PSD 5MHz limit as detailed above. 5.3 Test Results BW Operation Freq PSD Port1 PSD Port2 PSD Port3 PSD Port4 Calculated Power Ant Gain EIRP Spec Margin (Hz) (MHz) (dBm) (dBm) (dBm) (dBm) (dBm) (dBi) (dBm) (dBm) (dB) 5M 2307.5 33.6 33.9 33.8 34.5 39.98 15.6 55.58 56.0 -0.42 5M 2312.5 33.6 33.6 33.8 34.2 39.83 15.6 55.43 56.0 -0.57 10M 2310.0 30.8 30.6 30.7 30.7 36.72 15.6 52.32 56.0 -3.68 5M 2352.5 34.0 34.1 34.0 34.0 40.05 15.6 55.65 56.0 -0.35 5M 2357.5 33.2 34.5 34.0 33.6 39.87 15.6 55.47 56.0 -0.53 10M 2355.0 31.0 30.9 30.6 31.0 36.90 15.6 52.50 56.0 -3.50 Figure 1 1MHz - Average Power Spectral Density QPSK BW Operation Freq PSD Port1 PSD Port2 PSD Port3 PSD Port4 Calculated Power Ant Gain EIRP Spec Margin (Hz) (MHz) (dBm) (dBm) (dBm) (dBm) (dBm) (dBi) (dBm) (dBm) (dB) 5M 2307.5 33.7 33.9 33.6 33.9 39.80 15.6 55.4 56.0 -0.6 5M 2312.5 33.8 33.7 34.0 34.0 39.80 15.6 55.4 56.0 -0.6 10M 2310.0 30.7 30.5 31.6 31.4 36.90 15.6 52.5 56.0 -3.5 5M 2352.5 34.0 34.0 33.5 33.8 39.80 15.6 55.4 56.0 -0.6 5M 2357.5 34.4 33.4 34.0 33.8 39.94 15.6 55.54 56.0 -0.5 10M 2355.0 31.2 30.9 31.9 31.1 37.20 15.6 52.8 56.0 -3.2 Figure 2 1 MHz - Average Power Spectral Density 16QAM Test Report E150741.03 Telrad Networks Ltd. Page 56 of 189 FCC ACC M Ver 1.1 05Mayl 2000 BW Operation Freq PSD Port1 PSD Port2 PSD Port3 PSD Port4 Calculated Power Ant Gain EIRP Spec Margin (Hz) (MHz) (dBm) (dBm) (dBm) (dBm) (dBm) (dBi) (dBm) (dBm) (dB) 5M 2307.5 33.7 34.1 33.9 34.1 39.9 15.6 55.5 56.0 -0.5 5M 2312.5 33.8 33.8 34.0 34.0 39.9 15.6 55.5 56.0 -0.5 10M 2310.0 29.8 29.7 29.9 30.3 35.8 15.6 51.4 56.0 -4.6 5M 2352.5 34.0 34.0 33.8 33.6 39.8 15.6 55.4 56.0 -0.6 5M 2357.5 33.7 33.8 33.3 33.8 39.5 15.6 55.1 56.0 -0.9 10M 2355.0 30.4 30.0 30.4 29.9 36.2 15.6 51.8 56.0 -4.2 Figure 3 1MHz - Average Power Spectral Density 64QAM BW Operation Freq PSD Port1 PSD Port2 PSD Port3 PSD Port4 Calculated Power Ant Gain EIRP Spec Margin (Hz) (MHz) (dBm) (dBm) (dBm) (dBm) (dBm) (dBi) (dBm) (dBm) (dB) 5M 2307.5 40.6 40.9 40.8 41.5 46.98 15.6 62.58 63.0 -0.42 5M 2312.5 40.6 40.6 40.8 41.2 46.83 15.6 62.43 63.0 -0.57 10M 2310.0 37.8 37.6 37.7 37.7 43.72 15.6 59.32 63.0 -3.68 5M 2352.5 41.0 41.1 41.0 41.0 47.05 15.6 62.65 63.0 -0.35 5M 2357.5 40.2 41.5 41.0 40.6 46.88 15.6 62.48 63.0 -0.52 10M 2355.0 38.0 37.9 37.6 38.0 43.90 15.6 59.50 63.0 -3.50 Figure 4 5MHz - Average Power Spectral Density QPSK BW Operation Freq PSD Port1 PSD Port2 PSD Port3 PSD Port4 Calculated Power Ant Gain EIRP Spec Margin (Hz) (MHz) (dBm) (dBm) (dBm) (dBm) (dBm) (dBi) (dBm) (dBm) (dB) 5M 2307.5 40.7 40.9 40.6 40.9 46.80 15.6 62.40 63.0 -0.60 5M 2312.5 40.8 40.7 41.0 41.0 46.90 15.6 62.50 63.0 -0.50 10M 2310.0 37.7 37.5 38.6 38.4 44.09 15.6 59.69 63.0 -3.31 5M 2352.5 41.0 41.0 40.5 40.8 46.85 15.6 62.45 63.0 -0.55 5M 2357.5 41.4 40.4 41.0 40.8 46.94 15.6 62.54 63.0 -0.46 10M 2355.0 38.2 37.9 38.9 38.1 44.31 15.6 59.91 63.0 -3.09 Figure 5 5MHz - Average Power Spectral Density 16QAM Test Report E150741.03 Telrad Networks Ltd. Page 57 of 189 FCC ACC M Ver 1.1 05Mayl 2000 BW Operation Freq PSD Port1 PSD Port2 PSD Port3 PSD Port4 Calculated Power Ant Gain EIRP Spec Margin (Hz) (MHz) (dBm) (dBm) (dBm) (dBm) (dBm) (dBi) (dBm) (dBm) (dB) 5M 2307.5 40.7 41.1 40.9 41.1 46.98 15.6 62.58 63.0 -0.42 5M 2312.5 40.8 40.8 41.0 41.0 46.92 15.6 62.52 63.0 -0.48 10M 2310.0 36.8 36.7 36.9 37.3 42.98 15.6 58.58 63.0 -4.42 5M 2352.5 41.0 41.0 40.8 40.6 46.88 15.6 62.48 63.0 -0.52 5M 2357.5 40.7 40.8 40.3 40.8 46.67 15.6 62.27 63.0 -0.73 10M 2355.0 37.4 37.0 37.4 36.9 43.20 15.6 58.80 63.0 -4.20 Figure 6 5MHz - Average Power Spectral Density 64QAM Note - Configuration of 4X4 (TX/RX), 1 sector, 1 carrier transmitting on same frequency on all 4 channels is regarded as worst case: 1) 2 transmitted channels use completely uncorrelated signals resulting 0dBi array gain. 2) 2 other transmitted channels using correlated signals and crossed polarized antennas resulting 0dBi array gain. 3) All 4 TX antennas have 15.6 dBi gain each. 4) Therefore total array gain is 0dBi. 5) Therefore total directional gain is 15.6 dBi. JUDGEMENT: Passed by 0.35 dB See additional information in Figure 7 to Figure 78. Test Report E150741.03 Telrad Networks Ltd. Page 58 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Figure 7.—QPSK 2310.0 MHz, BW 10MHz, Port 1 Figure 8.— QPSK 2310.0 MHz, BW 10MHz, Port 2 Test Report E150741.03 Telrad Networks Ltd. Page 59 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Figure 9.— QPSK 2310.0 MHz, BW 10MHz, Port 3 Figure 10.— QPSK 2310.0 MHz, BW 10MHz, Port 4 Test Report E150741.03 Telrad Networks Ltd. Page 60 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Figure 11.— QPSK 2355.0 MHz, BW 10MHz, Port 1 Figure 12.— QPSK 2355.0 MHz, BW 10MHz, Port 2 Test Report E150741.03 Telrad Networks Ltd. Page 61 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Figure 13.— QPSK 2355.0 MHz, BW 10MHz, Port 3 Figure 14.— QPSK 2355.0 MHz, BW 10MHz, Port 4 Test Report E150741.03 Telrad Networks Ltd. Page 62 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Figure 15.— QPSK 2307.5 MHz, BW 5MHz, Port 1 Figure 16.— QPSK 230…

Text truncated - open the document above for the full version.

Test Report E150741.03 Telrad Networks Ltd. Page 105 of 189 FCC ACC M Ver 1.1 05Mayl 2000 7. Occupied Bandwidth 7.1 Test Specification FCC Part 2, Section 1049 7.2 Test Procedure The E.U.T. was set to the applicable test frequency with modulation. The E.U.T. antenna terminal was connected to the spectrum analyzer through an external attenuator (at the output test) and an appropriate coaxial cable. The OBW function (99%) was used for this evaluation. Occupied bandwidth measured was repeated for each modulation and for each declared BW. 7.3 Test Results Modulation Sub- Band BW Operation Frequency Measurement (MHz) (MHz) (MHz) QPSK Low 5.0 2307.5 4.6 Low 5.0 2312.5 4.6 Low 10.0 2310.0 9.2 High 5.0 2352.5 4.6 High 5.0 2357.5 4.6 High 10.0 2355.0 9.2 16QAM Low 5.0 2307.5 4.6 Low 5.0 2312.5 4.6 Low 10.0 2310.0 9.2 High 5.0 2352.5 4.6 High 5.0 2357.5 4.6 High 10.0 2355.0 9.2 64QAM Low 5.0 2307.5 4.6 Low 5.0 2312.5 4.6 Low 10.0 2310.0 9.2 High 5.0 2352.5 4.6 High 5.0 2357.5 4.6 High 10.0 2355.0 9.2 Table 1 Occupied Bandwidth Test Results See additional information in Figure 178 to Figure 195. JUDGEMENT: Passed TEST PERSONNEL: Tester Signature: __________________ Date: 18.05.15 Typed/Printed Name: M. Zohar Test Report E150741.03 Telrad Networks Ltd. Page 106 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Figure 1 Occupied Bandwidth QPSK, Freq. 2307.5MHz, BW 5MHz Figure 2 Occupied Bandwidth QPSK, Freq. 2312.5MHz, BW 5MHz Test Report E150741.03 Telrad Networks Ltd. Page 107 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Figure 3 Occupied Bandwidth QPSK, Freq. 2310.0MHz, BW 10MHz Figure 4 Occupied Bandwidth QPSK, Freq. 2352.5MHz, BW 5MHz Test Report E150741.03 Telrad Networks Ltd. Page 108 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Figure 5 Occupied Bandwidth QPSK, Freq. 2357.5MHz, BW 5MHz Figure 6 Occupied Bandwidth QPSK, Freq. 2355.0MHz, BW 10MHz Test Report E150741.03 Telrad Networks Ltd. Page 109 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Figure 7 Occupied Bandwidth 16QAM, Freq. 2307.5MHz, BW 5MHz Figure 8 Occupied Bandwidth 16QAM, Freq. 2310.0MHz, BW 10MHz Test Report E150741.03 Telrad Networks Ltd. Page 110 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Figure 9 Occupied Bandwidth 16QAM, Freq. 2312.5MHz, BW 5MHz Figure 10 Occupied Bandwidth 16QAM, Freq. 2352.5MHz, BW 5MHz Test Report E150741.03 Telrad Networks Ltd. Page 111 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Figure 11 Occupied Bandwidth 16QAM, Freq. 2357.5MHz, BW 5MHz Figure 12 Occupied Bandwidth 16QAM, Freq. 2355.0MHz, BW 10MHz Test Report E150741.03 Telrad Networks Ltd. Page 112 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Figure 13 Occupied Bandwidth 64QAM, Freq. 2307.5MHz, BW 5MHz Figure 14 Occupied Bandwidth 64QAM, Freq. 2310.0MHz, BW 10MHz Test Report E150741.03 Telrad Networks Ltd. Page 113 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Figure 15 Occupied Bandwidth 64QAM, Freq. 2312.5MHz, BW 5MHz Figure 16 Occupied Bandwidth 64QAM, Freq. 2352.5MHz, BW 5MHz Test Report E150741.03 Telrad Networks Ltd. Page 114 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Figure 17 Occupied Bandwidth 64QAM, Freq. 2357.5MHz, BW 5MHz Figure 18 Occupied Bandwidth 64QAM, Freq. 2355.0, BW 10MHz Test Report E150741.03 Telrad Networks Ltd. Page 115 of 189 FCC ACC M Ver 1.1 05Mayl 2000 7.4 Test Equipment Used; Occupied Bandwidth Instrument Manufacturer Model Serial Number Calibration Period EMI Receiver R&S ESIB7 100120 January 4, 2015 1 year Spectrum Analyzer R&S FSL6 100194 January 1, 2015 1 year Spectrum Analyzer HP 8592L 3826A01204 March 4, 2015 1 year Active Loop Antenna EMCO 6502 2950 November 4, 2014 1 year Biconical Log Antenna EMCO 3142B 1078 May 22, 2014 2 years Horn Antenna ETS 3115 6142 March 14, 2012 3 years* Horn Antenna A.R.A SWH-28 1007 March 30, 2014 2 years D.C Block JFW 50DB-007 1- 23 N/A N/A Coupler PULSAR CS 10-05-436 10 N/A N/A Notch Filter TELRAD RMC2310_2355 D10M08 10050150 N/A N/A MXA Signal Analyzer Agilent N9020A MY46471581 February 12 2015 2 years Spectrum Analyzer HP 8563E 3810A8846 November 30, 2014 1 year 10 dB Attenuator Weinschel 33-10-34 BZ5739 N/A N/A 5 dB Attenuator Mini-circuits VAT-5+ 15542 N/A N/A Power Splitter Mini-circuits ZN2PD-63-S+ F442300839 N/A N/A Attenuator Weinschel 24-20-34 BZ144 N/A N/A Attenuator Weinschel 24-20-34 BY0842 N/A N/A Attenuator Weinschel 24-20-34 BY0855 N/A N/A Attenuator Weinschel 24-20-34 BY0842 N/A N/A Test Report E150741.03 Telrad Networks Ltd. Page 116 of 189 FCC ACC M Ver 1.1 05Mayl 2000 Signal Generator WILTRON 6747B 278007 October 23, 2014 1 year Low Noise Amplifier Sophia Wireless LNA 28-B 232 August 29, 2014 1 year Low Noise Amplifier DBS MICROWAVE LNA-DBS- 0411N313 013 August 22, 2014 1 year Environmental Chamber THERMOTRON CORP SM 32C Mini Max 25-1030 February 24, 2015 1 year Antenna Mast ETS 2070-2 - N/A N/A Turntable ETS 2087 - N/A N/A Mast & Table Controller ETS/EMCO 2090 9608-1456 N/A N/A *Note – Extended to May 19, 2015 Figure 19 Test Equipment Used Test Report E150741.03 Telrad Networks Ltd. Page 117 of 189 FCC ACC M Ver 1.1 05Mayl 2000 8. Spurious Emissions at Antenna Terminals 8.1 Test Specification FCC Part 27, Section: 53(a)(1) RSS 195 Issue 2, April 2014 Sections 4.2, 5.6.1 8.2 Test Procedure The power of any emission outside of the authorized operating frequency ranges (2345-2360 MHz 2305-2320MHz) must be attenuated below the transmitting power (P) by a factor of at least as specified in Figure 197 Mask Limit Table. The E.U.T. antenna terminal was connected to the spectrum analyzer through an external attenuator and an appropriate coaxial cable. The evaluation was done in frequency band from 9K-24GHz without band edges tests, for each frequency and BW. Frequency B and (MHz) Calculated Factor (dBc) f<2285.0 75+10*log(10.5)=85.2 2285.0MHz<f<2287.5MHz 72+10*log(10.5)=82.2 2287.5MHz<f<2300.0MHz 70+10*log(10.5)=80.2 2300.0MHz<f<2305.0MHz 43+10*log(10.5)=53.2 2305.0MHz<f<2320.0MHz 43+10*log(10.5)=53.2 2320.0MHz<f<2345.0MHz 75+10*log(10.5)=85.2 2345.0MHz<f<2360.0MHz 43+10*log(10.5)=53.2 2360.0MHz<f<2362.50MHz 43+10*log(10.5)=53.2 2362.5MHz<f<2365.…

Text truncated - open the document above for the full version.
