ARA-COMPACT3XBase station transceiver

System Manual BreezeCOMPACT Release Version:4.1 March 2013 P/N 516043 i Legal Rights BreezeCOMPACT System Manual Legal Rights © Copyright 2014 Telrad Networks Ltd. All rights reserved. The material contained herein is proprietary, privileged, and confidential and owned by Telrad Networks or its third party licensors. No disclosure thereof shall be made to third parties without the express written permission of Telrad Networks Ltd. Telrad Networks Ltd. reserves the right to alter the equipment specifications and descriptions in this publication without prior notice. No part of this publication shall be deemed to be part of any contract or warranty unless specifically incorporated by reference into such contract or warranty. Trade Names BreezeCOM ® , WALKair ® , WALKnet ® , BreezeMAX ® , BreezeLITE ® , BreezePHONE ® , 4Motion ® , and/or other products andTelrad Networks/or services referenced here in are either registered trademarks, trademarks or service marks of Telrad Networks Ltd. All other names are or may be the trademarks of their respective owners. “WiMAX Forum” is a registered trademark of the WiMAX Forum. “WiMAX,” the WiMAX Forum logo, “WiMAX Forum Certified”, and the WiMAX Forum Certified logo are trademarks of the WiMAX Forum. Statement of Conditions The information contained in this manual is subject to change without notice. Telrad Networks Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or equipment supplied with it. Warranties and Disclaimers All Telrad Networks Ltd. (“Telrad Networks“) products purchased from Telrad Networks or through any of Telrad Networks's authorized resellers are subject to the following warranty and product liability terms and conditions. Exclusive Warranty (a) Telrad Networks warrants that the Product hardware it supplies and the tangible media on which any software is installed, under normal use and conditions, will be free from significant defects in materials and workmanship for a period of fourteen (14) months from the date of shipment of a given Product to Purchaser (the "Warranty Period"). Telrad Networks will, at its sole option and as Purchaser's sole remedy, repair or replace any defective Product in accordance with Telrad Networks' standard R&R procedure. (b) With respect to the Firmware, Telrad Networks warrants the correct functionality according to the attached documentation, for a period of fourteen (14) month from invoice date (the "Warranty Period")". During the Warranty Period, Telrad Networks may release to its Customers firmware updates, which include additional performance improvements and/or bug fixes, upon availability (the "Warranty"). Bug fixes, temporary patches and/or workarounds may be supplied as Firmware updates. Additional hardware, if required, to install or use Firmware updates must be purchased by the Customer. Telrad will be obligated to support solely the two (2) most recent Software major releases. TELRAD NETWORKS SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY PURCHASER'S OR ANY THIRD PERSON'S MISUSE, NEGLIGENCE, IMPROPER INSTALLATION OR IMPROPER TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER HAZARD. ii Legal Rights BreezeCOMPACT System Manual Disclaimer (a) The Software is sold on an "AS IS" basis. Telrad Networks, its affiliates or its licensors MAKE NO WARRANTIES, WHATSOEVER, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THE SOFTWARE AND THE ACCOMPANYING DOCUMENTATION. TELRAD NETWORKS SPECIFICALLY DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT WITH RESPECT TO THE SOFTWARE. UNITS OF PRODUCT (INCLUDING ALL THE SOFTWARE) DELIVERED TO PURCHASER HEREUNDER ARE NOT FAULT-TOLERANT AND ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE IN APPLICATIONS WHERE THE FAILURE, MALFUNCTION OR INACCURACY OF PRODUCTS CARRIES A RISK OF DEATH OR BODILY INJURY OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE ("HIGH RISK ACTIVITIES"). HIGH RISK ACTIVITIES MAY INCLUDE, BUT ARE NOT LIMITED TO, USE AS PART OF ON-LINE CONTROL SYSTEMS IN HAZARDOUS ENVIRONMENTS REQUIRING FAIL-SAFE PERFORMANCE, SUCH AS IN THE OPERATION OF NUCLEAR FACILITIES, AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR TRAFFIC CONTROL, LIFE SUPPORT MACHINES, WEAPONS SYSTEMS OR OTHER APPLICATIONS REPRESENTING A SIMILAR DEGREE OF POTENTIAL HAZARD. TELRAD NETWORKS SPECIFICALLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR HIGH RISK ACTIVITIES. (b) PURCHASER'S SOLE REMEDY FOR BREACH OF THE EXPRESS WARRANTIES ABOVE SHALL BE REPLACEMENT OR REFUND OF THE PURCHASE PRICE AS SPECIFIED ABOVE, AT TELRAD NETWORKS'S OPTION. TO THE FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES AND REMEDIES SET FORTH IN THIS AGREEMENT ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING BUT NOT LIMITED TO WARRANTIES, TERMS OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY, CORRESPONDENCE WITH DESCRIPTION, NON-INFRINGEMENT, AND ACCURACY OF INFORMATION GENERATED. ALL OF WHICH ARE EXPRESSLY DISCLAIMED. TELRAD NETWORKS' WARRANTIES HEREIN RUN ONLY TO PURCHASER, AND ARE NOT EXTENDED TO ANY THIRD PARTIES. TELRAD NETWORKS NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. Limitation of Liability (a) TELRAD NETWORKS SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY THIRD PARTY, FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS OR FOR ANY INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER ARISING UNDER BREACH OF CONTRACT, TORT (INC…

Text truncated - open the document above for the full version.

Telrad Networks Ltd. FCC ID:ARA-COMPACT3X RF_Env_evaluation_24990.doc Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 The calculation was done to confirm required safe distance for fixed device. Limit for power density for general population/uncontrolled exposure is 1 mW/cm 2 for 1500 -100000 MHz frequency range: The power density P (mW/cm 2 ) = P T / 4 r 2 , where P T is the maximum equivalent isotropically radiated power (EIRP). 1) The peak output power of 21.65 dBm with 20.5 dBi total antenna gain (please refer to Table 6.6.2 of the test report TELRAD_FCC_IC_24990_RS197) corresponds to the equivalent isotropically radiated power (EIRP) of 21.65 dBm + 20.5 dBi = 42.15 dBm, which is equal to 16405.9 mW. The minimum safe distance “r”, where RF exposure does not exceed FCC permissible limit, is r = sqrt { P T / (Px4)} = sqrt {16405.9 / 12.56} = 36 cm. 2) In the transmit mode of 2 carrier 1sector (please refer to Table 6.6.2 of the test report) - 2 carriers occupy twice the BW- the total power will be 3 dB higher = 45.15 dBm = 32734 mW r = sqrt { P T / (Px4)} = sqrt {32734 / 12.56} = 51 cm. General public cannot be exposed to dangerous RF level, a fixed device is located at least 2 m safe distance from the persons.

Report ID: TLDRAD_FCC_IC_24990_RSS197.docx Date of Issue: 15-Jan-14 Test specification: FCC Section 90.203 (o) / RSS-197 Section 5.4, Contention based protocol Test procedure: FCC Section 90.203 (o), RSS-197 Section 4.2 Test mode: Compliance Verdict: PASS Date(s): 1/7/2014 - 1/13/2014 Temperature: 23 ºC Air Pressure: 1022 hPa Relative Humidity: 39 % Power Supply: 48 VDC Remarks: Page 89 of 112 8 Contention Based Protocol 8.1 General This test was performed to verify the EUT contention-based protocol function. Contention-based protocol is defined as: A protocol that allows multiple users to share the same spectrum by defining the events that must occur when two or more transmitters attempt to simultaneously access the same channel and establishing rules by which a transmitter provides reasonable opportunities for other transmitters to operate. Such a protocol may consist of procedures for initiating new transmissions, procedures for determining the state of the channel (available or unavailable), and procedures for managing retransmissions in the event of a busy channel. Contention-based protocols shall fall into one of two categories: (1) An unrestricted contention-based protocol is one which can avoid co-frequency interference with devices using all other types of contention-based protocols. (2) A restricted contention-based protocol is one that does not qualify as unrestricted. The EUT is BreezeCOMPACT Base station linked with CPE 3.65 GHz capable to operate in TDD mode at the full 3650.0 – 3700.0 MHz band and using unrestricted Contention Based Protocol. The EUT, BreezeCOMPACT base station, implements a channel collision sensing mechanism. The system performs a “listen before transmit” function at system startup (channel availability check) and monitoring the channel during its regular listening periods. The system will detect (both at startup and on normal operation) if another system , using any technology, is transmitting on the same frequency bandwidth, regardless of the type of transmitting protocol, raising a proper alarm and evacuate the channel as long as the channel is occupied, restarting the “listen before talk” mechanism. Upon alarm, the operator may manually set the base station to a new non-busy channel, always restarting the “listen before talk” mechanism. Because of radio planning considerations, the system designed not to change automatically the carrier frequency to a new non-busy channel. Report ID: TLDRAD_FCC_IC_24990_RSS197.docx Date of Issue: 15-Jan-14 Test specification: FCC Section 90.203 (o) / RSS-197 Section 5.4, Contention based protocol Test procedure: FCC Section 90.203 (o), RSS-197 Section 4.2 Test mode: Compliance Verdict: PASS Date(s): 1/7/2014 - 1/13/2014 Temperature: 23 ºC Air Pressure: 1022 hPa Relative Humidity: 39 % Power Supply: 48 VDC Remarks: Page 90 of 112 Figure 8.1.1 Set-up for contention-based protocol verification test Report ID: TLDRAD_FCC_IC_24990_RSS197.docx Date of Issue: 15-Jan-14 Test specification: FCC Section 90.203 (o) / RSS-197 Section 5.4, Contention based protocol Test procedure: FCC Section 90.203 (o), RSS-197 Section 4.2 Test mode: Compliance Verdict: PASS Date(s): 1/7/2014 - 1/13/2014 Temperature: 23 ºC Air Pressure: 1022 hPa Relative Humidity: 39 % Power Supply: 48 VDC Remarks: Page 91 of 112 Photograph 8.1.1 Test setup for contention-based protocol verification test Photograph 8.1.2 Test setup for contention-based protocol verification test Report ID: TLDRAD_FCC_IC_24990_RSS197.docx Date of Issue: 15-Jan-14 Test specification: FCC Section 90.203 (o) / RSS-197 Section 5.4, Contention based protocol Test procedure: FCC Section 90.203 (o), RSS-197 Section 4.2 Test mode: Compliance Verdict: PASS Date(s): 1/7/2014 - 1/13/2014 Temperature: 23 ºC Air Pressure: 1022 hPa Relative Humidity: 39 % Power Supply: 48 VDC Remarks: Page 92 of 112 8.2 Test procedure The EUT is equipped with four Tx/Rx chains. As four transmit chains operate simultaneously and four chains are equipped with contention-based protocol function the test was performed while interferer signal is injected in Tx 1 /Rx 1 port, the EUT operation monitored by a spectrum analyzer connected to the Tx 1 /Rx 1 port. The EUT was set to transmit as shown in Figure 8.1.1 and the transmission was verified by the spectrum analyzer. The signal generator was connected as shown in Figure 8.1.1, an interferer signal was generated. The combination of EUT transmission bandwidth, channel, interferer signal type and level was chosen according to Table 8.2.1. The CW interferer signal was continuously injected to the receiver input and the EUT response was monitored and reported in Table 8.2.1. The OFDMA interferer signal was continuously injected to the receiver input and the EUT response was monitored and reported in Table 8.2.1. Report ID: TLDRAD_FCC_IC_24990_RSS197.docx Date of Issue: 15-Jan-14 Test specification: FCC Section 90.203 (o) / RSS-197 Section 5.4, Contention based protocol Test procedure: FCC Section 90.203 (o), RSS-197 Section 4.2 Test mode: Compliance Verdict: PASS Date(s): 1/7/2014 - 1/13/2014 Temperature: 23 ºC Air Pressure: 1022 hPa Relative Humidity: 39 % Power Supply: 48 VDC Remarks: Page 93 of 112 Table 8.2.1 Contention based protocol test results Test number Wanted signal characteristics Interferer signal characteristics Results Channel frequency, MHz Channel bandwidth, MHz RSL turn-off level settings, dBm Frequency, MHz Modulation Level, dBm Interference detection Tx OFF time, ms** Verdict 1 3697.5 5 -87 3695.3 CW -87 Yes 9.3 Pass 2 3697.5 -90 3695.3 CW -90 No NA Pass 3 3697.5 -87 3699.7 CW -87 Yes 10.0 Pass 4 3697.5 -90 3699.7 CW -90 No NA Pass 5 3697.5 -87 3697.5 CW -87 Yes 14.7 Pass 6 3697.5 -90 3697.5 CW -90 No NA Pass 7 3697.5 -87 3697.5 OFDMA -86.5 Yes 26.0 Pass 8 3697.5 -90 3697.5 OFDMA -90 No NA Pass 9 3675 -87 3673 CW -87 Yes 9.8 Pass 10 3675 -90 3673 CW -90 No NA Pass 11 3675 -87 3677 CW -87 Yes 9.7 Pass 12 3675 -90 3677 CW -90 No NA Pass 13 3675 -87 36…

Text truncated - open the document above for the full version.

Telrad Networks Ltd. 1 Bat Sheva Street , LOD 71100, ISRAEL, P.O.Box 228 Reception: 972-732467474, R&D: 972-732467225, Fax: 972-732467755 February 5 , 2014 To: Federal Communications Commission Office of Engineering and Technology 445 12TH ST SW Washington DC 20554 Phone: +1‐202‐418‐2470 Fax: +1‐202‐418‐1944 E‐mail: [email protected] CC: Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046‐1609 Phone: +1‐301‐362‐3000 Fax: +1‐301‐362‐3290 Online: www.fcc.gov/labhelp http://transition.fcc.gov/oet/contact/ Telrad Networks Ltd. 1 Bat Sheva Street , LOD 71100, ISRAEL, P.O.Box 228 Reception: 972-732467474, R&D: 972-732467225, Fax: 972-732467755 Subject: Answers to FCC technical questions for devices operating in the 3650‐3700 MHz band Hello, The purpose of the document is to answer the required questions as appeared on the FCC guidelines document “552295 D01 CBP Guidance for 3650 3700 Band v02r01”, to enable certification of the product ’BreezeCOMPACT1000’, for an unrestricted certification under Part90Z (3650‐3700 MHz band). The product is an all in one high capacity base station with 4Tx/4Rx radio and 4G baseband modem . The BreezeCOMPACT1000 is IP services oriented Broadband Wireless Access system. BreezeCOMPACT1000 is based on WiMAX technology and future upgradable to TD‐LTE, the system is TDD system covering 3400MHz up to 3700MHz range. The system contains an all outdoor base station unit. *WiMax is a designation under the WiMax Forum for certified compliance based upon the harmonized IEEE 802.16/ETSI HiperMAN standard. Telrad Networks Ltd. 1 Bat Sheva Street , LOD 71100, ISRAEL, P.O.Box 228 Reception: 972-732467474, R&D: 972-732467225, Fax: 972-732467755 The following are the answers & questions according to the FCC guidelines documents: 2 Unrestricted Certification under Part 90Z (3650-3700 Band) In order to ensure that a device complies with the requirements of unrestricted contention based protocol, the following information should be provided in the application. 2.1. Unrestricted Protocol Description Address the key requirements for operation using unrestricted contention based protocol. Please note that this requires recognizing other systems (both similar to yours and different from yours) that operate on a co‐channel. Indicate the strategy for sharing the spectrum in terms of: Does the system use spectrum sensing to determine if the other devices are transmitting and then find ways to share the bandwidth, or have some other strategy? Telrad’s BreezeCOMPACT base station implements a channel collision sensing mechanism. The system performs a “listen before transmit” function at system startup (channel availability check) and monitoring the channel during its regular listening periods. The system will detect (both at startup and on normal operation) if another system , using any technology, is transmitting on the same frequency bandwidth, regardless of the type of transmitting protocol, raising a proper alarm and evacuate the channel as long as the channel is occupied, restarting the “listen before talk” mechanism. Upon alarm, the operator may manually set the base station to a new non‐busy channel, always restarting the “listen before talk” mechanism. Because of radio planning considerations, the system designed not to change automatically the carrier frequency to a new non‐busy channel. 2.2. Threshold detection to determine occupancy 2.2.1. Describe how your system determines if another system is using the spectrum. At what detection level – relative to 0 dBi receive antenna gain (busy channel threshold), does the device determine if another system is operating on the spectrum? The system is using a noise and interference estimation algorithm during the period which its received path is enabled. As for TDD, the system is scheduled to transmit only on the DL‐subframe which its duration is about 3mili‐seconds (the total frame length is 5 mili‐seconds) and only if no other system was detected for using the spectrum. Telrad Networks Ltd. 1 Bat Sheva Street , LOD 71100, ISRAEL, P.O.Box 228 Reception: 972-732467474, R&D: 972-732467225, Fax: 972-732467755 On start up or for any case of changing RF frequency or after evacuate the channel from any reason, the system assumes by default that the channel is “busy”, therefore the system will restart the “listen before transmit” mechanism, waiting for the channel to be “clear” before attempting any transmission (e.g. the noise & interference RMS power is below the “clear” channel threshold level). The system will evacuate the channel, once it will determine that the channel is “occupied” where as the noise & interference level exceed the “busy channel” detect threshold level. The “busy‐channel” detection threshold levels may be configurable by the operator with a valid range of ‐92dBm to ‐75dBm, set by default to a level of ‐87dBm. The “clear‐channel” detection threshold level is set with an offset of 3dB lower than the “busy‐ channel” threshold, with a valid range of ‐95dBm to ‐78dBm,set by default level of ‐90dBm. The thresholds levels are actually the measured interference and noise RMS power [dBm] over all the configured bandwidth, as measured on the antenna port, relative to 0 dBi receive antenna gain. The default thresholds levels are similar for all supported BW configurations. 2.2.2 How long does the system observe to determine if the channel is busy – at the initial time and in between communications? On initial time and also in between communications the system monitors the channel for a scanning period time of 50 mili‐seconds, before deciding if the channel is busy or clear. 2.2.3 What is the bandwidth being monitored versus bandwidth occupied for all modes of operation? The system is monitoring the entire occupied bandwidth. Telrad Networks Ltd. 1 Bat Sheva Street , LOD 71100, ISRAEL, P.O.Box 228 Reception: 972-732467474, R&D: 972-732467225, Fax: 972-73246775…

Text truncated - open the document above for the full version.

Page 1 of 1 From: [email protected] [mailto:[email protected]] Sent: Tuesday, February 18, 2014 9:04 PM To: Marina Chernyavsky Subject: Response to Inquiry to FCC (Tracking Number 617512) FCC Home | Search | RSS | Updates | E-Filing | Initiatives | Consumers | Find People Office of Engineering and Technology Inquiry on 01/26/2014 : Inquiry: What is the guidance for measurements of the fixed base station operating in 3650-3700 MHz related to an unrestricted Contention Based Protocol requirements of Part 90Z? The CBP and a test method description attached. Please advise. FCC response on 02/04/2014 The purported attached CBP and a test method description cannot be found. However see KDB 552295 for general test question. The provided responses in the KDB552295 must be fully addressed and incorporated in the unrestricted protocol application.Detail operational description must include must address most of the concerns from kdb 552295, including: Simply explain how it will not transmit if it does not see signal from base station Followed by your CBP description which does not state the role of the base station. Identify the BS by the FCCID 2) Please operational description should show only the frequencies for which authorization is being sought in this filing (i.e. 3650-3675 MHz). If frequencies outside this range are operational in other countries, this must be clearly stated throughout the filing. 3) If the manufacturer intends to use the WiMax standard for this equipment as its CBP protocol, please add the following note (or similar) in the CBP protocol exhibit: WiMax is a designation under the WiMax Forum for certified compliance based upon the harmonized IEEE 802.16/ETSI HiperMAN standard ---Reply from Customer on 02/05/2014--- CBP, test method and operational description attached. ---Reply from Customer on 02/13/2014--- Page 1 of 1 Dear Madam/Sir, Would you be so kind to inform about our request status? Many thanks in advance, Marina Cherniavsky Hermon Laboratories FCC response on 02/14/2014 The updated response does not address all the concerns from the last FCC questions. Please update to reflect all specific concerns ---Reply from Customer on 02/17/2014--- Dear Madam/Sir, We suppose all the concerns really described in 3 uploaded attachments. Would you be so kind to provide details what shall be fixed. Many thanks in advance, Marina Cherniavsky, HermonLaboratories FCC response on 02/18/2014 This KDB application has now been approved. Attachment Details: Contention based protocol CBP test description Operational description Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

Telrad Networks Ltd. 1 Bat Sheva Street , LOD 71100, ISRAEL, P.O.Box 228 Reception: 972-732467474, R&D: 972-732467225, Fax: 972-732467755 To:Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands January 14, 2014 Subject: Application for certification of the Broadband Wireless Access system base station transceiver, FCC ID:ARA-COMPACT3X, model name BreezeCOMPACT Dear Gentlemen, Please find attached our application for certification of the Broadband Wireless Access system base station transceiver, FCC ID:ARA-COMPACT3X, model name BreezeCOMPACT prepared in accordance with FCC Rules, parts 2 and 90 subpart Z, operating frequencies 3652.5 - 3697.5 MHz. The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC (Registration Numbers 90623, 90624). The FCC Designation Number is US1003. Hermon Labs responsible person is Mr. Michael Nikishin, EMC and Radio group manager, tel: 011 972 4626 8440, fax:011 972 4628 8277, e-mail:[email protected]. We hope this application satisfies your requirements. Sincerely yours Klara Milman, Project Manager Telrad Networks Ltd.

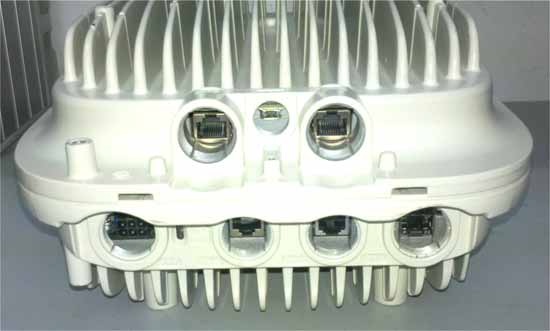

Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 1 of 5 EXTERNAL PHOTOGRAPHS This document contains 4 photographs Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 2 of 5 Photograph No.1 BreezeCOMPACT base station general view Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 3 of 5 Photograph No.2 BreezeCOMPACT base station connectors view Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 4 of 5 Photograph No.3 BreezeCOMPACT base station bottom view Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 5 of 5 Photograph No.4 BreezeCOMPACT base station top view

Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 1 of 2 Label The label shown below is affixed on the side panel of the BreezeCOMPACT base station. The label material is PVC with a permanent adhesive. Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 2 of 2 Label location Label location

Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 1 of 10 INTERNAL PHOTOGRAPHS This document contains 9 photographs Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 2 of 10 Photograph No.1 BreezeCOMPACT base station RF part internal view Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 3 of 10 Photograph No.2 BreezeCOMPACT base station RF part with screen removed Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 4 of 10 Photograph No.3 Base station RF part top internal view Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 5 of 10 Photograph No.4 RF part PCB top view Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 6 of 10 Photograph No.5 RF part PCB second side view Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 7 of 10 Photograph No.6 BreezeCOMPACT base station digital part internal view Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 8 of 10 Photograph No.7 BreezeCOMPACT base station digital part with screen removed Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 9 of 10 Photograph No.8 Digital part PCB top view Telrad Networks Ltd. FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X Page 10 of 10 Photograph No.9 Digital part PCB second side view

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 112 Report ID: TLDRAD_FCC_IC_24990_RSS197.docx Date of Issue:15-Jan-14 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC CFR 47 PART 90 subpart Z and RSS-197 Issue 1:2010 FOR: Telrad Networks Ltd. BreezeCOMPACT base station Model: CMP.XT-BS-3.X FCC ID:ARA-COMPACT3X IC:899A-COMPACT3X This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: TLDRAD_FCC_IC_24990_RSS197.docx Date of Issue: 15-Jan-14 Page 2 of 112 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Ports and lines .............................................................................................................................................................. 5 6.3 Auxiliary equipment ....................................................................................................................................................... 5 6.4 Changes made in EUT .................................................................................................................................................. 5 6.5 Test configuration .......................................................................................................................................................... 6 6.6 Transmitter characteristics ............................................................................................................................................ 7 7 Transmitter tests according to 47CFR part 90 and RSS-197 requirements .................................................................. 9 7.1 Maximum output power ................................................................................................................................................. 9 7.2 Peak EIRP power density ............................................................................................................................................ 11 7.3 Occupied bandwidth test ............................................................................................................................................. 22 7.4 Emission mask test ..................................................................................................................................................... 33 7.5 Spurious emissions at RF antenna connector test ...................................................................................................... 45 7.6 Radiated spurious emission measurements ................................................................................................................ 62 7.7 Frequency stability test ................................................................................................................................................ 76 7.8 Receiver spurious emissions ...............................................................................................................................…

Text truncated - open the document above for the full version.
