ATL-ISM378WIRELESS STEREO SPEAKER DOCK FOR SMARTPHONES

0 iMM377/iMM378/iSM378 Wireless Stereo Speaker Dock for Smartphone Please read before using this unit 1 CONTROL LOCATION 2 USING THE ARM HOLDER 3 FCC NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the follow:- 1) This device may not cause harmful interference, and 2) This device must accept any including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by uncouth. Such modifications could void the user's authority to operate the equipment. BATTERY CHARGE This Bluetooth Speaker can charge your Smartphone battery by USB socket follow below step: 1. Move USB socket of unit to left or right and rotate the angle to match your Smartphone. 2. Carefully connect USB to your Smartphone USB socket. 3. After connected, your Smartphone battery will charge automatically. OPERATION (BLUETOOTH CONNECT) You can connect your Bluetooth Speaker and Smartphone by Bluetooth. 1. Press the POWER button to turn on your Bluetooth Speaker. 2. Press BLUETOOTH button of your Bluetooth Speaker and the CONNECT indicator will flash. 3. Use your Smartphone to search name of Bluetooth (F-3088) a) If your mobile cannot search the name, press the CONNECT button again. 4. After search the name, press icon (F-3088) of mobile to enter. 5. To choose ALWAYS CONNECT or YES and press to confirm. 6. Select music file from your Smartphone. 7. Press the PLAY/PAUSE button of main unit to start playing. 8. In music playing, press the PLAY/PAUSE button to pause playing and press again to resume. 9. Press SKIP NEXT / SKIP PREVIOUS button to select next or previous file playing. 10. Press VOLUME buttons to adjust the volume sound of Bluetooth Speaker. 4 HAND FREE FOR YOUR MOBILE Your Bluetooth speaker has hand free function. 1) Follow BLUETOOTH CONNECT instruction. 2) If mobile call ring sounds, press the HAND FREE button once to answers the incoming call. 3) During incoming call, press the HAND FREE button once to disconnect the call. If music playing before incoming call, the music will play again after disconnect the call. Set up you line in port (AUX IN) This will allow you to broadcast the external unit’s sound through your Bluetooth Speaker. CONNECTION: 1. Plug a 3.5mm audio cable (not included) into your MP3 or MP4 player phones jack or line out port and connect the other end (3.5mmjack) into the AUX- IN port at the rear of unit. 2. Make sure both units are turned on. 3. Set your device to start playing. 4. This will allow you to broadcast the external device sound through your unit’s speakers. 5. Press VOLUME buttons to adjust the volume sound of Bluetooth Speaker. FCC Note： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter.

O p e n P o w e r D a t a / S i g n a l Data Signal Signal BT Module Bluetooth MCU SC0304RC1 Main Controller Power Amplifier Preamplifier Left Speaker Right Speaker A6011 4558 AUX In Jack Microhone For Mobile Handfree Block Diagram iMM377 8Feb2012 Jimmy Chan SC51P0304SN1 EUA6011A UTC4558E 2 6 MHz Crystal 2.4GHz o.s.c A NT Gain: 2.0dBi T yp ical

iLuv Creative Technology FCC ID: ATL-I SM378 POWER OF ATTORNEY June.08,2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on June.07,2013. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, iLuv Creative Technology., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, iLuv Creative Technology ------------------------------- Manager

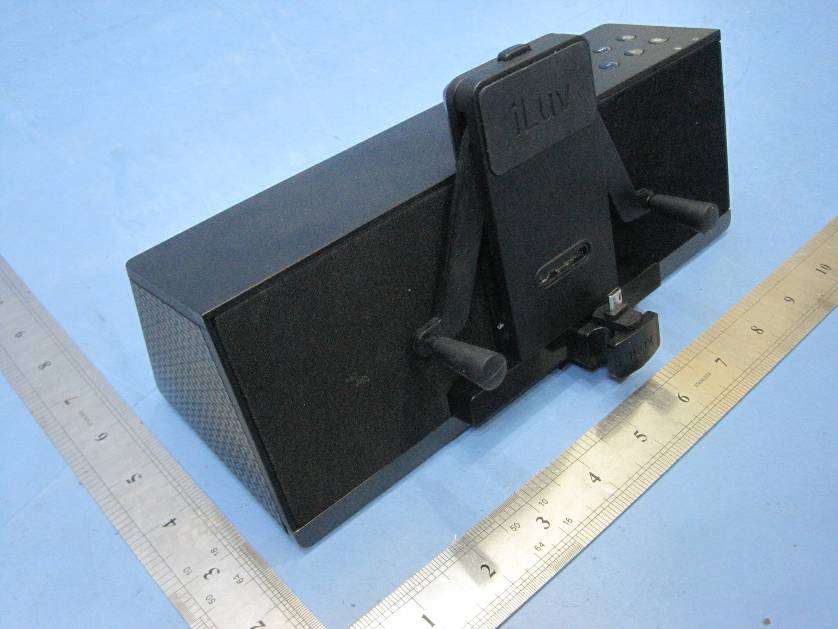

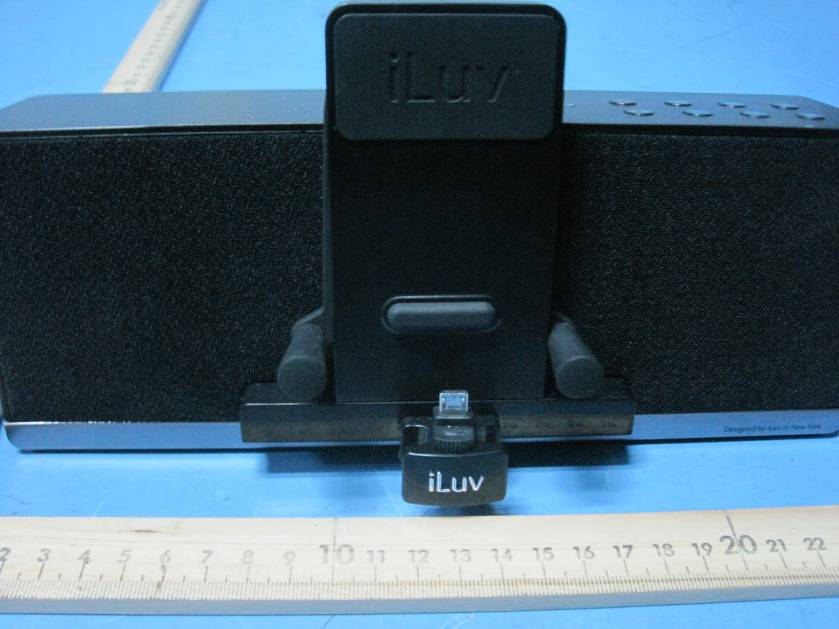

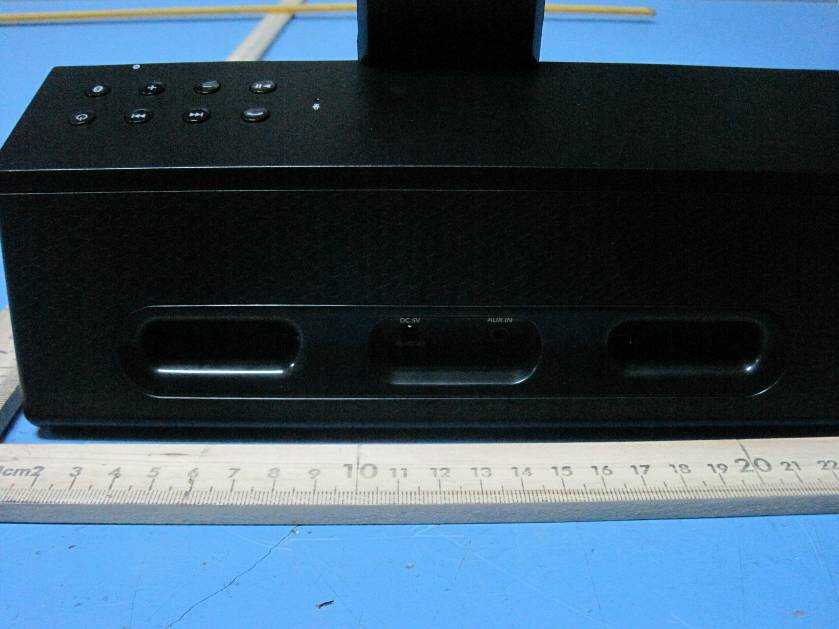

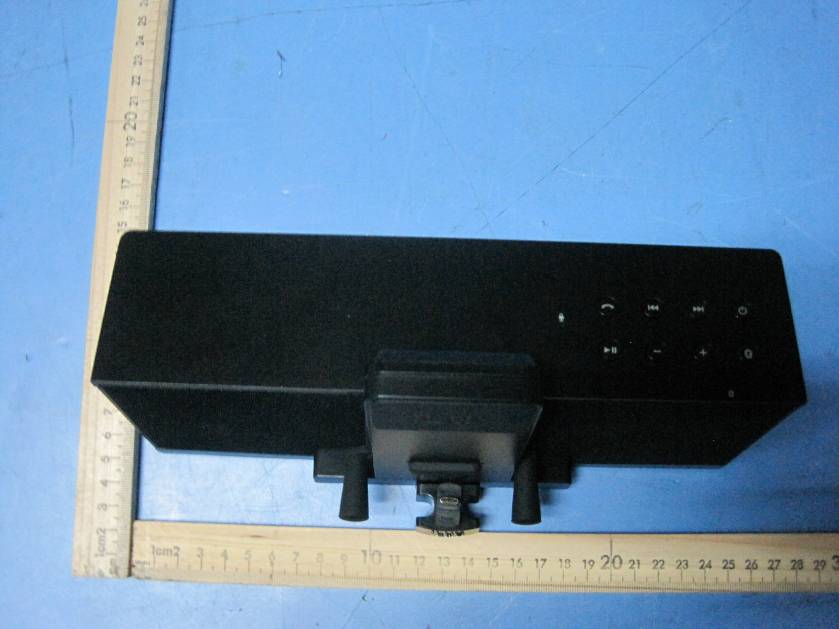

Page: 49 of 56 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12010180R1-E-E-F 16 Photographs - Constructional Details 16.1 EUT – Appearance View(2) Page: 50 of 56 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12010180R1-E-E-F 16.2 EUT – Appearance View(2) Page: 51 of 56 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12010180R1-E-E-F 16.3 EUT – Appearance View(3)

FCC ID Label Sample for Model: iMM377/iMM378/iSM378 FCC ID: ATL-ISM378 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page: 51 of 52 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12010180-E-E-F 17 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Side View/ proposed FCC Label Location FCC ID:ATL-ISM378 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page: 52 of 56 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12010180R1-E-E-F 16.4 EUT – Open View 16.5 EUT – PCB1 Rear View Page: 53 of 56 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12010180R1-E-E-F 16.6 EUT – PCB1 Back View 16.7 EUT – PCB2 Rear View Page: 55 of 56 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12010180R1-E-E-F 16.10 EUT – PCB3 Back View Page: 54 of 56 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12010180R1-E-E-F 16.8 EUT – PCB2 Back View 16.9 EUT – PCB3 Rear View

iMM377/ iMM378/iSM378 Wireless Stereo Speaker dock for Smartphone Circuit Description Emphasized features z myBOT® Arm Technology - Cradles most smartphones regardless of interface placement. z Charge via adjustable microUSB connector,cannot connect to pc to use. z Wireless audio connection via Bluetooth, working frequency 2400-2483.5MHz. which the BT module use the osc is 26MHz. z Wired through 3.5mm plug using Aux-input z Audio control via Bluetooth for Play/pause/receive/end, Next/Previous Track, fwd/rev seek, volume, . z Built-in microphone with noise and echo cancellation for enhanced speakerphone functionality and convenience. z Impeccable sound quality for its small size Features z Desktop / bedside speaker for your Smartphone z Plays and charges your Smartphone z Power On/Off and volume Up/Down, Previous/Next track, Pairing buttons. z Powerful amplifiers provide better efficiency and performance z 3.5mm Aux input jack z Minimize the TDMA noise for compatible with Smartphones. z No pop noise or no white noise. Environmental Requirements z Operating temperature: 32° to 95° F (0° to 35° C) z Non-operating temperature: -4° to 113° F (-20° to 45° C) z Relative humidity: 5% to 95% non condensing User Interface z Power: On/off/Pair z Volume +: Increase volume z Volume –: Decrease volume z Play/Pause/Call receive/end z Next Track/FF: Next track or sustain push for fast forward (Bluetooth only) z Previous Track/Rew: Previous Track or sustain push for rewind (Bluetooth only) The working frequency range of RF BT_module F3088 is setted from 2402.00MHz to 2480.00MHz, the sepeartion is 1.0MHz and there are 79 channels in total. The working procedures are: a. When power on, the EUT will scan the whole frenquency until a connection command from the other BT devices. b. When receiving the signal from the other BT devices, The EUT transmit a response signal.. c. The other devices receive the response signal and recognize it, then send a connection command to establish the connection. d. After the connection establish successfully, the data transmission is beginning. At the same time, the both devices will shift frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is 1600 times per second. This device conform to the criteria in FCC Public Notice DA 00-705. e. The bandwidth of the receiver, which is set to a fixed width by the software, match the hopping channel bandwidth of their corresponding transmitter.

MODEL: IMM-377 DATED:2012-02-08 DESCRIPTION: AUX IN IPOD AUX 3 欧 3 欧 / EUA6011A / UTC4558E / SC51P0304SN1 Wireless Stereo Speaker Dock for Smartphon e REVISE: 03 R1 47K C60 1UF C86 1UF C87 682 R30 47K C93 682 R318 470K R218 470K R435 2K2 R434 2K2 R321 470K R221 470K R319 820K R219 820K R317 4K7 R217 4K7 R320 820K R220 820K C335 1UF C235 1UF R433 330R C415 100UF C41647UF C237 1UF C337 1UF 32 1 IC404-A MC4558 VSSVCC 56 7 84 IC404-B MC4558 C430 0.1U C401 104 C63 33P C58 33P C1 NC C62 NC C607 1UF C17 104P E1 10UF R66 10K C4 102P R3 10K SW5 POWER R26 10K R27 2K2 C7 102P R10 10K SW1 Pairing C6 102P R11 10K SW6 answer C8 102P R4 10K SW8 PLAY/PAUSE LED7 C9 104P R20 82R LED1 C12 104P GA IN OUT IC1 SA1117-3V3 E24 1000UF C45 104P 123 DC1 DC 5V/3A E18 1000UF/35V C35`1 104 1 VSS 2 K10/P2.0 3 K11/P2.1 4 PCLK/K10/P1.0/XIN 5 K11/P1.1/XOUT 6 K12/P1.2 7 DATA/REM/K13/P1.3 8 K14/P1.4 9 K15/P1.5 10 K16/P1.6 11 P1.7/K17 12 P0.0/INTO 13 P0.1/INT1 14 P0.2 15 P0.3/TO 16 P0.4/T1 17 P0.5/NRST/[VPP] 18 P0.6 19 P3.0/REM/CLKO 20 VDD U1 SC0304RC1 C11 102P R5 10K SW2 VOL+ C16 102P R16 10K SW3 VOL- R312 47K R304 47K R23 10K R7 10K PJ1-A PJ1-B C20 1U C211U R12 100K + C22 1000UF 16V Q11 8050C R35 100K + C25 10UF 10V R13 39K R14 2K2 R36 100K 1 PGND 2 ROUT- 3 PVDD 4 RHPIN 5 RLINEIN 6 RIN 7 VDD 8 LIN 9 LLINEIN 10 LHPIN 11 PVDD 12 LOUT- 13 PGND 14 LOUT+ 15 SHUTDOWN 16 FADE 17 BYPASS 18 AGND 19 SEMAX 20 SEDIFF 21 VOLUME 22 HP/LINE 23 SE/BTL 24 ROUT+ IC3 A6011 C5 1U C13 1U C14 1U C151U R28 12K R3112K C101U R32 1K R33 10K SP_R SP_L Q3 9014C C2 104P C3 100UF -+ MIC1 SW7 REW SW10 F/F 3 VOL+ 4 VOL- 5 F/F 6 REW 7 POW 8 V1.8 9 GND 10 VCC 11 LED1 12 LED2 13 MIC 14 SPBN 15 SPBP 16 SPAN 17 SPAP 18 AGND 1 PIO1 2 PIO2 19 MOSI 20 CLK 21 CS 22 MISO 23 RST 24 VDD-CHG BT_MODULE D1 1N4148 Q1 9014 R2 82R R6 10K R8 10K R9 1K Q2 9014C Q4 9014 R15 1K R17 5K6 PVDD M_3V3 M_3V3 AUX_DET M_3V3 BT_LED2 MAIN_PWM BT_LED1 BT_KEY +5V M_3V3 GND VDD RESET BT_MUTE AUX_DET VOLUME BT_SPBN BT_SPBPBT_SPANBT_SPAP BT_KEY BT_MUTEBT_PAIR AUX/BT BT_PAIR M_3V3 +5V MAIN_PWM MAIN_PWM MUTE MUTE BT_LED1 3 X T A L _ I N 4 X T A L _ O U T 3 3 L E D _ 1 3 2 L E D _ 2 2 0 P I O _ 1 4 1 9 P I O _ 1 3 1 8 P I O _ 1 2 1 5 P I O _ 1 1 1 4 P I O _ 9 2 1 P I O _ 8 2 2 P I O _ 7 2 3 P I O _ 6 2 4 P I O _ 5 2 5 P I O _ 4 5 8 P I O _ 3 5 9 P I O _ 2 6 0 P I O _ 1 6 1 P I O _ 0 2 9 S P I _ C L K 3 1 S P I _ M I S O 2 8 S P I _ M O S I 3 0 S P I _ C S # 9 U A R T _ T X 1 0 U A R T _ R X 1 1 U A R T _ C T S 1 2 U A R T _ R T S 7 A I O _ 0 6 A I O _ 1 5 L O _ R E F 2 7 T E S T _ E N 2 6 R S T # 69 VSS_CNTR_PAD 8 NC 40 NC 41 NC 42 NC 43 NC 44 NC 49 NC 45 MIC_BIAS 50 MIC_B_N 48 MIC_B_P 52 MIC_A_N 51 MIC_A_P 56 SPK_A_N 57 SPK_A_P 54 SPK_B_P 53 SPK_B_N 55 AU_REF_DCPL 16 VDD_PADS 13 VDD_UART 62 VDD_PIO 47 VDD_AUDIO 46 VREGIN_L_AUDIO 68 VREGENABLE_L 35 VREGENABLE_H 38 BAT_P 39 VDD_CHG 36 VCC_BUCK_CORE 37 LX 1 VREGIN_L 2 VDD_ANA 34 VDD_CORE 17 VDD_CORE 63 VDD_RADIO 66 VDD_RADIO 67 VDD_LO 6 4 R F _ P 6 5 R F _ N U 1 B L U E _ T U R N S _ R O M 6 B A L 4 B A L 2 D C 1 U N B A L 3 N C 5 GND 8 GND 7 GND F 1 D B F 8 1 F 1 0 4 _ C S R 1 E 0 2 E 1 3 E 2 4 V S S 5 S C L 6 S D A 7 W C 8 V C C U 2 M 2 4 C 3 2 - M F B 5 T G L3 22uH C 1 0 R 0 C2 15P L1 NF L2 8n2 L4 15nH 1 A N T 1 A N T _ G E N E R A L C3 15P C4 15P C5 2u2 C6 22n C7 4u7 C8 2u2 C9 2u2 R1 10K C10 2u2 C11 22n R2 2R2 C12 22n 1 2 3 4 U 3 T S X 3 2 2 5 2 6 M H z C13 6P8 C14 18P R3 2K2 R4 2K2 R5 2K2 C15 100n C16 22n C17 2u2 C18 2u2 C19 100n C20 100n R 6 1 K R 7 2 K 2 L 5 C23 47n R9 2R2 1 V 5 1 V 5 1 V 5 1 V 5 V 1 . 8 V1.8 1V5 VDD_CHG BAT POW 1 V 8 1 V 8 1 V 5 _ A U D I O 1 V 8 1 V 8 L E D 1 L E D 2 S W 4 S W 3 S W 2 S W 1 P I O 1 P I O 2 1 V 8 S P I _ C L K S P I _ M I S O S P I _ M O S I S P I _ C S # R S T M I C _ B I A S S P A N S P A P S P B P S P B N 1 V 5 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

FCC TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12010180R1-E-E- F FCC ID : ATL-ISM378 Ref. No. : WT12010180R1-E-E-F Applicant : iLuv Creative Technology Address : 2 Harbor Park Drive, Port Washington NY11050, USA. Equipment Under Test (EUT) : Product Name : Wireless Stereo Speaker Dock for Smartphones Model No. : iMM377,iMM378, iSM378 Rules : FCC CFR47 Part 15 Section 15.247:2010 Date of Test : Feb.1 ~ Feb.25, 2012 Date of Issue : June 04, 2012 Test Engineer : Hunk yan / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-27553488 Fax:+86-755-27553868 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page: 2 of 56 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12010180R1-E-E-F 2 Test Summary Test Items Test Requirement Result Radiated Spurious Emissions (26MHz to 25GHz) 15.205(a) 15.209 15.247(d) PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Page: 3 of 56 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12010180R1-E-E-F 3 Contents Page 1 COVER PAGE........................................................................................................................................................ 1 2 TEST SUMMARY.................................................................................................................................................. 2 3 CONTENTS ............................................................................................................................................................ 3 4 GENERAL INFORMATION ................................................................................................................................ 4 4.1 CLIENT INFORMATION.......................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T......................................................................................................................... 4 4.3 DETAILS OF E.U.T. ............................................................................................................................................... 4 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 4 4.5 RULES APPLICABLE FOR TESTING......................................................................................................................... 4 4.6 TEST FACILITY...................................................................................................................................................... 5 4.7 TEST LOCATION.................................................................................................................................................... 5 5 EQUIPMENT USED DURING TEST.................................................................................................................. 6 6 EMISSION TEST RESULTS................................................................................................................................7 6.1 MAINS TERMINALS DISTURBANCE VOLTAGE, 150KHZ TO 30MHZ................................................................ 7 6.1.2 E.U.T. Operation...................................................................................................................................... 7 6.1.3 Block Diagram of Test Setup................................................................................................................. 7 6.1.4 Measurement Data.................................................................................................................................. 8 6.1.5 Mains Terminals Disturbance Voltage Test Data................................................................................ 8 7 RADIATED SPURIOUS EMISSIONS............................................................................................................... 11 8 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS ................................................ 27 9 20 DB BANDWIDTH MEASUREMENT .......................................................................................................... 32 10 MAXIMUM PEAK OUTPUT POWER ............................................................................................................. 34 11 HOPPING CHANNEL SEPARATION.............................................................................................................. 35 12 NUMBER OF HOPPING FREQUENCY .......................................................................................................... 38 13 DWELL TIME...................................................................................................................................................... 39 14 ANTENNA REQUIREMENT ............................................................................................................................. 46 15 RF EXPOSURE ..…
