ATL-ISP165RECHARGEABLE STEREO BLUETOOTH SPEAKER

RF EXP0SURE INFORMATION AND STATEMENT NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. connected. -Consult the dealer or an experienced radio/TV technician for help RF EXP0SURE INFORM A TION AND S T A TEMENT This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. Operation Temp.: 0-45 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused the user’s authority to operate the equipment. 15 RF EXP0SURE INFORMATION AND STATEMENT 2. This equipment is portable device. The output power of this device is less than 20mW. The SAR test is not required. 3. RSS-Gen This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

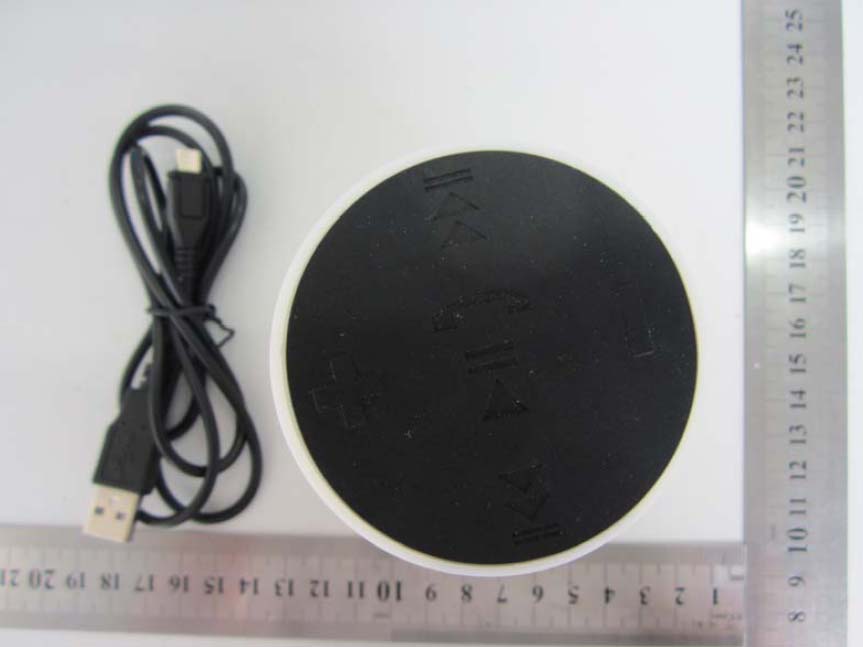

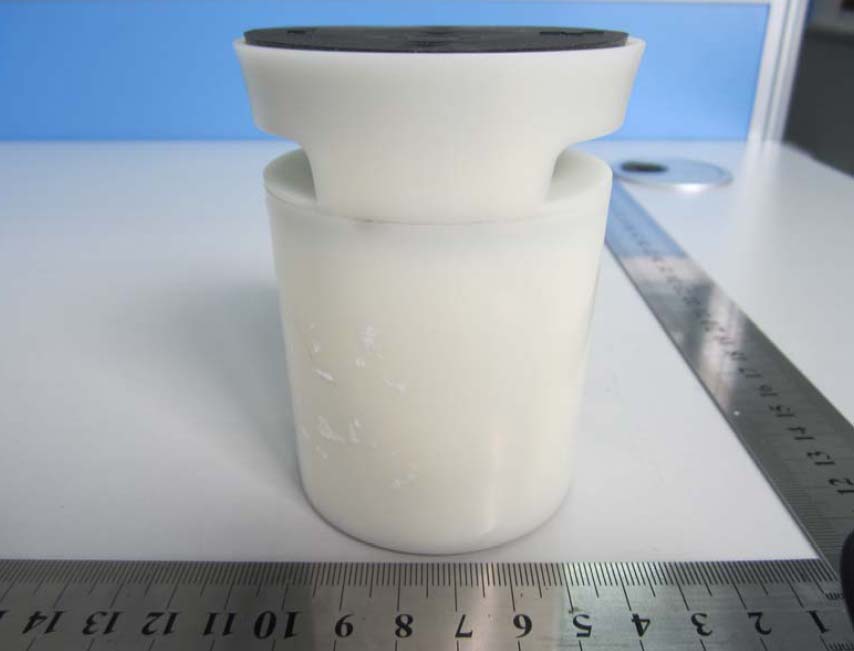

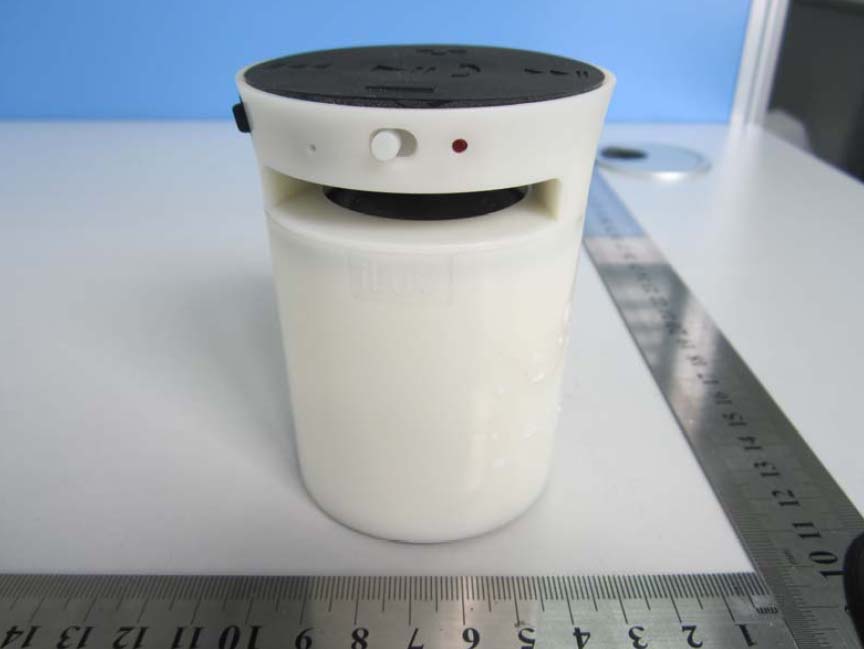

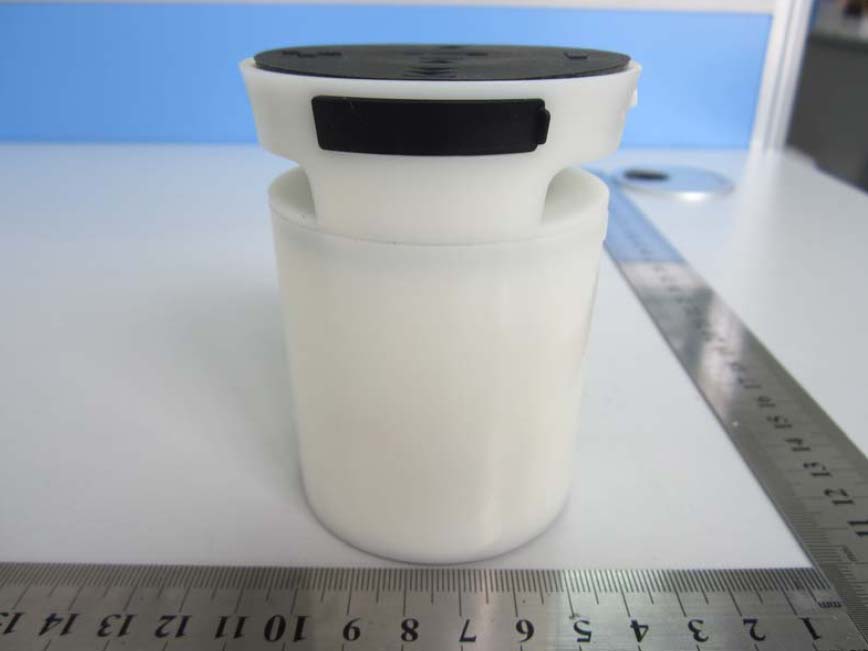

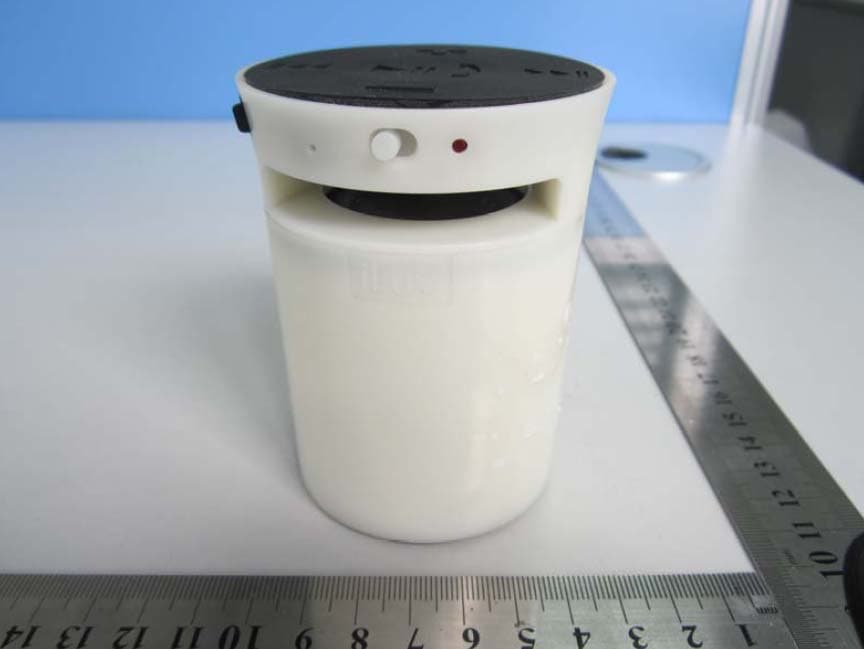

External Photo:

FCC ID: ATL-ISP165 IC: 10711A-ISP165 Label Size: d=42mm Label Location FCC&IC ID Label Location

Internal Photo:

Report No.: SZ12090224E04 Page 2 of 16 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1 EUT Description ......................................................................................................................... 3 1.2 Test Standards and Results ........................................................................................................ 4 1.3 Facilities and Accreditations ...................................................................................................... 5 1.3.1 Facilities .................................................................................................................................... 5 1.3.2 Test Environment Conditions .................................................................................................... 5 1.3.3 Measurement Uncertainty ......................................................................................................... 5 2. TEST CONDITIONS SETTING............................................................................................... 6 2.1 Test Mode .................................................................................................................................... 6 2.2 Test Setup and Equipments List ................................................................................................ 7 2.2.1 Conducted Emission.................................................................................................................. 7 2.2.2 Radiated Emission ..................................................................................................................... 7 3. 47 CFR PART 15B REQUIREMENTS .................................................................................. 11 3.1 Conducted Emission ................................................................................................................. 11 3.1.1 Requirement ............................................................................................................................ 11 3.1.2 Test Description ...................................................................................................................... 11 3.1.3 Test Result ............................................................................................................................... 11 3.2 Radiated Emission .................................................................................................................... 13 3.2.1 Requirement ............................................................................................................................ 13 3.2.2 Test Description ...................................................................................................................... 13 3.2.3 Test Result ............................................................................................................................... 13 Change History Issue Date Reason for change 1.0 November 5, 2012 First edition Report No.: SZ12090224E04 Page 3 of 16 1. GENERAL INFORMATION 1.1 EUT Description EUT Type ........................Rechargeable Stereo Bluetooth Speaker Serial No. ........................(n.a., marked #1 by test site) Hardware Version ...........ver 05 Software Version ............ . Applicant ......................... Manufacturer ................... ver 009 iLuv Creative Technology 2 Harbor Park Drive, Port Washington, NY 11050, USA Cheung's Electronics IND. Co., Ltd Jin Jiao Tang Industrial District, Zhu Tang, Feng Gang, Dong Guan, Guang Dong, China Modulation Type ............ .FHSS Power Supply ..................Battery Brand Name: iLuv Model No.: iSP165 Serial No.: (n.a. marked #1 by test site) Capacitance: 1000mAh Rated Voltage: 3.7V Ancillary Equipment 1 ... .USB Power Cable NOTE: 1. The EUT is a Bluetooth Speaker, it’s a small portable music player, speaker and amplifier. It supports ISM 2.4GHz Bluetooth band which was tested in this report. The EUT is equipped with a micro-USB port and an aux in port for audio input. 2. Please refer to ANNEX A for the photographs of the EUT. For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SZ12090224E04 Page 4 of 16 1.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart B: No. Identity Document Title 1 47 CFR Part 15 Radio Frequency Devices Test detailed items/section required by FCC and results are as below: No. Section Description Result 1 15.107 Conducted Emission PASS 2 15.109 Radiated Emission PASS NOTE: The tests were performed according to the method of measurements prescribed in ANSI C63.4 2009. Report No.: SZ12090224E04 Page 5 of 16 1.3 Facilities and Accreditations 1.3.1 Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22; the FCC registration number is 741109. 1.3.2 Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 15 - 35 Relative Humidity (%): 30 - 60 Atmospheric Pressure (kPa): 86 - 106 1.3.3 Measurement Uncertainty The uncertainty is calculated using the methods suggested in the "Guide to the Expression of Uncertainty in Measurement" (GUM) published by ISO. Uncertainty of Conducted Emission: ±1.8dB Uncertainty of Radiated Emission: ±3.1dB Report No.: SZ12090224E04 Page 6 of 16 2.…

Text truncated - open the document above for the full version.

Test Setup Photos 1. CE 2．RE
