ATL-ISP202RECHARGEABLE STEREO BLUETOOTH SPEAKER

Hereby, Wonders Technology Co., Ltd , declares that this Rechargeable Stereo Bluetooth Speaker is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this equipment. Such modications could void the user's authority to operate the equipment. Rechargeable Stereo Bluetooth Speaker

2012.6.20 MATERIAL: COATING: N/A TITLE:SCHEMATIC Corporation DRAWER: NO.: REV A 1/1 SHEET UNIT: N/A MODEL: DATE: SCALE: 1:1 DESIGNCHECKEDAPPROVAL LONG QUAN DS-125B AUX INPUT Bluetooth module F-3088 Audio processing LM358 Power amplification HT6809 DC 5V INPUT Battery charging PDF 文件使用 "pdfFactory" 试用版本创建 www.fineprint.cn F-3088 Balun and filter ANT matching EEPROM Audio Codec Power control and regulation Crystal 26MHz BC57F687A05

iLUV Creative Technology FCC ID: ATL-ISP202 statement June 18, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, iLUV Creative Technology, declare a charging function of model ISP202. The mini usb of this device contains five pins. Only two pins which are used for charging is ability to function. Other three pins are suspended. There is no address information confirmation. The mini usb of this device is for charging only. It cannot be used to play music through the unit. Sincerely, iLUV Creative Technology ------------------------------- Jimmy chan/Manager

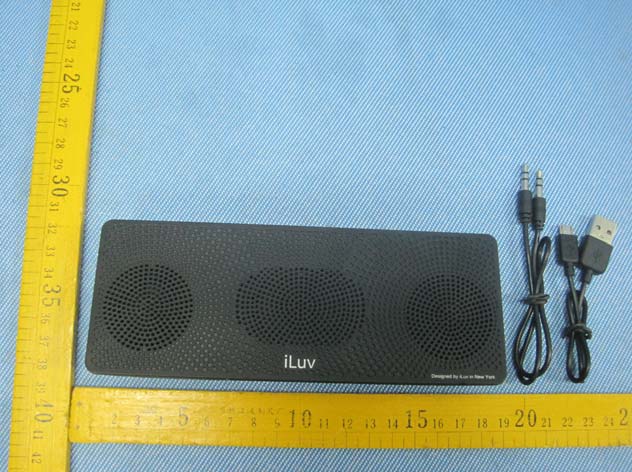

2.1 Product View 2.2 EUT – Appearance View

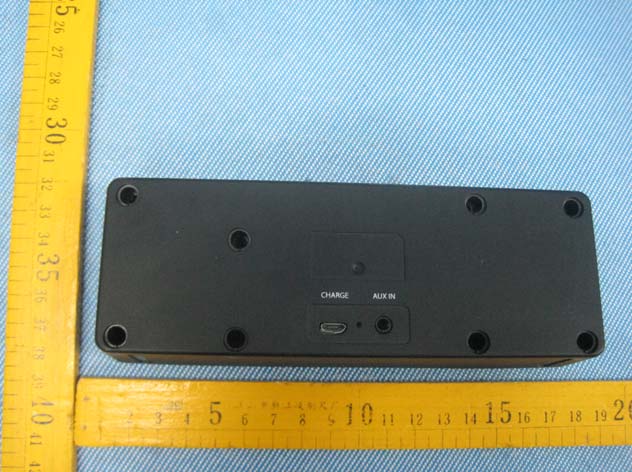

Page:62 of 62 iLUV Creative Technology FCC ID: ATL-ISP202 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the company. WALTEK SERVICES Reference No.: WT12075130-D-S-F 17 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Back View/ proposed FCC Label Location FCC ID: ATL-ISP202 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Sample for Models: iSP202 FCC ID: ATL-ISP202 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 EUT – Open View 2.2 EUT – PCB View 2.3 Module – PCB View

1) Main parameters: Power adaptor: 3.7V 900mAh built-in lithium battery Charging voltage: DC 5V Speaker resistor: 4Ohm Power consumption output: 1W*2 2) Circuit declaration 1. ISP202 is a 2.0(stereo) portable Bluetooth speaker. 2. ISP202 can support both AUX and Bluetooth music. 2.1. When play AUX music, sound frequency L&R signal enter into 3(R IN)&18(L IN) of IC HT6809(U3) through J5(earphone dock), after amplifying, transferring into L&R speaker from amplifier IC 5(RO+), 8(RO ‐) and 13(L‐) 16(L+). 2.2. The shift between AUX and Bluetooth can be controlled by J5(earphone dock). When AUX signal is input, J5(earphone dock) switch outputs L electrical level, counter wisely, J5(earphone dock) switch outputs H level. 2.3. While playing AUX music, the Bluetooth module power will be cut off to stop working through J5(earphone dock) switch to control the Bluetooth module. 2.4. Under Bluetooth working status, due to no AUX signal input, it can use J5(earphone dock) switch to control the Bluetooth module to make it pass, then the Bluetooth can be charged by power adaptor which will help Bluetooth work. The Bluetooth signal L,R input the common‐mode noise which output from 1,7pin of U3 to stop U5(LM358), sound frequency L&R signal enter into 3(R IN)&18(L IN) of IC HT6809(U3) through J5(earphone dock), after amplifying, transferring into L&R speaker from amplifier IC 5(RO+), 8(RO‐) and 13(L‐) 16(L+). 2.5. 3) Power charging Electricity of ISP202 is supplied by 3.7V 900mAh built‐in lithium battery. When the power is limited, it can be charged by outer DC 5V adaptor, which connected with mini USB cable, using charging management IC HX6001(U4) to transfer the power to device. The mini usb of this device contains five pins. Only two pins which are used for charging is ability to function. Other three pins are suspended. There is no address information confirmation. 4) The device is a standard bluetooth stereo speaker, The working frequency of RF module F-3088（crystal is 26MHz） is setted to 2402MHz ~ 2480MHz, the frequency separation is 1MHz and there are 79 channels. with the spread spectrum code sequences to hopping constantly. To make sure the communication stable, Bluetooth special design the fast acknowledge and frequency hopping plan to ensure that link stability. First link, between bluetooth devices will build a pseudorandom code, Only the pseudorandom code is same, the information transfer will be accepted. Other interference is not possible in the same sequence of interference. Bluetooth through the spread spectrum technology, Make the influence of interference may become very small. The working procedures are: 1. Power on, the indicator light flashes faster, the ISP202 enter to pair mode.The ISP202 will do the frequency hopping according to a certain sequence, and then send the connection command. 2. If there is a Device response, the ISP202 will judge whether it can be permitted to connect. Prompt enter a passkey. 3. If the passkey is right, then can be permitted to connect, send the connection command to build up the connection. 4. While the connection build up successfully, the data transmission is beginning. At the same time, the ISP202 and device will shift frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is 1600 times per second. 5. The bandwidth of the receiver, which is set to a fix width by the software, match the hopping channel bandwidth of their corresponding transmitter.

2012.6.20 MATERIAL: COATING: N/A TITLE:SCHEMATIC Corporation DRAWER: NO.: REV A 1/1 SHEET UNIT: N/A MODEL: DATE: SCALE: 1:1 DESIGNCHECKEDAPPROVAL LONG QUAN RED RED BLUE PLAY/ANSWER C2 224P C3 224P R2 22K R3 22K R4 33K R5 22K C4 224P R6 33K R7 6.8K R8 4.7K R9 4.7K R10 100K C8 470P C13 224P C6 104P R22 100R R23 NC C24 NC C25 NC C26 104P C27 106P 1 CHRG 3 BAT 5 PROG 4 VCC 2 GND U4 HX6001 R25 2K R27 10K R30 2.7K C28 104P C29 106P 12 FB3 600R/100MHZ C42 224P R42 22K R43 33K C43 470P R44 33K C44 224P R45 6.8K R13 100K C10 104P R12 100R R14 NC C45 NC C46 NC C12 NC C47 220P C48 220P C62 100P C103 100P D4 M7 1 G 2 S 3 D Q6 2301 R59 1K R60 20K 1 MIC+ 1 MIC- R39 1K R97 220R 3 2 1 U5-A LM358 5 6 7 U5-B LM358 8 4 U5-C LM358 R46 100R C38 104P C49 106P R52 11K R53 22K C50 104P C51 105P 1 PIO1 2 PIO2 3 VOL+ 4 VOL- 5 NEXT 6 PREV 7 POW 8 1.8V 9 GND 10 BAT 19 MOSI 18 GND 17 L/OUTP 16 L/OUTN 15 R/OUTP 14 R/OUTN 13 MIC 12 LED2 11 LED1 20 CLK 21 CS# 22 MISO 23 RTS 24 VDD-CHG U1 F-3088-V6.0 C19 106P 12 VOL+ R17 2K 1 2 3 4 5 6 7 8 J1 CON_8P 1 2 3 4 5 6 7 8 J4 CON_8P 1 2 VOL- 1 2 PLAY 2 1 3 LED1 123456 SW1 SK/MSK-04D LED2 R21 7.5K C21 104P 1 GND 3 SW 2 L 4 R J5 C1 NC 1 VDD 2 D- 3 D+ 4 GND 5 GND 6 78 9 10 11 USB1 US25R05-SBS C22 NC R15 0R 2 1 3 Q1 S8550 R18 1K R24 100R 18 INR+ 19 INR- 20 UP/NC 17 DN/GO 9 MUTE 3 INL+ 2 INL- 1 AGND 7 PGND/L 14 PGND/R 4 ACRC 8 OUTL- 5 OUTL+ 13 OUTR- 16 OUTR+ 10 /SDL 11 /SDR 12 AVDD 6 PVDD/L 15 PVDD/R 21 GND U3 HT6809 12 FB1 600R/100MHZ 12 FB2 600R/100MHZ C7 102P C14 102P C15 105P R1 1M C16 223P C17 105P R16 47R C18 104P R19 100R R26 100R C20 105P C9 223P C23 223P C11 100P R40 200K R41 200K C36 106P 12 FB4 600R/100MHZ 12 FB5 600R/100MHZ C39 102P C40 102P C41 100P C30 223P C31 106P 1 BAT+ 1 BAT- 1 L+ 1 L- 1 R+ 1 R- 1 J10 1 J2 1 J3 1 J6 1 J7 1 J8 R11 NC 1 MO 1 CL 1 CS 1 MI EC1 100uF C32 224P C33 224P 1 J9 1 J11 R20 NC C5 470P C34 470P 3.7V 1/2VDD 1/2VDD BAT 1/2VDD PLAY BLUE/LED AUX/BLUE/SW BAT AUX/BLUE/SW VOL- PLAY VOL+ BLUE/LED 3.7V BAT AUX/BLUE/SW RED/LED RED/LED 3.7V VOL- VOL+ PDF 文件使用 "pdfFactory" 试用版本创建 www.fineprint.cn 12 Example Application Schematic ANT1 2R2R1 15nL2 2u2C3 15pC2 15p C1 4u7C5 22uL1 2u2C7 2u2C8 2R2R2 1V8 1V8 1V8 VBUS VBAT 1V5_AUDIO 1V8 22nC10 22nC16 220nC15 220kR8 1V5 1V5 15pC11 NFL4 8n2L3 0R0C14 6p8C12 18pC13 47n 0402 C22 1V8 100nC24 2k2R14 2k2R13 2k2R12 WPSCLSDA SPK_ANSPK_APSPK_BNSPK_BPUART_RXUART_TXSPI_CLKSPI_MISOSPI_MOSISPI_CS# VBUS LED0 LED1 390RR4 47RR5 VBAT 100nC17 100nC18 100nC19 100nC20 2k2R10 2k2R9 MIC_APMIC_NMIC_BP VBAT 1V8 PWR PIO1 RST# L5L6 MIC_BIAS MIC_BIAS 22nC4 22nC9 2u2C21 Connect at star point SPI_CLKSPI_CS#SPI_MISOSPI_MOSI Red Blue UART_RXUART_TX MIC_BIAS 1V8 1V5 1V5 1V5 1V5 1V5_AUDIO S D G NTA4153NQ1 RST# 1V8 VCC 8 VSS 4 E2 3 SCL 6 E1 2 E0 1 WC 7 SDA 5 U4M24C32-FMB5TG MIC_A_P MIC_A_N MIC_B_N MIC_B_P 10kR15 10kR1610kR17 2u2C6 21 3 LED1 SW1 PWR SW2SW3 UNBAL 1 NC 3 DC 2 GND 5 GND 8 GND 7 BAL 6 BAL 4 FLT1DBF81F107-CSR X1 TSX3225 26 MHz 10kR1110kR18 SW4SW5 10kR19 SW6 PIO11PIO12PIO13PIO14 BlueTunes ROM QFN VDD_RADIO 63 VDD_ANA 2 VDD_CORE 17 VDD_PADS 16 XTAL_IN 3 MIC_A_N 52 MIC_B_P 48 SPK_A_P 57 SPK_B_N 53 RST# 26 UART_RX 10 SPI_CS# 30 SPI_CLK 29 PIO[2] 59 PIO[5] 24 PIO[8] 21 PIO[11] 15 VDD_LO 67 VDD_AUDIO 47 VREGENABLE_L 68 LO_REF 5 TEST_EN 27 A IO[1] 6 UART_TX 9 SPI_MOSI 28 SPI_MISO 31 UART_CTS 11 PIO[0] 61 PIO[3] 58 PIO[1] 60 PIO[4] 25 PIO[9] 14 XTAL_OUT 4 PIO[7] 22 SPK_A_N 56 MIC_B_N 50 MIC_A_P 51 UART_RTS 12 PIO[6] 23 SPK_B_P 54 RF_P 64 PIO[14] 20 PIO[13] 19 PIO[12] 18 RF_N 65 VREGIN_L 1 A IO[0] 7 LED[0] 32 LED[1] 33 LX 37 VREGIN_L_AUDIO 46 VDD_CHG 39 BAT_P 38 VDD_BUCK_CORE 36 VREGENABLE_H 35 VDD_PIO 62 AU_REF_DCPL 55 MIC_BIAS 45 REG REG REG NC 8 VDD_CORE 34 NC 42 NC 40 NC 41 NC 43 NC 44 VDD_RADIO 66 VDD_UART 13 VSS_CNTR_PAD 69 NC 49 U1 1kR23 2u2C33 VBUS 1V8 Figure 12.1: BlueTunes ROM QFN Example Application Schematic Example Application Schematic CS-122312-DSP1 Advance Information This material is subject to C SR's non-disclosure agreement © Cambridge Silicon Radio Limited 2008 Page 51 of 77 _äìÉqìåÉë=olj=nck Data Sheet

Page: 1 of 62 iLUV Creative Technology FCC ID: ATL-ISP202 TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the company. WALTEK SERVICES Reference No.: WT12075130-D-S-F FCC ID : ATL-ISP202 Applicant : iLUV Creative Technology Address : Harbor Park Drive, Port Washington, NY11050, USA Equipment Under Test (EUT) : Product Name : Rechargeable Stereo Bluetooth Speaker Model No. : iSP202 Brand Name : iLuv Standards : FCC CFR47 Part 15 Section 15.247:2010 Date of Test : July 30 ~ August 15, 2012 Date of Issue : August 16, 2012 Tested By : Zero Zhou / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District Shenzhen 518105, China Tel :+86-755-83551033 Fax:+86-755-83552400 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 62 iLUV Creative Technology FCC ID: ATL-ISP202 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the company. WALTEK SERVICES Reference No.: WT12075130-D-S-F 2 Test Summary Test Items Test Requirement Result Conducted Emissions (150kHz to 30MHz) 15.207 PASS Radiated Spurious Emissions (26MHz to 25GHz) 15.205(a) 15.209 15.247(d) PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Page:3 of 62 iLUV Creative Technology FCC ID: ATL-ISP202 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the company. WALTEK SERVICES Reference No.: WT12075130-D-S-F 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 5 4.1 CLIENT INFORMATION........................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 5 4.3 DETAILS OF E.U.T................................................................................................................................................. 5 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 5 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 5 4.6 TEST FACILITY...................................................................................................................................................... 6 4.7 TEST LOCATION.................................................................................................................................................... 6 4.8 MEASUREMENT UNCERTAINTY............................................................................................................................. 6 5 EQUIPMENT USED DURING TEST .................................................................................................................. 7 6 CONDUCTED EMISSION .................................................................................................................................... 9 6.1 E.U.T. OPERATION................................................................................................................................................ 9 6.2 EUT SETUP......................................................................................................................................................... 10 6.3 CONDUCTED EMISSION TEST RESULT................................................................................................................. 10 6.4 PHOTOGRAPH – CONDUCTED EMISSION TEST SETUP.......................................................................................... 13 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 14 7.1 EUT OPERATION :............................................................................................................................................... 14 7.2 TEST SETUP......................................................................................................................................................... 15 7.3 SPECTRUM ANALYZER SETUP............................................................................................................................. 16 7.4 TEST PROCEDURE................................................................................................................................................ 17 7.5 CORRECTED AMPLITUDE & MARGIN CALCULATION......................................................................................…

Text truncated - open the document above for the full version.

2.1 Photograph – Conducted Emission Test Setup 2.2 Photograph – Radiation Spurious Emission Test Setup Below 30MHz 30Mhz~1GHz Above 1GHz
