ATL-ISP245BLUETOOTH SPEAKER

Hereby, Wonders Technology Co., Ltd. , declares that this Bluetooth Speaker is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this equipment. Such modications could void the user's authority to operate the equipment.

12345678 A B C D 87654321 D C B A Title NumberRevisionSize A3 Date:24-Feb-2012Sheet of File:E:\本地磁盘 (G)\LMCHEN项目\DS1074_ISP245\is p245.ddbDrawn By: Bluetooth Module F3089 LOUT 4 OHM SPEAKER R OUT 4 OHM SPEAKER Amplifier HT6088 DC 5V INPUT Charging Ciruit EUP8054 3.7V Lithium Battery AUX INPUT Signal sources AUX L/R signal input bluetooth L/R signal input R/L signal after switch 3.7V 供电 switch BT Module F-3089

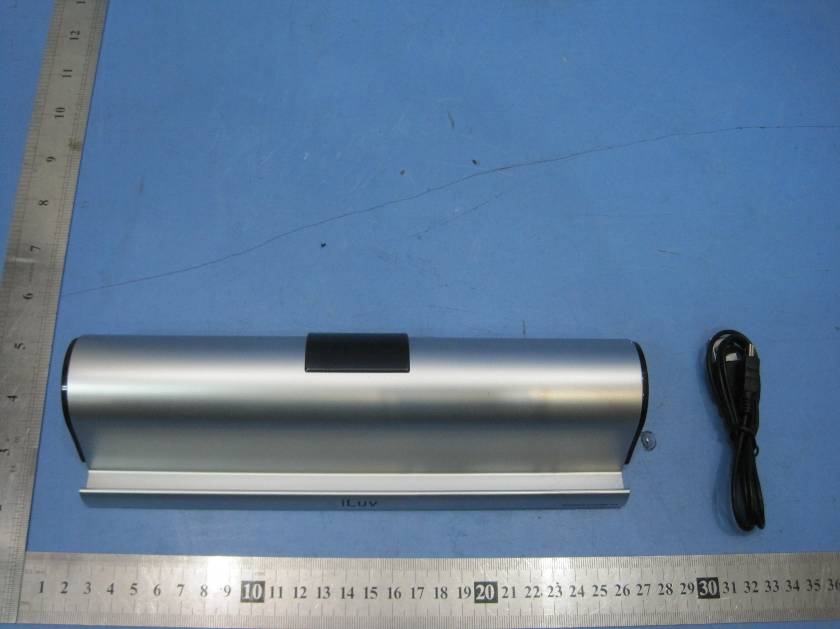

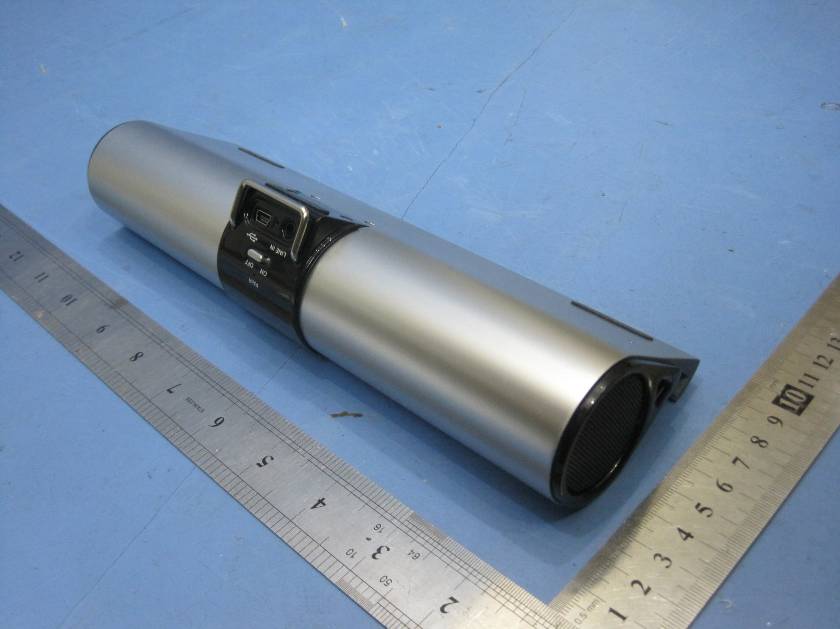

2.1 Product View 2.2 EUT – Appearance View

Page:53 of 53 iLUV Creative Technology FCC ID: ATL-ISP245 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12021140-D-S-F 17 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Back View/ proposed FCC Label Location FCC ID: ATL-ISP245 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Sample for Models: iSP245, iSP245SIL, iSP245BLK FCC ID: ATL-ISP245 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 EUT – Open View 2.2 EUT – PCB1 View 2.3 EUT – PCB2 View

Main parameters: Power adaptor: 3.7V 900mAh built-in lithium battery Charging voltage: DC 5V Speaker resistor: 4Ohm Power consumption output: 1.5W*2 Circuit declaration 1. iSP245 is a 2.0(stereo) portable Bluetooth speaker. 2. iSP245 can support both AUX and Bluetooth music. 2.1. When play AUX music, sound frequency L&R signal enter into 3(R IN)&18(L IN) of IC HT6808(U2) through JK1(earphone dock), after amplifying, transferring into L&R speaker from amplifier IC 5(RP+), 8(RO-) and 13(L-) 16(L+). 2.2. The shift between AUX and Bluetooth can be controlled by JK1(earphone dock). When AUX signal is input, JK1(earphone dock) switch outputs L electrical level, counter wisely, JK1(earphone dock) switch outputs H level. 2.3. While playing AUX music, the Bluetooth module power will be cut off to stop working through JK1(earphone dock) switch to control triode Q1(3904) and Q2(3906). 2.4. Under Bluetooth working status, due to no AUX signal input, it can use JK1(earphone dock) switch to control triode Q1(3904) and Q2(3906) to make it pass, then the Bluetooth can be charged by power adaptor which will help Bluetooth work. 2.5. The Bluetooth Module F-3089 utilizes 12MHz OSC. Power charging Electricity of iSP245 is supplied by 3.7V 900mAh built-in lithium battery. When the power is limited, it can be charged by outer DC 5V adaptor, which connected with mini USB cable, using charging management IC EUP8054(U3) to transfer the power to device.

12345678 A B C D 87654321 D C B A Title NumberRevisionSize A3 Date:22-Feb-2012Sheet of File:E:\本地磁盘 (G)\LMCHEN项目\DS1074_ISP245\ISP245.DDBDrawn By: R7 8.2K R8 8.2K AUX-L AUX-R C4 100p C1 100p CA02 105 CA01 105 R13 BEAD C12 104 1 2 CN2 ROUT 1 2 CN3 LOUT C21 104 L1 BEAD 600/100MHz L2 BEAD 600/100MHz C22 102 C23 102 C25 101 L4 BEAD 600/100MHz L3 BEAD 600/100MHz C28 102 C27 102 C31 101 C20 104 1 2 3 4 5 USB1 USB GND USB_5V CA03 105 R4 6.8K R1 6.8K CA04 105 JK1 JK_SW C13 106 CHRG 1 GND 2 PROG 5 BAT 3 VCC 4 U3 EUP8054 R11 2.2K R2 1.5k 1 2 BAT 3.7V/1000mAH + C26 470U/16V C3 104 Q2 3906 R23 56K R22 100R C11 104 C14 106 AUX AUX C430 104 C104 NC LED1 blue red R12 1.5K R25 1.5K CHANGE_LED LED2 R10 NC Q1 3904 R17 10K R20 56K R14 7.5K + C2 470U/16V SW1 POWER SW R26 4.7R R3 10k VOL+ 1 VOL- 2 NEXT 3 PRE 4 POWER 5 LDO1.8V 6 GND 7 VCC 8 LED_ON/OFF 9 LED_WORK 10 MIC 11 SPK_RP 12 SPK_RN 13 SPK_LP 14 SPK_LN 15 AGND 16 17 17 18 18 19 19 MUTE 20 U1 BT3089 R5 33K R18 NC C5 563 C15 563 R9 15K R19 15K R15 33KR6 0R R27 0R PVDD PVDD OUTL- 13 PGND 7 OUTL+ 16 PVDD 6 MUTE 9 AVDD 12 INL+ 18 INR- 2 ACRC 4 INR+ 3 AGND 1 SDL 10 PVDD 15 OUTR+ 5 PGND 14 OUTR- 8 INL- 19 NC 20 G0 17 SDR 11 U2 HT6808 C9 104 C17 104 R24 4.7R C24 105 PVDD R21 1M C19 105 C16 104 C10 104 R16 100R MUTE MUTE D1 1N4007 L30 BEAD 600/100MHz C6 NC C7 NC C18 106 C26 104 BT Module F-3089

Page: 1 of 53 FCC TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12021140-D-S-F FCC ID : ATL-ISP245 Applicant : iLUV Creative Technology Address : Harbor Park Drive, Port Washington, NY11050, USA Equipment Under Test (EUT) : Product Name : Bluetooth Speaker Model No. : iSP245, iSP245SIL, iSP245BLK Standards : FCC CFR47 Part 15 Section 15.247:2010 Date of Test : March 1 ~ March 9, 2012 Date of Issue : March 21, 2012 Test Engineer : Hunk yan / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-27553488 Fax:+86-755-27553868 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 53 iLUV Creative Technology FCC ID: ATL-ISP245 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12021140-D-S-F 2 Test Summary Test Items Test Requirement Result Conducted Emissions (150kHz to 30MHz) 15.207 PASS Radiated Spurious Emissions (9kHz to 25GHz) 15.205(a) 15.209 15.247(d) PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Page:3 of 53 iLUV Creative Technology FCC ID: ATL-ISP245 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12021140-D-S-F 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 5 4.1 CLIENT INFORMATION........................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 5 4.3 DETAILS OF E.U.T................................................................................................................................................. 5 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 5 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 5 4.6 TEST FACILITY...................................................................................................................................................... 6 4.7 TEST LOCATION.................................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST .................................................................................................................. 7 6 CONDUCTED EMISSION .................................................................................................................................... 8 6.1 E.U.T. OPERATION................................................................................................................................................ 8 6.2 EUT SETUP........................................................................................................................................................... 9 6.3 CONDUCTED EMISSION TEST RESULT................................................................................................................... 9 6.4 PHOTOGRAPH – CONDUCTED EMISSION TEST SETUP.......................................................................................... 12 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 13 7.1 EUT OPERATION :............................................................................................................................................... 13 7.2 MEASUREMENT UNCERTAINTY........................................................................................................................... 13 7.3 TEST SETUP......................................................................................................................................................... 14 7.4 SPECTRUM ANALYZER SETUP............................................................................................................................. 15 7.5 TEST PROCEDURE................................................................................................................................................ 16 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION........................................................................................... 16 7.7 SUMMARY OF TEST RESULTS...................…

Text truncated - open the document above for the full version.

2.1 Photograph – Radiation Spurious Emission Test Setup Below 1GHz Above 1GHz 2.2 Photograph – Conducted Emission Test Setup
