AU792U03G23730GSM Modems

MultiModem
GSM/GPRS External Wireless Modem (Data/Fax/Voice) MTCBA-G-F1 MTCBA-G-F2 User Guide 2 User Guide for MultiModem GSM/GPRS External Data/Fax/Voice Wireless Modem Models MTCBA-G-F1 & MTCBA-G-F2 P/N 82001220, Revision A Copyright © 2003 by Multi-Tech Systems, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from Multi-Tech Systems, Inc. Multi-Tech Systems, Inc. makes no representation or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc., to notify any person or organization of such revisions or changes. RevisionDateDescription A5/01/03Initial Release, Rev A. Multi-Tech, MultiMobile and the Multi-Tech logo are trademarks of Multi-Tech Systems, Inc. Windows is a registered trademarks of Microsoft in the U.S. and other countries. Other trademarks and trade names mentioned in this publication belong to their respective owners. Multi-Tech Systems, Inc. 2205 Woodale Drive, Mounds View, Minnesota 55112 (763) 785-3500; (800) 328-9717; Fax (763) 785-9874 Technical Support (800) 972-2439 Internet Address: http://www.multitech.com 3 Contents PRODUCT DESCRIPTION5 Package Contents6 Interfaces6 Parts to be Supplied by Wireless Service Provider7 Parts to be Supplied by End User7 Radio Characteristics8 Accessory Kit9 AT Command Info10 Phone Number for the Wireless Modem10 Network Access10 Features12 A PPLICATION OVERVIEW13 Application Types13 Benefits/Features in Applications15 Functions – GSM Modes18 S PECIFICATIONS19 General Specifications19 Electrical Characteristics20 Input/output electrical characteristics for external connections21 Input/output electrical characteristics (cont’d)22 LED Indicators23 RS232 15-Pin Connector Pinout24 G ETTING STARTED WITH YOUR WIRELESS MULTIMODEM25 Mechanical Mounting25 4 Electrical Installation & Configuration28 Mobile Phonetools34 Verifying signal strength35 Verifying network registration36 Testing the Configuration37 Testing the Configuration (continued)38 Testing the Configuration (continued)39 TROUBLESHOOTING40 Situation A: The modem does not answer through the serial link40 Situation B: The modem always returns «Error» when trying to issue a communication42 Situation C: The modem always returns «No carrier» when trying to issue a communication47 S AFETY51 General Safety51 Vehicle Safety53 Maintenance of GSM Modem53 Your Responsibility54 W ARRANTY & REPAIRS POLICIES55 Warranty55 Repairs56 Repair Procedures for U.S. and Canadian Customers56 Repair Procedures for International Customers (Outside U.S.A. and Canada)58 Repair Procedures for International Distributors59 WIRELESS MODEM REFERENCE INFO60 Product Description 5 Product Description The Multi-Tech MultiModem GSM/GPRS is an external data/fax/voice wireless modem. It also supports mobile originated short message service (SMS) and mobile-terminated SMS. Designed for global use, it offers standards-based multi-band GSM/GPRS Class 10 performance. This ready-to- deploy, standalone modem allows developers to add wireless communication to products with a minimum of development time and expense. The MultiModem GSM/GPRS is based on industry- standard open interfaces, is fully type approved, and can be desktop or panel mounted. Product Description 6 Package Contents
one modem
two holding bridles (mounting brackets)
one RS-232 15-to-9-pin cable
one power supply cable with fuse
one User Manual (this document) Interfaces The Wireless MultiModem has several interfaces:

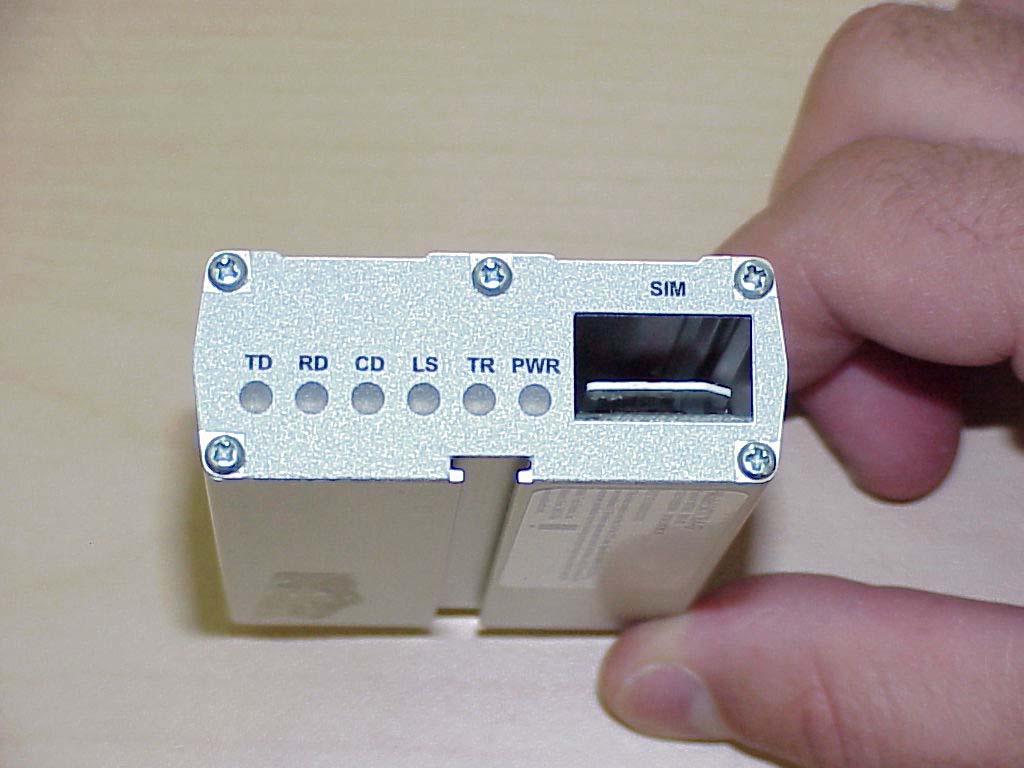

LED function indicating operating status
External antenna (via SMA connector)
Serial and control link (via 15 pins SUB D)
Power supply (via 2.5mm miniature power jack)
SIM card holder Product Description 7 Parts to be Supplied by Wireless Service Provider
Subscriber Identity Module (SIM) configuration chip The SIM contains information specific to your wireless account and its features. Parts to be Supplied by End User
mounting screws ( screw shaft diameter = .17” max.)
antenna The antenna used must be both of the correct frequency and of the style appropriate to the application. Product Description 8 Radio Characteristics GSM 850EGSM 900 Frequency RX 869 to 894 MHz925 to 960 MHz Frequency TX 824 to 849 MHz880 to 915 MHz RF Power Stand 2W at 12.5% duty cycle 2W at 12.5% duty cycle Impedance 50 ohms VSWR <2 Typical Radiated Gain 0 dBi on azimuth plane GSM 1800GSM 1900 Frequency RX 1805 to 1880 MHz1930 to 1990 MHz Frequency TX 1710 to 1875 MHz1850 to 910 MHz RF Power Stand 1W at 12.5% duty cycle 1W at 12.5% duty cycle Impedance 50 ohms VSWR <2 Typical Radiated Gain 0 dBi on azimuth plane Product Description 9 Accessory Kit A Wireless MultiModem Accessory Kit is available. Generally speaking, it is useful to have one or two kits to configure a group or fleet of Wireless MultiModem units (generally, you will not need one kit for every modem). The kit includes an antenna, a power supply and a product CD. The product CD contains an AT Command manuals, other documentation, and modem software. Product Description 10 AT Command Info This manual describes a minimal set of AT commands that are adequate for configuring many common application situations. A complete set of AT command definitions can be found in the AT Command manuals (one for GSM/GPRS and one for CDMA). These manuals are available on the MultiTech web site or on the Accessory Kit CD. Phone Number for the Wireless Modem
Every wireless modem will have its own unique phone number.
The wireless modem’s phone number may simply be told to the subscriber or be on the SIM or both. Wireless provider implementations may vary. Network Access The network access arrangements to be specified in Windows Dial-Up Net…

Text truncated - open the document above for the full version.

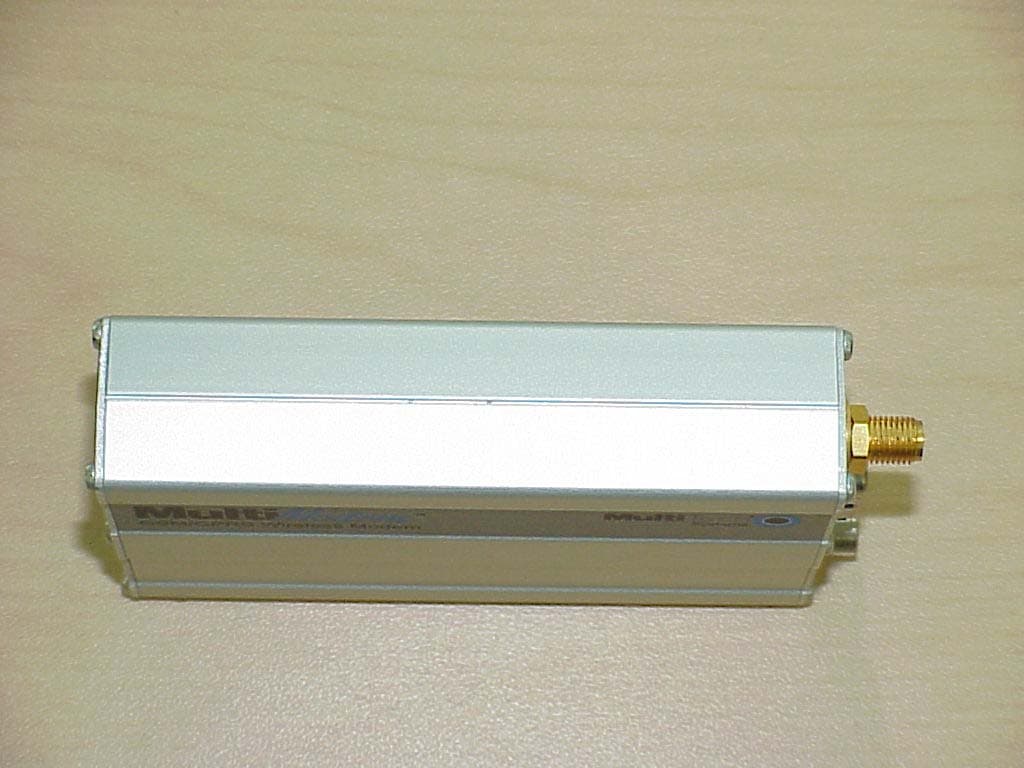

FCC ID: AU792U03G23710 IC ID: 125-0009 MTCBA-G-F2: Top view FCC ID: AU792U03G23710 IC ID: 125-0009 MTCBA-G-F2: Bottom view FCC ID: AU792U03G23710 IC ID: 125-0009 MTCBA-G-F2: profile-1 FCC ID: AU792U03G23710 IC ID: 125-0009 MTCBA-G-F2: profile-2 FCC ID: AU792U03G23710 IC ID: 125-0009 MTCBA-G-F2: profile-3 FCC ID: AU792U03G23710 IC ID: 125-0009 MTCBA-G-F2: profile-4

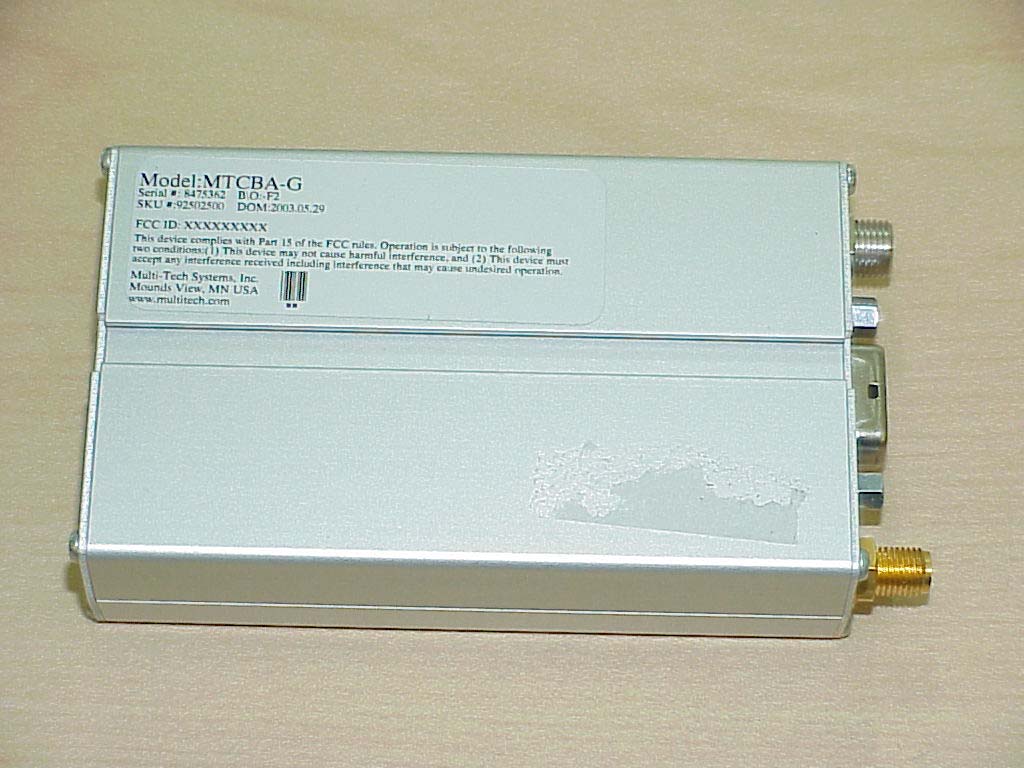

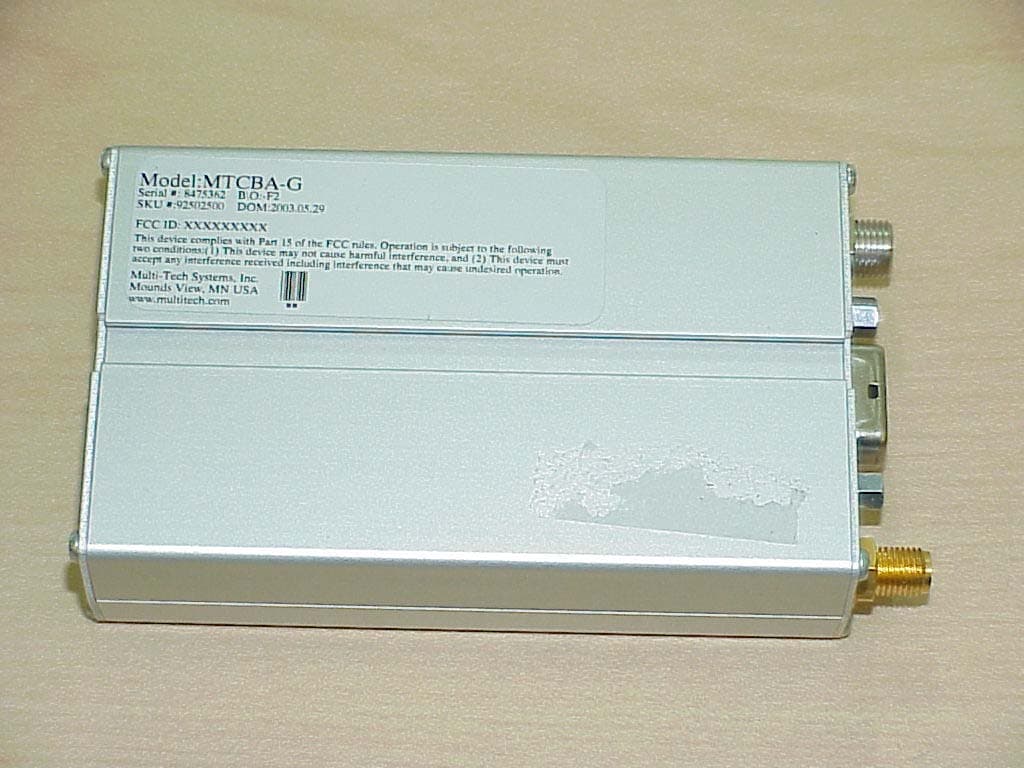

Model: MTCBA-G Serial #:xxxxxxxx B\O: -F2 SKU: 92502500 DOM: 2003.07.28 IC: 125A-0009 FCC ID: AU792U03G23730 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. Multi-Tech Systems, Inc. Mounds View, MN USA www.multitech.com ** Label Location

MPE calculation for: Multi Tech GSM modem FCC ID: AU792U03G23710 IC ID: 125-0009 Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 (3) Where S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) or, S = EIRP/4πR 2 (4) Where EIRP = Equivalent Isotropically radiated power Calculation: (Calculated for max. EIRP in GSM850 band) EIRP: 32.54dBm (1794.74mW) Calculated at distance of 20cm Power density = 1794.74 / (4 x pi x 20 2 ) = 0.357 mW/cm 2 Limit: 1mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1.

INSTALLATION AND INSTRUCTION MANUAL INCLUDING HUMAN EXPOSURE STATEMENT As required by § 2.1033(c)(3), here is a part of the User's Guide and Technical Manual that describes modem features, installation, and operation. Also provided, on page 52 of our User’s Manual, is a statement addressing human exposure to radio frequency radiation. This information is necessary to ensure that equipment installers, operators and users are made aware of the dangers of exposure to radio frequency radiation and that the Modem is installed and operated in compliance with 47 CFR Part 24, Subpart E and 47 CFR Part 22, Subpart H of the FCC Rules and Regulations. Pursuant to § 24.52 RF hazards, all emissions from the Modem, both fundamental and unwanted, are subject to the radio frequency radiation exposure requirements given in § 1.1307(b), § 2.1091 and § 2.1093, as appropriate. For fixed transmitters, § 1.1307(b) requires the preparation of an Environmental Assessment (EA) if the transmitter would cause human exposure to levels of radio frequency radiation in excess of the applicable limits given in § 1.1310. However, determination of compliance with these limits and preparation of an EA if they are exceeded is required only for licensed PCS facilities, operations and transmitters with the following characteristics: 1. Personal Communications Services (part 24) Broadband PCS (subpart E): non-building-mounted antennas: height above ground level to lowest point of antenna < 10 m and total power of all channels > 2000 W ERP (3280 W EIRP) Building-mounted antennas: total power of all channels > 2000 W ERP (3280 W EIRP) 2. Cellular Radiotelephone Service (subpart H of part 22). Non-building-mounted antennas: height above ground level to lowest point of antenna < 10 m and total power of all channels > 1000 W ERP (1640 W EIRP) Building-mounted antennas: total power of all channels > 1000 W ERP (1640 W EIRP) Fixed" in this context means that the device is physically secured at one location and is not able to be easily moved to another location. Since the modem transmits on a single channel with a maximum peak output power of 1.0 W (30 dBm) at 1900 MHz and 1,66 W (32.2 dBm) at 850 MHz nominal, the maximum specified antenna gain of 7 dBi / 0.2 dB results by using maximum permissible Exposure for general population of 1 mW/cm² / 0,57 mW/cm², below the level which would trigger a routine environmental evaluation. Therefore, in fixed applications, the modem is categorically excluded from performance of a routine environmental evaluation or preparation of an EA. In § 2.1091(b), a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's antenna and the body of the user or nearby persons. In accordance with § 2.1091(c), mobile PCS devices are categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use if their e.r.p is less than 3 W (34.8dBm) for 1900 MHz operations and 1.5 W for 850 MHz operations. The Modem user’s manual requires a separation distance of at least 20 cm between the unit's antenna and the body of the user and nearby persons for all uses and applications, both mobile and fixed. Furthermore, for mobile applications, the maximum e.i.r.p. will not exceed 2 W (33 dBm), in accordance with the requirements of § 24.232(b). Therefore, for mobile applications, the modem is categorically excluded from a routine environmental evaluation for RF exposure. In all applications and uses, compliance with current FCC RF regulations limiting human exposure to radio frequency exposure is dependent upon installation, operation and use of the equipment in accordance with all instructions provided. HUMAN EXPOSURE COMPLIANCE STATEMENT Pursuant to 47 CFR § 24.52 of the FCC Rules and Regulations, personal communications services (PCS) equipment is subject to the radio frequency radiation exposure requirements specified in § 1.1307(b), § 2.1091 and § 2.1093, as appropriate. Wavecom, Inc. certifies that it has determined that the Modem complies with the RF hazard requirements applicable to broadband PCS equipment operating under the authority of 47 CFR Part 24, Subpart E and 47 CFR Part 22, of the FCC Rules and Regulations. This determination is dependent upon installation, operation and use of the equipment in accordance with all instructions provided. The Modem is designed for and intended to be used in fixed and mobile applications. "Fixed" means that the device is physically secured at one location and is not able to be easily moved to another location. "Mobile" means that the device is designed to be used in other than fixed locations and generally in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter's antenna and the body of the user or nearby persons. The Modem is not designed for or intended to be used in portable applications (within 20 cm of the body of the user) and such uses are strictly prohibited. To ensure that the Modem complies with current FCC regulations limiting both maximum RF output power and human exposure to radio frequency radiation, a separation distance of at least 20 cm must be maintained between the unit's antenna and the body of the user and any nearby persons at all times and in all applications and uses. Additionally, in mobile applications, maximum antenna gain must not exceed 3 dBi for 1900 MHz operations and -0.5 dB for 850 MHz operations.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_515FCC22-24_2003_MTCBA FCC Part 22,24 / RSS 133 Model: MTCBA-G-F2 FCC ID: AU792U03G23730 IC ID: 125A-0009 Test report no.: EMC_515FCC22-24_2003_MTCBA Issue date: 2003-09-10 Page 2 (99) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_515FCC22-24_2003_MTCBA Issue date: 2003-09-10 Page 3 (99) 1.3 Details of applicant Name : Multi-Tech Systems, Inc Street : 2205 Woodale Drive City / Zip Code : Mounds View, MN 55112 Country : USA Contact : Terry Boe Telephone : +1 763-717-5506 Tele-fax : +1 763-717-5814 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2003-07-05 Date of test : 2003-07-10/11/12/13/14 1.5 Test item Manufacturer : Applicant Marketing Name : SocketModem GSM/GPRS Model No. : MTCBA-G-F2 Description : GSM 850/1900 Modems FCC-ID : AU792U03G23730 IC-ID : 125A-0009 Additional information Frequency : 824.2MHz – 848.8MHz for GSM 850, 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 124 for GSM-850, 299 for PCS-1900 Antenna : External Power supply : 5.0VDC Output power : 30.44dBm (1.11W) max. ERP measured in GSM-850 29.79dBm (952.8mW) max. EIRP measured in PCS-1900 Extreme vol. Limits : Lower: 4.75Vdc Nominal: 5.0Vdc Upper: 5.25Vdc Extreme temp. Tolerance : Lower:-30 o C Upper: +50 o C 1.6 Test standards FCC Part 22,24 / RSS133 r1 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_515FCC22-24_2003_MTCBA Issue date: 2003-09-10 Page 4 (99) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2003-09-10 EMC & Radio Lothar Schmidt (Technical Manager) Date Section Name Signature Responsible for test report and project leader: 2003-09-10 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature Test report no.: EMC_515FCC22-24_2003_MTCBA Issue date: 2003-09-10 Page 5 (99) 2.2 Test report TEST REPORT Test report no.: EMC_515FCC22-24_2003_MTCBA Model: MTCBA-G-F2 Test report no.: EMC_515FCC22-24_2003_MTCBA Issue date: 2003-09-10 Page 6 (99) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 22.913(a) / § 24.232 (b) 7 FREQUENCY STABILITY § 2.1055 / § 24.235 17 OCCUPIED BANDWIDTH §2.1049(h)(i) 20 EMISSION BANDWIDTH §24.238(b) 27 EMISSION LIMITS TRANSMITTER §2.1051 / §24.238 34 RECEIVER RADIATED EMISSIONS § 2.1053 / RSS-133 83 CONDUCTED SPURIOUS EMISSIONS § 2.1057 / §24.238 88 CONDUCTED EMISSIONS § 15.107/207 96 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 97 BLOCK DIAGRAMS 98 Test report no.: EMC_515FCC22-24_2003_MTCBA Issue date: 2003-09-10 Page 7 (99) POWER OUTPUT § 22.913(a) / § 24.232 (b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Universal Radio Communication tester (CMU 200) to ensure max. Power transmission and proper modulation. This paragraph contains average output power, peak output power, EIRP & ERP measurements for the EUT. In all cases, the peak output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 824.2 MHz, 836.6 MHz and 848.8 MHz (bottom, middle and top of operational frequency range) for GSM-850 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) for PCS-1900 Test report no.: EMC_515FCC22-24_2003_MTCBA Issue date: 2003-09-10 Page 8 (99) Conducted (GSM-850) Limits: Power Step Nominal Peak Output Power Tolerance (dB) 5 ≤33dBm (2W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Frequency (MHz) Peak Power during burst (dBm) 824.2 32.20 836.6 32.00 848.8 31.86 Conducted (PCS-1900) Limits: Power Step Nominal Peak Output Power Tolerance (dB) 0 ≤30dBm (1W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Frequency (MHz) Peak Power during burst (dBm) 1850.2 29.16 1880.0 29.07 1909.8 28.80 Test report no.: EMC_515FCC22-24_2003_MTCBA Issue date: 2003-09-10 Page 9 (99) ERP (GSM-850) §22.913(a) Limit…

Text truncated - open the document above for the full version.

FCC ID: AU792U03G23710 IC ID: 125-0009 Test setup – Radiated Emissions (MTCBA-G-F2) FCC ID: AU792U03G23710 IC ID: 125-0009 Test setup – Radiated Emissions (MTCBA-G-F2)
