AUBWFSMMWireless Monitor Module

PRELIMINARY N0 P/N LS10036-000NF-E:N0ECN xx-xxx Document LS10036-000NF-E 10/10/2013 Rev: Notifier Wireless Sensor Network LS10036-000NF-E User Manual 2PRELIMINARY: Notifier Wireless Sensor Network — P/N LS10036-000NF-E:N0 10/10/2013 Fire Alarm & Emergency Communication System Limitations While a life safety system may lower insurance rates, it is not a substitute for life and property insurance! An automatic fire alarm system—typically made up of smoke detectors, heat detectors, manual pull stations, audible warning devices, and a fire alarm control panel (FACP) with remote notifi- cation capability—can provide early warning of a developing fire. Such a system, however, does not assure protection against property damage or loss of life resulting from a fire. An emergency communication system—typically made up of an automatic fire alarm system (as described above) and a life safety communication system that may include an autonomous control unit (ACU), local operating console (LOC), voice commu- nication, and other various interoperable communication meth- ods—can broadcast a mass notification message. Such a system, however, does not assure protection against property damage or loss of life resulting from a fire or life safety event. The Manufacturer recommends that smoke and/or heat detectors be located throughout a protected premises following the recommendations of the current edition of the National Fire Protection Association Standard 72 (NFPA 72), manufacturer's recommendations, State and local codes, and the recommendations contained in the Guide for Proper Use of System Smoke Detectors, which is made available at no charge to all installing dealers. This document can be found at http:// www.systemsensor.com/appguides/. A study by the Federal Emergency Management Agency (an agency of the United States government) indicated that smoke detectors may not go off in as many as 35% of all fires. While fire alarm systems are designed to provide early warning against fire, they do not guarantee warning or protection against fire. A fire alarm system may not provide timely or adequate warning, or simply may not function, for a variety of reasons: Smoke detectors may not sense fire where smoke cannot reach the detectors such as in chimneys, in or behind walls, on roofs, or on the other side of closed doors. Smoke detectors also may not sense a fire on another level or floor of a building. A second-floor detector, for example, may not sense a first-floor or basement fire. Particles of combustion or “smoke” from a developing fire may not reach the sensing chambers of smoke detectors because: • Barriers such as closed or partially closed doors, walls, chim- neys, even wet or humid areas may inhibit particle or smoke flow. • Smoke particles may become “cold,” stratify, and not reach the ceiling or upper walls where detectors are located. • Smoke particles may be blown away from detectors by air outlets, such as air conditioning vents. • Smoke particles may be drawn into air returns before reach- ing the detector. The amount of “smoke” present may be insufficient to alarm smoke detectors. Smoke detectors are designed to alarm at var- ious levels of smoke density. If such density levels are not cre- ated by a developing fire at the location of detectors, the detectors will not go into alarm. Smoke detectors, even when working properly, have sensing limitations. Detectors that have photoelectronic sensing cham- bers tend to detect smoldering fires better than flaming fires, which have little visible smoke. Detectors that have ionizing-type sensing chambers tend to detect fast-flaming fires better than smoldering fires. Because fires develop in different ways and are often unpredictable in their growth, neither type of detector is necessarily best and a given type of detector may not provide adequate warning of a fire. Smoke detectors cannot be expected to provide adequate warn- ing of fires caused by arson, children playing with matches (especially in bedrooms), smoking in bed, and violent explosions (caused by escaping gas, improper storage of flammable materi- als, etc.). Heat detectors do not sense particles of combustion and alarm only when heat on their sensors increases at a predetermined rate or reaches a predetermined level. Rate-of-rise heat detec- tors may be subject to reduced sensitivity over time. For this reason, the rate-of-rise feature of each detector should be tested at least once per year by a qualified fire protection specialist. Heat detectors are designed to protect property, not life. IMPORTANT! Smoke detectors must be installed in the same room as the control panel and in rooms used by the system for the connection of alarm transmission wiring, communications, signaling, and/or power. If detectors are not so located, a devel- oping fire may damage the alarm system, compromising its abil- ity to report a fire. Audible warning devices such as bells, horns, strobes, speakers and displays may not alert people if these devices are located on the other side of closed or partly open doors or are located on another floor of a building. Any warning device may fail to alert people with a disability or those who have recently consumed drugs, alcohol, or medication. Please note that: • An emergency communication system may take priority over a fire alarm system in the event of a life safety emergency. • Voice messaging systems must be designed to meet intelligi- bility requirements as defined by NFPA, local codes, and Authorities Having Jurisdiction (AHJ). • Language and instructional requirements must be clearly dis- seminated on any local displays. • Strobes can, under certain circumstances, cause seizures in people with conditions such as epilepsy. • Studies have shown that certain people, even when they hear a fire alarm signal, do not respond to or comprehend the meaning of the signal. Audible devices, such as horns and bells, can have different tonal patterns and frequencies. It …

Text truncated - open the document above for the full version.

System Sensor 3825 Ohio Avenue St. Charles, Illinois 60174 Telephone: 630-377-6580 Fax: 630-377-6495 www.systemsensor.com 11/22/13 RE: Confidentiality Request for: FCC ID AUBWFSMM Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Honeywell International, System Sensor Division has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __180___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ELITE ELECTRONIC ENGINEERING, INC. in the event information regarding the product or the product is made available to the public. ELITE ELECTRONIC ENGINEERING, INC. will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Please feel free to contact me if you have any questions or for any additional information Sincerely, Brian Langkan Regulatory Compliance Group Leader 630-762-5258 [email protected] 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.”

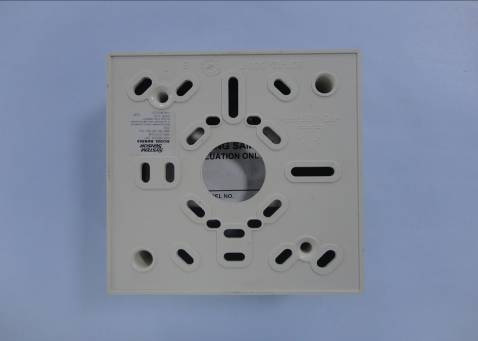

Wireless Monitor Module - Internal and External Photos Top View Bottom View

NAMEPLATE: FW-MM SHT:OF 1:1 DRAWING NUMBER N04-5217 TITLE NAMEPLATE (IN-HOUSE): FW-MM THIS PRINT AND INFORMATION THEREIN ARE PROPRIETARY TO SYSTEM SENSOR AND SHALL NOT BE USED IN WHOLE OR IN PART WITHOUT THEIR CONSENT. DRAWN BY M. HAMMER DATE 6/19/13 SHEET A SIZE 3825 OHIO AVENUE ST. CHARLES, IL 60174 LABEL IS NOT TO SIZE. RULERS INDICATE INCHES. REFER TO B.O.M. AND LABEL STOCK DRAWING FOR ACTUAL SHAPE AND DIMENSIONS OF LABEL. DATE DESCRIPTION OF CHANGE CHANGED BY REVISION 6/19/13 RELEASE TO PRODUCTION M. HAMMER A N04-5217-000 PART NUMBER

Internal Photo – 1 Internal Photo – 2 Internal Photo -3 Internal Photo - 4 Internal Top Cover Internal Bottom Cover PCB – Top View PCB –Bottom View Top Cover Bottom Cover

Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 1 of 1 13 Wireless Monitor Module Model No.: FW-MM Date: 22-Dec-2013 Report Prepared By: Sasikala Subramani EMC Test Report Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 2 of 1 13 Report Number EMC-0004-2 EUT Nomenclature Wireless Monitor Module Sample Identification Model No. : FW-MM Sl. No. : 05879 Sof tw are Version : 5.82 Hardw are Version : Rev 2 Number of Samples 01 Date of receipt of Sample 16-09-2013 Condition of Sample on receipt Good Client name Honeyw ell Internat ional Inc. Client Address System Sensor, 3825, Ohio Ave, St. Charles , IL, USA - 60174 Testing Laboratory Honeyw ell Technology Solutions Lab Pvt. Ltd. Address RMZ ECOWORLD INFRASTRUCTURE PV T. LTD., (For merly Adarsh Pr ime Projects Pvt. Ltd., SEZ). Survey # 19/2, Devarabisanahalli Village, Varthur Hobli , Bangalore East Taluk, Bangalore – 560103 Test Dates 16-09-2013 to 06-12-2013 Applicable Standard FCC Part 15 Subpart C Test Results PA SS Pr epared By: Technical Lead Rev iew ed By : Technical Manager Name : Sasikala Subramani Signature: Date : 23-Dec-2013 Rev iew ed By: Project Lead Name : Loganathan Joghee Signature: Date : 23-Dec-2013 Authorized By: Quality Manager Rev iew ed By : Technical Manager Name : Prasanna Kumar BT Signature: Date : 23-Dec-2013 Authorized By: Lab Manager Name : Ananth Krishna Signature: Date : 23-Dec-2013 This Report relates to the above mentioned test sample only. Without the approval of Lab manager, this report shall not be reproduced except in f ull. Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 3 of 1 13 TEST SUMMARY # Name Specification Test Method Pass Fail NA FHSS 1 20dB Bandw idth FCC Part 15.247 DA 00-705 2 Maximum Peak Output Pow er FCC Part 15.247 DA 00-705 3 Carrier Frequency Separat ion FCC Part 15.247 DA 00-705 4 Number of Hopping Frequencies FCC Part 15.247 DA 00-705 5 Band-edge Compliance FCC Part 15.247 DA 00-705 6 Time of Occupancy (Dw ell Time) FCC Part 15.247 DA 00-705 7 Spurious RF Conducted Emissions FCC Part 15.247 DA 00-705 8 Spurious Radiated Emissions FCC Part 15.247 and 15.209 DA 00-705 DTS 1 DTS 6dB Bandw idth FCC Part 15.247 KDB 558074 2 Maximum Peak Output Pow er FCC Part 15.247 KDB 558074 3 Maximum Pow er Spectral Density FCC Part 15.247 KDB 558074 4 Band-edge Conducted Emissions FCC Part 15.247 KDB 558074 5 Radiated Spurious Emissions FCC Part 15.247 and 15.209 KDB 558074 MEASUREMENT UNCERTAINTY Where relevant, the f ollow ing measurement uncertainty levels has been estimated f or tests perf ormed on the EUT as specif ied in CISPR 16-4 The Expanded measurement uncertainty (K=2) is provided below # Name Value 1 20dB and 6dB bandw idth 1.4dB 2 Maximum Peak Output Pow er 1.4dB 3 Maximum Pow er Spectral Density 1.4dB 4 Band-edge Emissions 1.4dB 5 Spurious RF Conducted Emissions 1.4dB 6 Radiated Spurious Emissions <1GHz 4.9dB 7 Radiated Spurious Emissions >1GHz 6.3dB Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 4 of 1 13 1 PRODUCT DETAILS PRODUCT OPERATION AND INTENDED USE The w ireless monitor module is pow ered by f our CR123A batt eries. It can be connected t o a sw itch w ithin three f eet of it location or w ired directly to t he pull station. The module has LED indicat ion, controlled by the panel to indicate the stat us. RATINGS AND SYSTEM DETAILS Operating Frequency 902MHz to 928MHz Number of Channels DTS :6 FHSS :52 Channel Bandw idth (20 dB) DTS :1MHz FHSS :320 KHz Transmitted Power DTS :12dBm & 2dBm FHSS :17dBm Modulation Type FSK Data Rate DTS : 300Kbps FHSS :150Kbps Antenna Type Inverted F Patch Antenna No. of Antenna 3 Antenna Gain 2dBi Supply Voltage and Current 3.3V , 27mA Dimensions (L x B x H) 4.263mm x 4.171mm x 1.465mm Env ironmental Conditions Operat ing Temperature :20°C to 70°C Storage Temperature :-20°C t o 60°C Humidity :10% to 93% RH Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 5 of 1 13 TEST CONFIGURATION Config # Description Conducted Test EUT is Pow ered by external 3.3V pow er supply. EUT Debug port ( UART) is connected t o Laptop through USB to UA RT converter cable. EUT is conf igured to t he respective operat ing mode through Hyper Ter minal. Antenna 2 is selected f or the test as this is the only trans mit ting ant enna in t he f ield. Radiated Test EUT is Pow ered from Battery. EUT Debug port ( UA RT) is connected to Lapt op through USB to UA RT converter cable. EUT is conf igured to t he respective operat ing mode through Hyper Ter minal. Antenna 2 is selected f or the test as this is the only trans mitt ing ant enna in t he f ield. OPERATING MODES Mode # Description DTS Follow ing DTS channels have been used f or Conducted ( Cont inuous Trans mission) and Radiated (Pulsed Trans mission) Tests Channel 1 : 902.875MHz Channel 2 : 908.425MHz Channel 3 : 914.325MHz Channel 4 : 915.325MHz Channel 5 : 921.575MHz Channel 6 : 927.125MHz FHSS Follow ing FHSS channels have been used f or Conducted (Cont inuous Trans mission ) and Radiated (Continuous Trans mission) Tests Channel 1 : 903.55MHz Channel 27 : 916.35MHz Channel 52 : 926.45MHz INPUT AND OUTPUT CABLES Port # Nam e Port Type Cable Length Cable type Shielded/ Unshielded Comments Not Applicable *Note: AC = AC Pow er Port DC = DC Pow er Port TP = Telecommunicat ion Ports (eg. Ethernet) DI/ DO = Digital Input/ Out put N/ E = Non-Electrical AI/ AO = Analog Input/ Out put SUPPORT EQUIPMENTS AND ACCESSORIES USED # Item Description Make Model Part No. / Sl. No Cal Due Date 1 Laptop DELL E6400 3351399400 NA 2 USB t o UA RT Cable FTDI NA TTL-232R-3V3 NA 3 Dual Channel Pow er Supply GWINSTEK GPS-2202 ZH846116 18-Feb-2014 Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 6 of 1 13 CONNECTION DIAGRAM AND SETUP DIAGRAM Conducted RF Test Setup Radiated Emission Test Setup Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 7 o…

Text truncated - open the document above for the full version.

Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 72 of 113 3 DTS CHANNELS 3.1 DTS 6dB BANDWIDTH EUT Nomenclature Wireless Monitor Module Test Request No. EMC-0004-2 Model No. FW-MM Serial No. 05879 Test Start Date 15-Oct-2013 Temperature ( ̊C) 23.2 Test End Date 20-Oct-2013 Humidity RH (%) 55.1 Tested By Loganathan Joghee Pressure (mbar) NR Input Voltage / Freq 3.3 Vdc Operating Mode Ref er Page 5 f or Operat ing Mode Table Test configuration Ref er Page 5 f or Test Conf iguration Table Dev iation from Std NA Applicable standard FCC Part 15.247 Test Method KDB 558074 Comment TEST DETAILS Method Conducted , Radiated TEST PARAMETERS Antenna Height NA Turn table Rotation NA Equipm ent Class NA Measurement Distance NA TEST EQUIPMENT Y/N Equipment Make Model Serial Number Cal Due Date Y Spectrum Analyzer Agilent N9010A MY48031005 28-Nov-2014 Y RF Cable Huber- Suhner SF104/ 2X11PC3542/ 500 NA NA Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 73 of 113 TEST GRAPHS Channel 1 (902.875 M Hz) Channel 2 (908.425 M Hz) Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 74 of 113 Channel 3 (914.325 M Hz) Channel 4 (915.325 M Hz) Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 75 of 113 Channel 5 (921.575 M Hz) Channel 6 (927.125 M Hz) Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 76 of 113 TEST SETUP PHOTOGRAPH Ref er Annexure -1 Conducted RF Test Setup TEST RESULT Channel Frequency Measured Value Limit Result # MHz KHz KHz 1 902.875 702 >500 PA SS 2 908.425 696 >500 PA SS 3 914.325 708 >500 PA SS 4 915.325 711 >500 PA SS 5 921.575 612 >500 PA SS 6 927.125 705 >500 PA SS Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 77 of 113 3.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER EUT Nomenclature Wireless Monitor Module Test Request No. EMC-0004-2 Model No. FW-MM Serial No. 05879 Test Start Date 15-Oct-2013 Temperature ( ̊C) 23.3 Test End Date 20-Oct-2013 Humidity RH (%) 55.4 Tested By Loganathan Joghee Pressure (mbar) NR Input Voltage / Freq 3.3 Vdc Operating Mode Ref er Page 5 f or Operat ing Mode Table Test configuration Ref er Page 5 f or Test Conf iguration Table Dev iation from Std NA Applicable standard FCC Part 15.247 Test Method KDB 558074 Comment TEST DETAILS Method Conducted , Radiated DTS - Bandw idth RBW ≥ DTS RBW ≤ DTS TEST PARAMETERS Antenna Height NA Turn table Rotation NA Equipment Class NA Measurement Distance NA TEST EQUIPMENT Y/N Equipment Make Model Sl. No. Cal Due Date Y Spectrum Analyzer Agilent N9010A MY48031005 28-Nov-2014 Y RF Cable Huber- Suhner SF104/ 2X11PC3542/ 500 NA NA Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 78 of 113 TEST GRAPHS Channel 1 (902.875 M Hz) Channel 2 (908.425 M Hz) Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 79 of 113 Channel 3 (914.325 M Hz) Channel 4 (915.325 M Hz) Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 80 of 113 Channel 5 (921.575 M Hz) Channel 6 (927.125 M Hz) Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 81 of 113 TEST SETUP PHOTOGRAPH Ref er Annexure -1 Conducted RF Test Setup TEST RESULT Channel Frequency Measured Level Cable Loss Measured Level Limit Result # MHz dBm dB KHz dBm 1 902.875 11.784 0.5 12.384 ≤30 PA SS 2 908.425 11.745 0.5 12.245 ≤30 PA SS 3 914.325 1.035 0.5 1.535 ≤30 PA SS 4 915.325 11.637 0.5 12.137 ≤30 PA SS 5 921.575 11.506 0.5 12.006 ≤30 PA SS 6 927.125 1.273 0.5 1.773 ≤30 PA SS Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 82 of 113 3.3 MAXIMUM POWER SPECTRAL DENSITY EUT Nomenclature Wireless Monitor Module Test Request No. EMC-0004-2 Model No. FW-MM Serial No. 05879 Test Start Date 15-Oct-2013 Temperature ( ̊C) 23.3 Test End Date 20-Oct-2013 Humidity RH (%) 55.2 Tested By Loganathan Joghee Pressure (mbar) NR Input Voltage / Freq 3.3 Vdc Operating Mode Ref er Page 5 f or Operat ing Mode Table Test configuration Ref er Page 5 f or Test Conf iguration Table Dev iation from Std NA Applicable standard FCC Part 15.247 Test Method KDB 558074 Comment TEST DETAILS Method Conducted Radiated TEST PARAMETERS Antenna Height NA Turn table Rotation NA Equipment Class NA Measurement Distance NA TEST EQUIPMENT Y/ N Equipm ent Make Model Sl. No. Cal Due Date Y Spectrum Analyzer Agilent N9010A MY48031005 28-Nov-2014 Y RF Cable Huber- Suhner SF104/ 2X11PC3542/ 500 NA NA Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 83 of 113 TEST GRAPHS Channel 1 (902.875 M Hz) Channel 2 (908.425 M Hz) Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 84 of 113 Channel 3 (914.325 M Hz) Channel 4 (915.325 M Hz) Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 85 of 113 Channel 5 (921.575 M Hz) Channel 6 (927.125 M Hz) Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 86 of 113 TEST SETUP PHOTOGRAPH Ref er Annexure -1 Conducted RF Test Setup TEST RESULT Channel Freq Measured Level Limit Result # MHz dBm/3KHz dBm/ 3KHz 1 902.875 7.007 <8 PA SS 2 908.425 6.987 <8 PA SS 3 914.325 -3.886 <8 PA SS 4 915.325 6.731 <8 PA SS 5 921.575 6.682 <8 PA SS 6 927.125 -3.633 <8 PA SS Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 87 of 113 3.4 BAND-EDGE MEASUREMENTS EUT Nomenclature Wireless Monitor Module Test Request No. EMC-0004-2 Model No. FW-MM Serial No. 05879 Test Start Date 15-Oct-2013 Temperature ( ̊C) 23.1 Test End Date 20-Oct-2013 Humidity RH (%) 55.1 Tested By Loganathan Joghee Pressure (mbar) NR Input Voltage / Freq 3.3 Vdc Operating Mode Ref er Page 5 f or Operat ing Mode Table Test configuration Ref er Page 5 f or Test Conf iguration Table Dev iation from Std NA Applicable standard FCC Part 15.247 Test Method KDB 558074 Comment TEST DETAILS Method Conducted Radiated TEST P…

Text truncated - open the document above for the full version.

Honeywell Technology Solutions Honeywell Confidential and Proprietary Page 1 of 5 Wireless Monitor Module – Test Setup Photos Honeywell Technology Solutions Honeywell Confidential and Proprietary Page 2 of 5 CONDUCTED RF TEST SETUP PHOTO Conducted RF Test Setup Honeywell Technology Solutions Honeywell Confidential and Proprietary Page 3 of 5 RADIATED EMISSION TEST SETUP PHOTOS Radiated Emission Setup – 9KHz to 30MHz [Parallel] Radiated Emission Setup –9KHz to 30MHz [ Perpendicular ] Honeywell Technology Solutions Honeywell Confidential and Proprietary Page 4 of 5 Radiated Emission Setup – 30MHz to 1GHz [ Horizontal Polarization ] Radiated Emission Setup – 30MHz to 1GHz [ Vertical Polarization ] Honeywell Technology Solutions Honeywell Confidential and Proprietary Page 5 of 5 Radiated Emission Setup – 1GHz to 10GHz [Horizontal Polarization] Radiated Emission Setup – 1GHz to 10 GHz [ Vertical Polarization ]
