AUBWFSSDWireless Smoke Detector

PRELIMINARY N0 P/N LS10036-000NF-E:N0ECN xx-xxx Document LS10036-000NF-E 10/10/2013 Rev: Notifier Wireless Sensor Network LS10036-000NF-E User Manual 2PRELIMINARY: Notifier Wireless Sensor Network — P/N LS10036-000NF-E:N0 10/10/2013 Fire Alarm & Emergency Communication System Limitations While a life safety system may lower insurance rates, it is not a substitute for life and property insurance! An automatic fire alarm system—typically made up of smoke detectors, heat detectors, manual pull stations, audible warning devices, and a fire alarm control panel (FACP) with remote notifi- cation capability—can provide early warning of a developing fire. Such a system, however, does not assure protection against property damage or loss of life resulting from a fire. An emergency communication system—typically made up of an automatic fire alarm system (as described above) and a life safety communication system that may include an autonomous control unit (ACU), local operating console (LOC), voice commu- nication, and other various interoperable communication meth- ods—can broadcast a mass notification message. Such a system, however, does not assure protection against property damage or loss of life resulting from a fire or life safety event. The Manufacturer recommends that smoke and/or heat detectors be located throughout a protected premises following the recommendations of the current edition of the National Fire Protection Association Standard 72 (NFPA 72), manufacturer's recommendations, State and local codes, and the recommendations contained in the Guide for Proper Use of System Smoke Detectors, which is made available at no charge to all installing dealers. This document can be found at http:// www.systemsensor.com/appguides/. A study by the Federal Emergency Management Agency (an agency of the United States government) indicated that smoke detectors may not go off in as many as 35% of all fires. While fire alarm systems are designed to provide early warning against fire, they do not guarantee warning or protection against fire. A fire alarm system may not provide timely or adequate warning, or simply may not function, for a variety of reasons: Smoke detectors may not sense fire where smoke cannot reach the detectors such as in chimneys, in or behind walls, on roofs, or on the other side of closed doors. Smoke detectors also may not sense a fire on another level or floor of a building. A second-floor detector, for example, may not sense a first-floor or basement fire. Particles of combustion or “smoke” from a developing fire may not reach the sensing chambers of smoke detectors because: • Barriers such as closed or partially closed doors, walls, chim- neys, even wet or humid areas may inhibit particle or smoke flow. • Smoke particles may become “cold,” stratify, and not reach the ceiling or upper walls where detectors are located. • Smoke particles may be blown away from detectors by air outlets, such as air conditioning vents. • Smoke particles may be drawn into air returns before reach- ing the detector. The amount of “smoke” present may be insufficient to alarm smoke detectors. Smoke detectors are designed to alarm at var- ious levels of smoke density. If such density levels are not cre- ated by a developing fire at the location of detectors, the detectors will not go into alarm. Smoke detectors, even when working properly, have sensing limitations. Detectors that have photoelectronic sensing cham- bers tend to detect smoldering fires better than flaming fires, which have little visible smoke. Detectors that have ionizing-type sensing chambers tend to detect fast-flaming fires better than smoldering fires. Because fires develop in different ways and are often unpredictable in their growth, neither type of detector is necessarily best and a given type of detector may not provide adequate warning of a fire. Smoke detectors cannot be expected to provide adequate warn- ing of fires caused by arson, children playing with matches (especially in bedrooms), smoking in bed, and violent explosions (caused by escaping gas, improper storage of flammable materi- als, etc.). Heat detectors do not sense particles of combustion and alarm only when heat on their sensors increases at a predetermined rate or reaches a predetermined level. Rate-of-rise heat detec- tors may be subject to reduced sensitivity over time. For this reason, the rate-of-rise feature of each detector should be tested at least once per year by a qualified fire protection specialist. Heat detectors are designed to protect property, not life. IMPORTANT! Smoke detectors must be installed in the same room as the control panel and in rooms used by the system for the connection of alarm transmission wiring, communications, signaling, and/or power. If detectors are not so located, a devel- oping fire may damage the alarm system, compromising its abil- ity to report a fire. Audible warning devices such as bells, horns, strobes, speakers and displays may not alert people if these devices are located on the other side of closed or partly open doors or are located on another floor of a building. Any warning device may fail to alert people with a disability or those who have recently consumed drugs, alcohol, or medication. Please note that: • An emergency communication system may take priority over a fire alarm system in the event of a life safety emergency. • Voice messaging systems must be designed to meet intelligi- bility requirements as defined by NFPA, local codes, and Authorities Having Jurisdiction (AHJ). • Language and instructional requirements must be clearly dis- seminated on any local displays. • Strobes can, under certain circumstances, cause seizures in people with conditions such as epilepsy. • Studies have shown that certain people, even when they hear a fire alarm signal, do not respond to or comprehend the meaning of the signal. Audible devices, such as horns and bells, can have different tonal patterns and frequencies. It …

Text truncated - open the document above for the full version.

System Sensor 3825 Ohio Avenue St. Charles, Illinois 60174 Telephone: 630-377-6580 Fax: 630-377-6495 www.systemsensor.com 11/22/13 RE: Confidentiality Request for: FCC ID AUBWFSSD Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Honeywell International, System Sensor Division has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __180___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ELITE ELECTRONIC ENGINEERING, INC. in the event information regarding the product or the product is made available to the public. ELITE ELECTRONIC ENGINEERING, INC. will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Please feel free to contact me if you have any questions or for any additional information Sincerely, Brian Langkan Regulatory Compliance Group Leader 630-762-5258 [email protected] 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.”

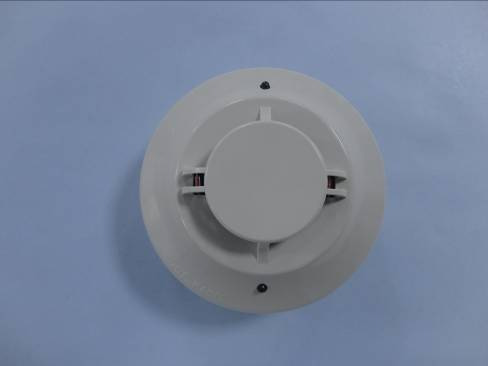

Wireless Smoke Detector - Internal and External Photos Acclimate / Photo Heat Smoke Detector - Top View Acclimate / Photo Heat Smoke Detector - Bottom View

NAMEPLATE: FWD-200P SHT:OF 1:1 DRAWING NUMBER N04-5216 TITLE NAMEPLATE (IN-HOUSE): FWD-200P THIS PRINT AND INFORMATION THEREIN ARE PROPRIETARY TO SYSTEM SENSOR AND SHALL NOT BE USED IN WHOLE OR IN PART WITHOUT THEIR CONSENT. DRAWN BY M. HAMMER DATE 6/19/13 SHEET A SIZE 3825 OHIO AVENUE ST. CHARLES, IL 60174 LABEL IS NOT TO SIZE. RULERS INDICATE INCHES. REFER TO B.O.M. AND LABEL STOCK DRAWING FOR ACTUAL SHAPE AND DIMENSIONS OF LABEL. DATE DESCRIPTION OF CHANGE CHANGED BY REVISION 6/19/13 RELEASE TO PRODUCTION M. HAMMER A N04-5216-000 PART NUMBER

Acclimate / Photo Heat Smoke Detector - Internal Photo – 1 Acclimate / Photo Heat Smoke Detector - Internal Photo Battery Location– 2 Acclimate / Photo Heat Smoke Detector Internal Photo -3 Acclimate / Photo Heat Smoke Detector - PCB – Top View Acclimate / Photo Heat Smoke Detector - PCB –Bottom View Acclimate / Photo Heat Smoke Detector Internal Photo – 4 Acclimate / Photo Heat Smoke Detector Internal Photo -5 Acclimate / Photo Heat Smoke Detector Top Cover Acclimate / Photo Heat Smoke Detector Bottom Cover Heat Smoke Detector - Top View Heat Smoke Detector – Internal Photo – 1 Heat Smoke Detector – Internal Photo – 2 Heat Smoke Detector – PCB Top View Photo Smoke Detector - Top View Photo Smoke Detector – Internal Photo – 1 Photo Smoke Detector – Internal Photo 2 Photo Smoke Detector – PCB Top View

Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 1 of 1 84 Wireless Smoke Detector Model No.: 1. FWD-200ACCLIMATE 2. FWH-200FIX135 3. FWD-200P Date: 22-Dec-2013 Report Prepared By: Sasikala Subramani EMC Test Report Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 2 of 1 84 Report Num ber EMC-0004-1 EUT Nom enclature Wireless Smoke Detector Sam ple Identification Model No. / Sl. No. : 1) FWD-200A CCLIMA TE / 05936 2) FWH-200FIX135 / 05945 3) FWD-200P / 05917 Sof tw are Version : 5.82 Hardw are Version : Rev D Num ber of Sam ples 03 Date of receipt of Sam ple 21-10-2013 Condition of Sam ple on receipt Good Client name Honeyw ell Internat ional Inc. Client Address System Sensor, 3825, Ohio Ave, St. Charles, IL, USA – 60174. Testing Laboratory Honeyw ell Technology Solutions Lab Pvt. Ltd. Address RMZ ECOWORLD INFRASTRUCTURE PV T. LTD., (For merly Adarsh Pr ime Projects Pvt. Ltd., SEZ). Survey # 19/2, Devarabisanahalli Village, Varthur Hobli , Bangalore East Taluk, Bangalore – 560103 Test Dates 21-Oct-2013 to 08-Dec-2013 Applicable Standard FCC Part 15 Subpart C Test Results PA SS Pr epared By: Technical Lead Name : Sasikala Subramani Signature: Date : 23-Dec-2013 Rev iew ed By: Project Lead Name : Loganathan Joghee Signature: Date : 23-Dec-2013 Authorized By: Quality Manager Name : Prasanna Kumar BT Signature: Date : 23-Dec-2013 Authorized By: Lab Manager Name : Ananth Krishna Signature: Date : 23-Dec-2013 This Report relates to the above mentioned test sample only. Without the approval of Lab manager, this report shall not be reproduced except in f ull. Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 3 of 1 84 TEST SUMMARY # Nam e Specification Test Method Pass Fail NA FHSS 1 20dB Bandw idth FCC Part 15.247 DA 00-705 2 Maximum Peak Output Pow er FCC Part 15.247 DA 00-705 3 Carrier Frequency Separat ion FCC Part 15.247 DA 00-705 4 Number of Hopping Frequencies FCC Part 15.247 DA 00-705 5 Band Edge compliance FCC Part 15.247 DA 00-705 6 Time of Occupancy (Dw ell Time) FCC Part 15.247 DA 00-705 7 Spurious RF Conducted Emissions FCC Part 15.247 DA 00-705 8 Spurious Radiated Emissions FCC Part 15.247 and 15.209 DA 00-705 DT S 1 DTS 6dB Bandw idth FCC Part 15.247 KDB 558074 2 Maximum Peak Output Pow er FCC Part 15.247 KDB 558074 3 Maximum Pow er Spectral Density FCC Part 15.247 KDB 558074 4 Band Edge Conducted Emissions FCC Part 15.247 KDB 558074 5 Radiated Spurious Emissions FCC Part 15.209 and 15.209 KDB 558074 MEASUREMENT UNCERTAINTY Where relevant, the f ollow ing measurement uncertainty levels has been estimated f or tests perf ormed on the EUT as specif ied in CISPR 16-4 The Expanded measurement uncertainty (K=2) is provided below # Name Value 1 20dB & 6dB Occupied Bandw idth 1.4dB 2 Maximum Peak Output Pow er Level 1.4dB 3 Pow er Spectral Density 1.4dB 4 Band Edge Conducted Emission 1.4dB 5 Spurious RF Conducted Emission 1.4dB 6 Radiated Spurious Emission < 1GHz 4.9dB 7 Radiated Spurious Emission > 1GHz 6.3dB Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 4 of 1 84 1 PRODUCT DETAILS PRODUCT OPERATION AND INTENDED USE The Wireless Smoke Det ector is pow ered by f our CR123A batter ies. It has a sensor head to detect s moke and LEDs to indicate activat ion and trouble status. RATINGS AND SYSTEM DETAILS Operating Frequency 902MHz to 928MHz Number of Channels DTS :6 FHSS :52 Channel Bandw idth (20dB) DTS :1MHz FHSS :320KHz Transmitted Power DTS :12dBm & 2dBm FHSS :17dBm Modulation Type FSK Data Rate DTS :300Kbps FHSS :150Kbps Antenna Type Inverted F Patch Antenna No. of Antenna 3 Antenna Gain 2.5 dBi Supply Voltage and Current 3.3V, 24mA Dimensions (Diameter x Height) 4 inch x 2. 1 inch Env ironmental Conditions Operat ing Temperature :0°C t o 50°C Storage Temperature :-10°C t o 60°C Humidity :10% to 93% RH Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 5 of 1 84 TEST CONFIGURATION Config # Description Conducted Test EUT is Pow ered by external 3.3V pow er supply. EUT Debug port ( UART) is connected t o Laptop through USB to UA RT converter cable. EUT is conf igured to t he respective operat ing mode through Hyper Ter minal. Antenna 1 is selected f or the test as this is the only trans mit ting ant enna in t he f ield. Radiated Test EUT is Pow ered from Battery. EUT Debug port ( UA RT) is connected to Lapt op through USB to UA RT converter cable. EUT is conf igured to t he respective operat ing mode through Hyper Ter minal. Antenna 1 is selected f or the test as this is the only transmitt ing ant enna in t he f ield. OPERATING MODES Mode # Description DT S Follow ing DTS channels have been used f or Conducted (Cont inuous Trans mission) and Radiated (Pulsed Trans mission) Tests Channel 1 : 902.875MHz Channel 2 : 908.425MHz Channel 3 : 914.325MHz Channel 4 : 915.325MHz Channel 5 : 921.575MHz Channel 6 : 927.125MHz FHSS Follow ing FHSS channels have been used f or Conducted ( Cont inuous Trans mission) and Radiated (Continuous Trans mission) Tests Channel 1 : 903.55MHz Channel 27 : 916.35MHz Channel 52 : 926.45MHz INPUT AND OUTPUT CABLES Port # Name Port Type Cable Length Cable type Shielded/ Unshielded Comments Not applicable *Note : AC = AC Power Port DC = DC Power Port TP = Telecommunication Ports (E.g. Ethernet) DI / DO = Digital Input / Output N /E = Non Electrical AI / AO = Analog Input / Output SUPPORT EQUIPMENTS AND ACCESSORIES USED # Item Description Make Model Part No. / Sl. No Cal Due Date 1 Laptop DELL E6400 3351399400 NA 2 USB t o UA RT Cable FTDI NA TTL-232R-3V3 NA 3 Dual Channel Pow er Supply GW Instek GPS-2202 ZH846116 18-Feb-2014 Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 6 of 1 84 CONNECTION DIAGRAM AND SETUP DIAGRAM Figure 1 : Conducted RF Test Setup Figure 2 : Radiated Emission Test Setup Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 7 of 1 84 Wireless Ac…

Text truncated - open the document above for the full version.

Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 90 of 184 3.5 SPURIOUS RADIATED EMISSIONS EUT Nomenclature Wireless Smoke Detector Test Report No. EMC-0004-1 Model No. FWD-200A CCLIMA TE Serial No. 01 Test Start Date 22-Oct-2013 Temperature ( ̊C) 23.5 Test End Date 14-Dec-2013 Humidity RH (%) 57.1 Tested By Gulshan Kumar Pressure (mbar) NR Input Voltage / Freq 3.3Vdc Operating Mode Ref er Page 5 Operating Modes Table Test configuration Ref er Page 5 Test Conf igurat ion Table Dev iation from Std NA Comment TEST FREQUENC Y RA NGE Start Frequency 9KHz Stop Frequency 10GHz MAXIMUM OPERATI NG FREQUENC Y 902MHz to 928MHz TEST PA RAM ET ERS Antenna Height 1m to 4m Turn table Rotation 0° to 360° Applicable standard FCC Part 15.209 Test Method KDB 558074 Equipment Class NA Measurement Distance 3m TEST EQUI PM ENT Y/ N Equipm ent Make Model Sl. No. Cal Due Date Y EMI Test Receiver R&S ESU26 100229 04-Feb-2014 Y 3m Semi Anechoic Chamber ETS Lindgren DKE 6X7 DBL. DR 1625 31-Dec-2013 Y Double Ridge Guide Horn Antenna ETS Lindgren 3117 00064055 07-Nov-2013 Y Bilog Antenna ETS Lindgren HLP3003C 130525 30-Nov-2013 Y Loop Antenna ETS Lindgren 6507 000103694 12-Mar-2014 Y RF cable (9KHz to 1GHz) COLEMA N RG214 RE-1A 09-May-2014 Y RF cable (9KHz to 1GHz) COLEMA N RG214 RE-1B 09-May-2014 Y RF cable (1GHz to 18GHz) AH Systems SAC-18G-06 RE-2A 09-May-2014 Y RF cable (1GHz to 18GHz) AH Systems SAC-18G-06 RE-2B 09-May-2014 Y Signal Conditioning unit R&S SCU-18 10178 13-June-2014 Y High Pass Filt er Wainw right WHKX1.5/15G-12ST 1 09-May-2014 Y EMC32 Sof tw are R&S 8.30.0 820-OT101248 NA Note: Switch ON /OFF the Internal Preamplifier based on carrier level and or noise floor without overloading the receiver Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 91 of 184 TEST GRAPHS – 9 KHz to 30 MHz Channel 1 (902.875 MHz) Note : Peak Graph - Parallel Channel 1 (902.875 MHz) Note : Peak Graph - Perpendicular Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 92 of 184 Channel 2 (908.425 M Hz) Note : Peak Graph - Parallel Channel 2 (908.425 MHz) Note : Peak Graph - Perpendicular Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 93 of 184 Channel 3 (914.325 M Hz) Note : Peak Graph - Parallel Channel 3 (914.325 MHz) Note : Peak Graph - Perpendicular Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 94 of 184 Channel 4 (915.325 MHz) Note : Peak Graph - Parallel Channel 4 (915.325 MHz) Note : Peak Graph - Perpendicular Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 95 of 184 Channel 5 (921.575 MHz) Note : Peak Graph - Perpendicular Channel 5 (921.575 MHz) Note : Peak Graph - Parallel Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 96 of 184 Channel 6 (927.125 MHz) Note : Peak Graph - Perpendicular Channel 6 (927.125 MHz) Note : Peak Graph - Parallel Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 97 of 184 TEST RESULT – 9 KHz to 30 MHz Channel Channel Frequency Measured Spurious Quasi Peak Height Ant Pol Azimuth Margin Limit @ 3m Distance Results # MHz MHz dBμV/m cm Parallel / Perpendicular deg dB dBμV/m NO EMISSIONS FOUND PASS Note : Measured Field Strength –dBuV/m = Receiver Readings (dBuV) + Antenna Factor (dB/m) + Cable loss (dB) Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 98 of 184 TEST GRAPHS – 30 MHz to 1 GHz 10 20 30 40 50 60 70 80 90 100 110 30 M 5060 80100 M20 030 040 050 0 80 01G Le vel i n dB μV /m F re q u e n c y in H z El ec t r ic Fi el d St r e ngt h wi t h S weep s CIS P R2 2 F C C P a rt 1 5 , s e c t io n 1 5 . 2 0 9 Q u a s i P e a k L imit a t 3 m e t e r Channel 1 (902.875 M Hz) Note : Peak Graph Vertical (Red), Peak Graph Horizontal (Blue) 10 20 30 40 50 60 70 80 90 100 110 30 M 5060 80100 M20 030 040 050 0 80 01G Le vel i n dB μV /m F re q u e n c y in H z El ec t r ic Fi el d St r e ngt h wi t h S weep s CIS P R2 2 F C C P a rt 1 5 , s e c t io n 1 5 . 2 0 9 Q u a s i P e a k L imit a t 3 m e t e r Channel 2 (908.425 M Hz) Note : Peak Graph Vertical (Red), Peak Graph Horizontal (Blue) Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 99 of 184 0 10 20 30 40 50 60 70 80 90 100 30 M 5060 80100 M20 030 040 050 0 80 01G Le vel i n dB μV /m F re q u e n c y in H z El ec t r ic Fi el d St r e ngt h wi t h S weep s CIS P R2 2 F C C P a rt 1 5 , s e c t io n 1 5 . 2 0 9 Q u a s i P e a k L imit a t 3 m e t e r Channel 3 (914.325 M Hz) Note : Peak Graph Vertical (Red), Peak Graph Horizontal (Blue) 10 20 30 40 50 60 70 80 90 100 110 30 M 5060 80100 M20 030 040 050 0 80 01G Le vel i n dB μV /m F re q u e n c y in H z El ec t r ic Fi el d St r e ngt h wi t h S weep s CIS P R2 2 F C C P a rt 1 5 , s e c t io n 1 5 . 2 0 9 Q u a s i P e a k L imit a t 3 m e t e r Channel 4 (915.325 M Hz) Note : Peak Graph Vertical (Red), Peak Graph Horizontal (Blue) Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 100 of 184 10 20 30 40 50 60 70 80 90 100 110 30 M 5060 80100 M20 030 040 050 0 80 01G Le vel i n dB μV /m F re q u e n c y in H z El ec t r ic Fi el d St r e ngt h wi t h S weep s CIS P R2 2 F C C P a rt 1 5 , s e c t io n 1 5 . 2 0 9 Q u a s i P e a k L imit a t 3 m e t e r Channel 5 (921.575 M Hz) Note : Peak Graph Vertical (Red), Peak Graph Horizontal (Blue) 0 10 20 30 40 50 60 70 80 90 100 30 M 5060 80100 M20 030 040 050 0 80 01G Le vel i n dB μV /m F re q u e n c y in H z El ec t r ic Fi el d St r e ngt h wi t h S weep s CIS P R2 2 F C C P a rt 1 5 , s e c t io n 1 5 . 2 0 9 Q u a s i P e a k L imit a t 3 m e t e r Channel 6 (927.125 M Hz) Note : Peak Graph Vertical (Red), Peak Graph Horizontal (Blue) Honeywell Technology Solutions Honeywell Confi dentia l and Prop rieta ry Page 101 of 184 TEST RESULT – 30 MHz to 1 GHz Chann el Measured Spurious Quasi Peak Height Ant Pol Azim uth Ma…

Text truncated - open the document above for the full version.

Honeywell Technology Solutions Honeywell Confidential and Proprietary Page 1 of 5 Wireless Smoke Detector –Test Setup Photos Honeywell Technology Solutions Honeywell Confidential and Proprietary Page 2 of 5 CONDUCTED RF TEST SETUP Honeywell Technology Solutions Honeywell Confidential and Proprietary Page 3 of 5 RADIATED EMISSION SETUP Radiated Emission Setup – 9 KHz to 30 MHz [ Parallel ] Radiated Emission Setup – 9 KHz to 30 MHz [ Perpendicular ] Honeywell Technology Solutions Honeywell Confidential and Proprietary Page 4 of 5 Radiated Emission Setup –30 MHz to 1 GHz [ Horizontal Polarization ] Radiated Emission Setup –30 MHz to 1 GHz [ Vertical Polarization ] Honeywell Technology Solutions Honeywell Confidential and Proprietary Page 5 of 5 Radiated Emission Setup –1 GHz to 10 GHz [ Vertical Polarization ] Radiated Emission Setup –1 GHz to 10 GHz [ Horizontal Polarization ]
