AUJPXDZ800U002Two Way Radio

User’s Manual To Customers We are grateful for your purchase of this transceiver. We believe this easy-to-use transceiver will provide you with depend- able and reliable communications. We employed advanced technology & workmanship for this transceiver and trust that our design will make it user-friendly. For correct use, please read this manual first. User and Security Information  For your safe and efficient use of the radio, please read the information below.  Please turn off the radio before you into the inflammable、explosive environment.  Do not replace or charge the battery in the inflammable、explosive environment.  Before you near the blasting area and detonator area, please turn off the radio.  Do not using the radio which antenna is damaged, the damaged antenna touch skin may cause minor burns.  Refer service to qualified technicians only; don’t disassemble the radio by yourself.  To avoid electromagnetic interference and/or compatibility conflicts, turn off your radio in any facility where posted notices instruct you to do so. For example, the hospital and other  For vehicles with an air bag, do not place the transceiver in the area or in the air bag deployment area.  Do not expose the radio to long periods of direct sunlight or place it close to heating appliances.  When your portable transceiver is transmitting, hold the transceiver in a vertical position and close to the microphone to speak.  If you wear a portable transceiver on your body, please ensure when the transceiver is transmitting the antenna is at least 2.5 cm from your body. Check Equipment Welcome to use our transceiver. Before using, we recommend you that:  Please check if any damage to the packing box before using.  Carefully unpack the transceiver and identify the items listed in the following table; if any items or accessories are missing or have been damaged during shipment, contact with the dealer immediately. ITEMS QUANTITY Antenna 1 Belt Clip 1 Battery 1 Charger 1 Adaptor 1 User’s Manual 1 Getting Acquainted Antenna Indicator Speaker Channel Selector Knob On/off/Volume Control Knob Microphone Push-to-Talk （PTT) ） button Press PTT then speak into microphone to call, release to receive. Emergency Button/Side button 1/Side button2/Side button 3 （Programmable） Speaker/Microphone jack Battery Note: Emergency Key/Side button 1/Side button 2 and side button 3 can be programmable for short press and long press by PC software to these functions: 1. Unassigned. 2. All Alert Tones On/Off, 3. Emergency On, 4. Emergency Off, 5. High/Low Power, 6. Monitor 7. One Touch Access 1, 8. One Touch Access 2, 9. One Touch Access 3, 10. One Touch Access 4, 11. One Touch Access 5, 12. One Touch Access 6, 13. Repeater/Talkaround, 14.Scan on/off, 15. Tight/Normal Squelch, 16. Privacy On/Off, 17. Vox On/Off, 18. Lone work on/off . Getting Started Charging the Battery Pack The battery pack is not charged at the factory; charge it before use. Initially charging the battery pack after purchase or extended storage (greater than 2 months) will not bring the battery pack to its normal operating capacity. After repeating the charge/discharge cycle two or three times, the operating capacity will increase to normal. CAUTION DO NOT RECHARGE THE BATTERY PACK IF IT IS ALREADY FULLY CHARGED. DOING SO MAY CAUSE THE LIFE OF THE BATTERY PACK TO SHORTEN OR THE BATTERY PACK MAY BE DAMAGED. AFTER RECHARGING THE BATTERY PACK, DISCONNECT IT FROM THE CHARGER. CHARGING THE BATTERY PACK FOR MORE THAN 5 DAYS MAY REDUCE THE BATTERY PACK LIFE. Note The ambient temperature should be between 5 and 40 °C while charging is in progress. Charging beyond this range may not fully charge the battery. Always switch OFF the transceiver equipped with a battery pack before charging. The battery pack life is over when its operating time decreases even though it is fully and correctly charged. Replace the battery pack. Plug the AC adaptor cable into the adaptor jack located on the rear of the charger. Plug the AC adaptor into an AC outlet. Slide the battery pack or transceiver with a battery pack into the charger. Make sure the battery pack contacts are in contact with the charging terminals. The charger LED lights and charging begins. After charging the supplied battery pack for 4 hours, remove it or the transceiver equipped with it from the charger. The charger turn to green automatically after charging is completed. Unplug the AC adaptor from the AC outlet. Installing / Removing the Battery Pack The average life of the supplied battery pack is 10 hours. Average times are calculated using 5% transmit time, 5% receive time, and 90% standby time. CAUTION DO NOT TAMPER WITH THE BATTERY TERMINALS NOR DISPOSE OF THE BATTERY BY FIRE. NEVER ATTEMPT TO REMOVE THE CASING FROM THE BATTERY PACK. Match the top of battery with the frame of chassis. Push the battery pack to the connection of chassis and push down the battery locker To remove the battery pack, pull up the battery locker and slide the pack away from the transceiver. Installing the Antenna Screw the antenna into the connector on the top of the transceiver by holding the antenna at its base and turning it clockwise until secure. Note: Don’t use the antenna as handle, keychain or speaker/microphone hook, it will damage the antenna and affect the performance of the radio. Antenna Installing the Belt Clip If necessary, buckle the belt clip to the back of the battery pack. Note: if not install the belt clip, the installation position may become hot during High Temperature CAUTION DO NOT USE GLUE WHICH IS DESIGNED TO PREVENT SCREW LOOSENING WHEN INSTALLING THE BELT CLIP,AS IT MAY CAUSE DAMAGE TO THE TRANSCEIVER. ACRYLIC ESTER, WHICH IS CONTAINED IN THESE GLUES, MAY CRACK THE TRANSCEIVER'S BACK PANEL. Installing the Earphone/Speaker Microphone Plug the earphone/Speaker microphone into the jack. Note: When use the earphone/speaker microphone, the radio may not waterproof. Installing the Jack Cover If you are not usi…

Text truncated - open the document above for the full version.

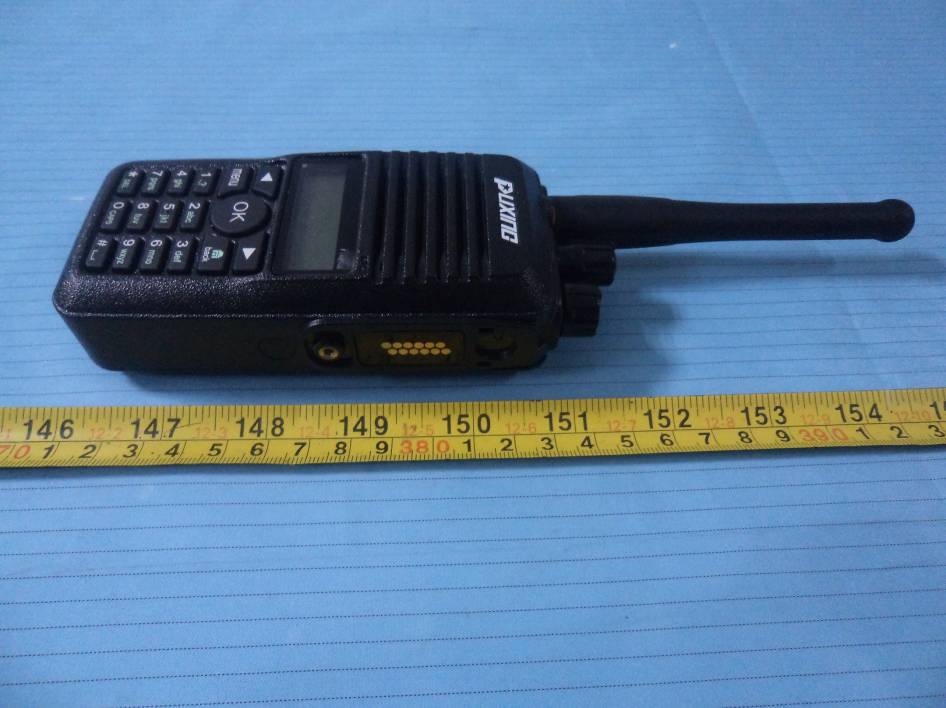

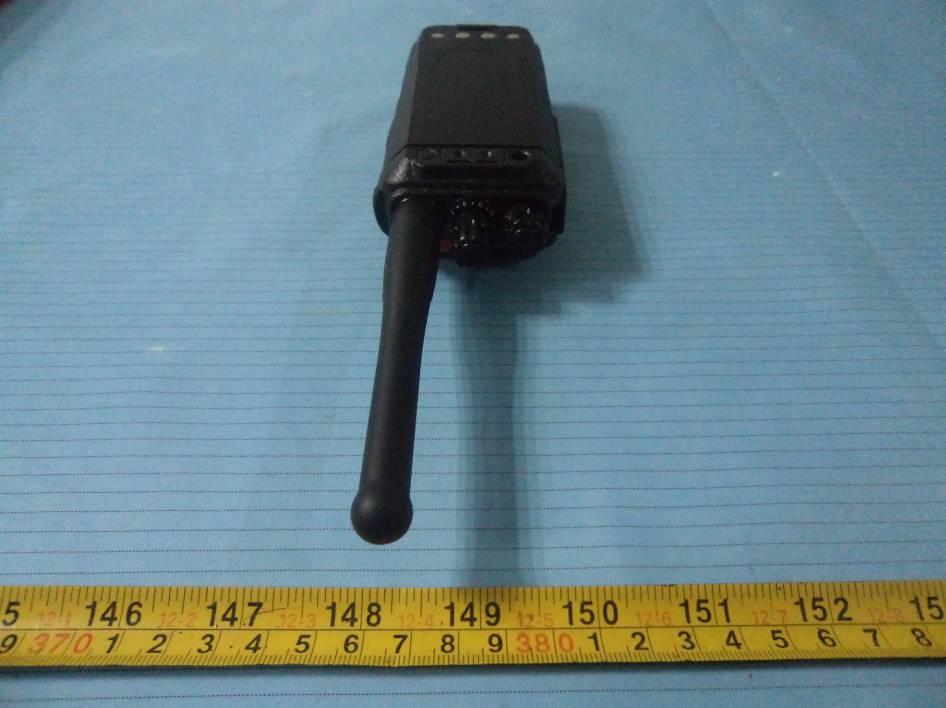

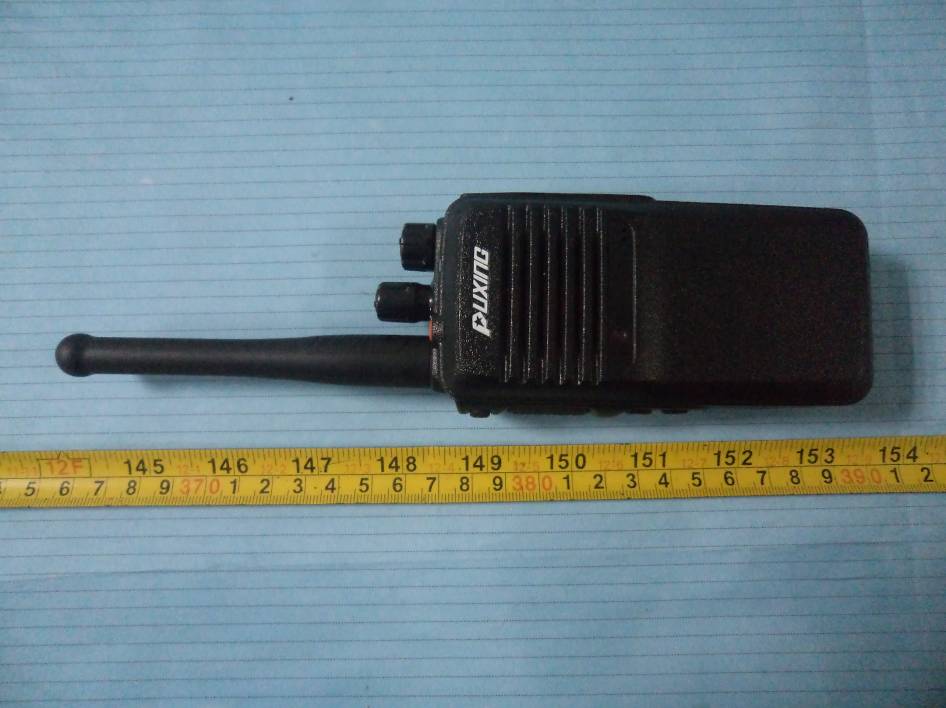

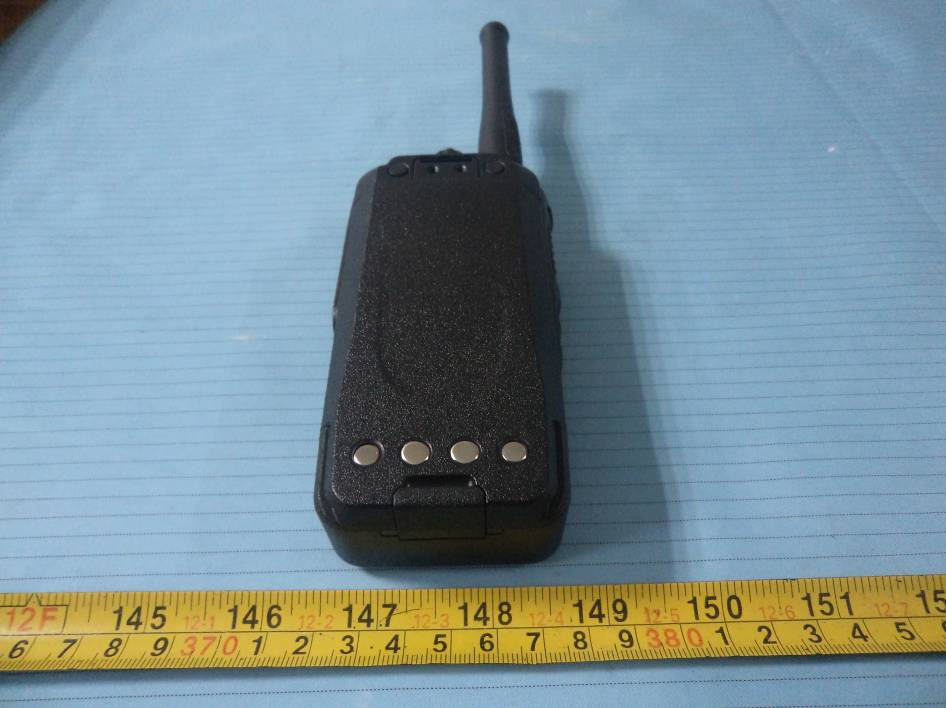

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Model: PX-800U EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left View EUT – Right View Model: PX-820U EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left View EUT – Right View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Model: PX-800U EUT – Battery off View EUT – Cover off View 1 EUT – Cover off View 2 EUT – Main Board Top View EUT – Main Board Bottom View Model: PX-820U EUT – Cover off View 1 EUT – Cover off View 2 EUT – Main Board Top View EUT – Main Board Bottom View EUT – Antenna and Battery View EUT – Battery Label View

Adjustment instruciton PUBLIC PARTS（commissioning equipment：VOLTAGE METER）： 1、BATTERY VOLTAGE：7.5V±0.1V。 FREQUENCY RANGE：400-500MHz. 2、check RX VCO lock voltage： high end：3.5V±0.2V. Low end：0.6V。 3、check TX VCO lock voltage：high end：3.8V±0.2V. Low end：0.6V。 Transmitting part （ commissioning equipment ： AEROFLEX3920,3A standard power supply.tesing software：PX-800 programming software） 1、 Frequency adjust：nominal frequency ±50Hz. 2、 Adjust high power：(high、middle、low ,nine points in total)5.0±1.0W.check the average current≤1.0A。 3、 Low power adjust：(high、middle、low,nine points in total)1.0±0.2W.check the current ≤0.8A。 4、 Bit error rate adjustment： adjust the MOD1,MOD2 amplitude separately，make 4FSK level＋3、－3 deviation value is ±1.944±0.1KHz, ＋1、－1 deviation±0.648± 0.1KHz，bit error≤3%。 Receiver part（commissioning equipment：AEROFLEX3920,3A standard power supply.tesing software：PX-800 programming software） RX audio power：check the maximum audio power：1.2±0.1W。current≤0.4A。 1、 RX sensitivity adjustment： Signal source output the standard digital signal, the amplitude is -116dBm, adjust the sensitivity items in the PX-800 ， PX-820 software for the RX PCTV voltage of high,middle,low 9 frequency points in total,and make all the RX bit error rate are less than 3%.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. SAR EVALUATION REPORT For Xiamen Puxing Electronics Science&Technology Co., Ltd FL3-4, NO.11 Xianghong Road, XiangAn District, Xiamen, China FCC ID: AUJPXDZ800U002 Report Type: Original Report Product Type: Two Way Radio Test Engineer: Wilson Chen Report Number: RSZ131219001-20 Report Date: 2014-02-28 Reviewed By: Sandy Wang SAR En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ131219001-20 SAR Evaluation Report 2 of 72 Attestation of Test Results EUT Information Company Name Xiamen Puxing Electronics Science & Technology Co., Ltd. EUT Description Two Way Radio FCC ID AUJPXDZ800U002 Model Number PX-800U/ PX-820U Test Date 2014-02-27 Mode Frequency (MHz) Model Max. SAR Level(s) Report Limit (W/Kg) Analog 400-500 PX-800U 12.5kHz Face up: 1.478 W/kg (50% duty cycle) Body-Back: 2.996 W/kg (50% duty cycle) 8 Digital 12.5kHz Face up: 1.345 W/kg Body-Back: 2.654W/kg Analog 400-500 PX-820U 12.5kHz Face up: 1.008W/kg (50% duty cycle) Body-Back: 2.020 W/kg (50% duty cycle) Digital 12.5kHz Face up: 1.121 W/kg Body-Back: 1.675 W/kg Applicable Standards ANSI / IEEE C95.1: 2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fileds,3 kHz to 300 GHz. ANSI / IEEE C95.3: 2002 IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to SuchFields,100 kHz—300 GHz. IEEE1528:2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB procedures KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies KDB 643646 SAR Test Reduction Considerations for Occupational PTT Radios Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in IEEE 1528-2003 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ131219001-20 SAR Evaluation Report 3 of 72 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION .................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUILDELINES ............................................................................................... 7 SAR LIMITS ................................................................................................................................................................. 8 FACILITIES AND ACCREDITATION ..................................................................................................................... 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 17 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 17 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 18 LIQUID VERIFICATION ............................................................................................................................................... 18 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 21 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 22 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 26 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 26 CHEEK/TOUCH POSITION ........................................................................................................................................... 27 EAR/TILT POSITION ................................................................................................................................................... 27 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 28 SAR EVALUATION PROCEDURE ................................................................................................................................. 29 CONDUCTED OUTPUT POWER MEASUREMENT ........................................................................................... 30 PROVISION APPLICABLE ............................................................................................................................................ 30 TEST PROCEDURE ..........…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 90 TEST REPORT For Xiamen Puxing Electronics Science & Technology Co., Ltd. FL3-4, NO.11 Xianghong Road, XiangAn District, Xiamen, China FCC ID: AUJPXDZ800U002 Report Type: Original Report Product Type: Two way radio Test En gineer: Mike Hu Re port Number: RSZ131219001-00 Re port Date: 2014-02-28 Reviewed B y: Sula Huang RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ131219001-00 FCC PART 90 Page 2 of 33 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §1.1307(b) & §2.1093 - RF EXPOSURE ............................................................................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 FCC §2.1046 & §90.205 - RF Output Power ............................................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 TEST PROCEDURE ........................................................................................................................................................ 9 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 9 TEST DATA .................................................................................................................................................................. 9 FCC §2.1047 §90.207 - MODULATION CHARACTERISTIC .............................................................................. 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §2.1049 & §90.209 & §90.210 – OCCUPIED BANDWIDTH & EMISSION MASK ................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 15 TEST DATA ................................................................................................................................................................ 16 FCC §2.1051 & §90.210 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................................ 21 APPLICABLE STANDARD ............................................................................................................................................ 21 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 21 TEST PROCEDURE ...................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Model: PX-800U Transmitting Radiated Emissions (Below 1 GHz) Transmitting Radiated Emissions (Above 1 GHz) Model: PX-820U Transmitting Radiated Emissions (Below 1 GHz) Transmitting Radiated Emissions (Above 1 GHz) Extreme Condition View
