H2AD Ma santé chez moi Twitoo Telemedicine Gateway FCC regulation : Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: uncontrolled environment .This equipmen This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance environment . environment . 20cm between the radiator& your body. H2AD Ma santé chez moi Twitoo Telemedicine Gateway Manual - English I. Introduction ................................................................................................................................... 2 1. Precautions ................................................................................................................................ 2 II. Installation ................................................................................................................................. 2 1. Package contents ....................................................................................................................... 2 2. Start-up ...................................................................................................................................... 2 III. Utilization.................................................................................................................................. 3 IV. Maintenance .............................................................................................................................. 3 1. Battery ....................................................................................................................................... 3 2. Positioning in the home............................................................................................................. 3 3. Indicators:.................................................................................................................................. 3 4. Flashes ....................................................................................................................................... 3 5. Multifunctional button .............................................................................................................. 3 V. Technical specifications and standards ......................................................................................... 4 I. Introduction You jus t bought a Twitoo a nd we t ha nk you. Twitoo is a r adi o gateway t ha t allows you to aut omatically t rans fer your data t o a s ecur ed server. The measur ed data w ill only be accessibl e t o you and the persons t ha t you choose ( family, doctor, e nt ourage ...). 1. Pr ecautions −Read thi s manual e ntirely be for e using Twitoo −Twitoo is made out of high technology. Please avoi d e xtreme t empe ratur es a nd humidity, direct sol ar light , c hocks , mol d and dust. II. In st allation 1. Package contents −Twitoo −Power a da pt er 2. Start-up −Plug t he Twitoo to the power a dapt er −Plug t he power a da pt er t o the mains −After t he i nitialization sequence (about 1minute), the 4 LEDs w ill be t ur ne d on continuously. −In case o f problem, please s ee the Maintenance s ection. III. Utilization In normal case, Twitoo has to be plugged in continuously. If needed, to link a new medical Bluetooth peripheral, please see the peripheral specific manual. In some cases, the multifunctional button could be used. To clean the Twitoo, you can use damp cloth with special attention on the multifunctional button. IV. Maintenance 1. Battery Twitoo contains a backup battery that allows it to continue operating in case of mains failure for about 1 hour. The battery automatically recharges when Twitoo is plugged to the mains again. It is possible that the battery is not fully charged when you received your Twitoo. You have to let it plugged at least 12 hours so that it is completely operational. 2. Positioning in the home Twitoo use wireless communication system, so that you should avoid proximity with TV, microwave-oven, cellular phones, or other devices that emit strong electromagnetic fields. The nature and thickness of the walls can also disrupt the transmission. We advise you to place your Twitoo in a living room on a visible furniture. 3. Indicators: Twitoo has 4 LEDs of different colors: − Gre…
Text truncated - open the document above for the full version.

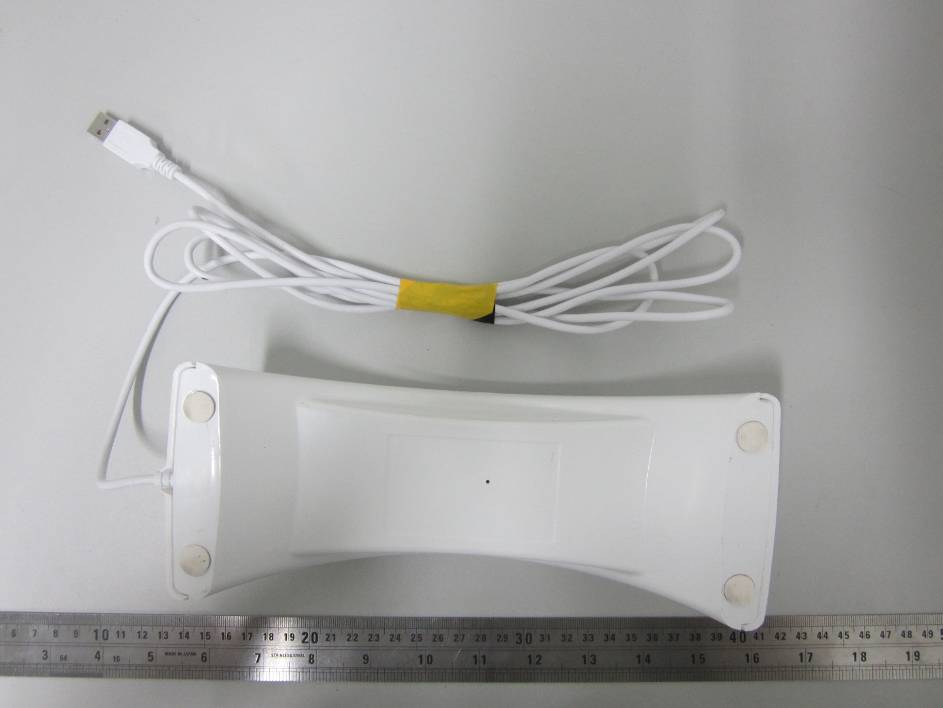

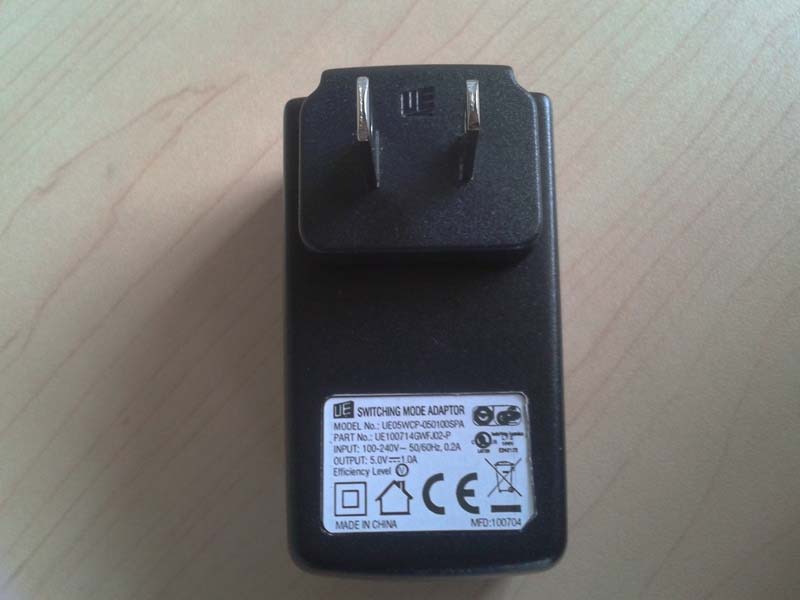

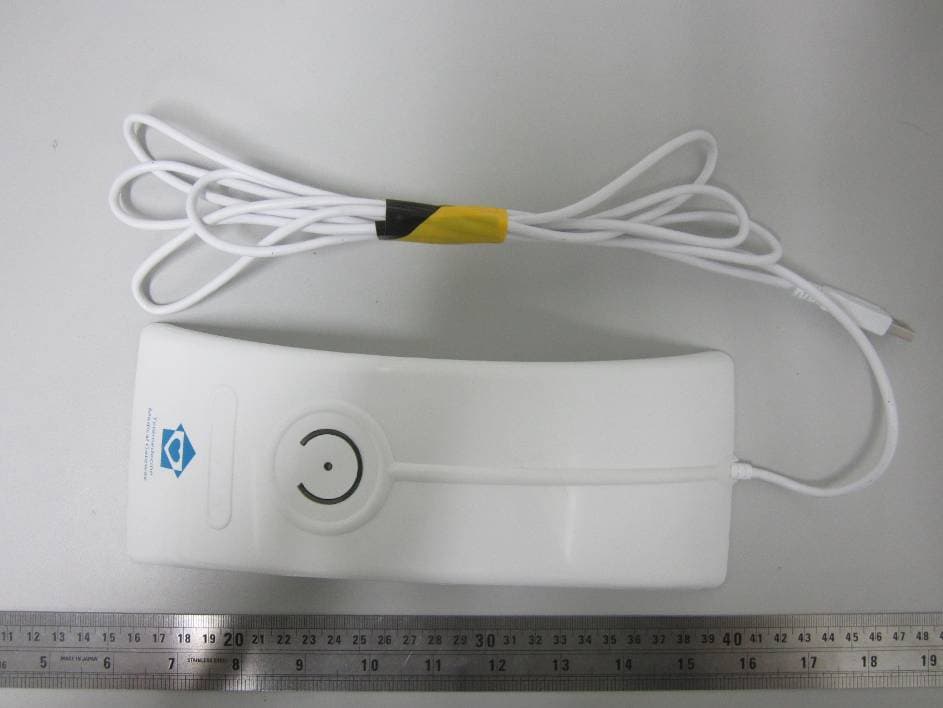

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Adapter View
EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Labeling FCC ID Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)
EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Top Shielding off View EUT – Main Board Bottom View GPRS Antenna BT Chip with integrated Antenna EUT – Sensor Board Top View EUT – Sensor Board Bottom View EUT – Battery View
Twitoo Certification documents 9.2 Circuit description The Twitoo circuit is mainly composed by two modules. - A GE863-Pro3 by Telit - A LMX9838 by National Semiconductors. The GE863-Pro3 module has two main functionalities. A quad band GSM/GPRS modem, and a ARM9 processor with all memory and peripherals needed to run. The LMX9838 is a Bluetooth module. The next points will describe the circuit in details. Please refer to the schematic top level for pages signals interconnections. 9.2.1 Power supply Figure 2 Power entry Figure 3 Power present measurement The P200 connector has two functionalities. First it is power supply connector which needs 5V supply. It is also a USB host connection port but it will not be used. The 5V power is connected to U1 (GE863- Pro3) on charge pin through a 1A resettable fuse. The voltage divider through R203 and R204 is used to check if the 5V supply is connected or not. Figure 4 Battery connection The battery BT200 is soldered on the PCB. It is connected on the VBatt pads of U1 which manages the battery charge and discharge. The voltage divider through R212 and R216 is used to measure the battery voltage. The battery voltage range is 3.4V to 4.2V. Twitoo Certification documents Figure 5 Peripheral power supply U200 converts the battery voltage to 3.3V that powers the peripherals (Bluetooth, LEDs, vibrator, touch sensor). This power can be en/disabled by the PowerEnable signal which comes from U1. 9.2.2 Reset circuit Figure 6 Reset circuit The reset circuit is a complicated part that manages to - Reset the ARM processor - Holds low the ARM_ONOFF and GSM_ONOFF signals to power on the GE863-Pro3 modem and processor. - Power on the Twitoo when the power supply is not plugged in. Without main power supply: Here is the description of the reset circuit when the main power supply is not plugged in. As long as S200 button is pressed, the Reset signal is held low, it is pulled high when the button is released through U1 internal pull-ups. When S200 is pressed, the capacitor C202 is charged through diode D203. When the button is released, C202 discharge slowly through R205. During this discharge phase, Q203 stay closed and tied low ARM_ONOFF and GSM_ONOFF signals. The ARM processor of U1 will start and apply a high voltage on the ARM_PC29 signal, which will keep the ARM_ONOFF signal low. Then the capacitor C202 will become completely discharged and release the GSM_ONOFF signal. The system is then started as long as the ARM_PC29 signal is held high by the processor. Twitoo Certification documents The GSM_PowerEn signal comes from the GSM part of U1 and is used to reboot the processor on battery power supply. During the processor reboot procedure, the ARM_PC29 is released and the GSM_PowerEn signal is here to keep the ARM_ONOFF signal low. With main power supply When the main power supply is plugged in, the Chage signal is high, so that the ARM_ONOFF signal is always low and the system is started. That means that the system is always started when the power is plugged in. In this case, when S200 button is pressed, the Reset signal is tied low and the GSM_ONOFF is toggled. 9.2.3 GE863-Pro3 Processor part Figure 7 GE863-Pro3 processor part This part of the schematic shows the processor part of the GE863-Pro3. All the signals of this page are described in the other schematic parts. Twitoo Certification documents 9.2.4 Indicators Figure 8 Indicators On the main PCB, there are 3 LEDs and a buzzer. The buzzer can be driven by 2 different signals that allow 2 different volumes. The frequency of this buzzer is 4kHz. Twitoo Certification documents 9.2.5 Bluetooth module Figure 9 Bluetooth module The bluetooth module LMX9838 (U400) is connected to the processor part of U1 through a standard serial port that works up to 115200bps. It is also connected to the modem part of U1 through a PCM interface which is currently not used. 9.2.6 Extension PCB connector Figure 10 Extension PCB connector The connector P600 is used to connect the extension PCB that has a touch sensor, a LED and a vibrator motor. The LED and the vibrator motor are directly driven through Q601 and Q602. The power supply of the touch sensing IC can be dis/enabled by the Q600 transistor, this is used to re-initialize the touch sensing IC. Twitoo Certification documents 9.2.7 GSM Figure 11 GE863-Pro3 GSM part The GSM part of U1 is connected to the processor part of U1 through a serial line (part U1D). The GSM_ONOFF signal (part U1F pin E4) can come from two sources. First is from the reset circuit, second is from the processor part of U1. The SIM card is connected to the dedicated pins of U1. The U1G part shows also the PCM connection to the Bluetooth U400 and the POWER_EN signal is connected to the GSM_PowerEn signal on the reset circuit. 9.2.8 Extension PCB Figure 12 Extension PCB The extension PCB is placed just behind the button of the Twitoo product. This PCB has a LED, a vibrator motor and a touch sensing IC. The LED and the vibrator motor are directly driven from the main PCB. There are two possibilities for the touch sensing IC, the one used is the U900, the U901 is not mounted.
