Measure Analyze Learn Vernier Software & Technology 13979 SW Millikan Way Beaverton, OR 97005-2886 Toll free 888.837.6437 | fax 503.277.2440 What is included with your LabQuest 2 LabQuest 2 unit Rechargeable battery Power adapter USB cable This Quick-Start Guide Stylus (in unit) Stylus tether Logger Lite CD Get the complete user guide at www.vernier.com/labquest/guide Warranty Information LabQuest 2 – Vernier warrants this product to be free from defects in materials and workmanship for a period of five years from the date of shipment to the customer. LabQuest 2 Battery – Vernier warrants this product to be free from defects in materials and workmanship for a period of one year from the date of shipment to the customer. This warranty does not cover damage to the product caused by abuse or improper use. Vernier LabQuest is a registered trademark of Vernier Software & Technology. Logger Pro, Vernier, Vernier Software & Technology, and Vernier.com are our registered trademarks. All other marks not owned by us that appear herein are the property of their respective owners, who may or may not be affiliated with, connected to, or sponsored by us. Quick Start Guide www.vernier.com | [email protected] Before you use your LabQuest 2 Install the battery Connect the power adapter Charge for at least 8 hours Read the safety information and operating instructions found in this guide LabQuest Charging Station Charge four LabQuest units at a time. www.vernier.com/lq-crg LabQuest 2 Lab Armor Molded rubber material protects LabQuest from spills and falls. www.vernier.com/lq2-armor LabQuest Viewer Software Remotely monitor student progress or project the LabQuest screen. www.vernier.com/lq-view Hardware Overview ................................ 2 LabQuest App .......................................... 4 Quick Data Collection ....................... 5 Meter Screen ...................................... 6 Graph Screen ...................................... 8 Data Analysis ..................................... 10 Table Screen ....................................... 12 Printing .............................................. 14 Other Screens ................................... 16 Using with Computers and Tablets...... 18 Other Applications ................................. 20 Care of LabQuest ................................... 22 Accessories ............................................. 24 Accessories Table of Contents 24 1 Key Features of your LabQuest 2 Hardware Hardware Overview 2 3 Power Button Digital Sensor Ports for Motion Detectors and other digital sensors Analog Sensor Ports for temperature, pH, CO 2 , and other analog sensors USB 2.0 Port for USB sensors and flash drives Internal Microphone Internal Light Sensor Collect Control data collection Home Access applications Escape Exit menus/applications Stylus storage Wi-Fi Status Battery Level/Charge indicator Resistive Touch Screen For touch or stylus AC Power Computer Connectivity transfer data or use as a computer interface Docking Port for LabQuest charging station Micro SD/MMC Card Slot Audio In For external microphone Audio Out For speakers, headphones, and Power Amplifier Three steps to collect data: 1 Turn on LabQuest LabQuest App launches automatically. 2 Connect a sensor The sensor will auto-ID. The default collection rate for the sensor is set up. 3 Tap Collect You are now collecting data. A. Digital Meter – The Meter screen displays a digital meter for each connected sensor. Tap on a meter to change units, calibrate, zero, or reverse the sensor. B. Data-collection details – A summary of the data-collection setup is shown. Tap anywhere on the details box to modify the settings. C. Sensors Menu – You can access all of the setup options using the Sensors menu. Use the Sensor Setup option to activate internal sensors or to set up sensors that do not auto-ID. D. File Menu – This menu is available from every screen. Use this menu to save files for analysis at a later time, print, or open an existing file. 4 5 LabQuest App – Navigation LabQuest App – Quick Data Collection LabQuest App – Meter Screen LabQuest App – Meter Screen 6 7 Tap the tabs to access different screens of the LabQuest App A – Meter B – Graph C – Table D – Lab Instructions E – Notes Tap the buttons to collect data F – Start/Stop G – Keep (not always shown) A B C D E G LabQuest App switches to the Graph screen when data collection begins. Tap to end collection early A B C F C Use the meter screen to set up your experiment D A. Axis Label – The Graph is set to display your sensor data. When you have more than one sensor or run, you can change what is plotted on the axis by tapping on the label and selecting the desired data column. B. Examine Point – Tap any point to activate the examine cursor. Tap a different point or use the Examine buttons to move to a new point. C. Current Reading – The coordinates of your examine point are displayed to the right of the graph. During collection, the live sensor reading is shown. D. Store Run – To collect multiple trials of an experiment, store the run before collecting more data. E. Graph Menu – Use the Graph menu for even more graph options. A. Analyze Menu – Tap this menu to access the analysis tools. Your options include tangent lines, statistics, integrals, curve fits, models, and more. Select your analysis tool, then select the desired data column for analysis. B. Select a region – You can analyze all the displayed data or just a portion of it. To analyze only a portion of the data, tap and drag across the desired region before selecting your analysis tool. If no region is selected, the analysis will apply to all the displayed data. C. Analysis details – The results of your analysis is displayed next to the graph. To view a full screen display of the results, tap on this box. To remove an analysis, tap the Analyze menu and select the tool again. 8 9 LabQuest App – Graph Screen LabQuest App – Analyze Data LabQuest App – Analyze Data 10 11 D…

Text truncated - open the document above for the full version.

Vernier Software & Technology 13979 SW Millikan Way Beaverton Oregon United States 97005 February 10, 2012 Federal Communications Commission Authorization and Evaluation Division FCC ID Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description 4. ANT specification The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: John Wheeler / Director of Engineering/Partner Company Name: Vernier Software & Technology Address: 13979 SW Millikan Way Beaverton Oregon United States 97005 TEL: 503-277-2299 FAX: 503-277-2440 Email: [email protected]

C:\Documents and Settings\user\\料\\\FCC\DoC Attestation Letter.doc Vernier Software & Technology 13979 SW Millikan Way Beaverton Oregon United States 97005 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: SUBJECT: FCC Application for FCC ID: AUO-LABQUEST2 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely, Signature

Vernier Software & Technology 13979 SW Millikan Way Beaverton Oregon United States 97005 February 10, 2012 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. Jason Lin Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: / FCC ID: Product Name:

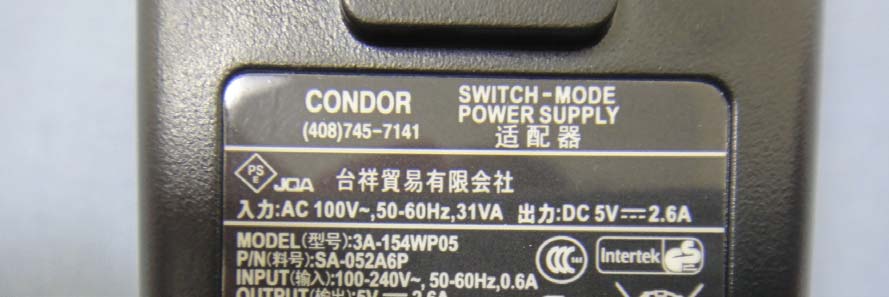

Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 1 / 15 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 2 Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 3 Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 4 Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 5 Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 6

Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 7 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 8 Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 9 Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 10 Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 11 Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 12 Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 13 Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 14 For Bluetooth & WIFI Antenna Compliance Certification Services Inc. Report No.: T120205G01 Date of Issue: February 17, 2012 A1 - 15 For GPS Antenna

Date/Time: 2/9/2012 3:51:36 PM Test Laboratory: Compliance Certification Services Inc. 802.11b CH11 Rate 1M_Bottom Flat Communication System: IEEE802.11 WLAN; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 2.003 mho/m; ε r = 50.322; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY Configuration: zProbe: EX3DV4 - SN3665; ConvF(7.47, 7.47, 7.47); zSensor-Surface: 2.5mm (Mechanical Surface Detection) zElectronics: DAE4 Sn877; Calibrated: 3/18/2011 zPhantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 zMeasurement SW: DASY52, Version 52.8 (0)SEMCAD X Version 14.6.4 (4989) Configuration/Bottom Flat High Ch11/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.360 mW/g Configuration/Bottom Flat High Ch11/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 7.020 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.4700 SAR(1 g) = 0.356 mW/g; SAR(10 g) = 0.302 mW/g Maximum value of SAR (measured) = 0.388 mW/g Date/Time: 2/9/2012 4:32:09 PM Test Laboratory: Compliance Certification Services Inc. 802.11b CH11 Rate 1M_Left edge Communication System: IEEE802.11 WLAN; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 2.003 mho/m; ε r = 50.322; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY Configuration: zProbe: EX3DV4 - SN3665; ConvF(7.47, 7.47, 7.47); zSensor-Surface: 2.5mm (Mechanical Surface Detection) zElectronics: DAE4 Sn877; Calibrated: 3/18/2011 zPhantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 zMeasurement SW: DASY52, Version 52.8 (0)SEMCAD X Version 14.6.4 (4989) Configuration/Left edge High Ch11/Area Scan (6x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.163 mW/g Configuration/Left edge High Ch11/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 2.936 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.5590 SAR(1 g) = 0.196 mW/g; SAR(10 g) = 0.077 mW/g Maximum value of SAR (measured) = 0.307 mW/g Date/Time: 2/9/2012 5:12:48 PM Test Laboratory: Compliance Certification Services Inc. 802.11b CH11 Rate 1M_Top edge Communication System: IEEE802.11 WLAN; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 2.00 3 mho/m; ε r = 50.322; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY Configuration: zProbe: EX3DV4 - SN3665; ConvF(7.47, 7.47, 7.47); zSensor-Surface: 2.5mm (Mechanical Surface Detection) zElectronics: DAE4 Sn877; Calibrated: 3/18/2011 zPhantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 zMeasurement SW: DASY52, Version 52.8 (0)SEMCAD X Version 14.6.4 (4989) Configuration/Top edge High Ch11/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.167 mW/g Configuration/Top edge High Ch11/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 6.353 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.2740 SAR(1 g) = 0.152 mW/g; SAR(10 g) = 0.102 mW/g Maximum value of SAR (measured) = 0.189 mW/g

Date/Time: 2/9/2012 9:56:12 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.987 mho/m; ε r = 50.355; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY Configuration: zProbe: EX3DV4 - SN3665; ConvF(7.47, 7.47, 7.47); zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn877; Calibrated: 3/18/2011 zPhantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 zMeasurement SW: DASY52, Version 52.8 (0)SEMCAD X Version 14.6.4 (4989) Configuration/Pin=250mW,d=10mm/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximu m value of SAR (measured) = 15.873 mW/g Configuration/Pin=250mW,d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 89.697 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 28.6270 SAR(1 g) = 13.3 mW/g; SAR(10 g) = 6.2 4 mW/g Maximu m val ue of SAR (measured) = 15.856 mW/g

Compliance Certification Services Inc. FCC ID: AUO- LABQUEST2 IC ID: 6391A-LABQUEST2 Report No.: T120205G01-SF Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 28 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C IC TEST REPORT For LabQuest2 Trade Name: Vernier Model: LabQuest2 Issued to Vernier Software & Technology 13979 SW Millikan Way Beaverton, OR 97005 Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan. http://www.ccsrf.com [email protected]. Issued Date: February 10, 2012 Compliance Certification Services Inc. Report No.: T120205G01-SF Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 February 10, 2012 Initial Issue ALL Peach Chang Compliance Certification Services Inc. Report No.: T120205G01-SF Page 3 Rev. 00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ............................................... 4 2. EUT DESCRIPTION .................................................................................................................5 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED ......................................... 6 3.1 REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ...................... 6 4. DOSIMETRIC ASSESSMENT SYSTEM ............................................................................... 6 4.1 MEASUREMENT SYSTEM DIAGRAM ........................................................................ 7 4.2 SYSTEM COMPONENTS................................................................................................ 8 5. EVALUATION PROCEDURES ............................................................................................ 11 6. MEASUREMENT UNCERTAINTY ..................................................................................... 15 7. EXPOSURE LIMIT .................................................................................................................16 8. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS 17 9. MEASUREMENT RESULTS ................................................................................................. 18 9.1 TEST LIQUID CONFIRMATION ................................................................................. 18 9.2 SYSTEM PERFORMANCE CHECK............................................................................. 20 9.3 EUT TUNE-UP PROCEDURES AND TEST MODE.................................................... 21 9.4 SAR MEASUREMENTS RESULTS.............................................................................. 24 10. EUT PHOTOS .......................................................................................................................... 25 11. EQUIPMENT LIST & CALIBRATION STATUS ............................................................... 26 12. FACILITIES ............................................................................................................................. 27 13. REFERENCES ......................................................................................................................... 27 14. ATTACHMENTS.....................................................................................................................28 Compliance Certification Services Inc. Report No.: T120205G01-SF Page 4 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant: Vernier Software & Technology 13979 SW Millikan Way Beaverton, OR 97005 Equipment Under Test: LabQuest2 Trade Name: Vernier Model Number: LabQuest2 Date of Test: February 9, 2012 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD IC RSS – 102 Issue 4 IEC 62209 – 2 IEEE 1528 OET 65 Supplement C Deviation from Applicable Standard None TEST RESULT No non-compliance noted The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C (Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Tested by: Jason Lin Anson Lu Section Manager Test Engineer Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T120205G01-SF Page 5 Rev. 00 2. EUT DESCRIPTION Product LabQuest2 Trade Name Vernier Model Number LabQuest2 Model Discrepancy N/A Frequency Range 802.11b: 2412 ~ 2462 MHz 802.11g: 2412 ~ 2462 MHz 802.11n HT20: 2412 ~ 2462 MHz Max. O/P Power: (Average) 802.11b: 15.09 dBm 802.11g: 14.65 dBm 802.11n HT20: 14.64 dBm Max. SAR (1g): 802.11b: 0.356 W/kg 802.11g: SAR test is not required, please refer to page 22. 802.11n HT20: SAR test is not required, please refer to page 22. Modulation Technique 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) Antenna Specification Antenna type: WLAN antenna: PIFA Type ( Peak Gain: 2.35 dBi ) Battery Rating:3.7V, 12.21Wh Remark: The sample selected for test was prototype that approximated to production product and was provided by manufacturer. Compliance Certification Services Inc. Report No.: T120205G01-SF Page 6 Rev. 00 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED 3.1 REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE IC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: AUO-LABQUEST2 Report No.: T120205G01-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 81 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For LabQuest2 Model: LabQuest2 Trade Name: Vernier Issued to Vernier Software & Technology 13979 SW Millikan Way Beaverton, OR 97005 Issued by Compliance Certification Services Inc. No.11, Wu-Gong 6th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: February 16, 2012 Compliance Certification Services Inc. FCC ID: AUO-LABQUEST2 Report No.: T120205G01-RP1 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 February 16, 2012 Initial Issue ALL Sandy Lin Compliance Certification Services Inc. FCC ID: AUO-LABQUEST2 Report No.: T120205G01-RP1 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................4 2. EUT DESCRIPTION ...........................................................................................................................5 3. TEST METHODOLOGY ....................................................................................................................6 3.1 EUT CONFIGURATION........................................................................................................................6 3.2 EUT EXERCISE....................................................................................................................................6 3.3 GENERAL TEST PROCEDURES.............................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................7 3.5 DESCRIPTION OF TEST MODES...........................................................................................................8 4. INSTRUMENT CALIBRATION........................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................9 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................10 4.3 MEASUREMENT UNCERTAINTY .............................................................................................11 5. FACILITIES AND ACCREDITATIONS ........................................................................................12 5.1 FACILITIES .......................................................................................................................................12 5.2 EQUIPMENT......................................................................................................................................12 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................13 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................14 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................14 6.2 SUPPORT EQUIPMENT ...............................................................................................................14 7. FCC PART 15.247 REQUIREMENTS.............................................................................................15 7.1 6DB BANDWIDTH.............................................................................................................................15 7.2 PEAK POWER....................................................................................................................................26 7.3 AVERAGE POWER............................................................................................................................28 7.4 BAND EDGES MEASUREMENT ................................................................................................30 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................50 7.6 SPURIOUS EMISSIONS.................................................................................................................61 7.7 RADIATED EMISSIONS ..............................................................................................................61 7.8 POWERLINE CONDUCTED EMISSIONS...............................................................................................75 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................78 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................79 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: AUO-LABQUEST2 Report No.: T120205G01-RP1 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Vernier Software & Technology 13979 SW Millikan Way Beaverton, OR 97005 Equipment Under Test: LabQuest2 Tr a d e N a m e : Vernier Model: LabQuest2 Date of Test: February 9 ~ 14, 2012 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The tes…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: AUO-LABQUEST2 Report No.: T120205G01-RP1 Page 79 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: AUO-LABQUEST2 Report No.: T120205G01-RP1 Page 80 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: AUO-LABQUEST2 Report No.: T120205G01-RP1 Page 81 Rev. 00 Powerline Conducted Emissions Setup Photos
