AXATR-382-A2 EXHIBIT 2 ERICSSON INC.

April1, 1999 Federal Communications Commissions Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject:: Type Acceptance FCC ID: AXATR-382-A2 Members of the Commission, Ericsson Inc. request the Type acceptance of the AXATR-382-A2 mobile radio. The AXATR-382-A2 is a conventional mobile radio that operates in the 403-512 MHz band at a power range from 1 to 4 Watts with a Frequency Stability of +/- 2.5 ppm. The AXATR-382-A2 operates in both narrow and wide band modes and comes in three splits (403.0 - 440.0 MHz), (440.0 - 470.0 MHz), (470.0 - 512.0 MHz) the middle split was tested and is representative of the other two splits. This radio exist in a DTMF and scan version. All test have performed in part 2 and part 90 pursuant to the Type Approval requirements. Sincerely, Bryan McWatters Staff Engineer (804) 592-6110 FAX (804) 592-6510 Email: [email protected]

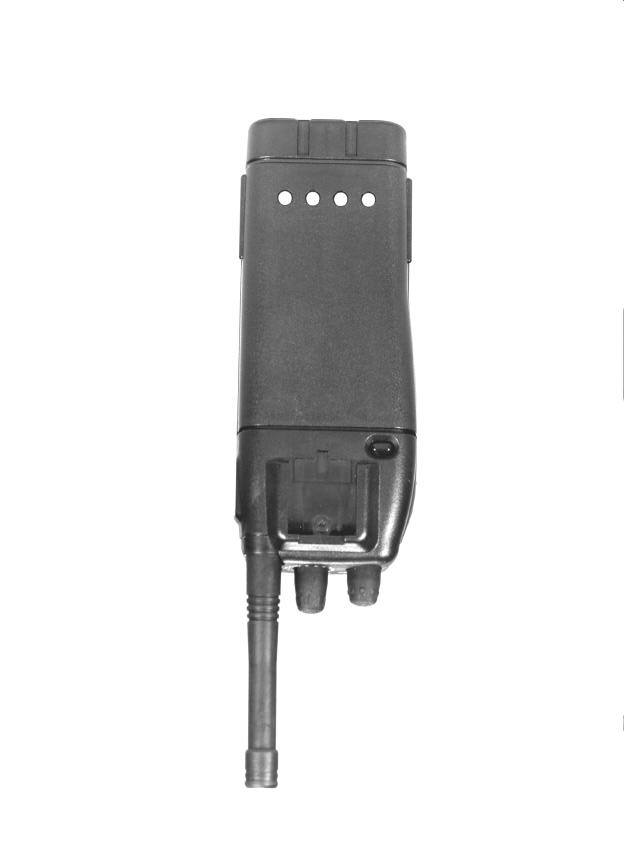

AXATR-382-A2EXHIBIT 3ERICSSON INC. AXATR-382-A2EXHIBIT 3ERICSSON INC. AXATR-382-A2EXHIBIT 3ERICSSON INC. AXATR-382-A2EXHIBIT 3ERICSSON INC.

AXATR-382-A2Exhibit 1Ericsson Inc.

AXATR-382-A2EXHIBIT 1ERICSSON INC.

AXATR-382-A2EXHIBIT 9ERICSSON INC. AXATR-382-A2EXHIBIT 9ERICSSON INC. AXATR-382-A2EXHIBIT 9ERICSSON INC. AXATR-382-A2EXHIBIT 9ERICSSON INC. AXATR-382-A2EXHIBIT 9ERICSSON INC.

AXATR-382-A2 EXHIBIT 12 ERICSSON INC. 18 OCCUPIED BANDWIDTH (FOR 12.5 kHz CHANNELIZATION) Method of Measurement Per Data on Occupied Bandwidth is presented in the form of a spectrum analyzer plot which illustrates the transmitter sidebands. A plot is taken of the carrier sideband modulated with a 2500 Hz tone at a level 16 dB greater than that required to produce 50 percent modulation. (The spectrum analyzer grid indicates the reference level of the carrier unmodulated in all exhibits.) Section B3,B4,C3,C4 Bn = 2M+2DK where M = 3000 Hz Voice D = 2200Hz K = 1 (assumed) Bn =10400Hz Therefore, Emission Designator =10K4F3E AXATR-382-A2 EXHIBIT 12 ERICSSON INC. 13 OCCUPIED BANDWIDTH (FOR 25 kHz CHANNELIZATION) Method of Measurement Per 2.989 (c,1) Data on Occupied Bandwidth is presented in the form of a spectrum analyzer plot which illustrates the transmitter sidebands. A plot is taken of the carrier sideband modulated with a 2500 Hz tone at a level 16 dB greater than that required to produce 50 percent modulation. (The spectrum analyzer grid indicates the reference level of the carrier unmodulated in all exhibits.) SECTION 3B,C Bn = 2M + 2DK where M = 3000 Hz Telephony D = 4400Hz K= 1(assumed) Bn = 144000 Hz Therefore, Emission Designator = 14K4F3E AXATR-382-A2 EXHIBIT 12 ERICSSON INC. DESCRIPTION _______________________________________________________________________________ _______________________________________________________________________________ 2.983 (c) This transceiver is being prepared for quantity production. 2.983 (d) Transmitter Description This transmitter is a microcomputer synthesized FM transceiver operating in the 403 to 512 MHz band. From 1 to 16 channels may be programmed for use as determined by a EEPROM direct- ing the microcomputer. Features and Options are available as follows: A. 16 Channels B. Dual Priority Scan C. Transmit High/Low RF power D. CTCSS Channel Guard encode/decode with or without STE E. CDCSS Digital Channel Guard encode/decode with STE F. Type 99 decode (Ericsson or Motorola formats) G. GE-STAR encode (Standard or Emergency format) H. Home Channel operation (Stand alone or with Emergency GE-STAR) I. Carrier Control Timer J. Switchable bandwidth: 12.5 kHz or 25.0 kHz channel spacing K. Microprocessor XTAL frequency shift for Tx or Rx modes L. DTMF encode with Auto-Dial feature (KH-600 models only) AXATR-382-A2 EXHIBIT 12 ERICSSON INC. DESCRIPTION _______________________________________________________________________________ _______________________________________________________________________________ 2.983 (d) (1) Type of Emission: 14K4F3E, 10K4F3E (2) Frequency Range and Band Splits and Frequency Stability: Band Band Splits Frequency Stability (403 - 512 MHz) (403.0 - 440.0 MHz) +/- 2.5 ppm (440.0 - 470.0 MHz) +/- 2.5 ppm (470.0 - 512.0 MHz) +/- 2.5 ppm (3) Range of Operating Power: The power amplifier consists of PA Module IC7. The RF power output is regulated by sensing variations in the forward power that is fed to the antenna from the final RF power amplifier and adjusting the voltage on an earlier stage of the PA module to hold the forward power constant. Output power is as follows: (403 - 512 MHz) 4 watts rated power (high RF power mode) 1 watt rated power (low RF power mode) 2.983 (d) (4) Maximum Power Rating:4.0 Watts (continued) Input Maximum15 Watts Output 4 Watts (5) Final Amplifier Voltage and Currents in Normal Operation: Power Supply Voltage 7.5 Volts Current 2 Amps

AXATR-382-A2EXHIBIT 10ERICSSON INC. DESCRIPTION _______________________________________________________________________________ _______________________________________________________________________________ 2.983 (c)This transceiver is being prepared for quantity production. 2.983 (d)Transmitter Description This transmitter is a microcomputer synthesized FM transceiver operating in the 403 to 512 MHz band. From 1 to 16 channels may be programmed for use as determined by a EEPROM direct- ing the microcomputer. Features and Options are available as follows: A. 16 Channels B. Dual Priority Scan C. Transmit High/Low RF power D. CTCSS Channel Guard encode/decode with or without STE E. CDCSS Digital Channel Guard encode/decode with STE F. Type 99 decode (Ericsson or Motorola formats) G. GE-STAR encode (Standard or Emergency format) H. Home Channel operation (Stand alone or with Emergency GE-STAR) I. Carrier Control Timer J. Switchable bandwidth: 12.5 kHz or 25.0 kHz channel spacing K. Microprocessor XTAL frequency shift for Tx or Rx modes L. DTMF encode with Auto-Dial feature (KH-600 models only) AXATR-382-A2EXHIBIT 10ERICSSON INC. DESCRIPTION _______________________________________________________________________________ _______________________________________________________________________________ 2.983 (d)(1)Type of Emission: 14K4F3E, 10K4F3E (2)Frequency Range and Band Splits and Frequency Stability: Band Band Splits Frequency Stability (403 - 512 MHz)(403.0 - 440.0 MHz)+/- 2.5 ppm (440.0 - 470.0 MHz)+/- 2.5 ppm (470.0 - 512.0 MHz)+/- 2.5 ppm (3)Range of Operating Power: The power amplifier consists of PA Module IC7. The RF power output is regulated by sensing variations in the forward power that is fed to the antenna from the final RF power amplifier and adjusting the voltage on an earlier stage of the PA module to hold the forward power constant. Output power is as follows: (403 - 512 MHz)4 watts rated power (high RF power mode) 1 watt rated power (low RF power mode) 2.983 (d) (4)Maximum Power Rating:4.0 Watts (continued) Input Maximum15 Watts Output4 Watts (5)Final Amplifier Voltage and Currents in Normal Operation: Power Supply Voltage7.5 Volts Current2 Amps AXATR-382-A2EXHIBIT 10ERICSSON INC. ACTIVE PARTS LIST _______________________________________________________________________________ _______________________________________________________________________________ 2.983 (d)(6)Active Parts Information Main BoardIntegrated Circuits DesignatorKG P/NGeneric P/NDescription IC 1IC013032TC75W51FUOP-AMP IC (DCS MOD/MOD) IC 2IC013028TC4W66FUSW IC (N/W SW) IC 3IC042001MB1505PFPLL IC IC 4IC013034TC7W66FUSW IC (SW) IC 5IC013019TC7S66FUSW IC (SW) IC 6IC013033TC7W02FUNOR GATE IC (UNLOCK) IC 7IC090018M68732LRF-PA IC (UHF-L SPLIT) IC 7IC090019M68732HRF-PA IC (UHF-M SPLIT) IC 7IC090020M68732SHRF-PA IC (UHF-H SPLIT) IC 8IC013017TA75S01FUOP-AMP IC (RF Po COMP) IC 9IC013031TC75S51FUOP-AMP IC (TUNE-V COMP) IC 10IC013007TA31136FNIF IC IC 11IC013028TC4W66FUSW IC (CF-SW) IC 12IC013028TC4W66FUSW IC (CF-SW) IC 13IC013017TA75S01FOP-AMP IC (AF BUFF) IC 14IC013032TC75W51FUOP-AMP IC (BUFF) IC 15IC042002MB88347PFVD/A Converter IC IC 16IC076004RN5VL55CRESET IC (5.5V) IC 17IC011002TK11250MREG IC (CONT5V) IC 18IC011007TK11360MREG IC (VCO6V) IC 19IC011002TK11250MREG IC (TX5V) IC 201IC090021M38267E8GPCPU IC 202IC103001AK2342ABASE-BAND IC (CTCSS) IC 203IC013018TC4W53FUMULTIPLEXER IC IC 204IC104001CAT24C04JIEEPROM IC 205IC076003RN5VL40CRESET IC (4V) IC 206IC011002TK11250MREG IC (5V) IC 207IC013019TC7S66FUSW IC Sub-BoardIntegrated Circuits DesignatorKG P/NGeneric P/NDescription IC 401IC025010NJM2073DAF-AMP IC AXATR-382-A2EXHIBIT 10ERICSSON INC. ACTIVE PARTS LIST Main BoardTransistors DesignatorKG P/NGeneric P/NDescription Q 1TR0130142SA1586-YChip Tr (PLL LOOP SW) Q 2TR0130072SC4116-GRChip Tr (PLL LOOP SW) Q 3TR0130072SC4116-GRChip Tr (VCO REG) Q 4TR0130182SC5065-YChip Tr (F.B BUFF) Q 5TR0130182SC5065-YChip Tr (RF AMP) Q 6TR0130182SC5065-YChip Tr (RF AMP) Q 7TR0360052SC3357TChip Tr (RF AMP) Q 8TR0130072SC4116-GRChip Tr (Po DET SW) Q 9TR078027DTC144EUAChip Tr (Po SW,R1=R2=47kO) Q 10TR0130182SC5065-YChip Tr (LOCAL BUFF) Q 11TR078018UMC5N-TRChip Tr (RX REG SW) Q 12TR0130182SC5065-YChip Tr (IF BUFF) Q 13TR078027DTC144EUAChip Tr (CF SW,R1=R2=47kO) Q 14TR078027DTC144EUAChip Tr (CF SW,R1=R2=47kO) Q 15TR0130072SC4116-GRChip Tr (SQ TEMP SW) Q 16TR0130142SA1586-YChip Tr (SQ SW) Q 17TR078032DTA144EUAChip Tr (TX SW,R1=R2=47kO) Q 18TR078027DTC144EUAChip Tr (RESET SW,R1=R2=47kO) Q 19TR078015DTC343TKChip Tr (MUTE SW,R1=4.7kO) Q 201TR078027DTC144EUAChip Tr (LIGHT SW,R1=R2=47kO) Q 202TR078028DTC314TKChip Tr (MUTE SW,R1=10kO) Q 203TR078028DTC314TKChip Tr (MUTE SW,R1=10kO) Sub-boardTransistors DesignatorKG P/NGeneric P/NDescription Q 401TR078028DTC314TKChip Tr (AF MUTE SW,R1=10kO) Q 402TR0780292SB1188-QChip Tr (AF-AMP REG SW) Q 403TR0130142SA1586-YChip Tr (AF MUTE SW,R1=10kO) Q 404TR078027DTC144EUAChip Tr (ALM SW,R1=R2=47kO) Q 405TR078027DTC144EUAChip Tr (REG SW,R1=R2=47kO) Q 406TR078027DTC144EUAChip Tr (SP MUTE,R1=R2=47kO) Band Pass Filter BoardTransistors DesignatorKG P/NGeneric P/NDescription Q 801TR0130182SC5065-YChip Tr (RF PRE-AMP) AXATR-382-A2EXHIBIT 10ERICSSON INC. ALIGNMENT PROCEDURE ___________________________________________________________________________________ ___________________________________________________________________________________ 6A-C2.983 (d) (9)Alignment Procedure 1.Test Equipment Service Monitor(HP8920B or equivalent) DC Voltmeter(Input Impedance > 1 Mohm) DC Power Supply(7.5 Volts at 3 A) IBM Personal Computer(or compatible equivalent) Programming Interface Box(TQ3370) Audio Test Box(TQ0613) KH Radio Programming Software [ProGrammer (Conventional Version)] KH Programming Cable(RPM 113 2472/1) KH Battery Eliminator(BKB 191 203/3) RF Antenna Adapter(ST 3559 ) Initial setup Attach Power Supply to KH via KH Battery Eliminator. Attach TQ3370 Programming Interface Box to KH UDC connector via Programming Cable. A…

Text truncated - open the document above for the full version.

AXATR-382-A2 EXHIBIT 6 ERICSSON INC. 1 Table of Contents RF POWER OUTPUT 2 MODULATION CHARACTERISTICS 3 OCCUPIED BANDWIDTH 12 SPURIOUS EMISSIONS 23 FREQUENCY STABILITY 33 INDENTIFICATION NAMEPLATE 36 TRANSIENT FREQSUENCY BEHAVIOR 27 AXATR-382-A2EXHIBIT 6ERICSSON INC. 2 SECTION 1 RF POWER OUTPUT 2.985 (A) The RF Power measured at the output terminals: AXATR-382-A2 4 Watts Method: The measurement was made per TIA/EIA-603 using the following equipment:: A 50 ohm load is attached to the output terminal through a directional coupler.. The power is measured on a HP436A power meter. AXATR-382-A2EXHIBIT 6ERICSSON INC. 3 SECTION 2 Modualtion Characteristics Ref. Par. 2.987 (a, b, d) the frequency and amplitude response to audio inputs measured per TIA/ EIA 603 are shown on the following sheet 403-512 Mhz Section 2B Audio Frequency Response(25 ,12.5kHz) Section 2C Modulation Characteristics (25 ,12.5kHz) Equipment used was: Marconi Instruments Ltd. FM/AM Modulation Meter TF2300B Hewlett Packard Audio Signal Generator 204D Hewlett Packard Distortion Analyzer 333A At those modulation frequencies at which the transmitter is not capable of producing 30% of sys- tem deviation, audio response is calculated from measurement of input voltage producing a lesser deviation. AXATR-382-A2EXHIBIT 6ERICSSON INC. 4 AXATR-382-A2EXHIBIT 6ERICSSON INC. 5 AXATR-382-A2EXHIBIT 6ERICSSON INC. 6 AXATR-382-A2EXHIBIT 6ERICSSON INC. 7 AXATR-382-A2EXHIBIT 6ERICSSON INC. 8 AXATR-382-A2EXHIBIT 6ERICSSON INC. 9 AXATR-382-A2EXHIBIT 6ERICSSON INC. 10 AXATR-382-A2EXHIBIT 6ERICSSON INC. 11 AXATR-382-A2EXHIBIT 6ERICSSON INC. 12 SECTION 3 OCCUPIED BANDWIDTH Per 2.989 (c, 1) the measurements were made per TIA/EIA 603. 455..025 Mhz SECTION 3 B1, B2. C1, C2 (25 kHz, 50 & 150 kHz spans, Voice) SECTION 3 B3, B4, C3, C4 (12.5 kHz, 50 & 150 kHz spans, Voice) AXATR-382-A2 EXHIBIT 6 ERICSSON INC. 13 SECTION 3 OCCUPIED BANDWIDTH (FOR 25 kHz CHANNELIZATION) Method of Measurement Per 2.989 (c,1) Data on Occupied Bandwidth is presented in the form of a spectrum analyzer plot which illustrates the transmitter sidebands. A plot is taken of the carrier sideband modulated with a 2500 Hz tone at a level 16 dB greater than that required to produce 50 percent modulation. (The spectrum analyzer grid indicates the reference level of the carrier unmodulated in all exhibits.) SECTION B1,C1,B2,C2 Bn = 2M + 2DK where M = 3000 Hz Telephony D = 4400Hz K= 1(assumed) Bn = 144000 Hz Therefore, Emission Designator = 14K4F3E AXATR-382-A2EXHIBIT 6ERICSSON INC. 14 AXATR-382-A2EXHIBIT 6ERICSSON INC. 15 AXATR-382-A2EXHIBIT 6ERICSSON INC. 16 AXATR-382-A2EXHIBIT 6ERICSSON INC. 17 AXATR-382-A2EXHIBIT 6ERICSSON INC. 18 SECTION 3 OCCUPIED BANDWIDTH (FOR 12.5 kHz CHANNELIZATION) Method of Measurement Per Data on Occupied Bandwidth is presented in the form of a spectrum analyzer plot which illustrates the transmitter sidebands. A plot is taken of the carrier sideband modulated with a 2500 Hz tone at a level 16 dB greater than that required to produce 50 percent modulation. (The spectrum analyzer grid indicates the reference level of the carrier unmodulated in all exhibits.) Section B3,B4,C3,C4 Bn = 2M+2DK where M = 3000 Hz Voice D = 2200Hz K = 1 (assumed) Bn =10400Hz Therefore, Emission Designator =10K4F3E AXATR-382-A2EXHIBIT 6ERICSSON INC. 19 AXATR-382-A2EXHIBIT 6ERICSSON INC. 20 AXATR-382-A2EXHIBIT 6ERICSSON INC. 21 AXATR-382-A2EXHIBIT 6ERICSSON INC. 22 AXATR-382-A2EXHIBIT 6ERICSSON INC. 23 SECTION 4 SPURIOUS EMISSIONS Reference 2.993 field strength of spurious radiation was measured on our three meter range. The site and equipment are described in the site description and attenuation measurements for the Ericsson Inc. three meter radiation site #2 filed with the FCC in Columbia, Maryland, in Novem- ber of 1990. The measurement procedure is per TIA/EIA 603, but done on a three meter test site. Results are shown on the following exhibits Results are as shown in the following Sections Equipment used was: Rohde & Swarz ESMI. *SAME AS FOR 25 OR 12.5 kHz modes. Tx Radiated Emissions SectionsFrequency Mhz Power in Watts M1440.025 1 M2440.025 4 N1469.9251 N2469.9254 AXATR-382-A2EXHIBIT 6ERICSSON INC. 24 AXATR-382-A2EXHIBIT 6ERICSSON INC. 25 AXATR-382-A2EXHIBIT 6ERICSSON INC. 26 AXATR-382-A2EXHIBIT 6ERICSSON INC. 27 AXATR-382-A2EXHIBIT 6ERICSSON INC. 28 SECTION 4 SPURIOUS EMISSIONS Reference 2.991 spurious emissions at the antenna terminals when properly loaded with an appro- priate artificial antenna were measured per TIA\EIA 603. Results are as shown in the following Sections Equipment used was: Rohde & Shwarz ESMI. *SAME AS FOR 25 OR 12.5 kHz modes Tx Conducted Emissions SectionsFrequency Mhz Power in Watts B1440.025 1 B2440.0254 C1469.925 1 C2469.9254 AXATR-382-A2EXHIBIT 6ERICSSON INC. 29 AXATR-382-A2EXHIBIT 6ERICSSON INC. 30 AXATR-382-A2EXHIBIT 6ERICSSON INC. 31 AXATR-382-A2EXHIBIT 6ERICSSON INC. 32 AXATR-382-A2EXHIBIT 6ERICSSON INC. 33 SECTION 5 FREQUENCY STABILITY Par. 2.995 (a,1) (b) (d, 1) variation of output frequency as a result of either temperature or voltage variation is reported in the graphs on the following sheets: (The battery is rated from 6 to 9 volts.) Exhibit 12B Carrier Frequency Vs Temperature Exhibit 12C Carrier Frequency Vs. Voltage The Equipment used is: Hewlett Packard QUARTZ Thermometer Model 2804A Takeda Counter TR5823AK Takeda Digital Multimeter TR6878 Tabai Temperature chamber PL-2G AXATR-382-A2EXHIBIT 6ERICSSON INC. 34 AXATR-382-A2EXHIBIT 6ERICSSON INC. 35 AXATR-382-A2EXHIBIT 6ERICSSON INC. 36 INDENTIFICATION NAMEPLATE AXATR-382-A2EXHIBIT 6ERICSSON INC. 37 SECTION 7 TRANSIENT FREQUENCY BEHAVIOR PER PT 90.214 USING EIA/TIA 603, THE FOLLOWING MEASUREMENTS WERE MADE: The Measurements taken are representative of the entire frequency band. SECTIONFREQUENCYBANDWIDTH 7B 455.025 25 kHz 7C 455.025 12.5 kHz Table 1: List of Equipment HP 778D DUAL DIRECTIONAL COUPLERHP432A RF DETECTOR TEKTRONIX 2232 OSCILLOSCOPEHP8657A SIGNAL GENERATOR HP 8901A MODULATION ANALY…
