AXATR-388-A2AMPS and TDMA Cellular

0RELOH3KRQH $G 'XDOEDQG7ULPRGH IRU7'0$6\VWHPV 8VHU∑V*XLGH   $ 5HJLVWHU\RXUQHZSKRQHSXUFKDVH(ULFVVRQRULJLQDODFFHVVRULHV DQGVHHWKHODWHVWLQSURGXFWVE\YLVLWLQJXVDWKWWSZZZHULFVVRQFRPXVFRQVXPHU  3%0 7 KLVPD QXDO L VSXEO LVKH GE\ ( ULF VVRQ, QF ZL WKRX WDQ\ ZDU UDQW \ , PSU RYHP H QWVDQG FKDQJ H VWRW KLVPDQXDO G XH WRW \SRJ UDSKLF DOH U URUVLQDF F XU DFL HV RI F XU UH QWLQI RU P DWLRQ RU LP SURYH PH QWV W RSURJ UDPV DQG RUH T XL SPH QW P D\ EH PD GH E\ ( UL FV VRQ, QF DW DQ\ W LPH DQGZ LWKRX W QRWL FH 6X FKFKDQJ H VZLO O KRZH YH U EHLQF RU SRUDW HG L QW RQH Z H GL WLRQV RI WKLV P DQXDO V $OO UL JKW VUH VH U YH G ‹ ( ULF VVRQ, QF  3 XEO LF DWLRQQX PEH U  /= 7 5 3UL QWH GLQ86$ Table of Contents 1 Document Conventions . . . . . . . . . . . . . . . . 3Guidelines for Safe and Efficient Use . . . . . 4Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Product Care and Operation . . . . . . . . . . . . . . . . . . . . . . . 6Battery Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7Getting Started. . . . . . . . . . . . . . . . . . . . . . . . 9Connecting and Removing Your Battery . . . . . . . . . . . . . 9Charging Your Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Learning About Your Mobile Phone. . . . . . 11Highlights of Your Mobile Phone . . . . . . . . . . . . . . . . . . 11Key Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12Phone Display Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Display Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Basic Operations. . . . . . . . . . . . . . . . . . . . . 15Summary of Basic Operations   Turning Your Phone On and Off . . . . . . . . . . . . . . . . . . 15Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Low Battery Power Alert . . . . . . . . . . . . . . . . . . . . . . . . . 18Setting the Display Language . . . . . . . . . . . . . . . . . . . . . 18Setting the Ring Sound . . . . . . . . . . . . . . . . . . . . . . . . . . 18Setting the Ring Volume . . . . . . . . . . . . . . . . . . . . . . . . . 18Emergency Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19International Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Security Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Problem Solving . . . . . . . . . . . . . . . . . . . . . 21Problems and Possible Solutions . . . . . . . . . . . . . . . . . . . 21Displayed Messages and Explanations . . . . . . . . . . . . . . . 21 Table of Contents 2 Document Conventions ‡ Menu names are shown in the following typeface: 0(186 . ‡ Submenu names are shown in the following type- face: 6XEPHQX1DPHV ‡ Keys names are shown in the following typeface: CLR . ‡ Text that is seen in the phone’s display is shown in the following typeface: displays . ‡ When this guide instructs you to press a key, press and release the key. ‡ When this guide instructs you to press and hold a key, press and hold the key for one to two seconds. ‡ Press the down arrow when you see this symbol (  ). ‡ Press the up arrow when you see this symbol (  ). ‡ Your phone is at the Standby screen when it is powered On and a call is not in progress. Document Conventions 6 The quick access shortcuts to your phone menu and settings are identified using the hourglass symbol. Guidelines for Safe and Efficient Use 3 Since its introduction in the mid 1980s the mobile phone is one of the most exciting and innovative products ever developed. Your phone can help you to stay in touch with your office, your home, emergency services and others. Safety Exposure to Radio Frequency EnergyYour wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.In August, 1996, the Federal Communications Com-mission (FCC) adopted RF exposure guidelines with safety levels for handheld wireless phones. Those guide-lines are consistent with the safety standards previously set by both US and international standards bodies: ‡ ANSI C95.1 (1992)* ‡ NCRP Report 86 (1986)* ‡ ICNIRP (1996)* Those standards were based on comprehensive and peri-odic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standards (C95.1).The design of your phone complies with the FCC guide-lines (and those standards).* American National Standards Institute: National Coun-cil on Radiation Protection and Measurements; Interna-tional Commission on Non-Ionizing Radiation Protection. Posted FacilitiesTurn your phone OFF in any facility where posted notices so require.AircraftFCC regulations prohibit using your phone while in the air. Switch OFF your phone before boarding an aircraft.Electronic DevicesMost modern electronic equipment, for example equip-ment in hospitals and cars, is shielded from RF energy. However, certain electronic equipment may not be shielded against RF signals from your wireless phone.PacemakersThe Health Industry Manufacturers Association recom-mends that a minimum separation of six (6”) inches be maintained between a handheld wireless phone and a Guidelines for Safe and Efficient Use 4 Guidelines for Safe and Efficient Use pacemaker to avoid potential interference with the pace-maker. These recommendations are consistent with the independent research by and recommendations of Wire-less Technology Research.Persons with pace…

Text truncated - open the document above for the full version.

APPLICANT: FCC ID NO: ERICSSON INCAXATR-388-A2 ©2000 Ericsson Inc. Exhibit 2 Index for Exhibit Exhibit #Description 2AProtection Against Unauthorized ESN and Firmware Upgrades 2BCertification of Data 2CCompliance Statement to Part 22.921, 911 Call Processing Procedures APPLICANT: FCC ID NO: ERICSSON INCAXATR-388-A2 ©2000 Ericsson Inc. As per 22.919, Electronic Seal Numbers Protection Against Unauthorized ESN and Firmware Upgrades The Electronic Serial Number (ESN) bits in this phone are encoded and spread over various non- sequential memory locations in order to prevent detection and modification. Once the factory has programmed the ESN, the mobile firmware cannot overwrite or alter the ESN memory locations. Both the ESN host and operation systems components are permanently mounted to the mobile in order to prevent removal and misuse. Unauthorized attempts to alter the mobile’s firmware will cause the unit to become inoperable. APPLICANT: FCC ID NO: ERICSSON INCAXATR-388-A2 ©2000 Ericsson Inc. Exhibit 2C Compliance Statement Pursuant to CC Docket No. 94-102, Section 22.921 Ericsson certifies that it is in full compliance with Section 22.921 of the FCC's Rules. Ericsson has received approval for its call processing method and has incorporated required modifications rendering it fully compliant with 47 C.F.R. Section 22.921 of the FCC's Rules. (See DA 00-253 released February 11, 2000)

July 7, 2000 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject:Type Acceptance for FCC ID:AXATR-388-A2 Gentlemen, Ericsson Inc. requests a grant for Certification for the above mentioned FCC Identifier. This portable transceiver is designed for use in the AMPS/DAMPS cellular telephone system. The mobile operates in the 800 MHz Domestic Public Cellular Radiotelephone Communications Services per Subpart H of Part 22. It meets the requirements of IS-137A for operation in cellular systems. Documents governing DAMPS was used as a guide. This portable transceiver is quite similar to previously type accepted FCC ID: AXATR-393-A2. Measurements and calculations for SAR have been made on this radio. This unit complies with IEEE C95.1-1991 (ANSI/IEEE C95.1-1992). Ericsson Inc. requests confidentiality under 47 CFR 0.459 for the following exhibit listed: Exhibit 4Block Diagrams Exhibit 5Circuit Diagrams Exhibit 10Tune up/alignment Procedure Exhibit 12Operational Description Justification of this request is that in order to facilitate the circuit miniaturization of the AXATR- 388-A2, certain proprietary techniques were implemented to reduce the board space required for the RF circuitry layout. The Operational Description exhibit provides unique information regarding Service/Alignment Codes. To protect Ericsson’s competitive advantage on these proprietary techniques and alignment codes, we request the above listed exhibits be held as confidential and withheld from the Public Information File. Sincerely, Jim Sponsler Staff Engineer, Regulatory Services Tel No:(919) 472-6460 Research Triangle Park, NCFax No:(919) 472-7452

APPLICANT:Exhibit 3 FCC ID NO: ERICSSON INCAXATR-388-A2 ©2000 Ericsson Inc. APPLICANT:Exhibit 3 FCC ID NO: ERICSSON INCAXATR-388-A2 ©2000 Ericsson Inc.

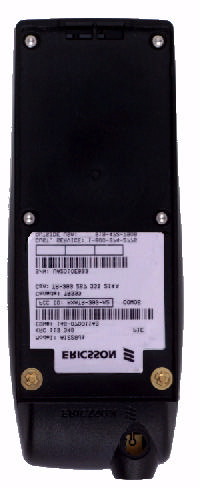

APPLICANT:Exhibit 1 FCC ID NO: ERICSSON INCAXATR-388-A2 ©2000 Ericsson Inc.

APPLICANT:FCC ID NO: ERICSSON INC.AXATR-388-A2 © 2000 Ericsson Inc. Exhibit 9 APPLICANT:FCC ID NO: ERICSSON INC.AXATR-388-A2 © 2000 Ericsson Inc. APPLICANT:FCC ID NO: ERICSSON INC.AXATR-388-A2 © 2000 Ericsson Inc.

Confidential REPORT 1 (15) Prepared (also subject responsible if other)No. RT/EUS/VR/X Mark Douglas919-472-6334 EUS/VR-00:1417/REP ApprovedCheckedDateRevFile EUS/VR/X Mark DouglasMGD2000-07-07A U:\FCC_TRNS\Fcc_388 Dolly Lite\Exhibit11\388- 11.doc EN SAR Test Report: A1228ds Date of test: June 27, 2000 Laboratory: Electromagnetic Near Field and Radio Frequency Dosimetry Laboratory Ericsson, Inc. 7001 Development Drive, P.O. Box 13969, Research Triangle Park, NC, 27709, USA Test Responsible: Mark Douglas, Ph.D. Senior Staff Engineer, Antenna Development Group [email protected] (919) 472-6334 Statement of Compliance Ericsson, Inc. declares under its sole responsibility that the that the product Ericsson A1228ds to which this declaration relates, is in conformity with the appropriate RF exposure standards, recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) © Ericsson, Inc. 2000 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Ericsson encourages all feedback, both positive and negative, on this test report. Confidential REPORT 2 (15) Prepared (also subject responsible if other)No. RT/EUS/VR/X Mark Douglas919-472-6334 EUS/VR-00:1417/REP ApprovedCheckedDateRevFile EUS/VR/X Mark DouglasMGD2000-07-07A U:\FCC_TRNS\Fcc_388 Dolly Lite\Exhibit11\388- 11.doc EN Table of Contents 1. Introduction3 2. Device Under Test3 2.1Antenna description3 2.2Device description3 3. Test equipment3 3.1 Dosimetric system3 3.2Additional equipment4 4. Electrical parameters of the tissue simulating liquid4 5. System accuracy verification4 6. Test results4 References5 Appendix 1: SAR distribution comparison for system accuracy verification6 Appendix 2: SAR distribution plots9 Distribution of maximum SAR in 800 D-AMPS band.10 Appendix 3: Photographs of the device under test11 Appendix 4: Position of device on Generic Twin Phantom13 Appendix 5: Probe calibration parameters for ET3DV5 SN:132414 Confidential REPORT 3 (15) Prepared (also subject responsible if other)No. RT/EUS/VR/X Mark Douglas919-472-6334 EUS/VR-00:1417/REP ApprovedCheckedDateRevFile EUS/VR/X Mark DouglasMGD2000-07-07A U:\FCC_TRNS\Fcc_388 Dolly Lite\Exhibit11\388- 11.doc EN 1. Introduction In this test report, compliance of the Ericsson A1228ds portable telephone with RF safety guidelines is demonstrated (applicable RF safety guidelines are given in [1]). The device was tested in accordance with the latest available test guidelines [1]. Detailed procedures of the test are described in the Ericsson SAR Measurement Specification [2]. 2. Device Under Test 2.1 Antenna description Type Fixed stub Location Left side length30 mm Dimensions width at base10 mm Configuration Helix 2.2 Device description Device model A1228ds Serial number UA2019JJF1 Mode 800 AMPS800 D-AMPS Multiple Access Scheme FDMATDMA Maximum Output Power Setting 1 26.0 dBm26.0 dBm Factory Tolerance in Power Setting ± 0.25± 0.25 Maximum Peak Output Power 2 26.25 dBm26.25 dBm Duty Cycle 11 / 3 Transmitting Frequency Range 824 – 849 MHz824 – 849 MHz Prototype or Production Unit Prototype 3. Test equipment 3.1 Dosimetric system SAR measurements were made using the DASY3 professional system (software version 3.1c), manufactured by Schmid & Partner Engineering AG and installed Febuary, 1998. The total SAR assessment uncertainty (K = 1) of the system is ±16% and includes a +15% offset (overestimation). The extended uncertainty (K = 2) is ±32% with a +15% offset. This results in a total uncertainty range of –1% to +31% for K = 1, or –17% to +47% for K = 2. The equipment list is given below. Description Serial NumberDue Date DASY3 DAE V1 3454/01 E-field probe ETDV5 13242/01 Dipole Validation Kit, D900V204912/00 1 This is the conducted power measured at the antenna port when the device is set to its highest power setting. It is measured at the middle of the transmit frequency band. Note that the output power may be different at other frequencies. 2 This equals the maximum output power setting plus the factory tolerance. Confidential REPORT 4 (15) Prepared (also subject responsible if other)No. RT/EUS/VR/X Mark Douglas919-472-6334 EUS/VR-00:1417/REP ApprovedCheckedDateRevFile EUS/VR/X Mark DouglasMGD2000-07-07A U:\FCC_TRNS\Fcc_388 Dolly Lite\Exhibit11\388- 11.doc EN 3.2 Additional equipment Description Serial NumberDue Date Signal Generator HP8648C 3537A015989/00 Dielectric probe kit HP 85070B US330202568/00 Network analyzer HP 8752C 3410A031057/00 Power meter HP 437B3125U137292/01 Power sensor HP 8482H3318A070972/01 Anritsu MT8801BMB124772/01 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with the dielectric probe kit. These values are shown in the table below. The mass density, ρ, entered into the DASY3 program is also given. Recommended limits for maximum permittivity, minimum conductivity and maximum mass density are also shown [3]. It is seen that the measured parameters result in an overestimation of SAR compared to the recommended values. Dielectric Parameters f (MHz) Limits / Measured εε r σσ (S/m)ρρ (g/cm 3 ) Measured 41.00.911.00 835 Recommended Limits [3] 46.10.741.03 5. System accuracy verification A system accuracy verification of the DASY3 was performed using the dipole validation kits listed in Section 3.1. The system verification test was conducted on the same day as the measurement of the DUT. The obtained results are displayed in the table below. It is seen that the system is…

Text truncated - open the document above for the full version.

Exhibit 8 addendum We plan to place this statement on an insert with the manual until we are able to use our existing stock of manuals. Future manuals will have the statement added into the safety section of the manual. Body Worn statement Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (i.e., at the ear and worn on the body) as required by the FCC for each model. Body worn measurements are made while the phone is in use and worn on the body with an Ericsson accessory. The design and composition of an accessory can affect the body worn SAR levels for the phone. Ericsson has not measured, and makes no representation about the body worn SAR levels when the phone is used with non-Ericsson accessories.

1 (10) Prepared (also subject responsible if other)No. RT/EUS/VR/X Mark Douglas919-472-6334 EUS/VR-00:1727/REP ApprovedCheckedDateRevFile EUS/VR/X Mark DouglasMGD2000-08-10A U:\FCC_TRNS\Fcc_388 Dolly Linda Lite\Exhibit11\sar addend_A1228ds body.doc EN Addendum to “SAR Test Report: A1228ds” Date of test: July 11, 2000 Laboratory: Electromagnetic Near Field and Radio Frequency Dosimetry Laboratory Ericsson, Inc. 7001 Development Drive, P.O. Box 13969, Research Triangle Park, NC, 27709, USA Test Responsible: Mark Douglas, Ph.D. Senior Staff Engineer, Antenna Development Group [email protected] (919) 472-6334 This laboratory is accredited to ISO/IEC Guide 25-1990 to perform the following electromagnetic tests: Specific Absorption Rate (SAR), dielectric parameters, and RF power measurement on the following types of products: Wireless communications devices A2LA certificate Number: 1650-01 Statement of Compliance: Ericsson, Inc. declares under its sole responsibility that the that the product Ericsson A1228ds to which this declaration relates, is in conformity with the appropriate RF exposure standards, recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) © Ericsson, Inc. 2000 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Ericsson encourages all feedback, both positive and negative, on this test report. 2 (10) Prepared (also subject responsible if other)No. RT/EUS/VR/X Mark Douglas919-472-6334 EUS/VR-00:1727/REP ApprovedCheckedDateRevFile EUS/VR/X Mark DouglasMGD2000-08-10A U:\FCC_TRNS\Fcc_388 Dolly Linda Lite\Exhibit11\sar addend_A1228ds body.doc EN Table of Contents 1. Introduction3 2. Device Under Test3 2.1Antenna description3 2.2Device description3 3. Test equipment3 3.1 Dosimetric system3 3.2Additional equipment4 4. Electrical parameters of the tissue simulating liquid4 5. System accuracy verification4 6. Test results4 References5 Appendix 1: SAR distribution comparison for system accuracy verification6 Appendix 2: SAR distribution plots8 Appendix 3: Position of Device on Phantom9 Appendix 4: Probe calibration parameters10 3 (10) Prepared (also subject responsible if other)No. RT/EUS/VR/X Mark Douglas919-472-6334 EUS/VR-00:1727/REP ApprovedCheckedDateRevFile EUS/VR/X Mark DouglasMGD2000-08-10A U:\FCC_TRNS\Fcc_388 Dolly Linda Lite\Exhibit11\sar addend_A1228ds body.doc EN 1. Introduction This test report is an addendum to report EUS/VR-00:1417/REP “SAR Test Report: A1228ds”. In this report compliance of the Ericsson A1228ds portable telephone with RF safety guidelines is demonstrated while the device is used against the body (applicable RF safety guidelines are given in [1]). The device was tested in accordance with the latest available test guidelines [1]. Detailed procedures of the test are described in the Ericsson SAR Measurement Specification [2]. 2. Device Under Test 2.1 Antenna description Type Fixed stub Location Left side length30 mm Dimensions width at base10 mm Configuration Helix 2.2 Device description Device model A1228ds Serial number UA2019JJDQ Mode 800 AMPS800 D-AMPS Multiple Access Scheme FDMATDMA Maximum Output Power Setting 1 26.0 dBm26.0 dBm Factory Tolerance in Power Setting ± 0.25± 0.25 Maximum Peak Output Power 2 26.25 dBm26.25 dBm Duty Cycle 11 / 3 Transmitting Frequency Range 824 – 849 MHz824 – 849 MHz Prototype or Production Unit Prototype 3. Test equipment 3.1 Dosimetric system SAR measurements were made using the DASY3 professional system (software version 3.1c), manufactured by Schmid & Partner Engineering AG and installed February, 1998. The total SAR assessment uncertainty (K = 1) of the system is ±16% and includes a +15% offset (overestimation). The extended uncertainty (K = 2) is ±32% with a +15% offset. This results in a total uncertainty range of –1% to +31% for K = 1, or –17% to +47% for K = 2. The equipment list is given below. Description Serial NumberDue Date DASY3 DAE V1 3454/01 E-field probe ETDV5 13242/01 Dipole Validation Kit, D900V204912/00 1 This is the conducted power measured at the antenna port when the device is set to its highest power setting. It is measured at the middle of the transmit frequency band. Note that the output power may be different at other frequencies. 2 This equals the maximum output power setting plus the factory tolerance. 4 (10) Prepared (also subject responsible if other)No. RT/EUS/VR/X Mark Douglas919-472-6334 EUS/VR-00:1727/REP ApprovedCheckedDateRevFile EUS/VR/X Mark DouglasMGD2000-08-10A U:\FCC_TRNS\Fcc_388 Dolly Linda Lite\Exhibit11\sar addend_A1228ds body.doc EN 3.2 Additional equipment Description Serial NumberDue Date Signal Generator HP8648C 3537A015989/00 Dielectric probe kit HP 85070B US330202568/00 Network analyzer HP 8752C 3410A031057/00 Power meter HP 437B3125U137292/01 Power sensor HP 8482H3318A070972/01 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with the dielectric probe kit. These values are shown in the table below. The mass density, ρ, entered into the DASY3 program is also given. Recommended values for permittivity, conductivity and mass density are also shown [3]. It is seen that the measured parameters result in an overestimation of SAR compared to the recommended values. Dielectric Parameters f (MHz) Limits / Measured εε r σσ (S/m)ρρ (g/cm 3 ) Measured 56.50.991.04 835 Recommended Values [3] 56.10.951.04 5. System accuracy verification A system accuracy verification of the DA…

Text truncated - open the document above for the full version.

1 (21) Prepared (also subject responsible if other)No. RT/EUS/VR/X Mark Douglas919-472-6334 EUS/VR-00:1873/REP ApprovedCheckedDateRevFile EUS/VR/X Mark DouglasMGD2000-08-23A U:\FCC_TRNS\Fcc_388 Dolly Linda Lite\Exhibit11\A1228ds body, all cases.doc E Second addendum to “SAR Test Report: A1228ds” Date of test: August 22, 2000 Laboratory: Electromagnetic Near Field and Radio Frequency Dosimetry Laboratory Ericsson, Inc. 7001 Development Drive, P.O. Box 13969, Research Triangle Park, NC, 27709, USA Test Responsible: Mark Douglas, Ph.D. Senior Staff Engineer, Antenna Development Group [email protected] (919) 472-6334 Accreditation: This laboratory is accredited to ISO/IEC Guide 25-1990 to perform the following electromagnetic tests: Specific Absorption Rate (SAR), dielectric parameters, and RF power measurement on the following types of products: Wireless communications devices A2LA certificate Number: 1650-01 Statement of Compliance: Ericsson, Inc. declares under its sole responsibility that the that the product Ericsson A1228ds (AXATR-388-A2) to which this declaration relates, is in conformity with the appropriate RF exposure standards, recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) © Ericsson, Inc. 2000 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Ericsson encourages all feedback, both positive and negative, on this test report. 2 (21) Prepared (also subject responsible if other)No. RT/EUS/VR/X Mark Douglas919-472-6334 EUS/VR-00:1873/REP ApprovedCheckedDateRevFile EUS/VR/X Mark DouglasMGD2000-08-23A U:\FCC_TRNS\Fcc_388 Dolly Linda Lite\Exhibit11\A1228ds body, all cases.doc E Table of Contents 1. Introduction3 2. Device Under Test3 2.1Antenna description3 2.2Device description3 3. Test equipment3 3.1 Dosimetric system3 3.2Additional equipment4 4. Electrical parameters of the tissue simulating liquid4 5. System accuracy verification4 6. Test results4 References5 Appendix 1: SAR distribution comparison for system accuracy verification6 Appendix 2: SAR distribution plots8 Appendix 3: Photographs of Device Under Test13 Appendix 4: Position of Device on Phantom16 Appendix 5: Probe calibration parameters21 3 (21) Prepared (also subject responsible if other)No. RT/EUS/VR/X Mark Douglas919-472-6334 EUS/VR-00:1873/REP ApprovedCheckedDateRevFile EUS/VR/X Mark DouglasMGD2000-08-23A U:\FCC_TRNS\Fcc_388 Dolly Linda Lite\Exhibit11\A1228ds body, all cases.doc E 1. Introduction This test report is an addendum to report EUS/VR-00:1417/REP “SAR Test Report: A1228ds”. In this report compliance of the Ericsson A1228ds portable telephone with RF safety guidelines is demonstrated while the device is used against the body (applicable RF safety guidelines are given in [1]) using additional belt clips/holsters. The device was tested in accordance with the latest available test guidelines [1]. Detailed procedures of the test are described in the Ericsson SAR Measurement Specification [2]. 2. Device Under Test 2.1 Antenna description Type Fixed stub Location Left side length30 mm Dimensions width at base10 mm Configuration Helix 2.2 Device description Device model A1228ds Serial number UA2019JJDQ Mode 800 AMPS800 D-AMPS Multiple Access Scheme FDMATDMA Maximum Output Power Setting 1 26.0 dBm26.0 dBm Factory Tolerance in Power Setting ± 0.25± 0.25 Maximum Peak Output Power 2 26.25 dBm26.25 dBm Duty Cycle 11 / 3 Transmitting Frequency Range 824 – 849 MHz824 – 849 MHz Prototype or Production Unit Prototype 3. Test equipment 3.1 Dosimetric system SAR measurements were made using the DASY3 professional system (software version 3.1c), manufactured by Schmid & Partner Engineering AG and installed February, 1998. The total SAR assessment uncertainty (K = 1) of the system is ±16% and includes a +15% offset (overestimation). The extended uncertainty (K = 2) is ±32% with a +15% offset. This results in a total uncertainty range of –1% to +31% for K = 1, or –17% to +47% for K = 2. The equipment list is given below. DescriptionSerial NumberDue Date DASY3 DAE V1 36912/00 E-field probe ETDV5 13242/01 Dipole Validation Kit, D900V204912/00 1 This is the conducted power measured at the antenna port when the device is set to its highest power setting. It is measured at the middle of the transmit frequency band. Note that the output power may be different at other frequencies. 2 This equals the maximum output power setting plus the factory tolerance. 4 (21) Prepared (also subject responsible if other)No. RT/EUS/VR/X Mark Douglas919-472-6334 EUS/VR-00:1873/REP ApprovedCheckedDateRevFile EUS/VR/X Mark DouglasMGD2000-08-23A U:\FCC_TRNS\Fcc_388 Dolly Linda Lite\Exhibit11\A1228ds body, all cases.doc E 3.2 Additional equipment Description Serial NumberDue Date Signal Generator HP8648C 3537A015989/00 Dielectric probe kit HP 85070B US330202568/00 Network analyzer HP 8752C 3410A031057/01 Power meter HP 437B3125U137292/01 Power sensor HP 8482H3318A070972/01 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with the dielectric probe kit. These values are shown in the table below. The mass density, ρ, entered into the DASY3 program is also given. Recommended values for permittivity, conductivity and mass density are also shown [3]. It is seen that the measured parameters result in an overestimation of SAR compared to the recommended values. Dielectric Parameters f (MHz) Limits / Measured εε r σσ (S/m)ρρ (g/cm 3 ) Measured 56.20…

Text truncated - open the document above for the full version.

APPLICANT: FCC ID NO: ERICSSON INC AXATR-388-A2 © 2000 Ericsson Inc. EXHIBIT 6A1 800 MHz AMPS RF POWER OUTPUT Para. 2.1033 (c,6,7), 2.1046 and 22.913 (a) The RF power measured at the output terminals (antenna connector) is plotted against supply voltage variation and temperature variations at the highest levels. Exhibit Voltage (V) Temperature TX Freq Power Level 6A24.8VariedMid Band0 6A3Varied+25 CMid Band0 Output power was measured conducted. The measurements were made per IS-137A using the following equipment: HP8958A Cellular Interface Thermotron SM-8C Temperature Chamber HP E7405A EMC Spectrum Analyzer 9 kHz – 26.5 GHz HP EPM-441A Power Meter HP 66309B Dual Output Mobile Comm. DC Source HP 83712B CW Signal Generator 10 MHz – 20 GHz EFFECTIVE RADIATED POWER The following is a description of the substitution method used in accordance with IS-137A to obtain accurate EDRP readings at the carrier fundamental frequency: (1) EUT measurements are made at 3 m using calibrated antennas and equipment with known cable losses. (2) A maximized measurement is made by raising and lowering the antenna and rotating the EUT 360 degrees. Horizontal and vertical polarization data is recorded. (3) A generator and dipole antenna are then substituted for the EUT. The dipole antenna is a half-wave dipole. If a dipole antenna cannot be used, then the designated antenna is referenced to a dipole antenna. (4) Measurements are made through the dipole antenna at known power levels to deter…

Text truncated - open the document above for the full version.
