AXATR-409-A2OEM Module

Exhibit 8: OEM Interface Manual ©1999 Ericsson Inc.Page 1 of 11 DM-20 OEM INTERFACE MANUAL Exhibit 8: OEM Interface Manual ©1999 Ericsson Inc.Page 2 of 11 CONTENTS – OEM INTERFACE MANUAL 1. DM20 TRANSCEIVER MODULE OUTLINE DRAWING ........................................................... 3 1.1.MECHANICAL.................................................................................................................................4 1.2.ELECTRICAL...................................................................................................................................5 1.2.1.ELECTRICAL PERFORMANCE...................................................................................................5 1.2.2.MOBILE STATION POWER CLASS............................................................................................6 1.3.POWER CONSUMPTION..................................................................................................................6 1.3.1.TRANSMIT/TALK MODE..........................................................................................................6 1.3.2.STANDBY MODE.....................................................................................................................6 1.3.3.SLEEP MODE (MINIMUM DC POWER CONSUMPTION)............................................................6 2. ABSOLUTE MAXIMUM RATINGS ................................................................................................ 7 3. SAFETY ................................................................................................................................................ 8 3.1.EXPOSURE TO RADIO FREQUENCY ENERGY................................................................................8 3.2.MODULE OPERATION....................................................................................................................8 3.3.POSTED FACILITIES.......................................................................................................................8 3.4.ELECTRONIC DEVICES...................................................................................................................8 3.5.BLASTING AREAS...........................................................................................................................9 3.6.POTENTIALLY EXPLOSIVE ATMOSPHERES..................................................................................9 3.7.VEHICLES........................................................................................................................................9 3.8.FOR VEHICLES EQUIPPED WITH AN AIRBAG.................................................................................9 3.9.RESPONSIBLE USE..........................................................................................................................9 Exhibit 8: OEM Interface Manual ©1999 Ericsson Inc.Page 3 of 11 1. DM20 Transceiver Module Outline Drawing Exhibit 8: OEM Interface Manual ©1999 Ericsson Inc.Page 4 of 11 1.1. Mechanical The DM-20 module has no mechanical elements other that the main PCB assembly. All critical electronic components are shielded using sheet metal cans to prevent internal/external electromagnetic interference from degrading the module’s performance and to prevent the module from interfering with other nearby devices. The following figure shows a typical mounting configuration of the module with the main motherboard assembly. The module is plugged into the fixed mating connector and secured with four screws to the standoff components. Exhibit 8: OEM Interface Manual ©1999 Ericsson Inc.Page 5 of 11 1.2. Electrical The diagram below shows an overview of the electrical interface between the DM-20 module and a typical application. DM-20 Electrical Interface Customer Application HW Voltage Regulator Control Processor Voice & Data Processing üEcho Cancelling üNoise Cancelling üAudio Power AMP üData Conversion DTE Power External Audio Interface Antenna User Interface 6 1 Power & GND Serial Interface Wake Analog Audio Interface 10 1 3 5 4 Clock REF Option SIM Device DM-20 Module PCM Audio Interface 1.2.1. Electrical Performance Electrical performance parameters are valid only when the terminating impedance at the output of the antenna connector exhibits a VSWR of less than 2:1 for all phase angles in the frequency band of operation. High VSWR loads at the antenna connector adversely affect current consumption, linearity, and power efficiency of the module and may prevent operation or cause internal damage. The RF performance of the DM-20 fully meets the following specifications: • IS-136 TDMA Cellular mode – Per IS-137 specification •553 AMPS Cellular mode – Per IS-19 specification Exhibit 8: OEM Interface Manual ©1999 Ericsson Inc.Page 6 of 11 • CDPD Mode – Per Cellular Digital Packet Data (CDPD) System Specification, Release 1.1, 19 January 1995 (CDPD will be supported in a future release of the DM20). 1.2.2. Mobile Station Power Class The module is able to operate in several modes and different output power levels. Typical applications require output power levels similar to those in a handheld cellular phone (600-mW nominal) which is considered a power class IV unit for dual mode operation. It is possible to increase the output power level to that of a class I unit (4 W nominal) during the 5 second analog burst data mode. The table below shows the nominal output power levels (Effective Radiated Power, assuming an antenna system gain of 1 dBd (3.15 dBi) [2.5 dBd (4.65 dBi) antenna gain with 1.5 dB cable loss)). Mobile Station Nominal Power Levels Mobile Station Power Level (dBW) 012345678910 Class I62-2-6-10-14-18-22-22-22-22 Class IV-2-2-2-6-10-14-18-22 -27±3-32±4-37±5 *Note:Output power levels maintained within range of +2 / -4 dB unless otherwise noted Power levels 8-10 valid for digital mode only 1.3. Power Consumption 1.3.1. Transmit/Talk Mode DC current in mAAMPS ModeIS-136 ModeCDPD Mode Peak617590590600 m…

Text truncated - open the document above for the full version.

Exhibit 8: OEM Interface Manual ©1999 Ericsson Inc.Page 1 of 11 DM-20 OEM INTERFACE MANUAL Exhibit 8: OEM Interface Manual ©1999 Ericsson Inc.Page 2 of 11 CONTENTS – OEM INTERFACE MANUAL 1. DM20 TRANSCEIVER MODULE OUTLINE DRAWING.......................................................... 3 1.1.MECHANICAL.............................................................................................................................4 1.2.ELECTRICAL..............................................................................................................................5 1.2.1.ELECTRICAL PERFORMANCE...............................................................................................5 1.2.2.MOBILE STATION POWER CLASS.........................................................................................6 1.3.POWER CONSUMPTION..............................................................................................................6 1.3.1.TRANSMIT/TALK MODE......................................................................................................6 1.3.2.STANDBY MODE.................................................................................................................6 1.3.3.SLEEP MODE (MINIMUM DC POWER CONSUMPTION)..........................................................6 2. ABSOLUTE MAXIMUM RATINGS ............................................................................................. 7 3. SAFETY .......................................................................................................................................... 8 3.1.EXPOSURE TO RADIO FREQUENCY ENERGY.............................................................................8 3.2.MODULE OPERATION................................................................................................................8 3.3.POSTED FACILITIES...................................................................................................................8 3.4.ELECTRONIC DEVICES...............................................................................................................8 3.5.BLASTING AREAS.......................................................................................................................9 3.6.POTENTIALLY EXPLOSIVE ATMOSPHERES...............................................................................9 3.7.VEHICLES...................................................................................................................................9 3.8.FOR VEHICLES EQUIPPED WITH AN AIRBAG..............................................................................9 3.9.RESPONSIBLE USE.....................................................................................................................9 Exhibit 8: OEM Interface Manual ©1999 Ericsson Inc.Page 3 of 11 1. DM20 Transceiver Module Outline Drawing Exhibit 8: OEM Interface Manual ©1999 Ericsson Inc.Page 4 of 11 1.1. Mechanical The DM-20 module has no mechanical elements other that the main PCB assembly. All critical electronic components are shielded using sheet metal cans to prevent internal/external electromagnetic interference from degrading the module’s performance and to prevent the module from interfering with other nearby devices. The following figure shows a typical mounting configuration of the module with the main motherboard assembly. The module is plugged into the fixed mating connector and secured with four screws to the standoff components. Exhibit 8: OEM Interface Manual ©1999 Ericsson Inc.Page 5 of 11 1.2. Electrical The diagram below shows an overview of the electrical interface between the DM-20 module and a typical application. DM-20 Electrical Interface Customer Application HW Voltage Regulator Control Processor Voice & Data Processing üEcho Cancelling üNoise Cancelling üAudio Power AMP üData Conversion DTE Power External Audio Interface Antenna User Interface 6 1 Power & GND Serial Interface Wake Analog Audio Interface 10 1 3 5 4 Clock REF Option SIM Device DM-20 Module PCM Audio Interface 1.2.1. Electrical Performance Electrical performance parameters are valid only when the terminating impedance at the output of the antenna connector exhibits a VSWR of less than 2:1 for all phase angles in the frequency band of operation. High VSWR loads at the antenna connector adversely affect current consumption, linearity, and power efficiency of the module and may prevent operation or cause internal damage. The RF performance of the DM-20 fully meets the following specifications: • IS-136 TDMA Cellular mode – Per IS-137 specification • 553 AMPS Cellular mode – Per IS-19 specification Exhibit 8: OEM Interface Manual ©1999 Ericsson Inc.Page 6 of 11 • CDPD Mode – Per Cellular Digital Packet Data (CDPD) System Specification, Release 1.1, 19 January 1995 (CDPD will be supported in a future release of the DM20). 1.2.2. Mobile Station Power Class The module is able to operate in several modes and different output power levels. Typical applications require output power levels similar to those in a handheld cellular phone (600-mW nominal) which is considered a power class IV unit for dual mode operation. It is possible to increase the output power level to that of a class I unit (4 W nominal) during the 5 second analog burst data mode. The table below shows the nominal output power levels (Effective Radiated Power, assuming an antenna system gain of 1 dBd (3.15 dBi) [2.5 dBd (4.65 dBi) antenna gain with 1.5 dB cable loss)). Mobile Station Nominal Power Levels Mobile Station Power Level (dBW) 012345678910 Class I62-2-6-10-14-18-22-22-22-22 Class IV-2-2-2-6-10-14-18-22 -27±3-32±4-37±5 *Note:Output power levels maintained within range of +2 / -4 dB unless otherwise noted Power levels 8-10 valid for digital mode only 1.3. Power Consumption 1.3.1. Transmit/Talk Mode DC current in mAAMPS ModeIS-136 ModeCDPD Mode Peak617590590600 mWatt RMS617355355 3 W BurstPeak1810-- 1.3.2. Standby Mode DC current in mAA…

Text truncated - open the document above for the full version.

APPLICANT: ERICSSON INC.FCC ID NO: AXATR-409-A2 Exhibit 2A Para. 22.919, Electronic Serial Numbers Protection Against Unauthorized ESN and Firmware Upgrades The Electronic Serial Number (ESN) bits in this OEM module are encoded and spread over various non-sequential memory locations in order to prevent detection and modification. Once the factory has programmed the ESN, the mobile firmware cannot overwrite or alter the ESN memory locations. Both the ESN host and the operation systems components are permanently mounted to the mobile in order to prevent removal and misuse. Unauthorized attempts to alter the mobile’s firmware will cause the unit to become inoperable. ©1999 Ericsson Inc.

December 20, 1999 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21406 Attention:Equipment Authorization Branch Subject:Certification for FCC ID: AXATR-409-A2 Gentlemen, Ericsson Inc. requests certification (type acceptance) for the AXATR-409-A2. This OEM module transceiver is designed as a mobile for use in the AMPS/DAMPS cellular telephone system operates in the 800 MHz Domestic Public Cellular Radiotelephone Communications Services per Subpart H of part 22 and operates in the 1900 MHz Domestic Public Cellular Radiotelephone Communications Services, as per Part 24. When operating in the 1900 MHz range, DAMPS technology will be employed. This OEM module meets the requirements of IS-137A for operation in cellular systems. This OEM module is similar to previously type accepted FCC ID: AXATR-400-A2. Ericsson requests an exclusion from routine RF exposure measurements based on the discussion presented in Exhibit 11, RF Exposure Evaluation, and communications with Kwok Chan on 5/18/99. The primary reason for this request is due to hardware limitations of our burst mode making MPE evaluation infeasible because the module does not have a normal operating mode that would support the duration of an RF exposure evaluation. We have included specific instructions and warnings in Exhibit 8, OEM Interface Manual, regarding minimum separation distance, maximum antenna gain, and that use as a portable transmitter will require separate FCC approval for SAR compliance. Ericsson Inc. requests confidentiality under 47 CFR 0.459 for the following exhibits listed: Exhibit 4Block Diagram Exhibit 5Schematic Diagrams Justification of this request is that in order to facilitate the circuit miniaturization of the AXATR-409-A2, proprietary techniques were implemented in the transmitter, receiver, and baseband circuitry. To protect Ericsson’s competitive advantage on these proprietary techniques, we request the above listed exhibits be held as confidential and withheld from the Public Information File. Sincerely, Rick Timmons Tel No: (919) 472-1538

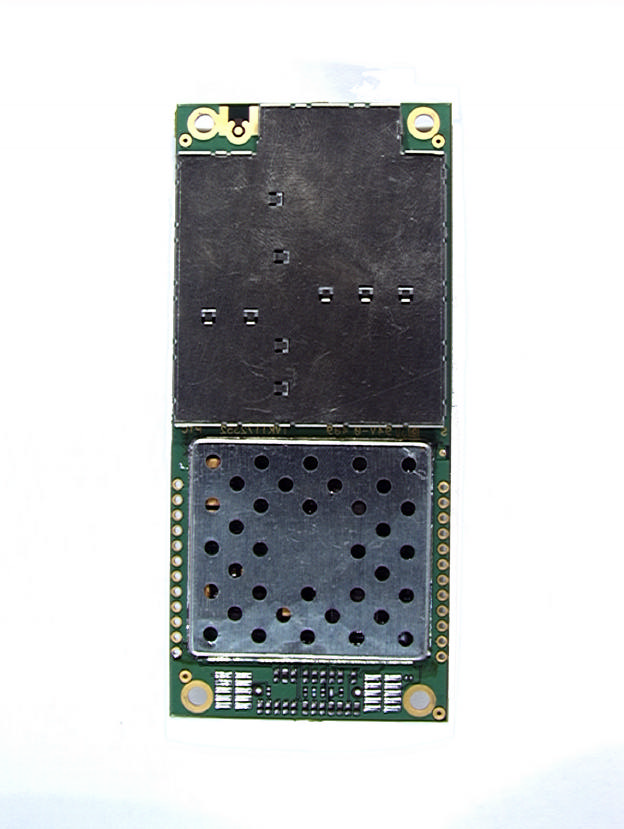

APPLICANT: ERICSSON INC.FCC ID: AXATR-409-A2 ©1999 Ericsson Inc. Exhibit 3: External Photo (Front View)Page 1 of 3 APPLICANT: ERICSSON INC.FCC ID: AXATR-409-A2 ©1999 Ericsson Inc. Exhibit 3: External Photo (Back View)Page 2 of 3 APPLICANT: ERICSSON INC.FCC ID: AXATR-409-A2 ©1999 Ericsson Inc. Exhibit 3: External Photo (Side View)Page 3 of 3

APPLICANT: ERICSSON INC.FCC ID: AXATR-409-A2 Exhibit 1: Identification Plate ©1999 Ericsson Inc.

APPLICANT: ERICSSON INC.FCC ID: AXATR-409-A2 ©1999 Ericsson Inc. Exhibit 9: Internal Photos (Front) APPLICANT: ERICSSON INC.FCC ID: AXATR-409-A2 ©1999 Ericsson Inc. Exhibit 9: Internal Photos (Back)

APPLICANT: ERICSSON INCFCC ID NO: AXATR-409-A2 Exhibit 12APage 1 of 3 ©1999 Ericsson Inc. CIRCUIT & DEVICE DESCRIPTIONS PARA. 2.1033 (b)(4), (c)(10) (10)FREQUENCY STABILIZATION A temperature compensated crystal oscillator (U4) provides a 19.44 MHz reference frequency signal for the transmitter and receiver frequency synthesizers. This reference frequency is internally compensated to be within ±2.5 ppm over the temperature range of -30°C to +75° C. Upon power-up, the receiver searches and acquires a base station signal, and it adjusts the reference oscillator frequency to align itself to the high accuracy time base of the base station. The transmitter does not engage until after the receiver synchronizes to the base station. (11a)ATTENUATION OF SPURIOUS EMISSIONS The 800 MHz band transmitter frequency is obtained from mixing a phase locked VCO operating from 979.53 MHz to 1004.49 MHz with a 155.52 MHz signal. The 155.52 MHz signal is obtained by phase locking an oscillator to the VCTCXO output. The 800 MHz band receiver frequency is obtained by dual conversion. The first conversion is obtained by mixing the incoming signal with the 979.53 MHz to 1004.49 MHz VCO to a first IF frequency of 110.52 MHz. The second conversion mixes the IF frequency with a phase locked VCO at 110.4 MHz to obtain the second IF frequency of 120 kHz. All VCO’s are phase locked to the reference VCTCXO. The 1900 MHz band transmitter frequency is obtained from a 1002.765 to 1032.735 MHz synthesizer mixed with a 155.52 MHz signal. The result is then mixed back with the 1002.765 to 1032.735 MHz VCO signal to produce 1850.01 to 1909.95 transmit signal. The 1900 MHz band receiver frequency is obtained by dual conversion. The first conversion is by mixing the incoming signal with the doubled 1020.285 to 1050.255 MHz synthesizer to create a first IF of 110.52 MHz. The second conversion mixes the IF frequency with a phase locked VCO at 110.4 MHz to obtain the second IF frequency of 120 kHz. All VCO’s are phase locked to the reference VCTCXO. As a result of the above circuitry, the spurious signals are transmitter harmonics, reference oscillator 19.44 MHz harmonics, the local oscillators and the microprocessor clock. The use of multi-layer printed circuit boards, with signal tracks between ground planes, for the radio as well as for the logic areas reduces the radiation to a minimum. Ceramic resonator bandpass filters for the duplexer attenuate conducted transmitter harmonics, reference oscillator and local oscillator signals. A bandpass filter in the receiver front end attenuates the local oscillator signal further. Additional suppression of radiation is achieved by shielding and key isolation between circuits. (11b)LIMITING MODULATION The modulation for the transmitter is produced inside a Digital Signal Processing integrated circuit. The modulation limiting is therefore controlled by an algorithm inside this chip. The limit is preset at the factory and cannot be changed thereafter. ATTENUATING HIGHER AUDIO FREQUENCIES The DSP chip provides an audio filter with a 120 log (f/3000) response, f=3K to 20KHz. APPLICANT: ERICSSON INCFCC ID NO: AXATR-409-A2 Exhibit 12APage 2 of 3 ©1999 Ericsson Inc. Manchester encoded data signals are filtered prior to transmission by a four-pole lowpass filter providing an attenuation of 24 dB/Octave above 20 kHz. The signal produced by the DSP chip is a differentially shifted PI/4 QPSK signal for the digital system and a FM signal for the analog cellular system. These signals are fed through a three-pole lowpass filter with a 3 dB down cut-off frequency of 25 kHz to limit the adjacent channel energy in the digital mode. CIRCUIT & DEVICE DESCRIPTIONS PARA. 2.1033 (b)(4) (11c)OUTPUT POWER CONTROL A loop circuit under supervision of the logic sets the output to any of the eleven power levels. A digital word is transmitted to the gain control amplifier for output power adjustment. A detector at the output of the power amplifier module senses the RF energy present and sends a corresponding DC voltage to the digital logic circuitry. Upon receiving a command to set power level from the handset or from a base station the microprocessor sends a predetermined word to the ALC amplifier. The output detector voltage is then read by the microprocessor and compared to a preset value. If the detector voltage is outside the allowed tolerance an adjustment is made to the gain-controlled amplifier to bring the detector voltage into the proper range. (12)DIGITAL MODULATION TECHNIQUES The NRZ data stream is transformed to 10kbps Manchester encoded data in such a way that each NRZ binary one is transformed to a zero-to-one transition, and each NRZ binary zero is transformed to a one-to-zero transition. The Manchester encoded data stream is filtered before being applied to the modulator. Direct binary frequency shift keying is used. A binary one into the modulator corresponds to a normal peak frequency deviation of 8kHz above the carrier frequency and a zero corresponds to a nominal peak frequency deviation 8 kHz below the carrier frequency. (12a)DESCRIPTION OF PI/4 DQPSK The modulation method used for the digital mode is known as PI/4 shifted differentially encoded Quadrature Phase Shift Keying. Eight distinct phase states are possible. The signal information is differentially encoded; symbols are transmitted as changes in phase rather than absolute phases. Transition of phase which would result in a zero amplitude momentarily are not allowed. APPLICANT: ERICSSON INCFCC ID NO: AXATR-409-A2 Exhibit 12APage 3 of 3 ©1999 Ericsson Inc. CIRCUIT & DEVICE DESCRIPTIONS PARA. 2.1033 (b)(4) 1.0 LOGIC BOARD OPERATION The logic board is the central controller system for the radio. It is made up of a microprocessor, DSP, codec, memory, and control logic. 1.1 ASIC CONTROL CHIP – D401 The ASIC control chip is made up of a ARM microprocessor and application specific logic circuits. The chip is the main control center for the radio …

Text truncated - open the document above for the full version.

APPLICANT: ERICSSON INC.FCC ID NO: AXATR-409-A2 ©1999 Ericsson Inc. Exhibit 10A DESCRIPTION OF ACTIVE DEVICES COMPONENT DESIGNATIONFUNCTION OF DEVICE TRANSMITTER N1601, N1801, N1802, N1803GAAS FET RF Switch N1601 Amplifier and Mixer IC N1701Dual Band Power Amplifier V1804Detector Diode V1801900MHz Power Amplifier V1702, V1704, V1802, V1803, V1805Switching Transistor Z1801Diplexer Z1802800 MHz Duplexer Filter Z1701Isolator, 800 MHz Z1702Isolator, 1900 MHz Z1601, Z1602, Z1604800 MHz Transmit SAW Filter Z16031900 MHz Saw Filter RECEIVER N1201Dual band LNA/Mixer ASIC N1301Receiver IF IC N1202LNA/Mixer ASIC (not used) V1301Tuning Diode V1201, V1202, V1210Switching Transistor Z12011900 SAW Filter Z1203800 MHz SAW Filter Z12021900 MHz Ceramic Filter Z1204Crystal Filter SYNTHESIZER N1501VCO Module N1401Synthesizer/ Modulator IC N140219.44MHz Oscillator Module V1501, V1502FET Amplifier V1401Tuning Diode BASEBAND D201Hex Inverter D501, D502, D502Memory D601Digital Signal Processor D701Audio Processor D402, D403, D801OR gate D401Microprocessor N301Battery Charging ASIC N601, N1901, N1902, N1903, N1904Voltage Regulators V201, V202, V203, V702, V703,Diode Clippers V204, V205, V701, V1903, V1905switching transistors V902, V903, V904switching transistors V1210, V1901, V1904, V1906, V1907Switching FET V905diode V1902zener diode V801Impedance buffer transistor APPLICANT: ERICSSON INC.FCC ID NO: AXATR-409-A2 Exhibit 10BALIGNMENT PROCEDUREPage 1 of 6 ©1999 Ericsson Inc. PARA. 2.1033 (c)(9) Due to the high accuracy of the I/O, the modulation, transmit voice, DTMF, SAT and data deviations are all preset in the DSP software and are not adjustable in production or the field. These procedures give the test method to verify the phone has proper deviations. RADIO TUNE/TEST INSTRUCTIONS FILTERING SAW, ceramic, and crystal filter technologies are used, and no tuning is required. REFERENCE FREQUENCY ADJUSTMENT TEST SETUP Testing of the VCTCXO circuit is temperature dependent and should be carried out at an ambient room temperature of +23°C to +27°C. Any frequency adjustments should be made 1.0 hour after re-flow soldering to allow for relaxation of thermal stress. Terminate ANT (X301) into a frequency counter with a 50Ω input impedance. Enter the following test commands: **** The same channel should be used for all parts of this test **** @2705(read thermistor A/D from Patti) check result 1 @80(initialize the transceiver- carrier off and audio muted) @6502(AFC off) @E11401FF(center DAC3) @3Czzxxxx(select a MID-CHANNEL) @8407(set the transmitter power level 7) @81(turn the transmitter on) check result 2 TEST RESULTS 1. Verify that the returned value is in the range 41 to 54 hex. (A higher temperature corresponds to a lower reading). 2. Wait until output is stable (<±42Hz variation in frequency). Log output frequency and calculate error in Hz. Verify that the transmitter frequency is <±100Hz of the channel frequency. If necessary, adjust DAC3 with the commands @E1140xxx where xxx is 000 to 3FF (each step is approx. 48Hz) to achieve a transmitter frequency that is <±100Hz of the channel frequency plus 0.35ppm. DAC3 calibration limits are 110h and 300h. END OF TEST @80(carrier off and audio muted) SET TRANSMIT RF POWER TEST SETUP Before testing, provide the antenna (X301) with a 50Ω load capable of dissipating 5W (average power). Use 6.0 VDC at VCC_6V input on system connector. Enter the following test commands: APPLICANT: ERICSSON INC.FCC ID NO: AXATR-409-A2 Exhibit 10BALIGNMENT PROCEDUREPage 2 of 6 ©1999 Ericsson Inc. @6502(set VCTCXO control voltage) @3C000334(tune to MID-CHANNEL CELLULAR BAND, CHAN 334) @81(turn on carrier output) For power levels 2 through 10, repeat the following setup and adjust the power level to comply with the Calibration Goal Mid-Channel column of the table in test results below: @840x(x is power level to be set, 2 = PL2, 3 = PL3, ... A = PL10) (yy is hex setting corresponding to power level as follows:) Each hex setting is approx. 0.15dB. (store power level value) For Power Levels 2 - 10 with Low and High Channel, verify that output power meets Low and High Channel Power Limits column of the table in test results below. NOTE: Before changing channels the carrier is to be turned off using the @82 command. After tuning to the desired channel using the @3C00xxxx command, turn on the carrier output using @81. TEST RESULTS Verify that the power levels for each of the setup settings is within the tolerance shown below. Use Calibration Goal Mid-Channel for calibration of levels 2 through 10. POWER LEVEL POWER OUTPUT Calibration Goal Mid-Channel Low and High Channel Power Limits 2+25.5 dBm ±0.25dB +1.0dB/-1.5dB 3+22.5 dBm ±0.5dB +2.0dB/-2.0dB 4+19.0dBm ±0.5dB±2.5dB 5+15.0dBm ±0.5dB±2.5dB 6+11.0dBm ±0.5dB±2.5dB 7+ 7.0dBm ±0.5dB±2.5dB 8+ 3.0dBm ±0.5dB±3.0dB 9-1.0dBm ±0.5dB±5.5dB 10-5.0dBm ±2.0dB±8.5dB END OF TEST @82(turn carrier off) SET BURST MODE TRANSMIT RF POWER TEST SETUP Before testing, provide the antenna (X301) with a 50Ω load capable of dissipating 5W (average power). Use 6.0 V at VCC_6V and 12.0 V at VCC_12V input on system connector. **NOTE: This test must be completed within 10 seconds or transmitter will be automatically shut off to prevent component overheating. Enter the following test commands: @6502(set VCTCXO control voltage) @3C000384(tune to MID-CHANNEL CELLULAR BAND, CHAN 384) @81(turn on carrier output) (switch transmitter path and enable burst mode transistor) For each power level, 0 through 1, repeat the following setup and adjust the power level to comply with the Calibration Goal Mid-Channel column of the table in test results below: @840x(x is power level to be set, 0=pl 0, 1=pl 1) (yy is hex setting corresponding to power level as follows:) Each hex setting is approx. 0.15dB. APPLICANT: ERICSSON INC.FCC ID NO: AXATR-409-A2 Exhibit 10BALIGNMENT PROCEDUREPage 3 of 6 ©1999 Ericsson Inc. Record the VGA hex setting for power levels 0 - 1. (store power level value) NOTE: you MUS…
