AYCKSD9100BTCar Radio

KSD9100(B)(T) Car Radio Detachable 9” Monitor Touch Screen DVD/CD/MP3/MP4 AM/FM Radio Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver. 2 WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage. To avoid the risk of damage and injury and the potential violation of applicable laws, this unit is not for use with a video screen that is visible to the driver. „ To avoid the risk of accident and the potential violation of applicable laws, the front Video image feature should never be used while the vehicle is being driven. Also, other video displays should not be in a location where it is a visible distraction to the driver. In some countries or states the viewing of images on a display inside a vehicle even by persons other than the driver may be illegal. Where such regulations apply, they must be obeyed and this unit’s DVD features should not be used. „ Please remember to wear your seat belt at all times while operating your vehicle. If you are ever in an accident, your injuries can be considerably more severe if your seat belt is not properly buckled. „ The supplier waves any and all liability when these warnings are not followed. OPERATION PRECAUTIONS „ Only connect to a 12Vdc battery and negative grounding. „ Avoid placing the product in direct sunlight, in areas with high levels of dust, high temperatures (over 40°C) or high humidity (over 90%). In case of high temperatures, cool down the car interior by means of ventilation or air-conditioning. „ Operate in well ventilated areas. „ Do not turn on or off the product in short intervals. When turning the unit off, wait for at least 10 seconds prior to turning the unit on again. Do not operate the player with scratched, bended or broken discs and when a disc is not loaded properly, do not force it into the player. „ Do not watch video playback while driving which will cause serious danger and risks of traffic accident. It may violate the laws and regulations. (There may be exceptional case, i.e., using rear view camera and navigation system) „ Do not install the unit where the operation for safety driving is restrained. „ Do not disassembly the unit by yourself, if need repairing, please take the unit to the after service center. „ Do not open and close the monitor manually, it may damage the monitor tilt system. „ Do not touch the LCD screen by hard objects, it may damage or give scratch to the LCD screen. „ If the back of monitor touches dashboard or air-conditioner inlet etc after open the monitor , then setup TILT level in monitor TILT menu to prevent damage from repeat touching. „ Car parking under direct sunlight may increase the temperature inside the car and the unit may not be in proper operation, please try it again after the temperature returns to normal. „ Do not replace the fuse on the power cable without professional guidance, using improper fuse may cause damage to the unit or even cause burn the unit. „ Do not use irregular shaped Disk. „ IR remote control operation may be hindered by monitor when the monitor is opened, thus please use the remote control at the similar level of remote control receiver. „ Do not install the unit where the cooling fan is blocked. 3 CONTENTS WARNING! ................................................................................................................. 2 OPERATION PRECAUTIONS .................................................................................... 2 ACCESSORIES .......................................................................................................... 4 UNIT INSTALLATION AND REMOVAL ...................................................................... 4 WIRING CONNECTIONS ........................................................................................... 7 PANEL ........................................................................................................................ 9 REMOTE CONTROL ................................................................................................ 10 REMOVE BATTERY ................................................................................................. 13 MAIN MENU ............................................................................................................. 13 ◆ RADIO PLAYER ................................................................................................... 14 ◆ DVD PLAYER ...................................................................................................... 15 ◆DISC/USB/SD/MMC INTERFACE OPERATION .................................................. 16 ◆AV-IN MODE ......................................................................................................... 16 ◆SETTING CONTROL ............................................................................................ 17 SOUND CONTROL .................................................................................................. 17 DISPLAY CONTROL ................................................................................................ 18 GENERAL CONTROL .............................................................................................. 18 RADIO CONTROL .................................................................................................... 18 DVD SET UP MENU ................................................................................................. 19 SYSTEM INFORMATION ......................................................................................... 20 CALIBRATION .........................................................................…

Text truncated - open the document above for the full version.

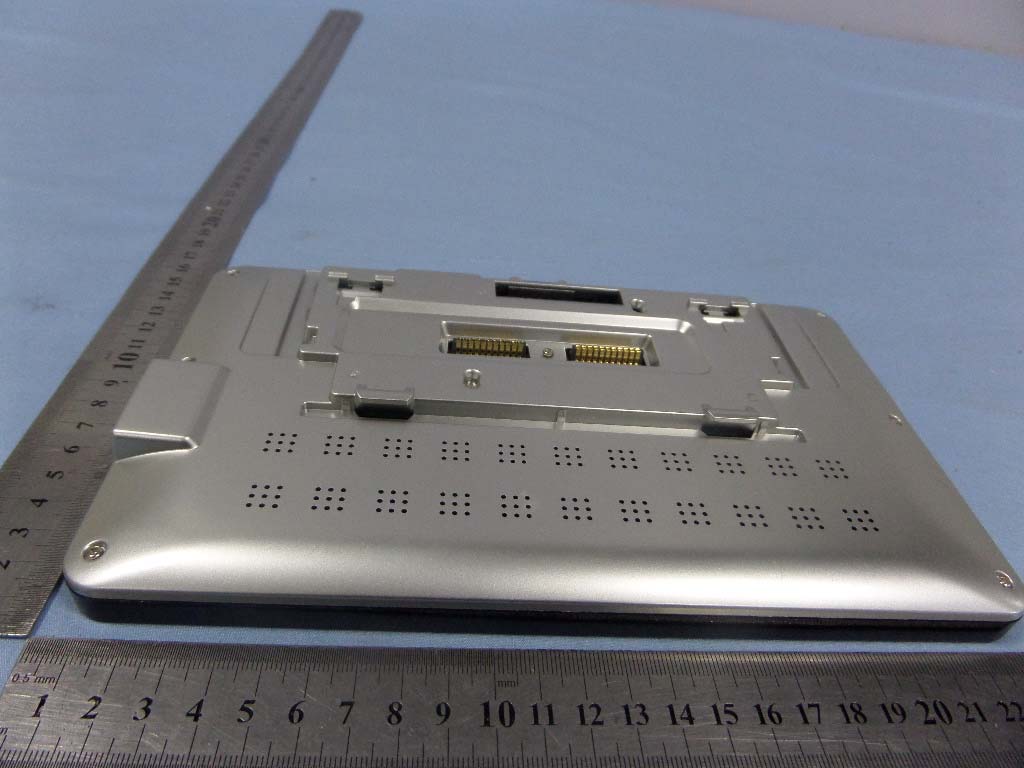

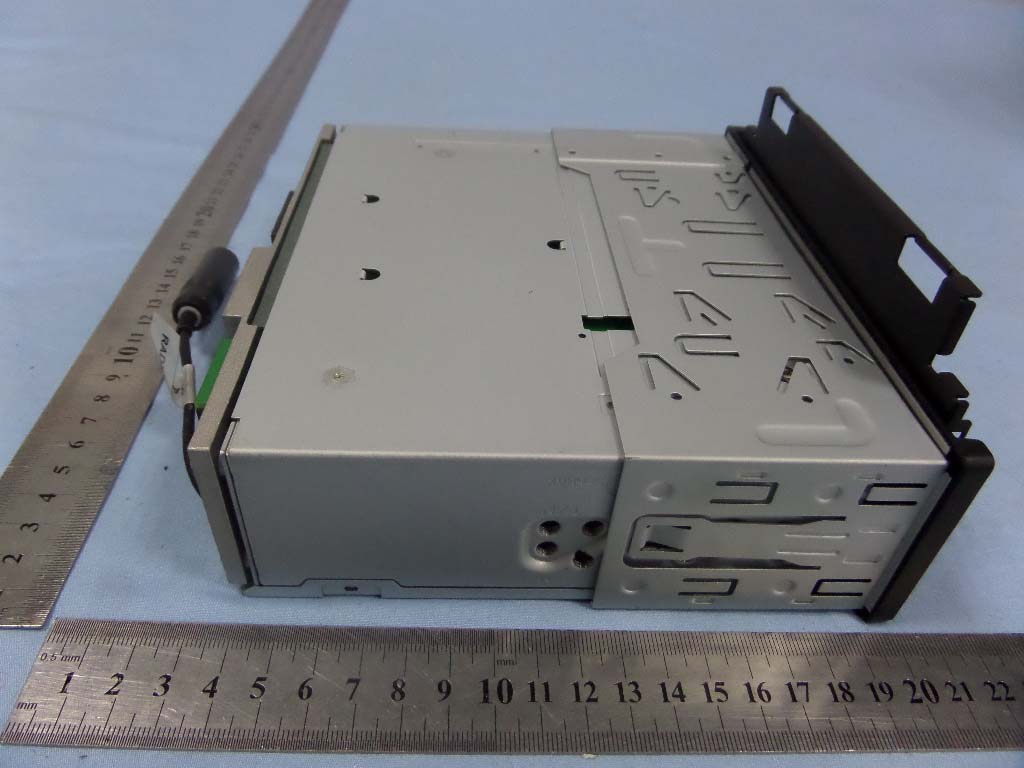

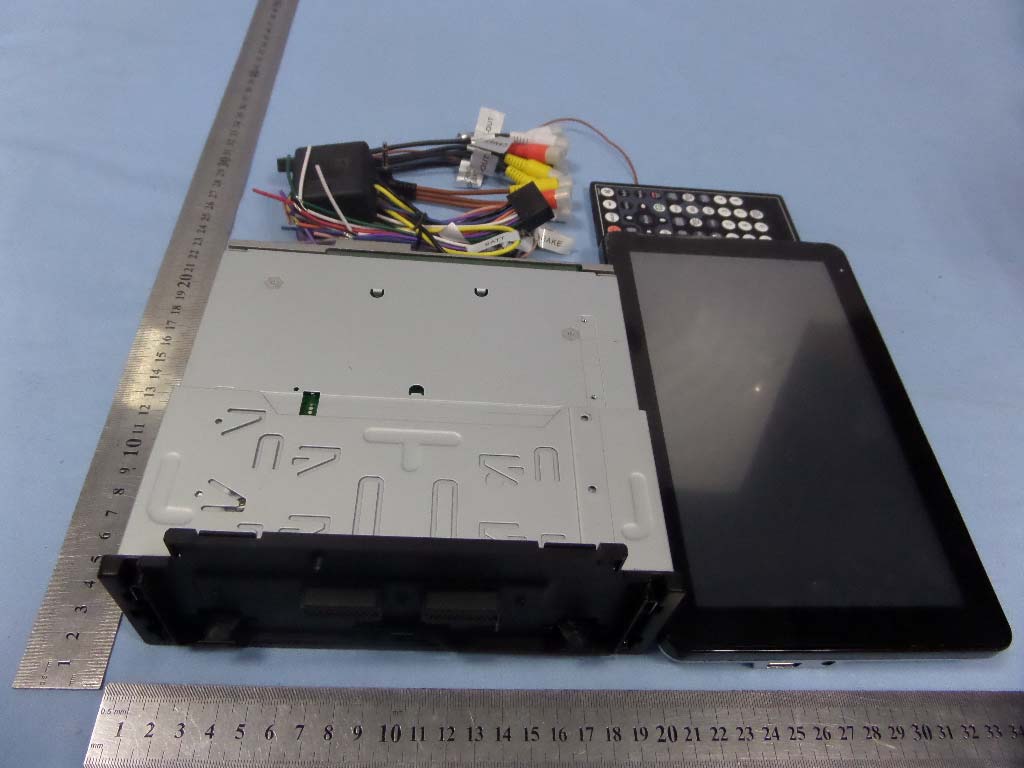

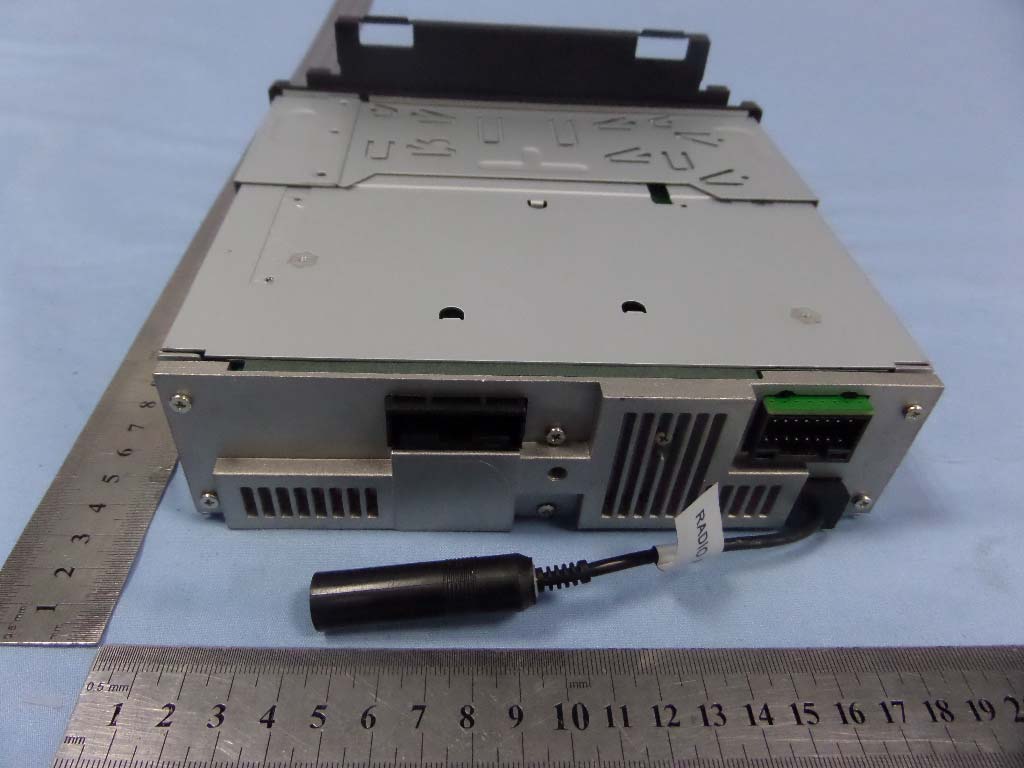

SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 EUT View 3 EUT View 4 SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 EUT View 5 EUT View 6 SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 EUT View 1 EUT View 2 SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 EUT View 3 EUT View 4 SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 EUT View 5 EUT View 6

SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: AYCKSD9100BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: AYCKSD9100BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 BT Antenna SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 Solder Board-Component View 4 Solder Board-Component View 5 SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 Solder Board-Component View 6 Solder Board-Component View 7 SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 Solder Board-Component View 8 Solder Board-Component View 9 SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 Solder Board-Component View 10 Solder Board-Component View 11 SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 Solder Board-Component View 12

RF Exposure Requirements Product Description: Car Radio Model No.: KSD9100(B)(T) FCC ID: AYCKSD9100BT According to the KDB-447498 D01 V05r02, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth Tx frequency range: 2402~2480MHz Device category: Removable device Maximum Conducted Output Power: -1.031 dBm (0.7887 mW) Maximum Antenna Gain: 0 dBi Maximum EIRP Output Power: -1.031 dBm (0.7887 mW) Minimum Distance: 5mm Limit: 10mW Source-based time-averaged EIRP output power is 0.7887 mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100(B)(T) REPORT NO.: STR13128442I PAGE 1 OF 58 FCC PART 15.247 FCC Part 15C Measurement and Test Report For SCE MULTIMEDIA COMPANY LIMITED Unit E&F, 20/F, CDW Building, 388 Castle Peak Road, Tsuen Wan, N.T.Hong Kong. FCC ID: AYCKSD9100BT FCC Rule(s): FCC Part 15.247 Product Description: Car Radio Tested Model: KSD9100(B)(T) Report No.: STR13128442I Tested Date: 2013-12-28 to 2014-03-12 Issued Date: 2014-03-12 Tested By: Lebron Wang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100(B)(T) REPORT NO.: STR13128442I PAGE 2 OF 58 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 6 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 8 3. RF EXPOSURE ......................................................................................................................................................... 9 3.1 STANDARD APPLICABLE ......................................................................................................................................... 9 3.2 TEST RESULT.......................................................................................................................................................... 9 4. ANTENNA REQUIREMENT ................................................................................................................................ 10 4.1 STANDARD APPLICABLE ....................................................................................................................................... 10 4.2 EVALUATION INFORMATION ................................................................................................................................ 10 5. FREQUENCY HOPPING SYSTEM REQUIREMENTS ................................................................................... 11 5.1 STANDARD APPLICABLE ....................................................................................................................................... 11 5.2 FREQUENCY HOPPING SYSTEM............................................................................................................................. 11 5.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .................................................................................... 12 6. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION ................................................... 13 6.1 STANDARD APPLICABLE ....................................................................................................................................... 13 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 13 6.3 TEST PROCEDURE ................................................................................................................................................. 13 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 13 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 14 7. DWELL TIME OF HOPPING CHANNEL .......................................................................................................... 18 7.1 STANDARD APPLICABLE ....................................................................................................................................... 18 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 18 7.3 TEST PROCEDURE ................................................................................................................................................. 18 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 18 7.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 19 8. 20DB BANDWIDTH ............................................................................................................................................... 29 8.1 STANDARD APPLICABLE ....................................................................................................................................... 29 8.2 TEST EQUIPMENT LIST AND DETAILS…

Text truncated - open the document above for the full version.

SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup Radiation Emission Test Setup (Below 30MHz) SCE MULTIMEDIA COMPANY LIMITED Model: KSD9100 (B)(T) REPORT NO.: STR13128442I FCC PART 15.247 Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
