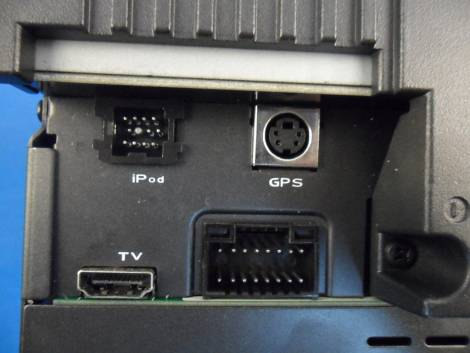

1 Photographs - EUT Constructional Details Test Model No.: MIPS6950

FCC COMPLIANCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, ifnot installed and used in accord ance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/herown expense. Press and hold the Reset button for 3 seconds to reset.
