AZ489FT7016WDE1000-Wireless Device Enabler-CardBus Adapter

6802978C75-A @6802978C75@ March 2006 DRAFT User’s Guide WDE1000 CardBus Adaptor WDE1100 Mini PCI Card 6802978C75-A ii Disclaimer Statements included in this manual indicating support pro- vided by Motorola are subject to changes at any time. Motorola reserves the right to make changes to this manual. Declaration of Conformity Per FCC CFR 47 Part 2 Section 2.1077(a) Responsible Party Name: Motorola, Inc. Address: 1301 East Algonquin Road Schaumburg, IL 60196 USA Phone Number: 1-800-221-7144 Hereby declares that the product: Product Name:WDE1000/WDE1100 Model Number: F2889A/F2892A Conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a) Class B Digital Device As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour- aged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit dif- ferent from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV techni- cian for help. Regulatory Requirements The Federal Communications Commission (FCC) requires application for certification of digital devices in accordance with CFR Title 47, Part 15 and Part 90. This includes Elec- tromagnetic Energy Exposure (EME) testing. As the WDE1000 is not a stand-alone modem but is a PC card, the WDE1000 cannot be tested by itself for EME certification and was tested while inserted in a laptop computer. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The WLAN transmitters, [email protected] and 802.11b/[email protected] will not work simultaneously when used in the present configuration. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. NOTE WDE1000 only. The WDE1000 was approved by the United States Federal Commu- nications Commission (FCC) for use with internal on board antennas. For external antenna use in the United States, the Federal Communications Commission (FCC) requires that an approval will be obtained. NOTE iii Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFI- CIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR MOTOROLA WDE1000. RF Operational Characteristics Your Motorola product contains a radio frequency transmit- ter to convey the information you wish to send as well as occasional automatic signals used to sustain connection to the wireless network, and a receiver which enables you to receive communication and connection information from the network. Antenna Care Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio product and may violate FCC regu- lations. When using any approved accessory antenna, posi- tion it at least eight inches (20 cm) from any part of any person. DO NOT hold the antenna when the radio product is "IN USE". Holding the antenna affects communication quality and may cause the product to operate at a higher power level than needed. Product Operation and EME Exposure Your Motorola product is designed to comply with the fol- lowing national and international standards and guidelines regarding exposure of human beings to radio frequency electromagnetic energy (EME): •United States Federal Communications Commission, Code of Federal Regulations; 47 CFR part 2 sub-part J. •American National Standards Institute (ANSI) / Insti- tute of Electrical and Electronics Engineers (IEEE). C95. 1-1992. •Institute of Electrical and Electronics Engineers (IEEE). C95. 1-1999 Edition. •International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998. •Ministry of Health (Canada). Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999. •Australian Communications Authority Radiocommu- nications (Electromagnetic Radiation - Human Expo- sure) Standard 2003. •ANATEL, Brasil Regulatory Authority, Resolution 303 (July 2, 2002) "Regulation of the limitation of exposure to electrical, magnetic, and electromagnetic fields in the radio frequency range between 9 kHz and 300 GHz." "Attachment to Resolution 303 from July 2, 2002." The WDE1000 has been tested for compliance with FCC RF exposure limits in laptop computer configurations with side PCMCIA slots, and can be used in laptop computers with substantially similar physical dimensions, construc- tion, and electrical and RF characteristics. FCC ID : AZ489FT7016 MEET THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your WDE1000 is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission lim- its for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Govern- ment. These limits are part of comprehensive guidelines and …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7016 Exhibit 2 Exhibit 2: Statement of Certification — Pursuant to 47 CFR 2.907 The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: B.Sc in Electrical Engineering, TECHNION, INSTITUTE OF TECHNOLOGY, ISRAEL 10 years experience in RF design and measurement techniques NAME: Tal Bareket SIGNATURE: /s/ Tal Bareket (signed) DATE: Feb. 9, 2006 POSITION: Senior RF Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. NAME: Gadi Shirazi SIGNATURE: /s/ Gadi Shirazi (signed) DATE: Feb. 13, 2006 POSITION: Senior HW Development Manager

FCC ID: AZ489FT7016 Date: 16th March 2006 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT7016, WDE1000 Model: F2889A Dear Sir or Madam: Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits it’s application for Certification of the subject transmitter. Please find the attached application for Certification of the WDE1000, which contains WLAN transmitters, operating with a maximum transmit power of 50.1-126mW for 802.11a @ 4.9GHz and 25.1-79mW for 802.11b/g @ 2.4GHz. The product testing was performed by Hermon Laboratories, which is listed by the FCC under Registration Numbers 90623 and 90624. A complete Certification application is enclosed, contact Mike Ramnath at (954) 723-5793 or Fax (954) 723-4794 if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected] EXHIBIT 13a 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. USA

8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. USA FCC ID: AZ489FT7016 CONFIDENTIALITY REQUESTED Date: 16 th March 2006 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ489FT7016, WDE1000 Model Number F2889A Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Block Diagram), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune-Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. We are also requesting that the FCC mark Exhibit 3 (External Photos), and Exhibit 9 (Internal Photos) as Temporary Confidentiality as outlined in Public Notice DA 04-1705, dated June 15, 2004. This provision will give Motorola temporary confidentiality prior to product launch. Please mark Exhibits 4, 5, 10, and 12 as “Confidential” And Exhibit 3, 6 and 9 as “Temporary Confidential”. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected] EXHIBIT 13b

FCC ID: AZ489FT7016 24 th April 2006 Mr. Stanley Lyles Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Re: Form 731 Confirmation Number: EA651431 with FCC ID: AZ489FT7016. Dear Mr. Lyles; Motorola Inc., 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322, herein submits its response to the 24 th April 2006 request for information in Correspondence Number 30743. Q1) We assume SAR report revision "A" submitted 3/17/06 supersedes revision "O" submitted 3/21/06 - if not please explain differences and how both apply for this filing. R1) Please use Revision A as the latest RF Exposure report. We fixed a typo error in Revision A. Q2) If not in filing already, please list spacings between bottom of card and phantom for each host product used in SAR tests. R2) The spacings are as follows: 1. IBM = 9 mm 2. Dell = 18 mm 3. ML900 = 37 mm Q3) If not in filing already, please describe any operations in which 2.4GHz and 4.9GHz transmit simultaneously, and/or revise to include evaluation if needed. R3) The hardware architecture for the WDE1000 does not support simultaneous transmission in the 2.4GHz and 4.9GHz bands. For reference, see the Regulatory Requirements section of Page ii of the Users Manual which states “The WLAN transmitters, [email protected] and 802.11b/[email protected] will not work simultaneously when used in the present configuration." Q4) Form 731 has 0.126 watts, EMC test report has 20.98 dBm or 0.125 watts, users manual has 20.0 dBm or 0.1 watts and operational description has 126 mW. Please make sure the power is consistent across the filing. Please explain this discrepancy. R4) Exhibit 6, page 5 of 117 was amended to reflect the power of 126 mW which occurred due to rounding up the numbers. A revised Exhibit 6 is re-submitted with this response. The user manual specifies nominal/typical values. FCC ID: AZ489FT7016 Please contact me at (954) 723-5793 if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Email: [email protected]

FCC ID: AZ489FT7016 CONFIDENTIALITY REQUESTED Date: 25 th April 2006 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: AZ489FT7016, WDE1000 Model Number F2889A Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Block Diagram), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune-Up Procedures), and Exhibit 12 (Operational Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. We are also requesting that the FCC mark Exhibit 3 (External Photos), and Exhibit 9 (Internal Photos) as Temporary Confidentiality as outlined in Public Notice DA 04-1705, dated June 15, 2004. This provision will give Motorola temporary confidentiality prior to product launch. Please mark Exhibits 4, 5, 10, and 12 as “Confidential” And Exhibit 3, and 9 as “Temporary Confidential”. Please contact me if you require any additional information. Sincerely, /s/ Mike Ramnath (signed) Manager, Regulatory Compliance Tel: (954) 723-5793 E-mail: [email protected] EXHIBIT 13b 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. USA

APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7016 Exhibit 3 Exhibit 3: External Photographs -- Pursuant to 47 CFR 2.1033(b) (7) and (c)(12) This document contains 4 photographs: Photograph 3.1: Top view of WDE1000. Photograph 3.2: Bottom view of WDE1000. APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7016 Exhibit 3 Photograph 3.3: Front view of WDE1000. Photograph 3.4: Front view of WDE1000 – External RF connectors. Photograph 3.5: Back view of WDE1000 – 68 Pin PCMCIA CONNECTOR.

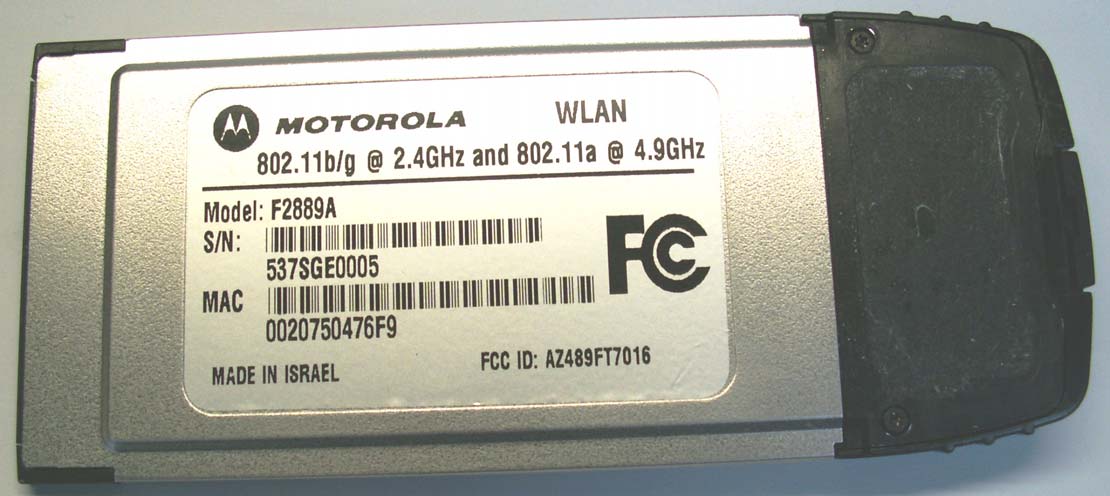

APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7016 Exhibit 1 Exhibit 1: FCC Identification Label - Pursuant to 47 CFR 2.925, 2.1033(b) 7 and 2.1033(c) 11 1.1 FCC ID: AZ489FT7016 Identifier label for model: F2889A Photograph 1.1: Identifier Label photo. 1.2 Label Location: Bottom side of the CardBus Card chassis: (See the attached photograph 1.2 in exhibit 1) Photograph 1.2: Label Location photo. APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7016 Exhibit 1 1.3 Type: Top Label: The label is a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 2 lbs/in. Total thickness polyester and adhesive is 0.06mm. Bottom Label The label is a silver polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 2 lbs/in. Total thickness polyester and adhesive is 0.06mm. Exhibit 1A: General Information 1A.1. Production Plans Quantity production is planned. 1A.2. Application References -- Pursuant to 47 CFR 2.948 Reference is made to the following Motorola "Application References" HERMON LABORATORIES, located in Binyamina Israel is listed with FCC as follows: 1. FCC OATS – registered name "HERMON LABORATORIES" .Our registration number is: 90624. 2. FCC Anechoic chamber registration number is: 90623 3. Accredited by A2LA. 1A.3. Data Submittal Procedure Data located in Exhibit 6 is supplied in accordance with the following: For license section: Part 90, Subparts I and Y, Part 2, Subpart J, Part 15, Subpart B, Section 15.109 For un- license section: Part 15, Subparts B and C. All Subparts are of the Commission’s rules in CFR 47. 1A.4. Similar, currently Type Accepted Transmitter N/A.

APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7016 Exhibit 9 Exhibit 9: Internal Photographs Photograph 9.1: Top view of WDE1000. Photograph 9.2: Top view with cans ‘removed’ of WDE1000. APPLICANT: MOTOROLA, INC. FCC ID: AZ489FT7016 Exhibit 9 Photograph 9.3: Bottom view of WDE1000.

FCC ID: AZ489FT7016 SR3388 GEMS EME Form-SAR-Rpt-Rev. 4.01 Page 1 of 17 Certificate Number: 1449-01 FCC ID: AZ489FT7016 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 4 Government & Enterprise Mobility Solutions EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: 3/20/06 Report Revision: A Report ID: WDE1000_Rev A_060320_SR3388 Responsible Engineer: Kim Uong (EME lead Eng.) Date/s Tested: 2/13/06 – 3/10/06 Manufacturer/Location: Motorola South Israel Sector/Group/Div.: MCIL Israel Date submitted for test: 1/26/06 DUT Description: WDE1000 (Wireless Device Enabler) with 2 transmitters: [email protected] and 802.11b/g @ 2.4GHz Test TX mode(s): CW Max. Power output: 0.126W for 4.94-4.99GHz; 0.079W for 2400-2483.5MHz Nominal Power: 0.1Watt for 4.94-4.99GHz; 0.063W for 2400-2483.5MHz Tx Frequency Bands: 4942.5-4987.5MHz (5MHz step size) ; 2412-2462MHz (5MHz step size) Signaling type: OFDM @4.9GHz; DSSS and OFDM @ 2.4GHz Model(s) Tested: F2889A Model(s) Certified: F2889A Serial Number(s): 537SGA0057, 537SGA0060 Classification: General Population/Uncontrolled Rule Part(s): 15 & 90 Approved Accessories: Antenna(s): 6487848V60 PIFA (on board ant) 2400-2483.5MHz 1/4Wave ; 2.5dBi gain 6487848V61 PIFA (on board ant) 4.94-4.99GHz 1/4Wave; 3.3dBi gain Max. Calc. 1-g/10-g Avg. SAR: 0.43/0.24 W/kg (Body) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. This reporting format is consistent with the test report guidelines of the TIA TSB-150 December 2004 The results and statements contained in this report pertain only to the device(s) evaluated. Signature on file –Ken Enger Ken Enger GEMS EME Lab Senior Resource Manager, Laboratory Director, Approval Date: 3/20/06 Certification Date: 03/17/06 Certification No.: L1060363P FCC ID: AZ489FT7016 SR3388 GEMS EME Form-SAR-Rpt-Rev. 4.01 Page 2 of 17 Part 1 of 3 1.0 Introduction and Overview...................................................................................... 3 2.0 References, Standards, and Guidelines ................................................................... 3 2.1 SAR Limits ................................................................................................... 4 3.0 Description of Device Under Test (DUT) ............................................................... 4 4.0 Description of Test System ..................................................................................... 5 4.1 Description of Robotics/Probes/Readout Electronics ................................... 5 4.2 Description of Phantom(s) ............................................................................ 5 4.2.1 Flat Phantom................................................................................... 5 4.2.2 SAM Phantom ................................................................................ 5 4.3 Description of Equivalent Tissues ................................................................ 6 5.0 Additional Test Equipment...................................................................................... 7 6.0 SAR Measurement System Verification.................................................................. 7 6.1 Equivalent Tissue Test results ...................................................................... 7 6.2 System Check Test results ............................................................................ 8 7.0 DUT Test Strategy and Methodology ..................................................................... 8 7.1 Test Plan ....................................................................................................... 8 7.2 Device Positioning Procedures ..................................................................... 9 7.2.1 Body ............................................................................................... 9 7.2.2 Head ............................................................................................... 9 7.2.3 Face ................................................................................................ 9 8.0 Environmental Test Conditions ............................................................................. 10 9.0 Test Results Summary ........................................................................................... 10 9.1 Highest S.A.R. results calculation methodology ........................................ 12 10.0 Conclusion............................................................................................................. 12 APPENDICES A Measurement Uncertainty Part 2 of 4 B Probe Calibration Certificates Part 3 of 4 C Dipole Calibration Certificates Part 4 of 4 D Test System Verification Scans E DUT Scans (Highest SAR configurations) F DUT Supplementary Data (e.g. Power Slump) G DUT Test Position Photos Report REVISION HISTORY Date Revision Comments 3/17/06 O Initial release 3/20/06 A Modify to correct model # indicated in section 10, and add additional probe calibration information for probe SN3510 in Appendix B. FCC ID: AZ489FT7016 SR3388 GEMS EME Form-SAR-Rpt-Rev. 4.01 Page 3 of 17 1.0 Introduction and Overview This report details the utilization, test setup, test equipment, and test results of the Specific Absorption Rate (S.A.R.) measurements performed at the GEMS EME Test Lab for the model number F2889A of FCC ID: AZ489FT7016. The test results presented herein clearly demonstrate compliance with FCC General Population/Uncontrolled RF Exposure limits of 1.6 W/kg per the requirements of 47 CFR 2.1093(d). 2.0 Reference Standards and Guidelines This product is designed to comply with the following national and internation…

Text truncated - open the document above for the full version.

FCC ID: AZ489FT7016 SR3388 GEMS EME Form-SAR-Rpt-Rev. 4.01 Certificate Number: 1449-01 FCC ID: AZ489FT7016 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 2 of 4 Government & Enterprise Mobility Solutions EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: 3/20/06 Report Revision: A Report ID: WDE1000_Rev A_060320_SR3388 Responsible Engineer: Kim Uong (EME lead Eng.) Date/s Tested: 2/13/06 – 3/10/06 Manufacturer/Location: Motorola South Israel Sector/Group/Div.: MCIL Israel Date submitted for test: 1/26/06 DUT Description: WDE1000 (Wireless Device Enabler) with 2 transmitters: [email protected] and 802.11b/g @ 2.4GHz Test TX mode(s): CW Max. Power output: 0.126W for 4.94-4.99GHz; 0.079W for 2400-2483.5MHz Nominal Power: 0.1Watt for 4.94-4.99GHz; 0.063W for 2400-2483.5MHz Tx Frequency Bands: 4942.5-4987.5MHz (5MHz step size) ; 2412-2462MHz (5MHz step size) Signaling type: OFDM @4.9GHz; DSSS and OFDM @ 2.4GHz Model(s) Tested: F2889A Model(s) Certified: F2889A Serial Number(s): 537SGA0057, 537SGA0060 Classification: General Population/Uncontrolled Rule Part(s): 15 & 90 Approved Accessories: Antenna(s): 6487848V60 PIFA (on board ant) 2400-2483.5MHz 1/4Wave ; 2.5dBi gain 6487848V61 PIFA (on board ant) 4.94-4.99GHz 1/4Wave; 3.3dBi gain Max. Calc. 1-g/10-g Avg. SAR: 0.43/0.24 W/kg (Body) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. This reporting format is consistent with the test report guidelines of the TIA TSB-150 December 2004 The results and statements contained in this report pertain only to the device(s) evaluated. Signature on file – Ken Enger Ken Enger GEMS EME Lab Senior Resource Manager, Laboratory Director, Approval Date: 3/20/06 Certification Date: 03/17/06 Certification No.: L1060363P FCC ID: AZ489FT7016 SR3388 GEMS EME Form-SAR-Rpt-Rev. 4.01 Appendix B Probe Calibration Certification

FCC ID: AZ489FT7016 SR3388 GEMS EME Form-SAR-Rpt-Rev. 4.01 Certificate Number: 1449-01 FCC ID: AZ489FT7016 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 3 of 4 Government & Enterprise Mobility Solutions EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: 3/20/06 Report Revision: A Report ID: WDE1000_Rev A_060320_SR3388 Responsible Engineer: Kim Uong (EME lead Eng.) Date/s Tested: 2/13/06 – 3/10/06 Manufacturer/Location: Motorola South Israel Sector/Group/Div.: MCIL Israel Date submitted for test: 1/26/06 DUT Description: WDE1000 (Wireless Device Enabler) with 2 transmitters: [email protected] and 802.11b/g @ 2.4GHz Test TX mode(s): CW Max. Power output: 0.126W for 4.94-4.99GHz; 0.079W for 2400-2483.5MHz Nominal Power: 0.1Watt for 4.94-4.99GHz; 0.063W for 2400-2483.5MHz Tx Frequency Bands: 4942.5-4987.5MHz (5MHz step size) ; 2412-2462MHz (5MHz step size) Signaling type: OFDM @4.9GHz; DSSS and OFDM @ 2.4GHz Model(s) Tested: F2889A Model(s) Certified: F2889A Serial Number(s): 537SGA0057, 537SGA0060 Classification: General Population/Uncontrolled Rule Part(s): 15 & 90 Approved Accessories: Antenna(s): 6487848V60 PIFA (on board ant) 2400-2483.5MHz 1/4Wave ; 2.5dBi gain 6487848V61 PIFA (on board ant) 4.94-4.99GHz 1/4Wave; 3.3dBi gain Max. Calc. 1-g/10-g Avg. SAR: 0.43/0.24 W/kg (Body) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. This reporting format is consistent with the test report guidelines of the TIA TSB-150 December 2004 The results and statements contained in this report pertain only to the device(s) evaluated. Signature on file- Ken Enger Ken Enger GEMS EME Lab Senior Resource Manager, Laboratory Director, Approval Date: 3/20/06 Certification Date: 03/17/06 Certification No.: L1060363P FCC ID: AZ489FT7016 SR3388 GEMS EME Form-SAR-Rpt-Rev. 4.01 Appendix C Dipole Calibration Certificates

FCC ID: AZ489FT7016 SR3388 GEMS EME Form-SAR-Rpt-Rev. 4.01 Page 1 of 28 Certificate Number: 1449-01 FCC ID: AZ489FT7016 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 4 of 4 Government & Enterprise Mobility Solutions EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: 3/20/06 Report Revision: A Report ID: WDE1000_Rev A_060320_SR3388 Responsible Engineer: Kim Uong (EME lead Eng.) Date/s Tested: 2/13/06 – 3/10/06 Manufacturer/Location: Motorola South Israel Sector/Group/Div.: MCIL Israel Date submitted for test: 1/26/06 DUT Description: WDE1000 (Wireless Device Enabler) with 2 transmitters: [email protected] and 802.11b/g @ 2.4GHz Test TX mode(s): CW Max. Power output: 0.126W for 4.94-4.99GHz; 0.079W for 2400-2483.5MHz Nominal Power: 0.1Watt for 4.94-4.99GHz; 0.063W for 2400-2483.5MHz Tx Frequency Bands: 4942.5-4987.5MHz (5MHz step size) ; 2412-2462MHz (5MHz step size) Signaling type: OFDM @4.9GHz; DSSS and OFDM @ 2.4GHz Model(s) Tested: F2889A Model(s) Certified: F2889A Serial Number(s): 537SGA0057, 537SGA0060 Classification: General Population/Uncontrolled Rule Part(s): 15 & 90 Approved Accessories: Antenna(s): 6487848V60 PIFA (on board ant) 2400-2483.5MHz 1/4Wave ; 2.5dBi gain 6487848V61 PIFA (on board ant) 4.94-4.99GHz 1/4Wave; 3.3dBi gain Max. Calc. 1-g/10-g Avg. SAR: 0.43/0.24 W/kg (Body) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. This reporting format is consistent with the test report guidelines of the TIA TSB-150 December 2004 The results and statements contained in this report pertain only to the device(s) evaluated. Signature on file- Ken Enger Ken Enger GEMS EME Lab Senior Resource Manager, Laboratory Director, Approval Date: 3/20/06 Certification Date: 03/17/06 Certification No.: L1060363P FCC ID: AZ489FT7016 SR3388 GEMS EME Form-SAR-Rpt-Rev. 4.01 Page 2 of 28 Appendix D Test System Verification Scans Note: Dipole validation scans at the head from SPEAG are provided in APPENDIX D. The GEMS EME lab validated the dipole to the applicable IEEE system performance targets. Within 24 hours system validation was performed using FCC body tissue parameters to generate the system performance target values for body at the applicable frequency. The results of the GEMS EME system performance validation are provided herein. To assess the isotropic characteristics of the measurement probe, two system performance zoom scans (0 and 90 degrees) were measured. The results were averaged together and adjusted to account for the power drift in order to obtain the final calculated 1 and 10 gram results. FCC ID: AZ489FT7016 SR3388 GEMS EME Form-SAR-Rpt-Rev. 4.01 Page 3 of 28 Motorola GEMS EME Lab SPEAG Dipole 2450 MHz; Model #: D2450V2 S/N: 703; Test Date: 2/13/06 Run #: CM-SYSP-2450B-060213-02 Sim.Tissue Temp: 20.1 (C) TX Freq: 2450 (MHz) Start power: 70 (mW) Target: 51.98 mW/g for 1g SAR 24.13 mW/g for 10g SAR 56.50 mW/g calculated 1g-SAR; 8.70 % from target (including drift) 25.90 mW/g calculated 10g-SAR; 7.35 % from target (including drift) Probe: ET3DV6 - SN1547, Calibrated: 10/25/2005, ConvF(4.15, 4.15, 4.15), Duty Cycle: 1:1, Medium: 2450 FCC Body, Medium parameters used: f = 2450 MHz; ó = 2.03 mho/m; år = 52.2; ñ = 1000 kg/m3 ; Electronics: DAE3 Sn401, Calibrated: 8/18/2005 System Performance Check/0-Degree 5x5x7 Cube (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm,dz=5mm Reference Value = 47.5 V/m; Power Drift = 0.0163 dB Peak SAR (extrapolated) = 9.23 W/kg SAR(1 g) = 3.98 mW/g; SAR(10 g) = 1.82 mW/g System Performance Check/90-Degree 5x5x7 Cube (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm,dz=5mm Reference Value = 47.5 V/m; Power Drift = 0.0163 dB Peak SAR (extrapolated) = 9.18 W/kg SAR(1 g) = 3.96 mW/g; SAR(10 g) = 1.82 mW/g FCC ID: AZ489FT7016 SR3388 GEMS EME Form-SAR-Rpt-Rev. 4.01 Page 4 of 28 Motorola GEMS EME L…
