B2K-RX4004ARFID Reader Module

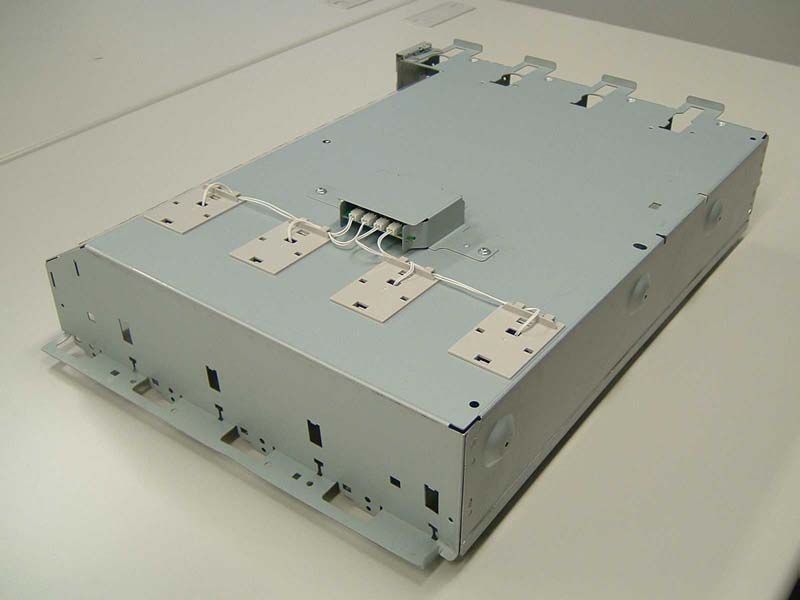

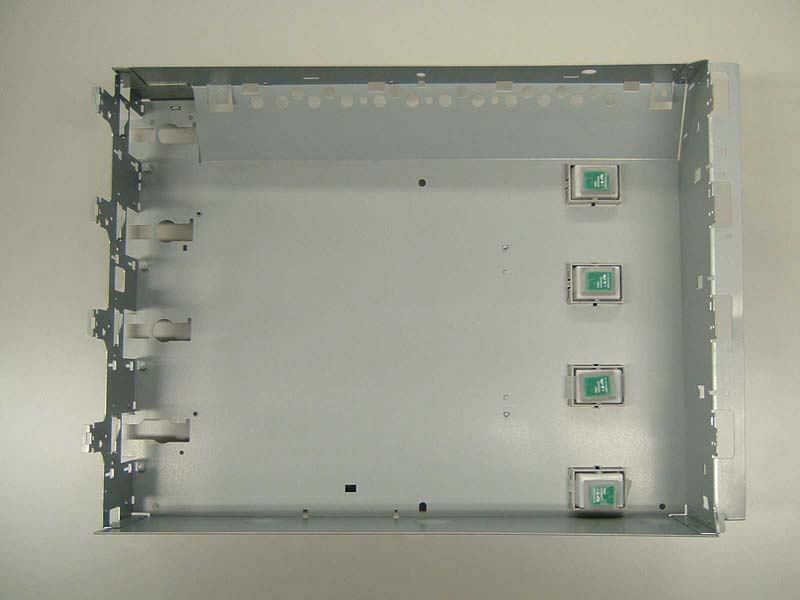

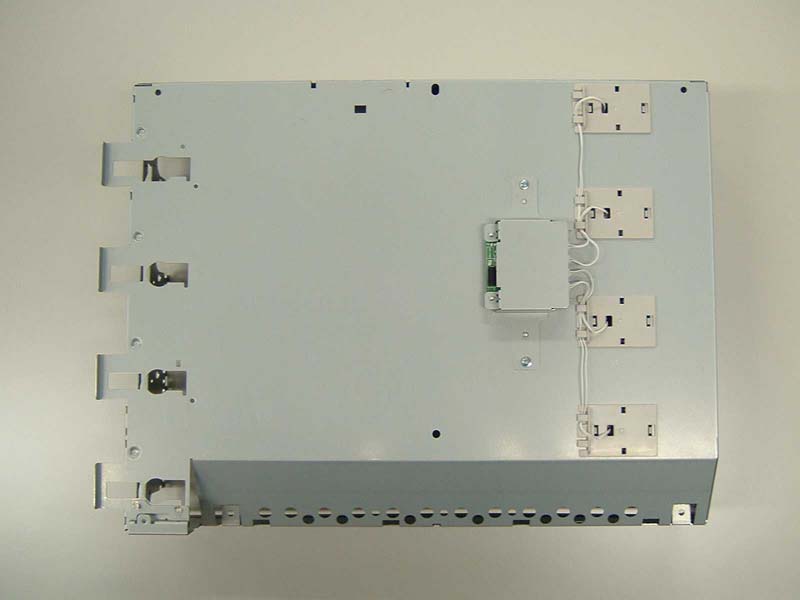

Oki Data Corporation. RFID Read/Write System FCC ID: B2K-RX4004A External photos Front view Rear view Oki Data Corporation. RFID Read/Write System FCC ID: B2K-RX4004A Rear Side view Front Side view

Oki Data Corporation. RFID Read/Write System FCC ID: B2K-RX4004A Internal photos Inside view of Internal Circuit with antennas <Front> Inside view of Internal Circuit with antennas <Rear> Oki Data Corporation. RFID Read/Write System FCC ID: B2K-RX4004A Inside view of internal circuit <Front> Inside view of internal circuit <Rear> Oki Data Corporation. RFID Read/Write System FCC ID: B2K-RX4004A Front view of antenna Rear view of antenna Oki Data Corporation. RFID Read/Write System FCC ID: B2K-RX4004A Front view of core Rear view of core

Test report No. : 24LE0170-HO-1 Page : 1 of 20 Issued date : November 12, 2004 Revised date : December 10, 2004 FCC ID : B2K-RX4004A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) EMI TEST REPORT Test Report No. : 24LE0170-HO-1 Applicant : Oki Data Corporation Type of Equipment : Embedded RFID Read/Write System Model No. : RX4004A Test standard : FCC Part 15 Subpart C : 2004 Section 15.207 and 15.225 FCC ID : B2K-RX4004A Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. Date of test: ___ August 30 to October 5, 2004 ____ Tested by: ___________________________________ Kenichi Adachi EMC Service Tested by : ___________________________________ Hiroka Umeyama EMC Service Approved by : ___________________________________ Naoki Sakamoto Group Leader of EMC Service Test report No. : 24LE0170-HO-1 Page : 2 of 20 Issued date : November 12, 2004 Revised date : December 10, 2004 FCC ID : B2K-RX4004A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.) .......................................................................................3 SECTION 3: Test specification, procedures & results ........................................................................ 4 SECTION 4: Operation of E.U.T. during testing.................................................................................6 SECTION 5: Conducted emission ......................................................................................................... 7 SECTION 6: Radiated emission (Fundamental , Spurious Emission and Spectrum Mask ) .......... 8 SECTION 7: -20dB Bandwidth ............................................................................................................. 9 SECTION 8: 99% Occupied Bandwidth ..............................................................................................9 SECTION 9: Frequency Tolerance ....................................................................................................... 9 APPENDIX 1: Photographs of test setup............................................................................................ 10 Conducted emission .............................................................................................................10 Radiated emission ................................................................................................................ 11 Worst Case Position (Normal) ............................................................................................ 12 APPENDIX 2: Test instruments .......................................................................................................... 13 EMI test equipment................................................................................................................................ 13 APPENDIX 3: Data of EMI test .......................................................................................................... 14 Conducted Emission ............................................................................................................ 14 Radiated emission(Fundamental emission and Spectrum Mask) ................................... 15 Radiated emission (Spurious emission : below 30MHz)................................................... 16 Radiated emission (Spurious emission : above 30MHz)................................................... 17 –20dB Bandwidth.................................................................................................................18 99% Occpied Bandwidth..................................................................................................... 19 Frequency Stability................................................................................................................. 20 Test report No. : 24LE0170-HO-1 Page : 3 of 20 Issued date : November 12, 2004 Revised date : December 10, 2004 FCC ID : B2K-RX4004A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : Oki Data Corporation Brand or Trade name : Oki Data Corporation Address : 3-1, Futaba-cho, Takasaki-shi, Gunma, 370-8585 Japan Telephone Number : +81-27-328-6183 Facsimile Number : +81-27-328-6396 Contact Person : Toshikazu Ito SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Embedded RFID Read/Write System Model No. : RX4004A Serial No. : 1) 1 for Radiated Emission Test 2) 8 for other tests Rating : DC 5.0V (Printer : AC 120V / 60Hz) Country of Manufacture : Japan / China Receipt Date of Sample : August 18, 2004 Condition of EUT : Production model (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Model No: RX4004A is the Embedded RFID Read/Write System for Printer. Equipment Type : Transceiver Frequency of Operation : 13.56 MHz Type of modulation : ASK Power control : No Mode of operation : Simplex Antenna Type : Loop coil antenna (area < 0.05m 2 ) Method of Frequency Generation : Crystal Operating voltage (inner) : DC 3.3V Operating Temperature : 0 deg. C. to +50 deg. C. FCC 15.31 (e) This EUT provides stable voltage(DC3.3V) consta…

Text truncated - open the document above for the full version.

Test report No. : 24LE0170-HO-1 Page : 10 of 20 Issued date : November 12, 2004 FCC ID : B2K-RX4004A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Conducted emission Front Rear Test report No. : 24LE0170-HO-1 Page : 11 of 20 Issued date : November 12, 2004 FCC ID : B2K-RX4004A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Radiated emission Front Rear Test report No. : 24LE0170-HO-1 Page : 12 of 20 Issued date : November 12, 2004 FCC ID : B2K-RX4004A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Normal) *EUT is installed inside of the printer. The printer is used with the installation position of this above photograph.
