B32OMNI3750CCDMA

VeriFone Part Number 22399, Revision B VERIX OPERATING ENVIRONMENT SOFTPAY E-PAYMENT APPLICATION VERIX DEVELOPMENT TOOLS DEVELOPER TOOLKIT VERISHIELD SECURITY ARCHITECTURE OMNI 33XX MULTI-APPLICATION APPLIANCES VERICENTRE APPLIANCE MANAGEMENT SUITE VERIX MANAGEMENT MULTI-APP CONDUCTOR SYSTEM MULITPLE APPLICATION OMNI 37XX HAND-OVER-COUNTER MULTI-APPLICATION APPLIANCES Omni 37xx Installation Guide All rights reserved. No part of the contents of this document may be reproduced or transmitted in any form without the written permission of VeriFone, Inc. The information contained in this document is subject to change without notice. Although VeriFone has attempted to ensure the accuracy of the contents of this document, this document may include errors or omissions. The examples and sample programs are for illustration only and may not be suited for your purpose. You should verify the applicability of any example or sample program before placing the software into productive use. This document, including without limitation the examples and software programs, is supplied “As-Is.” VeriFone, Inc. 2455 Augustine Drive Santa Clara CA 95054-3002 www.verifone.com VeriFone Part Number 22399, Revision B Omni 37xx Installation Guide © 2002 VeriFone, Inc. VeriFone, the VeriFone logo, and Omni are registered trademarks of VeriFone. Other brand names or trademarks associated with VeriFone’s products and services are trademarks of VeriFone, Inc. All other brand names and trademarks appearing in this manual are the property of their respective holders. Comments? Please e-mail all comments in this document to [email protected] OMNI 37XX INSTALLATION GUIDE3 CONTENTS PREFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Conventions Used in This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 CHAPTER1 Terminal Overview Omni 37xx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Features and Benefits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Exceptional Ease Of Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Countertop Performance in a “Hand-Over” Design . . . . . . . . . . . . . . . . . . 8 True Multi-Application Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 CHAPTER2 Terminal SetupSelect Terminal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Ease of Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Environmental Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Electrical Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Unpack the Shipping Carton. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Examine Terminal Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Establish Telephone Line Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Install Paper Roll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Install/Replace MSAM Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Connect Optional Device(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Connect PIN Pad, Smart Card Reader, or Bar Code Wand . . . . . . . . . . . . . 18 Connect Check Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 External Printers Supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Connect Terminal Power Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Routing The Cables Using Wire Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Smart Card Transaction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Magnetic Card Reader Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 CHAPTER3 SpecificationsPower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 DC Power Pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 External Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 CHAPTER4 MaintenanceCleaning the Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Smart Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 LIST OF FIGURES 4OMNI 37XX INSTALLATION GUIDE CHAPTER5 VeriFone Service and Support Returning a Terminal for Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Accessories and Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Download Cables . . . …

Text truncated - open the document above for the full version.

1/1 June 11, 2004 Federal Communications Commission Authorization and Evaluation Division FCC ID：B32OMNI3750C Confidentiality Request Pursuant to Sections 0..457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. BOM/Part list 2. Schematic 3. Operation description 4. Tune-up procedure The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely yours, Chris Yu/ Product Compliance Engineer Applicant: VeriFone Systems Pte., Ltd., Taiwan Branch ADDRESS: 2F, 19-2, Sanchung Road, Nankang Dist., Taipei, Taiwan 115, R.O.C. TEL: 886-2-3789-7316 FAX: 886-2-2655-3168

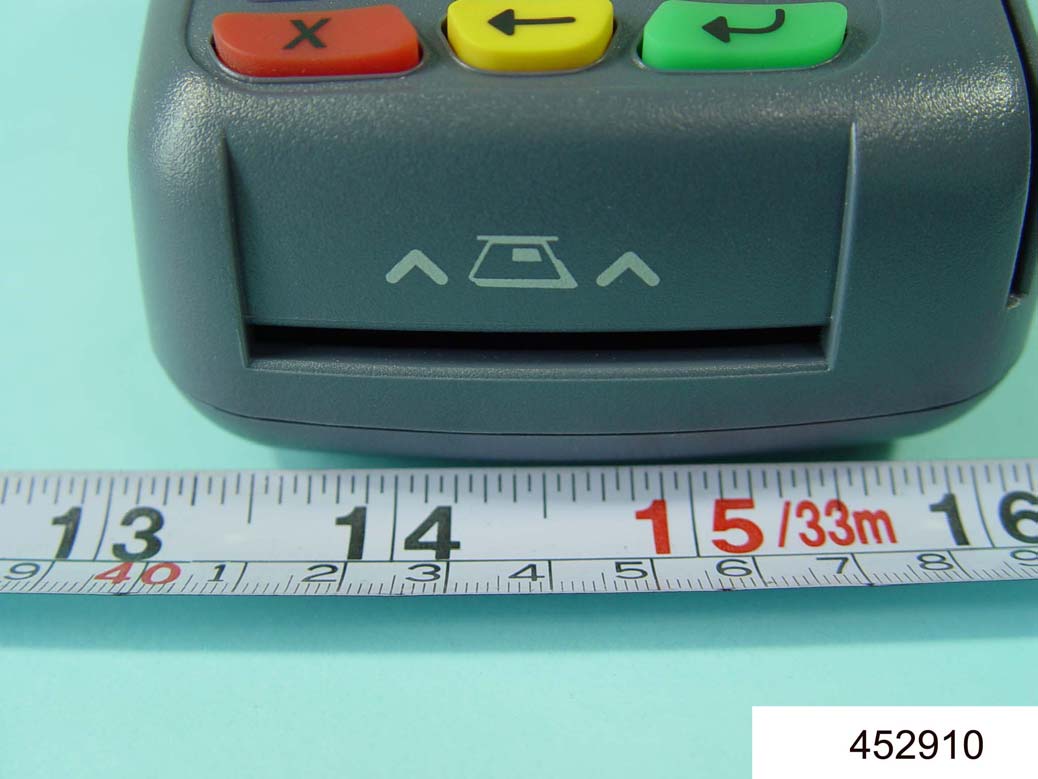

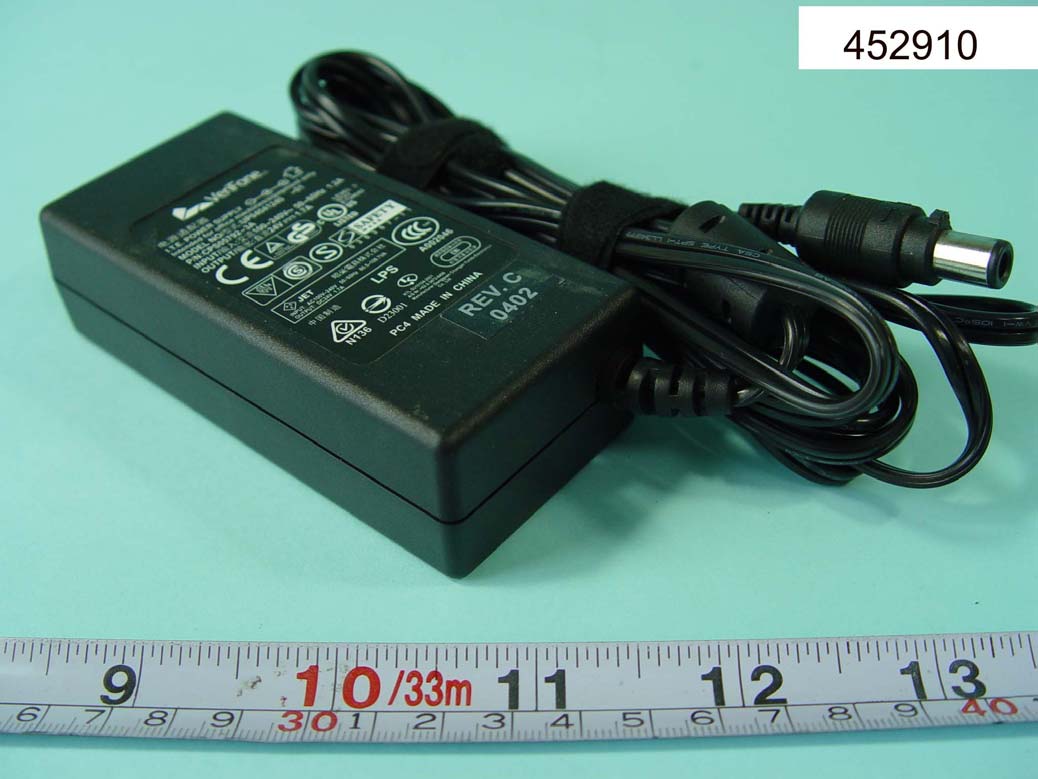

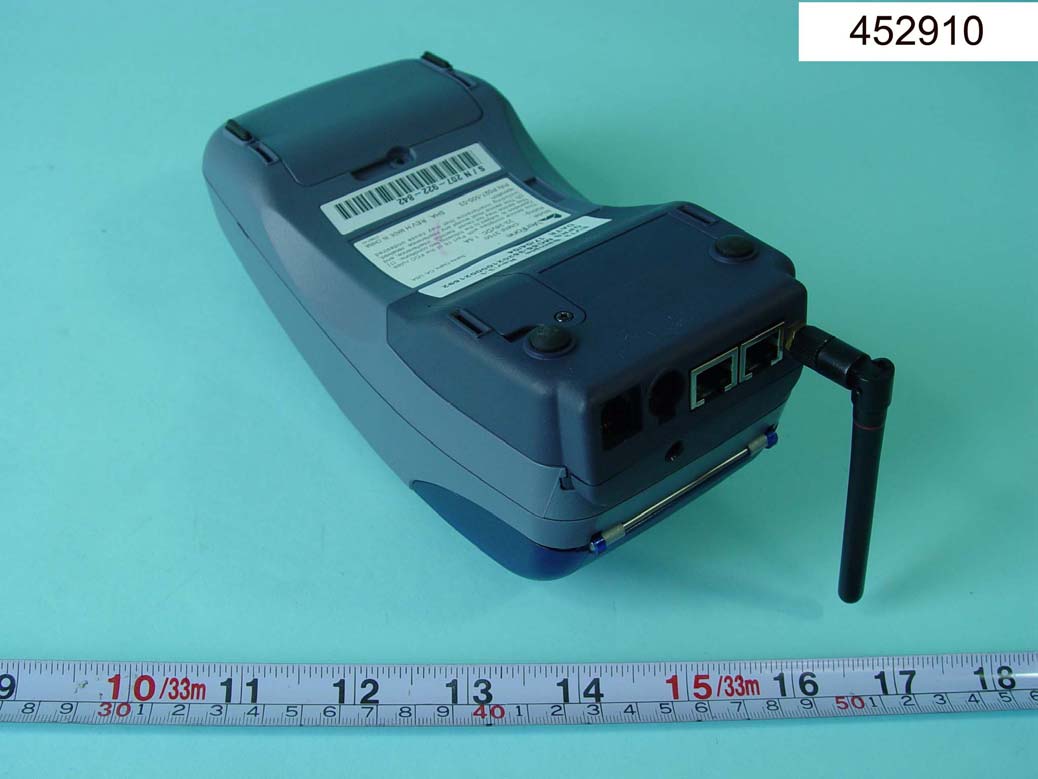

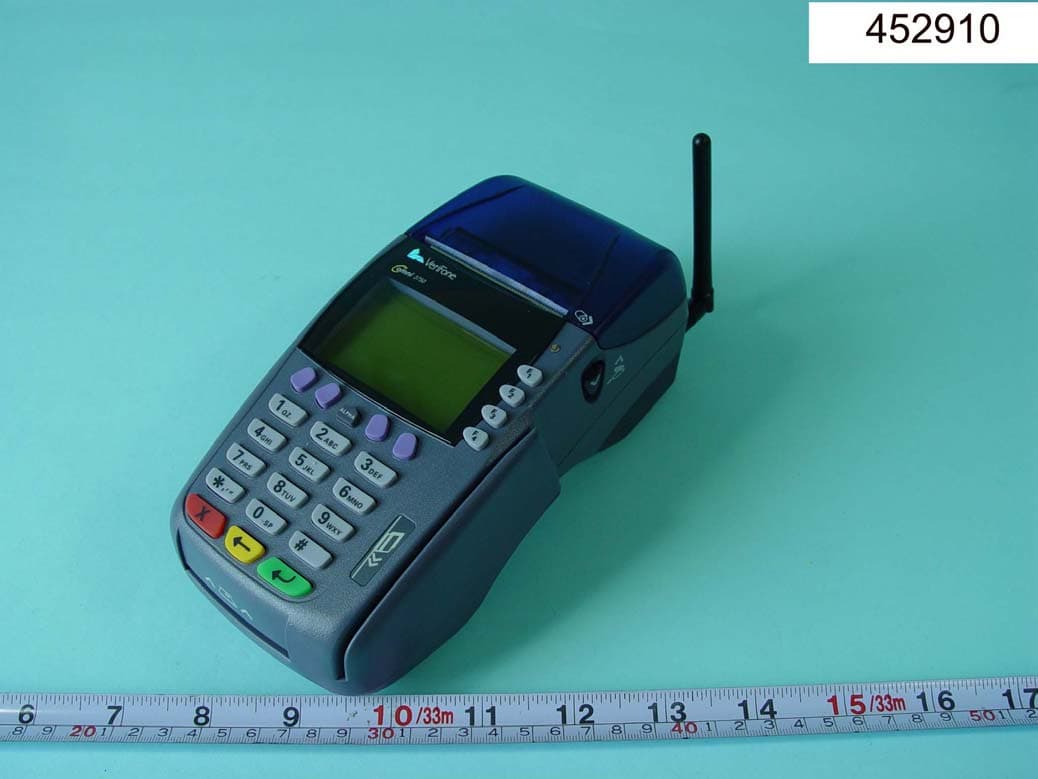

FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 APPENDIX A. Product Photograph FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255

Label Placement: Label

6/9/04 6/9/04 22359-02-F LABEL I/O MODULE O3750 RF Victoria_L1 Bruno_L1 A Bruno_L1 A 11403 THIS DEVICE CONTAINS RADIO MODULE 22359-02 6/9/04 FCC ID:B32OMNI3750C A/W, 232023000023107 US:B32OMNI3750R 232023000023107 THIS DOCUMENT IS THE PROPERTY OF VERIFONE, AND CONTAINS VERIFONE'S CONFIDENTIAL AND PROPRIETARY INFORMATION IN CONSIDERATION OF VERIFONE'S DISCLOSURE OF THIS DOCUMENT TO YOU, YOU AGREE THAT NEITHER IT. NOR THE INFORMATION CONTAINED THEREIN SHALL BE DISCLOSED TO OTHERS OR DUPLICATED. IN WHOLE OR IN PART. OR USED FOR ANY PURPOSES OTHER THAN AGREED TO BY VERIFONE. WITHOUT THE EXPRESS WRITTEN CONSENT OF VERIFONE. THIS ARTWORK IS THE PROPERTY OF VERIFONE. HANDLE WITH CARE AND RETURN TO VERIFONE VERY SOON AFTER USE. REV.DESCRIPTION REVISIONS DATEAPPROVED 11 Honolulu Taipei San Francisco UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS. SIGNATURES REV.DWG. NO.SIZE TITLE DATE SCALE: SHEET OF DWN.DWN. ENG.ENG. CHK.CHK. ECO# 2X A4

FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A1 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 APPENDIX B. Internal Photographs of EUT FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A2 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A3 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A4 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A5 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A6 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A7 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A8 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A9 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A10 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A11 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A12 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A13 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A14 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A15 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A16 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A17 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A18 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A19 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A20 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A21 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A22 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A23 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A24 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A25 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A26 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A27 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A28 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A29 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A30 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255

FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A31 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A32 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A33 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A34 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A35 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F452910 SPORTON International Inc. PAGE NUMBER : A36 OF A36 TEL : 886-2-2696-2468 ISSUED DATE : June 10, 2004 FAX : 886-2-2696-2255

FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 1 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 FCC TEST REPORT for 47 CFR Part 22H and 24E Equipment : Wireless Point-of-Sale Terminal Model No. : OMNI 3750 FCC ID : B32OMNI 3750C Filing Type : Certification Applicant : VeriFone Systems Pte., Ltd. Taiwan Branch 2F, 19-2, Sanchung Road, Nankang Dist., Taipei, Taiwan 115, R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 2 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 The applicant has been cautioned as to the following: 15.21 Information to User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 3 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 Table of Contents Rule Description Page Test Report 4 2.1033(c) General Information Required 5 2.1033(c)(14) Rule Summary 9 General Information 10 Standard Test Conditions and Engineering Practices 11 2.1046(a) EIRP Carrier Power (Radiated) 12 2.1049(c) (1), 22 Emission Mask (Occupied Bandwidth) 21 2.1051, 2.1049(c), 24, 24.238(b). Transmitter Conducted Measurements 27 2.1053(a) Field Strength of Spurious Radiation 33 2.1055(a)(1) Frequency Stability (Temperature Variation) 52 2.1055(b)(1) Frequency Stability (Voltage Variation) 55 2.1091 Radio Frequency Radiation Exposure 56 Antenna Factor & Cable Loss 58 List of Measuring Equipments 59 Uncertainty of Test Site 60 Appendix A External Product Photograph Appendix B Internal Photograph Appendix C Set up Photograph FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 4 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: Sporton International Inc. No.52, Hwa-Ya 1 st RD., Hwa Ya Technology Park, Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. c) Report Number: F452910 d) Client: VeriFone Systems Ptd., Ltd. Taiwan Branch 2F, 19-2, Sanchung Road, Nankang Dist., Taipei, Taiwan 115, R.O.C. e) Identification: Model Name: OMNI 3750 FCC ID : B32OMNI 3750C Description: CDMA 850/1900 f) EUT Condition: Not required unless specified in individual tests. g) Report Date: June 10, 2004 EUT Received: June 03, 2004 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with Sporton internal quality manual. m) Supervised by: Hendry Yang n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. Accessories Used During Testing: Type Model EUT OMNI 3750 RJ-11 N/A RJ-232 N/A Base Station Simulator CMU200 Base Station Simulator E5515C FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 5 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 List of General Information Required for Certification In Accordance with FCC Rules and Regulations, Volume II, Part 2 and 22H, 24E, Confidentiality Sub-Part 2.1033 (c)(1): Name and Address of Applicant: VeriFone Systems Ptd., Ltd. Taiwan Branch 2F, 19-2, Sanchung Road, Nankang Dist., Taipei, Taiwan 115, R.O.C. Manufacturer As above (c)(2): FCC ID: B32OMNI 3750C Model Number: OMNI 3750 (c)(3): Instruction Manual(s): Please See Attached Exhibits (c)(4): Type of Emission: 1M25F9W (c)(5): FREQUENCY RANGE, MHz: CDMA : 824.7~848.31MHz (Tx); 869.70~893.31MHz (Rx) PCS CDMA : 1851.25~1908.75MHz (Tx); 1931.25~1988.75MHz (Rx) (c)(6): Power Rating, Watts: CDMA: 0.1648 PCS CDMA: 0.107 Switchable x Variable N/A FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 36 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 Name of Test: Field Strength of Spurious Radiation CDMA (Channel 383) Freq MHz Pol Substitution Antenna Input Power (dBm) Substitution Antenna Gain (dBd) Et (dBuV/m) Es (dBuV/m) Et - Es (dB) EIRP (dBm) Limit (dBm) Margin (dB) 98.34 H -1.04 0.29 28.51 92.47 -63.96 -64.70 -13.0 -51.70 180.11 H -1.10 -0.44 21.31 90.26 -68.95 -70.49 -13.0 -57.49 196.43 H -1.26 -0.91 27.65 90.51 -62.86 -65.03 -13.0 -52.03 272.80 H -1.39 -0.40 34.21 92.43 -58.22 -60.01 -13.0 -47.01 343.20 H -1.57 -0.63 32.06 93.66 -61.60 -63.80 -13.0 -50.80 524.80 H -1.93 -0.26 32.96 95.09 -62.13 -64.32 -13.0 -51.32 1000.00 H -2.68 -1.74 40.18 93.31 -53.13 -57.55 -13.0 -44.55 1398.00 H -3.28 3.92 36.95 101.41 -64.46 -63.82 -13.0 -50.82 1798.00 H -3.71 4.47 38.30 101.80 -63.50 -62.74 -13.0 -49.74 4028.00 H -5.67 5.30 42.43 98.66 -56.23 -56.59 -13.0 -43.59 6268.00 H -7.15 6.86 44.19 98.82 -54.63 -54.92 -13.0 -41.92 8868.00 H -9.04 6.66 47.28 94.57 -47.29 -49.67 -13.0 -36.67 43.94 V -0.65 -1.88 22.74 72.93 -50.19 -52.72 -13.0 -39.72 98.34 V -1.04 0.29 26.45 92.47 -66.02 -66.76 -13.0 -53.76 196.43 V -1.26 -0.91 25.52 90.51 -64.99 -67.16 -13.0 -54.16 272.80 V -1.39 -0.40 24.82 92.43 -67.61 -69.40 -13.0 -56.40 524.80 V -1.93 -0.26 29.20 95.09 -65.89 -68.08 -13.0 -55.08 556.80 V -1.93 -0.55 29.63 95.13 -65.50 -67.98 -13.0 -54.98 2798.00 V -4.90 5.29 37.11 98.96 -61.85 -61.46 -13.0 -48.46 4572.00 V -6.10 6.16 41.74 99.68 -57.94 -57.88 -13.0 -44.88 6422.00 V -7.26 6.99 43.33 98.55 -55.22 -55.49 -13.0 -42.49 8524.00 V -7.97 6.93 46.87 92.36 -45.49 -46.54 -13.0 -33.54 FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 37 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 PCS CDMA (Channel 600) Freq MHz Pol Substitution Antenna Input Power (dBm) Substitution Antenna Gain (dBi) Et (dBuV/m) Es (dBuV/m) Et - Es (dB) EIRP (dBm) Limit (dBm) Margin (dB) 98.34 H -1.04 2.44 28.21 92.47 -64.26 -62.85 -13.0 -49.85 168.38 H -1.01 1.70 25.06 90.99 -65.93 -65.25 -13.0 -52.25 196.43 H -1.26 1.24 27.92 90.51 -62.59 -62.61 -13.0 -49.61 272.80 H -1.39 1.75 32.82 92.43 -59.61 -59.25 -13.0 -46.25 524.80 H -1.93 1.89 32.58 95.09 -62.51 -62.55 -13.0 -49.55 589.60 H -1.95 1.28 31.61 94.46 -62.85 -63.52 -13.0 -50.52 1000.00 H -2.68 0.41 39.88 93.31 -53.43 -55.70 -13.0 -42.70 1398.00 H -3.28 6.07 35.40 101.41 -66.01 -63.22 -13.0 -50.22 1868.00 H -3.77 6.65 45.24 101.66 -56.42 -53.55 -13.0 -40.55 3758.00 H -5.25 7.45 50.61 99.07 -48.46 -46.26 -13.0 -33.26 5638.00 H -6.67 8.44 43.87 98.79 -54.92 -53.15 -13.0 -40.15 8924.00 H -9.21 8.76 46.86 94.92 -48.06 -48.52 -13.0 -35.52 10590.00 H -10.48 8.85 49.49 96.19 -46.70 -48.32 -13.0 -35.32 72.50 V -0.97 1.23 24.84 87.95 -63.11 -62.85 -13.0 -49.85 100.55 V -1.06 2.37 25.21 92.60 -67.39 -66.09 -13.0 -53.09 196.43 V -1.26 1.24 29.12 90.51 -61.39 -61.41 -13.0 -48.41 294.40 V -1.44 1.68 25.92 93.36 -67.44 -67.19 -13.0 -54.19 556.80 V -1.93 1.60 30.74 95.13 -64.39 -64.72 -13.0 -51.72 589.60 V -1.95 1.28 28.95 94.46 -65.51 -66.18 -13.0 -53.18 1860.00 V -3.76 6.64 38.88 101.68 -62.80 -59.92 -13.0 -46.92 3758.00 V -5.25 7.45 52.48 99.07 -46.59 -44.39 -13.0 -31.39 5638.00 V -6.67 8.44 48.81 98.79 -49.98 -48.21 -13.0 -35.21 8836.00 V -8.94 8.83 46.66 94.36 -47.70 -47.81 -13.0 -34.81 10806.00 V -10.65 8.98 48.63 96.57 -47.94 -49.60 -13.0 -36.60 FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 38 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 Radiated Scanned Data CDMA, Horizontal Polarization FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 39 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 40 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 41 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 CDMA, Vertical Polarization FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 42 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 43 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 44 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 PCS CDMA, Horizontal Polarization FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 45 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 46 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 47 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 48 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 PCS CDMA, Vertical Polarization FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 49 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL : 886-2-2696-2468 Pa ge No. 50 of 60 FAX : 886-2-2696-2255 Issued Date June 10, 2004 FCC TEST REPORT Report No. : F452910 SPORTON International Inc. FCC ID B32OMNI 3750C TEL…

Text truncated - open the document above for the full version.
