68PM302 FLASH SRAM OMNI 37XX BLOCK DIAGRAM ADDR(23:1) DATA(15:0) 24VDC POWER SUPPLY M16C MPU 512K ~ 4MB 3TK CARD READER TELCO CONN PHONE Dial up Modem RS-232 CONN PINPAD/ BARCODE CONN POWER CONN TRANSCEIVER RS-232 TRANSCEIVER RS-232 PRINTER MECHANISM PRINTER CONTROL CIRCUITRY 128KX8 FLASH DATA BUS 8/ Supervisor 2X25 EDGE CONN KEYBOARD SECURITY/ IPP RTC COM1 COM2 12.288MHZ LCD DISPLAY BACKLIGHT 18PINS CONN ASIC 22768-01 UIC 531B CARD READER DECODER :Place on top board of physical security area. PTR/RS232 DMA Bus MAIN BOARD DC-IN 1M~4MB PHA (23:1) Control Bus 32.768KHz BKLT_ON Control Bus SMART Card /SAM card Beeper Li SPS/PWM PP Dect. DC-IN DC-IN Vcc +9V/-9V Vpinpad +3.3V Regulator Level shift MD(15:0) DATA(7:0) TPA V24 Control Bus BEEP_TONE /SCC2_RTS,/SCC2_BOOT SCC1_TXD,SCC1_RXD GEM_TXD GEM_RXD SCC3_RXD,SCC3_TXD /OC_RESET /PFAIL /PFAIL_NMI /INH_NMI 14.7456MHz ANTENNA Radio Module O37XX RADIO/Dial UP I/O board

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 24, 2004 RE: VeriFone Systems Pte. Ltd. Taiwan Branch FCC ID: B32OMNI3750G After a review of the submitted information, I have a few comments on the above referenced Application. Administrative Issues: 1) Please provide a block diagram of the RF board. As an alternative, you may add information to the parts list that lists that shows that this part is provided by another manufacturer other than the applicant. 2) The block diagram appears to show both a CDMA and GPRS boards. Please confirm this application is only for the GPRS US version, and not CDMA version. 3) The operational description mentions an additional 802.11 card that may be added. Note that this approval will only be for the Part 22/24 operation and does not cover the co-location with the 802.11. This will have to be added via a permissive change at a later date if desired. 4) The TX appears to be a plug in module, yet FCC labeling appears to be on the host. Please explain if the host (when labeled with information contained in this exhibit) will always be sold with the TX installed. If the RF board is expected to be able to be removed/replaced with different options by the user, then maybe a modular approval may be better. However this application does not currently support a modular approval. Please explain. 5) The labeling exhibit does contain language regarding a modular approval. However this application does not appear to be for a modular approval. However, this may be desirable given the information above if sold as an upgrade, etc for the host equipment. Otherwise it is expected to only be sold installed with the host unit. Please confirm and provide further information regarding this. Call to discuss if necessary. 6) The sample labeling appears to be missing the required Part 15 2 part statement. Please explain/correct as necessary. 7) The parts list appears to mention 2 models (MC55 & MC56) that may contain GPRS capability. Please explain the difference between these 2 models. How do these differences affect the approval? 8) Is the schematic of the GPRS RF board available? If not, as an alternative, you may add information to the parts list that lists that shows that this part is provided by another manufacturer other than the applicant. 9) The parts list appears to show the modem has bands of operation outside the US. Please confirm which bands it contains, and whether they are intended for U.S. or not for each band. 10) Users manual appears to be missing RF exposure statements and non-colocation warning statements. Please adjust. 11) FYI...Note that this device appears to contain a Telco interface, which is subject to Part 68/ACTA requirements. This application will only cover the Part 15 requirements of this device. --- Continued on next page --- z Page 2 May 24, 2004 Technical Issues: 12) Maximum EIRP data appears to be 1.050 Watts, while in the report, 731, etc. all state 1.104 Watts. It appears the 1.104 may be a typo. Please explain. 13) Transmitter conducted measurements should be provided for up through the 10 th harmonic and comparing to the -13 dBm limit as well. Please provide. 14) Page 10 of 58 mentions 200 kHz bandwidth. This appears incorrect given the measured value, and theoretical value. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Response for B32OMNI3750G 1. has been re-uploaded 2. CDMA is deleted in the updated block diagram 3. 802.11 is deleted 4. Its RF board will be always sold with the end product. 5. will be modified tomorrow 6. the same to item 5 7. one of them has been deleted. 8. has been re-uploaded 9. the module has tri-band, however, it will disable the band outside the USA on the end product. 10. has been updated 11. Will issue part 68 DoC 12. it is typo, has been updated 13. has been uploaded with a separated file 14. changing bandwith to channel spacing in the updated report.

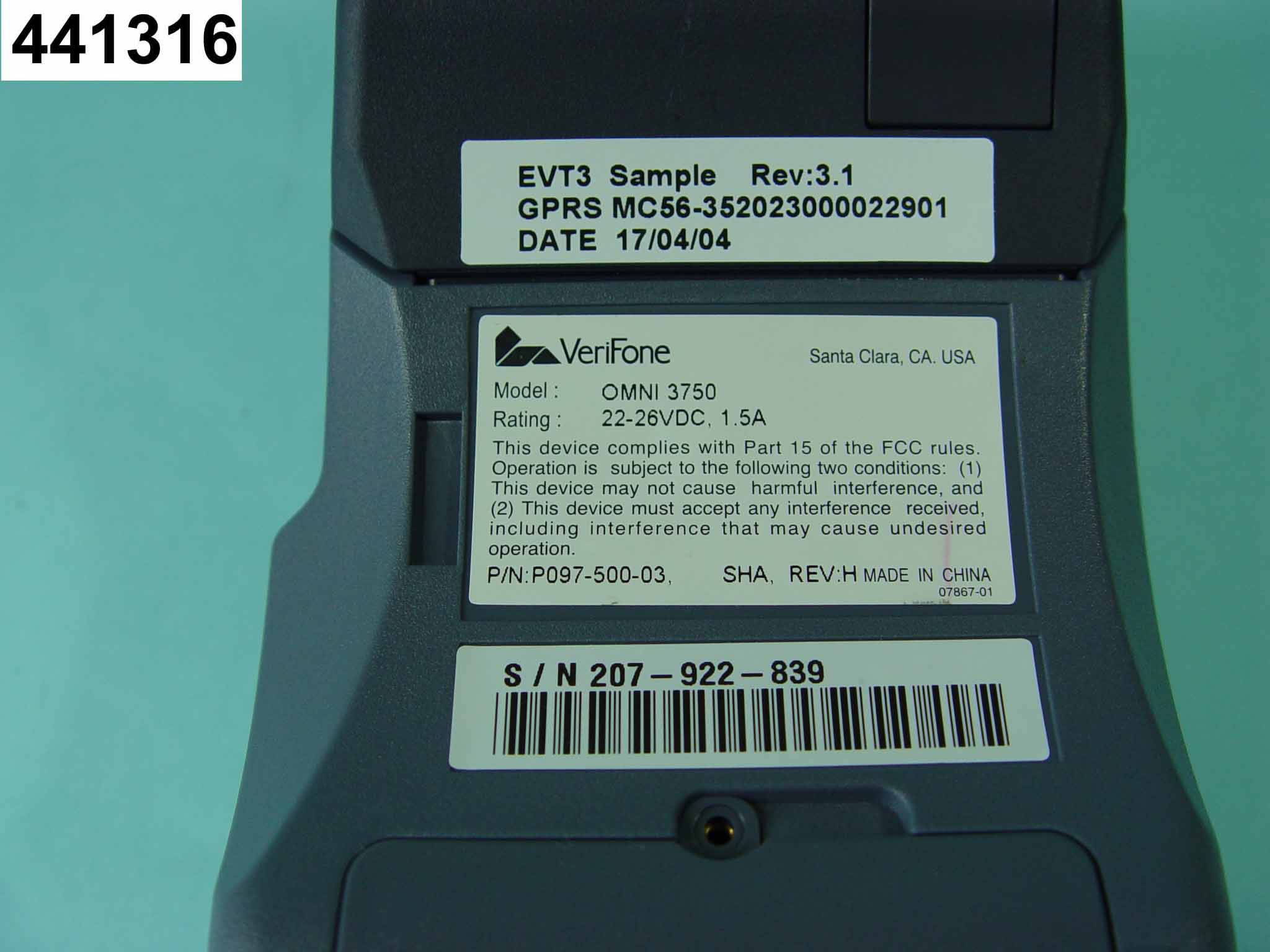

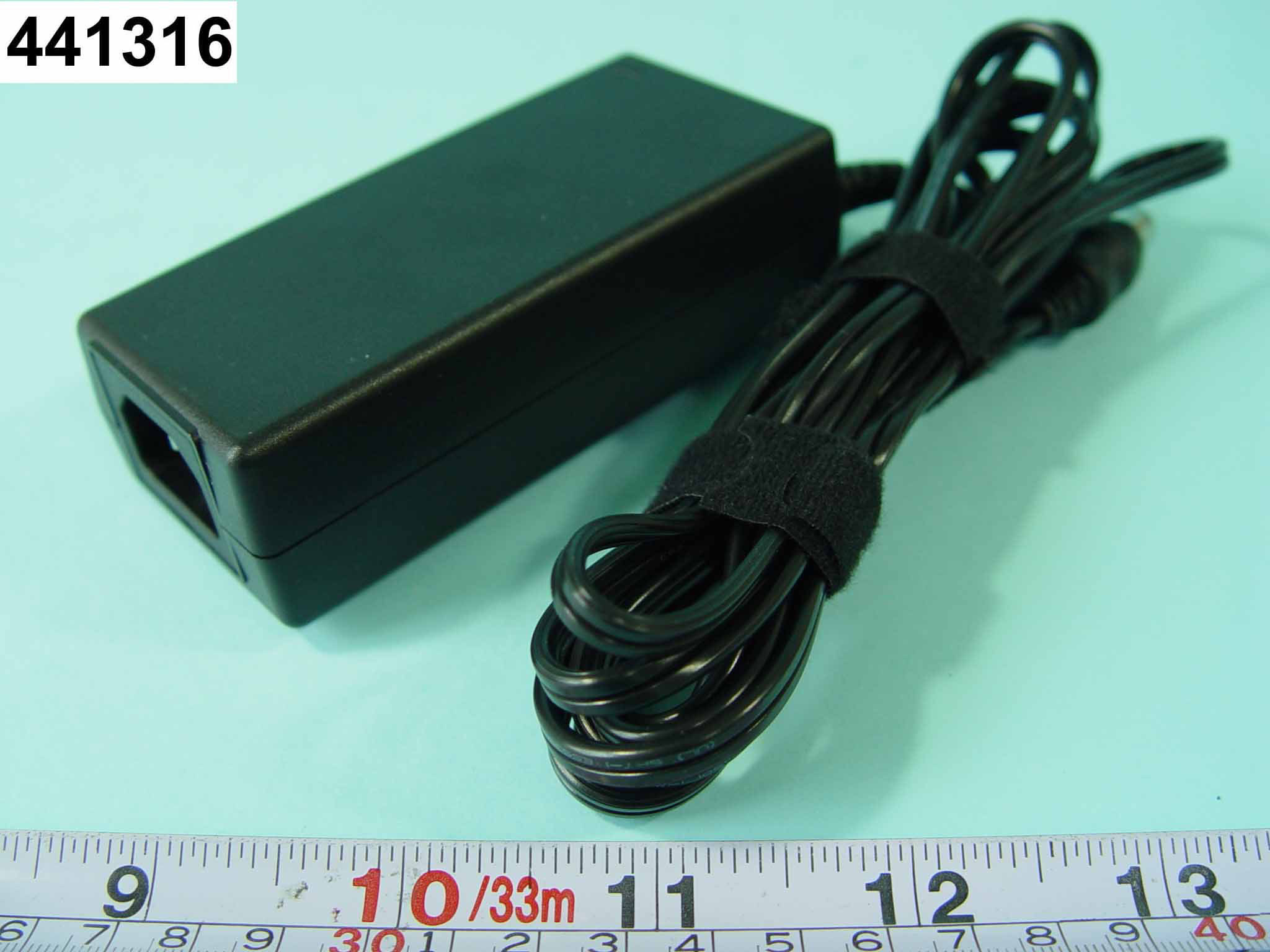

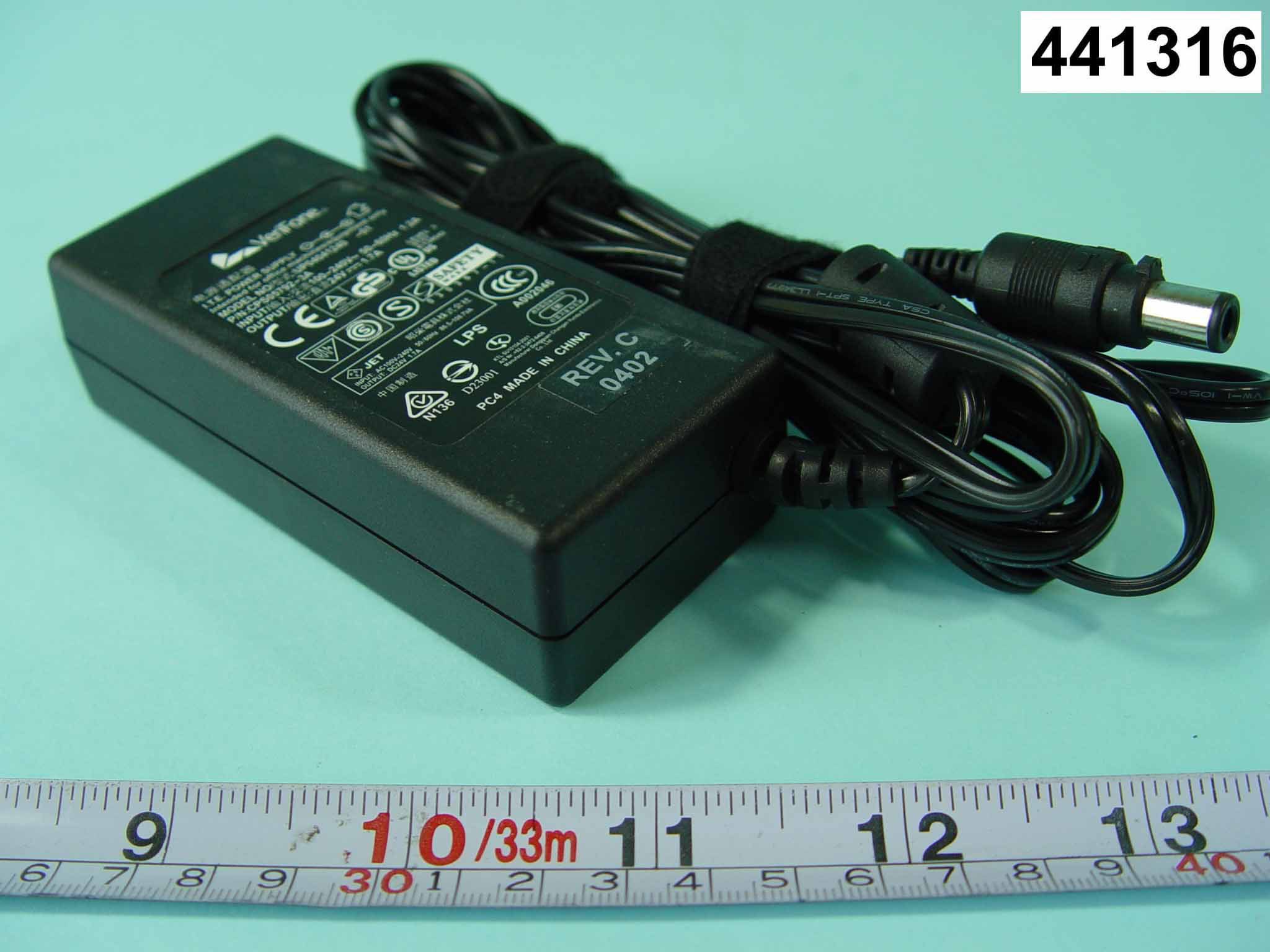

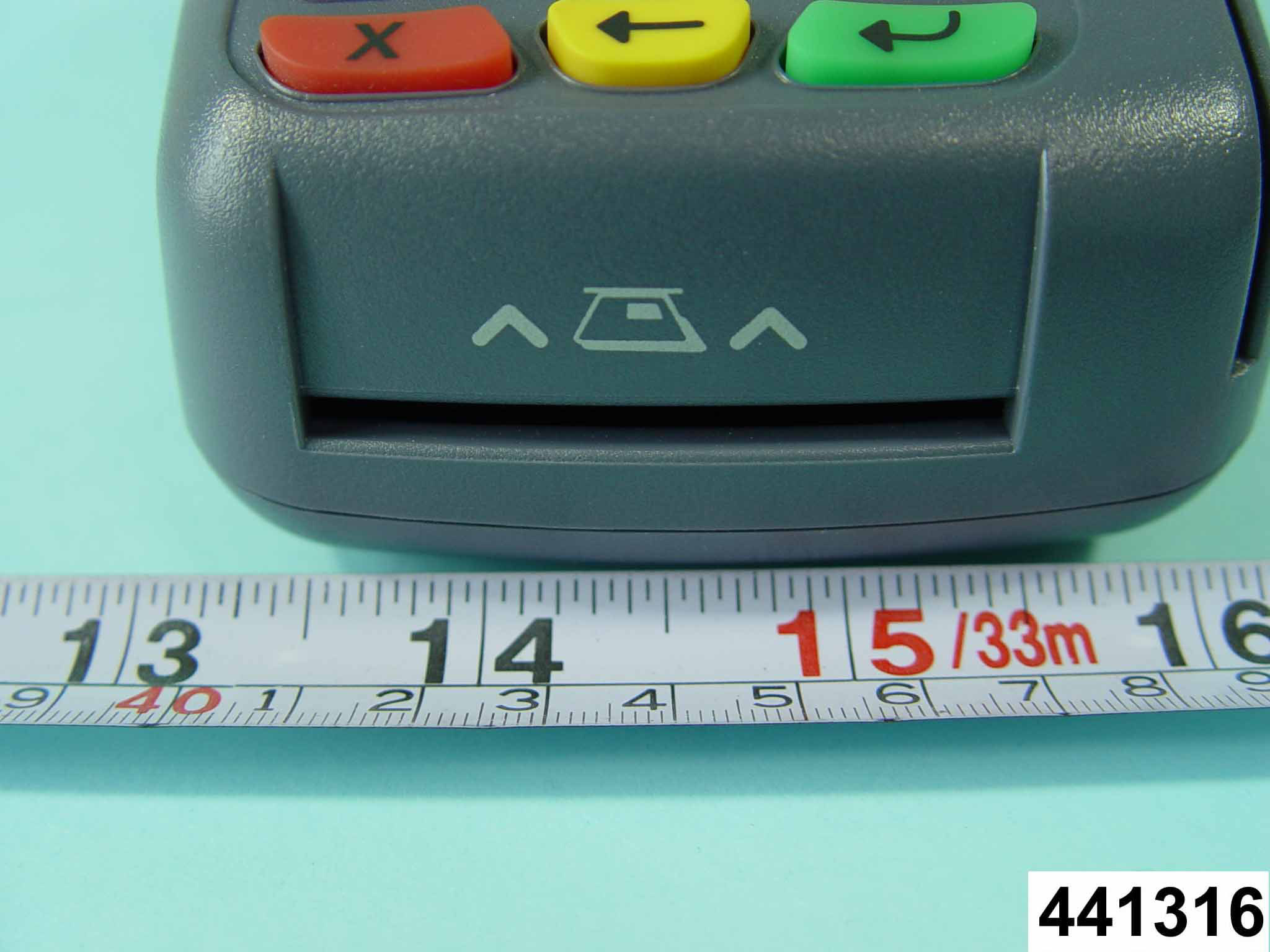

FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A1 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 APPENDIX A. Product Photograph FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A2 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A3 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A4 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A5 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A6 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A7 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A8 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A9 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A10 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255

This device complies with the Part 15of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A1 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 APPENDIX B. Internal Photographs of EUT FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A2 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A3 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A4 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A5 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A6 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A7 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A8 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A9 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A10 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255

FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A11 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A12 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A13 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A14 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A15 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A16 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A17 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A18 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F441316 SPORTON International Inc. PAGE NUMBER : A19 OF A19 TEL : 886-2-2696-2468 ISSUED DATE : May 20, 2004 FAX : 886-2-2696-2255

FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI 3750G TEL : 886-2-2696-2468 Page No. 1 of 2 FAX : 886-2-2696-2255 Issued Date May 20, 2004 ¾ RF Exposure FCC Rules and Regulations Part 1.1307,1.1310,2.1091,2.1093: RF Exposure Compliance z Limit For Maximum Permissible Exposure (MPE) (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm²) Averaging Time |E|²,|H|² or S ( minutes ) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 F=frequency in MHz *Plane-wave equivalent power density FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI 3750G TEL : 886-2-2696-2468 Page No. 2 of 2 FAX : 886-2-2696-2255 Issued Date May 20, 2004 z MPE Calculations Power Density =Pd (mW/cm²) = EIRP/4πd² EIRP = P．G P＝Peak output power (mW) G＝Antenna numeric gain (numeric) d＝Separation distance (cm) Because the EUT belongs to General Population/ Uncontrolled Exposure, the limit of power density is 1.0 mW/cm². GSM 850 Channel NO. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated RF Exposure at d=20cm ( mW/cm²) Limit (mW/cm²) Channel 128 4.00 2.51 31.80 1513.56 0.7567 1.00 Channel 189 4.00 2.51 32.30 1698.24 0.8491 1.00 Channel 1900 4.00 2.51 32.40 1737.80 0.8689 1.00 PCS 1900 Channel NO. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated RF Exposure at d=20cm ( mW/cm²) Limit (mW/cm²) Channel 512 4.00 2.51 30.10 1023.29 0.5116 1.00 Channel 661 4.00 2.51 29.90 977.24 0.4886 1.00 Channel 810 4.00 2.51 29.70 933.25 0.4666 1.00 z FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm during normal operation.

Plotting for Conducted Emission 850 MHz 1900 MHz

FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI 3750G TEL : 886-2-2696-2468 Pa ge No. 1 of 58 FAX : 886-2-2696-2255 Issued Date Ma y 20, 2004 FCC TEST REPORT for 47 CFR Part 22H and 24E Equipment : Wireless Point-of-Sale Terminal Model No. : OMNI 3750 FCC ID : B32OMNI 3750G Filing Type : Certification Applicant : VeriFone Systems Pte., Ltd. Taiwan Branch 2F, 19-2, Sanchung Road, Nankang Dist., Taipei, Taiwan 115, R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI 3750G TEL : 886-2-2696-2468 Pa ge No. 2 of 58 FAX : 886-2-2696-2255 Issued Date Ma y 20, 2004 The applicant has been cautioned as to the following: 15.21 Information to User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI 3750G TEL : 886-2-2696-2468 Pa ge No. 3 of 58 FAX : 886-2-2696-2255 Issued Date Ma y 20, 2004 Table of Contents Rule Description Page Test Report 4 2.1033(c) General Information Required 5 2.1033(c)(14) Rule Summary 9 General Information 10 Standard Test Conditions and Engineering Practices 11 2.1046(a) EIRP Carrier Power (Radiated) 12 2.1049(c) (1), 22 Emission Mask (Occupied Bandwidth) 21 2.1051, 2.1049(c), 24, 24.238(b). Transmitter Conducted Measurements 27 2.1053(a) Field Strength of Spurious Radiation 33 2.1055(a)(1) Frequency Stability (Temperature Variation) 52 2.1055(b)(1) Frequency Stability (Voltage Variation) 55 Antenna Factor & Cable Loss 56 List of Measuring Equipments 57 Uncertainty of Test Site 58 Appendix A External Product Photograph Appendix B Internal Photograph Appendix C Set up Photograph FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI 3750G TEL : 886-2-2696-2468 Pa ge No. 4 of 58 FAX : 886-2-2696-2255 Issued Date Ma y 20, 2004 Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: Sporton International Inc. No.52, Hwa-Ya 1 st RD., Hwa Ya Technology Park, Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. c) Report Number: F441316 d) Client: VeriFone Systems Ptd., Ltd. Taiwan Branch 2F, 19-2, Sanchung Road, Nankang Dist., Taipei, Taiwan 115, R.O.C. e) Identification: Model Name: OMNI 3750 FCC ID : B32OMNI 3750G Description: GSM/GPRS 850/1900 Radio f) EUT Condition: Not required unless specified in individual tests. g) Report Date: May 20, 2004 EUT Received: May 07, 2004 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with Sporton internal quality manual. m) Supervised by: Hendry Yang n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. Accessories Used During Testing: Type Model EUT OMNI 3750 RJ-11 N/A RJ-232 N/A Base Station Simulator CMU200 Base Station Simulator E5515C FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI 3750G TEL : 886-2-2696-2468 Pa ge No. 5 of 58 FAX : 886-2-2696-2255 Issued Date Ma y 20, 2004 List of General Information Required for Certification In Accordance with FCC Rules and Regulations, Volume II, Part 2 and 22H, 24E, Confidentiality Sub-Part 2.1033 (c)(1): Name and Address of Applicant: VeriFone Systems Ptd., Ltd. Taiwan Branch 2F, 19-2, Sanchung Road, Nankang Dist., Taipei, Taiwan 115, R.O.C. Manufacturer As above (c)(2): FCC ID: B32OMNI 3750G Model Number: OMNI 3750 (c)(3): Instruction Manual(s): Please See Attached Exhibits (c)(4): Type of Emission: 300KGXW (c)(5): FREQUENCY RANGE, MHz: 824.2 to 848.8 GSM/GPRS 850 1850.2 to 1909.8 GSM/GPRS 1900 (c)(6): Power Rating, Watts : GSM 850: 1.737801 (conducted) / 0.542 (ERP) PCS 1900: 1.023293 (conducted) / 1.050 (EIRP) Switchable x Variable N/A (c)(7): Maximum Power Rating, Watts: 2 GSM 850 1 PCS 1900 FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI 3750G TEL : 886-2-2696-2468 Pa ge No. 30 of 58 FAX : 886-2-2696-2255 Issued Date Ma y 20, 2004 Name of Test: Emission Masks (Occupied Bandwidth) State 1:Low Power Power: LOW Modulation: PCS 1900 99％ BANDWIDTH FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI 3750G TEL : 886-2-2696-2468 Pa ge No. 31 of 58 FAX : 886-2-2696-2255 Issued Date Ma y 20, 2004 Name of Test: Emission Masks (Occupied Bandwidth) State 2:High Power Power: HIGH Modulation: PCS 1900 99％ BANDWIDTH FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI 3750G TEL : 886-2-2696-2468 Pa ge No. 32 of 58 FAX : 886-2-2696-2255 Issued Date Ma y 20, 2004 Name of Test: Emission Masks (Occupied Bandwidth) State 2:High Power Power: HIGH Modulation: PCS 1900 UPPER BAND EDGE FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI 3750G TEL : 886-2-2696-2468 Pa ge No. 33 of 58 FAX : 886-2-2696-2255 Issued Date Ma y 20, 2004 Name of Test: Field Strength of Spurious Radiation Specification : 47 CFR 2.1053(a) Guide: ANSI/TIA/EIA-603-1992/2001, Paragraph 1.2.12 and Table 16 Measurement Procedure 1.2.12.1 Definition: Radiated spurious emissions are emissions from the equipment when transmitting into a non-radiating load on a frequency or frequencies which are outside an occupied band sufficient to ensure transmission of information of required quality for the class of communications desired. 1.2.12.2 Method of Measurement A) Connect the equipment as illustrated B) Adjust the spectrum analyzer for the following settings: 1) Resolution Bandwidth 100 kHz (<1 GHZ), 1 MHZ (> 1GHz). 2) Video Bandwidth ≥ 3 times Resolution Bandwidth 3) Sweep Speed ≤2000 Hz/second 4) Detector Mode = Mean or Average Power C) Place the transmitter to be tested on the turntable in the standard test site. If the antenna is detatchable, The transmitter is transmitting into a non-radiating load which is placed on the turntable. The RF cable to this load should be of minimum length. FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI 3750G TEL : 886-2-2696-2468 Pa ge No. 34 of 58 FAX : 886-2-2696-2255 Issued Date Ma y 20, 2004 Name of Test: Field Strength of Spurious Radiation (Cont.) D) For each spurious measurement the test antenna should cover the measured frequency. Measurements shall be made from the lowest radio frequency generated in the equipment to the tenth harmonic of the carrier, except for the region close to the carrier equal to ± the test bandwidth (see section 1.3.4.4). E) For each spurious frequency, raise and lower the test antenna from 1 m to 4 m to obtain a maximum reading on the spectrum analyzer with the test antenna at horizontal polarity. Repeat this procedure to obtain the highest possible reading. Record this maximum reading. F) Repeat step E) for each spurious frequency with the test antenna polarized vertically. G) Reconnect the equipment as illustrated. H) Keep the spectrum analyzer adjusted as in step B). I) Remove the transmitter and replace it with a substitution antenna. The center of the substitution antenna should be approximately at the same location as the center of the transmitter. At lower frequencies, where the substitution antenna is very long, this will be impossible to achieve when the antenna is polarized vertically. In such case the lower end of the antenna should be 0.3 m above the ground. FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI 3750G TEL : 886-2-2696-2468 Pa ge No. 35 of 58 FAX : 886-2-2696-2255 Issued Date Ma y 20, 2004 Name of Test: Field Strength of Spurious Radiation (Cont.) J) Feed the substitution antenna at the transmitter end with a signal generator connected to the antenna by means of a non-radiating cable. With the antennas at both ends horizontally polarized and with the signal generator tuned to a particular spurious frequency, raise and lower the test antenna to obtain a maximum reading at the spectrum analyzer. Adjust the level of the signal generator output until the previously recorded maximum reading for this set of conditions is obtained. This should be done carefully repeating the adjustment of the test antenna and generator output. K) Repeat step J) with both antennas vertically polarized for each spurious frequency. L) Calculate power in dBm into a reference ideal half-wave dipole antenna by reducing the readings obtained in steps J) and K) by the power loss in the cable between the generator and the antenna and further corrected for the gain of the substitution antenna used relative to an ideal half-wave dipole antenna. NOTE: It is permissible that other antennas provided can be referenced to a dipole. Tested By: Tim Kao FCC TEST REPORT Report No. : F441316 SPORTON International Inc. FCC ID B32OMNI 3750G TEL : 886-2-2696-2468 Pa ge No. 36 of 58 FAX : 886-2-2696-225…
