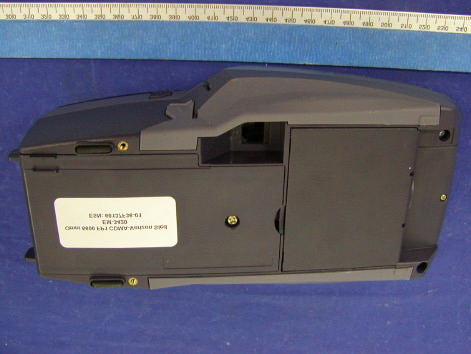

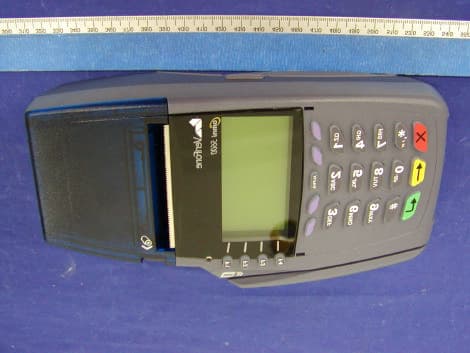

EXHIBIT C - EUT PHOTOGRAPHS EUT Front View EUT Rear View FCC ID: B32OMNI56XXC Power Adapter

EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT Proposed FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Rear View of the EUT/Proposed ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: B32OMNI56XXC FCC ID: B32OMNI56XXC

EUT Cover Off View EUT Component View EUT Solder View Battery View Antenna 1 View Interface Board View (For Antenna 1 Connector) Interface Board Solder View (For Antenna 1 Connector) Interface Board with CDMA Module Component (For Antenna 1 Connector) Interface Board without CDMA Module Component (For Antenna 1 Connector) Antenna 2 View Interface Board View (For Antenna 2 Connector) Interface Board Solder View (For Antenna 2 Connector) Interface Board with CDMA Module Component (For Antenna 2 Connector) Interface Board without CDMA Module Component (For Antenna 2 Connector)

VeriFone Inc. 3755 Atherton Road Rocklin, CA 95765-3701 Tel: 916/630-0550 Fax: 916/630-2501 Date: August 5, 2004 System Description The Omni 56XXC is VeriFone’s CDMA 2000 portable payment device. This version of the Omni 56XX family is running on the CDMA radio network for North America it incorporates a Radio Modem previously certified under FCC ID: N7N-EM3420P operating in the frequency range of 824 – 849MHz and 1850 – 1910MHz which are the 850MHz and 1900MHz bands. Each device is integrated with the following: LCD display Magnetic stripe card reader Primary smart card reader 3 SAM’s “Secure Access Module” High-speed thermal printer Removable/rechargeable battery 32-bit RISC processor Omni 56XX System Function Description The power source for the Omni 56XX is either a 7.2VDC 1800mAh LI-ION battery module, which is the main power source, or an external AC power adapter that can be plugged into a 100- 240VAC source to supply 9.5vdc at 4A. Communications to the radio are provided by the system CPU serial port 3. The software loaded inside physically and electronically secure area of the Omni 56XX provides further control of the N7N-EM3420P. User interface is provided through the front keys of the unit with the LCD display providing Project Manager Pushpinder Sawanni Phone 916.630.3536 FAX 916.630.2501 EMAIL [email protected]

VeriFone Inc. 3755 Atherton Road Rocklin, CA 95765-3701 Tel: 916/630-0550 Fax: 916/630-2501 Date: July 24, 2004 Federal Communication Commission Office of Engineering Technology Equipment Authorization Division Subject: Tune-up Procedure To Whom It May Concern: All settings are made at the Original Equipment Manufacture (OEM) factory for the EM3420 radio, FCC ID N7N-EM3420P, consumers are not able to make adjustments. VeriFone has verified that the EM3420 can be tuned up to 824-849MHZ and 1850- 1910MHz at 23dBm, and operate properly. The EM3420 radio is incorporated into the following VeriFone product. VeriFone Product Name – Omni 5600 VeriFone FCC ID – B32OMNI56XXC Sincerely: Project Manager Pushpinder Sawanni Phone 916.630.3536 FAX 916.630.2501 EMAIL Pushpinder [email protected]

VeriFone Inc. 3755 Atherton Road Rocklin, CA 95765-3701 Tel: 916/630-0550 Fax: 916/630-2501 Date: July 24, 2004 Federal Communication Commission Office of Engineering Technology Equipment Authorization Division Subject: Tune-up Procedure To Whom It May Concern: All settings are made at the Original Equipment Manufacture (OEM) factory for the EM3420 radio, FCC ID N7N-EM3420P, consumers are not able to make adjustments. VeriFone has verified that the EM3420 can be tuned up to 824-849MHZ and 1850- 1910MHz at 23dBm, and operate properly. The EM3420 radio is incorporated into the following VeriFone product. VeriFone Product Name – Omni 5600 VeriFone FCC ID – B32OMNI56XXC Sincerely: Project Manager Pushpinder Sawanni Phone 916.630.3536 FAX 916.630.2501 EMAIL Pushpinder [email protected]

RFCAL EM3420 ver 1.0 Sierra Wireless Confidential Proprietary Page 1 TUNE-UP / ALIGNMENT PROCEDURES RFCAL EM3420 REVISION: 1.1 DATE: SEPTEMBER 10, 2004 RFCAL EM3420 ver 1.0 Sierra Wireless Confidential Proprietary Page 2 1. Purpose The purpose of this document is to describe RF calibration for the EM3420 wireless modem module. 2. Overview The complexity of the RF calibration process can be simplified by dividing it into basic groups. For CDMA, there are three groups: 1. Receiver DVGA calibration. 2. Transmitter AGC calibration. 3. Power detector calibration. The RF calibration process described in the following sections is performed for both PCS and Cell band transceivers. Unless noted, the same procedure is used for each band. 3. CMDA Receiver Calibration 3.1. Receiver DVGA Calibration The goal of RX calibration is to calculate values for the non-volatile memory (NV) parameters that will be used by the phone software to accurately estimate the incoming RX signal strength. Maximum dynamic range is achieved by reducing the gain of the LNA in discrete steps based on received signal strength. In order for the software to do this, the absolute gain of the receiver in each state must be known. We have separated the RX AGC calibration into two sections. • “DVGA Offset”. Calibration across frequency at a single input power. This information is the gain of the receiver in the highest gain state. • “LNA Offset”. Calibration to measure the gain change between the LNA gain states. With the LNA Offsets in combination with the DVGA Offset the absolute gain of the receiver is known in all the possible gain states. Table 1 below lists the frequency compensation bins for PCS. Bin 0 1 2 3 4 5 6 7 Channel 0-74 75-149 150-224 225-299 300-374 375-449 450-524 525-599 Comp Channel 37 112 187 262 337 412 487 562 Bin 8 9 10 11 12 13 14 15 Channel 600-674 675-749 750-824 825-899 900-974 975-1049 1050-1124 1125-1199 Comp Channel 637 712 787 862 937 1012 1087 1162 Table 4: Compensation Bin to Channel Mapping for the PCS Rx 3.1.1. DVGA Offset Calibration Process The process of DVGA Calibration is described below. RFCAL EM3420 ver 1.0 Sierra Wireless Confidential Proprietary Page 3 MEASURE THE AGC RESPONSE 1. Pre-load the DVGA Offset to 0. 2. Set the received signal power to –82 (-81 for PCS) dBm. 3. Set the received frequency to the first calibration channel, typically PCS CH37, Cell CH 1013. 4. Record the RX AGC. 5. Calculate the DVGA Offset. 6. Repeat steps 3 thru 5 for all calibration frequencies 7. Set NV item VGA_GAIN_OFFSET to DVGA Offset of center channel. 8. Calculate DVGA Gain Offset vs. Freq for 16 bins 3.2. LNA Offset Compensation versus frequency The LNA Gain difference between Gain States can vary across frequency. LNA Offset Calibration for each frequency bin can account for these changes. The calibration items are configured as an absolute offset at center channel and a delta to the center channel offset for each frequency. 3.2.1. LNA Offset vs. Freq Calibration Process Measure the difference in LNA gain between Gain states for each frequency bin frequencies 1. Load the DVGA offset and DVGA Offset vs. Freq Values determined in the DVGA Offset Calibration process. Set LNA Offset (gain state 0 to gain state 1) to 0. 2. Set the receiver and signal generator to the center calibration channel. 3. Set the received signal power to a single, unchanging power level, based on LNA gain state and switch point. 4. Set the LNA gain state to 0. 5. Measure and record the RX_AGC_VALUE_0. 6. Set the LNA gain State to 1. 7. Measure and record the RX_AGC_VALUE_1. 8. Calculate LNA_Offset_0-1 = RX_AGC_VALUE_0 – RX_AGC_VALUE_1 9. Set the receiver and signal generator channel to each of the frequency compensation channels and repeat steps 4 thru 7. 10. Repeat steps 3 thru 7 for each frequency bin. RFCAL EM3420 ver 1.0 Sierra Wireless Confidential Proprietary Page 4 4. CDMA Transmitter Calibration 4.1. CDMA TX Phone Operation The transmit power range as defined by the chipset is –52.3 dBm to +33 dBm. The EM3420 is not capable of producing the maximum power as defined by the chipset, which covers multiple classes of units. The calibration process sets the actual maximum power to ensure compliance. 4.2. PA Bias Switching The Mobile Station Modem (MSM) supports up to 4 linearizaition tables and corresponding offsets. The EM3420 will utilize 2 tables. The PA Range State Machine controls when the PA bias is switched. It produces 2 control lines internal to the MSM that select between the 4 linearizer tables, offsets, and R1, R0 control lines. At low power, defined by the PA being in low bias mode, the first linearizer table will be valid. This table will be loaded with values determined by sweeping the TX over a partial range of output power. The bias switch point will be tentatively set at approximately 18 dBm so the appropriate sweep for the low bias condition will be –55 dBm to +20 dBm. Linear extrapolation is to be used to fill the remaining table entries. Linearizer Table 2 would be used for the high bias state. The power sweep is defined from 5 dBm to full power. Entries in the table below 5 dBm are filled by linear extrapolation. By design the extrapolated entries in the table should not be used during normal operation but the table should be completed with meaningful number as a safety precaution. The amount of overlap between the two tables is driven primarily by the need to ensure sufficient hysterisis in the PA rise and PA fall points to prevent ratcheting. 4.2.1. Calibration Process The TX Calibration station uses a Power Meter to measure the output from the EM3420. Power Meters are inherently a broadband instrument so that the power reading is an addition of all power within the input bandwidth of the instrument. This causes an issue measuring low output powers from the phone. The phone is calibrated to nominally –54 dBm channel power. At this power level the integrated noise over the 60 MHz PCS TX frequency band is …

Text truncated - open the document above for the full version.

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. SAR EVALUATION REPORT For VeriFone Inc. 3755 Atherton Road, Rocklin, CA 95765 FCC ID: B32OMNI56XXC 2004-08-12 This Report Concerns: Original Report Equipment Type: Wireless POS Terminal Test Engineer: Ling Zhang / Report No.: R0407211S Test Date: 2004-08-02/2004-08-04 Reviewed By: Ming Jing / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 2 of 87 TABLE OF CONTENTS SUMMARY.......................................................................................................................................................................................4 1 - REFERENCE.............................................................................................................................................................................5 2 - TESTING EQUIPMENT........................................................................................................................................................6 2.1 EQUIPMENTS LIST & CALIBRATION INFO............................................................................................................................6 2.2 EQUIPMENT CALIBRATION CERTIFICATE.............................................................................................................................6 3 - EUT DESCRIPTION..............................................................................................................................................................45 4 - SYSTEM TEST CONFIGURATION................................................................................................................................46 4.1 JUSTIFICATION........................................................................................................................................................................46 4.2 EUT EXERCISE PROCEDURE................................................................................................................................................46 4.3 EQUIPMENT MODIFICATIONS...............................................................................................................................................46 5 – CONDUCTED OUTPUT POWER MEASUREMENTS.............................................................................................47 5.1 PROVISION APPLICABLE.......................................................................................................................................................47 5.2 TEST PROCEDURE..................................................................................................................................................................47 5.3 TEST EQUIPMENT....................................................................................................................................................................47 5.4 TEST RESULTS........................................................................................................................................................................47 6 - DOSIMETRIC ASSESSMENT SETUP............................................................................................................................50 6.1 MEASUREMENT SYSTEM DIAGRAM....................................................................................................................................51 6.2. SYSTEM COMPONENTS.........................................................................................................................................................52 6.3 MEASUREMENT UNCERTAINTY...........................................................................................................................................56 7 - EVALUATION PROCEDURE...........................................................................................................................................57 7.1 BODY SAR EVALUATION PROCEDURE..............................................................................................................................57 7.2 EXPOSURE LIMITS..................................................................................................................................................................58 7.3 SIMULATED TISSUE LIQUID PARAMETER CONFIRMATION..............................................................................................58 7.4 SAR MEASUREMENT............................................................................................................................................................58 7.5 SYSTEM ACCURACY VERIFICATION....................................................................................................................................59 7.6 LIQUID MEASUREMENT RESULT..........................................................................................................................................60 8 - SAR TEST RESULTS............................................................................................................................................................65 8.1 SAR BODY AND HEAD WORST-CASE TEST DATA...........................................................................................................65 8.2 PLOTS OF TEST RESULT........................................................................................................................................................65 EXHIBIT A - SAR SETUP PHOTOGRAPHS........................................................................................…

Text truncated - open the document above for the full version.

VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 31 of 87 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 32 of 87 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 33 of 87 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 34 of 87 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 35 of 87 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 36 of 87 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 37 of 87 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 38 of 87 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 39 of 87 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 40 of 87 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 41 of 87 835 MHZ Body Liquid Validation Ambient Temp = 23 Deg C , Liquid Temp = 22 Deg C , 2004/8/2 frequency e' e'' 815000000.0000 52.8436 21.6487 815800000.0000 52.8270 21.6106 816600000.0000 52.8738 21.5509 817400000.0000 52.8161 21.5609 818200000.0000 52.8532 21.5382 819000000.0000 52.7440 21.5274 819800000.0000 52.8197 21.5457 820600000.0000 52.8072 21.4599 821400000.0000 52.8993 21.5114 822200000.0000 52.8421 21.4938 823000000.0000 52.7553 21.5184 823800000.0000 52.7870 21.4661 824600000.0000 52.7889 21.4838 825400000.0000 52.8093 21.4647 826200000.0000 52.8058 21.4345 827000000.0000 52.7859 21.3896 827800000.0000 52.7181 21.4052 828600000.0000 52.7808 21.3880 829400000.0000 52.7517 21.3708 830200000.0000 52.6678 21.3259 831000000.0000 52.7450 21.3289 831800000.0000 52.7306 21.3319 832600000.0000 52.7200 21.3329 833400000.0000 52.7240 21.3084 834200000.0000 52.7134 21.3277 835000000.0000 52.7185 21.3141 835800000.0000 52.7134 21.3115 836600000.0000 52.7073 21.2544 837400000.0000 52.7222 21.2154 838200000.0000 52.6973 21.2237 839000000.0000 52.6904 21.1958 839800000.0000 52.6365 21.1643 840600000.0000 52.6514 21.1254 841400000.0000 52.6410 21.0904 842200000.0000 52.6779 21.1311 843000000.0000 52.6875 21.1267 843800000.0000 52.6411 21.1099 844600000.0000 52.6923 21.1161 845400000.0000 52.6151 21.0743 846200000.0000 52.5523 20.9801 847000000.0000 52.5457 20.9524 847800000.0000 52.6113 20.9783 848600000.0000 52.5992 20.9400 849400000.0000 52.5644 20.9898 850200000.0000 52.4880 20.9842 851000000.0000 52.5332 20.9168 851800000.0000 52.5664 20.9320 852600000.0000 52.5566 20.9331 853400000.0000 52.5162 20.9184 854200000.0000 52.5080 20.9052 855000000.0000 52.5031 20.8456 σ = ω ε o ε” = 2 π f ε o ε”=0.99 where f = 835 x 10 6 ε o = 8.854 x 10 -12 ε” = 21.3141 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 42 of 87 835 MHZ Head Liquid Validation Ambient Temp = 23 Deg C , Liquid Temp = 22 Deg C , 2004/8/2 frequency e' e'' 815000000.0000 41.1038 19.7028 815800000.0000 41.0235 19.6892 816600000.0000 40.9890 19.6357 817400000.0000 40.9580 19.6122 818200000.0000 40.9566 19.5972 819000000.0000 40.9327 19.6091 819800000.0000 40.9022 19.5988 820600000.0000 40.9135 19.5539 821400000.0000 40.8799 19.5346 822200000.0000 40.8961 19.5108 823000000.0000 40.8354 19.4983 823800000.0000 40.8167 19.4590 824600000.0000 40.8033 19.4067 825400000.0000 40.7895 19.3510 826200000.0000 40.7780 19.3266 827000000.0000 40.7961 19.2988 827800000.0000 40.7873 19.3159 828600000.0000 40.7600 19.2960 829400000.0000 40.7811 19.2381 830200000.0000 40.7650 19.2037 831000000.0000 40.7265 19.1698 831800000.0000 40.7112 19.1258 832600000.0000 40.6200 19.1021 833400000.0000 40.6031 19.0987 834200000.0000 40.6216 19.0326 835000000.0000 40.5638 19.0283 835800000.0000 40.5536 19.0239 836600000.0000 40.5403 19.0026 837400000.0000 40.5367 18.9826 838200000.0000 40.5490 18.9768 839000000.0000 40.5388 18.9753 839800000.0000 40.5128 18.8937 840600000.0000 40.5200 18.7982 841400000.0000 40.5009 18.7358 842200000.0000 40.4837 18.7467 843000000.0000 40.4908 18.7322 843800000.0000 40.4761 18.7231 844600000.0000 40.4633 18.7026 845400000.0000 40.4550 18.6982 846200000.0000 40.4430 18.6791 847000000.0000 40.4267 18.6649 847800000.0000 40.4191 18.6024 848600000.0000 40.3826 18.5873 849400000.0000 40.3710 18.5634 850200000.0000 40.3566 18.5027 851000000.0000 40.3328 18.4768 851800000.0000 40.3207 18.4651 852600000.0000 40.3001 18.4325 853400000.0000 40.2988 18.3895 854200000.0000 40.2891 18.3756 855000000.0000 40.2905 18.3655 σ = ω ε o ε” = 2 π f ε o ε”=0.8839 where f = 835x 10 6 ε o = 8.854 x 10 -12 ε” = 19.0283 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 43 of 87 1900 MHZ Body Liquid Validation Ambient Temp = 23 Deg C, Liquid Temp = 22 Deg C, 2004/8/4 frequency e' e'' 1850000000.0000 52.4329 13.9304 1852000000.0000 52.4374 13.9426 1854000000.0000 52.4346 13.9272 1856000000.0000 52.4014 13.9306 1858000000.0000 52.3063 13.9237 1860000000.0000 52.2688 13.9402 1862000000.0000 52.2881 13.9549 1864000000.0000 52.2694 13.9800 1866000000.0000 52.3075 13.9808 1868000000.0000 52.3138 14.0021 1870000000.0000 52.3081 14.0172 1872000000.0000 52.2924 14.0496 1874000000.0000 52.3188 14.0662 1876000000.0000 52.3427 14.1498 1878000000.0000 52.3473 14.1998 1880000000.0000 52.3349 14.2205 1882000000.0000 52.3379 14.2578 1884000000.0000 52.2618 14.2453 1886000000.0000 52.1670 14.2322 1888000000.0000 52.1318 14.2355 1890000000.0000 52.1376 14.2581 1892000000.0000 52.1572 14.3293 1894000000.0000 52.1185 14.3302 1896000000.0000 52.1063 14.2952 1898000000.0000 52.0097 14.3081 1900000000.0000 52.0068 14.3128 1902000000.0000 52.0185 14.3502 1904000000.0000 51.9497 14.3368 1906000000.0000 51.8781 14.3347 1908000000.0000 51.8781 14.3358 1910000000.0000 51.8926 14.3585 1912000000.0000 51.9353 14.3799 1914000000.0000 51.9952 14.4301 1916000000.0000 52.0259 14.4043 1918000000.0000 52.0210 14.4125 1920000000.0000 51.9668 14.3985 1922000000.0000 51.9627 14.42…

Text truncated - open the document above for the full version.

VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 61 of 87 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 62 of 87 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 63 of 87 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 64 of 87 VeriFone Inc. FCC ID: B32OMNI56XXC Report #R0407211S SAR Evaluation Report Page 65 of 87 8 - SAR TEST RESULTS This page summarizes the results of the performed dosimetric evaluation. The plots with the corresponding SAR distributions, which reveal information about the location of the maximum SAR with respect to the device could be found in the following pages. 8.1 SAR Body and Head Worst-Case Test Data 2004-03-24 Ambient Temperature (ºC): 19.0 Relative Humidity (%): 60 2004-03-30 Ambient Temperature (ºC): 23.0…
