B32V2104GPoint of Sale Terminal

Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. Radiation Exposure Statement: The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.

Verifone Part Number DOC183-003-EN-A, Revision A.4 V210 Installation Guide All rights reserved. No part of the contents of this document may be reproduced or transmitted in any form without the written permission of Verifone, Inc. The information contained in this document is subject to change without notice. Although Verifone has attempted to ensure the accuracy of the contents of this document, this document may include errors or omissions. The examples and sample programs are for illustration only and may not be suited for your purpose. You should verify the applicability of any example or sample program before placing the software into productive use. This document, including without limitation the examples and software programs, is supplied “As-Is.” Verifone Inc. 1-800-Verifone www.verifone.com Verifone Part Number DOC183-003-EN-A, Revision A.4 V210 Installation Guide © 2020 Verifone, Inc. Verifone and the Verifone logo, are registered trademarks of Verifone. Other brand names or trademarks associated with Verifone’s products and services are trademarks of Verifone, Inc. All other brand names and trademarks appearing in this manual are the property of their respective holders. Product Warranty For product warranty information, go to http://www.verifone.com/terms. Comments? Please e-mail all comments on this document to your local Verifone Support Team. V210 INSTALLATION GUIDE3 CONTENTS PREFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Organization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Guide Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Acronym Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 CHAPTER 1 Device OverviewV210 Device Functionalities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 V210 Bases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 V210 Charging Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 V210 Full-Feature Base with Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Exceptional Ease of Use and Ergonomics . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 CHAPTER 2 Device SetupDevice Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Environmental Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Electrical Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Contactless Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 PIN Protection Measures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Inside the Shipping Carton. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Unpacking the Shipping Carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 MSAM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Opening Card Compartment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Changing or Installing MSAMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 SIM Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Loading Paper Roll in the Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Cable Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Cable Connections Using the Full-Feature Base . . . . . . . . . . . . . . . . . . . . . 23 Using the Smart Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Using the Magnetic Stripe Card Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 CTLS Transaction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Full-Feature Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Charging Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Periodic Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 CHAPTER 3 SpecificationsV210 Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Unit Power Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 External Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 4V210 INSTALLATION GUIDE Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Date: 2020-12-21 FCC ID: B32V2104G To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description Part list Tune-up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! _________________________________________ Steve Hsu / Sr. Director, Hardware Engineering Verifone, Inc. Tel.: 886-3789-7313 Fax: 886-2-26553168 E-mail: [email protected]

Date: 2020-12-21 FCC ID: B32V2104G To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 60 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! _________________________________________ Steve Hsu / Sr. Director, Hardware Engineering Verifone, Inc. Tel.: 886-3789-7313 Fax: 886-2-26553168 E-mail: [email protected]

Verifone, Inc. | 1400 West Stanford Ranch Road Suite 200 | Rocklin CA 95765 | USA www.verifone.com Date: 2020-12-21 FCC ID: B32V2104G AUTHORIZATION LETTER To Whom It May Concern: We, Verifone Inc hereby authorizes Amanda Wu / Senior Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Amanda Wu / Senior Specialist of BV CPS Taoyuan on VeriFone Inc’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! _________________________________________ Steve Hsu / Sr. Director, Hardware Engineering Verifone, Inc. Tel.: 886-3789-7313 Fax: 886-2-26553168 E-mail: [email protected]

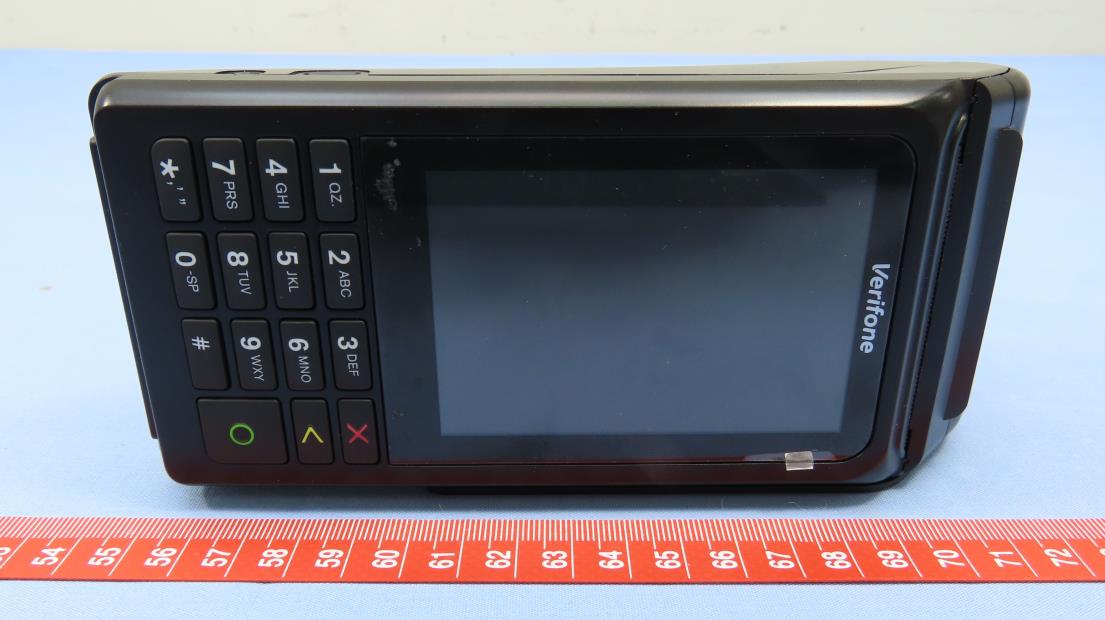

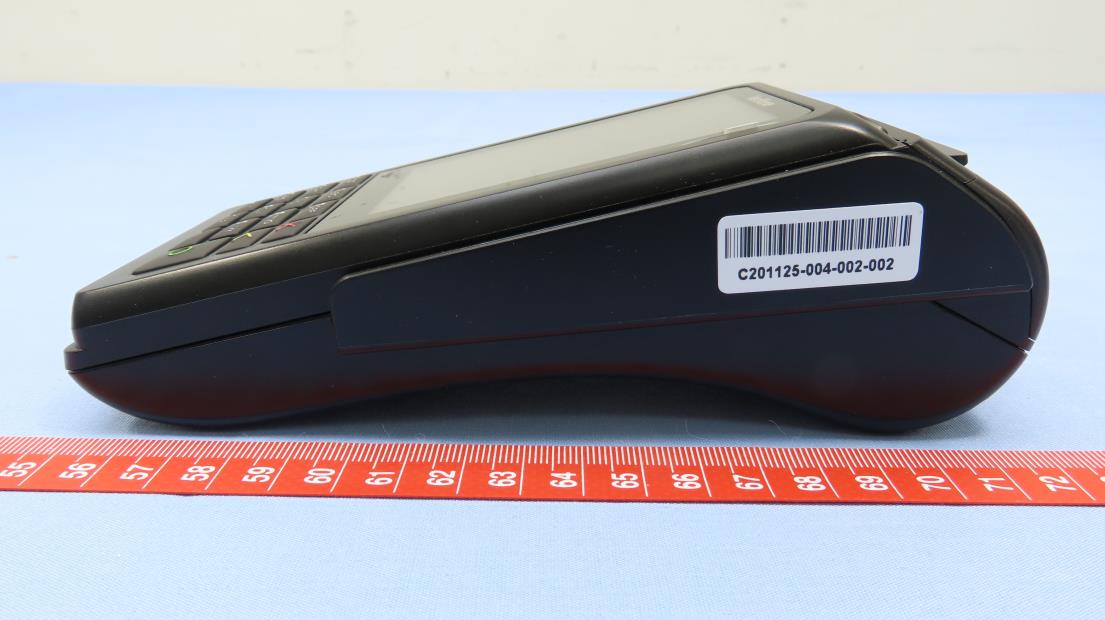

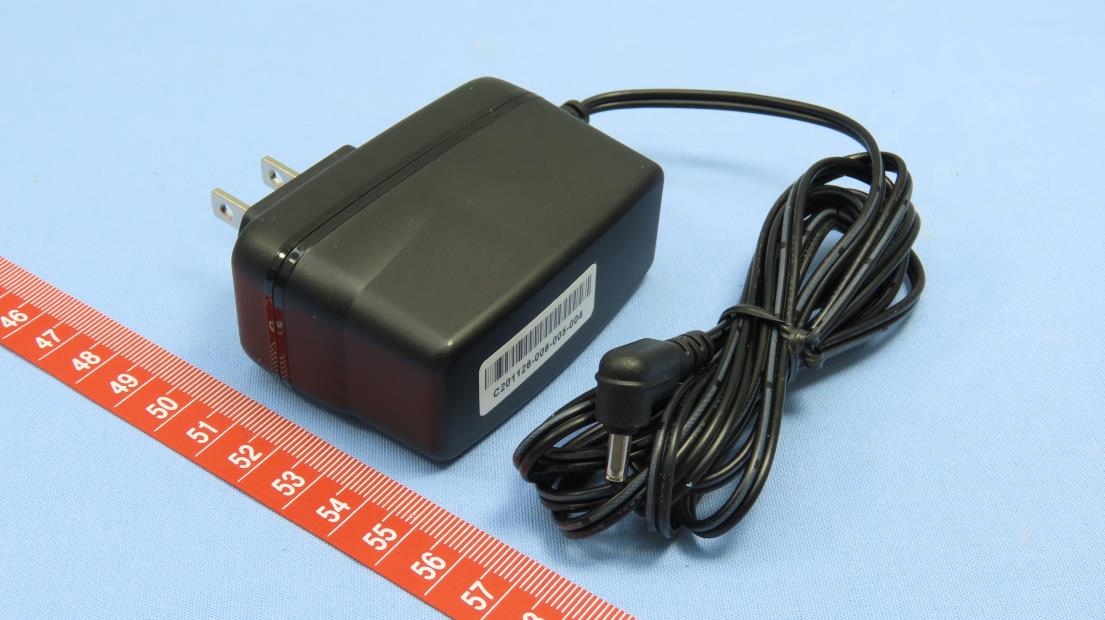

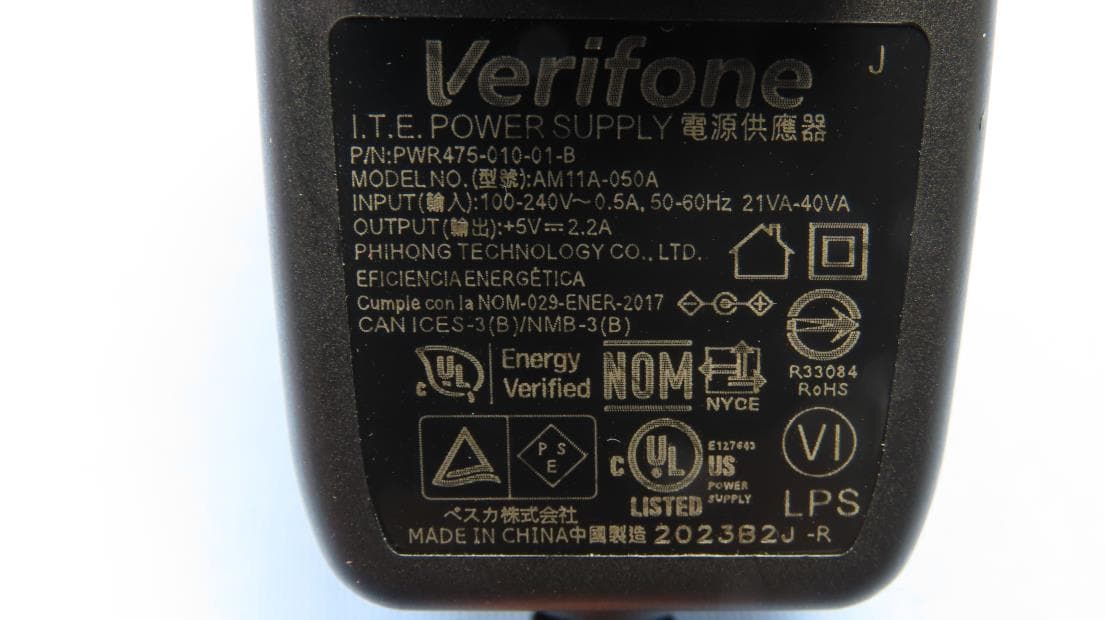

Reference No.: 201118C03_EXT 1 of 6 CONSTRUCTION PHOTOS OF EUT Brand: Verifone / Model: V210 4G Reference No.: 201118C03_EXT 2 of 6 Reference No.: 201118C03_EXT 3 of 6 Reference No.: 201118C03_EXT 4 of 6 Reference No.: 201118C03_EXT 5 of 6 Reference No.: 201118C03_EXT 6 of 6

35.5mm 3 1 . 0 m m NOTES: 1.BACKGROUND COLOR:PANTONE BLACK C 2.LOGO AND TEXT: PANTONE 427C San Jose, CA. USA For warranty info:verifone.com/terms LBL183-001-02-A Victoria_L1 Victoria_L1 Kim_H4 11Dec20 11Dec20 11Dec20 A00 A00 ECO# Cxxxxx 11-Dec-2020 Kim_H4 LBL183-001-02-AW LABEL V210 PROD ID UL/FCC ARTWORK, TPE 2X E132144 BC Model:V210 4G Rating:5V 2.2A Product:V210 FCC ID:B32V2104G IC:787C-V2104G

Label Location Model: V210 4G Brand: Verifone FCC ID: B32V2104G IC:787C-V2104G Back side of V210 4G Back side of EUT

Reference No.: 201118C03_INT 1 of 11 CONSTRUCTION PHOTOS OF EUT Brand: Verifone / Model: V210 4G Reference No.: 201118C03_INT 2 of 11 Reference No.: 201118C03_INT 3 of 11 Reference No.: 201118C03_INT 4 of 11 Reference No.: 201118C03_INT 5 of 11 Reference No.: 201118C03_INT 6 of 11 Reference No.: 201118C03_INT 7 of 11 Reference No.: 201118C03_INT 8 of 11 Reference No.: 201118C03_INT 9 of 11 Reference No.: 201118C03_INT 10 of 11 Reference No.: 201118C03_INT 11 of 11

SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 35 Report No. : SF201118C03 Issued Date : Jan. 13, 2021 SAR Test Report Report No. : SF201118C03 Applicant : Verifone, Inc. Address : 1400 West Stanford Ranch Road Suite 200 Rocklin CA 95765 USA Product : Point of Sale Terminal FCC ID : B32V2104G Brand : Verifone Model No. : V210 4G Standards : FCC 47 CFR Part 2 (2.1093), IEEE C95.1:1992, IEEE Std 1528:2013 KDB 865664 D01 v01r04, KDB 865664 D02 v01r02 KDB 447498 D01 v06, KDB 941225 D01 v03r01, KDB 941225 D05 v02r05 Sample Received Date : Nov. 18, 2020 Date of Testing : Nov. 28, 2020 ~ Dec. 11, 2020 Lab Address : No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location : No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City, Taiwan CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch–Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Shelly Hsueh / Specialist Approved By : Gordon Lin / Manager FCC Accredited No.: TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 35 Report No. : SF201118C03 Issued Date : Jan. 13, 2021 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY6 System ............................................................................................................................................... 6 3.2.1 Robot ............................................................................................................................................................... 7 3.2.2 Probes ............................................................................................................................................................. 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................. 8 3.2.4 Phantoms ......................................................................................................................................................... 8 3.2.5 Device Holder .................................................................................................................................................. 9 3.2.6 System Validation Dipoles ............................................................................................................................. 10 3.2.7 Power Source ................................................................................................................................................ 10 3.2.8 Tissue Simulating Liquids ................................................................ .............................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 13 3.4 SAR Measurement Procedure ................................................................................................................................... 14 3.4.1 Area Scan and Zoom Scan Procedure .......................................................................................................... 14 3.4.2 Volume Scan Procedure ................................................................................................................................ 15 3.4.3 Power Drift Monitoring…

Text truncated - open the document above for the full version.

Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2020/12/09 P15 WLAN2.4G_802.11b_Left Side_0mm_Ch6 DUT: 201118C03 Communication System: UID 10012 - CAB, IEEE 802.11b WiFi 2.4 GHz (DSSS, 1 Mbps); Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: H19T27N1_1209 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.864 S/m; ε r = 39.32; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：23.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(7.75, 7.75, 7.75) @ 2437 MHz; Calibrated: 2020/03/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2020/05/27 - Phantom: Twin-SAM V8.0_1988; Type: QD 000 P41 AA; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (91x171x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.725 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.83 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 1.54 W/kg SAR(1 g) = 0.691 W/kg; SAR(10 g) = 0.302 W/kg (SAR corrected for target medium) Smallest distance from peaks to all points 3 dB below = 7.3 mm Ratio of SAR at M2 to SAR at M1 = 47.5% Maximum value of SAR (measured) = 1.22 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2020/12/10 P16 WLAN5.3G_802.11a_Bottom Side_0mm_Ch52 DUT: 201118C03 Communication System: UID 10062 - CAD, IEEE 802.11a/h WiFi 5 GHz(OFDM, 6 Mbps); Frequency: 5260 MHz;Duty Cycle: 1:1.09 Medium: H34T60N1_1210 Medium parameters used: f = 5260 MHz; σ = 4.857 S/m; ε r = 36.507; ρ = 1000 kg/m 3 Ambient Te mperature：23.8 °C ; Liquid Temperature：23.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7537; ConvF(5.35, 5.35, 5.35) @ 5260 MHz; Calibrated: 2020/05/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2020/01/24 - Phantom: SAM Phantom_1982; Type: QD 000 P41 Ax; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (91x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.74 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 18.52 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 3.27 W/kg SAR(1 g) = 0.898 W/kg; SAR(10 g) = 0.293 W/kg (SAR corrected for target medium) Smallest distance from peaks to all points 3 dB below = 6.8 mm Ratio of SAR at M2 to SAR at M1 = 67.4% Maximum value of SAR (measured) = 2.05 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2020/12/10 P17 WLAN5.6G_802.11a_Bottom Side_0mm_Ch100 DUT: 201118C03 Communication System: UID 10062 - CAD, IEEE 802.11a/h WiFi 5 GHz(OFDM, 6 Mbps); Frequency: 5500 MHz;Duty Cycle: 1:1.09 Medium: H34T60N1_1210 Medium parameters used: f = 5500 MHz; σ = 5.127 S/m; ε r = 36.191; ρ = 1000 kg/m 3 Ambient Te mperature：23.8 °C ; Liquid Temperature：23.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7537; ConvF(4.7, 4.7, 4.7) @ 5500 MHz; Calibrated: 2020/05/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2020/01/24 - Phantom: SAM Phantom_1982; Type: QD 000 P41 Ax; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (91x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 2.01 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 19.15 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 3.41 W/kg SAR(1 g) = 0.925 W/kg; SAR(10 g) = 0.312 W/kg (SAR corrected for target medium) Smallest distance from peaks to all points 3 dB below = 7.2 mm Ratio of SAR at M2 to SAR at M1 = 66.3% Maximum value of SAR (measured) = 2.14 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2020/12/10 P18 WLAN5.8G_802.11a_Rear Face_0mm_Ch149 DUT: 201118C03 Communication System: UID 10062 - CAD, IEEE 802.11a/h WiFi 5 GHz(OFDM, 6 Mbps); Frequency: 5745 MHz;Duty Cycle: 1:1.09 Medium: H34T60N1_1210 Medium parameters used: f = 5745 MHz; σ = 5.372 S/m; ε r = 35.901; ρ = 1000 kg/m 3 Ambient Te mperature：23.8 °C ; Liquid Temperature：23.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7537; ConvF(4.95, 4.95, 4.95) @ 5745 MHz; Calibrated: 2020/05/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2020/01/24 - Phantom: SAM Phantom_1982; Type: QD 000 P41 Ax; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (111x211x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.80 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 19.95 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 3.29 W/kg SAR(1 g) = 0.929 W/kg; SAR(10 g) = 0.337 W/kg (SAR corrected for target medium) Smallest distance from peaks to all points 3 dB below = 8.2 mm Ratio of SAR at M2 to SAR at M1 = 67.5% Maximum value of SAR (measured) = 2.08 W/kg SAR Test Report Report Format Version 5.0.0 Issued Date : Jan. 13, 2021 Report No. : SF201118C03 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

SAR Test Report Report Format Version 5.0.0 Issued Date : Jan. 13, 2021 Report No. : SF201118C03 Appendix D. Photographs of EUT and Setup The setup photographs for SAR testing are shown as follows. SAR Test Report Report Format Version 5.0.0 Issued Date : Jan. 13, 2021 Report No. : SF201118C03 Appendix E. Maximum Target Conducted Power The maximum conducted average power (Unit: dBm) including tune-up tolerance is shown as below. Maximum Target Power Maximum Target Power Maximum Target Power Maximum Target Power GPRS (GMSK, 1Tx-slot)32.523.528.519.5 GPRS (GMSK, 2Tx-slot)30.524.527.521.5 GPRS (GMSK, 3Tx-slot)29.525.2426.021.74 GPRS (GMSK, 4Tx-slot)28.025.024.521.5 EDGE (8PSK, 1Tx-slot)27.018.025.016.0 EDGE (8PSK, 2Tx-slot)25.519.5024.518.5 EDGE (8PSK, 3Tx-slot)24.019.7423.018.74 EDGE (8PSK, 4Tx-slot)23.020.0022.019.0 Maximum Frame-Averaged Output Power GSM Max. Tune-up Power (Full) GSM1900GSM850 Mode Maximum Burst-Averaged Output Power Maximum Frame-Averaged Output Power GSM850GSM1900 Maximum Burst-Averaged Output Power Maximum Target Power Maximum Target Power WCDMA Band II23.522.5 WCDMA Band IV23.522.5 WCDMA Band V23.522.5 WCDMA Max. Tune-up Power (Full) Mode RMC 12.2K HSDPA DC-HSDPA HSUPA Maximum Target Power Maximum Target Power LTE 223.022.0 LTE 424.023.0 LTE 524.023.0 LTE 724.023.0 LTE 1224.023.0 LTE 1324.023.0 LTE 2523.522.5 LTE 2623.522.5 LTE 3824.523.5 LTE 4124.023.0 Mode QPSK LTE Max. Tune-up Power (Full) 16QAM ModeChannel Frequency SISO Ant 0 Max Tune up 1241217.0 6243717.0 11246217.0 1241214.5 6243714.5 11246214.5 1241214.0 6243714.0 11246214.0 WLAN Tune-up Power (Full) 802.11n HT20 802.11g 802.11b WLAN2.4GHz WLAN Tune-up Power (Full) ModeChannel Frequency Ant 0 Max Tune-up 024029.0 3924419.0 7824808.0 024025.5 1924405.5 3924804.5 Bluetooth LE BR / EDR WLAN Tune-up Power (Full) ModeChannel Frequency SISO Ant 0 Max Tune up 36518014.0 40520014.0 44522014.0 48524014.0 36518014.0 40520014.0 44522014.0 48524014.0 38519014.0 46523014.0 36518014.0 40520014.0 44522014.0 48524014.0 38519014.0 46523014.0 802.11ac VHT8042521013.0 WLAN 5.2GHz 802.11ac VHT20 802.11n HT20 802.11n HT40 802.11ac VHT40 802.11a WLAN Tune-up Power (Full) ModeChannel Frequency SISO Ant 0 Max Tune up 52526014.0 56528014.0 60530014.0 64532014.0 52526014.0 56528014.0 60530014.0 64532014.0 54527014.0 62531014.0 52526014.0 56528014.0 60530014.0 64532014.0 54527014.0 62531014.0 802.11ac VHT8058529013.0 WLAN 5.3GHz 802.11n HT20 802.11n HT40 802.11ac VHT20 802.11a 802.11ac VHT40 WLAN Tune-up Power (Full) ModeChannel Frequency SISO Ant 0 Max Tune up 100550014.5 116558014.5 120560014.5 124562014.5 132566014.5 140570014.5 100550014.0 116558014.0 120560014.0 124562014.0 132566014.0 140570014.0 102551014.0 110555014.0 118559014.0 126563014.0 134567014.0 100550014.0 116558014.0 120560014.0 124562014.0 132566014.0 140570014.0 102551014.0 110555014.0 118559014.0 126563014.0 134567014.0 106553013.0 122561013.0 WLAN 5.6GHz 802.11ac VHT40 802.11ac VHT20 802.11ac VHT80 802.11a 802.11n HT20 802.11n HT40 WLAN Tune-up Power (Full) ModeChannel Frequency SISO Ant 0 Max Tune up 149574514.0 153576514.0 157578514.0 161580514.0 165582514.0 149574514.0 153576514.0 157578514.0 161580514.0 165582514.0 151575514.0 159579514.0 149574514.0 153576514.0 157578514.0 161580514.0 165582514.0 151575514.0 159579514.0 802.11ac VHT80155577513.0 802.11ac VHT20 802.11n HT40 802.11a 802.11n HT20 WLAN 5.8GHz 802.11ac VHT40 SAR Test Report Report Format Version 5.0.0 Issued Date : Jan. 13, 2021 Report No. : SF201118C03 Appendix F. Measured Conducted Power Result The measuring conducted power (Unit: dBm) are shown as below. Band Channel128189251512661810 Frequency824.2836.4848.8 1850.2 1880 1909.8 GPRS 1Tx Slot32.4632.1632.2828.0328.2528.35 GPRS 2Tx Slot30.4530.1230.2426.9327.2227.23 GPRS 3Tx Slot29.4329.0729.1725.3225.5625.66 GPRS 4Tx Slot27.9727.6727.7324.0624.3524.35 EDGE 1Tx Slot (MCS9)26.6126.2826.3124.3024.6024.62 EDGE 2Tx Slot (MCS9)25.4525.0925.1323.7624.0324.07 EDGE 3Tx Slot (MCS9)23.7523.4123.4522.5822.8522.85 EDGE 4Tx Slot (MCS9)22.6722.3022.4221.3621.6521.72 GSM850GSM1900 GSM Conducted Power (Full) Band TX Channel926294009538131214131513413241824233 Rx Channel966298009938153716381738435744074458 Frequency1852.4 1880 1907.6 1712.4 1732.6 1752.6 826.4836.4846.6 RMC 12.2K23.3823.3622.9722.4223.4923.4523.2323.2923.28 HSDPA Subtest-122.1522.1422.1422.1422.1122.1522.1222.1422.11 HSDPA Subtest-222.1822.1622.1522.1922.1522.1622.1522.1922.15 HSDPA Subtest-321.6421.5921.6321.6421.6321.6321.6321.6421.63 HSDPA Subtest-421.6721.6521.6421.6621.6521.6121.6421.6621.65 DC-HSDPA Subtest-122.1222.1522.1522.0922.0522.0322.1122.0822.04 DC-HSDPA Subtest-222.0922.1122.0822.1222.1122.1622.0822.1222.11 DC-HSDPA Subtest-321.5921.6221.5921.6221.6221.6521.5921.6221.64 DC-HSDPA Subtest-421.6521.6321.6321.6621.6321.5921.6121.6621.66 HSUPA Subtest-122.0422.1122.0622.0322.0522.0322.0622.0322.01 HSUPA Subtest-220.4920.4920.4620.4920.4420.4520.4620.4620.44 HSUPA Subtest-321.0521.0521.0821.0421.0321.0321.0621.0321.04 HSUPA Subtest-420.3620.3420.3720.3520.3320.3220.3720.3520.35 HSUPA Subtest-522.1122.1622.1222.1122.1222.1422.1222.1122.13 WCDMA IIWCDMA VWCDMA IV WCDMA Conducted Power (Full) RB SizeRB OffsetLowMidHigh 187001890019100 186018801900 1022.0721.8422.170 15022.7622.6022.930 19922.5022.3722.690 50021.6721.5021.771 502521.6921.5121.811 505021.6821.4621.731 100021.7221.5121.841 1021.6421.4321.761 15021.5621.3521.681 19921.4921.2821.611 5002 50252 50502 10002 186751890019125 1857.518801902.5 1021.9921.7622.130 13722.7322.5422.910 17422.6022.3522.610 36021.7021.4021.791 361921.6521.4421.781 363921.6121.4021.791 75021.6421.4221.741 1021.6121.4021.731 13721.5321.3521.671 17421.4321.2821.581 3602 36192 36392 7502 Channel Frequence (MHz) MCS Index QPSK 16QAM QPSK 16QAM Channel Frequence (MHz) LTE Conducted Power (Full) LTE Band 2 MCS Index BW 3GPP MPR (dB) 20M 20M 15M 15M BW 3GPP MPR LTE Conducted Power (Full) LTE Band 2 186501890019150 185518801905 1022.0621.7922.150 12422.7822.5822.88…

Text truncated - open the document above for the full version.

Report No.: RF201118C03-6 Page No. 1 / 138 Report Format Version: 6.1.1 FCC Test Report (PART 22) Report No.: RF201118C03-6 FCC ID: B32V2104G Test Model: V210 4G R…
