B32V240M3GBWUPoint of Sales Terminal

Verifone Part Number DOC474-003-EN-E, Revision E V240m Installation Guide All rights reserved. No part of the contents of this document may be reproduced or transmitted in any form without the written permission of Verifone, Inc. The information contained in this document is subject to change without notice. Although Verifone has attempted to ensure the accuracy of the contents of this document, this document may include errors or omissions. The examples and sample programs are for illustration only and may not be suited for your purpose. You should verify the applicability of any example or sample program before placing the software into productive use. This document, including without limitation the examples and software programs, is supplied “As-Is.” Verifone Inc. 1-800-Verifone www.verifone.com Verifone Part Number DOC474-003-EN-E, Revision E V240m Installation Guide © 2020 Verifone, Inc. Verifone and the Verifone logo, are registered trademarks of Verifone. Other brand names or trademarks associated with Verifone’s products and services are trademarks of Verifone, Inc. All other brand names and trademarks appearing in this manual are the property of their respective holders. Product Warranty For product warranty information, go to http://www.verifone.com/terms. Comments? Please e-mail all comments on this document to your local Verifone Support Team. V240M INSTALLATION GUIDE3 CONTENTS PREFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Organization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Guide Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Acronym Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 CHAPTER 1 OverviewV240m Terminal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Front Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Back Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 End Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 V240m Bases. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 V240m Charging Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 V240m Full-Feature Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Exceptional Ease of Use and Ergonomics . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Critical Security Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 CHAPTER 2 SetupSelecting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Environmental Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Electrical Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Contactless Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 PIN Protection Measures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Unpacking Shipping Carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 MSAM/uSD Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Opening Card Compartment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Changing or Installing MSAMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Changing or Installing Micro SD Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Changing or Installing SIM Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Loading Printer Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 USB Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Cable Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Cable Connections Using the Full-Feature Base . . . . . . . . . . . . . . . . . . . . . 22 Smart Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Magnetic Stripe Card Reader Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Contactless Transactions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Camera / Barcode Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Full-Feature Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Charging Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Periodic Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 4V240M INSTALLATION GUIDE CHAPTER 3 SpecificationsV240m Terminal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Unit Power Requiremen…

Text truncated - open the document above for the full version.

FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ************************************************************************************************* Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. ************************************************************************************************* This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To comply with FCC RF exposure requirement, a minimum separation distance of 20 cm must be maintained between the user's body and the device, including the antenna. Conditions that do not meet these requirements may not comply with FCC RF exposure requirements and should be avoided. US responsible party Info Company Name: Verifone, Inc. Address: 1400 West Stanford Ranch Road, Suite 200, Rocklin CA 95765 USA Website: https://support.verifone.com/s/ CE Statement The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range. AT BE BG HR CY CZ DK EE FI FR DE EL HU IE IT LV LT LU MT NL PL PT RO SK SI ES SE UK(NI) IS LI NO CH TR Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions Waste Electrical and Electronic Equipment (WEEE) This symbol means that according to local laws and regulations your product and/or its battery shall be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. Proper recycling of your product will protect human health and the environment. CE Max Power Function Power(dBm) GSM 33.5dBm WCDMA 23.5dBm BT 6.5dBm WIFI 2.4G 16.5dBm CTLS 11.08 dBuA/m@10m

VeriFone Inc | Suite 200 1400 Wes t Stanford Ranch Road | Rocklin - California - 95765 | United States Date: December 1, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subj ect: Request for Confidentiality FCC ID: B32V240M3GBWU To Whom It May Concern, P ursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. S chematic Diagra m B lock Diagra m Part List O perational Description Tune-up Procedure A bove mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. B est Regards, ______________________ Steve Hsu Sr. Director, Hardware Engineering Verifone Inc Tel: 886-23789-7313 Fax: 886-2-26553168 Email: [email protected]

VeriFone Inc | Suite 200 1400 West Stanford Ranch Road | Rocklin - California - 95765 | United States Date: December 1, 2020 To whom it may concern, P lease be notified that I, Steve Hsu, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. An y and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. W e further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. T his authorization is limited to the product of as following: FCC ID: B32V240M3GBWU I f you have any acknowledgement and response, please send it to Sporton International Inc. directly. S incerely yours, Steve Hsu Sr. Director, Hardware Engineering Verifone Inc Tel: 886-23789-7313 Fax: 886-2-2655-3168 Email: [email protected]

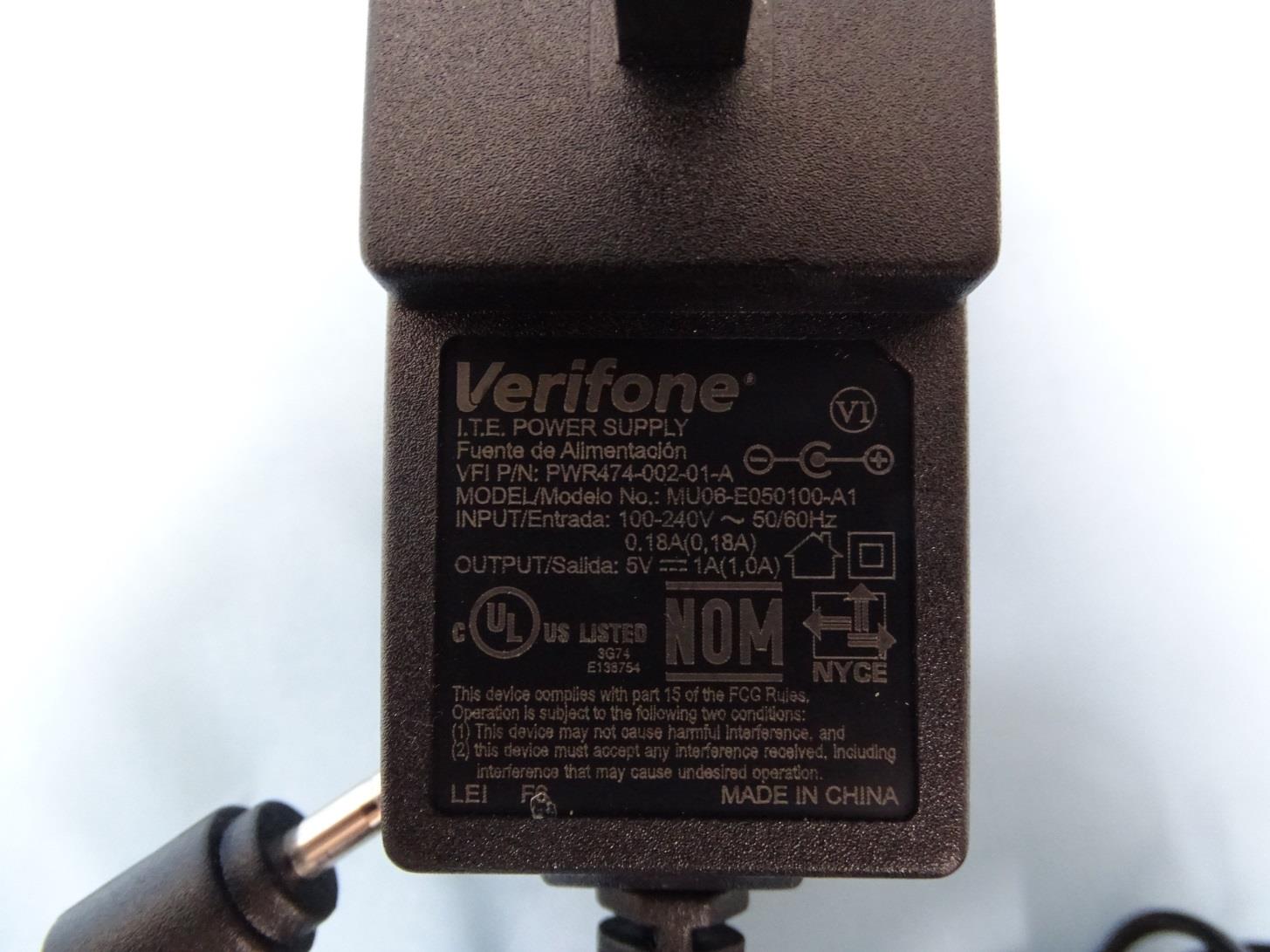

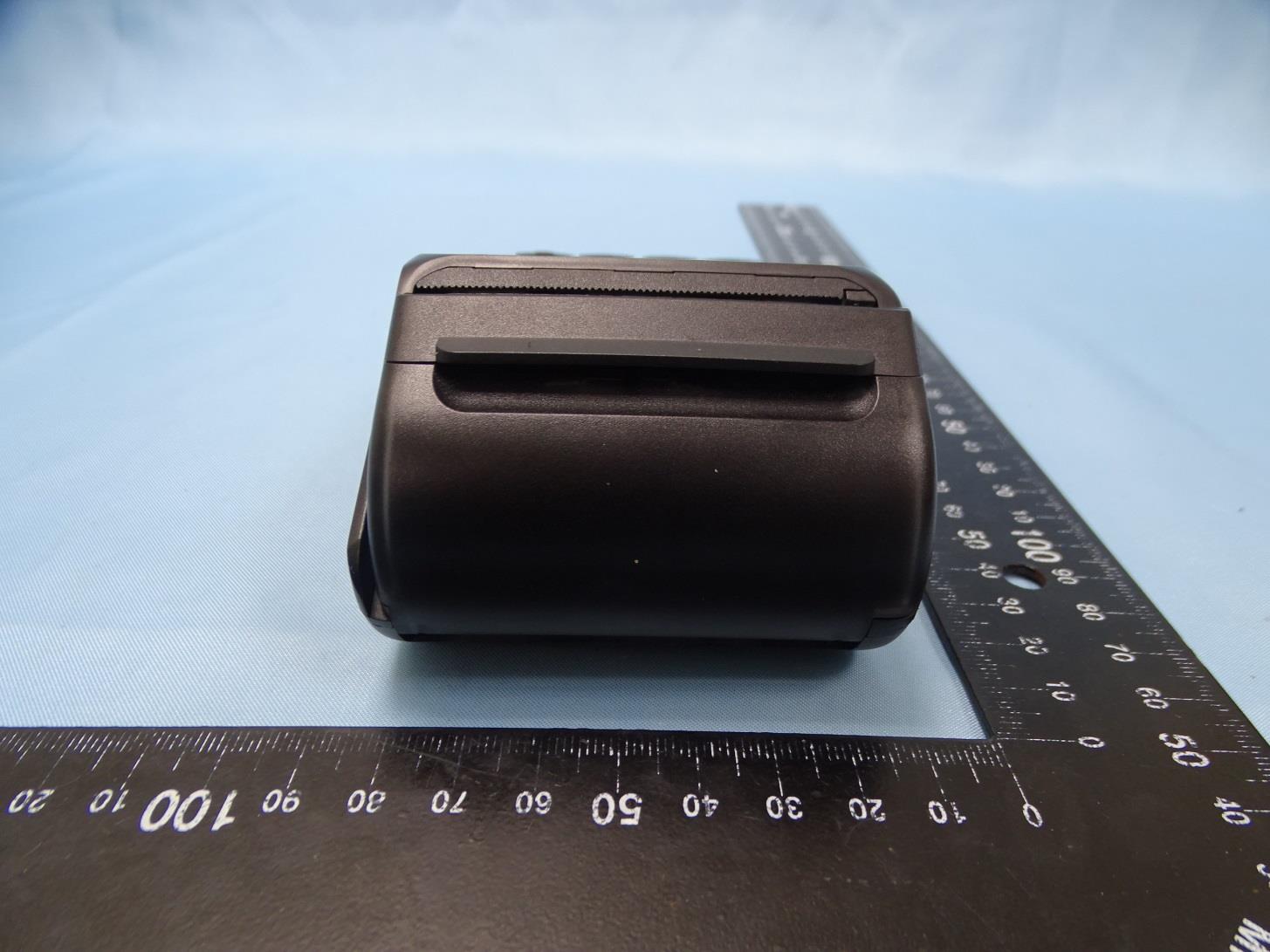

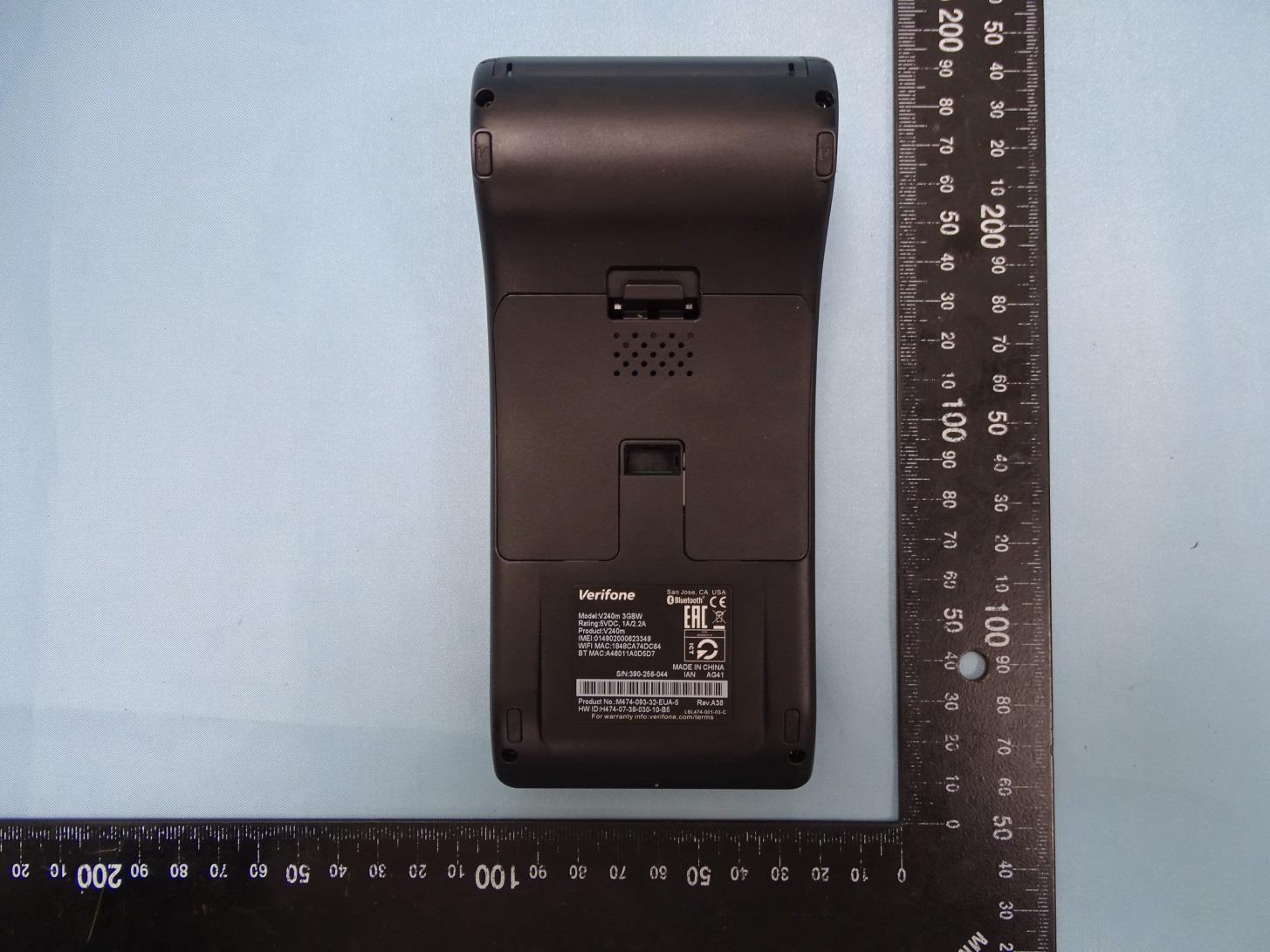

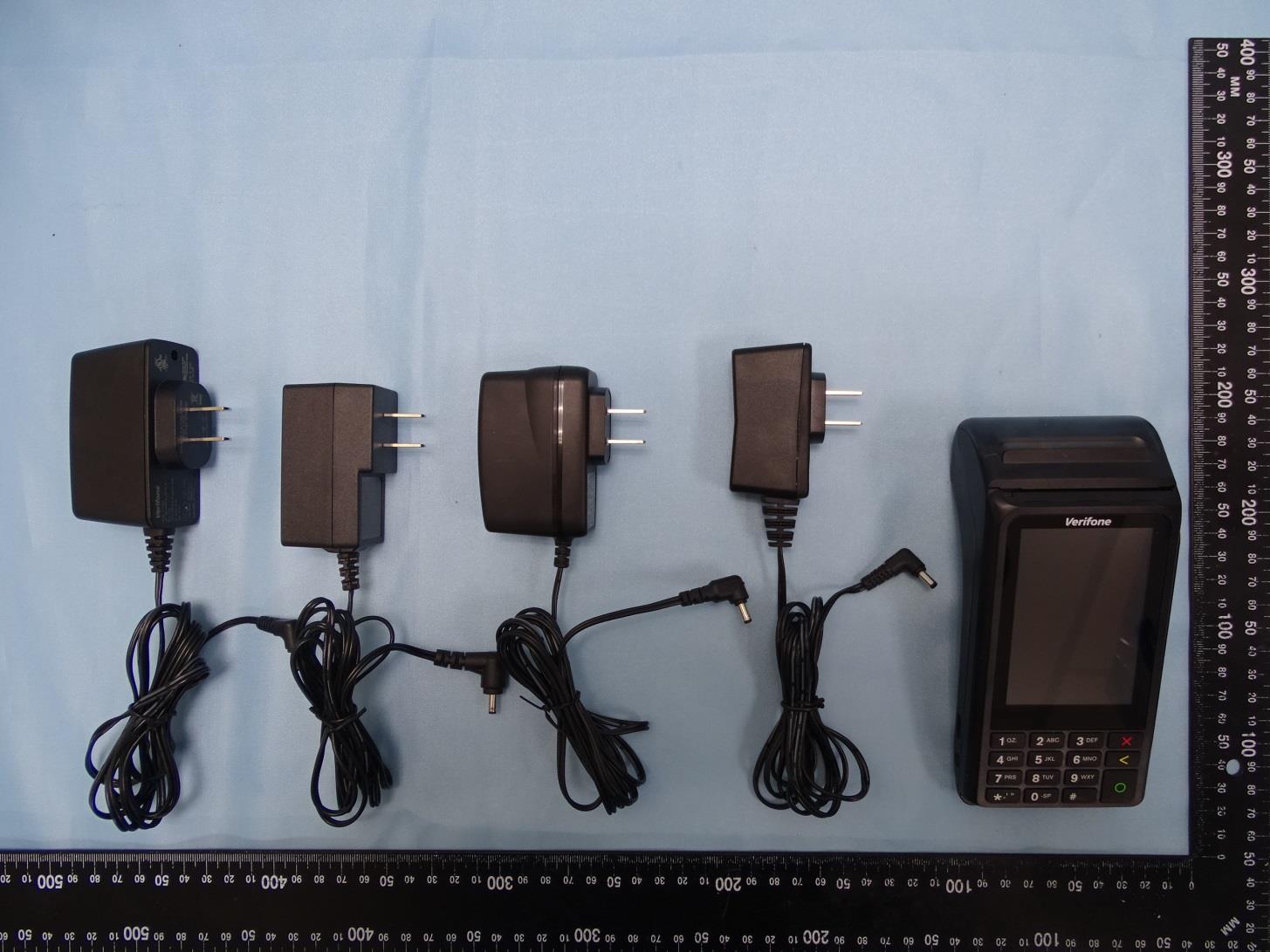

PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 1 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 720510 1. External Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 2 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 3 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 4 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 5 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 6 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 7 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 Specification of Accessory AC Adapter 1 Brand Name Verifone Manufacturer PHIHONG Model Name AM11A-050A Power Rating Input : 100-240Vac, 0.5A Output: 5Vdc, 2.2A, 11W AC Adapter 2 Brand Name Verifone Manufacturer Salcomp Model Name VF0402 Power Rating Input : 100-240Vac, 0.5A Output: 5Vdc, 2.2A, 11W AC Adapter 3 Brand Name Verifone Manufacturer Salcomp Model Name SC1402 Power Rating Input : 100-240Vac, 0.15A Output: 5Vdc, 1A, 5W AC Adapter 4 Brand Name Verifone Manufacturer Leader Model Name MU06-E050100-A1 Power Rating Input : 100-240Vac, 0.18A Output: 5Vdc, 1A, 5W Battery Brand Name Verifone Model Name BPK474-001 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 8 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 9 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 AC Adapter 1 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 10 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 AC Adapter 2 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 11 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 AC Adapter 3 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 12 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 AC Adapter 4 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 13 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 Battery PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 14 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01

LBL474-011-03-A Victoria_L1 Victoria_L1 Ella Lin 16Nov20 16Nov20 16Nov20 A00 A00 ECO# CXXXXX 16-Nov-2020 Ella Lin LABEL V240M PROD ID CE LBL474-011-03-AW Model:V240m 3GBWU Rating:5V 1A/2.2A Product:V240m FCC ID:B32V240M3GBWU

PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 15 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 3. Internal Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 16 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 17 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 18 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 19 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 20 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 21 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 22 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 23 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 24 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 25 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 26 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 27 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 28 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 29 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 30 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 31 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 32 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 33 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 34 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 35 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 36 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 37 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 38 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP862115-02 Brand Name: Verifone / Model Name: V240m 3GBWU TEL : 886-3-327-3456 Page Number : 39 of 45 FAX : 886-3-328-4978 Issued Date : Dec. 16, 2020 Report Version : 01

TEL : 886-3-327-3456 Page 1 of 28 FAX : 886-3-328-4978 Issued Date : Dec. 15, 2020 Template version: 200414 FCC SAR TEST REPORT Report No. : FA862115-02 FCC SAR TEST REPORT FCC ID : B32V240M3GBWU Equipment : Point of Sales Terminal Brand Name : Verifone Model Name : V240m 3GBWU Applicant : Verifone, Inc. 1400 West Stanford Ranch Road, Suite 200, Rocklin CA 95765 USA Manufacturer : Verifone, Inc. Standard : FCC 47 CFR Part 2 (2.1093) The product was received on Nov 27, 2020 and testing was started from Dec 04, 2020 and completed on Dec 06, 2020. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample provide by manufacturer and the test data has been evaluated in accordance with the test procedures given in 47 CFR Part 2.1093 and FCC KDB and has been pass the FCC requirement. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 28 FAX : 886-3-328-4978 Issued Date : Dec. 15, 2020 Template version: 200414 FCC SAR TEST REPORT Report No. : FA862115-02 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 4. RF Exposure Limits....................................................................................................................................................... 6 4.1 Uncontrolled Environment ...................................................................................................................................... 6 4.2 Controlled Environment .......................................................................................................................................... 6 5. Specific Absorption Rate (SAR) ................................................................................................................................... 7 5.1 Introduction ............................................................................................................................................................ 7 5.2 SAR Definition ........................................................................................................................................................ 7 6. System Description and Setup .................................................................................................................................... 8 6.1 Test Site Location ................................................................................................................................................... 8 6.2 E-Field Probe ......................................................................................................................................................... 9 6.3 Data Acquisition Electronics (DAE) ........................................................................................................................ 9 6.4 Phantom ................................................................................................................................................................10 6.5 Device Holder........................................................................................................................................................ 11 7. Measurement Procedures ...........................................................................................................................................12 7.1 Spatial Peak SAR Evaluation ................................................................................................................................12 7.2 Power Reference Measurement............................................................................................................................13 7.3 Area Scan .............................................................................................................................................................13 7.4 Zoom Scan ............................................................................................................................................................14 7.5 Volume Scan Procedures ......................................................................................................................................14 7.6 Power Drift Monitoring ...........................................................................................................................................14 8. Test Equipment List .....................................................................................................................................................15 9. System Verification ......................................................................................................................................................16 9.1 Tissue Verification .................................................................................................................................................16 9.2 System Performance Check Results .....................................................................................................................17 10. GSM/UMTS Output Power (Unit: d…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/12/5 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_201205 Medium parameters used: f = 835 MHz; σ = 0.907 S/m; ε r = 42.32; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306; ConvF(9.61, 9.61, 9.61) @ 835 MHz; Calibrated: 2020/7/24 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2020/2/18 - Phantom: ELI V4.0; Type: QD OVA 001 Bx; Serial: 1041 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.49 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 63.39 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 3.94 W/kg SAR(1 g) = 2.58 W/kg; SAR(10 g) = 1.7 W/kg Maximum value of SAR (measured) = 3.47 W/kg 0 dB = 3.47 W/kg = 5.40 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/12/4 System Check_Head_1900MHz DUT: D1900V2-5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_201204 Medium parameters used: f = 1900 MHz; σ = 1.439 S/m; ε r = 39.113; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306; ConvF(8.06, 8.06, 8.06) @ 1900 MHz; Calibrated: 2020/7/24 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2020/2/18 - Phantom: ELI V4.0; Type: QD OVA 001 Bx; Serial: 1041 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.36 W/kg Pin=50mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 49.72 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 4.18 W/kg SAR(1 g) = 2.03 W/kg; SAR(10 g) = 1.02 W/kg Maximum value of SAR (measured) = 3.23 W/kg 0 dB = 3.23 W/kg = 5.09 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/12/6 System Check_Head_2450MHz DUT: D2450V2-736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_201206 Medium parameters used: f = 2450 MHz; σ = 1.828 S/m; ε r = 38.327; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7346;ConvF(7.66, 7.66, 7.66) @ 2450 MHz;Calibrated: 2020/5/20 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electr…

Text truncated - open the document above for the full version.
