B32VX520GPRSPoint of Sale Terminal

VeriFone Part Number DOC252-003-EN-B, Revision C.3 V E R I F ON E C O N FI DE N T I A L T EMP LATE R EV F VX520 VX520G Installation Guide All rights reserved. No part of the con tents of this document may be reproduced or transmitte d in any form witho ut the written permission of VeriFone, Inc. The information contained in this d ocument is su bject to chan ge without notice. Although VeriFone has attempted to ensu re the accuracy of the contents of this document, this document may include errors or omissions. The examples and sample programs are for illustration only and may not be suited for your purpose. You should verify the applicability of any example or sample program before placing the software into productive use. This document, including without limitation the examples and software programs, is supplied “As-Is.” VeriFone, Inc. 2099 Gateway Place, Suite 600 San Jose, CA, 95110 USA www.verifone.com VeriFone Part Number DOC252-003-EN-B, Revision C.3 VX 520/VX520G Installation Guide © 2010 VeriFone, Inc. VeriFone, the VeriFone logo , V eriCentre, V erix, and Zo nTalk are regi stered trad emarks of VeriFone. Othe r bra nd names or trademarks associated with VeriFone’s products and services are trademarks of VeriFone, Inc. All other brand names and trademarks appearing in this manual are the property of their respective holders. Comments? Please e-mail all comments on this document to your local VeriFone Support Team. VX 520 INSTALLATION GUIDE3 V E R I F ON E C O N FI DE N T I A L T EMP LATE R EV F CONTENTS PREFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Conventions and Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Document Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Acronym Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 CHAPTER1 Terminal OverviewVX 520 Terminal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 VX 520 Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 VX 520 Sprocket Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 VX 520 Sprocket Features and Benefits. . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 CHAPTER2 Terminal SetupVX 520 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Selecting Terminal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Unpacking the Shipping Carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Examining Terminal Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Installing the Smart Battery (VX 520 GPRS Only) . . . . . . . . . . . . . . . . . . . . 24 Establishing Telephone Line Connections . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Installing a Paper Roll in the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Installing/Replacing MSAM Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Installing/Replacing SIM Card (VX 520 GPRS Only) . . . . . . . . . . . . . . . . . . 30 Connecting Optional Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Connecting the Terminal Power Pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Charging the Smart Battery (VX 520 GPRS Only) . . . . . . . . . . . . . . . . . . . . 37 Privacy Shield (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Using the Smart Card Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Using the Magnetic Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 VX 520 Sprocket Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Selecting Terminal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Unpacking the Shipping Carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Examining Terminal Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Establishing Telephone and Line Connections. . . . . . . . . . . . . . . . . . . . . . . 45 Installing Paper Tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Installing Paper in the Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Installing/Replacing MSAM Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Connecting Optional Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Connecting the Terminal Power Pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Privacy Shield (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Using the Smart Card Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Using the Magnetic Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 CONTENTS 4VX 520 INSTALLATION GUIDE V E R I F ON E C O N FI DE N T I A L T EMP LATE R EV F CHAPTER3 SpecificationsVX 520 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 DC Power Pack. . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

VeriFone Inc 1400 West Stanford Ranch Road Suit 200, Rocklin, California 95765, United States Tel: 916-625-1888 ; Fax: 916-625-1800 Date: December 2, 2010 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: B32VX520GPRS To Whom It May Concern: We, VeriFone Inc. , hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Fanny Wong

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 December 19, 2010 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. December 19, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Point of Sale Terminal Model name: VX520/VX520G We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Roy Wu Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C.

VeriFone Inc 1400 West Stanford Ranch Road Suit 200, Rocklin, California 95765, United States Tel: 916-625-1888 ; Fax: 916-625-1800 Date: December 2, 2010 Power of Attorney To whom it may concern, Please be notified that I, Fanny Wong, have designated Roy Wu in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: B32VX520GPRS If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Fanny Wong Company: VeriFone Inc TEL: 408-232-7252 FAX: 916-625-1800 E-mail: [email protected]

1/1 VeriFone Inc 1400 West Stanford Ranch Road Suit 200, Rocklin, California 95765, United States Tel: 916-625-1888 ; Fax: 916-625-1800 Date: December 2, 2010 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : B32VX520GPRS To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 days:  External Photos (file: VX520_ExtPho.pdf)  Internal Photos (file: VX520_IntPho.pdf)  Test Setup Photos (file: VX520_Tsup.pdf)  User Manual (file: VX520_UserMan.pdf) The application contains technical information, which VeriFone Inc deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Fanny Wong

Rev. 1/1/03 VeriFone Inc 1400 West Stanford Ranch Road Suit 200, Rocklin, California 95765, United States Tel: 916-625-1888 ; Fax: 916-625-1800 Date: December 2, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: B32VX520GPRS Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: VX520_Schem.pdf) Block Diagram (file: VX520_BlkDia.pdf) Parts List (file: VX520_PartsLst.pdf) Operation Description (file: VX520_OpDes.pdf) Tune up Procedure (file: VX520_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Fanny Wong

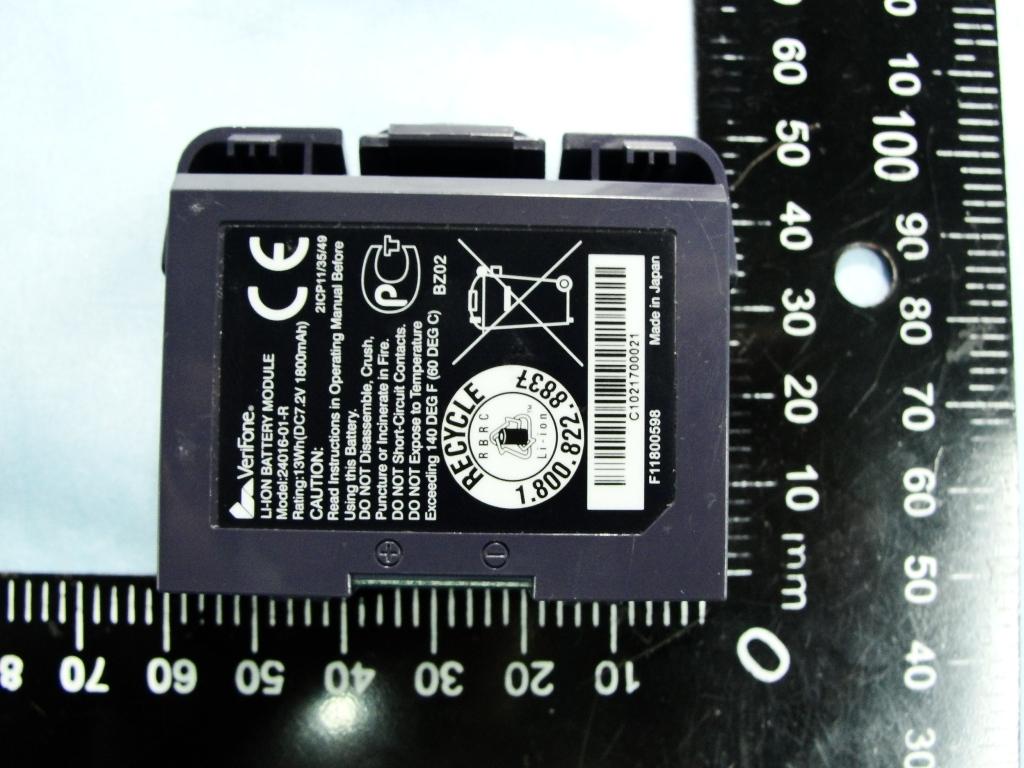

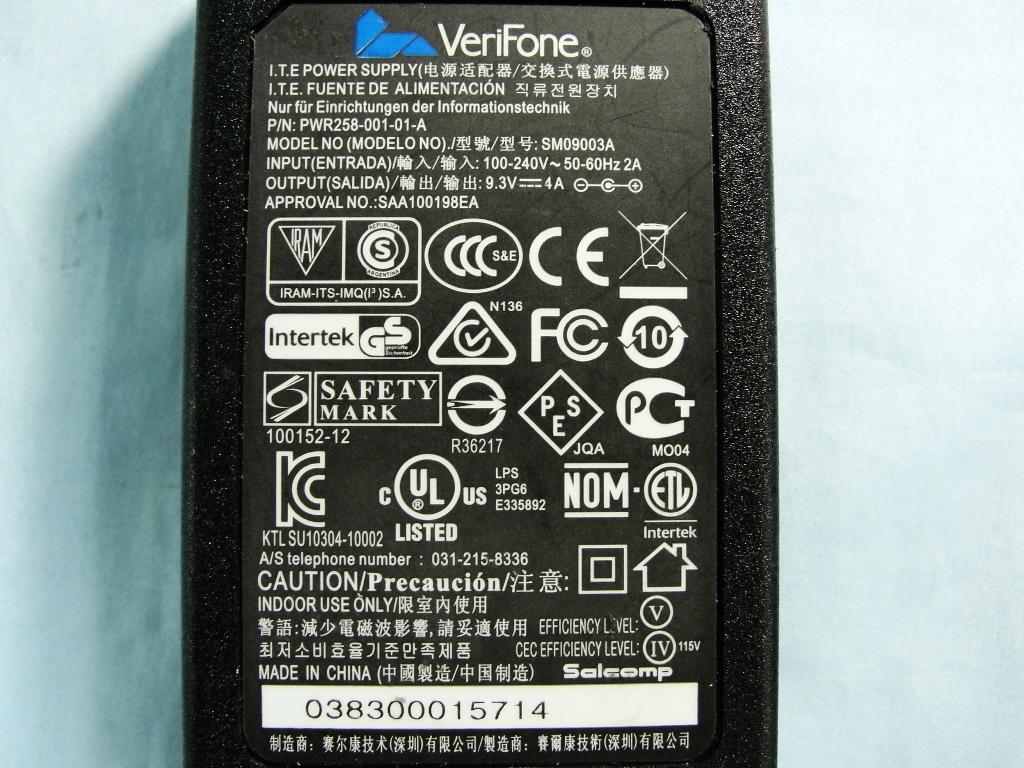

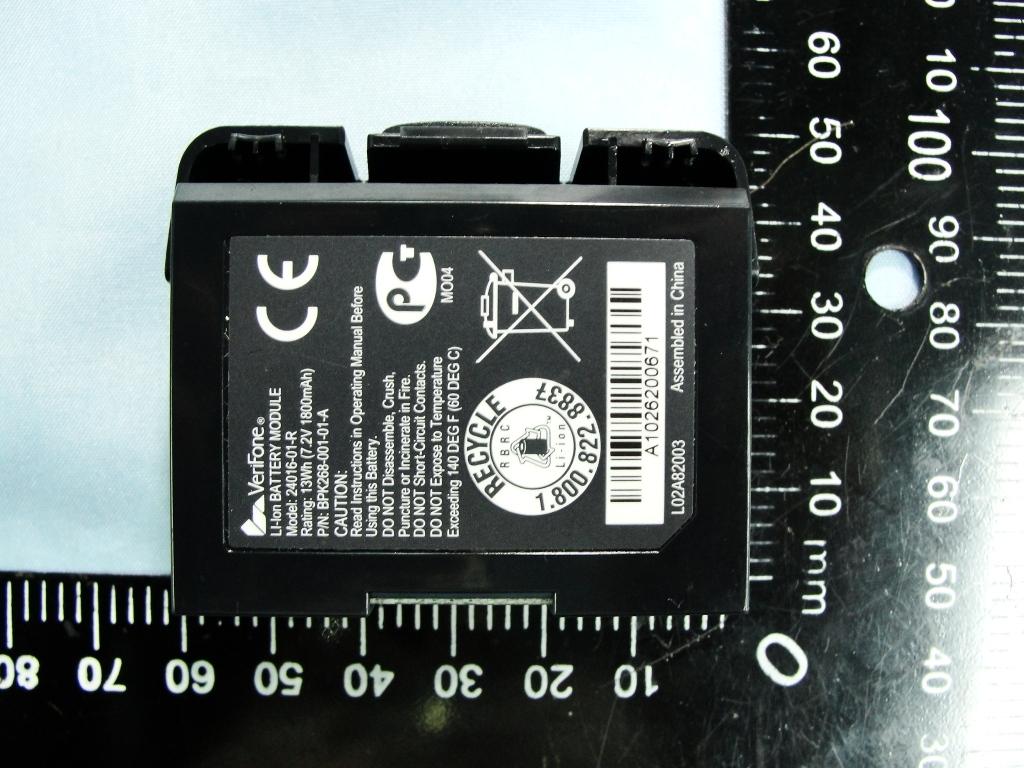

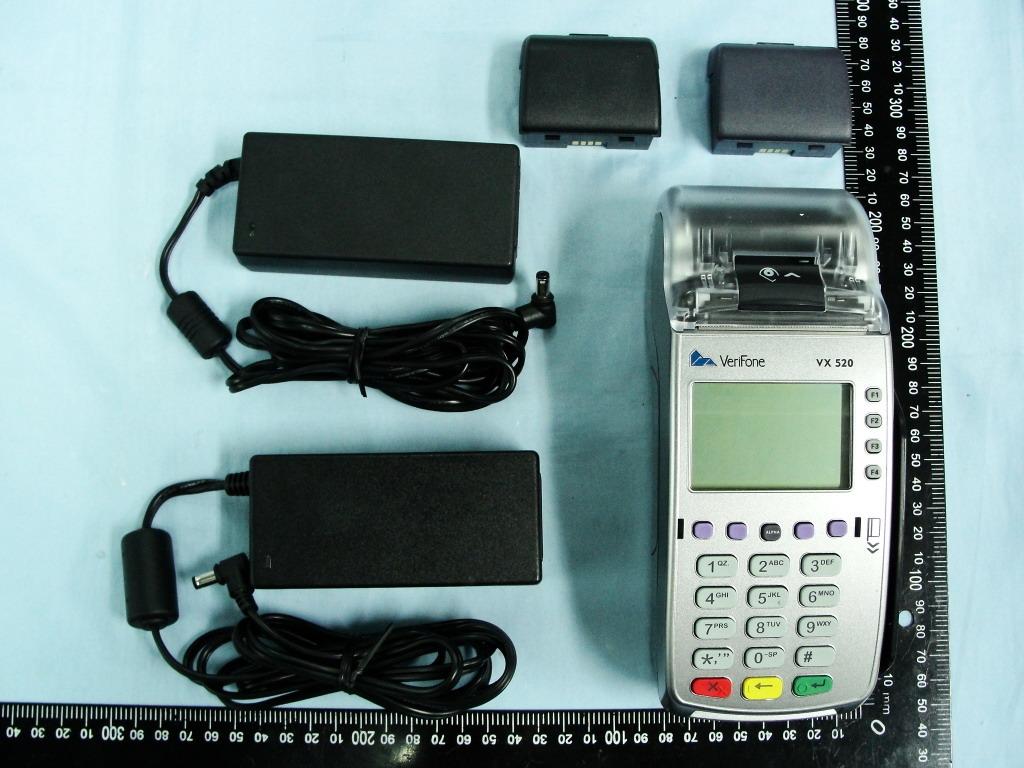

Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 1 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 2 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 3 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS List of Accessory: Specification of Accessory AC Adapter 1 Brand Name VeriFone Model Name CAE036092 Part Number PWR258-001-01A AC Adapter 2 Brand Name VeriFone Model Name SM09003A Part Number PWR258-001-01A Battery 1 Brand Name VeriFone Manufacturer Palladium Energy Model Name 24016-01-R Battery 2 Brand Name VeriFone Manufacturer SANYO Model Name 24016-01-R 2G Module Brand Name Cinterion Model Name MC55i Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 4 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS 720510 Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 5 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS AC Adapter 1 Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 6 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS AC Adapter 2 Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 7 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS Battery 1 Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 8 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS Battery 2

SIGNATURES REV.DWG.NO.SIZE TITLE DATE SCALE: SHEET DWN. ENG. CHK. OF R XXX ECO# CXXXXX 5/7/2010 ALLEN_K2 LABEL VX520 PROD ID CE ARTWORK LBL252-XXX-01-AW XXX A4 2X VICTORIA_L1 10/19/10 10/19/10 ALLEN_K2 THIS DOCUMENT IS THE PROPERTY OF VERIFONE, AND CONTAINS VERIFONE'S CONFIDENTIAL AND PROPRIETARY INFORMATION IN CONSIDERATION OF VERIFONE'S DISCLOSURE OF THIS DOCUMENT TO YOU, YOU AGREE THAT NEITHER IT, NOR THE INFORMATION CONTAINED THEREIN SHALL BE DISCLOSED TO OTHERS OR DUPLICATED, IN WHOLE OR IN PART, OR USED FOR ANY PURPOSES OTHER THAN AGREED TO BY VERIFONE, WITHOUT EXPRESS WRITTEN CONSENT OF VERIFONE. THIS ARTWORK IS THE PROPERTY OF VERIFONE. HANDLE WITH CARE AND RETURN TO VERIFONE VERY SOON AFTER USE. UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN MILLIMETERS. 11 REV.DESCRIPTIONDATEAPPROVED REVISIONS . 37.5 2 0 . 0 R San Jose, CA. USA LBL252-XXX-01-A Model:VX520G Rating:9.3VDC,4A FCC ID:B32VX520GPRS IC:787C-VX520GPRS 1.4 mm 0678

Label location

Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 9 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS 3. Internal Photograph of EUT Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 10 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 11 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 12 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 13 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 14 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS 720510 Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 15 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS WWAN Antenna Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 16 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS WWAN Antenna Photographs of EUT Report No.: EP0O1114 Brand Name: VeriFone / Model Name: VX520/VX520G SPORTON INTERNATIONAL INC. Page Number : 17 of 17 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS WWAN Antenna

SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS FCC SAR Test Report Report No. : FA0O1114 FCC SAR Test Report APPLICANT : VeriFone Inc. EQUIPMENT : Point of Sale Terminal BRAND NAME : VeriFone MODEL NAME : VX520/VX520G FCC ID : B32VX520GPRS STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Oct. 11, 2010 and completely tested on Nov. 25, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX520GPRS FCC SAR Test Report Report No. : FA0O1114 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 7 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................17 5.7.1 Data Storage ......................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/11/24 System Check_Body_835MHz_101124 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_101124 Medium parameters used: f = 835 MHz; σ = 0.965 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.04 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.0 V/m; Power Drift = -0.011 dB Peak SAR (extrapolated) = 1.38 W/kg SAR(1 g) = 0.963 mW/g; SAR(10 g) = 0.637 mW/g Maximum value of SAR (measured) = 1.04 mW/g 0 dB = 1.04mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/11/25 System Check_Body_1900MHz_101125 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_101125 Medium parameters used: f = 1900 MHz; σ = 1.57 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.47, 4.47, 4.47); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 4.95 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.2 V/m; Power Drift = -0.008 dB Peak SAR (extrapolated) = 6.65 W/kg SAR(1 g) = 4.27 mW/g; SAR(10 g) = 2.33 mW/g Maximum value of SAR (measured) = 4.92 mW/g 0 dB = 4.92mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/11/24 #02 GSM850_GPRS10_Bottom_0cm_Ch189_Battery2 DUT: 0O1114 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:4 Medium: MSL_850_101124 Medium parameters used : f = 836.4 MHz; σ = 0.966 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch251/Area Scan (61x121x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.679 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.80 V/m; Power Drift = -0.147 dB Peak SAR (extrapolated) = 0.808 W/kg SAR(1 g) = 0.579 mW/g; SAR(10 g) = 0.392 mW/g Maximum value of SAR (measured) = 0.614 mW/g 0 dB = 0.614mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/11/24 #02 GSM850_GPRS10_Bottom_0cm_Ch189_Battery2_2D DUT: 0O1114 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:4 Medium: MSL_850_101124 Medium parameters used : f = 836.4 MHz; σ = 0.966 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch251/Area Scan (61x121x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.679 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.80 V/m; Power Drift = -0.147 dB Peak SAR (extrapolated) = 0.808 W/kg SAR(1 g) = 0.579 mW/g; SAR(10 g) = 0.392 mW/g Maximum value of SAR (measured) = 0.614 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/11/25 #03 GSM1900_GPRS10_Bottom_0cm_Ch810_Battery1 DUT: 0O1114 Communication System: PCS 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:4 Medium: MSL_1900_101125 Medium parameters used: f = 1910 MHz; σ = 1.58 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.47, 4.47, 4.47); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch810/Area Scan (61x121x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.207 mW/g Ch810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.37 V/m; Power Drift = 0.186 dB Peak SAR (extrapolated) = 0.282 W/kg SAR(1 g) = 0.196 mW/g; SAR(10 g) = 0.122 mW/g Maximum value of SAR (measured) = 0.210 mW/g 0 dB = 0.210mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/11/25 #03 GSM1900_GPRS10_Bottom_0cm_Ch810_Battery1_2D DUT: 0O1114 Communication System: PCS 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:4 Medium: MSL_1900_101125 Medium parameters used: f = 1910 MHz; σ = 1.58 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.47, 4.47, 4.47); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch810/Area Scan (61x121x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.207 mW/g Ch810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm,…

Text truncated - open the document above for the full version.
