Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

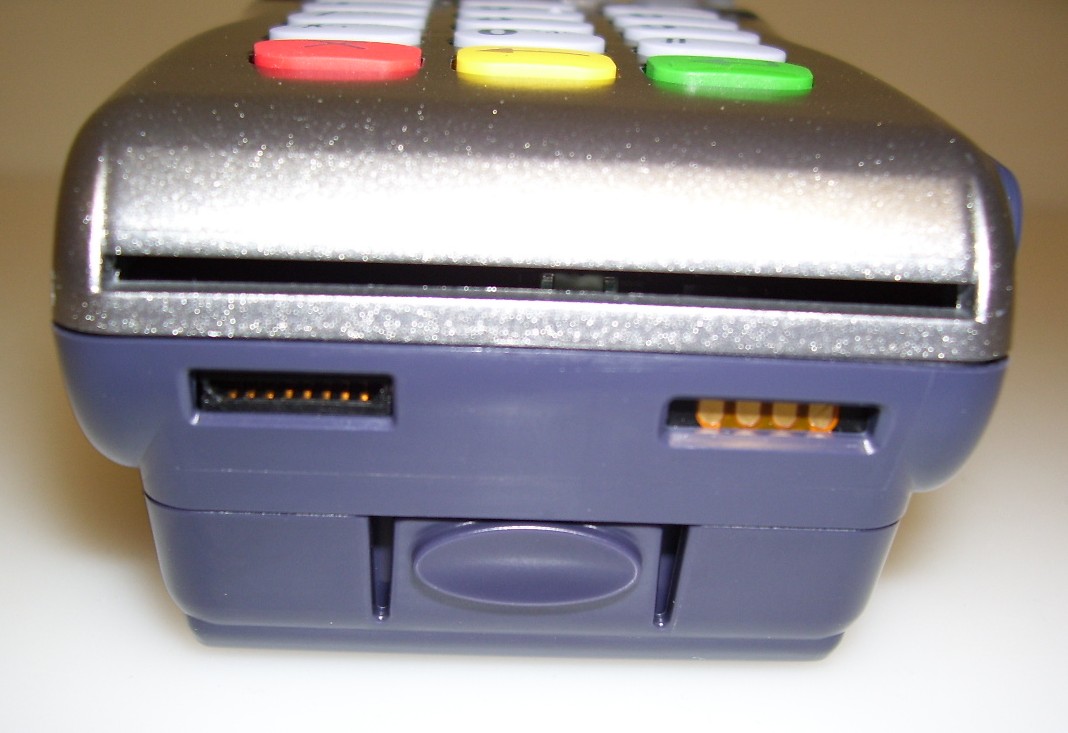

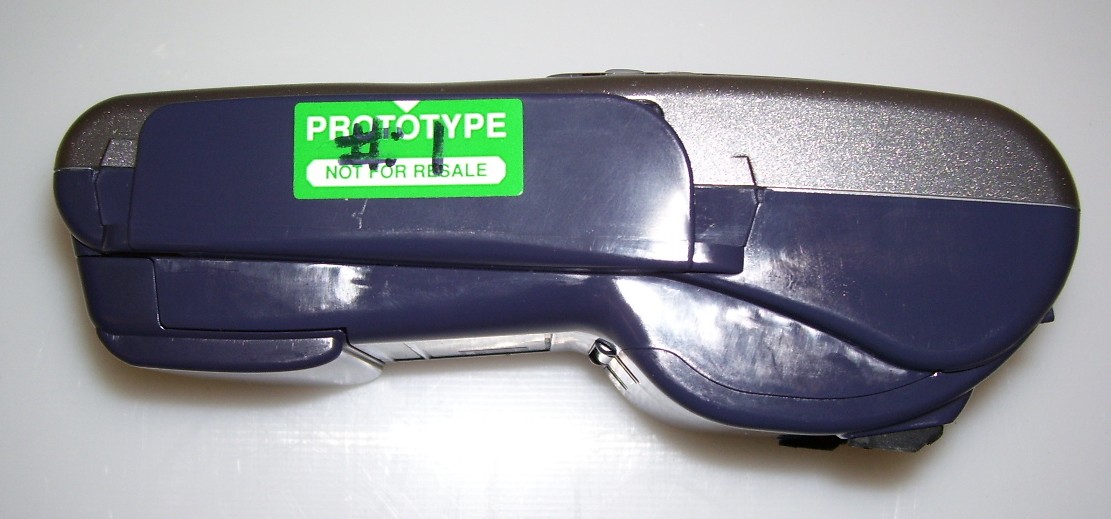

VeriFone Part Number 24003, Revision A.3 V x 670 Installation Guide All rights reserved. No part of the contents of this document may be reproduced or transmitted in any form without the written permission of VeriFone, Inc. The information contained in this document is subject to change without notice. Although VeriFone has attempted to ensure the accuracy of the contents of this document, this document may include errors or omissions. The examples and sample programs are for illustration only and may not be suited for your purpose. You should verify the applicability of any example or sample program before placing the software into productive use. This document, including without limitation the examples and software programs, is supplied “As-Is.” VeriFone, Inc. 2099 Gateway Place, Suite 600 San Jose, CA, 95110 USA www.verifone.com VeriFone Part Number 24003, Revision A.3 V x 670 Installation Guide © 2006 VeriFone, Inc. VeriFone, the VeriFone logo, Omni, VeriCentre, Verix, and ZonTalk are registered trademarks of VeriFone. Other brand names or trademarks associated with VeriFone’s products and services are trademarks of VeriFone, Inc. All other brand names and trademarks appearing in this manual are the property of their respective holders. Comments? Please e-mail all comments on this document to your local VeriFone Support Team. WARNING Do not dispose of the V x 670 Li-ion smart battery in a fire. Li-ion batteries must be recycled or disposed of properly. Do not dispose of Li-ion batteries in municipal waste sites. V X 670 INSTALLATION GUIDE3 CONTENTS PREFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Conventions and Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Document Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Acronym Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 CHAPTER1 Terminal OverviewFeatures and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Exceptional Ease of Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Performance and Durability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 True Multi-Application Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Expandable Communication Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Wireless Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 CHAPTER2 Terminal SetupSelecting Terminal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Ease of Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Environmental Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Electrical Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Unpacking the Shipping Carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Examining Terminal Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Examining the Handy-Link Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Cable Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Connection Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 USB Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Establishing Telephone Line Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Installing the Paper Roll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Installing/Replacing MSAM Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Installing/Replacing SIM Card (GSM/GPRS Models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Connecting the Terminal Power Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Using the Smart Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Smart Battery Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 V x 670 Battery Behavior (No Power Cord) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Manual Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Manual Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Installing the Smart Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Charging the Smart Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Battery Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Using the V x 670 Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…
Text truncated - open the document above for the full version.
c 2006 VeriFone, Inc. All rights reserved. 2099 Gateway Place, Suite 600 San Jose CA 95110 Tel: 800 VeriFone (837-4366) www.verifone.com V x 670 Certifications and Regulations VeriFone Part Number: 24000 Revision A.3 V E R I F O N E D R A F T V E R I F O N E D R A F T *24000* ElectricalPower PacksBefore you connect the terminal power pack to an electrical outlet, check that the on/off power switch on the terminal is off. If the terminal does not have an on/off switch, check that the power cable connector is removed from the terminal’s power port.or When connecting the terminal to a power pack, always connect the plug of the power pack to an electrical wall outlet first . Then connect the power cable to the terminal’s power port.The power pack is rated as follows:Input Voltage: 100 - 240 V AC, 50/60 HzOutput Voltage: 12 V DC, 2 A AC AdapterThe AC adapter is designed to ensure your personal safety and to be compatible with this equipment. Please follow these guideli nes: • Do not use the adapter in a high moisture environment. Never touch the adapter when your hands or feet are wet. • Allow adequate ventilation around the adapter. Avoid locations with restricted airflow. • Connect the adapter to a proper power source. The voltage and grounding requirements are found on the product case and/or packaging. • Do not use the adapter if the cord becomes damaged. • Do not attempt to service the adapter. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess moisture. Separate Power SourcesSome peripherals require a separate power source. Before connecting a check reader or similar device, remove the power cable connector from the terminal’s power port. PeripheralsBefore connecting any peripheral device, turn off power to the terminal and check that the power cable connector is removed from the terminal’s power port. Turn on power only after you are finished connecting the peripheral device(s). For complete information about peripheral installation and use, please refer to the user documentation supplied with those devices.Telecommunication CordCaution: To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord.Disconnecting PowerDisconnecting power during a transaction may cause transaction data files that are not yet stored in terminal memory to be lost. Location – Electrical ConsiderationsCAUTION : Due to risk of electrical shock or terminal damage, do not use the terminal near water, including a bathtub, wash bowl, kitch en sink or laundry tub, in a wet basement, or near a swimming pool. Also, avoid using this product during electrical storms.Avoid locations near electrical appliances or other devices that cause excessive voltage fluctuations or emit electrical noise (for example, air conditioners, neon signs, high-frequency or magnetic security devices, or electric motors). EquipmentRepairsDo not, under any circumstances , attempt any service, adjustments, or repairs on this equipment. Instead, contact your local VeriFone distributor or service provider for assistance. Failure to comply may void the product warranty.Location – Environmental ConsiderationsDo not plug the power pack into an outdoor outlet or operate the terminal outdoors. It is not waterproof or dustproof, and is f or indoor use only. Any damage to the unit from exposure to rain or dust may void your warranty.Do not use the terminal where there is high heat, dust, humidity, moisture, or caustic chemicals or oils. Keep the terminal awa y from direct sunlight and anything that radiates heat, such as a stove or a motor. V x 670 Certifications and Regulations FCC ComplianceThe following device has been tested and certified as compliant with the regulations and guidelines set forth in Part 68 of FCC Rules:Manufacturer: VeriFone, Inc.Brand, Model: V x 670 Part 15 of FCC RulesThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may n ot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Part 68 of FCC RulesThis equipment complies with Part 68 of the FCC Rules. On the modem board inside full featured base stations is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information may be provided to the telephone company.The REN is used to determine the quantity of devices that may be connected to the telephone line. Excessive RENs on the telephone line may result in the device not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the to tal RENs, contact the telephone company to determine the maximum RENs for the calling area.This terminal cannot be used on telephone-company-provided coin se rvice. Connection to Party Line Service is subject to state tariffs.This equipment uses the following USOC jacks: (RJ11C).An FCC-compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack that is Part 68 compliant.If this equipment causes harm to the telephone network, t he telephone company will notify you in advance that temporary discontinuance of service may be required. If advance notice is not practical, the telephone co mpany will notify the customer a s soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.The telephone company may make changes in its facilities, equipme nt, operations, or procedures that could affect the operation of this equipment. If this happens, the telepho ne company will provide advance notice in order for you t…
Text truncated - open the document above for the full version.
DOC-FCC007-5 rev 05/2/2005 FCC TCB Customer Pkg Page 9 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Senior RF Design Engineer Verifone Inc. April 26, 2006
April 25, 2006 VeriFone Inc. 3755 Atherton Road Rocklin, CA 95765-3701 Tel: 916/630-3534 MET Laboratories 914 West Patapsco Ave. Baltimore, MD 21230 Confidentiality Request regarding application for certification of FCC ID: B32VX670WIFI Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Engineering Requirements Specification (ERS) Block Diagram Antenna Specifications Parts list The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Michael K. Pedigo Senior RF Design Engineer Verifone Inc. E-mail: [email protected]
REVISIONS DESCRIPTIONREVDATEAPPR UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS. SIGNATURESDATE SIZE TITLE REVDWG NUMBER A OWNERSHIP SITE: SCALE: DWN ENG CHK SHEET OF THIS DOCUMENT IS THE PROPERTY OF VERIFONE, AND CONTAINS VERIFONE'S CONFIDENTIAL AND PROPRIETARY INFORMATION. IN CONSIDERATION OF VERIFONE'S DISCLOSURE OF THIS DOCUMENT TO YOU, YOU AGREE THAT NEITHER IT NOR THE INFORMATION CONTAINED THEREIN SHALL BE DISCLOSED TO OTHERS OR DUPLICATED, IN WHOLE OR IN PART, OR USED FOR ANY PURPOSES OTHER THAN AGREED TO BY VERIFONE WITHOUT THE EXPRESS WRITTEN CONSENT OF VERIFONE. THIS ARTWORK IS THE PROPERTY OF VERIFONE. HANDLE PHYSICAL ARTWORK WITH CARE AND RETURN TO VERIFONE AS SOON AS POSSIBLE. Actual Size 100%200% 23-MAY’06D. COWLES C SCHULZ04/20/06 XXXXXXXXX 24076-06-F A/W, LABEL, PROD ID WIFI, VX670 A 1 1 SMFAS NOTED A ECO# C15699 01-JUN’06 DRC MODEL:VX670-W RATING:12VDC, 2A P/N:????-???-??-??? REV:? FCC ID:B32VX670WIFI IC:787C-VX670W MAC:???????????? MADE IN CHINA SHI 24076-06 Code 39, 0.17mm, 2:1 MODEL:VX670-W RATING:12VDC, 2A P/N:????-???-??-??? REV:? FCC ID:B32VX670WIFI IC:787C-VX670W MAC:???????????? MADE IN CHINA SHI 24076-06 Code 39, 0.17mm, 2:1 NOTES: 1. BACKGROUND COLOR: WHITE, TEXT AND LOGO COLOR: BLACK 2. FONT: 1.3MM TALL, 1.8MM LINE SPACE, ZPL FONT C UNLESS OTHERWISE SPECIFIED 3 PRINT CURRENT JOB PART NUMBER. 4 PRINT CURRENT PART NUMBER REVISION. 5 PRINT MAC ADDRESS, ALPHANUMERIC. 6 PRINT MAC ADDRESS BARCODE, CODE 39. 8. ITEMS MARKED Δ HAVE CHANGED PER THIS REVISION. San Jose, CA USA San Jose, CA USA 5 4 3 6 39 REF 22.5 REF .
EMCS 19397-SAR-FCC© 2005, MET Laboratories, Inc Page 1 of 37 Dosimetric Assessment Test Report for the VeriFone Inc. Vx670W POS TERMINAL Tested and Evaluated In Accordance With FCC OET 65 Supplement C: 01-01 Prepared for VeriFone Inc. 3755 Atherton Rd. Rocklin, CA 95765 Engineering Statement: The measurements shown in this report were made in accordance with the procedures specified in Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] and Industry Canada RSS-102 for uncontrolled exposure. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment evaluated is capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1999. EMCS 19397-SAR-FCC© 2005, MET Laboratories, Inc Page 2 of 37 SAR Evaluation Certificate of Compliance FCC ID: B32VX670WWIFI APPLICANT: VeriFone Inc. Applicant Name and Address: VeriFone Inc. 3755 Atherton Rd. Rocklin, CA 95765 Test Location: MET Laboratories, Inc. 4855 Patrick Henry Dr. Bldg #6 Santa Clara, CA 95054 USA EUT: VeriFone Date of Receipt: April 17, 2006 Device Category: FCC 15.247 RF exposure environment: uncontrolled environment/general population RF exposure category: Portable Power supply: 7.2 VDC Li-Ion Battery and 12VDC External Antenna: Internal Production/prototype: Prototype Modulation: DTS Duty Cycle: 100% TX Range: 2412 - 2462MHz Maximum RF Power Output 2450MHz Band DSSS Mode: Peak Conducted 16.3dBm Maximum RF Power Output 2450MHz Band OFDM Mode: Peak Conducted 20.6dBm Maximum SAR Measurement 0.781mW/g Shawn McMillen Senior Engineer EMCS 19397-SAR-FCC© 2005, MET Laboratories, Inc Page 3 of 37 INTRODUCTION ................................................................................................................................................ 4 SAR DEFINITION ............................................................................................................................................... 4 DESCRIPTION OF DEVICE UNDER TEST (EUT) ..........................................................................................5 SAR MEASUREMENT SYSTEM....................................................................................................................... 6 MEASUREMENT SUMMARY........................................................................................................................... 7 EVALUATION PROCEDURES .......................................................................................................................... 9 DATA EVALUATION PROCEDURES ............................................................................................................. 10 SYSTEM PERFORMANCE CHECK................................................................................................................ 12 SIMULATED EQUIVALENT TISSUES ........................................................................................................... 12 SAR SAFETY LIMITS ...................................................................................................................................... 13 ROBOT SYSTEM SPECIFICATIONS .............................................................................................................. 14 1.1. Specifications ................................................................................................................ 14 1.2. Data Acquisition Electronic (Dae) System: .................................................................. 14 1.3. Phantom(s): ................................................................................................................... 14 PROBE SPECIFICATIONS (ET3DV6) ............................................................................................................. 15 SAR Measurement System ................................................................................................................................. 16 1.4. RX90BL Robot ............................................................................................................. 16 1.5. Robot Controller ........................................................................................................... 16 1.6. Light Beam Switch ....................................................................................................... 16 1.7. Data Acquisition Electronics ........................................................................................ 16 1.8. Electo-Optical Converter (EOC)................................................................................... 17 1.9. Measurement Server ..................................................................................................... 17 1.10. Dosimetric Probe ...................................................................................................... 17 1.11. SAM Phantom........................................................................................................... 17 1.12. Planar Phantom ......................................................................................................... 17 1.13. Validation Planar Phantom ....................................................................................... 17 1.14. Device Holder ........................................................................................................... 18 1.15. System Validation Kits ............................................................................................. 18 TEST EQUIPMENT LIST.................................................................................................................................. 19 MEASUREMENT UNCERTANTIES................................................................................................................…
Text truncated - open the document above for the full version.
Face side/DSSS mode/mid ch /battery power Date/Time: 4/17/2006 3:56:47 PM DUT: Verifone Vx670W; Type: 802.11b/g; Medium Notes: Fluid Temp: 22.1 deg C, Ambient Temp: 22.9 deg C Communication System: CW; ; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: M2450 Medium parameters used: f = 2450 MHz; ı = 2.04 mho/m;İ r = 54.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Probe: EX3DV3 - SN3511; ConvF(7.8, 7.8, 7.8); Calibrated: 1/23/2006 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn584; Calibrated: 9/22/2005 Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 2450MHz/Area Scan (141x201x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.103 mW/g 2450MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.24 V/m; Power Drift = -0.093 dB Peak SAR (extrapolated) = 0.174 W/kg SAR(1 g) = 0.092 mW/g; SAR(10 g) = 0.047 mW/g Maximum value of SAR (measured) = 0.103 mW/g Face side/DSSS mode/mid ch/ext power Date/Time: 4/17/2006 2:10:20 PM DUT: Verifone Vx670W; Type: 802.11b/g; Medium Notes: Fluid Temp: 22.1 deg C, Ambient Temp: 22.9 deg C Communication System: CW; ; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: M2450 Medium parameters used: f = 2450 MHz; ı = 2.04 mho/m;İ r = 54.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Probe: EX3DV3 - SN3511; ConvF(7.8, 7.8, 7.8); Calibrated: 1/23/2006 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn584; Calibrated: 9/22/2005 Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 2450MHz/Area Scan (141x201x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.269 mW/g 2450MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.64 V/m; Power Drift = 0.055 dB Peak SAR (extrapolated) = 0.461 W/kg SAR(1 g) = 0.244 mW/g; SAR(10 g) = 0.124 mW/g Maximum value of SAR (measured) = 0.278 mW/g Face side/OFDM mode/mid ch/battery power Date/Time: 4/17/2006 10:33:23 AM DUT: Verifone Vx670W; Type: 802.11b/g; Medium Notes: Fluid Temp: 22.1 deg C, Ambient Temp: 22.9 deg C Communication System: CW; ; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: M2450 Medium parameters used: f = 2450 MHz; ı = 2.04 mho/m;İ r = 54.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Probe: EX3DV3 - SN3511; ConvF(7.8, 7.8, 7.8); Calibrated: 1/23/2006 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn584; Calibrated: 9/22/2005 Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 2450MHz/Area Scan (121x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.327 mW/g 2450MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.90 V/m; Power Drift = 0.115 dB Peak SAR (extrapolated) = 0.583 W/kg SAR(1 g) = 0.301 mW/g; SAR(10 g) = 0.151 mW/g Maximum value of SAR (measured) = 0.343 mW/g Face side/OFDM mode/mid ch/ext power Date/Time: 4/17/2006 9:55:48 AM DUT: Verifone Vx670W; Type: 802.11b/g; Medium Notes: Fluid Temp: 22.1 deg C, Ambient Temp: 22.9 deg C Communication System: CW; ; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: M2450 Medium parameters used: f = 2450 MHz; ı = 2.04 mho/m;İ r = 54.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Probe: EX3DV3 - SN3511; ConvF(7.8, 7.8, 7.8); Calibrated: 1/23/2006 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn584; Calibrated: 9/22/2005 Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 2450MHz/Area Scan (141x201x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.316 mW/g 2450MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.63 V/m; Power Drift = -0.198 dB Peak SAR (extrapolated) = 0.568 W/kg SAR(1 g) = 0.287 mW/g; SAR(10 g) = 0.144 mW/g Maximum value of SAR (measured) = 0.329 mW/g f Front End/ DSSS mode/mid ch/battery power Date/Time: 4/17/2006 4:37:14 PM DUT: Verifone Vx670W; Type: 802.11b/g; Medium Notes: Fluid Temp: 22.1 deg C, Ambient Temp: 22.9 deg C Communication System: CW; ; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: M2450 Medium parameters used: f = 2450 MHz; ı = 2.04 mho/m;İ r = 54.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Probe: EX3DV3 - SN3511; ConvF(7.8, 7.8, 7.8); Calibrated: 1/23/2006 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn584; Calibrated: 9/22/2005 Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 2450MHz/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.652 mW/g 2450MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.6 V/m; Power Drift = -0.066 dB Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 0.569 mW/g; SAR(10 g) = 0.232 mW/g Maximum value of SAR (measured) = 0.697 mW/g Front End/ DSSS mode/ mid ch/ext power Date/Time: 4/17/2006 5:02:00 PM DUT: Verifone Vx670W; Type: 802.11b/g; Medium Notes: Fluid Temp: 22.1 deg C, Ambient Temp: 22.9 deg C Communication System: CW; ; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: M2450 Medium parameters used: f = 2450 MHz; ı = 2.04 mho/m;İ r = 54.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Probe: EX3DV3 - SN3511; ConvF(7.8, 7.8, 7.8); Calibrated: 1/23/2006 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn584; Calibrated: 9/22/2005 Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 2450MHz/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.757 mW/g 2450MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Referenc…
Text truncated - open the document above for the full version.
MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory April 18, 2006 VeriFone, Inc 3755 Atherton Road Rocklin, CA 95765 Dear Chris Choulos, Enclosed is the Telecom test report for compliance testing of the VeriFone, Inc, Vx670W as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-03 ed.), Part 15, Subpart B for a Class B Digital Device and Subpart C for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Boonmanus Seelapasay Documentation Department Reference: (\VeriFone, Inc\EMCS19397-FCC247) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo, the Standards Council of Canada Logo, or the Nationally Recognized Testing Laboratory (NRTL) Letters in this report reflects MET Accreditation under these programs, these letters, logo, or statements do not claim product endorsement by NVLAP or any Agency of the U.S. Government. This letter of transmittal is not a part of the attached report. VeriFone, Inc Vx670W CFR Title 47, Part 15, Subpart B and C MET Report: EMCS19397-FCC247 © 2006, MET Laboratories, Inc. Page ii of vi Electromagnetic Compatibility Criteria Test Report for the VeriFone, Inc Vx670W Verified under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.247, Subpart C for Intentional Radiators MET Report: EMCS19397-FCC247 April 18, 2006 Prepared For: VeriFone, Inc 3755 Atherton Road Rocklin, CA 95765 Prepared By: MET Laboratories, Inc. 4855 Patrick Henry Dr., Building 6 Santa Clara, CA 95054 VeriFone, Inc Vx670W CFR Title 47, Part 15, Subpart B and C MET Report: EMCS19397-FCC247 © 2006, MET Laboratories, Inc. Page iii of vi Electromagnetic Compatibility Criteria Test Report for the VeriFone, Inc Vx670W Tested Under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.247, Subpart C for Intentional Radiators Shawn McMillen, Project Engineer Boonmanus Seelapasay Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be with…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.41 GHz - 2.46 GHz | 33.00 mW |

Point of Sale Terminal
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Point of Sale Terminal
Equipment Class
NII - Unlicensed National Information Infrastructure TX
Point of Sale Terminal
Equipment Class
PCB - PCS Licensed Transmitter
Point of Sale Terminal
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Point of Sale Terminal
Equipment Class
PCE - PCS Licensed Transmitter held to ear
