B32VX680GPRSPOINT OF SALES TERMINAL

Correspondence Summary February 22, 2010 SUBJECT: VERIFONE - FCC ID: B32VX680GPRS TCB question: 1. Computer peripheral: the FCC DoC logo is absent from the label. Please indicate whether the computer peripheral portion of the device can be connected to a class B personal computer. If so, please indicate whether it will be approved following either the DoC or Certification procedure. Please submit either a cover letter, a 731 Form (JBP), or revise label by including the FCC DoC logo if it was tested and approved following the DoC procedure. Applicant’s Answer: RE: The device cannot synchronize with PC; the USB port is used for the manufacture by upgrading their device. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 [email protected]

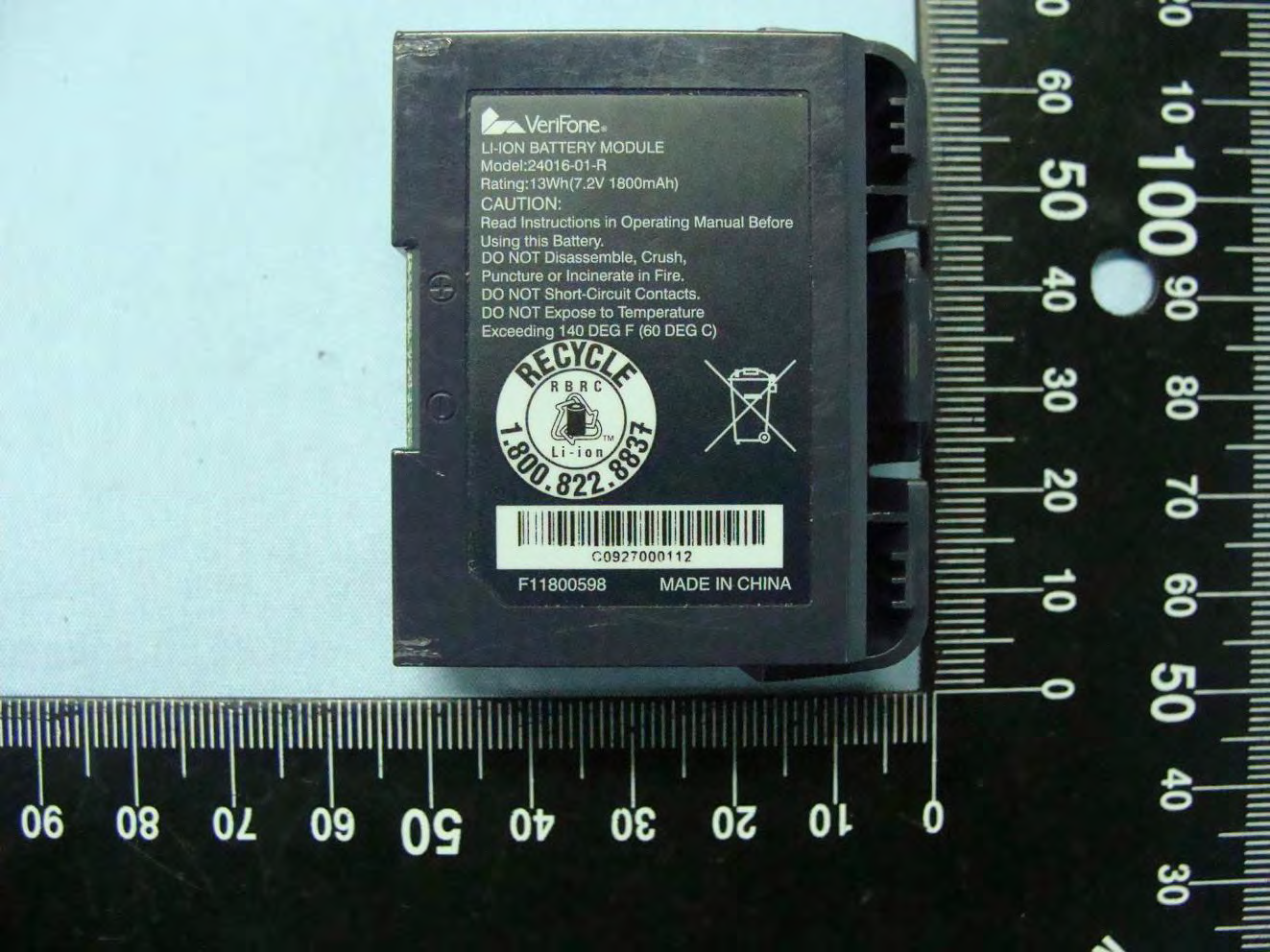

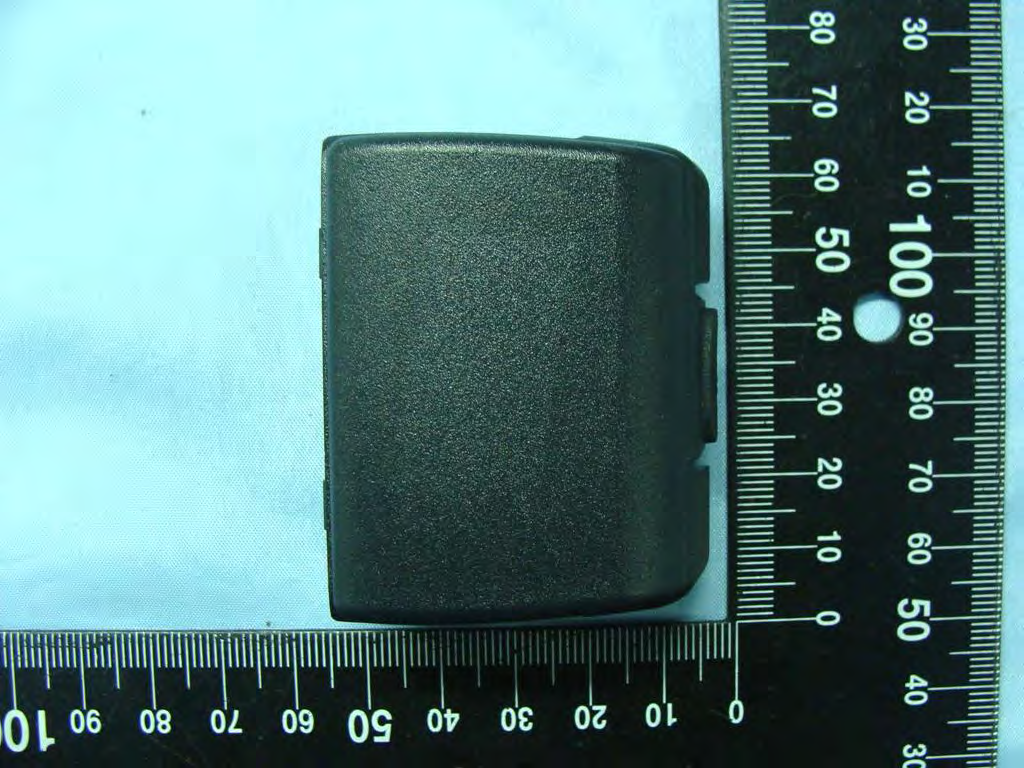

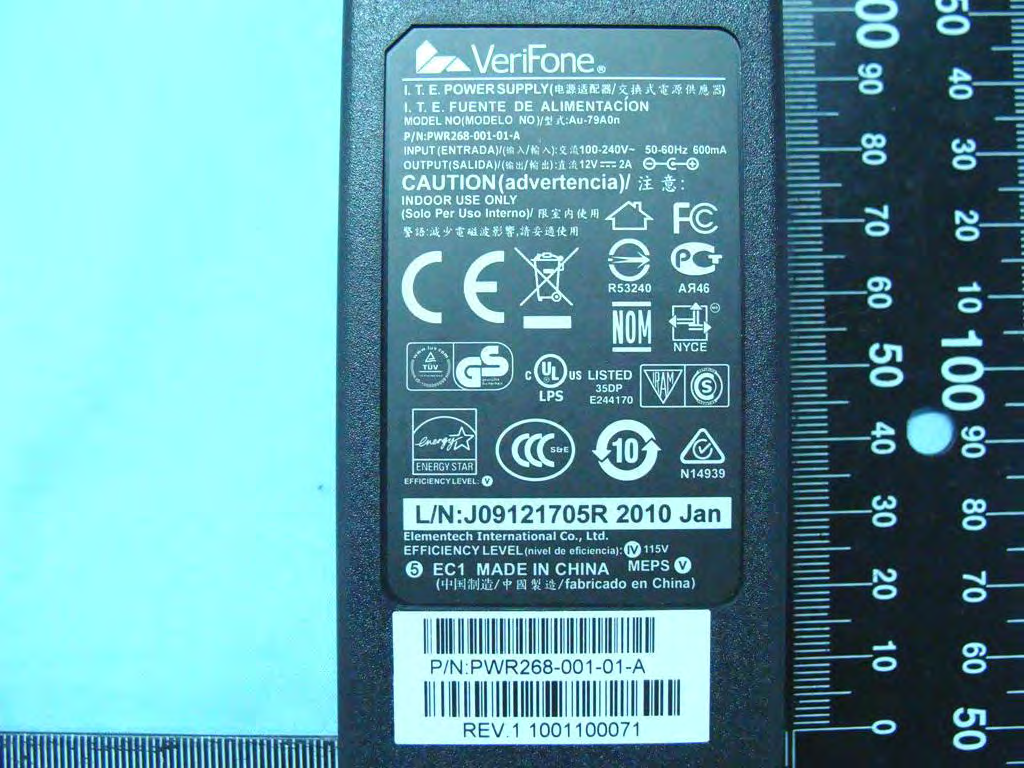

Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 1 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS 1. External Photograph of EUT Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 2 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 3 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 4 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 5 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 6 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS 720510 Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 7 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS List of Accessory: Specification of Accessory AC Adapter Brand Name VeriFone Model Name Au-79A0n Power Rating I/P:100-240Vac, 50-60Hz, 600mA; O/P: 12Vdc, 2A DC Power Cord Type 1.8 meter non-shielded cable without ferrite core Battery 1 Brand Name VeriFone Manufacturer Palladium Energy Model Name 24016-01-R Power Rating 7.2Vdc, 1800mAh Type Li-ion Battery 2 Brand Name VeriFone Manufacturer SANYO Model Name 24016-01-R Power Rating 7.2Vdc, 1800mAh Type Li-ion Cable Signal Line Type 0.2 meter shielded cable without ferrite core 2G Module Brand Name Cinterion Model Name mc55i Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 8 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 9 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Battery 1 Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 10 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Battery 1 Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 11 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Battery 2 Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 12 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Battery 2 Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 13 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 14 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 15 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 16 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS 720510

Label Location

Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 17 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS 3. Internal Photograph of EUT Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 18 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 19 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 20 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 21 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 22 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 23 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 24 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 25 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 26 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS Photographs of EUT Report No.: EP020118-01 Model Name: VX680 SPORTON INTERNATIONAL INC. Page Number : 27 of 27 TEL : 886-3-327-3456 Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS 720510 WWAN Antenna

SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS FCC SAR Test Report Report No. : FA020118-01 FCC SAR Test Report APPLICANT : VeriFone, Inc. EQUIPMENT : Point of Sales Terminal BRAND NAME : VeriFone MODEL NAME : VX680 FCC ID : B32VX680GPRS STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Feb. 01, 2010 and completely tested on Feb. 06, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS FCC SAR Test Report Report No. : FA020118-01 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 7 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................17 5.7.1 Data Storage .....................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/2/6 System Check_835MHz_100206 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_100206 Medium parameters used: f = 835 MHz; σ = 0.954 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.09, 6.09, 6.09); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.954 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 32.7 V/m; Power Drift = -0.028 dB Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.879 mW/g; SAR(10 g) = 0.579 mW/g Maximum value of SAR (measured) = 0.953 mW/g 0 dB = 0.953mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/2/6 System Check_1900MHz_100205 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_100205 Medium parameters used: f = 1900 MHz; σ = 1.57 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.49, 4.49, 4.49); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 4.48 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.2 V/m; Power Drift = -0.011 dB Peak SAR (extrapolated) = 5.81 W/kg SAR(1 g) = 3.86 mW/g; SAR(10 g) = 2.12 mW/g Maximum value of SAR (measured) = 4.39 mW/g 0 dB = 4.39mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/2/6 #08 GSM850_GPRS10_Bottom_0cm_Ch251_Battery 1 DUT: 020118 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: MSL_850_100206 Medium parameters used: f = 849 MHz; σ = 0.967 mho/m; ε r = 52.6; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.09, 6.09, 6.09); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch251/Area Scan (61x101x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.525 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.9 V/m; Power Drift = -0.005 dB Peak SAR (extrapolated) = 0.921 W/kg SAR(1 g) = 0.468 mW/g; SAR(10 g) = 0.304 mW/g Maximum value of SAR (measured) = 0.508 mW/g 0 dB = 0.508mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/2/6 #08 GSM850_GPRS10_Bottom_0cm_Ch251_Battery 1_2D DUT: 020118 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: MSL_850_100206 Medium parameters used: f = 849 MHz; σ = 0.967 mho/m; ε r = 52.6; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.09, 6.09, 6.09); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch251/Area Scan (61x101x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.525 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.9 V/m; Power Drift = -0.005 dB Peak SAR (extrapolated) = 0.921 W/kg SAR(1 g) = 0.468 mW/g; SAR(10 g) = 0.304 mW/g Maximum value of SAR (measured) = 0.508 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/2/5 #01 GSM1900_GPRS10_Bottom_0cm_Ch661_Battery 1 DUT: 020118 Communication System: PCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:4 Medium: MSL_1900_100205 Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.49, 4.49, 4.49); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch661/Area Scan (61x101x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.249 mW/g Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.89 V/m; Power Drift = -0.059 dB Peak SAR (extrapolated) = 0.300 W/kg SAR(1 g) = 0.211 mW/g; SAR(10 g) = 0.130 mW/g Maximum value of SAR (measured) = 0.228 mW/g Ch661/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.89 V/m; Power Drift = -0.059 dB Peak SAR (extrapolated) = 0.219 W/kg SAR(1 g) = 0.156 mW/g; SAR(10 g) = 0.101 mW/g Maximum value of SAR (measured) = 0.168 mW/g 0 dB = 0.168mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/2/5 #01 GSM1900_GPRS10_Bottom_0cm_Ch661_Battery 1_2D DUT: 020118 Communication System: PCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:4 Medium: MSL_1900_100205 Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.49, 4.49, 4.49); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch661/Area Scan (61x101x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.249 mW/g Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.89 V/m; Power Drift = -0.059 dB Peak SAR (extrapolated) = 0.300 W/kg SAR(1 g) = 0.211 mW/g; SAR(10 g) = 0.130 mW/g Maximum value of SAR (measured) = 0.228 mW/g Ch661/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.89 V/m; Power Drift = -0.059 dB Peak SAR (extrapolated) = 0.219 W/kg SAR(1 g) = 0.156 mW/g; SAR(10 g) = 0.101 mW/g Maximum value of SAR (measured) = 0.168 mW/ g

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INTERNATIONAL INC. Page Number : D1 of D1 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS FCC SAR Test Report Report No. : FA020118-01 Appendix D. Product Photos DUT – Front View DUT – Rear View Battery 1 – Front View Battery 1 – Rear View Battery 2 – Front View Battery 2 – Rear View SPORTON INTERNATIONAL INC. Page Number : E1 of E1 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS FCC SAR Test Report Report No. : FA020118-01 Appendix E. Test Setup Photos Bottom of the DUT with Phantom 0 cm Gap

SPORTON INTERNATIONAL INC. Page Number : 1 of 36 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS FCC RF Test Report Report No. : FG020118-01 FCC RF Test Report APPLICANT : VeriFone, Inc. EQUIPMENT : Point of Sales Terminal BRAND NAME : VeriFone MODEL NAME : VX680 FCC ID : B32VX680GPRS STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter (PCB) Tx/Rx FREQUENCY RANGE : GSM850 : 824.2 ~ 848.8 MHz / 869.2 ~ 893.8 MHz GSM1900 : 1850.2 ~ 1909.8 MHz / 1930.2 ~ 1989.8 MHz MAX. ERP/EIRP POWER : GSM850 (GPRS 10) : 1.26 W GSM1900 (GPRS 10) : 1.60 W EMISSION DESIGNATOR : 246KGXW The product was received on Feb. 01, 2010 and completely tested on Feb. 08, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 36 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS FCC RF Test Report Report No. : FG020118-01 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Test Mode.......................................................................................................................................... 7 2.2 Connection Diagram of Test System ................................................................................................ 8 3 TEST RESULT ............................................................................................................................................. 9 3.1 Conducted Output Power Measurement ........................................................................................... 9 3.2 Effective Radiated Power and Effective Isotropic Radiated Power Measurement ......................... 11 3.3 Occupied Bandwidth Measurement ................................................................................................ 14 3.4 Band Edge Measurement ................................................................................................................ 17 3.5 Conducted Emission Measurement ................................................................................................ 20 3.6 Field Strength of Spurious Radiation Measurement ....................................................................... 26 3.7 Frequency Stability Measurement ................................................................................................... 32 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 35 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 36 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 36 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS FCC RF Test Report Report No. : FG020118-01 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FG020118-01 Rev. 01 Initial issue of report Feb. 13, 2010 SPORTON INTERNATIONAL INC. Page Number : 4 of 36 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS FCC RF Test Report Report No. : FG020118-01 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 §2.1046 N/A Conducted Output Power N/A PASS 3.2 §22.913(a)(2) RSS-132(4.4) SRSP-503(5.1.3) Effective Radiated Power < 7 Watts PASS - 3.2 §24.232(c) RSS-133 (6.4) SRSP-510(5.1.2) Equivalent Isotropic Radiated Power < 2 Watts PASS - 3.3 §2.1049 §22.917(a) §24.238(a) N/A Occupied Bandwidth N/A PASS - 3.4 §2.1051 §22.917(a) §24.238(a) RSS-132 (4.5.1) RSS-133 (6.5.1) Band Edge Measurement < 43+10log 10 (P[Watts]) PASS - 3.5 §2.1051 §22.917(a) §24.238(a) RSS-132 (4.5.1) RSS-133 (6.5.1) Conducted Emission < 43+10log 10 (P[Watts]) PASS - 3.6 §2.1053 §22.917(a) §24.238(a) RSS-132 (4.5.1) RSS-133 (6.5.1…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B2 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS FCC RF Test Report Report No. : FG020118-01 Appendix B. Setup Photographs <Radiated Emission> Front View Rear View SPORTON INTERNATIONAL INC. Page Number : B2 of B2 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680GPRS FCC RF Test Report Report No. : FG020118-01 Remote View
