B32VX680WCDMAPOINT OF SALE TERMINAL

VeriFone Part Number DOC268-003-EN-E, Revision E.1 V E R I F O N E C O N F I D E N T IA L R E V I S I O N E . 1 VX 680 Installation Guide  4=  $%&  '()  *+,  -./  012  356  789  :;< ¶ ́  63  68 All rights reserved. No part of the contents of this document may be reproduced or transmitted in any form without the written permission of VeriFone, Inc. The information contained in this document is subject to change without notice. Although VeriFone has attempted to ensure the accuracy of the contents of this document, this document may include errors or omissions. The examples and sample programs are for illustration only and may not be suited for your purpose. You should verify the applicability of any example or sample program before placing the software into productive use. This document, including without limitation the examples and software programs, is supplied “As-Is.” VeriFone, Inc. 2099 Gateway Place, Suite 600 San Jose, CA, 95110 USA 1-800-VERIFONE www.verifone.com VeriFone Part Number DOC268-003-EN-E, Revision E.1 VX 680 Installation Guide © 2012 VeriFone, Inc. V E R I F O N E C O N F I D E N T IA L R E V I S I O N E . 1 VeriFone, the VeriFone logo, Omni, VeriCentre, and Verix are registered trademarks of VeriFone. Other brand names or trademarks associated with VeriFone’s products and services are trademarks of VeriFone, Inc. All other brand names and trademarks appearing in this manual are the property of their respective holders. Comments? Please e-mail all comments on this document to your local VeriFone Support Team. VX 680 INSTALLATION GUIDE1 CONTENTS PREFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Conventions and Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Document Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Acronym Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 CHAPTER1 Terminal OverviewFeatures at a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Exceptional Ease of Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Performance and Durability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Contactless Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Communication Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 CHAPTER2 Terminal SetupSelecting Terminal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Environmental Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Electrical Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Considerations for Bluetooth AP Charging Base Station . . . . . . . . . . . . . . . 14 Unpacking the Shipping Carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Examining Terminal Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Examining Connection Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Power Adapter Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 VX 680 3G External Power Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 USB Host Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Multi-port Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 USB Modem Dongle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 USB Serial Dongle (RS-232 UART) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Bluetooth Access Point (AP) Charging Base (Bluetooth Interface) . . . . . . . 20 Establishing Telephone Line Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Installing the Paper Roll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Installing and Replacing MSAM Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Installing the SIM or R-UIM Card (GPRS, CDMA, and 3G Models) . . . . . . . . . . 26 Installing and Replacing SD Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 VX 680 Bluetooth Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Bluetooth AP Charging Base Station Connector Sockets. . . . . . . . . . . . . . . 29 Mounting the Bluetooth AP Charging Base Station . . . . . . . . . . . . . . . . . . . 30 Power Connection to the Bluetooth AP Charging Base Station . . . . . . . . . . 30 Telephone Line Connection to the Bluetooth AP Charging Base Station . . . 31 Connecting a LAN cable to the Bluetooth AP Charging Base Station . . . . . 33 VX 680 3G and GPS Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 GPS Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 CON…

Text truncated - open the document above for the full version.

FCC Regulations: 15.19(a)(3): This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.105(b): NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. RF Exposure Information (SAR) This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the EUT transmitting at the specified power level in different channels. The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: B32VX680WCDMA. This device is compliance with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1‐1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C. IC Regulations: This device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement." This Class B digital apparatus complies with Canadian ICES‐003. Cet appareil numérique de la classe B est conforme à la norme NMB‐003 du Canada. IC Radiation Exposure Statement This EUT is compliance with SAR for general population/uncontrolled exposure limits in IC RSS‐102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528.

VeriFone Inc 1400 West Stanford Ranch Road Suite 200, Rocklin, California 95765, United States Tel: 480-642-5265 ; Fax: 480-642-6806 Date: November 27, 2012 Power of Attorney To whom it may concern, Please be notified that I, Jim Brodie, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: B32VX680WCDMA If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Company: VeriFone Inc TEL: 480-642-5265 FAX: 480-642-6806 E-mail: [email protected]

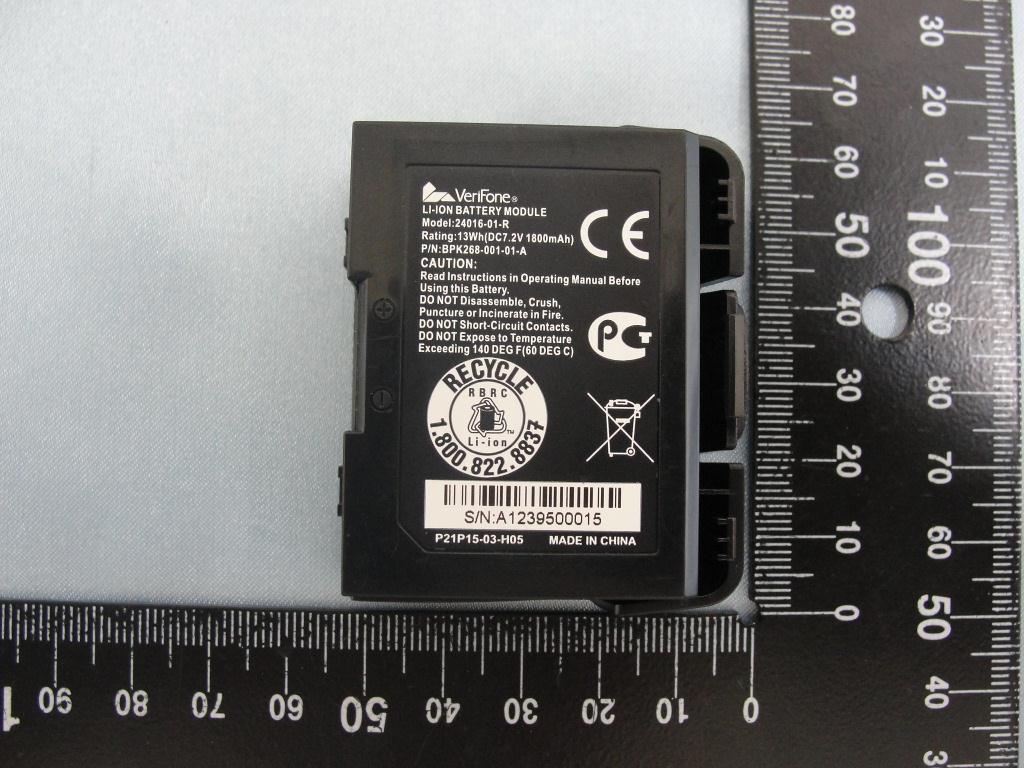

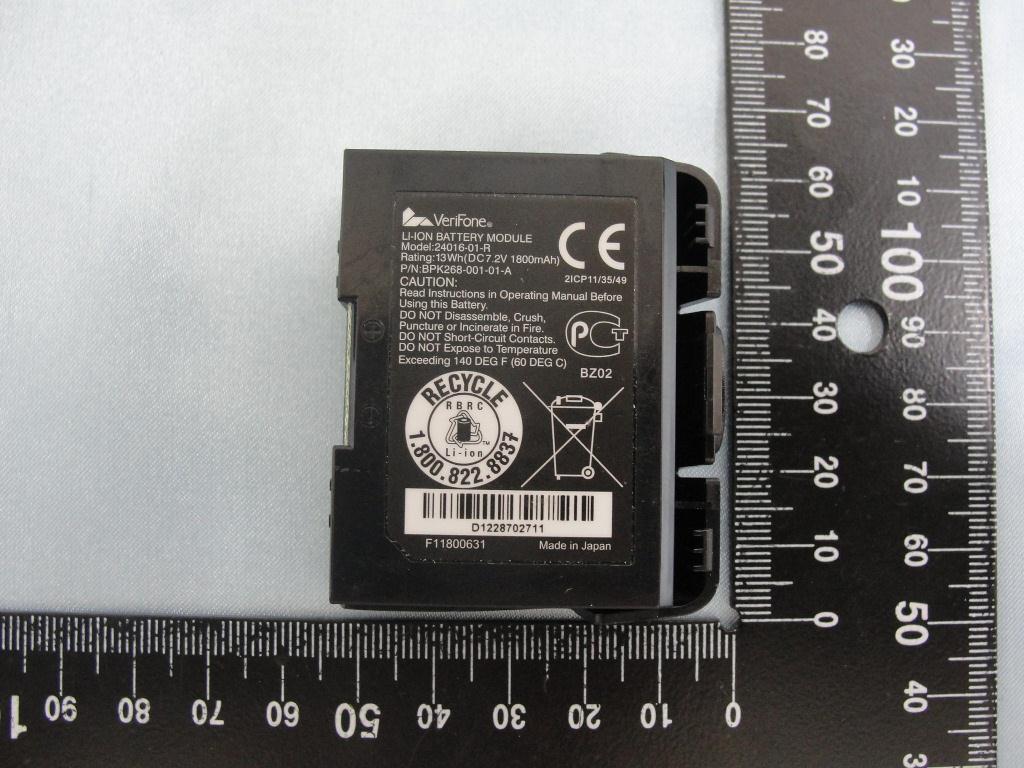

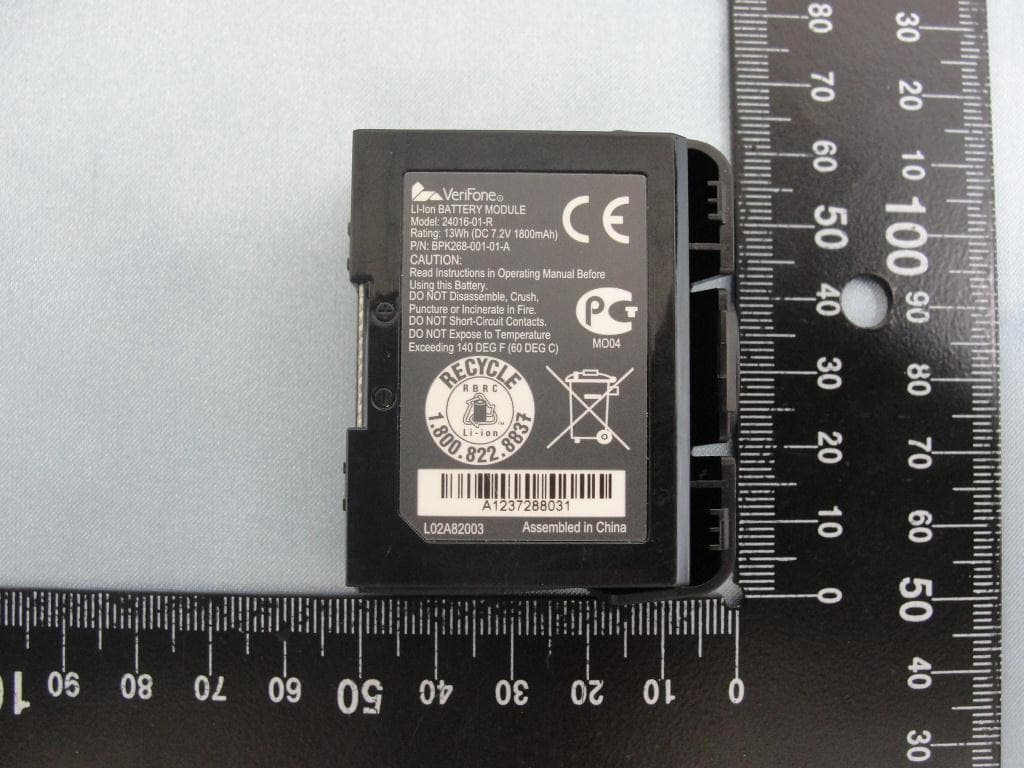

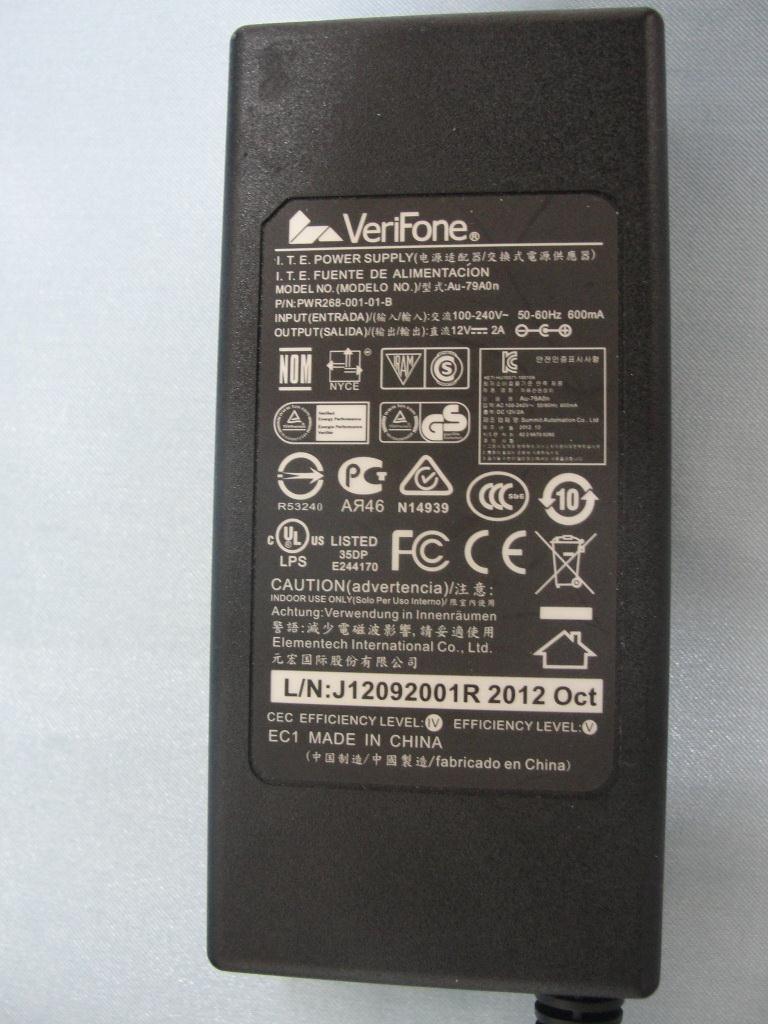

Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 1 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA 1. External Photograph of EUT Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 2 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA 720510 Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 3 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA List of Accessory: Specification of Accessory AC Adapter 1 Brand Name VeriFone Model Name SM03001A Power Rating I/P: 100-240Vac, 600mA, O/P:12Vdc, 2A Power Cord 1.8meter, non-shielded cable, with ferrite core AC Adapter 2 Brand Name VeriFone Model Name Au-79A0n Power Rating I/P: 100-240Vac, 600mA, O/P:12Vdc, 2A Power Cord 1.8meter, non-shielded cable, with ferrite core Battery 1 Brand Name VeriFone Manufacture Palladium Energy Model Name 24016-01-R Battery 2 Brand Name VeriFone Manufacture SANYO Model Name 24016-01-R Battery 3 Brand Name VeriFone Manufacture Samsung Model Name 24016-01-R Full Base Brand Name VeriFone Model Name VX670-BFS RJ45 Dongle Brand Name VeriFone Model Name VX680 Ethernet RJ11 Dongle Brand Name VeriFone Model Name VX-V.34 MODEM GPS Module Brand Name Cinterion Model Name PHS8-P RFID Module Brand Name NXP Model Name PN512 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 4 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 5 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA Adapter 1 Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 6 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA Adapter 2 Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 7 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA Battery 1 Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 8 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA Battery 2 Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 9 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA Battery 3 Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 10 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA Full Base Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 11 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA RJ45 Dongle Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 12 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA 720510 RJ11 Dongle

Back of EUT Label Location

Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 13 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA 3. Internal Photograph of EUT Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 14 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA GPS Module Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 15 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA RFID Module Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 16 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 17 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 18 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 19 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 20 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 21 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 22 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA GPS Antenna <Rx> Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 23 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA RFID Antenna <Tx / Rx> Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 24 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA Photographs of EUT Report No.: EP2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 25 of 25 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA IC : 787C-VX680WCDMA 720510

Photographs of EUT Report No.: 2O1636 Brand Name: VeriFone / Model Name: VX680 3G SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Nov. 26, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B32VX680WCDMA EUT Length: 17.5 cm EUT Width: 8.9 cm Antenna Length Width WWAN Antenna <Tx / Rx> 2.0 cm 0.1 cm RFID Antenna <Tx / Rx> 9.4 cm 7.1 cm GPS <Rx> 1.3 cm 0.4 cm The shortest distance between the Tx antennas WWAN Antenna <Tx / Rx> to RFID Antenna <Tx / Rx> 0.2 cm 7.6 cm 4.5 cm WWAN Antenna <Tx / Rx> GPS <Rx> 1.2 cm 11.0 cm 1.2 cm 6.9 cm RFID Antenna <Tx / Rx>

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/19 System Check_Body_835MHz_121119 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_121119 Medium parameters used: f = 835 MHz; σ = 0.979 mho/m; ε r = 52.653; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.16, 6.16, 6.16); Calibrated: 2012/9/28; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.46 mW/g Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 51.029 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 3.296 mW/g SAR(1 g) = 2.28 mW/g; SAR(10 g) = 1.5 mW/g Maximum value of SAR (measured) = 2.47 mW/g 0 dB = 2.47 mW/g = 7.85 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/19 System Check_Body_1900MHz_121119 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_121119 Medium parameters used: f = 1900 MHz; σ = 1.546 mho/m; ε r = 52.216; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.67, 4.67, 4.67); Calibrated: 2012/9/28; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.8 mW/g Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 88.176 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 19.301 mW/g SAR(1 g) = 10.3 mW/g; SAR(10 g) = 5.3 mW/g Maximum value of SAR (measured) = 11.7 mW/g 0 dB = 11.7 mW/g = 21.36 dB mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/19 #05_GSM850_GPRS (2 Tx slot)_Front_0cm_Ch251;Battery1 DUT: 2O1636 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: MSL_850_121119 Medium parameters used: f = 849 MHz; σ = 0.993 mho/m; ε r = 52.495; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.16, 6.16, 6.16); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Ch251/Area Scan (81x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.412 mW/g Configuration/Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 21.879 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.424 mW/g SAR(1 g) = 0.329 mW/g; SAR(10 g) = 0.201 mW/g Maximum value of SAR (measured) = 0.434 mW/g 0 dB = 0.434 mW/g = -7.25 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/19 #06_GSM850_GPRS (2 Tx slot)_Back_0cm_Ch251;Battery1 DUT: 2O1636 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: MSL_850_121119 Medium parameters used: f = 849 MHz; σ = 0.993 mho/m; ε r = 52.495; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.16, 6.16, 6.16); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Ch251/Area Scan (81x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.01 mW/g Configuration/Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 30.122 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.880 mW/g SAR(1 g) = 0.538 mW/g; SAR(10 g) = 0.312 mW/g Maximum value of SAR (measured) = 0.814 mW/g 0 dB = 0.814 mW/g = -1.79 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/19 #07_GSM850_GPRS (2 Tx slot)_Back_0cm_Ch251;Battery2 DUT: 2O1636 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: MSL_850_121119 Medium parameters used: f = 849 MHz; σ = 0.993 mho/m; ε r = 52.495; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.16, 6.16, 6.16); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Ch251/Area Scan (81x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.937 mW/g Configuration/Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 31.579 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 1.783 mW/g SAR(1 g) = 0.532 mW/g; SAR(10 g) = 0.302 mW/g Maximum value of SAR (measured) = 0.930 mW/g 0 dB = 0.930 mW/g = -0.63 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/19 #08_GSM850_GPRS (2 Tx slot)_Back_0cm_Ch251;Battery3 DUT: 2O1636 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: MSL_850_121119 Medium parameters used: f = 849 MHz; σ = 0.993 mho/m; ε r = 52.495; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.16, 6.16, 6.16); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Ch251/Area Scan (81x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.03 mW/g Configuration/Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 32.297 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 2.119 mW/g SAR(1 g) = 0.564 mW/g; SAR(10 g) = 0.311 mW/g Maximum value of SAR (measured) = 0.939 mW/g 0 dB = 0.939 mW/g = -0.55 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/19 #08_GSM850_GPRS (2 Tx slot)_Back_0cm_Ch251;Battery3_2D DUT: 2O1636 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: MSL_850_121119 Medium parameters used: f = 849 MHz; σ = 0.993 mho/m; ε r = 52.495; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.16, 6.16, 6.16); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Ch251/Area Scan (81x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.03 mW/g Configuration/Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 32.297 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 2.119 mW/g SAR(1 g) = 0.564 mW/g; SAR(10 g) = 0.311 mW/g Maximum value of SAR (measured) = 0.939 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/11/19 #01_GSM1900_GPRS (1 Tx slot)_Front_0cm_Ch810;Battery1 DUT: 2O1636 Communication System: PCS; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: MSL_1900_121119 Medium parameters used: f = 1910 MHz; σ = 1.558 mho/m; ε r = 52.163; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：2…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D835V2, serial no. 499 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification Procedure of Extended Dipole Calibration> 1. Setup a Network Analyzer (Agilent N5230A) and set the start frequency and stop frequency to Network Analyzer according to the dipole frequency, at least +/- 200MHz around the calibration point. 2. Using calibration kit to perform Network Analyzer Open, Short and Load calibration. 3. Connect the dipole with the calibrated Network Analyzer. 4. Place the dipole underneath the phantom which is filled with head-simulating or body-simulating liquid. 5. Set the Network Analyzer frequency by the dipole calibration frequency. Monitor the return-loss and impedance results with Log Magnitude format and Smith Chart, respectively. 6. Record the result and compare with the prior calibration. Please check the Appendix C for detail records. <Justification of the extended calibration> D835V2 – serial no. 499 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 3.22.2010 -28.352 52.17 -3.2461 -24.664 50.066 -5.8652 3.22.2011 -28.323 0.102 51.095 1.075 -3.5773 0.331 -24.665 -0.004 50.685 -0.619 -1.477 -4.388 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-345…

Text truncated - open the document above for the full version.
