B32X990Point of Sale Terminal

1120080064 Product Manual Verifone Systems(China)Inc. [email protected] MIC POS Terminal User guide User Instruction Thank you very much for choosing VERIFONE products, pls read this instruction before use so that you could know the performance deeply. Please keep this instruction for your reference if you have problem during use. Our company will try best to adopt new technologies, new components, new software to improve products. Hence, we have right to change without notice .The feature, function and operation described in this instruction may be different from the performance of the selling products , in some cases ,image is prototype devices. Pls inquiry our company or agent for appropriate document before using this instruction. The device should be installed by after sale service person .Our company shall not be liable for any consequences arising from unauthorized changes to the equipment, replacement of the connected equipment and cables not as specified. 1.Basic configuration Front camera Charging indicator light Touch screen IC card slot Magnetic card slot RF card reading area The radio frequency indicator light Printing paper storehouse The headset port Type C port The flash light POS Terminal User guide ON/OFF button Rear camera Battery cover Speaker Nameplate POS Terminal User guide 3.Terminal specification 2.1 ON/OFF instruction POWER ON: press " " ON/OFF button for 3 seconds POWER OFF: press " " ON/OFF button for 3 seconds and then press "power off" on the screen 2.2 Magnetic card Put the magnetic card into the magnetic card slot to read, magnetic side towards the LCD (refer to the sign for card identification. keep smooth,uniform when swiping the card. 2.3 Contact IC card Insert IC card into the IC card slot, the metal side towards keypad, please refer to card identification. 2.4 Contactless card Put the contactless card near the contactless card reader zone on the device , and make contactless card transaction. Put one contactless card every time to avoid conflict if putting more cards. 2.5 Charging Connect the Type C cable to POS terminal, connect the other connector to 5V/2A power adaptor to charge. 2.User instruction Specification ARM Cortex-A7 quad core CPU 1G RAM+8G ROM Flash(2G RAM+16G Flash extendable)Memory CPU X990 Model Name Item Android 7.x secure payment systemOperating System 5.5 inch IPS screenresolution 1280×720Display Micro SD card interface, maximum support 32GBExtended storage Capacitive touch screen, support e-signatureTouch Screen Support ISO/IEC 14443 Type A&BMiFare card, conform to qPBOC PAYPASS and PAYWAVE standard Contactless card reader Support ISO7811 1/2/3track bi-directional readingMagnetic card reader 1pcconform to ISO7816PBOC3.0 and EMV 4.2 LEVEL 1&2 standard IC card reader Built-in password keypad Conform to ANSI X9.8/ISO9564ANSI X9.9/ISO8731 standard Support Master Key/Session KeyFixedDUKPT etc PIN protection technology Support DES3DESRSASHA-256 and AES etc algorithm Password keypad High pixel customized camera with flash,auto focus(optional) USB TYPE C 3.5mm headset jack SAM/SIM：2 x SAM，1 x SIMor 1 x SAM2 x SIM Professional camera with 1d/2d barcode fast recognition algorithm(optional) Built-in high-speed thermal printer with print speed greater than 25 lines per second, support paper roll with width of 58mm and diameter of 40mm,support black mark positioning 4G,compatible with 3G and 2G,Wi-Fi,Bluetooth 4.1 Please use device under the specified voltage range, don't use too low or too high voltage. 4.2 Please make sure the connection is correct when connecting the device to the host. 4.3 Don't damage the cable, if the cable is damaged, please don't use it anymore. 4.4 Don't put the device in direct sunlight, high temperature, humidity ,dusty or strong corrosive gas. 4.5 Put away from liquid, don't use the product where the water may wet or enter into it, don't operate the product with wet hand. 4.6 It is strictly prohibited to open the device without permission. otherwise the device will not be used,the consequence will be at your own risk. 4.7 If the device fails, please contact maintenance person, user is not allowed to maintain the device. 4.8 Be sure to use the original battery or specified type of battery, otherwise it may cause the risk of explosion, prohibit the dismantling impact, extrusion, heating, short circuit or put into the fire, the battery is prohibited to use after soaking. 4.9 Pls remember to close the battery cover after replacing the battery. 4.10 It is strictly prohibited to charge and replace batteries in dangerous places. 4.11 Adapter shall be installed near the equipment and shall be easily accessible 4.12 CautionRisk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Physical interface 4 contactless indicator light (according to CUP definition), 1 two-color charging indicator light Indicator light Front camera POS Terminal User guide Printer Built-in buzzer, speaker, microphoneBuzzer Built-in GPS, support A-GPS, Glonass, BeidouGPS BatteryStandard configuration 2600mAh/7.2V Communication InputAC 110V240V/5060Hz/0.3A OutputDC 5V/2A Power adaptor 1.The rear camera 2.The base (charge + Ethernet) Optional accessories Operating temperature045 storage temperature-2070 Relative humidity5%90% (Non-condensing) Environmental condition 4.Instruction for installation and usage Rear camera Type C cable 4.13 Hereby, [Verifone Systems (China) Inc.] declares that the radio equipment type [X990] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.verifone.cn 4.14 Please use Verifone verified power adaptor for battery charging; the temperature range under battery charging mode is 0 to 40, the operating temperature range is 0 to 45. Do not operate and use the device outside the above temperature range, otherwise it may cause the risk of explosion. POS Terminal User guid…

Text truncated - open the document above for the full version.

VeriFone Inc Suite 200,1400 West Stanford Ranch Road,Rocklin,California,United States 95765 Date: April 7, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: B32X990 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Part List Operational Description Tune‐ up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04‐1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short‐term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04‐1705. External Photos Internal Photos Test S etup Pho tos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Steve Hsu Sr. Director, Hardware Engineering VeriFone Inc Tel: 886-23789-7313 Fax: 886-2-26553168 Email: [email protected]

VeriFone Inc Suite 200,1400 West Stanford Ranch Road,Rocklin,California,United States 95765 Date: April 7, 2020 Power of Attorney To whom it may concern, Please be notified that I, Steve Hsu, have designated Jim Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jim Tsai in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: B32X990 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ Steve Hsu Sr. Director, Hardware Engineering VeriFone Inc Tel: 886-23789-7313 Fax: 886-2-26553168 Email: [email protected]

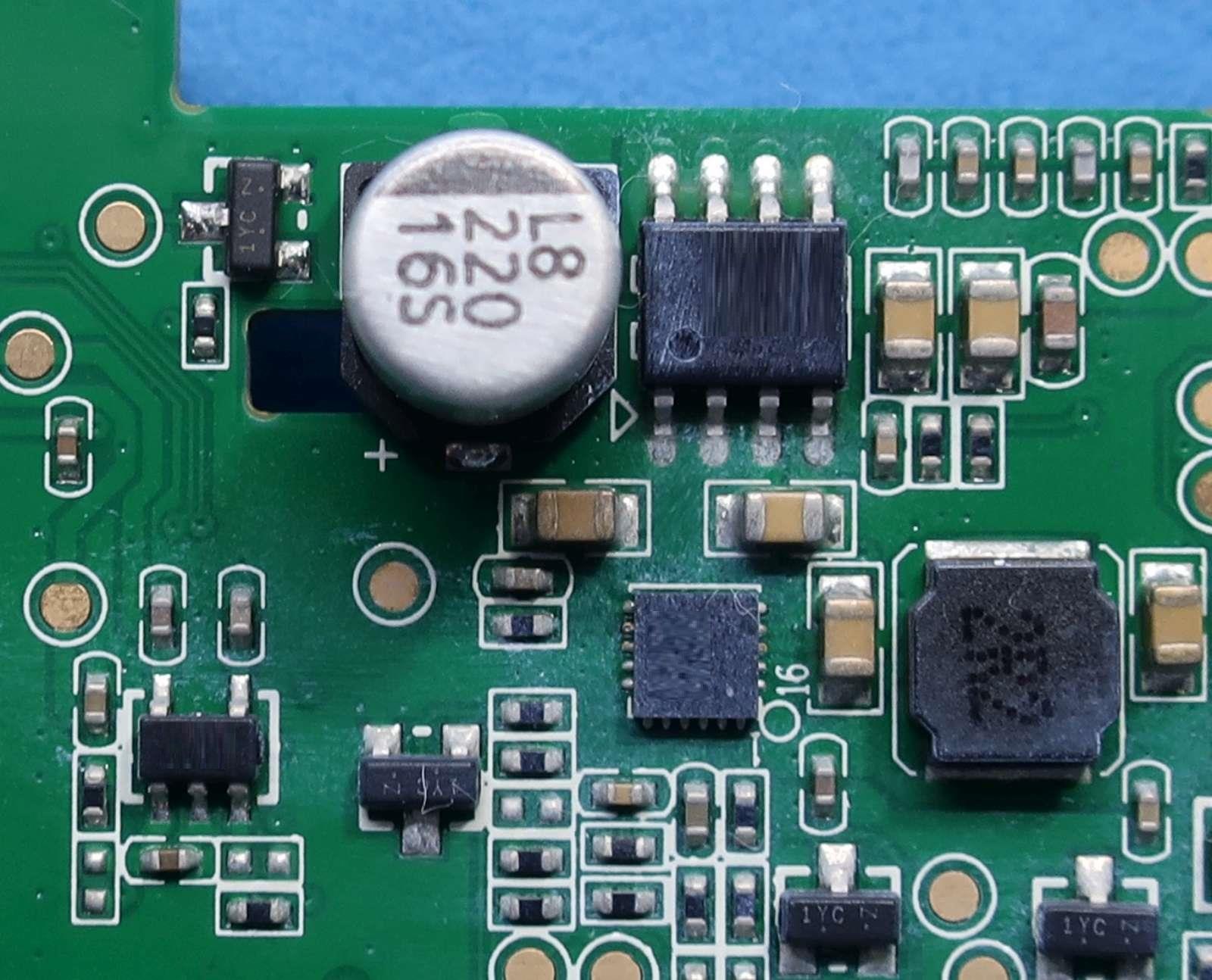

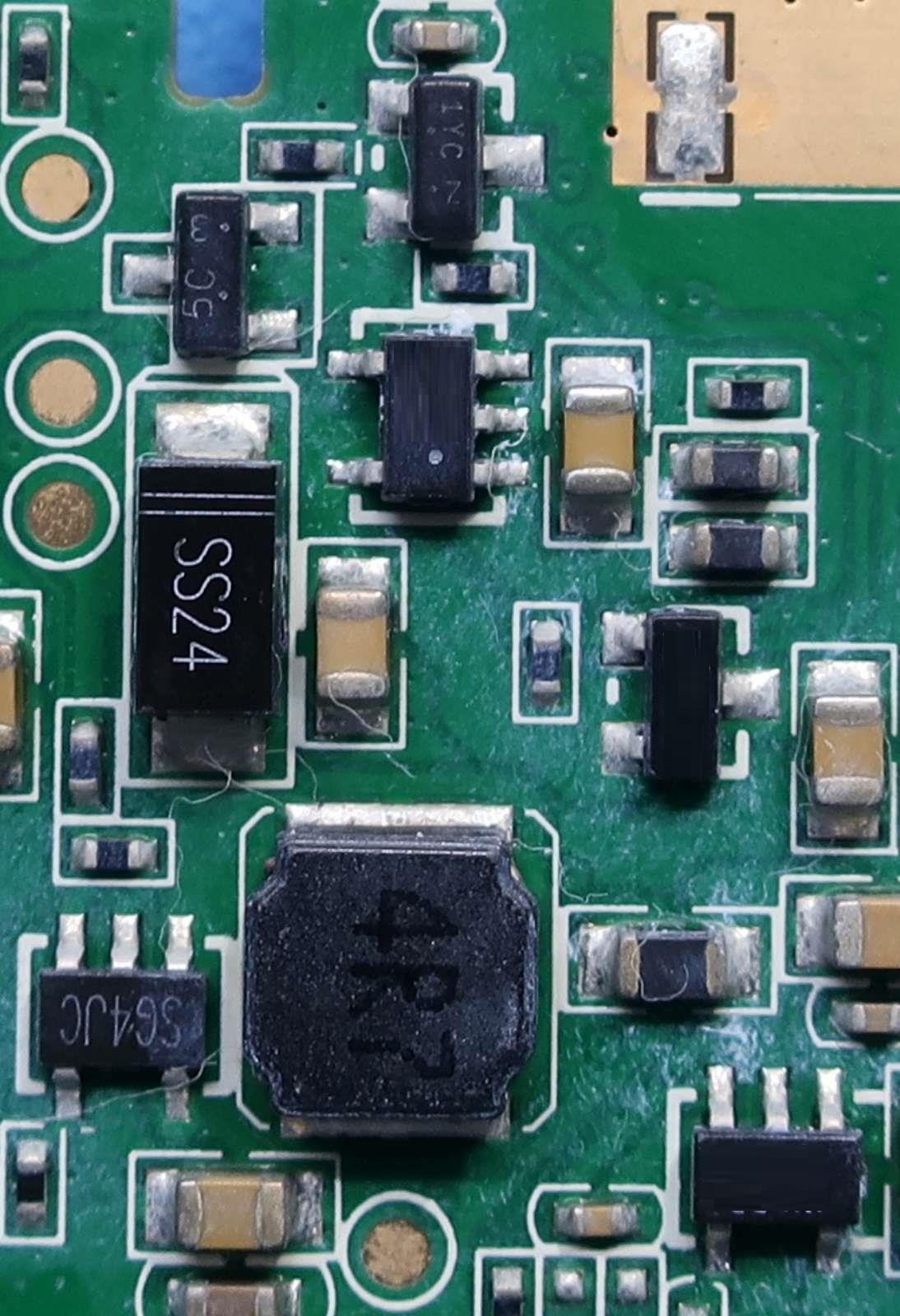

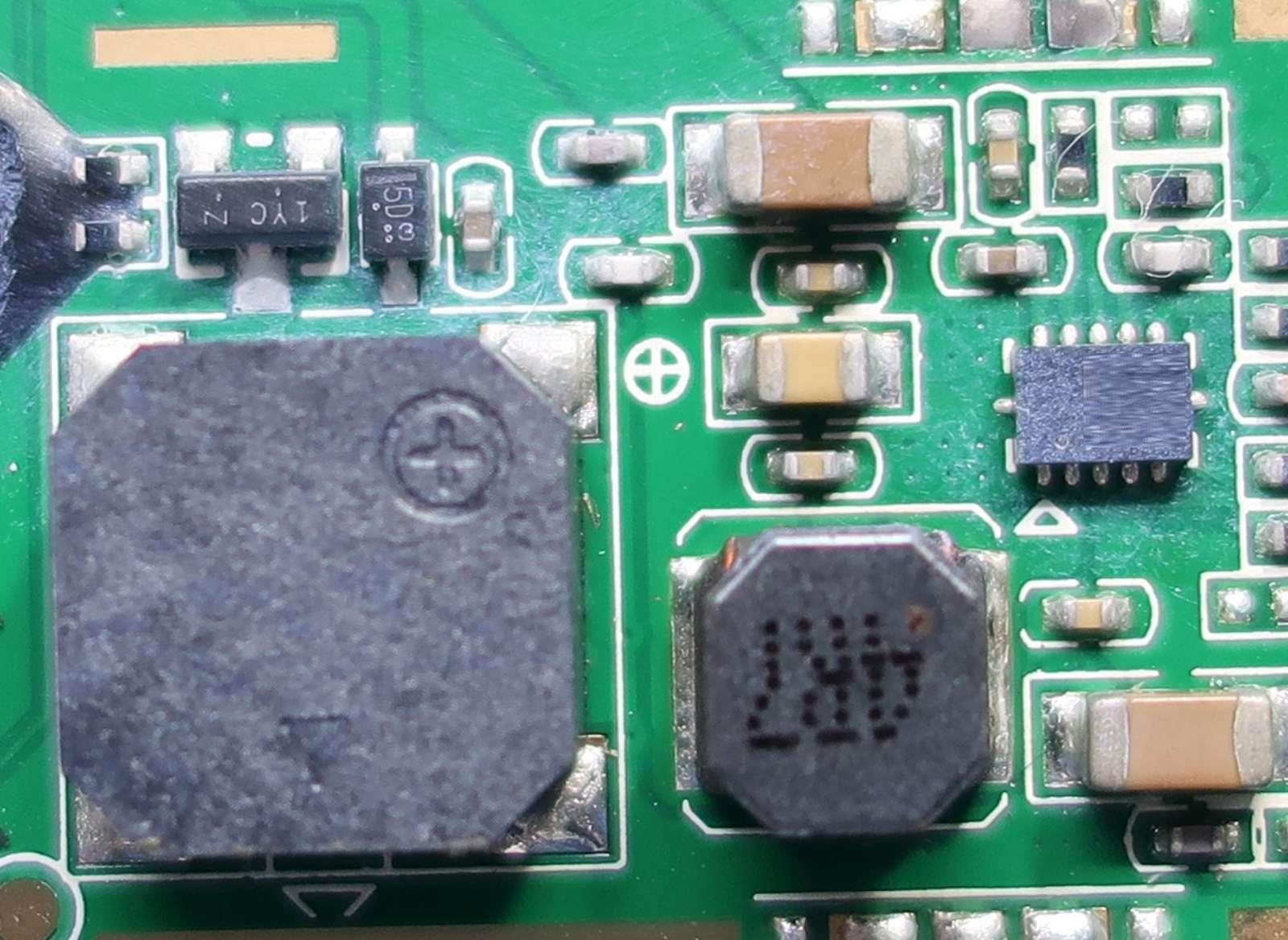

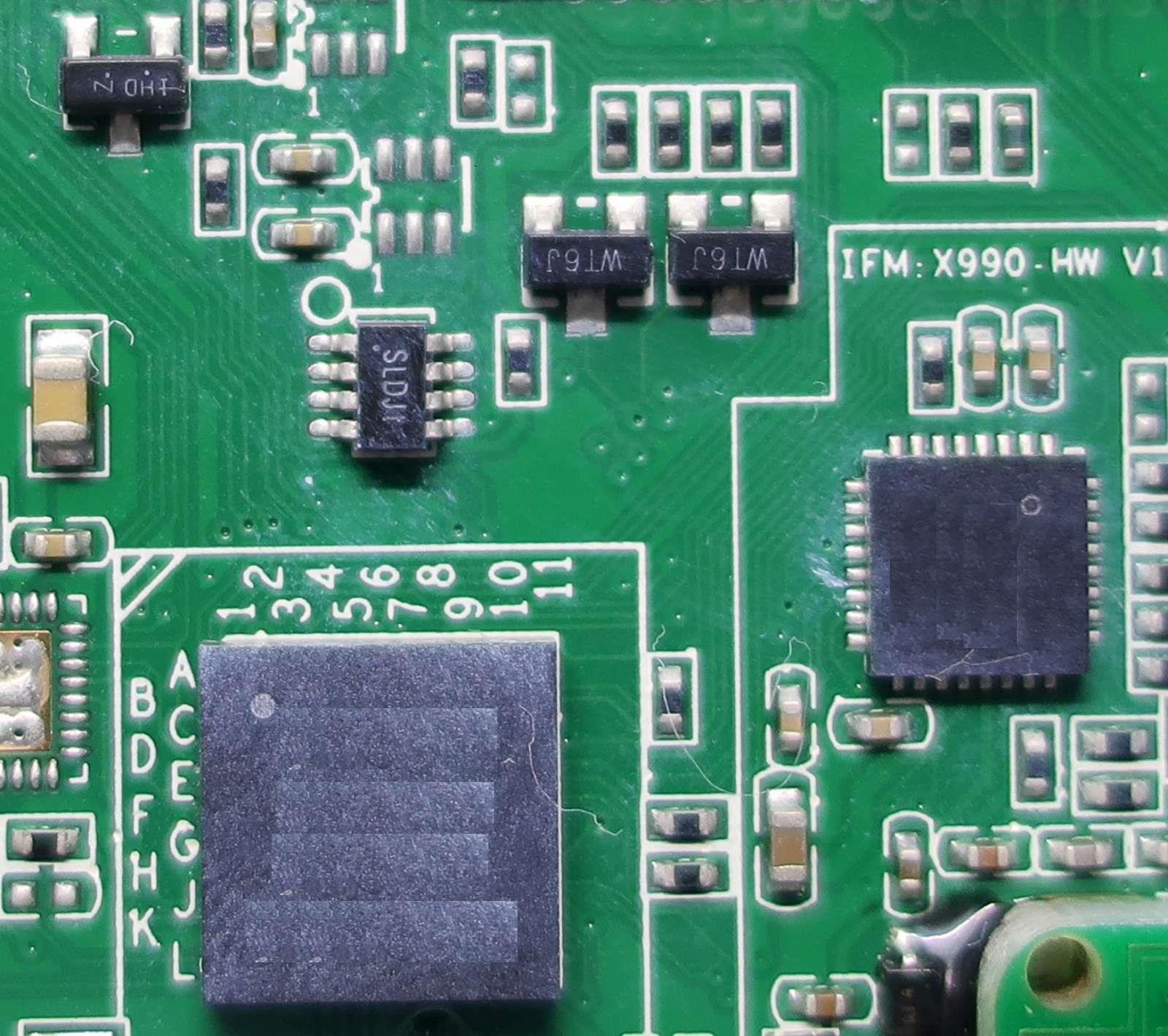

Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 14 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 3. Internal Photograph of EUT WWAN Main Antenna <Tx/Rx> Bluetooth & WLAN Antenna<Tx/Rx> WWAN Diversity Antenna <Rx> GNSS Antenna <Rx> NFC Antenna <Tx/Rx> Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 15 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 720510 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 16 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 17 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 18 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 19 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 20 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 21 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 22 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 23 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 24 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 25 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 26 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 27 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 28 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 29 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 30 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 31 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 32 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 33 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 34 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: Verifone / Model Name: X990 Sporton International (Shenzhen) Inc. Page Number : 35 of 59 TEL : 86-755-8637-9589 Report Issued Date : May. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 02 FCC ID: B32X990 Photographs of EUT Report No.: EP9D1403 Brand Name: V…

Text truncated - open the document above for the full version.

Sporton International (Shenzhen) Inc. Page 1 of 48 TEL : +86-755-86379589 / FAX : +86-755-86379595 Issued Date : Apr. 09, 2020 Form version: 181113 FCC SAR Test Report Report No. : FA9D1403 FCC SAR Test Report APPLICANT : Verifone, Inc. EQUIPMENT : Point of Sale Terminal BRAND NAME : Verifone MODEL NAME : X990 FCC ID : B32X990 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 The product was received on Dec. 14, 2019 and testing was started from Jan. 01, 2020 and completed on Jan. 09, 2020. We, Sporton International (Shenzhen) Inc., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this variant report apply exclusively to the tested model / sample. Without written approval of Sporton International (Shenzhen) Inc., the test report shall not be reproduced except in full. Reviewed by: Long Liang / Supervisor Approved by: Johnny Chen / Manager Sporton International (ShenZhen) Inc. 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International (Shenzhen) Inc. Page 2 of 48 TEL : +86-755-86379589 / FAX : +86-755-86379595 Issued Date : Apr. 09, 2020 Form version: 181113 FCC SAR Test Report Report No. : FA9D1403 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Applied .......................................................................................................................................................... 5 4. Equipment Under Test (EUT) Information ................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 General LTE SAR Test and Reporting Considerations ........................................................................................... 7 5. RF Exposure Limits....................................................................................................................................................... 9 5.1 Uncontrolled Environment ...................................................................................................................................... 9 5.2 Controlled Environment .......................................................................................................................................... 9 6. Specific Absorption Rate (SAR) ..................................................................................................................................10 6.1 Introduction ...........................................................................................................................................................10 6.2 SAR Definition .......................................................................................................................................................10 7. System Description and Setup ...................................................................................................................................11 7.1 E-Field Probe ........................................................................................................................................................12 7.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 7.3 Phantom ................................................................................................................................................................13 7.4 Device Holder........................................................................................................................................................14 8. Measurement Procedures ...........................................................................................................................................15 8.1 Spatial Peak SAR Evaluation ................................................................................................................................15 8.2 Power Reference Measurement............................................................................................................................16 8.3 Area Scan .............................................................................................................................................................16 8.4 Zoom Scan ............................................................................................................................................................17 8.5 Volume Scan Procedures ......................................................................................................................................17 8.6 Power Drift Monitoring ...........................................................................................................................................17 9. Test Equipment List .....................................................................................................................................................18 10. System Verification ....................................................................................................................................................19 10.1 Tissue Simulating Liquids ....................................................................................................................................19 10.2 Tissue Verification ....................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/1/2 23_LTE Band 5_10M_QPSK_1RB_0Offset_Left Side_0mm_Ch20525 Communication System: UID 0, Generic LTE (0); Frequency: 836.5 MHz;Duty Cycle: 1:1 Medium: HSL_835_200102 Medium parameters used: f = 836.5 MHz; σ = 0.912 S/m; ε r = 42.892; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3975; ConvF(9.57, 9.57, 9.57) ; Calibrated: 2019/4/30 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1437; Calibrated: 2019/11/19 - Phantom: ELI v4.0 (30deg probe tilt); Type: QDOVA001BB; Serial: TP:1113 - Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Ch20525/Area Scan (71x141x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.93 W/kg Ch20525/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.328 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 2.89 W/kg SAR(1 g) = 1.68 W/kg; SAR(10 g) = 0.974 W/kg Maximum value of SAR (measured) = 2.23 W/kg 0 dB = 2.23 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.01.01 24_LTE Band 12_10M_QPSK_1RB_25Offset_Right Side_0mm_Ch23095 Communication System: UID 0, Generic LTE (0); Frequency: 707.5 MHz;Duty Cycle: 1:1 Medium: HSL_750_200101 Medium parameters used: f = 707.5 MHz; σ = 0.86 S/m; ε r = 41.73; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3975; ConvF(9.94, 9.94, 9.94); Calibrated: 2019.04.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1437; Calibrated: 2019.11.19 - Phantom: ELI v4.0 (30deg probe tilt); Type: QDOVA001BB; Serial: TP:1113 - Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.10 (7331) Ch23095/Area Scan (71x141x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.978 W/kg Ch23095/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.527 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.33 W/kg SAR(1 g) = 0.710 W/kg; SAR(10 g) = 0.418 W/kg Maximum value of SAR (measured) = 1.01 W/kg 0 dB = 0.978 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/1/1 25_LTE Band 13_10M_QPSK_1RB_0Offset_Right Side_0mm_Ch23230 Communication System: UID 0, Generic LTE (0); Frequency: 782 MHz;Duty Cycle: 1:1 Medium: HSL_750_200101 Medium parameters used: f = 782 MHz; σ = 0.902 S/m; ε r = 40.073; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3975; ConvF(9.94, 9.94, 9.94) ; Calibrated: 2019/4/30 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1437; Calibrated: 2019/11/19 - Phantom: ELI v4.0 (30deg probe tilt); Type: QDOVA001BB; Serial: TP:1113 - Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Ch23230/Area Scan (71x141x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.947 W/kg Ch23230/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.475 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.18 W/kg SAR(1 g) = 0.640 W/kg; SAR(10 g) = 0.387 W/kg Maximum value of SAR (measured) = 0.859 W/kg 0 dB = 0.859 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/1/2 26_LTE Band 26_15M_QPSK_1RB_0Offset_Left Side_0mm_Ch26965 Communication System: UID 0, Generic LTE (0); Frequency: 841.5 MHz;Duty Cycle: 1:1 Medium: HSL_835_200102 Medium parameters used: f = 841.5 MHz; σ = 0.917 S/m; ε r = 42.819; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3975; ConvF(9.57, 9.57, 9.57) ; Calibrated: 2019/4/30 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1437; Calibrated: 2019/11/19 - Phantom: ELI v4.0 (30deg probe tilt); Type: QDOVA001BB; Serial: TP:1113 - Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Ch26965/Area Scan (71x141x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.14 W/kg Ch26965/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.101 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 2.53 W/kg SAR(1 g) = 1.45 W/kg; SAR(10 g) = 0.841 W/kg Maximum value of SAR (measured) = 1.88 W/kg 0 dB = 1.88 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/1/4 27_LTE Band 4_20M_QPSK_1RB_0Offset_Left Side_0mm_Ch20175 Communication System: UID 0, Generic LTE (0); Frequency: 1732.5 MHz;Duty Cycle: 1:1 Medium: HSL_1750_200104 Medium parameters used: f = 1733 MHz; σ = 1.339 S/m; ε r = 38.475; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3975; ConvF(8.34, 8.34, 8.34) ; Calibrated: 2019/4/30 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1437; Calibrated: 2019/11/19 - Phantom: ELI v4.0 (30deg probe tilt); Type: QDOVA001BB; Serial: TP:1113 - Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Ch20175/Area Scan (71x141x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.57 W/kg Ch20175/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0.6100 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.97 W/kg SAR(1 g) = 1.31 W/kg; SAR(10 g) = 0.772 W/kg Maximum value of SAR (measured) = 1.68 W/kg 0 dB = 1.68 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/1/5 28_LTE Band 25_20M_QPSK_1RB_49Offset_Right Side_0mm_Ch26590 Communication System: UID 0, Generic LTE (0); Frequency: 1905 MHz;Duty Cycle: 1:1 Medium: HSL_1900_200105 Medium parameters used: f = 1905 MHz; σ = 1.348 S/m; ε r = 39.192; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX…

Text truncated - open the document above for the full version.

Add: No.51 Xueyuan 1 Tel: +86-lo-62304633 E-mail: [email protected] R ^oad, -2079 ;om In Collaboration with CALIBRATION LABORATOR^ Haidian District, Beijing,100191, China Fax: +86-lo-62304633-2504 http://www.chinattl.cn Impedance Measurement Plotfor Head TSL rl siLog Mag lO.OOd Ref O.OOOdB [Fl] 5000 @T2.4500000 GHz -9.890 dB 40.00 30.00 20.00 10.00 0.000^ -10.00 20.00 30.00 40.00 @5000 @slsmith CR+jx) scale .000U [Fl Del] 2.4 500000 GHZ 51.860 2.6811 tar.25GHz""IOOHz 1 Certificate No: Z19-60134 Page 6 of 8 In Collaboration with s oea CALIBRATION LABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing,100191, China Tel: +86-lo-62304633-2079 Fax: +86-lo-62304633-2504 E-mail: [email protected]://www.chinattl.cn Date: 041520l9 DASY5 Validation Reportfor Body TSLDate:in.i Test Laboratory: CTTL, Beijing, China DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN: 924 Communication System: UID 0, CW; Frequency: 2450 MHz; Duty Cycle:1:1 Medium parameters used:f = 2450 MHz; a = 2.005 S/m; er = 54.25; p = 1000 kg/m3 Phantom section: Center Section DASY5 Configuration: . Probe: EX3DV4 - SN3617; ConvF(7.79, 7.79, 7.79) 2450 MHz; Calibrated 1/31/2019 Sensor-Surface:1.4mm (Mechanical Surface Detection) . Electronics: DAE4 Snl331; Calibrated: 2/6/2019 . Phantom: MFP_V5.1C ; Type: QD 000 P51CA; Serial:1062 . Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7450) Dipole Calibration/Zoom Scan (7x7x7)(7x7x7)/Cube 0: Measurement grid: dx=5 dy=5mm, dz=5mm Reference Value = 95.46 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 26.3 W/kg SAR(1 g) = 12.6 W/kg; SAR(lo g) = 5.83 W/kg Maximum value of SAR (measured) = 20.9 W/kg So -4.38 -8.77 -13.15 -17.54 2l92 0 dB = 20.9 W/kg = 13.20 dBW/kg Certificate No: Z19-60134 Page 7 of 8 Collaboration with s e a ^^^K^m^0^CALIBRATION LABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing,100191, China Tel: +86-lo-62304633-2079 Fax: +86-lo-62304633-2504 E-mail: [email protected]://www.chinattl.cn Impedance Measurement Plotfor Body TSL Trsog Mag lO.OOdRf O.OOOdB [Fl] 5000 40.00 30.00 20.00 0.00 0.000 -0.00 -20.00 0.00 -40.00 -o0 slmith R+jx) scale .000U FDel] 2.4 500000 GHZ 48.820 46 < 1 tart .25 ;":";;;00 """top Certificate No: Z19-60134 Page 8 of 8 >1 2.4 500000 GHZ -27." 168 dB --- In Collaboration with Add: No.51 Xueuan oad, Hadian DistrictBeijing,100191, China Tel:+86-lo-62304633-2079 Fax:+86-lo-62304633-2504 E-mailcchinal.com http//www.chinal.cn - Client Sportn ;";@;-Certificate o:Z-6053 CALIBRATION CNAS L0570 Certificate No: Zl8-60537 Page 1 of 8 ObjectD2600V2-SN:1070 Calibration Procedure(s)FF-Z11-003-01 Calibration Procedures for dipole validation kits Calibration date:December 7, 2018 This calibration…

Text truncated - open the document above for the full version.
