B4S-JSC13ASUPERVISED SECURITY SYSTEM

Supervised Security SystemModel JSC1300 Owner’s Manual A RM DISARM LIGHTS ON LIGHTS OFF PANIC 3 2 Introduction .................................................................................................... 4Installation ...................................................................................................... 5 Locating Security System components ....................................................... 5Attaching the cables .................................................................................... 6Fitting the backup batteries ......................................................................... 7Wall mounting .............................................................................................. 7 Overview ......................................................................................................... 8 Registering Remotes ................................................................................. 12Registering Door/Window Sensors ........................................................... 13Removing Door/Window Sensors ............................................................. 14Installing Door/Window Sensors ............................................................... 15Registering Motion Detectors .................................................................... 16Removing Motion Detectors ...................................................................... 17Installing Motion Detectors ........................................................................ 18Hard-wired Inputs ...................................................................................... 19Setting the Clock ....................................................................................... 20Setting the Phone Numbers ...................................................................... 21Setting the Outgoing Message .................................................................. 22Setting the PIN .......................................................................................... 24Clearing the Memory ................................................................................. 25Setting Options .......................................................................................... 26Setting Delays ........................................................................................... 27Setting Timers ........................................................................................... 28Canceling Timers ...................................................................................... 30 Using the System ......................................................................................... 32 Arming and Disarming .............................................................................. 32Problem zones .......................................................................................... 33When there’s an alarm .............................................................................. 34 Controlling Lights and Appliances ............................................................. 35Setting up Optional Lamp Modules ............................................................ 36Operation from an Outside Telephone ....................................................... 38 Replacing Batteries ...................................................................................... 39Resetting the P.I.N. ....................................................................................... 40Troubleshooting ........................................................................................... 41Expanding your System .............................................................................. 45 Contents FCC Caution This equipment generates and uses radio frequencyenergy, and if not installed and used properly, that is,in strict accordance with the manufacturers instructions,it may cause interference to radio and televisionreception. It has been type tested and found to complywith the limits for remote control devices in accordancewith the specifications in Sub-Parts B and C of Part 15of FCC Rules, which are designed to providereasonable protection against such interference in aresidential installation. However, there is no guaranteethat interference will not occur in a particular installation.If this equipment does cause interference to radio ortelevision reception, which can be determined byunplugging the equipment, try to correct theinterference by one or more of the following measures.• Reorient the antenna of the radio/TV experiencing the interference. • Relocate the equipment with respect to the radio/ TV. • Move the equipment away from the radio/TV.• Plug the equipment into an outlet on a different electrical circuit from the radio/TV experiencing theinterference. • If necessary, consult your local dealer for additional suggestions. THIS DEVICE COMPLIES WITH PART 15 OF THEFCC RULES. OPERATION IS SUBJECT TO THEFOLLOWING TWO CONDITIONS: (1) THIS DEVICEMAY NOT CAUSE HARMFUL INTERFERENCE, AND(2) THIS DEVICE MUST ACCEPT ANY INTERFER-ENCE RECEIVED, INCLUDING INTERFERENCETHAT MAY CAUSE UNDESIRED OPERATION.This equipment complies with Part 68 of the FCCrules and the requirements adopted by the ACTA. Onthe bottom of the Console is a label that contains,among other information, the product identifierB4SAL04BJSC13A. If requested, this number mustbe provided to the telephone company.On the bottom of the Console is a label thatcontains, among other information, the FCCregistration number and ringer equivalence number(REN) for this equipment. If requested, thisinformation must be provided to the telephonecompany.The REN is used to determine the number of devicesthat may be connected to a telephone line. ExcessiveRENs on a telephone line may result in the devicesnot ringing in response to an incoming call. In mostbut not all areas, the sum of RENs should notexceed five (5.0). To be certain of the numbe…

Text truncated - open the document above for the full version.

MAIN MCU LCD EEPROM KEYBOARD TELEPHONE INTERFACE MIC/VOICE RECORDER SPEAKER DRIVE RING DETECTOR TELEPHONE LINE DTMF DETECTOR RF RX 310MHz 319.5MHz RF TX LCD DRIVER POWER LINE POWER SUPPLY UNIT JSC13A Security console Block diagram

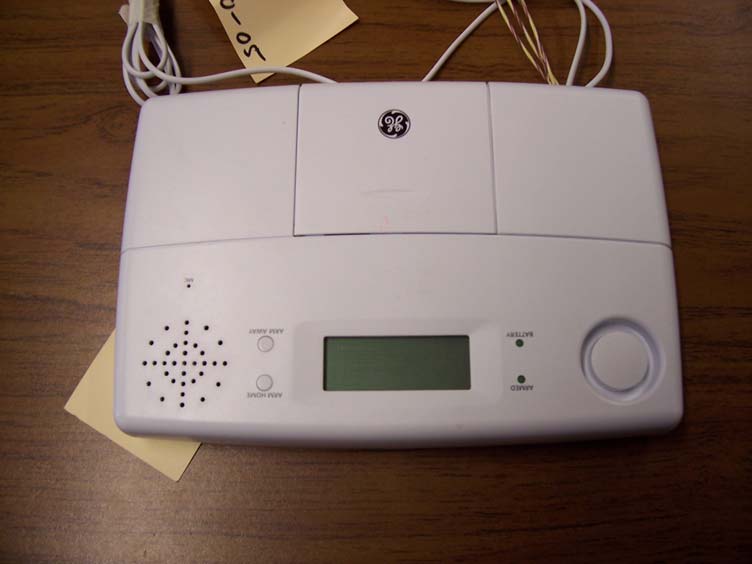

Jasco Model JSC13A Security Console rating label 2:1 10/26/05 Wireless Security System Console For use with Jasco Door/Window Sensors, Motion Detectors, Home Automation Modules, and Remote Controls. Use with 8V DC, 400 mA Power Supply, Model No. XM19A. FOR INDOOR USE ONLY. No user serviceable parts inside. Model No. JSC13A (part of 45205 Security System) This product meets the requirements of 47 CFR Part 68: B4SAL04JBSC13A USE RJ11 CONNECTOR FCC ID: B4S-JSC13A IC: 1632A-JSC13A www.jascoproducts.com

Model JSC13A Operational Description The model JSC13A is a radio frequency transmitter for a wireless security system used to activate a GE radio frequency light module. The device transmits when the user of the console keypad depresses any of the buttons. When a button is depressed the 319.45 MHz pulsed RF transmitter transmits the appropriate pulse code to the light module receiver to activate the light module. The JSC13A is a modified version of the model SC13A which was originally tested under Retlif Testing Laboratories Test Report Number R-10648-1 for a 310 MHz Super regenerative Receiver. The JSC13A has the Radio Frequency transmitter added to model SC13A.

0/20 13:11:58SYSTEM X PART IDENTIFIERDESCRIPTIONQTY -------------------------------------------------- JSC13A-50 USECURITY CONSOLE NOPACK1 032600H10096FIBRE WASHER6.5X2.4X0.8M M2 037006H10106SPACE R1 038010H10040- XLABEL-DATE CODE (WHITE)1 038020H12546BATTERY COMPARTMENT LABE L1 038020H12547COVER DOOR LABE L1 038020H12607RATING LABEL, JSC13 A1 082-00100026LCD1 083-27000010BUZZER 27M M1 091-00000002MYLAR SPEAKER,16R,40M M1 138001H1004676 WAY HEATSEAL,P0.8,L2 01 183010H12639BUZZER COVER,S.WHITE,P C1 183010H19590RUBBER STAND (CLEAR )2 183010H22470KEYPAD COVE R1 183010H22482BATTERY DOOR, G E1 183010H22490STAND2 183010H22500LIGHT PIP E1 183010H22510LCD BRACKE T1 183010H23130SWITCH COVE R2 183010H23230LCD SPACE R1 185000H22590TOP CABINET1 185000H22600BOTTOM CABINE T1 186003H10089FRONT LENS1 186003H10109REFLECTION SHEE T1 206002H10037FOAM (20 X 10 X 3)MM1.5 206002H10128FOAM 2X64X0.7M M2 275000H12450RUBBER KEYPA D1 275000H12720MICROPHONE RUBBER RIN G1 354-12800000WIRE UL1007 #28 BLAC K0.07 354-12800002WIRE UL1007 #28 RE D0.07 354-13000009WIRE UL1007 #30 WHIT E0.16 391-20104050SCR C'SINK M/C M3X8 ZIN C1 391-60203200SCREW-PPTT M2.6X5 MS/Z P3 391-61503130SCREW-WHTT M2.6X5 D=6. 01 391-69903020M3X8 PPTT W/ M2.6 HEAD6 392005H10060E-RING M2 (202-1)1 392010H10040FIBRE WASHER M 31 394099H10005SQ-NUT M3 5.5M M1 403011H10316SPRING CONTACT (C)1 851001H12005PCB ASSY, MAIN, X10 U S1 055-10200008CAP-C 1N 10% 50V Y5P1 055-22100006CAP-C 220P 5% 50V NPO2 055-22200014CAP-C 2N2 +8-2 50V Z5 U1 055-47300013CAP-C 47N +8-2 50V Z5 U1 057-10000029CAP-E 10U 20% 16V1 057-10100017CAP-E 100U 20% 16V1 057-10900011CAP-E 1U 20% 50V 3X53 057-22000001CAP-E 22U 20% 50V1 057-22000003CAP-E 22U 20% 16V 5X52 057-22100016CAP-E 220U 20% 25V3 057-22100018CAP-E 220U 20% 25V1 057-22800011CAP-E 220N 20% 50V1 057-47100007CAP-E 470U 20% 25V1 058-22400130CAP-MP 220N +/-20% 250V1 072-10400060CAP-T 100N +/-10% 35V2 075-10400013CAP-MLC 100N 10% 50V X7 R11 075-47300006CAP-MLC 47N 5% 50V X7 R1 076-10000012CAP-MCC 10P .25P NPO 06032 076-10400014CAP-MCC 100N 10% X7R 060311 076-22200014CAP-MCC 2N2 10% X7R 06031 076-47100023CAP-MCC 470P 5% NPO 06031 076-47300014CAP-MCC 47N 10% X7R 06031 080-00000008RESONATOR 8MHZ 3PIN H=1 01 080-000000143.58MHZ RESONATO R1 080-00000130CRYSTAL 32.768KH Z1 084-00300004FUSE PCB MT 250MA SLO W1 149-00000017TEL SOCKET 4P4C1 149-00000078TERMINAL BLOCK 340-021-112 149-00000081TEL SOCKET 6P4C1 160-10100001INDUCTOR 100UH 10%, 1/2 W2 201-1348001CTUBE-PVC 1.34MM T R0.04 201-15080000TUBE-HS 1.5MM BLAC K0.012 209-11700640TRS-NPN 2SD667A (100V )1 209117H10004TRS-NPN 9014 C19 209117H10014TRANSISTOR NPN TIP41 C1 210117H10000TRS-PNP 9015 C4 211-21800010IC DTMF 8870/HM92701 211103H10000REGULATOR 78L0 51 211118H10006IC AUDIO AMP LM38 61 211328H10141IC 24C021 212107H10000DIODE-SI 1N41482 212107H10002DIODE-SI 1N40047 220-00200200LED 3MM (GREEN DIFFUSED )3 220-00200390LED-SMD GREEN 2X2.54 222-12090003DIODE-Z 12V 5% 1W31 233-19900020OPTOCOUPLER 4N35 (UL )1 237-10007032RES-CC 10R +/-10% 1/2W1 237-22007032RES-CC 22R +/-10% 1/2W1 237-56007032RES-CC 56R +/-10% 1/2W1 240-10006011RES-CF 10R +/-5% 1/8 W2 240-10106011RES-CF 100R +/-5% 1/8 W1 240-10206011RES-CF 1K +/-5% 1/8W0 240-10306011RES-CF 10K +/-5% 1/8W8 240-10406011RES-CF 100K +/-5% 1/8W10 240-10406032RES-CF 100K +/-5% 1/2W4 240-10506011RES-CF 1M +/-5% 1/8W5 240-15206011RES-CF 1K5 +/-5% 1/8W2 240-15306011RES-CF 15K +/-5% 1/8W2 240-15406011RES-CF 150K +/-5% 1/8W1 240-22206011RES-CF 2K2 +/-5% 1/8W1 240-22306011RES-CF 22K +/-5% 1/8W2 240-27306011RES-CF 27K +/-5% 1/8W1 240-27406011RES-CF 270K +/-5% 1/8W1 240-33106011RES-CF 330R +/- 5% 1/8W2 240-33206011RES-CF 3K3 +/-5% 1/8W2 240-33306011RES-CF 33K +/-5% 1/8W3 240-39306011RES-CF 39K +/-5% 1/8W1 240-47006011RES-CF 47R +/-5% 1/8 W1 240-47106011RES-CF 470R +/-5% 1/8W1 240-47106022RES-CF 470R +/-5% 1/4 W1 240-47206011RES-CF 4K7 +/-5% 1/8W5 240-47306011RES-CF 47K +/-5% 1/8W5 240-56406011RES-CF 560K +/-5% 1/8W1 240-68106011RES-CF 680R +/-5% 1/8 W2 240-68206011RES-CF 6K8 +/-5% 1/8W2 240-68906011RES-CF 6R8 +/-5% 1/8 W1 240-82006011RES-CF 82R +/-5% 1/8 W1 241-10400003RES-TFC 100K 5% 1/10W06032 241-10500003RES-TFC 1M 5% 1/10W 06031 241-18300003RES-TFC 18K 5% 1/10W 06031 241-22300003RES-TFC 22K 5% 1/10W 06031 241-47200003RES-TFC 4K7 5% 1/10W 06031 241-68300003RES-TFC 68K 5% 1/10W 06031 241-82300003RES-TFC 82K 5% 1/10W 06031 256-20000017SPARK GAP DSS 30IL SOO B1 256-21000015VDR 210VAC, 0.2W, 9X51 263-00000080REED RELA Y1 283-00000044PUSH BUTTON (PB-11B01 )1 283011H10000TAC-SW, 1P1T, 6X3.5X52 307001H10138TRANSFORMER EI14,1:11 307001H10142TRANSFORMER 1:3 BUZZE R1 358-60821001WIRE-JUMPER D=0.6M M4 363-00000105SCREEN CABLE 2 WIR E1 403011H10317SPRING CONTACT (+VE)1 403011H10356SPRING CONTACT (-VE)1 851001H12005- APCB ASSY, DIE1 042010H11246 BPCB1 211328H10318- DIC HE8P480 DIE1 851001H12092PCB ASSY,STEPUP CONVERTE R1 032600H10104FIBRE PAPER 14.5X10X0.32 042010H11231 APCB1 076-33100023CAP-MCC 330P 5% NPO 06031 162089H10047CHOKE COIL 200U H1 211328H10257IC KA34063A-SMD1 212107H10025DIODE SCHOTTKY IN5818,1 A1 241-18100003RES-TFC 180R 5% 1/10W06031 241-22800000RES-TFC 0R22 5% 0.1W 08051 241-47300003RES-TFC 47K 5% 1/10W 06031 241-56200003RES-TFC 5K6 5% 1/10W 06031 358-60821001WIRE-JUMPER D=0.6M M3 403041H10096SHIELD PLATE BO X1 851001H12184PCB ASSY,MI C1 057-10100019CAP-E 100U 20% 10V1 057-47000034CAP-E 47U 20% 16V1 057-47900006CAP-E 4U7 20% 50V 4X71 076-10400014CAP-MCC 100N 10% X7R 06037 076-10500016CAP-MCC 1U +8-2 Y5V 08054 076-15200014CAP-MCC 1N5 10% X7R 06031 076-39000023CAP-MCC 39P 5% NPO 06031 076-47300014CAP-MCC 47N 10% X7R 06031 081-00000010ELECTRET MIC (10X7MM)1 201-1348001CTUBE-PVC 1.34MM T R0.015 201-20080090TUBE-HS 2.0MM BLAC K0.05 209-00000001TRS-NPN 2N3904 SM D5 212107H10000DIODE-SI 1N41481 212107H10016DIODE-DUAL BAV99 (SOT-23 )1 240-33206011RES-CF 3K3 +/-5% 1/8W1 241-00000003RES-TFC 0R 5% 1/10W 06032 241-10200003RES-TFC 1K 5% 1/10W 06032 241-10300003RES-TFC 10K 5% 1/10W 06033 241-15400003RES-TFC 150K 5% 1/10W06031 241-18200003RES-TFC 1K8 5% 1/10W 06031 24…

Text truncated - open the document above for the full version.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A3 Date: 7-Oct-2005 Sheet of File: A:\GE-RX2.SCH Drawn By: OSC1 1 OSC2 2 FO 3 CPA 4 CPB 5 CPO 6 VSS 7 DATA 8 DIS 9 CPC 10 LIN 11 LFA 12 LFB 13 VIRF 14 VEE 15 VORF 16 MIXIN 17 VCC 18 U1 RX3310A C5 470P DISABLE R1 100K VCC_R C4 1u C3 470P C2 68P C11 * R2 * C7 10N C10 18P C9 1P8 C8 1P5 C12 82P L3 33N L2 100N R5 1K L1 3T5 C1 7P Ct1 3P Ct2 12P VCC ANT 245MM RF310 TRANCEIVER R15 6K8 R9 6K8 R10 150R R11 6K8 R12 0R R13 100R C22 * C25 4P7 C27 15P C24 100N C26 10P C28 56P C30 100N C34 8P C32 10P C36 8P C31 3P5 SAW1 319.5MHz Q1 3356 Q2 3356 L5 10T5 L6 330N C23 * VCC PCB1 PCB2 C33 8P VCC R16 *R17 47K C37 22P R18 100R C46 100N VCC_R C14 1u R4 * 04 NOTE : ALL UNSPECIFIED RESISTOR AND CAPACITOR ARE USE 0603 TYPE SMD +5V RFI GND VCC P50 1 P67 2 P66 3 VDD 4 GND 11 P53 12 P52 13 P51 14 P65 5 P64 6 P63 7 P62 8 P61 9 P60 10 U3 EM78P153S R19 1K X10 PLC IN RFO RFO C47 * MT VCC C44 3P5 C43 1P C45 100N PCB : 042010H11374A ASSY : 851001H12311 1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 20-Aug-2004 Sheet of File: A:\SMPS-2S.SCH Drawn By: D1 1N5818 C1 330P R3 47K R1 0.22R R4 5K6 L1 200uH Vin Vout U1 KA34063A RS CONSOLE STEP-UP CONVERTER 12345 678 PIN 1 : Switch CollectorPIN 2 : Switch EmitterPIN 3 : Timing CapacitorPIN 4 : GroundPIN 5 : Comparator Inverting InputPIN 6 : VccPIN 7 : Ipk SensePIN 8 : Driver Collector All Components use SMD Type (0603) R5 180R GND 851001H12092 PCB : 042010H11231A (SMD 0805) 1 2 3 4 5 6 7 8 9 10 11 12 ABCD 12 11 10 9 8 7 6 5 4 3 2 1 D CBA N OTES:- 1/ ALL UNSPECIFIED DIODES 1N4148 OR EQUIVALENT.2/ ALL UNSPECIFIED RESISTORS ARE 0.125W 5%.3/ ALL UNSPECIFIED CAPACITORS ARE AXIAL MLC TYPE."*" DENOTES COMPONENT NOT INSTALLED LCD1 LCD2 LCD3 LCD4 LCD5 LCD6 LCD7 LCD8 LCD9 LCD10 LCD11 LCD12 LCD13 LCD14 LCD15 LCD16 LCD17 LCD18 LCD19 LCD20 LCD21 LCD22 LCD23 LCD24 LCD25 LCD26 LCD27 LCD28 LCD29 LCD30 LCD31 LCD32 LCD33 LCD34 LCD35 LCD36 LCD37 LCD38 LCD39 LCD40 LCD41 LCD42 LCD43 LCD44 LCD45 LCD46 LCD47 LCD48 LCD49 LCD50 LCD51 LCD52 LCD53 LCD54 LCD55 LCD56 LCD57 LCD58 LCD59 LCD60 LCD61 LCD62 LCD63 LCD64 LCD65 LCD66 LCD67 LCD68 LCD69 LCD70 LCD71 LCD72 LCD73 LCD74 LCD75 LCD76 Y1 32KHZ Y28MHZ R17 1M C37 10PF C3810PFNP0 NP0 +5V C6 100nF C7 100nF C12 C13 C11 C10 R2 150K C9 C5 100nF PRTD0 100 PRTC7 101 PRTC6 102 PRTC5 103 PRTC4 104 PRTC3 105 PRTC2 106 PRTC1 107 COM4 128 COM3 129 COM6 126 COM5 127 COM8 124 COM7 125 PRT103 113 COM9 123 PRT106 110 PRT104 112 PRTC0 108 PRT107 109 PRTD5 94 PRTD4 95 VPP 96 PRTD3 97 PRTD2 98 PRTD1 99 LCDVX 1 LV1 2 LV2 3 LCDGS 4 SEG31 38 SEG30 39 SEG19 50 SEG21 48 SEG20 49 SEG23 46 SEG22 47 SEG25 44 SEG24 45 SEG27 42 SEG26 43 SEG29 40 SEG28 41 COM2 130 COM1 131 COM0 132 LR4 133 LR3 134 LR2 135 LR1 136 LR0 137 LV3 144 LV5 142 LV4 143 LC1 140 LC2 141 LVG 138 LVF 139 SEG15 54 SEG14 55 SEG13 56 SEG12 57 SEG11 58 SEG10 59 SEG9 60 SEG8 61 PRTD7 92 PRTD6 93 DTMPO 90 LOADER 91 SDO 88 MUTE 89 SEG5 64 KEYTONE 87 SEG7 62 SEG6 63 SEG18 51 SEG17 52 SEG16 53 LC3A 5 SEG63 6 SEG62 7 SEG61 8 SEG60 9 SEG59 10 SEG58 11 SEG57 12 SEG56 13 SEG55 14 SEG54 15 SEG53 16 SEG52 17 SEG51 18 SEG50 19 SEG49 20 SEG48 21 SEG47 22 SEG46 23 SEG45 24 SEG44 25 SEG43 26 SEG42 27 SEG32 37 PRT105 111 LCDVTB 145 LC4B 146 LC4A 147 LC3B 148 LC1A 149 LC1B 150 SEG41 28 SEG40 29 SEG39 30 GND 86 SXI 85 SXO 84 LC2A 151 LC2B 152 COM10 122 COM11 121 SEG4 65 SEG3 66 SEG33 36 SEG34 35 SEG38 31 SEG37 32 SEG36 33 SEG35 34 SEG2 67 SEG1 68 SEG0 69 GND_PWM 70 PWM 71 PWMN 72 PWMP 73 TSTP_P 83 OPIP 75 FXI 82 FXO 81 RSTP_N 80 VDD 79 VO 78 DAO 77 OPO 76 OPIN 74 COM12 120 COM13 119 COM14 118 COM15 117 PRT100 116 PRT101 115 PRT102 114 U1 HE8P480 LCD IC 5 X 100nF P SnVPPSCLKSDOLDRGNDVDDSDID CnR Wn C4 100nF A0 1 Vcc 8 A1 2 TEST 7 A2 3 SCL 6 Vss 4 SDA 5 U2 24C01 +5V KEY 4 UP C0/GND RF C50 0.047u R494K7 C280.1u R48 15K DTMFO Q169014 Q159014 R60470R C31 0.1uF R5910K +5V R5522K C300.1u 1 18 2 17 3 16 4 15 5 14 6 13 7 12 8 11 9 10 U39270C R42 560K C240.1uF C25100N Y33.58 R41 100K R40100K C22100N Q139014 R39 10K R38 27K R36 270K R37 100K +5V R3510K C200.1u Q119014 R3439KR336K8 +12V C1810u ZD1 7V5 500mW R284K7 Q9 TIP41 R2668R R2768R D8 4004 D64004 D5 4004 D7 4004 Q89014 R25 10K 1234 JP1 4P4C U4 OPTO R221M R20 100K Q6 9015 +5V Q79014 R19100K R21 33K R50 330R R12 100K R10100K R9 1M CONTACT 2 +5V +5V X10MT+8V0V D1 4001 D24001 BATT+6V STEP UP Vin Vout COM REG17805 +5V +12V Q10MPSA42 R3082R R31 1K R29 680R R32 6K8 SPEAKER +5V TR1 TEL TRF. +5V C1220u C2470u KEYPAD BACKLIGHT R1547K Q172SD667 LED1 3MM GREEN R431K5 +5V Q59014 R142K2 R13 6R8 +5V BUZZER +12V R464K7SW1TAMPER SWITCH LCD BACKLIGHT TR2 BUZZ TRF. C27 0.1uF C26 10uF C3 100U 1/2W1/2W LED1 3MM GREEN ARMED LOW POWER Q29015 R3470R R422K R47 330R C212n2 C231n Q12 9015 C1922u C1722u U5 LM386 C36220uF C34 .047uF R5710R R58 100R +12V Q14 9014 R51 10K R21K R52 18K R53 82K C32 2200pF C33 470pF R11K5 +5V R23 10R R24 15K VDR1 120VAC K1 RELAY-SPST +5V KEY 19 ARM AWAY C3/GND KEY 20 ARM HOME C2/GND KEY 3 3 C1/GND KEY 2 2 C2/C4 KEY 1 1 C3/C4 KEY 5 4 C3/C5 KEY 6 5 C2/C5 KEY 7 6 C1/C5 KEY 8 DOWN C0/C5 KEY 12 CLEAR C0/C6 KEY 11 9 C1/C6 KEY 10 8 C2/C6 KEY 9 7 C3/C6 KEY 15 OFF(PM) C1/C7 KEY 16 OK C0/C7 D4 4001 TR2 TEL TRF. P/LREC SP + O/P AGC MIC DAUGHTER BOARD LED5LED6LED3LED4 +8V R44 47R DAUGHTBOARD C8 .047uF C41 1uF R541K 1 8 R1633K C15 0.22uF C14 0.1uF C35 220uF C16 0.22uF Q1 9014 Q189014 R62 150K R63 1M R64 47K C40100N Q219015 R65100K R67100KR6622K R611M +5V R6810K Q199014 LED3LED4LED1LED2 +8V R70 10R Q209014 R69 2k2 R7210k +5V 1/2W +8V C39 100N R733K3 R8 100K R6 100K R71M CONTACT 1 +5V KEY 17 ON C3/C7 KEY 18 0 C2/C7 D3 Spk Mute D10DIODE Q3 9014 Q4 9014 R77 100K R78 100K R79 100K R80 100K Q22 9014 Q23 9014 R5633K R74 47K Q24 9014 Q25 9014 R11 100K R5 10KR75 47K R7647K R18100K C420.1uF C43 1uF +5V C44 220P C45220P 21 6 45 5 4 2 3 6 R?RES2 R561K C29 0.22u C490.1u R79680R R81150R 50V FUSE1 1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 9-Nov-2004 Sheet of File: D:\SCH\AGCMIC03.SCH Drawn By: C2 47N C1 100N C4 1U MIC * Q1 3…

Text truncated - open the document above for the full version.

Retlif Testing Laboratories, Test Report R-11175-1, X-10 (USA), Inc., FCC ID: B4S-JSC13A Page 1 of 26 APPLICANT MANUFACTURER Name: X10 (USA), Inc. Name: X-10 Electronics (Shenzhen) Co. Ltd. Address: 19823 58 th Place South Address: Together Rich Industrial Park B Sanwei Industrial District, Xixiang Town City, State, Zip: Kent, WA 98032 City, State, Zip: Baoan County, Shenzhen, China TEST SPECIFICATION: FCC Rules and Regulations Part 15, Subpart C, Para. 15.231 TEST PROCEDURE: ANSI C63.4:2003 TEST SAMPLE DESCRIPTION BRANDNAME(s): X10 (USA) MODEL(s): JSC13A FCC ID: B4S-JSC13A TYPE: Pulsed Transmitter POWER REQUIREMENTS: 8 VDC derived from 120 VAC, 60 Hz power adapter FREQUENCY OF OPERATION: 319.45 MHz APPLICABLE RULE SECTION: Part 15, Subpart C, Section 15.231 TESTS PERFORMED Para. 15.207(a), Conducted Emissions Para. 15.231(a), Radiated Emissions, Fundamental and Harmonics Para. 15.231(b), Radiated Emissions, Spurious Case Para. 15.231(b), Duty Cycle Determination Para. 15.231(c), Occupied Bandwidth Retlif Testing Laboratories, Test Report R-11175-1, X-10 (USA), Inc., FCC ID: B4S-JSC13A Page 2 of 26 TEST RESULTS 15.207(a): The radio frequency voltage that was conducted back on to the AC power line on any frequency/frequencies within the bandwidth of 150 kHz to 30 MHz did not exceed Class B limits as specified in CISPR 22. 15.231 (a): This device transmits a control signal and is used as a remote control transmitter. 15.231 (a)(1) The transmitter is manually operated. Transmission ends within 5 seconds of deactivation. 15.231 (a)(3): The transmitter does not perform periodic transmissions or the transmitter performs periodic transmissions at predetermined intervals greater than 1 hour apart and are shorter than 1 second in duration. 15.231 (b): The fundamental field strength did not exceed 6227 μV/M (Average) at a test distance of 3 meters. In addition, the requirements of section 15.35 for averaging pulsed emissions and for limiting peak emissions were met. The field strength of harmonic and spurious emissions did not exceed 622.7 μV/M (AVERAGE). 15.231 (c) The Bandwidth of the emission was no wider than 0.25% of the center frequency (798 kHz) as measured 20 db down from the modulated carrier. Retlif Testing Laboratories, Test Report R-11175-1, X-10 (USA), Inc., FCC ID: B4S-JSC13A Page 3 of 26 DETERMINATION OF FIELD STRENGTH LIMITS The field strength limits shown below are found in Section 15.231: Frequency Limit F1 = 260 3750 = L1 Fo = 319.45 MHz Lo F2 = 470 12500 = L2 The formula below was utilized to determine the limits: Limit = L1 + [(Fo-F1)(L2-L1)/(F2-F1)] Solving yields Fundamental Limit = 6227 μV/M (AVERAGE) @ 3 Meters Harmonic Limit = 622.7 μV/M (AVERAGE) @ 3 Meters DUTY CYCLE DETERMINATION The unit’s RF output was directly coupled to the input of the spectrum analyzer. The analyzer was set for a frequency span of 0Hz. The sweep time was then adjusted in order to display one full pulse train. The transmitter on time was then summed and compared to the time for one full cycle in order to obtain the duty cycle. (See plots for additional information). Transmitter On Time =11.4 milliseconds (maximum per cycle) Transmitter Cycle Time =44 milliseconds (100 ms maximum) Transmitter Duty Cycle =26 % CALCULATION 1 Large Pulse =0.95 milliseconds 6 x 0.95 ms (large pulses) =5.7 milliseconds 1 Small Pulse =0.30 milliseconds 19 x 0.30 ms (small pulses) =5.7 milliseconds 5.7 ms + 5.7 ms =11.4 milliseconds Duty Cycle (11.4 / 44) =26 % Correction Factor =20 log(0.26)= -11.7 dB Retlif Testing Laboratories, Test Report R-11175-1, X-10 (USA), Inc., FCC ID: B4S-JSC13A Page 4 of 26 SPECTRUM ANALYZER DESENSITIZATION CONSIDERATIONS Due to the nature of the emissions being measured, care was taken to ensure that the resolution bandwidth of the spectrum analyzer was adequate to provide accurate measurements. The following formula was utilized: Setting pulse desensitization equal to zero and utilizing the minimum observed pulse width of 0.3 milliseconds yields a minimum required bandwidth of2222 Hz. FCC specified bandwidths of 100 kHz and 1 MHz were utilized below and above 1GHz, respectively. GENERAL NOTES 1. All readings were taken utilizing a peak detector function at a test distance of 3 meters. 2. The duty cycle was applied to the peak readings in order to determine the average value of the emissions. 3. The frequency range was scanned from 30 MHz to3.19 GHz. All emissions not reported were more than 20 dB below the specified limit. Retlif Testing Laboratories, Test Report R-11175-1, X-10 (USA), Inc., FCC ID: B4S-JSC13A Page 5 of 26 Para. 15.207(a), Conducted Emissions Test Data Retlif Testing Laboratories, Test Report R-11175-1, X-10 (USA), Inc., FCC ID: B4S-JSC13A Page 6 of 26 Retlif Testing Laboratories, Job Number R-11175-1 FCC Part 15, Subpart C, Conducted Emissions, 150kHz to 30MHz Customer: X-10(USA),Inc. Test Sample: 319.45 MHz Transmitter Security System. Model Number: JSC13A Test Specification: FCC Part 15 Subpart C, 15.207(a) Mode of Operation: Continuously transmitting a 319.45 MHz signal Technician / Date: R.Soodoo / October 14, 2005. Lead Tested: Hot input at 120 VAC, 60 Hz to power supply Notes: Peak passes average limit. -20 0 20406080 100120 Level [dBμV] 150k 300k 500k 1M 2M 3M 5M 7M 10M 30M Frequency [Hz] Page 1 of 2 Retlif Testing Laboratories, Test Report R-11175-1, X-10 (USA), Inc., FCC ID: B4S-JSC13A Page 7 of 26 Retlif Testing Laboratories, Job Number R-11175-1 FCC Part 15, Subpart C, Conducted Emissions, 150kHz to 30MHz Customer: X-10(USA),Inc. Test Sample: 319.45 MHz Transmitter Model Number: JSC13A Test Specification: FCC Part 15 Subpart C,15.207(a) Mode of Operation: Continuously transmitting a 319.45 MHz signal Technician / Date: R.Soodoo / October 14,2005. Lead Tested: Neutral input at 120 VAC, 60 Hz to power supply Notes: Peak passes average limit. -20 0 20406080 100120 Level [dBμV] 150k 300k 500k 1M 2M 3M 5M 7M 10M 30M Frequency [Hz] Page 2 of 2 Retlif Testing Laboratori…

Text truncated - open the document above for the full version.

Radiated Emissions X-Axis Radiated Emissions Y-Axis Radiated Emissions Z-Axis Conducted Emissions Front View Conducted Emissions Back View
