B4S-XC18A2.4GHz WIRELESS COLOR CAMERA

1. Refer to the setup and operating instructions that came with the 2.4 GHz Video Receiver, Model VR31A or VR36A (sold separately) to set up the Receiver. 2. Mount the camera in a suitable location with the antenna on top so the camera is the right way up. If you install it outdoors, run the small cable adapter through a hole in the wall so you can plug the power supply into an AC outlet indoors. 3. Plug the power supply’s jack into the adapter cable on the camera. 4. Set the Housecode and Unit Code. (See instructions included with X10 remote controls). 5. Plug the power supply into any 120V AC outlet. 6. Set the channel switch on the camera to the same setting as the one on the VR31A or VR36A Video Receiver. 7. Adjust the antenna on the camera if necessary to aim it in the direction of the VR31A/VR36A Receiver that you have connected to your TV. LIMITED 1-YEAR WARRANTY X10.com, a division of X10 Wireless Technology, Inc. (X10) warrants X10 products to be free from defective material and workmanship for a period of one (1) year from the original date of purchase at retail. X10 agrees to repair or replace, at it’s sole discretion, a defective X10 product if returned to X10 within the warranty period and with proof of purchase. If service is required under this warranty: Call 1-800-675-3044 or visit www.x10.com, or e-mail [email protected] to obtain a Return Merchandise Authorization (RMA) number. Please do not return any products without an RMA number. Please visit www.x10.com/warranty to complete your on-line warranty registration. Thank you. X10.com, a Div. of X10 Wireless Technology, Inc. For additional help, visit www.x10.com/support ●Extremely small size. ●Built-in 2.4 GHz Video Sender. ●Can be turned on and off remotely (remote controlled power supply included). ●Use it outdoors to monitor your front door, back yard, etc. ●Use it indoors to monitor a child’s bedroom, etc. Model XX16A XX16A-11/06 The XX16A includes the XC18A camera and XM13A remote controlled power supply. The XC18A is a very small and compact color video camera with built-in 2.4 GHz transmitter. You can attach it to a wall anywhere you want to monitor. The XC18A transmits video and sound to the VR31A, or video only to the VR36A receiver which is connected to your TV located anywhere in your home (up to 100 ft. away). The XM13A power supply lets you turn the camera on and off remotely, from X10 remote controls (sold separately). XCam2 InstantON Color Camera ™ F.C.C. CAUTION - THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: NO CHANGES OR MODIFICATIONS MAY BE MADE TO THE UNITS. ANY CHANGES MADE TO THE UNITS WILL VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. Point the raised dimple on the antenna towards the Receiver’s location. Plug power supply in here. XC18A 2 5 Plug into any AC outlet Attach to a wall. 3 Cable adapter. 7 Outdoors Indoors Set the code used to turn on and off from X10 remote controls. 4 XM13A 6 Set channel switch (under rubber plug) to match setting on VR31A or VR36A Receiver. (A is at bottom, D is at top). It is factory set to A. Remove clear cap and turn lens counterclockwise to focus (replace cap for outdoor use). Point backwards from direction shown here if you install the camera outdoors.

Micro phone Input Camera Input FM ModulatorPre-emphasis 2.4GHz RFTransmitter 2.4GHz Patch Antenna 4-Channels Selector Block Diagram for Indoor/Outdoor Video Camera With Built-in 2.4 GHz Transmitter(XC18A/XC19A)

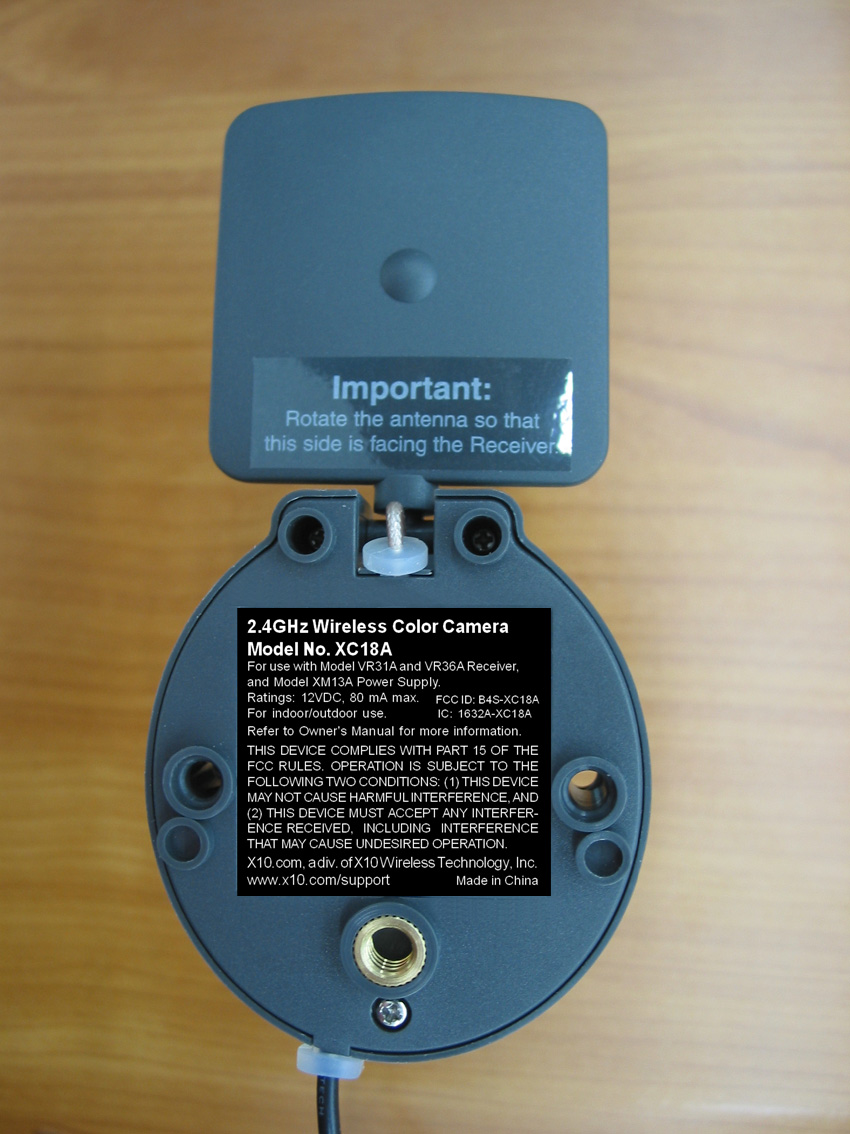

For use with Model VR31A and VR36A Receiver, and Model XM13A Power Supply. Ratings: 12VDC, 80 mA max. For indoor/outdoor use. X10.com, a div. of X10 Wireless Technology, Inc. www.x10.com/support Made in China Model No. XC18A rating label 2: 1 11/30/06 2.4GHz Wireless Color Camera Model No. XC18A FCC ID: B4S-XC18A IC: 1632A-XC18A Refer to Owner's Manual for more information. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFER- ENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

XC18A Operational Description: The XC18A is a wireless color camera, which contains a 2.4 GHz FM transmitter. The transmitter operates on one of 4 user selectable channels, A, B, C & D. Their respective frequencies are 2414 MHz, 2431 MHz, 2450 MHz and 2468 MHz. The XC18A takes the camera Input signal and FM modulates the signal into a 2.4 GHz carrier. The signal is then transmitted via a patch antenna to the VR13A or VR36A 2.4 GHz receiver.

7/1/2006 17:53 SYSTEM X10F MATERIAL PAGE 1 PART IDENTIFIE RDESCRIPTIONQTY/ASSY REFERENCE --------------- ----------------------------------- ----------------------- XC18A-200=COM UOUTDOOR CAM1 038010=10040-X LABEL-DATE CODE (WHITE)1 183010=15350A SCREW RUBBER RING ,ID2.3MM2 183010=17780 RUBBER O-RING ID=361 183010=17790 RUBBER O-RING ID=151 183010=17880 DISK BOTT.1 183010=17890 HINGE1 183010=17900 SWITCH COVER1 183010=17950A BRACKET1 183010=17970A RUBBER RING, SHORE 'A'-301 183010=18180 HINGE (GREY)1 183010=19390 DISK TOP1 183=00200290 CABLE TIE (696-40379) UL1 184002=10000 STRAIN RELIEF BUSHING1 185000=16740C TOP CABINET1 185000=17260 BOTTOM CABINET (GREY)1 185000=18340A BOTTOM COVER1 185000=18440A TOP COVER1 186003=10059A ANTENNA LABEL1 186005=10098C RATING LABEL (XC19A)1 201=15080000 TUBE-HS 1.5MM BLACK0.065 201=4728001C TUBE-PVC 4.72MM TR0.008 206002=10068 FOAM2 275000=11040 CABLE BUSH (CLEAR)1 275000=11140 RUBBER MIC HOLDER1 275000=11270 POWER CABLE BUSH (CLEAR)1 365000=10015 ARON ALPHA ADHESIVE #2010.02 365000=10023 HOT MELT GLUE, HE-38A1 391=20204001 M/C SCREW M3X12 PM1 391=20206001 M/C SCREW M4X10 PM1 391=60202110 SCREW-PA M2.3X8 HEAD=M2.2 391=60202120 SCREW-PA M2.3X7 HEAD=M2.2 391=60203060 SCREW-PPTT M2.6X10 MS/ZP1 392005=10010 M2.5 E-RING1 394004=10001 NUT M31 394006=10000 STANDARD M4 NUT1 403021=10438 CONNECTOR1 7/1/2006 17:53 SYSTEM X10F MATERIAL PAGE 2 PART IDENTIFIE RDESCRIPTIONQTY/ASSY REFERENCE --------------- ----------------------------------- ----------------------- 851001=11261 CAMERA ASSY1 081=00000070 ELECTRET MIC (6X2.7MM)1 087=00000002 LENS DW30421 183010=18820 LENS HOLDER1 354=13000050 WIRE UL1571 #30 BLACK0.025 354=13000059 WIRE UL1571 #30 WHITE0.028 391=60201041 SCREW-PPTT M2X6 MS/NIP2 403021=10461A CAMERA SPRING WIRE D=0.61 851001=11863 PCB ASSY1 042010=10979C PCB1 057=22000029 CAP-E 22U 20% 16V1 C1 057=47900006 CAP-E 4U7 20% 50V 4X71 C2 076=10400019 CAP-MCC 100N +8-2 Y5V06037 C3,5,7-9,19,20 076=10500016 CAP-MCC 1U +8-2 Y5V 08051 C17 076=33000023 CAP-MCC 33P 5% NPO 06032 C10,11 076=47300014 CAP-MCC 47N 10% X7R 06031 C18 080=00000015 CRYSTAL 14.31818MHZ1 Y1 201=15080000 TUBE-HS 1.5MM BLACK0.035 209=00000001 TRS-NPN 2N3904 SMD2 Q1-2 211103=10000 REGULATOR 78L051 U1 211328=10323 OV7930 SINGLE-CHIP CAMER A1U2 241=10000003 RES-TFC 10R 5% 1/10W 06032 R1,X1 241=10100003 RES-TFC 100R 5% 1/10W06031 R23 241=10500003 RES-TFC 1M 5% 1/10W 06032 R14,26 241=12300003 RES-TFC 12K 5% 1/10W 06032 R24,27 241=12400003 RES-TFC 120K 5% 1/10W06031 R28 241=22100003 RES-TFC 220R 5% 1/10W06031 R25 241=22200003 RES-TFC 2K2 5% 1/10W 06031 R29 241=75000003 RES-TFC 75R 5% 1/10W 06031 R11 851001=11821 ANTENNA PCB ASSY1 042010=11131B PCB ANT. FR4 49X49X1.6MM1 363=00000041 COAXIAL RG178B/V 80MM1 851001=12575 PCB ASSY 2.4G TX MODULE1 042010=11677A PCB, 2.4G TX1 076=10000022 CAP-MCC 10P .25P COG 04025 C1,3,7,8,26 076=10100024 CAP-MCC 100PF 5% COG 04021 C4 076=10400028 CAP-MCC 100N 10% X7R 04024 C24,100,102,103 7/11/2006 17:53 SYSTEM X10OF MATERIALPAGE 3 PART IDENTIFIE RDESCRIPTIONQTY/ASSY REFERENCE --------------- ----------------------------------- ----------------------- 076=10500028 CAP-MCC 1U 10% X7R 04025 C12-15,39 076=10600016 CAP-MCC 10U +8-2 Y5V 08052 C35,36 076=10900022 CAP-MCC 1P .25P COG 04021 C2 076=15300028 CAP-MCC 15N 10% X7R 04021 C20 076=18000024 CAP-MCC 18P 5% COG 04022 C51,53 076=22500031 CAP-MCC 2U2 +8-2 Y5V 06032 C16,17 076=33000024 CAP-MCC 33P 5% COG 04022 C22,23 076=47000024 CAP-MCC 47P 5% COG 04021 C9 076=47300028 CAP-MCC 47N 10% X7R 04023 C96-98 076=47400028 CAP-MCC 470N 10% X7R 04021 C21 076=47500031 CAP-MCC 4U7 +8-2 Y5V 06033 C18,19,25 076=56100028 CAP-MCC 560P 10% X7R 04022 C31,32 076=56900022 CAP-MCC 5P6 .25P COG 04022 C40,41 076=68100028 CAP-MCC 680P 10% X7R 04021 C10 076=82000024 CAP-MCC 82P 5% COG 04021 C11 076=82100028 CAP-MCC 820P 10% X7R 04022 C5,6 080=00000048 CRYSTAL 8MHZ HC-49/S1 Y1 110=00000015 MULTILAYER LF2012 2400AC T1F1 138001=10054 5 WAY PIN HEADER 2.54MM1 P2 138001=10055 6 WAY PIN HEADER 2.54MM1 P1 160=27900019 INDUCTOR 2N7H 5% 0402 SM D1L3 160=47600019 INDUCTOR 4N7H 5% 0402 SM D1L2 160=82800012 INDUCTOR 820NH 10%0603SM2 L4,5 160=82900019 INDUCTOR 8N2H 5% 0402 SM D1L1 211328=10382 IC RTC6701 (QFN32)1 I1 241=00000006 RES-TFC 0R 5% 1/16W 04025 L6,R1,5,25,34 241=10300006 RES-TFC 10K 5% 1/16W 04027 R19,20,30,33-36 241=10400006 RES-TFC 100K 5% 1/16W04023 R22,31,32 241=11100006 RES-TFC 110R 5% 1/16W04021 R21 241=12200006 RES-TFC 1K2 5% 1/16W 04022 R14,15 241=20300006 RES-TFC 20K 5% 1/16W 04025 R8-12 241=39000006 RES-TFC 39R 5% 1/16W 04021 R2 241=51300006 RES-TFC 51K 5% 1/16W 04022 R17,18 241=68100006 RES-TFC 680R 5% 1/16W04022 R7,26 241=75000006 RES-TFC 75R 5% 1/16W 04022 R13,16 241=75100006 RES-TFC 750R 5% 1/16W04022 R27,28 241=82300006 RES-TFC 82K 5% 1/16W 04022 R50,52 7/11/2006 17:53 SYSTEM X10OF MATERIALPAGE 4 PART IDENTIFIE RDESCRIPTIONQTY/ASSY REFERENCE --------------- ----------------------------------- ----------------------- 403041=10117 METAL BOX (A)1 851001=12762 PCB ASSY,MAIN1 042010=11790A PCB1 057=10100029 CAP-E 100U 20% 16V 4X71 C107 057=10100053 CAP-E 100U 20% 10V1 C106 057=22100018 CAP-E 220U 20% 25V1 C110 076=10400014 CAP-MCC 100N 10% X7R 06034 C102-5 211103=10026 LOW DROPOUT REG,1117-3V31 U100 222=36080003 DIODE-Z 3V6 5% 1W31 ZD100 241=00000003 RES-TFC 0R 5% 1/10W 06031 R200 283=00000017 SLIDE SW 2P4T (SS-24D02)1 SW100 851100=10050A CABLE ASSY (BLACK)1 851100=10053 CABLE ASSY-FEMALE ,BLACK1

11 22 33 44 D D C C B B A A 1 SYS TEM X -10 H .K. LTD.Crea ted: Ka m @2 006 04 25Up da ted B y: Kam 1 AV TRANSMITTER ' =116 77 -4 20 06 091 4D: \7 kam\10 WORK\ 2G 4\RW6 7 s eries-X T\6 7 T x\=1 16 77-4 .SCH DOC Ti tl eSize: No: Dat e:File: Revision:Sheet of A4 Cann ot open fil e E: \D ocument s an d Sett in gs\ cheng chi a\ My 07-Nov-06 10 KR20 47 0n F C21 10 0n F C24 18 pFC23 8MHz 08 0-0 000 004 8 Y1 18 pFC22 SPI_SE 10 KR30 10 K R33 10 K R34 10 K R35 CH0CH1CH2 D_3.3V 4. 7uFC25 3.3V 56 0pC32 20 K R11 68 0R7 20 KR12 75 0R28 10 uF C36 Au di o Rig ht IN 51 K R18 1u FC15 2. 2uFC17 10 0K R31 1u FC39 3.3V VT 20 KR9 75 0R27 10 uF C35 51 K R17 1u FC14 10 0K R32 56 0pC31 20 K R8 68 0R26 2. 2uFC16 1u FC12 1. 2K R14 75 RR13 4. 7uFC19 **C6 10 KR19 75 RR16 20 KR10 0RR5 1. 2KR15 ** C4 47 pF C9 68 0p F C10 82 pC11 82 0p F C5 82 0n H 06 03 L5 82 0n H 06 03 L4 VT Vi deo_ In 10 0KR22 15 nFC20 11 0RR21 1u FC13 4. 7uF C18 3.3V 3.3V 2. 7nH L3 4. 7nH L2 1p FC2 10 pFC1 39R2 8. 2nHL1 10 pFC3 3.3V AU DIO L EFT IN VCOVDD 1 VT 2 GND 3 CP 4 AVT2 5 ACP2 6 AOUT2 7 AVDD2 8 AOUT1 9 NC 10 AVT1 11 ACP1 12 AVDD1 13 VDD 14 SPI_SE 15 BCR 16 RE G1 D8 17 PD_REG1D8 18 XTAL1 19 XTAL2 20 VDD33 21 SPICLK/CS0 22 SPILE/CS1 23 SPIDATA/CS2 24 BX 25 SYNVSS 26 RFGND2 27 PAOUT2 28 PAOUT1 29 RFGND1 30 PAVDD 31 NC 32 RTC6701A 21 132 8=10 382 U1 10 0nC103 0R L6 +V D_3.3V 3.3V 10 0nC102 NP 10nF C101 IN 1 GND 2 EN 3 BP 4 OUT 5 VID EO_ INALAR 123456 CON7P1 RFOUT 47 nFC96 47 n C97 47 nFC98 1234567 CON7P2 BX CH0CH1CH2 +V 10 pFC26 10 pFC810 pFC7 BX RFOUT 0RR1 6M 6M5 WHITE RED 10 K R36 C34 18 pF C51 18 pFC53 +5V NPC27 1 3 2 11 0-0 000 001 5 F1 11 677 B - B Date By Detail KAM 20 060 914 Ass'y: 8510 01=1 257 5 / 1 274 2 2 G4 T X - RT A 011B 1 01C 1 10D 111 US/EUR2414 M2432 M2450 M2468 M Ch CS0-2 AUS 2414 M2432 M2450 M 5p 6C40 5p 6C41 82 KR52 82 KR50 0RR34 Cann ot open file C:\Documents an d Sett in gs\ kam. Cann ot open file C:\Documents an d Sett in gs\ kam. 10 0nC100 85 10 01=1 27 42 ASY 2G4 TX - WB85 10 01=1 25 75 ASY G4 T X - RT C4 C5 C6 C9 C10 27p 820p 820p 47p 680p op en 82 0p 22 0p 47 p 68 0p ** Remark : 0p 75C02 0p 75C01 0p 75 C0 1n 5H L0

Retlif Testing Laboratories, Test Report R-11711-1, X10 (USA), Inc., FCC ID: B4S-XC18A Page 1 of 26 Technical Information APPLICANT MANUFACTURER Name: X10 (USA ), Inc. Name: X-10 Electronics Schenzhen Co. Ltd. Address: 19523 58 th Place South Address: Together Rich Industrial Park B Sanwei Industrial District, Xixiang Town City, State, Zip: Kent, WA , 98032 City, State, Zip: Baoan County, Shenzhen, China TEST SPECIFICATION: FCC Rules and Regulations Part 15, Subpart C, Section 15.249 TEST PROCEDURE: ANSI C63.4:2003 TEST SAMPLE DESCRIPTION BRANDNAME(s): X-1O (USA) MODEL(s): XC18A FCC ID: B4S-XC18A TYPE: 2.4 GHz FM Transmitter POWER REQUIREMENTS: 12 Vdc derived from external AC adapter. FREQUENCY OF OPERATION: 2400 MHz to 2483.5 MHz Band APPLICABLE RULE SECTION: Part 15, Subpart C, Section 15.249 TESTS PERFORMED - 15.207 Conducted Emissions - 15.249(a) Radiated Emissions, Fundamental and Harmonics - 15.249(c) Band Edge Verification - 15.249(c) Radiated Emissions, Spurious Case Retlif Testing Laboratories, Test Report R-11711-1, X10 (USA), Inc., FCC ID: B4S-XC18A Page 2 of 26 TEST RESULTS 15.203: The intentional radiator is designed to ensure that no antenna other than that furnished by the applicant can be used with the device. 15.207 (a): The radio frequency voltage that was conducted back on to the AC power line on any frequency/frequencies within the bandwidth of 150 kHz to 30 MHz did not exceed Class B limits as specified in CISPR 22. 15.249 (a): The unit operates in 2400 MHz to 2483.5 MH band. The field strength of the fundamental did not exceed 50 mV/M average. The field strength of the harmonics did not exceed 500 μV/M average. 15.249 (b): Field strength readings were taken at 3 meters unless otherwise noted. 15.249 (c): Emissions radiated outside the specified frequency band were attenuated in accordance with the general radiated emissions limits of 5.209. 15.249 (d): The peak field strength of any emission did not exceed the maximum permitted average field strength by more than 20 dB. GENERAL NOTES 1. All user accessible controls were adjusted to produce maximum emissions. 2. The device was tested with the following external accessories: AC Adapter, Model Number: XM13A 3. Measurements of Conducted Emissions were performed utilizing a 50 ohm / 50 μhenry Line Impedance Stabilization Network (LISN). Channel A Channel B Channel C Channel D 4. The unit operates at the following frequencies: 2414 MHz 2431 MHz 2450 MHz 2467 MHz The unit was tested at the following frequencies: 2414 MHz - 2450 MHz 2467 MHz 5. The frequency range was scanned from 30 MHz to 25 GHz. All emissions not reported were more than 20 dB under the specified limit. Retlif Testing Laboratories, Test Report R-11711-1, X10 (USA), Inc., FCC ID: B4S-XC18A Page 3 of 26 Certification and Signatures We certify that this report is a true representation of the results obtained from the tests of the equipment stated. We further certify that the measurements shown in this report were made in accordance with the procedures indicated and vouch for the qualifications of all Retlif Testing Laboratories personnel taking them. Donald C. Lerner EMC Test Engineer Richard J. Reitz Laboratory Manager Non-Warranty Provision The testing services have been performed, findings obtained and reports prepared in accordance with generally accepted laboratory principles and practices. This warranty is in lieu of all others, either expressed or implied. Non-Endorsement This test report contains only findings and results arrived at after employing the specific test procedures and standards listed herein. It is not intended to constitute a recommendation, endorsement or certification of the product or material tested. This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Retlif Testing Laboratories, Test Report R-11711-1, X10 (USA), Inc., FCC ID: B4S-XC18A Page 4 of 26 EQUIPMENT LIST Radiated Emissions EN Type Manufacturer Description Model No. Cal Date Due Date 067 Open Area Test Site Retlif 3 Meter RNY 9/12/2006 9/12/2009 091 Shielded Enclosure Retlif 10 kHz - 1 GHz Room 6 10/16/2006 10/16/2007 128 Double Ridged Guide Electro-Mechanics 1 GHz - 18 GHz 3105 3/27/2006 3/27/2007 129E High Gain Horn Antenna Microlab/FXR 18 GHz - 26.5 GHz K638A 9/20/2006 9/20/2007 133 Broadband Pre-Amplifier Electro-Metrics 10 kHz - 1 GHz, 26dB BPA-1000 6/27/2006 6/27/2007 141 Spectrum Analyzer Hewlett Packard 100 Hz - 40 GHz 8566B 10/10/2006 4/10/2007 141B Quasi-Peak Adaptor Hewlett Packard 100 Hz - 1 GHz 85650A 10/9/2006 4/9/2007 141C Cable Retlif 1 GHz ~ 18 GHz 1 METER, BLUE 1/4/2006 1/4/2007 141D Cable Retlif 1 GHz ~ 18 GHz 10 METER, BLACK 1/4/2006 1/4/2007 206B 6.0 dB Attenuator Texscan 0 - 1.0 GHz FP-50 - 6 dB 6/27/2006 6/27/2007 420 Amplifier Hewlett Packard 2.0 GHz - 18 GHz 11975A 11/14/2006 11/14/2007 421 Harmonic Mixer Hewlett Packard 18 GHz - 26.5 GHz 11970K 10/3/2006 10/3/2009 512 Graphics Plotter Hewlett Packard N/A 7470A 10/18/2006 10/18/2007 523 Biconilog Electro-Mechanics 26 - 2000 MHz 3142B 11/10/2006 11/10/2007 543 Preamplifier Hewlett Packard 1.0 GHz - 26.5 GHz 8449B 9/9/2005 9/9/2007 617 Interference Analyzer Electro-Metrics 10 kHz - 1 GHz EMC-30 2/21/2006 2/21/2007 712 EMI Test Receiver Rohde & Schwarz 20 Hz - 26.5 GHz ESI26 9/26/2006 9/26/2007 712B Cable Retlif 10 kHz - 18 GHz R&S Analyzer 8/21/2006 8/21/2007 712C Cable Retlif 10 kHz - 18 GHz R&S Analyzer 6/3/2006 6/3/2007 723 H.P. Filter Mini-Circuits 1 GHz BHP-1000 8/7/2006 8/7/2007 762 AM/FM Signal Generator Marconi Instru. 10 kHz - 1.2 GHz 2023 7/25/2006 7/25/2007 767 Biconilog EMCO 26 - 2000 MHz 3142B 10/12/2006 10/12/2007 Occupied Bandwidth EN Type Manufacturer Description Model No. Cal Date Due Date 128 Double Ridged Guide Electro-Mechanics 1 GHz - 18 GHz 3105 3/27/2006 3/27/2007 141 Spectrum Analyzer Hewlett Packard 100 Hz - 40 GHz 8566B 10/10/2006 4/10/2007 141B Quasi-Peak Adaptor Hewlett Packard 100 Hz - 1 GHz 85650A 10/…

Text truncated - open the document above for the full version.

Retlif Testing Laboratories, Test Report R-11711-1, X10 (USA), Inc., FCC ID: B4S-XC18A Page 1 of 4 Radiated Emissions, Fundamental and Harmonics, X-Axis Radiated Emissions, Fundamental and Harmonics, Y-Axis Retlif Testing Laboratories, Test Report R-11711-1, X10 (USA), Inc., FCC ID: B4S-XC18A Page 2 of 4 Radiated Emissions, Fundamental and Harmonics, Z-Axis Occupied Bandwidth Retlif Testing Laboratories, Test Report R-11711-1, X10 (USA), Inc., FCC ID: B4S-XC18A Page 3 of 4 Radiated Emissions, Spurious Test Setup Conducted Emissions, Front Retlif Testing Laboratories, Test Report R-11711-1, X10 (USA), Inc., FCC ID: B4S-XC18A Page 4 of 4 Conducted Emissions, Rear
