B4SHR13APalmPad Remote Control

X10 Wireless Technology, Inc. LIMITED 1-YEAR WARRANTY X10.com, a division of X10 Wireless Technology, Inc. (X10) warrants X10 products to befree from defective material and workmanship for a period of one (1) year from the originaldate of purchase at retail. X10 agrees to repair or replace, at it’s sole discretion, a defectiveX10 product if returned to X10 within the warranty period and with proof of purchase.If service is required under this warranty:1. Call 1-800-675-3044 or visit www.x10.com, or e-mail [email protected] to obtain a Return Merchandise Authorization (RMA) number. 2. Return the defective unit postage prepaid to X10 (see address on back).3. Enclose a check for $4.00 to cover postage and handling.4. Enclose a dated proof of purchase.5. X10 is not responsible for shipping damage. Units to be returned should be packed carefully. Please visit www.x10.com/warrantyto complete your on-line warranty registration. Thank you.For help or more information on setup, please visit: www.x10.com/support Installation and operating instructions for HR13A PalmPadThe HR13A PalmPad Remote Control sends Wireless RadioFrequency (RF) signals to an X10 Transceiver (RR501 or TM751)or any X10 security system base receiver. The receiver then passesthe signals onto your house wiring to control lights or appliancesaround your home. You plug lights and appliances into X10 Modules(sold separately). The PalmPad also works with the CM15AActiveHome Pro Two-Way Computer Interface to initiate macros(routines) so you can set up a “coming home” routine which isinitiated when you press a button on the PalmPad.1. Install 4 AAA alkaline batteries (sold separately) in the PalmPad’s battery compartment. 2. Use a dime to set the Housecode dial to match the X10 Modules and Transceiver you want to control. 3. Plug in an X10 Transceiver (RR501 or TM751, sold separately).4. Set the Palm Pad’s slide switch to 1-8 to control X10 Modules set to Unit Codes 1 thru 8. 5. Set the slide switch to 9-16 to control X10 Modules 9 thru 16.6. Press the corresponding ON or OFF button to turn X10 Modules on and off. 7. To brighten or dim lights connected to X10 Lamp Modules and Wall Switch Modules, first press the corresponding numberbutton, then press the UP or DOWN (blue) buttons. HR13A-12/05 F.C.C. CAUTION - THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWOCONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFULINTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANYINTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAYCAUSE UNDESIRED OPERATION. NOTE: NO CHANGES OR MODIFICATIONS MAY BE MADE TO THE UNITS. ANY CHANGESMADE TO THE UNITS WILL VOID THE USER'S AUTHORITY TOOPERATE THE EQUIPMENT.

310MHz Transmitter MCU (EM78P156BP) 310MHz Block Diagram for Handset Remote (HR13A) Key Matrix

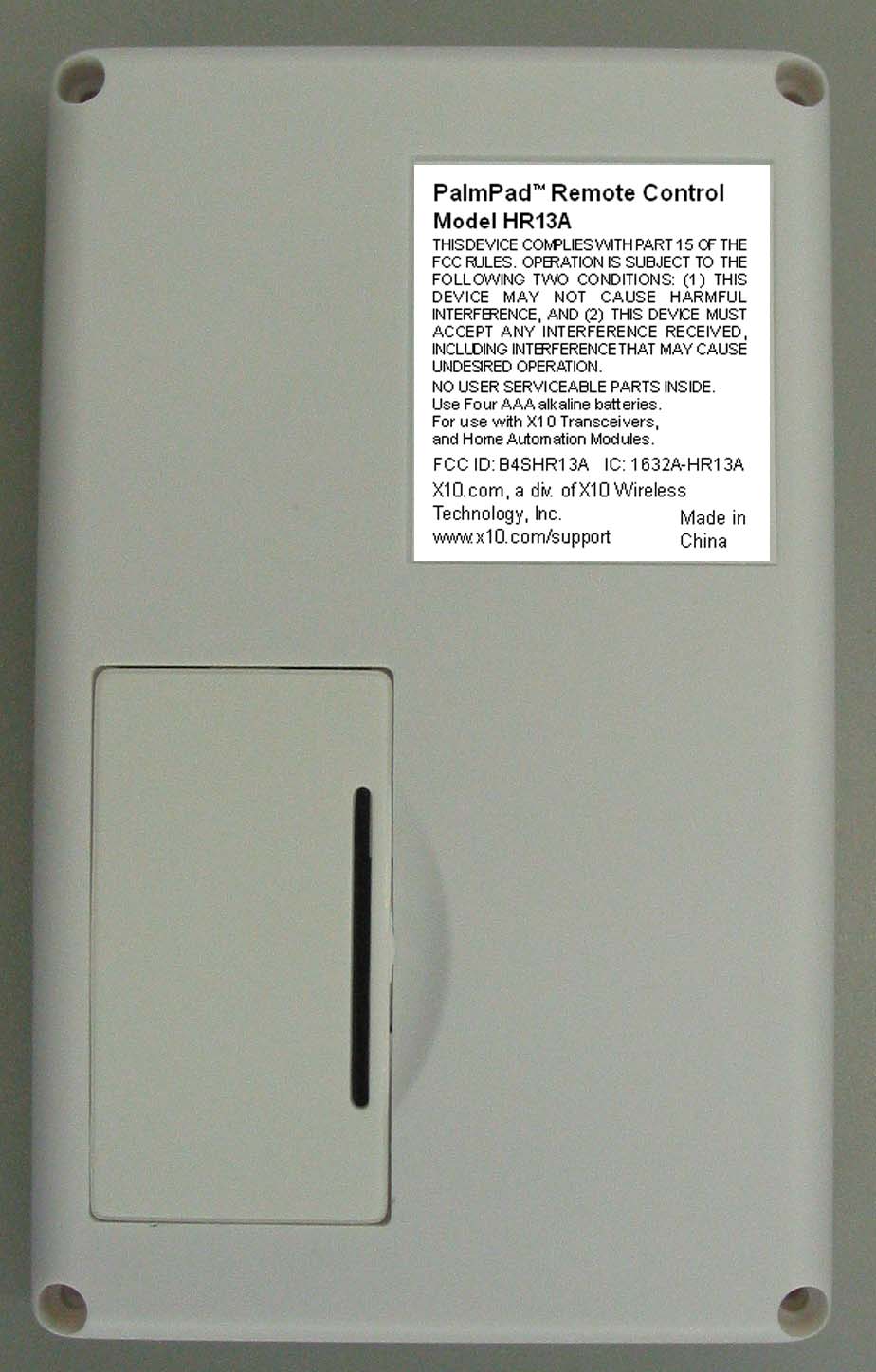

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NO USER SERVICEABLE PARTS INSIDE. Use Four AAA alkaline batteries. For use with X10 Transceivers, and Home Automation Modules. PalmPad ™ Remote Control Model HR13A HR13A Rating label 2:1 12/14/05 FCC ID: B4SHR13A IC: 1632A-HR13A Made in China X10.com, a div. of X10 Wireless Technology, Inc. www.x10.com/support

Model HR13A Operational Description The model HR13A is a radio frequency remote control transmitter utilized to activate an X-10 transceiver (RR501 or TM751) or any X-10 security base receiver. The device transmits when the user of the remote control depresses any of the buttons. When a button is depressed the 310.00 MHz pulsed RF transmitter transmits the appropriate pulse code to activate the transceiver.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A3 Date: 14-Dec-2005 Sheet of File: C:\SCH\SCH\HR13A-FC.SCH Drawn By: RA2 1 RA3 2 RTCC 3 RES 4 VSS 5 RB0 6 RB1 7 RB2 8 RB3 9 RB4 10 RB5 11 RB6 12 RB7 13 VDD 14 OSC2 15 OSC1 16 RA0 17 RA1 18 U1 78P156BP KEY12 3/11 OFF KEY6 6/14 OFF KEY9 5/13 OFF KEY10 4/12 OFF KEY7 6/14 ON KEY13 3/11 ON KEY14 2/11 ON KEY8 5/13 ON KEY11 4/12 ON KEY17 1/9 ON KEY3 8/16 OFF D10 1N4148 D9 1N4148 D8 1N4148 D7 1N4148 D1 3MM RED R9 10K R8 5K1 R10 100R Y2 310MHz Q1 H10 C8 6P8 C6 3P3 C4 30P PCB TRACE L1 18T 6V BAT1 4 X AAA SIZE HOUSE CODE KEY161/9 OFF KEY15 2/10 OFF 03 C10 33P C1 2U2 R3 100K VCC1 R12 2M2 KEY4 7/15 OFF KEY5 7/15 ON KEY0 DIM KEY1 BRIGHT KEY2 8/16 ON R4 100K R5 100K RA2RA0RA1 RB0RB1RB2RB3RB4RB5RB6 D12 1N4148 SW1 1-8 / 9-16 R11 47K RB7RTCC 6V RB7 D4 1N4148 D6 1N4148 D5 1N4148 RA0RA1RA2 R7 100K C9 1N MCLR- R6 100K VCC1 D2 1N4148 VCC1 RB3RB2RB1RB0 RB4RB5RB6RB7RA1RA0 RA2RA3RTCCMCLR- R1 6K2 VCC2 0/0 0/1 0/2 1/0 1/1 1/2 2/0 2/1 2/2 3/0 3/1 3/2 5/0 5/1 5/2 6/0 6/1 6/2 C5 10P HR13A (310MHz) PCB : 042010=11497A PCB ASSY : 851001=12454 DX1 1N4148 VCC2 C20 100N R13 100K

Retlif Testing Laboratories, Test Report R-11252-1, X-10 (USA), Inc., FCC ID: B4SHR13A Page 1 of 19 APPLICANT MANUFACTURER Name: X10 (USA), Inc. Name: X-10 Electronics (Shenzhen) Co. Ltd. Address: 19823 58 th Place South Address: Together Rich Industrial Park B Sanwei Industrial District, Xixiang Town City, State, Zip: Kent, WA 98032 City, State, Zip: Baoan County, Shenzhen, China TEST SPECIFICATION: FCC Rules and Regulations Part 15, Subpart C, Para. 15.231 TEST PROCEDURE: ANSI C63.4:2003 TEST SAMPLE DESCRIPTION BRANDNAME(s): X10 (USA) MODEL(s): HR13A FCC ID: B4SHR13A TYPE: Pulsed Transmitter POWER REQUIREMENTS: 4 AAA Alkaline Batteries. FREQUENCY OF OPERATION: 310 MHz APPLICABLE RULE SECTION: Part 15, Subpart C, Section 15.231 TESTS PERFORMED Para. 15.231(a), Radiated Emissions, Fundamental and Harmonics Para. 15.231(b), Radiated Emissions, Spurious Case Para. 15.231(b), Duty Cycle Determination Para. 15.231(c), Occupied Bandwidth Retlif Testing Laboratories, Test Report R-11252-1, X-10 (USA), Inc., FCC ID: B4SHR13A Page 2 of 19 TEST RESULTS 15.231 (a)(1) The transmitter is manually operated. Transmission ends within 5 seconds of deactivation. 15.231 (a)(3): The transmitter does not perform periodic transmissions or the transmitter performs periodic transmissions at predetermined intervals greater than 1 hour apart and are shorter than 1 second in duration. 15.231 (b): The fundamental field strength did not exceed 5833 μV/M (Average) at a test distance of 3 meters. In addition, the requirements of section 15.35 for averaging pulsed emissions and for limiting peak emissions were met. The field strength of harmonic and spurious emissions did not exceed 583.3 μV/M (AVERAGE). 15.231 (c) The Bandwidth of the emission was no wider than 0.25% of the center frequency (775 kHz) as measured 20 db down from the modulated carrier. Retlif Testing Laboratories, Test Report R-11252-1, X-10 (USA), Inc., FCC ID: B4SHR13A Page 3 of 19 DETERMINATION OF FIELD STRENGTH LIMITS The field strength limits shown below are found in Section 15.231: Frequency Limit F1 = 260 3750 = L1 Fo = 310 MHz Lo F2 = 470 12500 = L2 The formula below was utilized to determine the limits: Limit = L1 + [(Fo-F1)(L2-L1)/(F2-F1)] Solving yields Fundamental Limit = 5833 μV/M (AVERAGE) @ 3 Meters Harmonic Limit = 583 μV/M (AVERAGE) @ 3 Meters DUTY CYCLE DETERMINATION The unit’s RF output was directly coupled to the input of the spectrum analyzer. The analyzer was set for a frequency span of 0Hz. The sweep time was then adjusted in order to display one full pulse train. The transmitter on time was then summed and compared to the time for one full cycle in order to obtain the duty cycle. (See plots for additional information). Transmitter On Time =25.1 milliseconds (maximum per cycle) Transmitter Cycle Time = 120.8 milliseconds (100 ms maximum) Transmitter Duty Cycle =25.1 % CALCULATION 1 Large Pulse =8.6 milliseconds 1 x 8.6 ms (large pulses) =8.6 milliseconds 1 Small Pulse =0.5 milliseconds 33 x 0.5 ms (small pulses) =16.5 Milliseconds 8.6 ms + 1 6.5 ms =25.1 milliseconds Duty Cycle ( 25.1 / 100) =25.1 % Correction Factor =20 log ( 0.251 ) = -12.0 dB Retlif Testing Laboratories, Test Report R-11252-1, X-10 (USA), Inc., FCC ID: B4SHR13A Page 4 of 19 SPECTRUM ANALYZER DESENSITIZATION CONSIDERATIONS Due to the nature of the emissions being measured, care was taken to ensure that the resolution bandwidth of the spectrum analyzer was adequate to provide accurate measurements. The following formula was utilized: 1/{minimum pulse width (in seconds) x 1.5} = Hz. Setting pulse desensitization equal to zero and utilizing the minimum observed pulse width of 0.5 milliseconds yields a minimum required bandwidth of1333 Hz. FCC specified bandwidths of 100 kHz and 1 MHz were utilized below and above 1GHz, respectively. GENERAL NOTES 1. All readings were taken utilizing a peak detector function at a test distance of 3 meters. 2. The duty cycle was applied to the peak readings in order to determine the average value of the emissions. 3. The frequency range was scanned from 30 MHz to3.10 GHz. All emissions not reported were more than 20 dB below the specified limit. Retlif Testing Laboratories, Test Report R-11252-1, X-10 (USA), Inc., FCC ID: B4SHR13A Page 5 of 19 Para. 15.231(a), Radiated Emissions, Fundamental and Harmonics Test Data Retlif Testing Laboratories, Test Report R-11252-1, X-10 (USA), Inc., FCC ID: B4SHR13A Page 6 of 19 Test Method: FCC Part 15, Subpart C, Radiated Emissions, Fundamental & Harmonic Emissions. Customer: X-10 (USA) Inc. Job No. R-11252-1 Test Sample: 310 MHz Palm Pad Remote Control. Paragraph: 15.231 Model No.: HR13A FCC ID: B4SHR13A Operating Mode: Continuously Transmitting a pulsed 310 MHz signal. Technician: R. Soodoo Date: December 15, 2005. Notes: Test Distance: 3 Meters Detector: Peak, Unless otherwise specified Test Freq. Antenna Pol./Height EUT Orientation Meter Reading Correction Factor Corrected Reading Converted Reading Peak Limit MHz (V/H)/Meters X / Y / Z dBuV dB dBuV/m uV/m uV/m 310.0 V / 4.0 X 70.0 -12.7 57.3 732.8 58330 | V / 1.0 Y 85.4 -12.7 72.7 4315.2 | | V / 1.5 Z 87.9 -12.7 75.2 5754.4 | | H / 1.0 X 89.7 -12.7 77.0 7079.5 | | H / 1.0 Y 85.3 -12.7 72.6 4265.8 | 310.0 H / 2.0 Z 77.5 -12.7 64.8 1737.8 58330 620.0 V / 1.0 X 47.3 -11.7 35.6 60.3 5833 | V / 1.0 Y 48.5 -11.7 36.8 69.2 | | V / 1.5 Z 55.4 -11.7 43.7 153.1 | | H / 1.0 X 56.1 -11.7 44.4 166.0 | | H / 1.0 Y 56.2 -11.7 44.5 167.9 | 620.0 H / 2.0 Z 44.7 -11.7 33.0 44.7 5833 930.0 V / 1.5 X 38.0 -9.5 28.5 26.6 5833 | V / 1.0 Y 41.4 -9.5 31.9 39.4 | | V / 1.0 Z 43.3 -9.5 33.8 49.0 | | H / 1.0 X 36.5 -9.5 27.0 22.4 | | H / 2.0 Y 38.4 -9.5 28.9 27.9 | 930.0 H / 1.0 Z 35.8 -9.5 26.3 20.7 5833 1240.0 V / 1.0 X 41.4 -15.2 26.2 20.4 5000 | V / 1.0 Y 43.1 -15.2 27.9 24.8 | | V / 1.0 Z 42.5 -15.2 27.3 23.2 | | H / 1.0 X 43.3 -15.2 28.1 25.4 | | H / 1.0 Y 42.3 -15.2 27.1 22.6 | 1240.0 H / 1.0 Z 42.5 -15.2 27.3 23.2 5000 1550.0 V / 1.0 X 40.4 -15.2 25.2 18.2 5000…

Text truncated - open the document above for the full version.

Radiated Emissions Test Setup (X-Axis) Radiated Emissions Test Setup (Y-Axis) Radiated Emissions Test Setup (Z-Axis)
