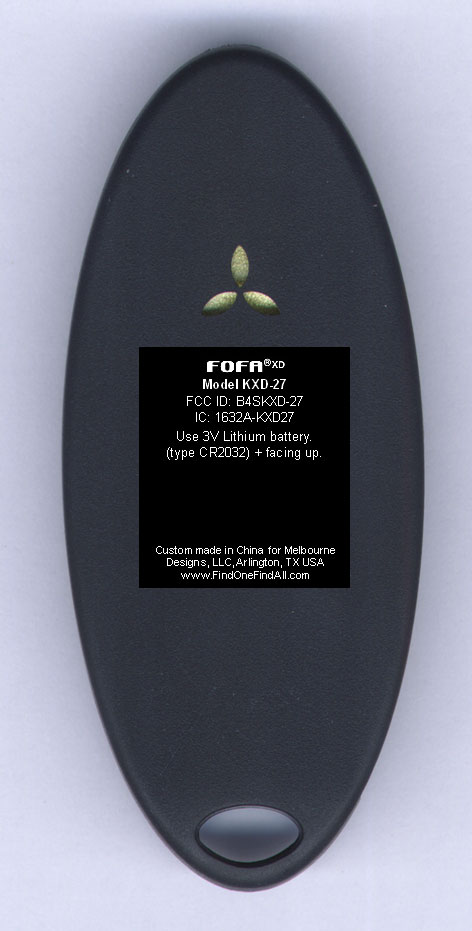

B4SKXD-27FOFA KEYFOB

Thank you for purchasing Find One, Find All® XD (or FOFA® for short), the only key finder and remote control locator with Radio Proximity Detection.(XD) FOFA is expandable to 36 unique units and doesn’t require a “base” to locate the items like previous key finders. Simple to setup and use, use FOFA on your keys, wallet, remotes, cell phones, MP3 players, backpacks, or anything else that you misplace. If you can’t wait to start using your FOFA’s, go to Quick Start. For a more in-depth understanding of your FOFA’s, see Setting up Your FOFA’s. For the person who has everything... and loses it. sm Limited 90-Day Warranty This product is warranted by Melbourne Designs, LLC against manufacturing defects in material and workmanship under normal use for 90-Days from the date of purchase from Melbourne Designs. EXCEPT AS PROVIDED HEREIN, Melbourne Designs MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THE WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, Melbourne Designs SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NO LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF Melbourne Designs HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. In the event of a product defect during the warranty period, notify Melbourne Designs, LLC. Melbourne Designs will, at its option, unless otherwise provided by law: (a) correct the defect by product repair without charge for parts and labor; (b) replace the product with one of the same or similar design; or (c) refund the purchase price. All replace parts and products, and products on which a refund is made, become the property of Melbourne Designs, LLC. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse, accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or maintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairs other than those provided by Melbourne Designs; (c) consumables such as fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs of product removal, installation, set-up service adjustment or reinstallation. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Melbourne Designs, LLC Contact through [email protected] www.FindOneFindAll.com 02/07 Need more FOFA’s? Looking for information? Go to www.FindOneFindAll.com Insert a battery into each FOFA by sliding out the battery tray on the side and inserting the battery “+” side up. You will hear a beep, then the LED will begin to flash slowly. This is the Simple Setup mode. To set the first FOFA, press Insert a battery into the second FOFA in the same manner as the first. To set the second FOFA, press Your FOFA’s are now programmed as Items 1 & 2. That’s it! Attach your FOFA’s to anything you want to keep track of. Push 2 on the first FOFA to find the second one, push 1 on the second to find the first! See Using FOFA to Find Lost Items to learn more. Quick Start Find One, Find All® and FOFA® are Registered Trademarks of Melbourne Designs, LLC. Patented. Inserting the Battery Pull out the battery tray on the side and insert the battery with the “+” side up. FOFA then immediately enters Simple Setup mode. (See Quick Start or Setting Up FOFA). WARNING - CHOKING HAZARD Keep batteries out of the reach of Children The FCC wants you to know This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference; 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment generates and uses radio frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturers instructions, it may cause interference to radio and television reception. It has been type tested and found to comply with the limits for remote control devices in accordance with the specifications in Sub-Parts B and C of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by unplugging the equipment, try to correct the interference by one or more of the following measures. • Reorient the antenna of the radio/TV experiencing the interference. • Relocate the equipment with respect to the radio/TV. • Move the equipment away from the radio/TV. • Plug the equipment into an outlet on a different electrical circuit from the radio/TV experiencing the interference. • If necessary, consult your local dealer for additional suggestions. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications …

Text truncated - open the document above for the full version.

Retlif Testing Laboratories, Test Report R-11836-1, X10 (USA), Inc., FCC ID: B4SKXD-27 Page 1 of 23 Technical Information Applicant Manufacturer Name: X10 (USA), Inc. Name: X-10 Electronics (Shenzhen) Co. Ltd. Address: Blackriver Corporate Park 620 Naches Ave SW, Building A Address: Together Rich Industrial Park B Sanwei Industrial District, Xixiang Town City, State, Zip: Renton, WA 98057 City, State, Zip: Baoan County, Shenzhen, China Test Specification: FCC Rules and Regulations Part 15, Subpart C, Para. 15.231 Test Procedure: ANSI C63.4:2003 Test Sample Description Test Sample: Key Finder and Remote Control Locator Brandname: X10 (USA), Inc. Model Number: KXD-27 FCC ID: B4SKXD-27 Type: Pulsed Transmitter / UHF ASK Receiver Power Requirements: 3V CR2032 battery Frequency of Operation: 433.8 MHz Applicable Rule Section: Part 15, Subpart C, Section 15.231 Tests Performed Transmitter: Para. 15.231(a), Radiated Emissions, Fundamental and Harmonics Transmitter: Para. 15.231(b), Radiated Emissions, Spurious Case Transmitter: Para. 15.231(b), Duty Cycle Determination Transmitter: Para. 15.231(c), Occupied Bandwidth Receiver: Para. 15.109(a) Receiver Radiated Spurious Emissions Retlif Testing Laboratories, Test Report R-11836-1, X10 (USA), Inc., FCC ID: B4SKXD-27 Page 2 of 23 Test Results Transmitter: 15.231 (a): This device transmits a control signal and is used as an: remote control transmitter. 15.231 (a)(1) The transmitter is manually operated. Transmission ends within 5 seconds of deactivation. 15.231 (a)(3): The transmitter does not perform periodic transmissions or the transmitter performs periodic transmissions at predetermined intervals greater than 1 hour apart and are shorter than 1 second in duration. 15.231 (b): The fundamental field strength did not exceed 10991.7 μV/M (Average) at a test distance of 3 meters. In addition, the requirements of section 15.35 for averaging pulsed emissions and for limiting peak emissions were met. The field strength of harmonic and spurious emissions did not exceed 1099.1 μV/M (AVERAGE). 15.231 (c) The Bandwidth of the emission was no wider than 0.25% of the center frequency 51 kHz) as measured 20 db down from the modulated carrier. Receiver: 15.109(a): The field strength of spurious radiated emissions did not exceed Class B limits specified in paragraph 15.109(a). Retlif Testing Laboratories, Test Report R-11836-1, X10 (USA), Inc., FCC ID: B4SKXD-27 Page 3 of 23 Determination of Field Strength Limits The field strength limits shown below are found in Section 15.231: Frequency Limit F1 = 260 3750 = L1 Fo = 433.8 MHz Lo F2 = 470 12500 = L2 The formula below was utilized to determine the limits: Limit = L1 + [(Fo-F1)(L2-L1)/(F2-F1)] Solving Yields Fundamental Limit = 10991.7 μV/M (AVERAGE) @ 3 Meters Harmonic Limit = 1099.1 μV/M (AVERAGE) @ 3 Meters Duty Cycle Determination The unit’s RF output was directly coupled to the input of the spectrum analyzer. The analyzer was set for a frequency span of 0 Hz. The sweep time was then adjusted in order to display one full pulse train. The transmitter on time was then summed and compared to the time for one full cycle in order to obtain the duty cycle. (See plots for additional information.) Transmitter On Time =44.1 milliseconds (maximum per cycle) Transmitter Cycle Time = 115.8 milliseconds (100 ms maximum) Transmitter Duty Cycle =44.1 % Calculation 1 Large Pulse =1.7 milliseconds 53 x 800.0 μs (small pulse) =42.4 milliseconds 1.7 + 42.4 =44.1 milliseconds Duty Cycle (44.1/100)*100 =44.1 % Correction Factor =20 log (0.441)=-7.1 dB Retlif Testing Laboratories, Test Report R-11836-1, X10 (USA), Inc., FCC ID: B4SKXD-27 Page 4 of 23 Spectrum Analyzer Desensitization Considerations Due to the nature of the emissions being measured, care was taken to ensure that the resolution bandwidth of the spectrum analyzer was adequate to provide accurate measurements. The following formula was utilized: minimum bandwidth = 1/{minimum pulse width (in seconds) x 1.5} = Hz Setting pulse desensitization equal to zero and utilizing the minimum observed pulse width of 800.0 μs yields a minimum required bandwidth of 833.3 Hz. FCC specified bandwidths of 100 kHz and 1 MHz were utilized below and above 1 GHz, respectively. General Notes 1. All readings were taken utilizing a peak detector function at a test distance of 3 meters. 2. The duty cycle was applied to the peak readings in order to determine the average value of the emissions. 3. The frequency range was scanned from 30 MHz to 4.34 GHz. All emissions not reported were more than 20 dB below the specified limit. 4. The Receiver was tested per “ANSI STANDARD C63.4-2003 12.1.1.2. The receiver was programmed for normal receiver mode. Normal mode is defined as the unit energized continuously for 10 ms, then off for 2.4 seconds. Retlif Testing Laboratories, Test Report R-11836-1, X10 (USA), Inc., FCC ID: B4SKXD-27 Page 6 of 23 Equipment List FCC Part 15, Radiated Emissions EN Type Manufacturer Description Model No. Cal Date Due Date 067 Open Area Test Site Retlif 3 Meter RNY 9/12/2006 9/12/2009 128 Double Ridged Guide Electro-Mechanics 1 GHz - 18 GHz 3105 3/27/2006 3/27/2007 133 Broadband Pre-Amplifier Electro-Metrics 10 kHz - 1 GHz, 26dB BPA-1000 6/27/2006 6/27/2007 141 Spectrum Analyzer Hewlett Packard 100 Hz - 40 GHz 8566B 10/10/2006 4/10/2007 141B Quasi-Peak Adaptor Hewlett Packard 100 Hz - 1 GHz 85650A 10/9/2006 4/9/2007 141C Cable Retlif 1 GHz ~ 18 GHz 1 METER, BLUE 1/4/2006 4/10/2007 141D Cable Retlif 1 GHz ~ 18 GHz 10 METER, BLACK 1/4/2006 4/10/2007 206B 6.0 dB Attenuator Texscan 0 - 1.0 GHz FP-50 - 6 dB 6/27/2006 6/27/2007 512 Graphics Plotter Hewlett Packard N/A 7470A 10/18/2006 10/18/2007 543 Preamplifier Hewlett Packard 1.0 GHz - 26.5 GHz 8449B 9/9/2005 9/9/2007 617 Interference Analyzer Electro-Metrics 10 kHz - 1 GHz EMC-30 2/21/2006 3/21/2007 723 H.P. Filter Mini-Circuits 1 GHz BHP-1000 8/7/2006 8/7/2007 767 Biconilog EMCO 26 - 2000 MHz 3142B 10/12/2006 10/12/2007 Duty…
