B4SOR14ARemote Control Transmitter

Set Up and Operating Instructions for Remote Control Model OR14A (Part # 5000026900) Install batteries: Open the battery compartment on the back of the remote and insert 2 AAA alkaline batteries (not supplied). Observe polarity. Operation Press TV, DVD, or Web to access desired function. Follow the on-screen prompts and select help from the on-screen menu for more information. F.C.C. CAUTION - THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. This equipment generates and uses radio frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturers instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for remote control security devices in accordance with the specifications in Sub-Part B of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by unplugging the equipment, try to correct the interference by one or more of the following measures. o Reorient the antenna of the radio/TV experiencing the interference. o Relocate the product with respect to the radio/TV. o Move the product away from the radio/TV. o Plug the product into an outlet on a different electrical circuit from the radio/TV experiencing the interference. If necessary, consult your local dealer for additional suggestions. NOTE: NO CHANGES OR MODIFICATIONS MAY BE MADE TO THE UNITS. ANY CHANGES MADE TO THE UNITS WILL VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. ATI Technologies, Inc., 33 Commerce Valley Dr. E, Thornhill, Ont, Canada L3T 7N6 OR14A-7/04

MCU (EM78P447S) Block Diagram for OR14A RF REMOTE Key Matrix 433MHzTransmitter 433MHz

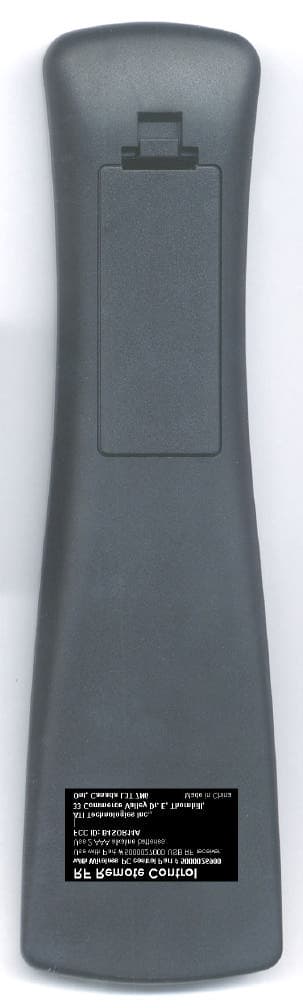

RF Remote Control Use with Part # 5000027000 USB RF receiver. Use 2 AAA alkaline batteries. Model OR14A (ATI RW+) Remote Control rating label 2: 1 7/26/04 ATI Technologies Inc., 33 Commerce Valley Dr. E, Thornhill, Ont, Canada L3T 7N6 with Wireless PC control Part # 5000026900 FCC ID: B4SOR14A Made in China

OR14A Operational Description The OR14A is a 433 MHz pulsed RF transmitter. The remote can control a variety of TVs, VCRs and can send RF mouse signals to a USB receiver, model CM22A. The internal MCU receive information from the keypad and convert the keystrokes into a pulse code. The pulse code is then sent to the 433 MHz RF transmitter and is used to pulse modulate the 433 MHz carrier.

0 OR14A-ATIRF REMOTE CONTROL, 433MHZ200407191EA 1 045030H111712P SHPG CTN200407190.02EA 1 189002H10022BUBBLE BAG , 4.5"X10"200407191EA 1 189010H10046POLYBAG 38"X38"200407190.02EA 1 OR14A-ATIURF REMOTE CONTROL , 433MHZ200407191EA 0.2 038010H10513-2433 MC LABEL200407191EA 0.2 038010H11093PLAIN WHITE LABEL (20X5)MM200407191EA 0.2 038020H12441RATING LABEL200407191EA 0.2 183010H23110BATTERY DOOR ,BLACK200407191EA 0.2 183010H23120KEY COVER ,CLEAR200407191EA 0.2 185000H23270TOP CABINET ,SILVER200407191EA 0.2 185000H23280BOTTOM CABINET ,BLACK200407191EA 0.2 206002H10129FOAM 10X10X5MM200407231EA 0.2 275000H12750RUBBER KEYPAD200407191EA 0.2 403011H10343SPRING CONTACT COMMON200407191EA 0.2 851001H12029PCB ASSY , RF 433.92MHZ200407191EA ..3038010H10513-2433 MC LABEL200402051EA ..3042010H11118BAPCB200402051EA ..3076-10000012CAP-MCC 10P .25P NPO 0603200402052EAC6 ,12 ..3076-10400014CAP-MCC 100N 10% X7R 0603200402052EAC4 ,14 ..3076-10900012CAP-MCC 1P .25P NPO 0603200402052EAC21 ,18 ..3076-15000023CAP-MCC 15P 5% NPO 0603200402051EA18139 C9 ..3076-15900012CAP-MCC 1P5 .25P NPO 0603200402051EAC5 ..3076-18900012CAP-MCC 1P8 .25P NPO 0603200402051EAC17 ..3076-22000012*CAP-MCC 22P 5% NPO 0603200402051EAC15 ..3076-30900012CAP-MCC 3P .25P NPO 0603200402051EAC13 ..3076-35900012CAP-MCC 3P5 .25P NPO 0603200402051EAC3 ..3076-40900012*CAP-MCC 4P .25P NPO 0603200402052EAC10 ,11 ..3076-50800012CAP-MCC 0P5 .25P NPO 0603200402051EAC16 ..3076-56000023CAP-MCC 56P 5% NPO 0603200402051EA18131 C8 ..3076-70900012CAP-MCC 7P .25P NPO 0603200402051EAC19 ..3080-00000010SAW RESONATOR 433.92MHZ200402051EASAW1 ..3160-33800001INDUCTOR 330NH 10%200402051EAL2 ..3160-47700011INDUCTOR 47N 2% 0603 SMD200402051EAL1 ..3209-00000003TRS-NPN 2SC3356 SMD200402052EA Q1,2 ..3241-00000003RES-TFC 0R 5% 1/10W 0603200402051EAR4 ..3241-10100003RES-TFC 100R 5% 1/10W0603200402051EAR6 ..3241-10300003RES-TFC 10K 5% 1/10W 0603200402051EAR2 ..3241-15100003RES-TFC 150R 5% 1/10W0603200402051EAR3 ..3241-68200003RES-TFC 6K8 5% 1/10W 0603200402052EAR1 ,5 ..3358-60821001WIRE-JUMPER D=0.6MM200402053EA 0.2 851001H12130PCB ASSY200407191EA ..3038010H11093PLAIN WHITE LABEL (20X5)MM200407191EA ..3042010H11318APCB200407191EA ..3055-10200008CAP-C 1N 10% 50V Y5P200407191EAC1 ..3057-10100019CAP-E 100U 20% 10V200407191EAC2 ..3080001H100504MHZ RESONATOR W/2 CAP200407191EAY1 ..3206002H10087FOAM , BLACK, 10X10X6MM200407191EA ..3211328H10252IC EM78P447S SMD200407191EAU1 ..3220-00200350LED 2MM-TOWER RED200407191EALED1 ..3240-10206011RES-CF 1K +/-5% 1/8W200407191EAR3 ..3240-10506011RES-CF 1M +/-5% 1/8W200407191EAR1 ..3241-10400000RES-TFC 100K 5% 1/10W0805200407191EAR2 ..3358-60821001WIRE-JUMPER D=0.6MM200407193EA ..3403011H10341SPRING CONTACT (+VE)200407191EA ..3403011H10342SPRING CONTACT (-VE)200407191EA ˇ

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 26-Jul-2004 Sheet of File: A:\MEDION~1.SCH Drawn By: R1 6K8 R2 6K8 R4 10P R3 150R R56K8 R7 * SAW1 433.92MHz PCB2 L1 47N PCB1 C1 * C36P C51P5 C6 0R C4 100N Q1 3356 3V C8 56P C7 * C915P C10 4P C1210P C13 3P C11 4P Q2 2SC3356 R6 100R C14100N 3V C1522P C160P5C171P8 RF IN ANTENNA C197PC18 1P C20 * REMOTE RF TX (433.92MHz) C21 1P L2 0.33u 851001H12029

Retlif Testing Laboratories R Test Report No. R-10506-1 FCC ID: B4SOR14A APPLICANT X-10 (USA), Inc. 19823, 58 th Place S. Kent, WA 98032 MANUFACTURER X-10 Electronics (Shenzhen) Co. Ltd. X-10 Building, Labour Industrial District Xixiang Town, Baoan County, Shenzhen, China TEST SPECIFICATION:FCC Rules and Regulations Part 15, Subpart C, Para. 15.231 TEST PROCEDURE:ANSI C63.4:2001 TEST SAMPLE DESCRIPTION BRANDNAME: ATI TechnologiesModel Number: OR14A TYPE: Pulsed Transmitter POWER REQUIREMENTS: 2 “AAA” Batteries FREQUENCY OF OPERATION: 433.92 MHz TESTS PERFORMED Para. 15.231(b), Radiated Emissions, Fundamental and Harmonics Para. 15.231(b), Radiated Emissions, Spurious Case Para. 15.35, Duty Cycle Determination Para. 15.231(c), Occupied Bandwidth REPORT OF MEASUREMENTS Applicant: X-10 (USA), Inc. Brand Name:ATI Technologies Device:Pulsed Transmitter FCC ID: B4SOR14A Power Requirements: 2 “AAA” Batteries Applicable Rule Section:Part 15, Subpart C, Section 15.231 Retlif Testing Laboratories R Test Report No. R-10506-1 FCC ID: B4SOR14A REPORT OF MEASUREMENTS (continued) TEST RESULTS 15.231 (a):This device is used as a remote control transmitter. 15.231 (a)(1) &The transmitter is manually operated and ceases transmission within 5 15.231(a)(2):seconds after deactivation. 15.231 (a)(3):The transmitter does not perform periodic transmissions. 15.231 (b):The fundamental field strength did not exceed 11,000 μV/M (Average) at a test distance of 3 meters. In addition, the requirements of section 15.35 for averaging pulsed emissions and for limiting peak emissions were met. The field strength of harmonic and spurious emissions did not exceed 1,100 μV/M (AVERAGE). DETERMINATION OF FIELD STRENGTH LIMITS The field strength limits shown below are found in Section 15.231. Frequency Limit F1=2603750=L1 Fo=433.92Lo F2=47012500=L2 Retlif Testing Laboratories R Test Report No. R-10506-1 FCC ID: B4SOR14A REPORT OF MEASUREMENTS (continued) The formula below was utilized to determine the limits: Limit = L1 + [(Fo-F1)(L2-L1)/(F2-F1)] Solving yields: Fundamental Limit= 11,000 μV/M (AVERAGE) @ 3 Meters Harmonic Limit= 1,100 μV/M (AVERAGE) @ 3 Meters DUTY CYCLE DETERMINATION The unit’s RF output was directly coupled to the input of the spectrum analyzer. The analyzer was set for a frequency span of 0Hz. The sweep time was then adjusted in order to display one full pulse train. The transmitter on time was then summed and compared to the time for one full cycle in order to obtain the duty cycle. Transmitter On Time=15 milliseconds (maximum) Transmitter Cycle Time=45.25 milliseconds Transmitter Duty Cycle=33.1 % See separate e-file for plots named dutycycle.pdf for additional information. Retlif Testing Laboratories R Test Report No. R-10506-1 FCC ID: B4SOR14A SPECTRUM ANALYZER DESENSITIZATION CONSIDERATIONS Due to the nature of the emissions being measured, care was taken to ensure that the resolution bandwidth of the spectrum analyzer was adequate to provide accurate measurements. The following formula was utilized: Setting pulse desensitization equal to zero and utilizing the minimum observed pulse width of 650 μs yields a minimum required bandwidth of 1,026 Hz. FCC specified bandwidths of 100kHz and 1MHz were utilized below and above 1GHz, respectively. GENERAL NOTES 1.All readings were taken utilizing a peak detector function at a test distance of 3 meters. 2.The duty cycle was applied to the peak readings in order to determine the average value of the emissions. 3.The frequency range was scanned from 30 MHz to 4.33 GHz. All emissions not reported were more than 20 dB below the specified limit. Retlif Testing Laboratories R Test Report No. R-10506-1 FCC ID: B4SOR14A EQUIPMENT LIST FCC Part 15, Subpart C Paragraph; 15.231 ENTypeManufacturerDescriptionModel No.Cal DateDue 067Open Area Test SiteRetlif3 MeterRNY10/1/200310/1/2006 128Double Ridged GuideElectro-Mechanics1 GHz - 18 GHz31056/21/20046/21/2005 133Broadband Pre-AmplifierElectro-Metrics10 kHz - 1 GHz, 26dBBPA-10006/12/20046/12/2005 206B6.0 dB AttenuatorTexscan0 - 1.0 GHzFP-50 - 6 dB6/12/20046/12/2005 523BiconilogElectro-Mechanics26 - 2000 MHz3142B9/8/20039/8/2004 543PreamplifierHewlett Packard1.0 GHz - 26.5 GHz8449B7/27/20047/27/2005 896EMI Test ReceiverRohde & Schwarz20 Hz - 40 GHzESIB407/24/20038/24/2004 Retlif Testing Laboratories R Test Report No. R-10506-1 FCC ID: B4SOR14A FCC 15.231(b) RADIATED EMISSIONS, FUNDAMENTAL & SPURIOUS CASE (See separate e-file named Refundharm & REspur.pdf) Retlif Testing Laboratories R Test Report No. R-10506–1 FCC ID: B4SOR14A FCC 15.231(c) OCCUPIED BANDWIDTH (See separate e-file named occbw.pdf) Retlif Testing Laboratories R Test Report No. R-10506–1 FCC ID: B4SOR14A FCC 15.231(c) DUTY CYCLE (See separate e-file named dutycycle.pdf) Retlif Testing Laboratories R Test Report No. R-10506–1 FCC ID: B4SOR14A Test Setup Photograph

Retlif Testing Laboratories R Test Report No. R-10506–1 FCC ID: B4SOR14A Test Setup Photograph
