B4SUR-73AR F Remote Control

Set Up and Operating Instructions for Remote Control Model UR73A To setup for A/V functions: Press and hold SETUP until the red lights stays on. Press and release TV, VCR, CBL, or AUX. Enter the three digit code for your TV, VCR, etc., from the code list. Home Control operation: Plug in an X10 Transceiver (sold separately) and set it to Housecode A. You can control it and other X10 modules (set to Housecode A) as follows: Press and release any of the 4 ON-OFF rocker buttons at the bottom corresponding to the X10 Module you want to control. Set the slide switch on the side of the remote to control Modules set to Unit Codes 1-4 OR 5-8. To change the X10 Housecode: The UR73A Remote defaults to Housecode A, to change this: 1.Press and hold SETUP until the red light stays on. 2.Press and release the number button corresponding to the Housecode you want: (01=A, 02=B, 03=C .....16=P). Note: The Housecode you choose must match the Housecode on the Transceiver and X10 Modules you are using it with. F.C.C. CAUTION - THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. This equipment generates and uses radio frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturers instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for remote control security devices in accordance with the specifications in Sub-Part B of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by unplugging the equipment, try to correct the interference by one or more of the following measures. o Reorient the antenna of the radio/TV experiencing the interference. o Relocate the product with respect to the radio/TV. o Move the product away from the radio/TV. o Plug the product into an outlet on a different electrical circuit from the radio/TV experiencing the interference. If necessary, consult your local dealer for additional suggestions. NOTE: NO CHANGES OR MODIFICATIONS MAY BE MADE TO THE UNITS. ANY CHANGES MADE TO THE UNITS WILL VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. X10 (USA) Inc., 91 Ruckman Rd., Closter, NJ 07624. www.x10.com UR73A-8/00

IR Driver Disable MPU Block Diagram for UR73A Remote Key Matrix 310MHz Transmitter 310MHz

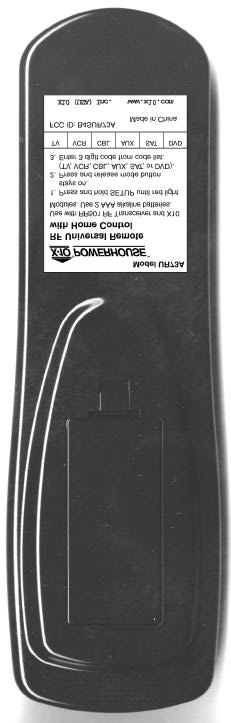

Platinum Remote with Wireless Home Control Use with RR501 RF Transceiver and X10 Modules. Use 4 AAA alkaline batteries. www.x10.com Made in China 1. Press and hold SETUP until red light stays on. 2. Press and release mode button (TV, VCR, CBL, AUX). 3. Enter 3 digit code from code list. FCC ID: B4S-UR73A TVVCRCBLAUX Model UR73A Remote Control rating label 2: 1 10/23/00 Model UR73A

Platinum Remote Use with RR501 RF Transceiver and X10 Modules. Use 4 AAA alkaline batteries. X10.com, a div. of X10 Wireless Technology, Inc. 1-800-675-3044 Made in China 1. Press and hold SETUP until red light stays on. 2. Press and release mode button (TV, VCR, CBL, AUX). 3. Enter 3 digit code from code list. FCC ID: B4SUR-73A CAN 16321032290 TVVCRCBLAUX Model UR73A Remote Control rating label 2: 1 11/20/00 Model UR73A with Wireless Home Control

LEVELPART NUMBERDESCRIPTIONQTY.REF 0 UR73A-3U 5IN1 REMOTE BLACK NOPACK 1 1 038010H11093 PLAIN WHITE LABEL(20X5)MM 1 1 183010H18470 BATTERY COVER (BLACK) 1 1 185000H17790 TOP CABINET (BLACK) 1 1 185000H17800 BOTTOM CABINET (BLACK) 1 1 275000H11130 RUBBER KEYPAD 1 1 403011H10159 SPRING CONTACT 1 1 851001H10598 RS REMOTE, RF 310MHZ 1 0.2 042010H10410 PCB, RF 1 0.2 076-10000002 CAP-MCC 10P 5% NPO 0805 1 0.2 076-10900000 CAP-MCC 1P .25P NPO 0805 2 0.2 076-30900000 CAP-MCC 3P .25P NPO 0805 1 0.2 076-70900000 CAP-MCC 7P .25P NPO 0805 1 0.2 124000H10001 RF COIL 31T 1 0.2 162089H10014 RF WIRE LOOP ID=6 WD=0.6 1 0.2 209117H10002 TRS-NPN MPS H10 1 0.2 212107H10000 DIODE-SI 1N4148 1 0.2 240-68206011 RES-CF 6K8 +/-5% 1/8W 1 0.2 241-30000000 RES-TFC 30R 5% 1/10W 0805 1 RX 0.2 241-68200000 RES-TFC 6K8 5% 1/10W 0805 1 0.2 358-60821001 WIRE-JUMPER D=0.6MM 4 1 851001H11232 PCB ASSY 1 0.2 055-10400000 CAP-C 100N +8-2 25V Y5V 2 C1,3 0.2 057-10100019 CAP-E 100U 20% 10V 1 C2 0.2 080001H10050 4MHZ RESONATOR W/2 CAP 1 Y1 0.2 210010H10010 TRS-H9013 1 Q1 0.2 212107H10000 DIODE-SI 1N4148 1 D1 0.2 220-00200220 IR EMITTING LED 5MM 1 IR1 0.2 220-00200350 LED 2MM-TOWER RED 1 LED1 0.2 240-10506022 RES-CF 1M +/-5% 1/4W 1 R1 0.2 240-82006022 RES-CF 82R +/-5% 1/4W 1 R2 0.2 358-60821001 WIRE-JUMPER D=0.6MM 4 0.2 403011H10196 SPRING CONTACT (+VE) 1 0.2 403011H10197 SPRING CONTACT (-VE) 1 0.2 851001H11232-A PCB ASSY, DIE 1 ..3 042010H10817A PCB 1 ..3 211328H10209-D IC DIE RC008-HE004 1

D C B A 12345678 A B C D 87654321 PICO ELECTRONICS Ltd., Eastfield Industrial Estate, Glenrothes, Fife, KY7 4NZ, SCOTLAND SHEET No. DATE DATE REVISION DATE FIRST DRAWN FILE DRN APPD. DO NOT SCALE DRAWINGTITLE: REV. Error : PICO.WMF File Not Found D:\DATA\SCH\R8UR73AA.SCH 11of A X10 UR73 IR REMOTE PRINT DATE 15:38:4324-Oct-2000 BKW4/9/00 4/9/00 4/9/00 KEY13 CAB 13/3 KEY3 CH.DOWN 15/1 KEY15 RECORD 15/3 KEY16 STOP 16/3 KEY17 PAUSE 17/3 KEY20 SETUP 14/4 KEY21 1 15/4 KEY22 2 16/4 KEY23 3 17/4 KEY26 (DISPLAY) 14/5 KEY27 4 15/5 KEY28 5 16/5 KEY29 6 17/5 KEY32 LAST 14/6 KEY33 (RETURN) 15/6 KEY35 (SUBTITLE) 17/6 KEY39 7 15/7 KEY41 9 17/7 KEY5 CH.UP 17/1 KEY9 REWIND 15/2 KEY10 PLAY 16/2 KEY11 FF 17/2 KEY1 TV 13/1 KEY4 POWER 16/1 KEY2 MUTE 14/1 KEY8 VOL.DOWN 14/2 KEY14 VOL.UP 14/3 KEY45 A.B 15/8 KEY47 ENTER 17/8 (-/--) KEY34 (TITLE) 16/6 KEY40 8 16/7 KEY46 0 16/8 KEY50 UP 14/19 KEY51 LEFT 15/19 KEY52 OKAY 16/19 KEY53 RIGHT 17/19 KEY57 MENU 15/20 KEY59 EXIT 17/20 KEY58 DOWN 16/20 LED1 R2 330R C3 100NF VSS C2 100UF 6.3V D2D3D4 Y1 4MHZ R1 1M IR1 TR1 9013G VSS R3 3R3 R4 680R VSS SIGNAL ENABLE OPTIONAL RF DAUGHTER BOARD SHOWN FOR REFERENCE ONLY VSS VSS 4 x AAA BATTERIE S BATT1 BATT2 +6V C4 VSS OPTIONAL * BATT3 BATT4 NOTES:- 1/ ALL UNSPECIFIED DIODES 1N4148 OR EQUIVALENT. 2/ ALL UNSPECIFIED DAUGHTER BOARD CAPACITORS ARE SMD TYPE. 3/ ALL UNSPECIFIED DAUGHTER BOARD RESISTORS ARE SMD TYPE. 4/ ALL UNSPECIFIED RESISTORS ARE 0.125W 5%. 5/ ALL UNSPECIFIED CAPACITORS ARE AXIAL MLC TYPE. "*" DENOTES COMPONENT NOT INSTALLED 11-7 26 D-0 11 D-1 12 11-6 25 11-5 24 C-1 35 C-0 34 TSTP_P 32 RSTP_N 29 SXI 31 SXO 30 D-7 18 D-6 17 D-5 16 D-4 15 D-3 14 D-2 13 10-1 2 10-0 1 10-3 4 10-2 3 10-5 6 10-4 5 10-7 8 10-6 7 11-1 20 11-0 19 11-3 22 11-2 21 C-3 37 VDD 33 C-2 36 FXI 28 FXO 27 GND 10 11-4 23 IR-OUT 9 U1 R008-USA VDD R11 6K8 C4 10PF C5 1P C6 * C7 7P C8 2P R12 6K8 TR4 MPSH10 R13 68R D2 L1 6MM L2 31T D=2MM DAUGHTER BOARD KEY7 VCR 13/2 VSS KEY25 X10 13/5 KEY19 SAT 13/4

Test Report No. R-8758-1 FCC ID: B4SUR-73A APPLICANT X-10 (USA), Inc. 91 Ruckman Road Closter, NJ 07624-0420 MANUFACTURER X-10 Electronics Shenzhen Co. Ltd. X-10 Building Labour Industrial District Shenzhen, Xixiang, Bao An Guang Dong, China, 518102 TEST SPECIFICATION: FCC Rules and Regulations Part 15, Subpart C, Para. 15.231 TEST PROCEDURE: ANSI C63.4:1992 TEST SAMP LE DESCRIP TION BRANDNAME: X-10 (USA), Inc. MODEL: UR73A TYPE: Pulsed RF Transmitter POWER REQUIREMENTS: 6 VDC derived from 4 new “AAA” Batteries FREQUENCY OF OPERATION: 310 MHz TESTS P ERFORMED Para. 15.231(b), Radiated Emissions, Fundamental and Harmonics Para. 15.231(c), Occupied Bandwidth Duty Cycle Determination REPORT OF MEASUREMENTS Applicant: X-10 (USA), Inc. Device:Pulsed RF Transmitter FCC ID: B4SUR-73A Applicable Rule Section:Part 15, Subpart C, Section 15.231 Test Report No. R-8758-1 FCC ID: B4SUR-73A REPORT OF MEASUREMENTS (continued) TEST RESULTS 15.231 (a) -The device is used as a transmitter for RF Remote Control purposes. 15.231 (a)(1) & -The transmitter is manually operated and ceases transmission within 5 15.231(2)seconds after deactivation. 15.231 (a)(3) -The transmitter does not perform periodic transmissions. 15.231 (a)(4)-Not applicable 15.231 (b) -The fundamental field strength did not exceed 5830 μV/M (Average) at a test distance of 3 meters. In addition, the requirements of section 15.35 for averaging pulsed emissions and for limiting peak emissions were met. The field strength of harmonic and spurious emissions did not exceed 583 μV/M (AVERAGE). 15.231 (c) -The device operates at 310 MHz. The bandwidth of emissions did not exceed 0.25% of the operating frequency (775 kHz). DETERMINATION OF FIELD STRENGTH LIMITS The field strength limits shown below are found in Section 15.231. Frequency Limit F1=2603750 =L1 Fo=310Lo F2=47012500 =L2 The formula below was utilized to determine the limits: Limit = L1 + [(Fo-F1)(L2-L1)/(F2-F1)] Solving yields: Fundamental Limit= 5,830 μV/M (AVERAGE) @ 3 Meters Harmonic Limit= 583 μV/M (AVERAGE) @ 3 Meters Test Report No. R-8758-1 FCC ID: B4SUR-73A REPORT OF MEASUREMENTS (continued) DETERMINATION OF DUTY CYCLE The unit’s RF output was directly coupled to the input of the spectrum analyzer. The analyzer was set for a frequency span of 0Hz. The sweep time was then adjusted in order to display one full pulse train. The transmitter on time was then summed and compared to the time for one full cycle in order to obtain the duty cycle.( See plots for additional information) Transmitter On Time=29.5 milliseconds (maximum- worst case in 100 ms) Transmitter Cycle Time=106.8 milliseconds (107 msec) Transmitter Duty Cycle=29.5 % CALCULATION: 1 Large Pulse = 8.875 milliseconds 33 x 625 μs (small pulse)= 29.5 milliseconds 8.875 + 20.625= 29.55 milliseconds Duty Cycle=29.5 % Correction Factor = 20 log(0.295) =-10.6 SPECTRUM ANALYZER DESENSITIZATION CONSIDERATIONS Due to the nature of the emissions being measured, care was taken to ensure that the resolution bandwidth of the spectrum analyzer was adequate to provide accurate measurements. The following formula was utilized: Setting pulse desensitization equal to zero and utilizing the minimum observed pulse width of 625μs yields a minimum required bandwidth of 1067 Hz. FCC specified bandwidths of 100kHz and 1MHz were utilized below and above 1GHz, respectively. Test Report No. R-8758-1 FCC ID: B4SUR-73A REPORT OF MEASUREMENTS (continued) GENERAL NOTES 1. All readings were taken utilizing a peak detector function at a test distance of 3 meters. 2. The duty cycle was applied to the peak readings in order to determine the average value of the emissions. 3. All measurements were made with 6 VDC derived from 4 new “AAA” Batteries. 4. The frequency range was scanned from 30 MHz to 3.1 GHz. All emissions not reported were more than 20 dB below the specified limit. Test Report No. R-8758-1 FCC ID: B4SUR-73A TEST SETUP PHOTOGRAPH RADIATED EMISSIONS Test Report No. R-8758-1 FCC ID: B4SUR-73A EQUIPMENT LIST Radiated Emissions, Fundamental and Harmonics & Spurious Case ENTypeManufacture rDe scriptionMode l No.Cal Date Due Date 067Open Area Test SiteRetlif3 MeterRNY10/15/199710/15/2000 128CDouble Ridge GuideEaton Corporation1 GHz - 18 GHz9600109/16/199909/16/2000 133Broadband Pre-AmplifierElectro-Metrics10 kHz - 1 GHz, 26dBBPA-100006/13/200006/13/2001 141Spectrum AnalyzerHewlett Packard100 Hz - 40 GHz8566B08/03/200002/03/2001 141AGraphics PlotterHewlett PackardN/A7470A03/08/200003/08/2001 141BQuasi-Peak AdaptorHewlett Packard100 Hz - 1 GHz85650A08/02/200002/02/2001 206B6.0 dB AttenuatorTexscan0 - 1.0 GHzFP-50 - 6 dB06/13/200006/13/2001 523BiconilogElectro-Mechanics26 - 2000 MHz3142B06/08/200006/08/2001 543PreamplifierHewlett Packard1.0 GHz - 26.5 GHz8449B06/16/199906/16/2001 617Interference AnalyzerElectro-Metrics10 kHz - 1 GHzEMC-3001/17/200001/17/2001 Test Report No. R-8758-1 FCC ID: B4SUR-73A FCC 15.231(b) RADIATED EMISSIONS (Please see separate e-file attachment named REFundHarm.pdf and RESpurious.pdf) Test Report No. R-8758-1 FCC ID: B4SUR-73A FCC 15.231(c) OCCUPIED BANDWIDTH (Please see separate e-file attachment named Occbw.pdf) Test Report No. R-8758-1 FCC ID: B4SUR-73A DUTY CYCLE PLOTS (Please see separate e-file attachment named Dutycycle.pdf)

Retlif Testing Laboratories R Data Sheet 1 of 4 Test Method: FCC Part 15 Subpart C Radiated Emissions, Fundamental & Harmonic Emissions Customer: X-10 (USA) Job No. R-8758-1 Test Sample: RF remote Paragraph: 15.231 Model No.: UR73A FCC ID: B4SUR-73A Operating Mode: Continuously Transmitting a 310 MHz Signal Technician: Peter Lananna Date: October 5, 2000 Notes: Test Distance: 3 Meters Detector: Peak, Unless otherwise specified Test Freq. Antenna Pol./Height EUT Orientation Meter Reading Correction Factor Corrected Reading Converted Reading Peak Limit MHz (V/H)/Meters X / Y / Z dBuV dB dBuV/m uV/m uV/m 310 H / 1.0 X 79.5 -4.0 75.5 5956.6 58300 | H / 1.0 Y 83.5 -4.0 79.5 9440.6 | | H / 1.0 Z 84.4 -4.0 80.4 10471.3 | | V / 1.8 X 81.4 -4.0 77.4 7413.1 | | V / 1.8 Y 74.3 -4.0 70.3 3273.4 | 310 V / 1.8 Z 80.6 -4.0 76.6 6760.8 58300 620 H / 1.8 X 50.6 3.9 54.5 530.9 5830 | H / 1.3 Y 57.9 3.9 61.8 1230.3 | | H / 1.3 Z 60.7 3.9 64.6 1698.2 | | V / 1.8 X 60.2 3.9 64.1 1603.2 | | V / 1.3 Y 56.4 3.9 60.3 1035.1 | 620 V / 1.0 Z 55.2 3.9 59.1 901.6 5830 930 H / 1.0 X 39.0 8.8 47.8 245.5* 5830 | H / 1.0 Y 39.0 8.8 47.8 245.5* | | H / 1.0 Z 39.0 8.8 47.8 245.5* | | V / 1.0 X 39.0 8.8 47.8 245.5* | | V / 1.0 Y 39.0 8.8 47.8 245.5* | 930 V / 1.0 Z 39.0 8.8 47.8 245.5* 5830 1240 H / 1.0 X 52.4 -2.8 49.6 302.0 5000 | H / 1.0 Y 53.9 -2.8 51.1 358.9 | | H / 1.0 Z 52.3 -2.8 49.5 298.5 | | V / 1.0 X 55.7 -2.8 52.9 441.6 | | V / 1.0 Y 53.5 -2.8 50.7 342.8 | 1240 V / 1.0 Z 53.1 -2.8 50.3 327.3 5000 1550 H / 1.0 X 40.0 0.9 40.9 110.9* 5000 | H / 1.0 Y 40.0 0.9 40.9 110.9* | | H / 1.0 Z 40.0 0.9 40.9 110.9* | | V / 1.0 X 40.0 0.9 40.9 110.9* | | V / 1.0 Y 40.0 0.9 40.9 110.9* | 1550 V / 1.0 Z 40.0 0.9 40.9 110.9* 5000 The frequency range was scanned from 30 MHz to 3.1 GHz. All emissions not recorded were more Than 10 dB below the specified limit. Emissions from the EUT do not exceed the specified limits. *=Noise Floor Measurements (Minimum system sensitivity) Retlif Job Number R-8758-1 Retlif Testing Laboratories R Data Sheet 2 of 4 Test Method: FCC Part 15 Subpart C Radiated Emissions, Fundamental & Harmonic Emissions Customer: X-10 (USA) Job No. R-8758-1 Test Sample: RF remote Paragraph: 15.231 Model No.: UR73A FCC ID: B4SUR-73A Operating Mode: Continuously Transmitting a 310 MHz Signal Technician: Peter Lananna Date: October 5, 2000 Notes: Test Distance: 3 Meters Detector: Peak, unless otherwise specified Test Freq. Antenna Pol./Height EUT Orientation Meter Reading Correction Factor Corrected Reading Converted Reading Peak Limit MHz (V/H)-Meters X / Y / Z dBuV dB dBuV/m uV/m uV/m 1860 H / 1.0 X 40.0 3.0 43.0 141.3* 5830 | H / 1.0 Y 40.0 3.0 43.0 141.3* | | H / 1.0 Z 40.0 3.0 43.0 141.3* | | V / 1.0 X 40.0 3.0 43.0 141.3* | | V / 1.0 Y 40.0 3.0 43.0 141.3* | 1860 V / 1.0 Z 40.0 3.0 43.0 141.3* 5830 2170 H / 1.0 X 40.0 0.4 40.4 104.7* 5830 | H / 1.0 Y 40.0 0.4 40.4 104.7* | | H / 1.0 Z 40.0 0.4 40.4 104.7* | | V / 1.0 X 40.0 0.4 40.4 104.7* | | V / 1.0 Y 40.0 0.4 40.4 104.7* | 2170 V / 1.0 Z 40.0 0.4 40.4 104.7* 5830 2480 H / 1.0 X 40.0 3.8 43.8 154.9* 5830 | H / 1.0 Y 40.0 3.8 43.8 154.9* | | H / 1.0 Z 40.0 3.8 43.8 154.9* | | V / 1.0 X 40.0 3.8 43.8 154.9* | | V / 1.0 Y 40.0 3.8 43.8 154.9* | 2480 V / 1.0 Z 40.0 3.8 43.8 154.9* 5830 2790 H / 1.0 X 40.0 5.8 45.8 195.0* 5000 | H / 1.0 Y 40.0 5.8 45.8 195.0* | | H / 1.0 Z 40.0 5.8 45.8 195.0* | | V / 1.0 X 40.0 5.8 45.8 195.0* | | V / 1.0 Y 40.0 5.8 45.8 195.0* | 2790 V / 1.0 Z 40.0 5.8 45.8 195.0* 5000 3100 H / 1.0 X 40.0 6.4 46.4 208.9* 5830 | H / 1.0 Y 40.0 6.4 46.4 208.9* | | H / 1.0 Z 40.0 6.4 46.4 208.9* | | V / 1.0 X 40.0 6.4 46.4 208.9* | | V / 1.0 Y 40.0 6.4 46.4 208.9* | 3100 V / 1.0 Z 40.0 6.4 46.4 208.9* 5830 The frequency range was scanned from 30 MHz to 3.1 GHz. All emissions not recorded were more Than 10 dB below the specified limit. Emissions from the EUT do not exceed the specified limits. *=Noise Floor Measurements ( Minimum system sensitivity) Retlif Job Number R-8758-1 Retlif Testing Laboratories R Data Sheet 3 of 4 Test Method: FCC Part 15 Subpart C Radiated Emissions, Fundamental & Harmonic Emissions Customer: X-10 (USA) Job No. R-8758-1 Test Sample: RF remote Paragraph: 15.231 Model No.: UR73A FCC ID: B4SUR-73A Operating Mode: Continuously Transmitting a 310 MHz Signal Technician: Peter Lananna Date: October 5, 2000 Notes: Test Distance: 3 Meters Duty Cycle: 29.5% Detector: Peak, unless otherwise specified Duty Cycle Correction: - 10.6dB Test Freq. Antenna Pol./Height EUT Orientation Peak Reading Correction Factor Corrected Reading Converted Reading Avg. Limit MHz (V/H)-Meters X / Y / Z dBuV dB dBuV/m uV/m uV/m 310 H / 1.0 X 75.5 -10.6 64.9 1757.9 5830 | H / 1.0 Y 79.5 -10.6 68.9 2786.1 | | H / 1.0 Z 80.4 -10.6 69.8 3090.3 | | V / 1.8 X 77.4 -10.6 66.8 2187.8 | | V / 1.8 Y 70.3 -10.6 59.7 966.1 | 310 V / 1.8 Z 76.6 -10.6 66.0 1995.3 5830 620 H / 1.8 X 54.5 -10.6 43.9 156.7 583 | H / 1.3 Y 61.8 -10.6 51.2 363.1 | | H / 1.3 Z 64.6 -10.6 54.0 501.2 | | V / 1.8 X 64.1 -10.6 53.5 473.2 | | V / 1.3 Y 60.3 -10.6 49.7 305.5 | 620 V / 1.0 Z 59.1 -10.6 48.5 266.1 583 930 H / 1.0 X 47.8 -10.6 37.2 72.4* 583 | H / 1.0 Y 47.8 -10.6 37.2 72.4* | | H / 1.0 Z 47.8 -10.6 37.2 72.4* | | V / 1.0 X 47.8 -10.6 37.2 72.4* | | V / 1.0 Y 47.8 -10.6 37.2 72.4* | 930 V / 1.0 Z 47.8 -10.6 37.2 72.4* 583 1240 H / 1.0 X 49.6 -10.6 39.0 89.1 500 | H / 1.0 Y 51.1 -10.6 40.5 105.9 | | H / 1.0 Z 49.5 -10.6 38.9 88.1 | | V / 1.0 X 52.9 -10.6 42.3 130.3 | | V / 1.0 Y 50.7 -10.6 40.1 101.2 | 1240 V / 1.0 Z 50.3 -10.6 39.7 96.6 500 1550 H / 1.0 X 40.9 -10.6 30.3 32.7* 500 | H / 1.0 Y 40.9 -10.6 30.3 32.7* | | H / 1.0 Z 40.9 -10.6 30.3 32.7* | | V / 1.0 X 40.9 -10.6 30.3 32.7* | | V / 1.0 Y 40.9 -10.6 30.3 32.7* | 1550 V / 1.0 Z 40.9 -10.6 30.3 32.7* 500 The frequency range was scanned from 30 MHz to 3.1 GHz. All emissions not recorded were more Than 10 dB below the specified limit. Emissions from the EUT do not exceed the specified limits. *=Noise Floor Measurements ( Minimum s…

Text truncated - open the document above for the full version.

Retlif Testing Laboratories R Retlif Job Number R-8758-1 Data Sheet 1 of 1 Test Method: FCC Part 15 Subpart C, Spurious Case Radiated Emissions, Paragraph 15.209(a) Customer: X-10 (USA) Job No. R-8758-1 Test Sample: RF remote Model No.: UR73A FCC ID: B4SUR-73A Operating Mode: Continuously Transmitting a 310MHz Signal. Technician: Peter Lananna Date: October 5, 2000 Notes: Test Distance: 3 Meters Temp:25C Humidity:26% Detector: Quasi-Peak Below 30 MHz to 1 GHz, Peak above 1 GHz Test Freq. Antenna Position EUT Orientation Meter Readings Correction Factor Corrected Reading Converted Reading LIMIT MHz (V/H) / Meters Degrees dBuV dB dBuV/m uV/m uV/m 30.00 100 | | | | | | | | | | | | 88.00 100 88.00 150 | | | | | | | | | | No emissions observed at specified test distance l | 216.00 150 216.00 200 | | | l | 960.00 200 960.00 500 l | | | l | 3100.0 500 The EUT was scanned from 30 MHz to 3.1 GHz The emissions observed from the EUT do not exceed the specified limits. Emissions not recorded were more than 10dB under the specified limit

Conducted emissions measurements do not apply. This device used 4 “AAA” batteries. No conducted emissions measurements were performed.

TEST SETUP PHOTOGRAPH RADIATED EMISSIONS
