B4SUR89ARemote Control Transmitter

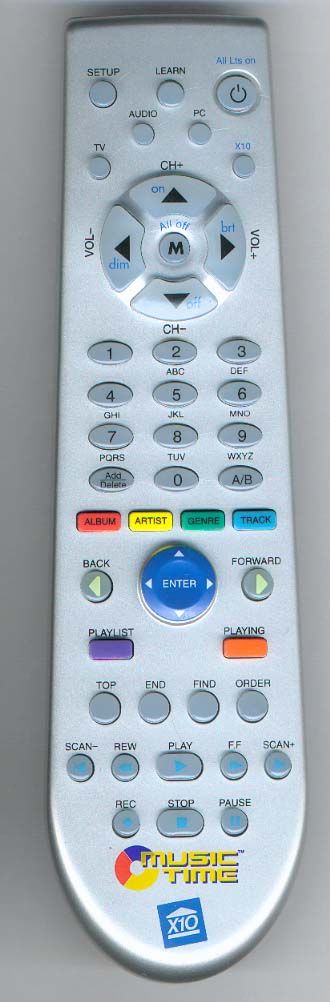

MusicTime Remote For use with MusicTime software Model UR89A UR89A-12/02 The MusicTime Remote works with the MusicTime Audio Sender system. The remote lets you access all the features of the MusicTime application from the comfort of your easy chair. Push the tab and lift off the battery cover. Insert four AAA alkaline batteries, taking care to match the + and - marks in the battery compartment. BUTTON DESCRIPTIONS ™ F.C.C. CAUTION - THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: NO CHANGES OR MODIFICATIONS MAY BE MADE TO THE UNITS. ANY CHANGES MADE TO THE UNITS WILL VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. See: http://www.x10.com/support/return_policy.htm for warranty info. For help or more information on setup, please visit: http://www.x10.com/support Indicator light The indicator light flashes when you press any button. Setup Used to setup the remote to control your TV or audio system as follows: 1.Turn on the device you want to control (TV, or Audio system). 2.Press and release mode button for the device you want to control (TV or Audio). 3.Press and hold SETUP until the green LED indicator under the button you pressed in step 2 lights steadily. Release SETUP. 4.Enter the 3 digit Code from the Library Code Table (separate sheet). The LED turns off after the last digit entered. 5.Point the remote at the device and press the POWER button. Your device should turn off. Learn Learns TV/Audio codes not in the remote’s library, as follows: 1.Point your existing remote at the UR89A Remote with a distance of about 1 inch between remotes. 2.Press the mode button that matches the equipment you want to learn (TV or Audio). The LED blinks once. 3.Press and hold SETUP until the green LED indicator under the button you pressed in step 2 lights steadily. Release SETUP. 4.Press and release the LEARN button. The LED blinks once. 5.Press and release the button on the UR89A Remote that you want to teach. (e.g. POWER) The LED blinks once. 6.Press the button on your existing remote that you want to learn. Hold the button until the LED on the UR89A Remote blinks off. 7.Repeat steps 5 and 6 for each button you want to learn. 8.When you’ve finished learning all the keys, press SETUP. Power Runs and closes MusicTime. Also operates your TV/Stereo. PC, TV, Audio Puts the remote into MusicTime mode, or mode to control the volume on your TV or audio system, or change TV channel. X10 Used for Home Control functions. 0-9 Selects track numbers directly. Add/Delete Adds or removes tracks from your playlist. A/B Selects input mode on your TV. Album, Artist, Genre, Track Selects how you want to display/select your music files. Up, Down, Left, Right Arrows Moves around the current list displayed. Works like a joystick. Enter Opens the current selection. (Like pressing joystick button). Back and Forward Moves back through previous operations, then forward again. Playlist Displays your play lists. Playing Displays info on the track that’s playing. Top, End, Find, Order Used to move around within, and organize your music files. Top and end go to the top and end of a list. Find lets you find albums/artists/tracks by name using the ABC, DEF, etc., on the numeric buttons (like you enter names on a cell phone). Order lets you rearrange the order of albums/artists/tracks. Play, Stop, Pause, FF, REW, Scan+/- Used like you would use on your CD player. Play Marks a track in a currently playing CD for non inclusion in this session. Record Permanently deletes a marked track from a CD. See the help in the MusicTime software for more information.

IR Driver EEPROM 64K MCU MCU (EM78P447S) Block Diagram for RF Remote (UR89A) Key Matrix 310MHz Transmitter 310MHz

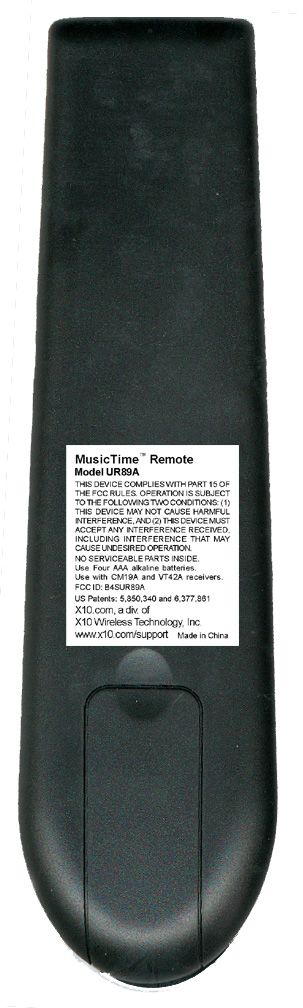

Model UR89A Remote Control rating label 2: 1 1/2/03 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NO SERVICEABLE PARTS INSIDE. Use Four AAA alkaline batteries. Use with CM19A and VT42A receivers. MusicTime ™ Remote X10.com, a div. of X10 Wireless Technology, Inc. www.x10.com/support FCC ID: B4SUR89A Made in China US Patents: 5,850,340 and 6,377,861 Model UR89A

UR89A Operational Description The UR89A is a 310 MHz pulsed RF transmitter and an infrared remote control. The infrared remote can control a variety of TVs and Audio Systems. It is used in conjunction with the MusicTime software. The internal MCUs receive information from the keypad and convert the keystrokes into a pulse code. The pulse code is then sent to the 310 MHz RF transmitter and is used to pulse modulate the 310 MHz carrier.

LEVEL PART IDENTIFIER DESCRIPTIONQTY/ASSY UOM REFERENCE 0 UR89A-101-COMU X10 MUSIC REMOTE NOPACK1 EA 1 038010H11093PLAIN WHITE LABEL(20X5)MM1 EA 1 038020H12118RATING LABEL UR89A1 EA 1 183010H21540BATTERY DOOR1 EA 1 183010H21550JOYSTICK COVER1 EA 1 185000H21190TOP CABINET1 EA 1 185000H21200BOTTOM CABINET1 EA 1 275000H11860RUBBER KEYPAD1 EA 1 391-60202140SCREW 2.3X12PA HEAD=M4 BK1 EA 1 403011H10201CSPRING CONTACT1 EA 1 851001H10808PCB ASSY RF1 EA 0.2 042010H10410PCB RF1 EA 0.2 076-10000002CAP-MCC 10P 5% NPO 08051 EAC4 0.2 076-10900000CAP-MCC 1P .25P NPO 08052 EAC5,C6 0.2 076-20900000CAP-MCC 2P .25P NPO 08051 EAC8 0.2 076-70900000CAP-MCC 7P .25P NPO 08051 EAC7 0.2 124000H10001RF COIL 31T1 EAL2 0.2 162089H10014RF WIRE LOOP ID=6 WD=0.61 EAL1 0.2 210117H10070TRS-NPN MPS H10 SMD1 EATR1 0.2 212107H10000DIODE-SI 1N41481 EAD2 0.2 240-68206011RES-CF 6K8 +/-5% 1/8W1 EAR11 0.2 241-30200000RES-TFC 3K 5% 1/8W 08051 EAR12 0.2 241-68000000RES-TFC 68R 5% 1/10W08051 EAR13 0.2 354-12400000WIRE UL1007 #24 BLACK0.09 M90MM 0.2 358-60821001WIRE-JUMPER D=0.6MM3 EA 1 851001H11747PCB ASSY,HE0311 EA015601-RC 0.2 055-10400000CAP-C 100N +8-2 25V Y5V1 EAC3 0.2 057-10100019CAP-E 100U 20% 10V1 EAC2 0.2 057-10900011CAP-E 1U 20% 50V 3X51 EAC9 0.2 076-10400015CAP-MCC 100N 10% X7R 08051 EAC4 0.2 076-33000002CAP-MCC 33P 5% NPO 08051 EAC1 0.2 080001H100504MHZ RESONATOR W/2 CAP1 EAY1 0.2 209117H10005TRS-NPN 9014D1 EAQ2 0.2 210010H10010TRS-H90131 EAQ1 0.2 211108H10031IC EEPROM 24C16 SMD1 EAU2 0.2 211328H10252IC EM78P447S SMD1 EAU1 0.2 212107H10000DIODE-SI 1N41485 EAD1-5 0.2 220-00200200LED 3MM (GREEN DIFFUSED)4 EALED1-4 0.2 220-00200220IR EMITTING LED 5MM1 EAIR1 0.2 240-10306011RES-CF 10K +/-5% 1/8W1 EAR9 0.2 240-10406011RES-CF 100K +/-5% 1/8W1 EAR13 0.2 240-33906011RES-CF 3R3 +/-5% 1/8W1 EAR3 0.2 240-68106011RES-CF 680R +/-5% 1/8W1 EAR8 0.2 241-10200000RES-TFC 1K 5% 1/10W 08051 EAR12 0.2 241-10500000RES-TFC 1M 5% 1/10W 08051 EAR14 0.2 241-47300000RES-TFC 47K 5% 1/10W 08051 EAR11 0.2 241-47400000RES-TFC 470K 5%1/10W 08051 EAR10 0.2 241-56100000RES-TFC 560R 5% 1/10W08054 EAR4-7 0.2 241-68200000RES-TFC 6K8 5% 1/10W 08051 EAR2 0.2 283-00000033MULTI-WAY SWITCH 4+11 EASW1 0.2 358-60821001WIRE-JUMPER D=0.6MM4 EA 0.2 403011H10242BATTERY CONTACT (-)1 EA 0.2 403011H10243BATTERY CONTACT (+)1 EA 0.2 851001H11747-APCB ASSY, DIE, HE0311 EA ..3042010H11093APCB1 EA ..3211328H10285-DIC DIE RC008-HE0311 EA

DCBA 12345678 ABCD 8 7 6 5 4 3 2 1 PICO ELECTRONICS Ltd., Eastfield Industrial Estate, Glenrothes, Fife, KY7 4NZ, SCOTLAND SHEET No. DATEDATE REVISION DATE FIRST DRAWN FILEDRNAPPD. DO NOT SCALE DRAWING TITLE: REV. Error : PICO.WMF File Not Found A:\UR89A.~CH 11 of A UR89A PRINT DATE 12:06:41 2-Jan-2003 15/12/02 02/05/02 15/Dec/02 C3100NF VSS C2100UF10V D2 D3 D4 Y1 4MHZ R141M VSS 4 x AAA BATTERIES BATT1BATT2 +6V NOTES:-1/ ALL UNSPECIFIED DIODES 1N4148 OR EQUIVALENT.2/ ALL UNSPECIFIED DAUGHTER BOARD CAPACITORS ARE SMD TYPE.3/ ALL UNSPECIFIED DAUGHTER BOARD RESISTORS ARE SMD TYPE.4/ ALL UNSPECIFIED RESISTORS ARE 0.125W 5%.5/ ALL UNSPECIFIED CAPACITORS ARE AXIAL MLC TYPE."*" DENOTES COMPONENT NOT INSTALLED KEY117 KEY3POWERKEY13ADD KEY149 KEY150 KEY17REC KEY18BACK KEY19REW KEY20ARTST KEY225 KEY23ALBUM KEY246 KEY25 KEY8PC KEY10 KEY1SETUP KEY4TOP KEY2LEARNKEY7AUDIOKEY128 KEY6TVKEY16-SCAN BATT3BATT4 KEY214 TCC 1 VDD 2 NC 3 INT 5 P50 6 P51 7 P52 8 P53 9 P60 10 P61 11 P62 12 P63 13 P64 14 VCC 4 RES 28 P65 15 P66 16 P67 17 P70 18 P71 19 P72 20 P73 21 P74 22 P75 23 P76 24 P77 25 OSCO 26 OSCI 27 U1 EM78P447S R13100K C4100NF VSS LED2 GREEN R4560R LED3 GREEN R5560R LED4 GREEN R6560R LED5 GREEN R7560R VSS VSS SIGNALENABLE VSS RF DAUGHTER BOARD VSS 11-7 26 D-0 11 D-1 12 11-6 25 11-5 24 C-1 35 C-0 34 TSTP_P 32 RSTP_N 29 SXI 31 SXO 30 D-7 18 D-6 17 D-5 16 D-4 15 D-3 14 D-2 13 10-1 2 10-0 1 10-3 4 10-2 3 10-5 6 10-4 5 10-7 8 10-6 7 11-1 20 11-0 19 11-3 22 11-2 21 C-3 37 VDD 33 C-2 36 FXI 28 FXO 27 GND 10 11-4 23 IR-OUT 9 U3 HE008 VSS TR2 R1147K R10470K R121K D5 VDD C51U A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U2 * VDD VSS GATE CLOCK DATA VDD IR1 TR1 9013G VSS R3 3R3 R910K R8680R C133PF KEY14STOP KEY15FORWARD KEY19PLAY KEY20PAUSE KEY24A/B KEY25SCAN+KEY5ORDERKEY10PLAYING KEY4END KEY10PLAYLIST KEY10 X10 D1 R2 6K8 VSS KEY272 KEY30 KEY293 KEY261 KEY30FF KEY29FIND KEY10CH- KEY22CH+ KEY23MUTE KEY24VOL+ KEY21VOL- KEY24GENRE KEY25TRACK KEY30KEY4ENTER 1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 22-Jan-2003 Sheet of File: A:\310TX.SCH Drawn By: TR1H10 R116K8 R12 3K R1368R C6 1P C5 1P C4 10P C3 * C82P L1 6MM L2 31T RF INPUT +6V C77P RF 310MHz Tx 90mm ANT D2 4148 SIGNAL PCB Trace

Test Report No. R-9755-1 FCC ID: B4SUR89A APPLICANT X-10 USA, Inc. 19823, 58 th Place S. Kent, WA 98032 MANUFACTURER X-10 Electronics Shenzhen Co. Ltd. X-10 Building Labour Industrial District Shenzhen, Xixiang, Bao An Guang Dong, China, 518102 TEST SPECIFICATION: FCC Rules and Regulations Part 15, Subpart C, Para. 15.231 TEST PROCEDURE: ANSI C63.4:2000 TEST SAMPLE DESCRIPTION BRANDNAME: X-10 USA MODEL: UR89A TYPE: Pulsed Transmitter POWER REQUIREMENTS: 6 VDC derived from 4 New “AAA” Batteries FREQUENCY OF OPERATION: 310 MHz TESTS PERFORMED Para. 15.231(a), Radiated Emissions, Fundamental and Harmonics Para. 15.231(b), Radiated Emissions, Spurious Case Para. 15.231(b), Duty Cycle Determination Para. 15.231(c), Occupied Bandwidth REPORT OF MEASUREMENTS Applicant: X-10 (USA), Inc. Device: Pulsed Transmitter FCC ID: B4SUR89A Power Requirements: 6 VDC derived from 4 New “AAA” Batteries Test Report No. R-9755-1 FCC ID: B4SUR89A Applicable Rule Section: Part 15, Subpart C, Section 15.231 Test Report No. R-9755-1 FCC ID: B4SUR89A REPORT OF MEASUREMENTS (continued) TEST RESULTS 15.231 (a): This device is used as a remote control transmitter. 15.231 (a)(1) & The transmitter is manually operated and ceases transmission within 5 15.231(a)(2): seconds after deactivation. 15.231 (a)(3): The transmitter does not perform periodic transmissions. 15.231 (b): The fundamental field strength did not exceed 5833 μV/M (Average) at a test distance of 3 meters. In addition, the requirements of section 15.35 for averaging pulsed emissions and for limiting peak emissions were met. The field strength of harmonic and spurious emissions did not exceed 583.3 μV/M (AVERAGE). DETERMINATION OF FIELD STRENGTH LIMITS The field strength limits shown below are found in Section 15.231. Frequency Limit F1 = 260 3750 = L1 Fo = 310 Lo F2 = 470 12500 = L2 Test Report No. R-9755-1 FCC ID: B4SUR89A REPORT OF MEASUREMENTS (continued) The formula below was utilized to determine the limits: Limit = L1 + [(Fo-F1)(L2-L1)/(F2-F1)] Solving yields: Fundamental Limit = 5833 μV/M (AVERAGE) @ 3 Meters Harmonic Limit = 583.3 μV/M (AVERAGE) @ 3 Meters DUTY CYCLE DETERMINATION The unit’s RF output was directly coupled to the input of the spectrum analyzer. The analyzer was set for a frequency span of 0Hz. The sweep time was then adjusted in order to display one full pulse train. The transmitter on time was then summed and compared to the time for one full cycle in order to obtain the duty cycle.( See plots for additional information) Transmitter On Time = 19.875 milliseconds (maximum) Transmitter Cycle Time = 38.875 milliseconds Transmitter Duty Cycle = 51.13 % CALCULATION: 1 Large Pulse = 4.125 milliseconds 21 x 750 μs (small pulse) = 15.75 milliseconds 4.125 + 15.75 = 19.875 milliseconds Duty Cycle (19.8/38.9) = 51.13 % Correction Factor = 20 log(0.5113) = -5.83 dB Test Report No. R-9755-1 FCC ID: B4SUR89A SPECTRUM ANALYZER DESENSITIZATION CONSIDERATIONS Due to the nature of the emissions being measured, care was taken to ensure that the resolution bandwidth of the spectrum analyzer was adequate to provide accurate measurements. The following formula was utilized: Setting pulse desensitization equal to zero and utilizing the minimum observed pulse width of 750μs yields a minimum required bandwidth of 888 Hz. FCC specified bandwidths of 100kHz and 1MHz were utilized below and above 1GHz, respectively. GENERAL NOTES All readings were taken utilizing a peak detector function at a test distance of 3 meters. The duty cycle was applied to the peak readings in order to determine the average value of the emissions. The frequency range was scanned from 30 MHz to 3.1 GHz. All emissions not reported were more than 20 dB below the specified limit. Test Report No. R-9755-1 FCC ID: B4SUR89A EQUIPMENT LIST FCC Part 15 Subpart C Paragraph 15.231 EN Type Manufacturer Description Model No. Cal Date Due Date 067 Open Area Test Site Retlif 3 Meter RNY 09/20/2000 09/20/2003 128 Double Ridged Guide Electro-Mechanics 1 GHz - 18 GHz 3105 06/07/2002 06/07/2003 133 Broadband Pre-Amplifier Electro-Metrics 10 kHz - 1 GHz, 26dB BPA-1000 06/11/2002 06/11/2003 141 Spectrum Analyzer Hewlett Packard 100 Hz - 40 GHz 8566B 01/23/2003 07/23/2003 141A Graphics Plotter Hewlett Packard N/A 7470A 03/05/2002 03/05/2003 141B Quasi-Peak Adaptor Hewlett Packard 100 Hz - 1 GHz 85650A 01/23/2003 07/23/2003 512 Graphics Plotter Hewlett Packard N/A 7470A 11/19/2002 11/19/2003 543 Preamplifier Hewlett Packard 1.0 GHz - 26.5 GHz 8449B 07/11/2002 07/11/2003 7016 EMC Analyzer Hewlett Packard 9kHz - 1.8GHz 8591EM 05/30/2002 05/30/2003 767 Biconilog EMCO 26 - 2000 MHz 3142B 09/03/2002 09/03/2003 Test Report No. R-9132-1 FCC ID: B4SUR89A FCC 15.231(b) RADIATED EMISSIONS, FUNDAMENTAL & SPURIOUS CASE (See separate e-file named Refundharm.pdf and REspur.pdf) FCC 15.231(c) OCCUPIED BANDWIDTH (See separate e-file named occbw.pdf) Test Report No. R-9755-1 FCC ID: B4SUR89A FCC 15.231(c) DUTY CYCLE (See separate e-file named dutycycle.pdf) Test Report No. R-9755-1 FCC ID: B4SUR89A Test Setup Photograph
