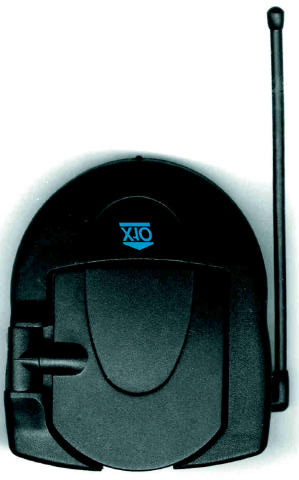

B4SVT32AAudio / Video Extender Sender

OWNER'S MANUAL Video Sender A UDIO /V IDEO E XTENDER S YSTEM M ODEL VK54A ( INCLUDES VT32A S ENDER & VR30A R ECEIVER ) 3 2 IMPORTANT SAFETY INSTRUCTIONS 1. Read Instructions - All the safety and operating instructions should be read before the product is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. 4. Follow Instructions - All operating and use instructions should be followed. 5. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6. Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards. 7. Water and Moisture - Do not use this product near water - for Example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near aswimming pool; and the like. 8. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child oradult, and serious damage to the product. Use only with a cart, stand, tripod,bracket, or table recommended by the manufacturer, or sold with the product.Any mounting of the product should follow the manufacturer’s instructions, andshould use a mounting accessory recommended by the manufacturer. 9. A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause theproduct and cart combination to overturn. 10. Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect if from overheating,and these openings must not be blocked or covered. The openings should neverbe blocked by placing the product on a bed, sofa, rug, or other similar surface.This product should not be placed in a built-in installation such as a bookcase orrack unless proper ventilation is provided or the manufacturer’s instructions havebeen adhered to. I NTRODUCTION Your Wireless Video Sender kit consists of a Sender base unit whichconnects to your DSS™ r eceiver, and a Receiver unit which connects to the TV in another room. The Video Sender converts the A/V signalfrom your DSS into a radio signal and transmits it (even throughwalls) to the Video Receiver unit. The Video Receiver converts thesignals back to A/V signals which are fed through a cable to yourTV's A/V input jacks.When used with X10 universal remotes your Video Sender alsoallows you to operate some brands of DSS while watching it inanother room. By purchasing an optional Powermid IR ExtenderSystem (Model PM5900) you can control other A/V products such asVCRs, Cable Boxes, etc. while watching a TV in another room.There are just a few simple steps to follow to hook up your VideoSender kit to a DSS, VCR or Cable Box. WARNING: To reduce the risk of fire or electric shock, do not expose this productto rain or moisture. 5 4 c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as animproper adjustment of other controls may result in damage and will oftenrequire extensive work by a qualified technician to restore the product to itsnormal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance - this indicates aneed for service. 19. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products including amplifiers) thatproduce heat. FCC C AUTION THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:(1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND(2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. This equipment generates and uses radio frequency energy, and if not installed andused properly, that is, in strict accordance with the manufacturers instructions, it maycause interference to radio and television reception. It has been type tested andfound to comply with the limits for remote control devices in accordance with thespecifications in Sub-Parts B and C of Part 15 of FCC Rules, which are designed toprovide reasonable protection against such interference in a residential installation.However, there is no guarantee that interference will not occur in a par ticular installation. If this equipment does cause interference to radio or television reception,which can be determined by unplugging the equipment, try to correct the interfer ence by one or more of the following measures.• Reorient the antenna of the radio/TV experiencing the interference.• Relocate the equipment with respect to the radio/TV.• Move the equipment away from the radio/TV.• Plug the equipment into an outlet on a different electrical circuit from the radio/TV experiencing the interference. • If necessary, consult your local Dealer for additional suggestions.NOTE: Modifications to this product will void the user's authority to operate this equipment. 11. Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type or powersupply to your home, consult your product dealer or local power company. Forproducts intended to operate from battery power, or other sources, refer to theoperating instructions. 12. Grounding or Polarization - This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other).This plug will fit into the power outlet only one way. This is a safety feature. Ifyou are unable to insert the plug fully into the cutlet, try reversing the plug. If theplug should still fail to fit, …

Text truncated - open the document above for the full version.

Left Audio Input Right Audio Input Video Input FM ModulatorFM ModulatorPre-emphasis 310MHz Receiver IR Driver DSS control output 310MHz 2.4GHz RFTransmitter 2.4GHz Patch Antenna 4-Channels Selector Block Diagram for Video Sender Transmitter (VT32A)

X10.com, Inc., N. Las Vegas, NV 89030. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDI- TIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTER- FERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTER- FERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Model No. VT32A rating label 2: 1 03/23/00 2.4GHz Wireless Audio/Video Sender For use with Model VR30A and AR10A 2.4 GHz Receiver, and Model PT30A plug-in power supply. Ratings: 12VDC, 200 mA max. For indoor use only. Refer to Owner's Manual for more information. Model No. VT32A FCC ID: B4SVT32A Made in China

VT32A-100-3U VIDEO X'MITTER,310 NOPACK 1 EA 183010H16300A RUBBER STAND 2 EA 183010H16390 ANTENNA COVER, VT30A 1 EA 183010H16400 ANTENNA HOLDER, VT30A 1 EA 183010H17851 PLASTIC TUBE 1 EA 183010H17980 DISK TOP 1 EA 183010H17990 DISK BOTTOM 1 EA 183010H18000 HINGE (A) 1 EA 183010H18010 HINGE (B) 1 EA 183010H18020 HINGE HOLDER 1 EA 183010H18240 SWITCH COVER 1 EA 185000H17130 BOTTOM CABINET 1 EA 185000H17140 TOP CABINET 1 EA 186002H10301 REAR TRIM LABEL 1 EA 391-60203060 SCREW-PPTT M2.6X10 MS/ZP 4 EA 851001H11048 PCB ASSY, RF 310MHZ 1 EA 042010H10636A PCB 1 EA 057-10900011 CAP-E 1U 20% 50V 3X5 2 EA 076-10900000 CAP-MCC 1P .25P NPO 0805 1 EA 076-20200007 CAP-MCC 2N2 10% X7R 0805 2 EA 076-20900000 CAP-MCC 2P .25P NPO 0805 1 EA 076-40900000 CAP-MCC 4P .25P NPO 0805 1 EA 076-47000002 CAP-MCC 47P 5% NPO 0805 1 EA 076-68100000 CAP-MCC 680P .25P NPO0805 1 EA 076-80900000 CAP-MCC 8P .25P NPO 0805 2 EA 159010H10025 T-COIL 4.5T 5MM RED 1 EA 160-39700006 INDUCTOR 39NH 5% 0805 SMD 1 EA 162089H10023 COIL 4T5R ID=2 WD=0.4 1 EA 209-00000001 TRS-NPN 2N3904 SMD 3 EA 210117H10070 TRS-NPN MPS H10 SMD 2 EA 212107H10000 DIODE-SI 1N4148 2 EA 240-10406011 RES-CF 100K +/-5% 1/8W 1 EA 240-47306011 RES-CF 47K +/-5% 1/8W 2 EA 241-00000000 RES-TFC 0R 5% 1/10W 0805 1 EA 241-10300000 RES-TFC 10K 5% 1/10W 0805 1 EA 241-10400000 RES-TFC 100K 5% 1/10W0805 1 EA 241-18200000 RES-TFC 1K8 5% 1/10W 0805 1 EA 241-22100000 RES-TFC 220R 5% 1/10W0805 1 EA 241-22300000 RES-TFC 22K 5% 1/10W 0805 1 EA 241-30200000 RES-TFC 3K 5% 1/10W 0805 1 EA 241-47100000 RES-TFC 470R 5% 1/10W0805 1 EA 241-47300000 RES-TFC 47K 5% 1/10W 0805 2 EA 241-47500000 RES-TFC 4M7 5% 1/10W 0805 2 EA 241-68100000 RES-TFC 680R 5% 1/10W0805 1 EA 241-68200000 RES-TFC 6K8 5% 1/10W 0805 1 EA 354-12600000 WIRE UL1007 #26 BLACK 0.3 M 358-60821001 WIRE-JUMPER D=0.6MM 4 EA 851001H11119 PCB ASSY 1 EA 042010H10706F PCB 1 EA 057-10000029 CAP-E 10U 20% 16V 3 EA 057-10900011 CAP-E 1U 20% 50V 3X5 1 EA 057-22000019 CAP-E 22V 20% 25V 5X7 1 EA 076-10000012 CAP-MCC 10P .25P NPO 0603 1 EA 076-10100014 CAP-MCC 100P 10% X7R 0603 5 EA 076-10200014 CAP-MCC 1N 10% X7R 0603 2 EA 076-10300014 CAP-MCC 10N 10% X7R 0603 2 EA 076-10400019 CAP-MCC 100N +8-2 Y5V0603 4 EA 076-10900012 CAP-MCC 1P .25P NPO 0603 3 EA 076-12900014 CAP-MCC 1P2 10% X7R 0603 1 EA 076-15200014 CAP-MCC 1N5 10% X7R 0603 1 EA 076-15900014 CAP-MCC 1P5 10% X7R 0603 2 EA 076-20900012 CAP-MCC 2P .25P NPO 0603 1 EA 076-27900012 CAP-MCC 2P7 .25P NPO 0603 1 EA 076-33000014 CAP-MCC 33P 10% X7R 0603 2 EA 076-39900012 CAP-MCC 3P9.25P NPO 0603 2 EA 076-40000017 CAP-MCC 4P .25P U2J 0603 1 EA 076-47000014 CAP-MCC 47P 10% X7R 0603 1 EA 076-47200014 CAP-MCC 4N7 10% X7R 0603 1 EA 076-47800012 CAP-MCC 0P47.25P NPO 0603 2 EA 076-50800012 CAP-MCC 0P5 .25P NPO 0603 2 EA 076-50900012 CAP-MCC 5P .25P NPO 0603 5 EA 076-56000014 CAP-MCC 56P 10% X7R 0603 1 EA 076-68000017 CAP-MCC 68P 10% U2J 0603 1 EA 076-75100014 CAP-MCC 750P.25P NPO 0603 1 EA 076-75800012 CAP-MCC 0P75.25P NPO 0603 3 EA 159010H10024 T-COIL 15.5:25.5 1 EA 160-15000001 INDUCTOR 15UH 1/8W 1 EA 160-27900008 INDUCTOR 2N7H 5% 0603 SMD 2 EA 209-00000001 TRS-NPN 2N3904 SMD 1 EA 209-00000002 TRS-NPN BFG540/X SMD 2 EA 211103H10003 REGULATOR 78L08 1 EA 212107H10001 DIODE-SI 1N4001 1 EA 212107H10009 DIODE-TUNING BB833 SIEMEN 1 EA 212107H10018 DIODE BBY40 PHILIPS 1 EA 241-10100003 RES-TFC 100R 5% 1/10W0603 3 EA 241-10300003 RES-TFC 10K 5% 1/10W 0603 2 EA 241-12300003 RES-TFC 12K 5% 1/10W 0603 2 EA 241-12400003 RES-TFC 120K 5% 1/10W0603 1 EA 241-15300003 RES-TFC 15K 5% 1/10W 0603 2 EA 241-18100003 RES-TFC 180R 5% 1/10W0603 3 EA 241-20300003 RES-TFC 20K 5% 1/10W 0603 1 EA 241-22300003 RES-TFC 22K 5% 1/10W 0603 1 EA 241-33200003 RES-TFC 3K3 5% 1/10W 0603 4 EA 241-33300003 RES-TFC 33K 5% 1/10W 0603 2 EA 241-33900003 RES-TFC 3R3 5% 1/10W 0603 1 EA 241-39200003 RES-TFC 3K9 5% 1/10W 0603 2 EA 241-39300003 RES-TFC 39K 5% 1/10W 0603 2 EA 241-56000003 RES-TFC 56R 5% 1/10W 0603 2 EA 241-68200003 RES-TFC 6K8 5% 1/10W 0603 3 EA 241-75000003 RES-TFC 75R 5% 1/10W 0603 1 EA 241-75100003 RES-TFC 750R 5% 1/10W0603 1 EA 241-75200003 RES-TFC 7K5 5% 1/10W 0603 1 EA 254-10300008 RES-VAR 10K 30% 3 EA 283-00000017 SLIDE SW 2P4T (SS-24D02) 1 EA 354-13000050 WIRE UL1571 #30 BLACK 0.15 M 354-13000052 WIRE UL1571 #30 RED 0.15 M 354-13000054 WIRE UL1571 #30 YELLOW 0.15 M 354-13000056 WIRE UL1571 #30 BLUE 0.15 M 354-13000059 WIRE UL1571 #30 WHITE 0.15 M 403031H10034 METAL BOX 1 EA 851001H11137 PCB ASSY 1 EA 042010H10698A PCB 1 EA 055-10100005 CAP-C 100P 5% 50V NPO 2 EA 055-10100015 CAP-C 100P 5% 50V N150 1 EA 055-10200008 CAP-C 1N 10% 50V Y5P 1 EA 055-10300013 CAP-C 10N +8-2 50V Z5U 1 EA 055-27000003 CAP-C 27P 5% 50V NPO 1 EA 057-10000018 CAP-E 10U 20% 25V 1 EA 057-10100002 CAP-E 100U 20% 25V 1 EA 057-10100019 CAP-E 100U 20% 10V 2 EA 057-22000003 CAP-E 22U 20% 16V 5X5 2 EA 075-10400013 CAP-MLC 100N 10% 50V X7R 1 EA 075-47200010 CAP-MLC 4N7 10% 50V X7R 1 EA 149-00000011 SOCKET RCA PCB-MT(YELLOW) 1 EA 149-00000020 SOCKET RCA PCB-MT (RED) 1 EA 149-00000021 SOCKET RCA PCB-MT (WHITE) 1 EA 149-00000023 1.7MM DC JACK 1 EA 149001H10020 3.5MM PCB MT MONO JACK 1 EA 159010H10024 T-COIL 15.5:25.5 1 EA 209-00000000 TRS-NPN BC337-40 1 EA 209-11700170 TRS-NPN 2N3904 1 EA 210117H10000 TRS-PNP 9015C 1 EA 212107H10000 DIODE-SI 1N4148 1 EA 212107H10018 DIODE BBY40 PHILIPS 1 EA 220-00200180 LED 3MM (RED DIFFUSED) 1 EA 240-10106011 RES-CF 100R +/-5% 1/8W 2 EA 240-10206011 RES-CF 1K +/-5% 1/8W 1 EA 240-10306011 RES-CF 10K +/-5% 1/8W 2 EA 240-10406011 RES-CF 100K +/-5% 1/8W 1 EA 240-12206022 RES-CF 1K2 +/-5% 1/4W 1 EA 240-15206022 RES-CF 1K5 +/-5% 1/4W 1 EA 240-15306011 RES-CF 15K +/-5% 1/8W 1 EA 240-22306011 RES-CF 22K +/-5% 1/8W 1 EA 240-33106011 RES-CF 330R +/- 5% 1/8W 1 EA 240-33206011 RES-CF 3K3 +/-5% 1/8W 2 EA 240-33306011 RES-CF 33K +/-5% 1/8W 1 EA 240-39206011 RES-CF 3K9 +/-5% 1/8W 1 EA 240-68006022 RES-CF 68R +/-5% 1/4W 1 EA 240-68206011 RES-CF 6K8 +/-5% 1/8W 1 EA 240-75206011 RES-CF 7K5 5% 1/8W 1 EA 240-82006022 RES-CF 82R +/-5% 1/4W 1 …

Text truncated - open the document above for the full version.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA 2.4GHz VIDEO SENDER (MINI) 851001H11137 A 11 Title: Revision: Number: of Sheet Date: 27-Mar-2000 Drawn By: File Name: C: \MINITX_A.SCH J1AUDIO L R310 3K9 R30833K R3027K5 R30722K C30722μF <WHITE> To Transmitter J2AUDIO R C3064700pF C305100pF C3091nF R3066K8 R305820R R300100R C30822μF <RED> R101K Q1BC337 R2100K R310K D1 4148 C210nF Q29015 R782R J5PHONEJACK J4DC 12 IN SW1SLIDE SWITCH C1 100μF R3013K3 C610μF R101K2 ON OFF 25V LED1RED 3MM Module J3VIDEO IN +8V Q301BBY-40 T300IFT 6M C31010nF C303100pF R3033K3 Q3003904 C301100pFC30027pF R30410K R1115K C311100nF <YELLOW> +12V 310/433.92MHz RF Receiver Daughter Board R41K5 R5330R R668R C5100μF +12V +8V R1100R R110R C5100μF +12V Out Ground +8V In Video Out Left Audio Out Right Audio Out 10V 10V 25V

APPLICANT X-10 USA, Inc. 91 Ruckman Road Closter, NJ 07624 MANUFACTURER X-10 Electronics Shenzhen Co. Ltd. X-10 Building Labour Industrial District Shenzhen, Xixiang, Bao An Guang Dong, China, 518102 TEST SPECIFICATION:FCC Rules and Regulations Part 15, Subpart C TEST PROCEDURE:ANSI C63.4:1992 TEST SAMP LE DESCRIP TION BRANDNAME:X-10 MODEL:VT32AFCC ID:B4SVT32A TYPE:Audio / Video Extreme Sender FREQUENCY RANGE:2413 MHz to 2476 MHz POWER REQUIREMENTS: 12 VDC derived from AC Adapter, Model: PT30A TESTS P ERFORMED - 15.249(a)Radiated Emissions, Fundamental and Harmonics - 15.294(c)Occupied Bandwidth - 15.249(c)/15.209Radiated Emissions, Spurious Case - 15.207(a)Conducted Emissions REPORT OF MEASUREMENTS Applicant:X-10 (USA), Inc. Device:2.4 GHz Transmitter FCC ID:B4SVT32A Power Requirements:12 VDC derived from AC Adapter, Model PT30A Applicable Rule Section:Part 15, Subpart C, Section 15.249 TEST RESULTS 15.207(a):The radio frequency voltage that was conducted back on to the AC power line on any frequency/frequencies within the bandwidth of 450kHz to 30MHz did not exceed 250 microvolts. 15.249(a):The unit operates in the 2400-2483.5MHz band at 4 frequencies as follows: 1) 2413 MHz2)2437.6 MHz 3) 2455 MHz4)2476 MHz Field strength readings were taken at 3 frequencies (low, middle and high) because the device operates over a range greater than 10 MHz The field strength of the fundamental did not exceed 50mV/M AVERAGE. The field strength of the harmonics did not exceed 500 V/M AVERAGE. 15.249(b):Field strength readings were taken at three meters unless otherwise noted. 15.249(c):Emissions radiated outside band edges are greater than 50 dB below the specified the level of the fundamental. 15.249(d):The peak field strength of any emission did not exceed the maximum permitted average field strength by more than 20dB under any condition of modulation. EXHIBIT 4 Radiated Emissions, Fundamental & Harmonics Para. 15.249(a) (See separate e-file attachments named RE Fund Harm.doc) EXHIBIT 4 Spurious Emissions Para. 15.249(c) (See separate e-file attachment RE Spur.doc) EXHIBIT 4 Occupied Bandwidth Para. 15.249(c) (See separate e-file attachment named Occbw.pdf) EXHIBIT 4 Conducted Emissions Para. 15.207(a) (See separate e-file attachment named CEdata.pdf) EQUIPMENT LIST Conducted Emissions, Tx & Rx, 450kHz to 30MHz ENTypeManufacturerDescription.Model No.Cal Date Due Date 078LISNSolar Electronics10 kHz - 30 MHz8028-50-TS24BNC05/11/199905/11/2000 088AConical Log SpiralElectro-Mechanics200 MHz - 1 GHz310101/04/200001/04/2001 338Signal GeneratorHewlett Packard500 kHz - 1 GHz8640B03/09/200003/09/2001 513LISNSolar Electronics10 kHz - 30 MHz8028-50-TS24BNC11/02/199911/02/2000 575Graphics PlotterHewlett PackardN/A7470A04/22/199904/22/2000 7016EMC AnalyzerHewlett Packard9kHz - 1.8GHz8591EM02/18/200002/18/2001 7017Transient Limite rHe wle tt P a c k a rd9 k Hz - 200MHz11947A04/22/199904/22/2000 Occupied Bandwidth, 2.4GHz to 2.4835GHz ENTypeManufacturerDescription.Model No.Cal Date Due Date 141Spectrum AnalyzerHewlett Packard100 Hz - 40 GHz8566B03/20/200009/20/2000 141AGraphics PlotterHewlett PackardN/A7470A03/08/200003/08/2001 141BQuasi-Peak AdaptorHewlett Packard100 Hz - 1 GHz85650A03/20/200009/20/2000 Fundamental, Harmonics, and Spurious Emissions, Radiated, 30MHz to 25GHz ENTypeManufacturerDescription.Model No.Cal Date Due Date 062High Gain Horn AntennaMicrolab/FXR1.7 GHz - 2.6 GHzR638A01/25/200001/25/2001 064High Gain Horn AntennaMicrolab/FXR3.95 GHz - 5.85 GHzH638A01/26/200001/26/2001 065High Gain Horn AntennaMicrolab/FXR5.85 GHz - 8.2 GHzC638A01/26/200001/26/2001 066High Gain Horn AntennaMicrolab/FXR8.2 GHz - 12.4 GHzX638A01/26/200001/26/2001 067Open Area Test SiteRetlif3 MeterRNY10/15/199710/15/2000 129DHigh Gain Horn AntennaMicrolab/FXR12.4 GHz - 18 GHzY638A01/26/200001/26/2001 133Broadband Pre-AmplifierElectro-Metrics10 kHz - 1 GHz, 26dBBPA-100006/22/199906/22/2000 141Spectrum AnalyzerHewlett Packard100 Hz - 40 GHz8566B03/20/200009/20/2000 141AGraphics PlotterHewlett PackardN/A7470A03/08/200003/08/2001 141BQuasi-Peak AdaptorHewlett Packard100 Hz - 1 GHz85650A03/20/200009/20/2000 206B6.0 dB AttenuatorTexscan0 - 1.0 GHzFP-50 - 6 dB06/22/199906/22/2000 523BiconilogElectro-Mechanics26 - 2000 MHz3142B10/22/199804/22/2000 543PreamplifierHewlett Packard1.0 GHz - 26.5 GHz8449B06/16/199906/16/2001 617Interference AnalyzerElectro-Metrics10 kHz - 1 GHzEMC-3001/17/200001/17/2001

Retlif Testing Laboratories R Data Sheet 1 of 6 Test Method: FCC Part 15 Subpart C Radiated Emissions, Fundamental & Harmonic Emissions Customer: X-10 (USA) Job No. R-8468-1 Test Sample: 2.4GHZ Transceiver (Ch. 1) Paragraph: 15.209(a) Model No.: VT32A FCC ID: B4SVT32A Operating Mode: Continuously Transmitting a 2.4GHz Signal Technician: P. Lananna Date: March 28, 2000 Notes: Test Distance: 3 Meters Ch.1 Detector: Peak, Unless otherwise specified Test Freq. Antenna Pol./Height EUT Orientation Meter Reading Correction Factor Corrected Reading Converted Reading Avg. Limit GHz (V/H)/Meters X / Y / Z dBuV dB dBuV/m uV/m uV/m 2.476 H / 1.5 X 79.0 -11.5 67.5 2371.4 50000 | H / 1.5 Y 76.8 -11.5 65.3 1840.8 | | H / 1.0 Z 79.5 -11.5 68.0 2511.9 | | V / 1.0 X 79.7 -11.5 68.2 2570.4 | | V / 1.3 Y 77.4 -11.5 65.9 1972.4 | 2.476 V / 1.3 Z 75.6 -11.5 64.1 1603.2 50000 4.952 H / 1.0 X 35.0 -11.0 24.0 1.2* 500 | H / 1.0 Y 35.0 -11.0 24.0 1.2* | | H / 1.0 Z 35.0 -11.0 24.0 1.2* | | V / 1.0 X 35.0 -11.0 24.0 1.2* | | V / 1.0 Y 35.0 -11.0 24.0 1.2* | 4.952 V / 1.0 Z 35.0 -11.0 24.0 1.2* 500 7.428 H / 1.0 X 34.2 -4.8 29.4 29.5* 500 | H / 1.0 Y 34.2 -4.8 29.4 29.5* | | H / 1.0 Z 34.2 -4.8 29.4 29.5* | | V / 1.0 X 34.2 -4.8 29.4 29.5* | | V / 1.0 Y 34.2 -4.8 29.4 29.5* | 7.428 V / 1.0 Z 34.2 -4.8 29.4 29.5* 500 9.904 H / 1.0 X 32.9 -7.7 25.2 18.2* 500 | H / 1.0 Y 32.9 -7.7 25.2 18.2* | | H / 1.0 Z 32.9 -7.7 25.2 18.2* | | V / 1.0 X 32.9 -7.7 25.2 18.2* | | V / 1.0 Y 32.9 -7.7 25.2 18.2* | 9.904 V / 1.0 Z 32.9 -7.7 25.2 18.2* 500 12.38 H / 1.0 X 30.9 -2.7 28.2 25.7* 500 | H / 1.0 Y 30.9 -2.7 28.2 25.7* | | H / 1.0 Z 30.9 -2.7 28.2 25.7* | | V / 1.0 X 30.9 -2.7 28.2 25.7* | | V / 1.0 Y 30.9 -2.7 28.2 25.7* | 12.38 V / 1.0 Z 30.9 -2.7 28.2 25.7* 500 The frequency range was scanned from 30 MHz to 25 GHz. All emissions not recorded were more Than 10 dB below the specified limit. Emissions from the EUT do not exceed the specified limits. *=Noise Floor Measurements (Minimum system sensitivity) Retlif Job Number R-8468-1 Retlif Testing Laboratories R Data Sheet 2 of 6 Test Method: FCC Part 15 Subpart C Radiated Emissions, Fundamental & Harmonic Emissions Customer: X-10 (USA) Job No. R-8468-1 Test Sample: 2.4GHZ Transceiver (Ch. 1) Paragraph: 15.209(a) Model No.: VT32A FCC ID: B4SVT32A Operating Mode: Continuously Transmitting a 2.4GHz Signal Technician: P. Lananna Date: March 28, 2000 Notes: Test Distance: 3 Meters, **= Readings taken @ 1 meter correction factor includes test distance correction Ch.1 Detector: Peak, unless otherwise specified Test Freq. Antenna Pol./Height EUT Orientation Meter Reading Correction Factor Corrected Reading Converted Reading Avg. Limit GHz (V/H)-Meters X / Y / Z dBuV dB dBuV/m uV/m uV/m 14.86 H / 1.0 X 35.0 -6.1 28.9 27.9* 500 | H / 1.0 Y 35.0 -6.1 28.9 27.9* | | H / 1.0 Z 35.0 -6.1 28.9 27.9* | | V / 1.0 X 35.0 -6.1 28.9 27.9* | | V / 1.0 Y 35.0 -6.1 28.9 27.9* | 14.86 V / 1.0 Z 35.0 -6.1 28.9 27.9* 500 17.33 H / 1.0 X 35.2 -10.1 25.1 18.0* 500 | H / 1.0 Y 35.2 -10.1 25.1 18.0* | | H / 1.0 Z 35.2 -10.1 25.1 18.0* | | V / 1.0 X 35.2 -10.1 25.1 18.0* | | V / 1.0 Y 35.2 -10.1 25.1 18.0* | 17.33 V / 1.0 Z 35.2 -10.1 25.1 18.0* 500 19.80 H / 1.0 X 29.0 22.9** 51.9 393.6* 500 | H / 1.0 Y 29.0 22.9** 51.9 393.6* | | H / 1.0 Z 29.0 22.9** 51.9 393.6* | | V / 1.0 X 29.0 22.9** 51.9 393.6* | | V / 1.0 Y 29.0 22.9** 51.9 393.6* | 19.80 V / 1.0 Z 29.0 22.9** 51.9 393.6* 500 22.28 H / 1.0 X 26.0 23.2** 49.2 288.4* 500 | H / 1.0 Y 26.0 23.2** 49.2 288.4* | | H / 1.0 Z 26.0 23.2** 49.2 288.4* | | V / 1.0 X 26.0 23.2** 49.2 288.4* | | V / 1.0 Y 26.0 23.2** 49.2 288.4* | 22.28 V / 1.0 Z 26.0 23.2** 49.2 288.4* 500 24.76 H / 1.0 X 25.0 23.4** 48.4 263.0* 500 | H / 1.0 Y 25.0 23.4** 48.4 263.0* | | H / 1.0 Z 25.0 23.4** 48.4 263.0* | | V / 1.0 X 25.0 23.4** 48.4 263.0* | | V / 1.0 Y 25.0 23.4** 48.4 263.0* | 24.76 V / 1.0 Z 25.0 23.4** 48.4 263.0* 500 The frequency range was scanned from 30 MHz to 25 GHz. All emissions not recorded were more Than 10 dB below the specified limit. Emissions from the EUT do not exceed the specified limits. *=Noise Floor Measurements ( Minimum system sensitivity) Retlif Job Number R-8468-1 Retlif Testing Laboratories R Data Sheet 3 of 6 Test Method: FCC Part 15 Subpart C Radiated Emissions, Fundamental & Harmonic Emissions Customer: X-10 (USA) Job No. R-8468-1 Test Sample: 2.4GHZ Transceiver (Ch. 2) Paragraph: 15.209(a) Model No.: VT32A FCC ID: B4SVT32A Operating Mode: Continuously Transmitting a 2.4GHz Signal Technician: P. Lananna Date: March 28, 2000 Notes: Test Distance: 3 Meters Ch.2 Detector: Peak, Unless otherwise specified Test Freq. Antenna Pol./Height EUT Orientation Meter Reading Correction Factor Corrected Reading Converted Reading Avg. Limit GHz (V/H)/Meters X / Y / Z dBuV dB dBuV/m uV/m uV/m 2.456 H / 1.0 X 82.0 -11.5 70.5 3349.7 50000 | H / 1.3 Y 80.2 -11.5 68.7 2722.7 | | H / 1.3 Z 79.8 -11.5 68.3 2600.2 | | V / 1.0 X 79.5 -11.5 68 2511.9 | | V / 1.3 Y 80.1 -11.5 68.6 2691.5 | 2.456 V / 1.3 Z 75.7 -11.5 64.2 1621.8 50000 4.912 H / 1.0 X 35.0 -11.0 24.0 1.2* 500 | H / 1.0 Y 35.0 -11.0 24.0 1.2* | | H / 1.0 Z 35.0 -11.0 24.0 1.2* | | V / 1.0 X 35.0 -11.0 24.0 1.2* | | V / 1.0 Y 35.0 -11.0 24.0 1.2* | 4.912 V / 1.0 Z 35.0 -11.0 24.0 1.2* 500 7.368 H / 1.0 X 34.2 -4.8 29.4 29.5* 500 | H / 1.0 Y 34.2 -4.8 29.4 29.5* | | H / 1.0 Z 34.2 -4.8 29.4 29.5* | | V / 1.0 X 34.2 -4.8 29.4 29.5* | | V / 1.0 Y 34.2 -4.8 29.4 29.5* | 7.368 V / 1.0 Z 34.2 -4.8 29.4 29.5* 500 9.824 H / 1.0 X 32.9 -7.7 25.2 18.2* 500 | H / 1.0 Y 32.9 -7.7 25.2 18.2* | | H / 1.0 Z 32.9 -7.7 25.2 18.2* | | V / 1.0 X 32.9 -7.7 25.2 18.2* | | V / 1.0 Y 32.9 -7.7 25.2 18.2* | 9.824 V / 1.0 Z 32.9 -7.7 25.2 18.2* 500 12.28 H / 1.0 X 30.9 -2.7 28.2 25.7* 500 | H / 1.0 Y 30.9 -2.7 28.2 25.7* | | H / 1.0 Z 30.9 -2.7 28.2 25.7* | | V / 1.0 X 30.9 -2.7 28.2 25.7* | | V / 1.0 Y 30.9 -2.7 28.2 25.7* | 12.28 V / 1.0 Z 30.9 -2.7 28.2 25.7* 500 The frequency range was scanned from 30 MHz to 25 GHz. All emissions …

Text truncated - open the document above for the full version.

Retlif Testing Laboratories R Retlif Job Number R-8468-1 Data Sheet 1 of 1 Test Method: FCC Part 15 Subpart C, Spurious Case Radiated Emissions, Paragraph 15.209(a) Customer: X-10 (USA) Job No. R-8468-1 Test Sample: 2.4GHz Transceiver FCC ID: B4SVT32A Model No.: VT32A Serial No. N/A Operating Mode: 2.4GHz Transmitter, Continuous Technician: P. Lananna Date: March 28, 2000 Notes: Test Distance: 3 Meters Temp:18C Humidity:33% Detector: Quasi-Peak Below 1 GHz, Peak above 1 GHz Test Freq. Antenna Position EUT Orientation Meter Readings Correction Factor Corrected Reading Converted Reading LIMIT MHz (V/H) / Meters Degrees dBuV dB dBuV/m uV/m UV/m 30.00 100 | | | | | | | | | | | | 88.00 100 88.00 150 | || | | | | | 110.2 V/1.0 270 37 -10.5 26.5 21.1 | | | | | | | | | 216.00 150 216.00 200 | | 310.0 V/1.0 180 48 -3.9 44.1 160.3 | | | 960.00 200 960.00 500 | | | | | | 1000.0 500 | | | | 25000.0 500 The EUT was scanned from 30 MHz to 25 GHz The emissions observed from the EUT do not exceed the specified limits. Emissions not recorded were more than 10dB under the specified limit
