B4SVT40AWireless Audio/Video Sender

C AT . N O . 15-2572 W W W W W IRELESS IRELESS IRELESS IRELESS IRELESS A A A A A UDIO UDIO UDIO UDIO UDIO /V /V /V /V /V IDEO IDEO IDEO IDEO IDEO S S S S S ENDER ENDER ENDER ENDER ENDER with IR Extender Feature S ENDER 15-2572T OWNER’S MANUAL S ENDER 15-2572T 3 3 3 3 3 2 2 2 2 2 FCC C AUTION THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT TO THE FOLLOWING TWOCONDITIONS:(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSEUNDESIRED OPERATION. NOTE: Modifications to this product will void the user’s authority to operate this equipment. I NTRODUCTION Your Wireless Audio/Video Sender system consists of a Sender unit whichyou connect to your satellite receiver, DVD player, etc., and a Receiverunit that you connect to a TV anywhere in your home. The Audio/VideoSender converts the A/V signal from your A/V product into a 2.4 GHzwireless Radio Frequency (RF) signal and transmits it (even through walls)to the Audio/Video Receiver unit. The Audio/Video Receiver converts thesignal back to an A/V signal and passes it through a cable to your TV’sCOAX input, or A/V input jacks.The Audio/Video Sender system also includes an IR Extender feature. Thislets you remotely control the A/V product that the Sender is connected to,from the location where the Receiver is located. For example, you cancontrol a DVD Player in your living room, while watching it on a TV inyour bedroom.There are just a few simple steps to follow to hook up your Audio/VideoSender system to a satellite receiver, VCR, DVD Player, or Cable Box. C ONTENTS I NTRODUCTION ........................................................................ 3 C ONTROLS AND C ONNECTIONS .................................................. 4 S ENDER ............................................................................ 4 R ECEIVER .......................................................................... 5 C ONNECTING U P ..................................................................... 6 H OOKING UP THE S ENDER .................................................... 6 H OOKING UP THE R ECEIVER ................................................. 8 F INE TUNING YOUR S YSTEM .................................................... 10 IR E XTENDER F EATURE ......................................................... 11 5 5 5 5 5 4 4 4 4 4 CHANNEL ONOFF TV C HANN EL 34 ONOFF CHANNEL RF Antenna(for use with the IRExtender feature) Power Supply Jack 2.4 GHz Antenna 2.4 GHz Channel Switch A/V In Jacks 2.4 GHz ChannelSwitch (underneath2.4 GHz Antenna). C ONTROLS AND C ONNECTIONS Audio/Video Receiver Audio/Video Sender ON-OFF Switch (on side) A/V Out Jacks COAX out Channel 3/4 switch IR Extender Jack RF Antenna(for use with the IRExtender feature) Power Supply Jack ON-OFF Switch (on side) 7 7 7 7 7 6 6 6 6 6 Vid eo Audi o Out In Out Vid eo Audi o A/V Component Antenna To TVAntenn a TV A/V Component Antenna To TVAntenna TV Out Vid eo Audi o UHF/VHFTo TVUHF/VHF C ONNECTING U P Hooking up the Audio/Video Sender1. Connect one set of Audio/Video cables to the VIDEO and AUDIO jacks of your Audio/Video Sender. Take care to match the colors of theplugs on the cable with the jacks on the Audio/Video Sender. 2. Connect the other end of the cable to the Audio/Video OUT jacks on your TV. Take care to match the colors of the plugs on the cable withthe jacks on the TV. If the jacks on the TV are colored differently,connect the yellow plug to the jack labelled VIDEO, the red plug to thejack labelled AUDIO RIGHT and the white plug to the jack labeledAUDIO LEFT. See diagram A below.Note: If your TV does not include Audio/Video OUT jacks, you will need to remake the connections as shown in diagram B) using theTV antenna (coaxial) connections to link up a Satellite Receiver(DBS), or Cable Box, or VCR, or DVD Player to your TV. 3. Plug the Audio/Video Sender’s Power Supply into a convenient 120 volt wall outlet and plug its jack into the Audio/Video Sender. 4. Position the Audio/Video Sender in a convenient location such as on top of your TV and orient the antenna so that the flat side points in thedirection of the room where you will be installing the Receiver. If you have several A/Vcomponents:If you have two or more A/Vcomponents (e.g. Satellite Receiver(DBS), VCR, Cable Box, DVD Player,etc.) that you want to watch in anotherroom, they will probably already behooked up to the local TV in series (seethe diagram to the right). To connect theAudio/Video Sender you just need toidentify the last component in the chainand connect its LINE OUT jacks to theAudio/Video Sender’s A/V IN jacks.If the last component in the chain doesnot have spare LINE OUT jacks,reconnect the local TV to the lastcomponent in the chain using a coaxialcable to connect to the VHF/UHF jack,then use the A/V connections for theAudio/Video Sender. A) Connections for a TV with A/V OUT jacks. B) Connections for a TV without A/V OUT jacks. A/V Cables CoaxialCable TV UHF/VHF Satellite Receiver Out Vid eo Audi o UHF/VHFTo TV In Cable Box Out Vid eo Audi o In DVD Player Out Vid eo Audi o In 9 9 9 9 9 8 8 8 8 8 Hooking up the Audio/Video Receiver1. Connect a set of Audio/Video cables to the A/V OUT jacks of your Audio/Video Receiver. Connect the other end to your TV. 2. Plug the Audio/Video Receiver’s Power Supply into a 120 volt wall outlet and plug its jack into the Audio/Video Receiver. 3. Position the Audio/Video Receiver in a convenient location such as on top of your TV and orient the antenna so that the flat side points in thedirection of the room where you set up the Audio/Video Sender. Vid eo Audi o In A/V Component TV Out Vid eo Audi o In Vide o Audi o TV In UHF/VHF(COAX) In TV 1 2 TV UHF/VHFFrom ant enna If your TV does not have A/V connectors:You can use the supplied coaxial cable to connect the TV OUT COAXsocket on the Audio/Video Receiver to the Antenna input on your TV. Ifyou already have an antenna …

Text truncated - open the document above for the full version.

Left Audio Input Right Audio Input Video Input FM ModulatorFM ModulatorPre-emphasis 2.4GHz RFTransmitter 2.4GHz Patch Antenna 4-Channels Selector Block Diagram for Video Sender Transmitter (VT40A) DSS control output IR Driver 433MHz Receiver 433MHz

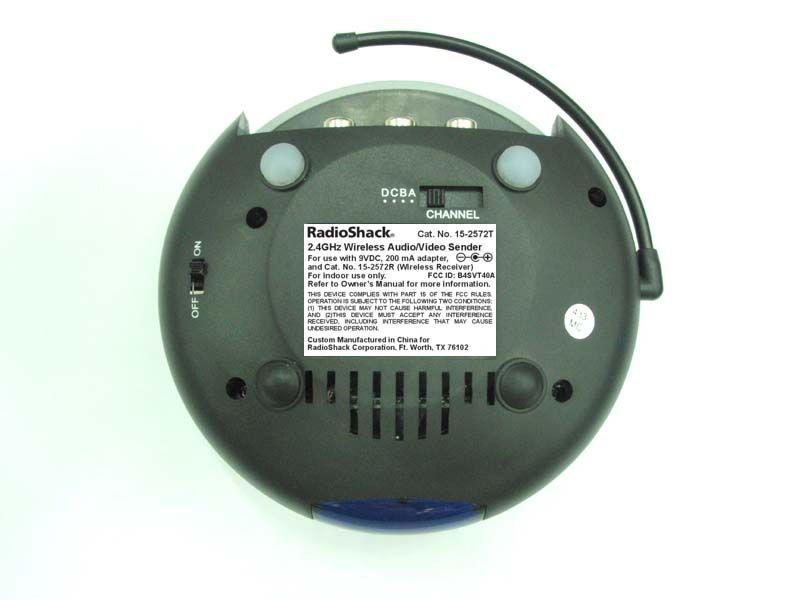

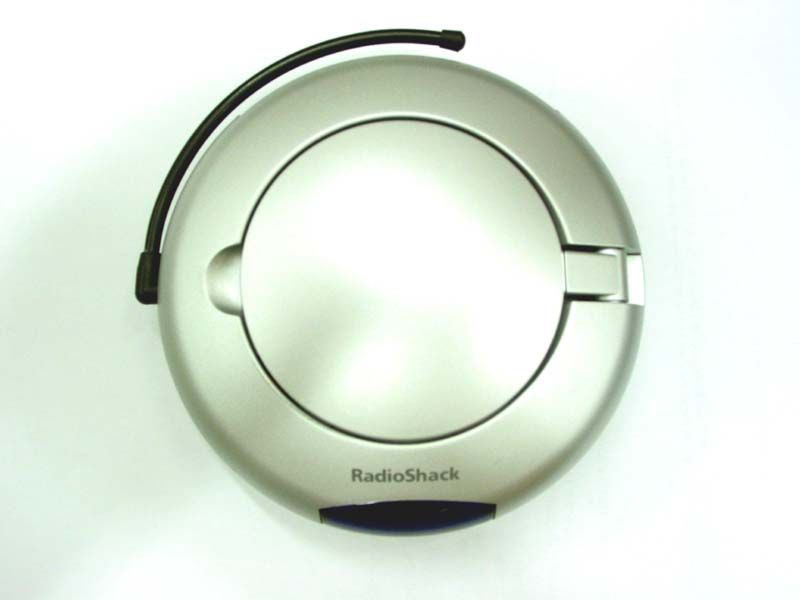

2.4GHz Wireless Audio/Video Sender ® Cat. No. 15-2572T For use with Cat. No. 15-2572R (Wireless Receiver) For indoor use only. Refer to Owner’s Manual for more information. 9VDC, 200 mA adapter, and Custom Manufactured in China for RadioShack Corporation, Ft. Worth, TX 76102 FCC ID: B4SVT40A THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. – + •

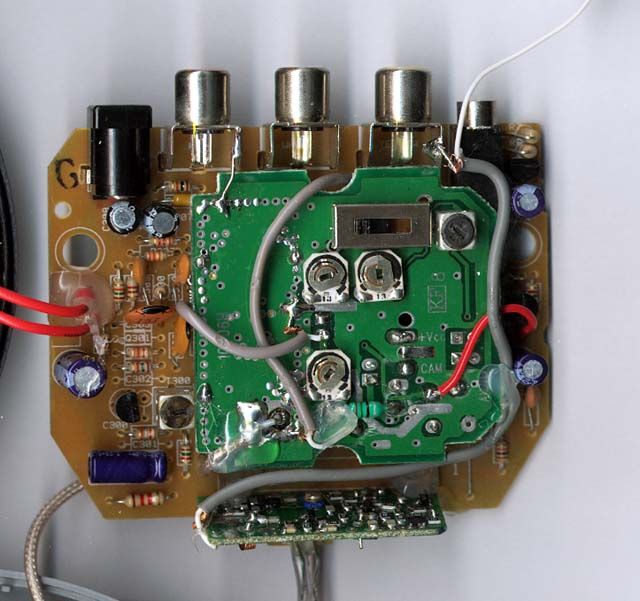

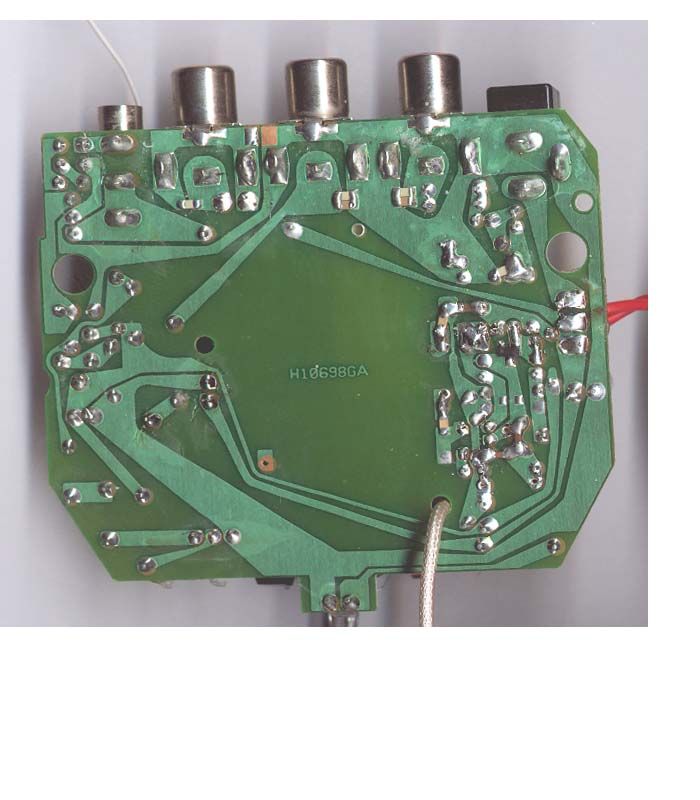

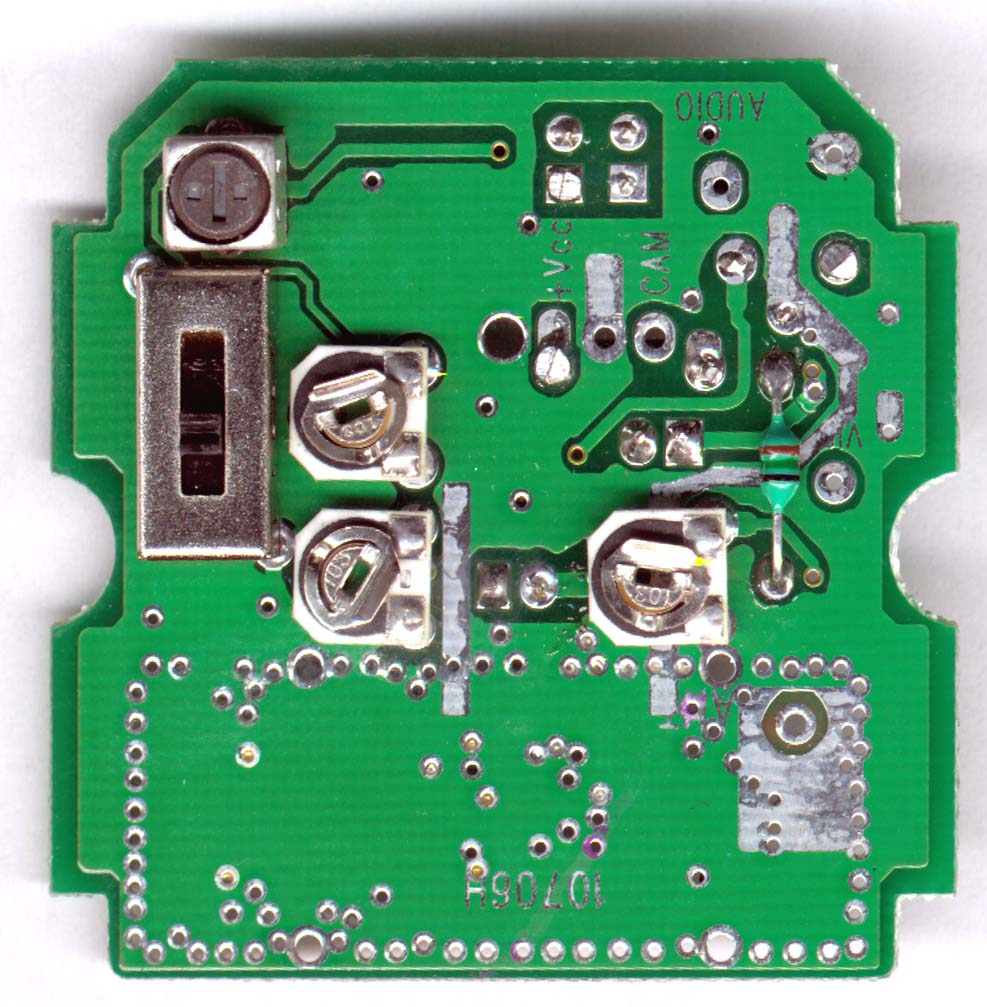

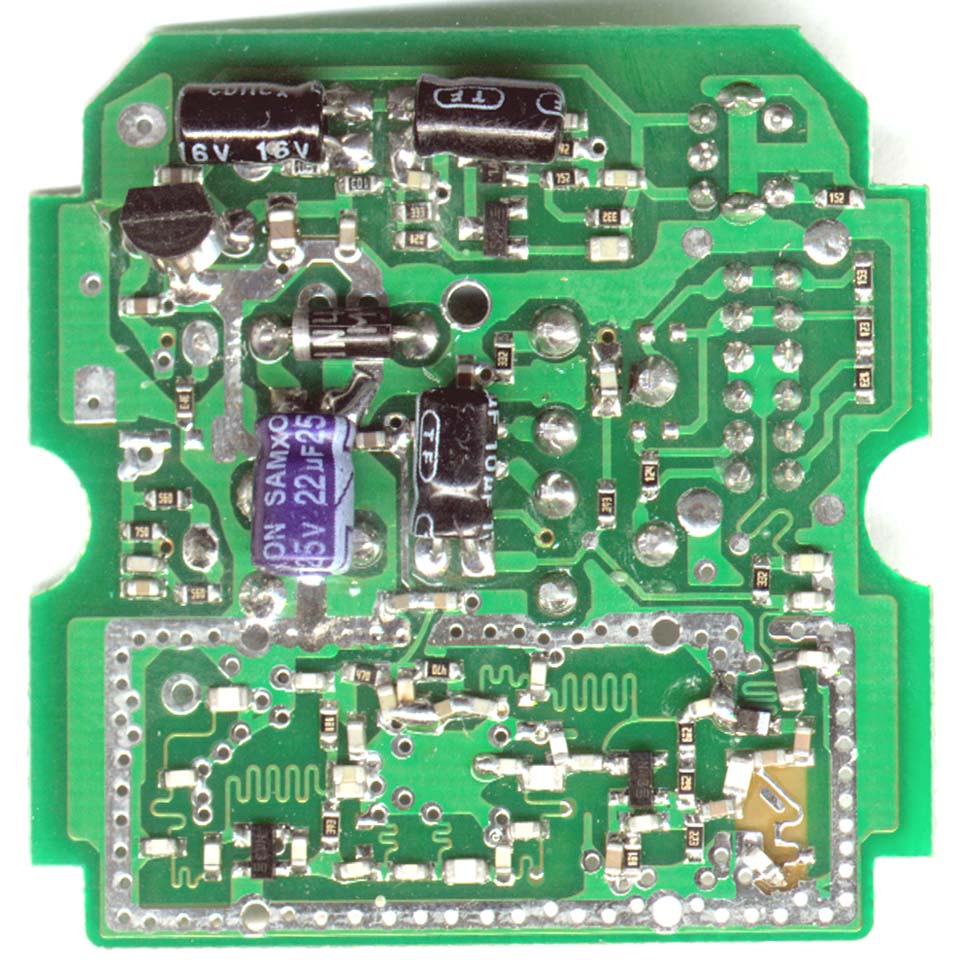

VT40A Operational Description: The VT40A is a 2.4 GHz FM transmitter. The transmitter operates on one of 4 user selectable channels, A, B, C & D. Their respective frequencies are 2410 MHz, 2435 MHz, 2455 MHz and 2472 MHz. The VT40A takes the Left, Right and Composite Video Inputs and FM modulates the 2.4 GHz carrier. The signal is then transmitted via a patch antenna to theVR40A, 2.4 GHz receiver, where the process is reversed.

1 AA15-2572T-1U RS VIDEO X'MITTER NOPACK 1 0.2 038010H10513-2 433 MC LABEL 1 0.2 038020H12094 RATING LABEL 15-2572T 1 0.2 183010H16300A RUBBER STAND 2 0.2 183010H16390 ANTENNA COVER, VT30A 1 0.2 183010H20541 HINGE (TOP), SILVER 1 0.2 183010H20551 HINGE (BOTTOM), SILVER 1 0.2 183010H20561 DISK (TOP), SILVER 1 0.2 183010H20571 DISK (BOTTOM), SILVER 1 0.2 183010H20581 DISK HOLDER, SILVER 1 0.2 183010H20600 SWITCH COVER (S) 1 0.2 183010H20610 ANTENNA HOLDER 1 0.2 183010H20620 PLASTIC TUBE 1 0.2 183010H20630 LENS 1 0.2 185000H19811 TOP CABINET, SILVER 1 0.2 185000H19820 BOTTOM CABINET 1 0.2 186002H10341 REAR TRIM LABEL (TX), 9V 1 0.2 201-1348001C TUBE-PVC 1.34MM TR 0.02 0.2 206002H10027 WHITE FOAM(25.4X12.7X3)MM 1 0.2 220-00200180 LED 3MM (RED DIFFUSED) 1 0.2 283-00000027 SLIDE-SW,1P2T,SS12F89 1 0.2 354-12600002 WIRE UL1007 #26 RED 0.04 0.2 363-22601000 SINGLE SCREENED 0.275 0.2 391-60201020 SCREW M2X6 MS/ZP 2 0.2 391-60203030 SCREW-PPTT M2.6X8 MS/ZP 4 0.2 391-61503070 SCREW-WHTT M2.6X6 DIM6.0 2 0.2 851001H11156A PCB ASSY (433MHZ) 1 ..3 038010H10513-2 433 MC LABEL 1 ..3 042010H10773A PCB 1 ..3 074-60900004 CAP-VAR 6P, SMD 1 C16 ..3 076-10000012 CAP-MCC 10P .25P NPO 0603 1 C5 ..3 076-10200014 CAP-MCC 1N 10% X7R 0603 2 C3,17 ..3 076-10400014 CAP-MCC 100N 10% X7R 0603 1 CX ..3 076-10500014 CAP-MCC 1U +8-2 Y5V 0603 2 C11,13 ..3 076-20900012 CAP-MCC 2P .25P NPO 0603 1 C7 ..3 076-27900012 CAP-MCC 2P7 .25P NPO 0603 1 C9 ..3 076-33100012 CAP-MCC 330P 5% NPO 0603 3 C10,12,14 ..3 076-47000012 CAP-MCC 47P 5% NPO 0603 1 C6 ..3 076-50800012 CAP-MCC 0P5 .25P NPO 0603 1 C4 ..3 076-56100012 CAP-MCC 560P 5% NPO 0603 1 C8 ..3 076-80900012 CAP-MCC 8P .25P NPO 0603 1 C1 ..3 160-10900003 INDUCTOR 1UH 5% 1008 SMD 2 L2,4 ..3 162089H10023 COIL 4T5R ID=2 WD=0.4 1 L1 ..3 209-00000001 TRS-NPN 2N3904 SMD 3 Q3,4,5 ..3 209-00000009 TRS-NPN BFT25 1 Q1 ..3 210117H10070 TRS-NPN MPS H10 SMD 1 Q2 ..3 211103H10000 REGULATOR 78L05 1 ..3 240-10206011 RES-CF 1K +/-5% 1/8W 1 R17 ..3 241-00000003 RES-TFC 0R 5% 1/10W 0603 2 R19,20 ..3 241-10000003 RES-TFC 10R 5% 1/10W 0603 1 R18 ..3 241-10100003 RES-TFC 100R 5% 1/10W0603 1 R7 ..3 241-10200003 RES-TFC 1K 5% 1/10W 0603 3 R4,14,16 ..3 241-10300003 RES-TFC 10K 5% 1/10W 0603 4 R8,9,11,12 ..3 241-15100003 RES-TFC 150R 5% 1/10W0603 1 R15 ..3 241-15200003 RES-TFC 1K5 5% 1/10W 0603 1 R6 ..3 241-22300003 RES-TFC 22K 5% 1/10W 0603 1 R1 ..3 241-39200003 RES-TFC 3K9 5% 1/10W 0603 1 R3 ..3 241-47200003 RES-TFC 4K7 5% 1/10W 0603 1 R2 ..3 241-91200003 RES-TFC 9K1 5% 1/10W 0603 1 R5 ..3 358-60821001 WIRE-JUMPER D=0.6MM 3 0.2 851001H11326 ANTENNA PCB ASSY 1 ..3 042010H10693DA PCB ANTENNA RO4003FR 1 ... 4042-00000001 RAW PCB RO40003FR ROGERS 0.003 ..3 363-00000031A COAXIAL RG178B/U 160MM 1 0.2 851001H11578 PCB ASSY 1 ..3 042010H10706H PCB 1 ..3 057-10000029 CAP-E 10U 20% 16V 3 C203,307,312 ..3 057-22000019 CAP-E 22U 20% 25V 5X7 1 C41 ..3 076-10100014 CAP-MCC 100P 10% X7R 0603 4 C28,35,303,308 ..3 076-10200014 CAP-MCC 1N 10% X7R 0603 3 C10,32,309 ..3 076-10300014 CAP-MCC 10N 10% X7R 0603 2 C15,310 ..3 076-10400019 CAP-MCC 100N +8-2 Y5V0603 4 C14,38,42,43 ..3 076-10500016 CAP-MCC 1U +8-2 Y5V 0805 1 C27 ..3 076-10900012 CAP-MCC 1P .25P NPO 0603 2 C4,6 ..3 076-12900014 CAP-MCC 1P2 10% X7R 0603 1 C3 ..3 076-15200014 CAP-MCC 1N5 10% X7R 0603 1 C200 ..3 076-15900014 CAP-MCC 1P5 10% X7R 0603 2 C8,24 ..3 076-18100012 CAP-MCC 180P 5% NPO 0603 1 C305 ..3 076-20900012 CAP-MCC 2P .25P NPO 0603 1 C16 ..3 076-22000014 CAP-MCC 22P 10% X7R 0603 1 C311 ..3 076-27900012 CAP-MCC 2P7 .25P NPO 0603 1 C5 ..3 076-30900012 CAP-MCC 3P .25P NPO 0603 2 C7,11 ..3 076-30900013 CAP-MCC 3P .25P N330 0603 1 C2 ..3 076-40900012 CAP-MCC 4P .25P NPO 0603 1 C21 ..3 076-40900013 CAP-MCC 4P .25P N330 0603 1 C1 ..3 076-47000014 CAP-MCC 47P 10% X7R 0603 1 C39 ..3 076-47200014 CAP-MCC 4N7 10% X7R 0603 1 C306 ..3 076-50800012 CAP-MCC 0P5 .25P NPO 0603 4 C13,17,22,23 ..3 076-50900012 CAP-MCC 5P .25P NPO 0603 7 C20,25,29,33,34,36,X1 ..3 076-56000014 CAP-MCC 56P 10% X7R 0603 2 C9,26 ..3 076-68000017 CAP-MCC 68P 10% U2J 0603 2 C300,301 ..3 076-75800012 CAP-MCC 0P75.25P NPO 0603 3 C12,19,30 ..3 076-82100014 CAP-MCC 820P 5% NPO 1 C201 ..3 159010H10027 T-COIL 16:22 1 T300 ..3 160-15000002 INDUCTOR 15UH 1/4W 1 L2 ..3 160-27900008 INDUCTOR 2N7H 5% 0603 SMD 2 L1,5 ..3 160-33800006 INDUCTOR 330NH 5% 0805SMD 1 ..3 209-00000001 TRS-NPN 2N3904 SMD 1 Q300 ..3 209-00000002 TRS-NPN BFG540/X SMD 2 Q1-2 ..3 211103H10003 REGULATOR 78L08 1 U1 ..3 212107H10001 DIODE-SI 1N4001 1 D0 ..3 212107H10009 DIODE-TUNING BB833 SIEMEN 1 D1 ..3 212107H10018 DIODE BBY40 PHILIPS 1 Q301 ..3 241-10100003 RES-TFC 100R 5% 1/10W0603 1 R7 ..3 241-10300003 RES-TFC 10K 5% 1/10W 0603 3 R10,306,308 ..3 241-12300003 RES-TFC 12K 5% 1/10W 0603 2 R12,13 ..3 241-12400003 RES-TFC 120K 5% 1/10W0603 1 R15 ..3 241-15200003 RES-TFC 1K5 5% 1/10W 0603 1 R304 ..3 241-15300003 RES-TFC 15K 5% 1/10W 0603 2 R11,14 ..3 241-18100003 RES-TFC 180R 5% 1/10W0603 2 R3,19 ..3 241-22100003 RES-TFC 220R 5% 1/10W0603 1 R300 ..3 241-22200003 RES-TFC 2K2 5% 1/10W 0603 1 R309 ..3 241-22300003 RES-TFC 22K 5% 1/10W 0603 1 R2 ..3 241-33200003 RES-TFC 3K3 5% 1/10W 0603 3 R6,9,301 ..3 241-33300003 RES-TFC 33K 5% 1/10W 0603 2 R8,307 ..3 241-33900003 RES-TFC 3R3 5% 1/10W 0603 1 R105 ..3 241-39200003 RES-TFC 3K9 5% 1/10W 0603 1 R303 ..3 241-39300003 RES-TFC 39K 5% 1/10W 0603 1 R20 ..3 241-47000003 RES-TFC 47R 5% 1/10W 0603 2 R5,18 ..3 241-47300003 RES-TFC 47K 5% 1/10W 0603 1 R310 ..3 241-56000003 RES-TFC 56R 5% 1/10W 0603 2 R102-103 ..3 241-68200003 RES-TFC 6K8 5% 1/10W 0603 2 R1,22 ..3 241-75000003 RES-TFC 75R 5% 1/10W 0603 1 R104 ..3 241-75200003 RES-TFC 7K5 5% 1/10W 0603 1 R302 ..3 241-82100003 RES-TFC 820R 5% 1/10W0603 1 R305 ..3 254-10300008 RES-VAR 10K 30% 3 VR2,3,200 ..3 283-00000017 SLIDE SW 2P4T (SS-24D02) 1 SW1 ..3 403031H10034 METAL BOX 1 0.2 851001H11687 PCB ASSY 1 ..3 042010H10698J PCB 1 ..3 055-10100005 CAP-C 100P 5% 50V NPO 1 C303 ..3 055-10200008 CAP-C 1N 10% 50V Y5P 2 C309,310 ..3 055-10300013 CAP-C 10N +8-2 50V…

Text truncated - open the document above for the full version.

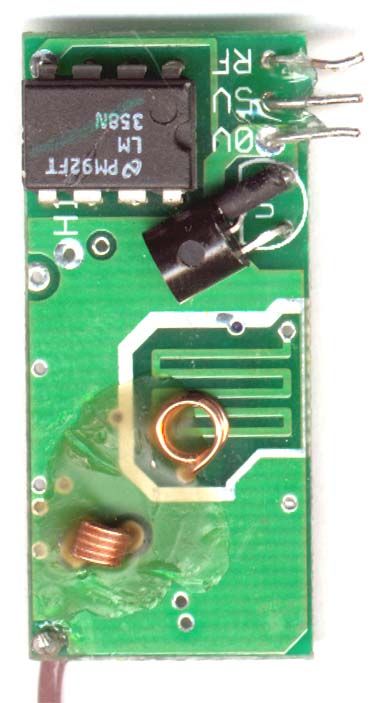

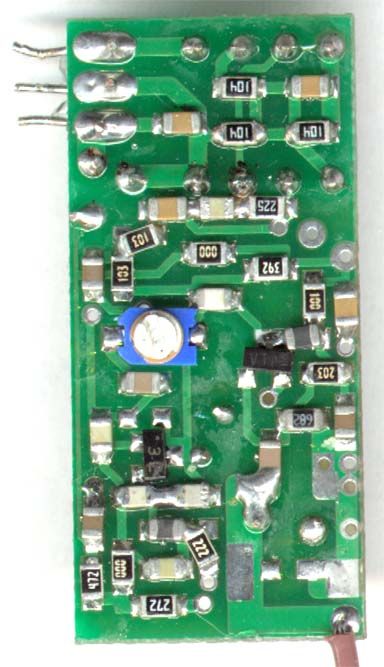

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA 2.4GHz VIDEO SENDER (MINIDin) 851001H11137 D 11 Title: Revision: Number: of Sheet Error : X-10.BMP File Not Found Date: 5-Nov-2002 Drawn By: SYSTEM X-10 LIMITED Ian Wong File Name: A:\MINITX-D.SCH R310 3K9 R30833K R3027K5 R30722K C30722u To Transmitter C306 4700pF C305 100pF C309100p R306 6K8 R305820R R300 220R C30822u R10 1K Q1BC337 R2100K R310K D1 4148 C2 10nF Q29015 R782R J5 PHONEJACK J4 DC 12 IN SW1 SLIDE SWITCH C1 100u R301 3K3 C610u R101K2 ON OFF 25V LED1RED 3MM Module +8V Q301 BBY-40 T300 IFT 6M C310 10nF C303100pF R3033K3 Q3003904 C301100pFC30027pF R3041K5 R11 39K C311 51p +12V 310/433.92MHz RF Receiver Daughter Board R41K5 R5330R R668R C5100u +12V +8V R1 100R R11 0R C4100u +12V Out Ground +8V In Video Out Left Audio Out Right Audio Out 10V 10V 25V 123456 Con1 Mini Din +8V CY2 1N5 CX2150P CX3 150P CY11N5 CX1 150P CAMTX1H2x.sch-1 - Wed Mar 21 15:59:52 2001 1 2 34 ABCD 4 3 2 1 D CBA 1 Protel Technology Inc. 1 5-Nov-2002 16:27:40 A:\RF433.SCH TitleSize: Number: Date: File: Revision: Sheet of Time: A4 RF BOARD C18P C31N C40.5P C17 C2 C12330p C13 1U ANT L1 4T5R L21uH R122K R59K1 R7 100R R18 10R R24K7 Q1 BFT25 L3 * C16 6p C5 10p C15 * C6 47p Q2H10 R3 1k2 R190R R4 3K9 +5V R61K5 L41uH C8 560p Vin COM Vout U1 78L05 C18* C92p7 R810K R910K R101M R1110K R1210K R131M R145K6R15330R R171K R16 1K C10 330p C11 1U Q33904 Q43904 Q53904 +5V +8V C14 680p RF OUT C72p

APPLICANT X-10 USA, Inc. 19823, 58 th Place S. Kent, WA 98032 MANUFACTURER X-10 Electronics Shenzhen Co. Ltd. X-10 Building Labour Industrial District Shenzhen, Xixiang, Bao An Guang Dong, China, 518102 TEST SPECIFICATION: FCC Rules and Regulations Part 15, Subpart C TEST PROCEDURE: ANSI C63.4:2000 TEST SAMPLE DESCRIPTION BRANDNAME: X-10 MODEL: VT40A FCC ID: B4SVT40A TYPE: 2.4 GHz FM Transmitter FREQUENCY RANGE: 2400 to 2483.5 MHz POWER REQUIREMENTS: 9 VDC, 200 mA derived from an AC Adapter, model D9200 TESTS PERFORMED - 15.249(a) Radiated Emissions, Fundamental and Harmonics - 15.294(c) Occupied Bandwidth - 15.249(c)/15.209 Radiated Emissions, Spurious Case - 15.207(a) Conducted Emissions REPORT OF MEASUREMENTS Applicant: X-10 (USA), Inc. Device: 2.4 GHz Transmitter FCC ID: B4SVT40A Power Requirements: 9 VDC, 200 mA derived from an AC Adapter, model D9200 Applicable Rule Section: Part 15, Subpart C, Section 15.249 TEST RESULTS 15.207(a): The radio frequency voltage that was conducted back on to the AC power line on any frequency/frequencies within the bandwidth of 450kHz to 30MHz did not exceed 250 microvolts. 15.249(a): The unit operates in the 2.4 to 2.4835 GHz band at 4 frequencies as follows: 1) 2.410 GHz 2) 2.435 GHz 3) 2.455 GHz 4) 2.472 GHz Field strength readings were taken at 3 frequencies (low, middle and high) because the device operates over a range greater than 10 MHz. The field strength of the fundamental did not exceed 50 milliV/M AVERAGE. The field strength of the harmonics did not exceed 500 microV/M AVERAGE. 15.249(b): Field strength readings were taken at three meters unless otherwise noted. 15.249(c): Emissions radiated outside band edges were greater than 50 dB below the specified the level of the fundamental or met the general radiated emission requirements of 15.209(a), whichever provided the lesser attenuation. 15.249(d): The peak field strength of any emission did not exceed the maximum permitted average field strength by more than 20dB under any condition of modulation. EXHIBIT 4 Radiated Emissions, Fundamental & Harmonics, Spurious Case Para. 15.249(a) EXHIBIT 4 Spurious Emissions Para. 15.249(c) EXHIBIT 4 Occupied Bandwidth Para. 15.249(c) EXHIBIT 4 Conducted Emissions Para. 15.207(a) EQUIPMENT LIST FCC15.249 Compliance Testing EN Type Manufacturer Description Model No. Cal Date Due Date 066 High Gain Horn Antenna Microlab/FXR 8.2 GHz - 12.4 GHz X638A 09/25/2002 09/25/2003 067 Open Area Test Site Retlif 3 Meter RNY 09/20/2000 09/20/2003 078 LISN Solar Electronics 10 kHz - 30 MHz 8028-50-TS24BNC 05/16/2002 05/16/2003 128 Double Ridged Guide Electro-Mechanics 1 GHz - 18 GHz 3105 06/07/2002 06/07/2003 129F High Gain Horn Antenna Microlab/FXR 18 GHz - 26.5 GHz K638A 09/11/2002 09/11/2003 129G High Gain Horn Antenna Microlab/FXR 26.5 GHz - 40 GHz U638A 09/11/2002 09/11/2003 133 Broadband Pre-Amplifier Electro-Metrics 10 kHz - 1 GHz, 26dB BPA-1000 06/11/2002 06/11/2003 141 Spectrum Analyzer Hewlett Packard 100 Hz - 40 GHz 8566B 07/17/2002 01/17/2003 141A Graphics Plotter Hewlett Packard N/A 7470A 03/05/2002 03/05/2003 141B Quasi-Peak Adaptor Hewlett Packard 100 Hz - 1 GHz 85650A 07/16/2002 01/16/2003 202 Transient Limiter Hewlett Packard .009 MHz - 200 MHz 11947A 07/22/2002 07/22/2003 206B 6.0 dB Attenuator Texscan 0 - 1.0 GHz FP-50 - 6 dB 06/11/2002 06/11/2003 420 Amplifier Hewlett Packard 2.0 GHz - 18 GHz 11975A 09/09/2002 09/09/2003 421 Harmonic Mixer Hewlett Packard 18 GHz - 26.5 GHz 11970K 09/29/2000 09/29/2003 512 Graphics Plotter Hewlett Packard N/A 7470A 11/21/2001 11/21/2002 513 LISN Solar Electronics 10 kHz - 30 MHz 8028-50-TS24BNC 05/16/2002 05/16/2003 543 Preamplifier Hewlett Packard 1.0 GHz - 26.5 GHz 8449B 07/11/2002 07/11/2003 544 EMC Analyzer Hewlett Packard 9.0 kHz - 1.8 GHz 8591EM 12/19/2001 12/19/2002 617 Interference Analyzer Electro-Metrics 10 kHz - 1 GHz EMC-30 08/23/2002 08/23/2003 767 Biconilog EMCO 26 - 2000 MHz 3142B 09/03/2002 09/03/2003 Test Setup Photographs

Test Setup Photographs
