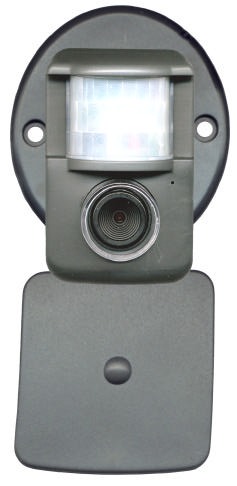

B4SXC14AXCam III Motion Controlled Color Camera

1. Refer to the setup and operating instructions that came with the 2.4 GHz Video Receiver, Model VR31A (sold separately) to set up the Receiver. 2. Mount the camera in a suitable location with the antenna on top so the camera is the right way up. If you install it outdoors, run the small cable adapter through a hole in the wall so you can plug the power supply into an AC outlet indoors. 3. Plug the camera’s power jack into the adapter cable on the power supply. 4. Set the Housecode and Unit Code. (See instructions included with X10 remote controls). 5. Plug power supply into any 120V AC outlet. 6. Set the channel switch on the camera to the same setting as the one on the VR31A Video Receiver. 7. Adjust the antenna on the camera if necessary to aim it in the direction of the VR31A Receiver that you have connected to your TV or monitor. 8. Adjust angle of motion detector for best coverage. X10 Wireless Technology, Inc., Limited One Year Warranty X10 Wireless Technology, Inc. (X10) warrants X10 products to be free from defective material and workmanship for a period of one (1) year from the original date of purchase at retail. X10 agrees to repair or replace, at it’s sole discretion, a defective X10 product if returned to X10 within the warranty period and with proof of purchase. If service is required under this warranty: 1. Call 1-800-675-3044 or e-mail [email protected] for details on how to return your unit(s). 2. Enclose a check for $4.00 to cover postage and handling. 3. Enclose a dated proof of purchase. 4. X10 is not responsible for shipping damage. Units to be returned should be packed carefully. Please visit www.x10.com/warranty to complete your on-line warranty registration. 1-800-675-3044 [email protected]
Built-in motion detector.
Built-in 2.4 GHz Video Sender.
Powered from a plug-in power supply (included).
Use it outdoors to monitor your front door, back yard, etc.
Use it indoors to monitor a child’s bedroom, etc. Model XX14A XC14A-02/01 The XX14A includes the XC14A camera and XM13A power supply. The XC14A is a very small and compact color video camera with built-in 2.4 GHz Video Sender. You can attach it to a wall anywhere you want to monitor. The XC14A transmits video and sound to the VR31A 2.4 GHz receiver (sold separately) which is connected to your TV located anywhere in your home (up to 100 ft. away). The built-in motion detector turns the camera on only when there is motion, to conserve power. The motion detector also sends a wireless signal to an X10 transceiver which can then turn on an X10 remote chime, etc. XCam III Motion Controlled Indoor/Outdoor Color Camera Adjust antenna. XC14A ™ (with built-in 2.4 GHz transmitter) 2 5 Plug into any AC outlet Attach the to a wall. 6 3 7 Set channel switch to match setting on the VR31A Receiver. F.C.C. CAUTION - THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: NO CHANGES OR MODIFICATIONS MAY BE MADE TO THE UNITS. ANY CHANGES MADE TO THE UNITS WILL VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. Outdoors Indoors 8 Set the code used to turn on an off from X10 remote controls. 4 XM13A

Model No. XC14A rating label 2: 1 01/23/01 2.4GHz Motion Operated Wireless Color Camera, Model No. XC14A For use with Model VR31A 2.4 GHz Receiver, and Model PT30A or XM10A power supply, or ZB10A battery pack. Ratings: 12VDC, 200 mA max. For indoor/outdoor use. Refer to Owner's Manual for more information. FCC ID: B4SXC14A Made in China X10.com, a div. of X10 Wireless Technology, Inc. 1-800-675-3044 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOL- LOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

1. Refer to the setup and operating instructions that came with the 2.4 GHz Video Receiver, Model VR31A (sold separately) to set up the Receiver. 2. Mount the camera in a suitable location with the antenna on top so the camera is the right way up. If you install it outdoors, run the small cable adapter through a hole in the wall so you can plug the power supply into an AC outlet indoors. 3. Plug the camera’s power jack into the adapter cable on the power supply. 4. Set the Housecode and Unit Code. (See instructions included with X10 remote controls). 5. Plug power supply into any 120V AC outlet. 6. Set the channel switch on the camera to the same setting as the one on the VR31A Video Receiver. 7. Adjust the antenna on the camera if necessary to aim it in the direction of the VR31A Receiver that you have connected to your TV or monitor. 8. Adjust angle of motion detector for best coverage. X10 Wireless Technology, Inc., Limited One Year Warranty X10 Wireless Technology, Inc. (X10) warrants X10 products to be free from defective material and workmanship for a period of one (1) year from the original date of purchase at retail. X10 agrees to repair or replace, at it’s sole discretion, a defective X10 product if returned to X10 within the warranty period and with proof of purchase. If service is required under this warranty: 1. Call 1-800-675-3044 or e-mail [email protected] for details on how to return your unit(s). 2. Enclose a check for $4.00 to cover postage and handling. 3. Enclose a dated proof of purchase. 4. X10 is not responsible for shipping damage. Units to be returned should be packed carefully. Please visit www.x10.com/warranty to complete your on-line warranty registration. 1-800-675-3044 [email protected]
Built-in motion detector.
Built-in 2.4 GHz Video Sender.
Powered from a plug-in power supply (included).
Use it outdoors to monitor your front door, back yard, etc.
Use it indoors to monitor a child’s bedroom, etc. Model XX14A XC14A-02/01 The XX14A includes the XC14A camera and XM13A power supply. The XC14A is a very small and compact color video camera with built-in 2.4 GHz Video Sender. You can attach it to a wall anywhere you want to monitor. The XC14A transmits video and sound to the VR31A 2.4 GHz receiver (sold separately) which is connected to your TV located anywhere in your home (up to 100 ft. away). The built-in motion detector turns the camera on only when there is motion, to conserve power. The motion detector also sends a wireless signal to an X10 transceiver which can then turn on an X10 remote chime, etc. XCam III Motion Controlled Indoor/Outdoor Color Camera Adjust antenna. XC14A ™ (with built-in 2.4 GHz transmitter) 2 5 Plug into any AC outlet Attach the to a wall. 6 3 7 Set channel switch to match setting on the VR31A Receiver. F.C.C. CAUTION - THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: NO CHANGES OR MODIFICATIONS MAY BE MADE TO THE UNITS. ANY CHANGES MADE TO THE UNITS WILL VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. Outdoors Indoors 8 Set the code used to turn on an off from X10 remote controls. 4 XM13A

APPLICANT X-10 USA, Inc. 91 Ruckman Road Closter, NJ 07624 MANUFACTURER X-10 Electronics Shenzhen Co. Ltd. X-10 Building Labour Industrial District Shenzhen, Xixiang, Bao An Guang Dong, China, 518102 TEST SPECIFICATION: FCC Rules and Regulations Part 15, Subpart C TEST PROCEDURE: ANSI C63.4:1992 TEST SAMPLE DESCRIPTION BRANDNAME: X-10 MODEL: XC14A FCC ID: B4SXC14A TYPE: 2.41 GHz FM Transmitter FREQUENCY Band: 2.4 GHz to 2.4835 GHz POWER REQUIREMENTS: 12 VDC derived from AC Adapter TESTS PERFORMED - 15.249(a) Radiated Emissions, Fundamental and Harmonics - 15.294(c) Occupied Bandwidth - 15.249(c)/15.209 Radiated Emissions, Spurious Case - 15.207(a) Conducted Emissions REPORT OF MEASUREMENTS Applicant: X-10 (USA), Inc. Device: 2.4 GHz Transmitter FCC ID: B4SXC14A Power Requirements: 12 VDC derived from AC Adapter Applicable Rule Section: Part 15, Subpart C, Section 15.249 TEST RESULTS 15.207(a): The radio frequency voltage that was conducted back on to the AC power line on any frequency/frequencies within the bandwidth of 450kHz to 30MHz did not exceed 250 microvolts. 15.249(a): The unit operates in the 2.4 GHz –2.4835 GHz band at 1 frequency as follows: 1) 2.41 GHz The field strength of the fundamental did not exceed 50mV/M AVERAGE. The field strength of the harmonics did not exceed 500 V/M AVERAGE. 15.249(b): Field strength readings were taken at three meters unless otherwise noted. 15.249(c): Emissions radiated outside band edges are greater than 50 dB below the specified the level of the fundamental. 15.249(d): The peak field strength of any emission did not exceed the maximum permitted average field strength by more than 20dB under any condition of modulation. EXHIBIT 4 Radiated Emissions, Fundamental & Harmonics Para. 15.249(a) (See separate e-file attachment named REfundharm.doc) EXHIBIT 4 Spurious Emissions Para. 15.249(c) (See separate e-file attachment named REspur.doc) EXHIBIT 4 Occupied Bandwidth Para. 15.249(c) (See separate e-file attachment named Occbw.pdf) EXHIBIT 4 Conducted Emissions Para. 15.207(a) (See separate e-file attachment named CEData.pdf) EQUIPMENT LIST Radiated Emissions, 30MHz-25GHz EN Type Manufacturer Description Model No. Cal Date Due Date 067 Open Area Test Site Retlif 3 Meter RNY 09/20/2000 09/20/2003 128C Double Ridge Guide Eaton Corporation 1 GHz - 18 GHz 96001 09/18/2000 09/18/2001 129E High Gain Horn Antenna Microlab/FXR 18 GHz - 26.5 GHz K638A 09/18/2000 09/18/2001 133 Broadband Pre-Amplifier Electro-Metrics 10 kHz - 1 GHz, 26dB BPA-1000 06/13/2000 06/13/2001 206B 6.0 dB Attenuator Texscan 0 - 1.0 GHz FP-50 - 6 dB 06/13/2000 06/13/2001 523 Biconilog Electro-Mechanics 26 - 2000 MHz 3142B 06/08/2000 06/08/2001 543 Preamplifier Hewlett Packard 1.0 GHz - 26.5 GHz 8449B 06/16/1999 06/16/2001 712 EMI Test Receiver Rohde & Schwarz 20 Hz - 26.5 GHz ESI26 03/01/2000 03/01/2001 Conducted Emissions, 450kHz-30MHz EN Type Manufacturer Description Model No. Cal Date Due Date 078 LISN Solar Electronics 10 kHz - 30 MHz 8028-50-TS24BNC 04/27/2000 04/27/2001 091 Shielded Enclosure Retlif 10 kHz - 1 GHz Room 6 07/21/2000 07/21/2001 141A Graphics Plotter Hewlett Packard N/A 7470A 03/08/2000 03/08/2001 202 Transient Limiter Hewlett Packard .009 MHz - 200 MHz 11947A 07/24/2000 07/24/2001 513 LISN Solar Electronics 10 kHz - 30 MHz 8028-50-TS24BNC 04/27/2000 04/27/2001 R089 Spectrum Analyzer Hewlett Packard 30 Hz - 2.9 GHz 8560E 09/16/1999 09/16/2001 Test Setup Photographs Radiated Emissions Conducted Emissions Retlif Testing Laboratories R Data Sheet 1 of 2 Test Method: FCC Part 15 Subpart C Radiated Emissions, Fundamental & Harmonic Emissions Customer: X-10 (USA) Job No. R-8885-1b Test Sample: 2.4GHz Paragraph: 15.249 Model No.: XC14A FCC ID: B4SXC14A Operating Mode: Continuously Transmitting a 2410 MHz Signal Technician: Peter Lananna Date: February 8, 2001 Notes: Test Distance: 3 Meters Detector: Peak, Unless otherwise specified Test Freq. Antenna Pol./Height EUT Orientation Meter Reading Correction Factor Corrected Reading Converted Reading Average Limit MHz (V/H)/Meters X / Y / Z dBuV dB dBuV/m uV/m uV/m 2410 H / 1.5 X 78.2 3.0 81.2 11481.5 50000 | H / 1.0 Y 77.8 3.0 80.8 10964.8 | | H / 1.3 Z 82.3 3.0 85.3 18407.7 | | V / 1.1 X 86.7 3.0 89.7 30549.2 | | V / 1.1 Y 87.8 3.0 90.8 34673.7 | 2410 V / 1.3 Z 78.5 3.0 81.5 11885.0 50000 4820 H / 1.0 X 32.0 0 -4.1 27.9 24.8* 500 | H / 1.0 Y 32.0 -4.1 27.9 24.8* | | H / 1.0 Z 32.0 -4.1 27.9 24.8* | | V / 1.0 X 32.0 -4.1 27.9 24.8* | | V / 1.0 Y 32.0 -4.1 27.9 24.8* | 4820 V /1.0 Z 32.0 -4.1 27.9 24.8* 500 7230 H / 1.0 X 32.0 0 -2.0 32.0 39.8* 500 | H / 1.0 Y 32.0 -2.0 30.0 31.6* | | H / 1.0 Z 32.0 -2.0 30.0 31.6* | | V / 1.0 X 32.0 -2.0 30.0 31.6* | | V / 1.0 Y 32.0 -2.0 30.0 31.6* | 7230 V /1.0 Z 32.0 -2.0 30.0 31.6* 500 9640 H / 1.0 X 33.0 -1.9 31.1 35.9* 500 | H / 1.0 Y 33.0 -1.9 31.1 35.9* | | H / 1.0 Z 33.0 -1.9 31.1 35.9* | | V / 1.0 X 33.0 -1.9 31.1 35.9* | | V / 1.0 Y 33.0 -1.9 31.1 35.9* | 9640 V /1.0 Z 33.0 -1.9 31.1 35.9* 500 12050 H / 1.0 X 33.0 3.8 36.8 69.2* 500 | H / 1.0 Y 33.0 3.8 36.8 69.2* | | H / 1.0 Z 33.0 3.8 36.8 69.2* | | V / 1.0 X 33.0 3.8 36.8 69.2* | | V / 1.0 Y 33.0 3.8 36.8 69.2* | 12050 V /1.0 Z 33.0 3.8 36.8 69.2* 500 The frequency range was scanned from 30 MHz to 25 GHz. All emissions not recorded were more Than 10 dB below the specified limit. Emissions from the EUT do not exceed the specified limits. *=Noise Floor Measurements (Minimum system sensitivity) Retlif Job Number R-8885-1b Retlif Testing Laboratories R Data Sheet 2 of 2 Test Method: FCC Part 15 Subpart C Radiated Emissions, Fundamental & Harmonic Emissions Customer: X-10 (USA) Job No. R-8885-1b Test Sample: 2.4GHz Paragraph: 15.249 Model No.: XC14A FCC ID: B4SXC14A Operating Mode: Continuously Transmitting a 2410 MHz Signal Technician: Peter Lananna Date: February 8, 2001 Notes: Test Distance: 3 Meters **=Readings taken @ 1 meter, correction factors includes test distance correction. Detector: Peak, Unless otherwise specified Test Fre…

Text truncated - open the document above for the full version.

Test Setup Photographs Radiated Emissions Conducted Emissions
