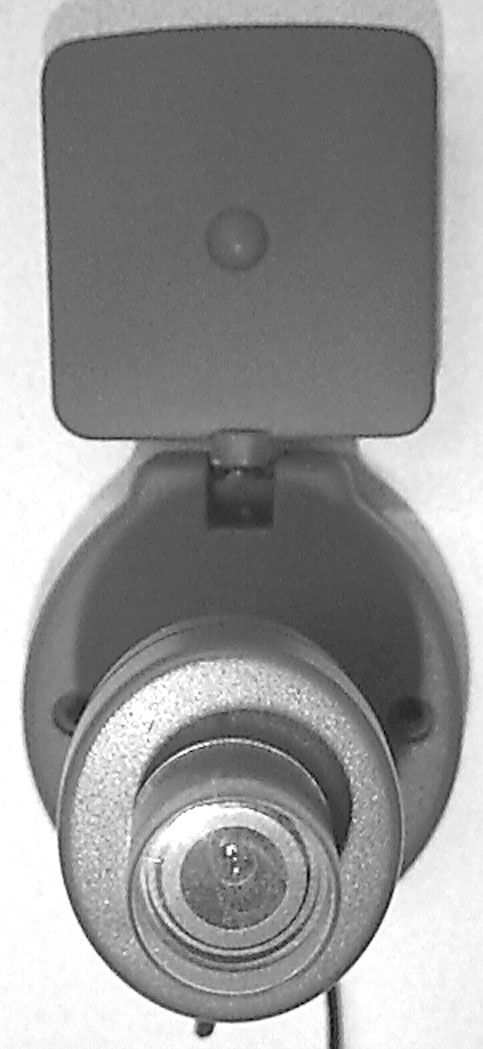

1. Refer to the setup and operating instructions that came with the 2.4 GHz Video Receiver, Model VR31A or VR36A (sold separately) to set up the Receiver. 2. Mount the camera in a suitable location with the antenna on top so the camera is the right way up. If you install it outdoors, run the small cable adapter through a hole in the wall so you can plug the power supply into an AC outlet indoors. 3. Plug the power supply’s jack into the adapter cable on the camera. 4. Set the Housecode and Unit Code. (See instructions included with X10 remote controls). 5. Plug the power supply into any 120V AC outlet. 6. Set the channel switch on the camera to the same setting as the one on the VR31A or VR36A Video Receiver. 7. Adjust the antenna on the camera if necessary to aim it in the direction of the VR31A/VR36A Receiver that you have connected to your TV or monitor. LIMITED 1-YEAR WARRANTY X10 Wireless Technology, Inc. (X10WTI) warrants X10 products to be free from defective material and workmanship for a period of one (1) year from the original date of purchase at retail. X10WTI agrees to repair or replace, at it’s sole discretion, a defective X10 product if returned to X10WTI within the warranty period and with proof of purchase. If service is required under this warranty: 1. Call 1-800-675-3044 or e-mail [email protected] for details on how to return your unit(s). 2. Enclose a check for $4.00 for postage and handling. 3. Enclose a dated proof of purchase. 4. X10 is not responsible for shipping damage. Units to be returned should be packed carefully. 5. For additional warranty information, contact X10. X10.com, a Div. of X10 Wireless Technology, Inc. For additional help, visit www.x10.com/support Extremely small size. Built-in 2.4 GHz Video Sender. Can be turned on and off remotely (remote controlled power supply included). Use it outdoors to monitor your front door, back yard, etc. Use it indoors to monitor a child’s bedroom, etc. Model XX16A XX16A-07/01 The XX16A includes the XC18A camera and XM13A remote controlled power supply. The XC18A is a very small and compact color video camera with built-in 2.4 GHz transmitter. You can attach it to a wall anywhere you want to monitor. The XC18A transmits video and sound to the VR31A, or video only to the VR36A receiver which is connected to your TV located anywhere in your home (up to 100 ft. away). The XM13A power supply lets you turn the camera on and off remotely, from X10 remote controls (sold separately). XCam2 InstantON Video Camera Adjust antenna. Plug power supply in here. XC18A ™ 2 5 Plug into any AC outlet Attach the to a wall. 3 Cable adapter. 7 F.C.C. CAUTION - THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: NO CHANGES OR MODIFICATIONS MAY BE MADE TO THE UNITS. ANY CHANGES MADE TO THE UNITS WILL VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. Outdoors Indoors Set the code used to turn on an off from X10 remote controls. 4XM13A Remove clear cap and turn lens to focus (replace cap for outdoor use). 6 Set channel switch to match setting on VR31A or VR36A Receiver. (A is at bottom, D is at top).

Block Diagram

Micro phone Input Camera Input FM ModulatorPre-emphasis 2.4GHz RFTransmitter 2.4GHz Patch Antenna 4-Channels Selector Block Diagram for Indoor/Outdoor Color Video Camera With Built-in 2.4 GHz Transmitter (XC18A)

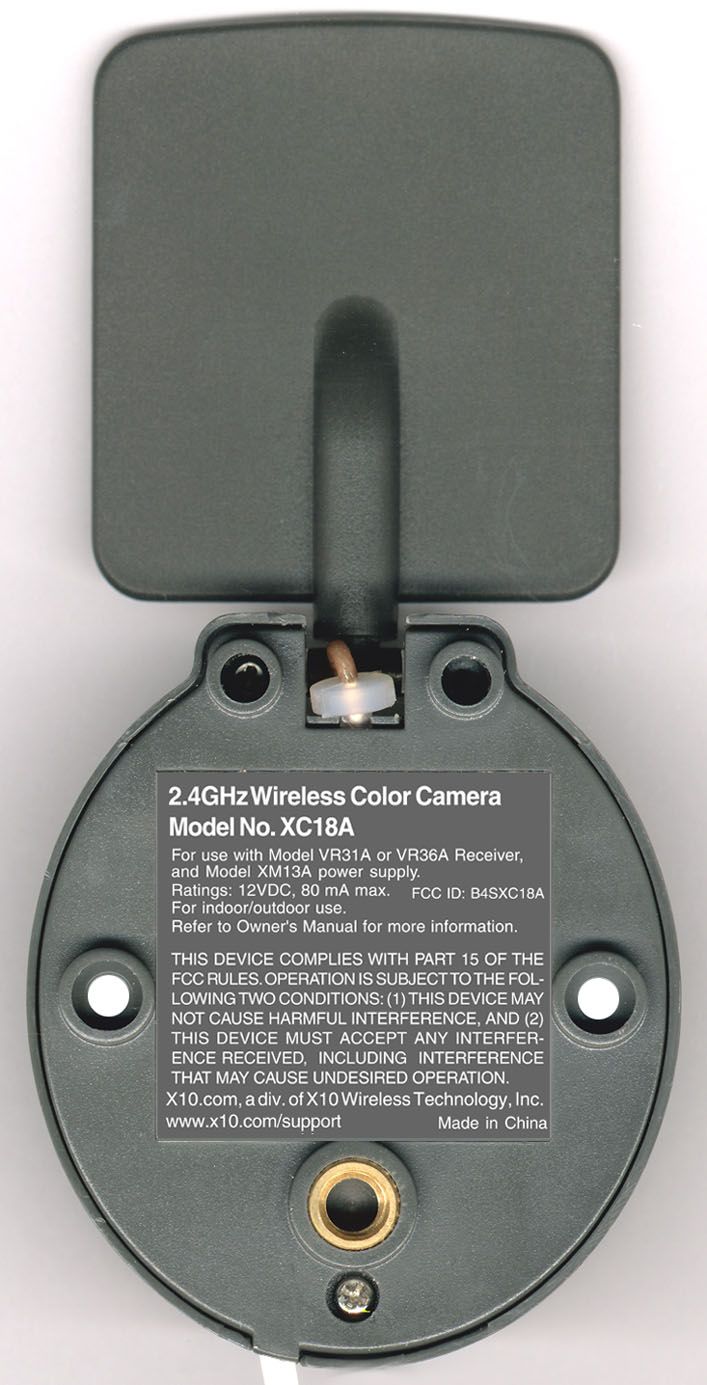

ID Label/Location Info

Model No. XC18A rating label 2: 1 07/25/01 2.4GHz Wireless Color Camera Model No. XC18A For use with Model VR31A or VR36A Receiver, and Model XM13A power supply. Ratings: 12VDC, 80 mA max. For indoor/outdoor use. Refer to Owner's Manual for more information. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOL- LOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFER- ENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: B4SXC18A Made in China X10.com, a div. of X10 Wireless Technology, Inc. www.x10.com/support

Operational Description

Schematics

CAMTX1H2.sch-1 - Fri Jul 27 10:38:48 2001

Test Report

APPLICANT X-10 USA, Inc. 91 Ruckman Road Closter, NJ 07624 MANUFACTURER X-10 Electronics Shenzhen Co. Ltd. X-10 Building Labour Industrial District Shenzhen, Xixiang, Bao An Guang Dong, China, 518102 TEST SPECIFICATION: FCC Rules and Regulations Part 15, Subpart C TEST PROCEDURE: ANSI C63.4:1992 TEST SAMPLE DESCRIPTION BRANDNAME: X-10 MODEL: XC18A FCC ID: B4SXC18A TYPE: 2.4 GHz FM Transmitter FREQUENCY RANGE: 2410 to 2472 MHZ POWER REQUIREMENTS: 12 VDC derived from an AC Adapter, Model XM13A TESTS PERFORMED - 15.249(a) Radiated Emissions, Fundamental and Harmonics - 15.294(c) Occupied Bandwidth - 15.249(c)/15.209 Radiated Emissions, Spurious Case - 15.207(a) Conducted Emissions REPORT OF MEASUREMENTS Applicant: X-10 (USA), Inc. Device: 2.4 GHz Transmitter FCC ID: B4SXC18A Power Requirements: 12 VDC derived from an AC Adapter, Model XM13A Applicable Rule Section: Part 15, Subpart C, Section 15.249 TEST RESULTS 15.207(a): The radio frequency voltage that was conducted back on to the AC power line on any frequency/frequencies within the bandwidth of 450kHz to 30MHz did not exceed 250 microvolts. 15.249(a): The unit operates in the 2.4 to 2.4835 GHz band at 4 frequencies as follows: 1) 2.410 GHz 2) 2.433 GHz 3) 2.453 GHz 4) 2.472 GHz Field strength readings were taken at 3 frequencies (low, middle and high) because the device operates over a range greater than 10 MHz The field strength of the fundamental did not exceed 500milliV/M AVERAGE. The field strength of the harmonics did not exceed 5000 microV/M AVERAGE. 15.249(b): Field strength readings were taken at three meters unless otherwise noted. 15.249(c): Emissions radiated outside band edges were greater than 50 dB below the specified the level of the fundamental or met the general radiated emission requirements of 15.209(a), whichever provided the lesser attenuation. 15.249(d): The peak field strength of any emission did not exceed the maximum permitted average field strength by more than 20dB under any condition of modulation. EXHIBIT 4 Radiated Emissions, Fundamental & Harmonics Para. 15.249(a) Test Method: FCC Part 15 Subpart C Radiated Emissions, Fundamental & Harmonic Emissions Customer: X-10 Job No. R-9097-1 Test Sample: 2.4GHz FM Transmitter Paragraph: 15.249 Model No.: XC18A FCC ID: B4SXC18A Operating Mode: Continuously Transmitting a 2410 MHz Signal, Channel A Technician: Peter Lananna Date: July 19, 2001 Notes: Test Distance: 3 Meters Detector: Peak, Unless otherwise specified Channel A Test Freq. Antenna Pol./Height EUT Orientation Meter Reading Correction Factor Corrected Reading Converted Reading AverageL imit GHz (V/H)/Meters X / Y / Z dBuV dB dBuV/m uV/m uV/m 2.410 H / 1.5 X 85.7 3.5 89.2 28840.3 50000 | H / 2.0 Y 83.4 3.5 86.9 22130.9 | | H / 1.8 Z 82.6 3.5 86.1 20183.7 | | V / 1.0 X 79.8 3.5 83.3 14621.8 | | V / 2.0 Y 80.2 3.5 83.7 15310.9 | 2.410 V / 1.3 Z 85.9 3.5 89.4 29512.1 50000 4.820 H / 1.0 X 32.0 -4.1 27.9 24.8* 500 | H / 1.0 Y 32.0 -4.1 27.9 24.8* | | H / 1.0 Z 32.0 -4.1 27.9 24.8* | | V / 1.0 X 32.0 -4.1 27.9 24.8* | | V / 1.0 Y 32.0 -4.1 27.9 24.8* | 4.820 V / 1.0 Z 32.0 -4.1 27.9 24.8* 500 7.230 H / 1.0 X 32.0 -2.0 32.0 39.8* 500 | H / 1.0 Y 32.0 -2.0 30.0 31.6* | | H / 1.0 Z 32.0 -2.0 30.0 31.6* | | V / 1.0 X 32.0 -2.0 30.0 31.6* | | V / 1.0 Y 32.0 -2.0 30.0 31.6* | 7.230 V / 1.0 Z 32.0 -2.0 30.0 31.6* 500 9.640 H / 1.0 X 33.0 -1.9 31.1 35.9* 500 | H / 1.0 Y 33.0 -1.9 31.1 35.9* | | H / 1.0 Z 33.0 -1.9 31.1 35.9* | | V / 1.0 X 33.0 -1.9 31.1 35.9* | | V / 1.0 Y 33.0 -1.9 31.1 35.9* | 9.640 V / 1.0 Z 33.0 -1.9 31.1 35.9* 500 12.05 H / 1.0 X 33.0 3.8 36.8 69.2* 500 | H / 1.0 Y 33.0 3.8 36.8 69.2* | | H / 1.0 Z 33.0 3.8 36.8 69.2* | | V / 1.0 X 33.0 3.8 36.8 69.2* | | V / 1.0 Y 33.0 3.8 36.8 69.2* | 12.05 V / 1.0 Z 33.0 3.8 36.8 69.2* 500 The frequency range was scanned from 30 MHz to 25GHz. All emissions not recorded were more Than 10 dB below the specified limit. Emissions from the EUT do not exceed the specified limits. *=Noise Floor Measurements (Minimum system sensitivity) Test Method: FCC Part 15 Subpart C Radiated Emissions, Fundamental & Harmonic Emissions Customer: X-10 Job No. R-9097-1 Test Sample: 2.4GHz FM Transmitter Paragraph: 15.249 Model No.: XC18A FCC ID: B4SXC18A Operating Mode: Continuously Transmitting a 2410 MHz Signal, Channel A Technician: Peter Lananna Date: July 19, 2001 Notes: Test Distance: 3 Meters **=Readings taken @ 1 meter, correction factors includes test distance correction. Detector: Peak, Unless otherwise specified Channel A Test Freq. Antenna Pol./Height EUT Orientation Meter Reading Correction Factor Corrected Reading Converted Reading Peak Limit GHz (V/H)-Meters X / Y / Z dBuV dB dBuV/m uV/m uV/m 14.46 H / 1.0 X 33.0 10.8 43.8 154.9* 500 | H / 1.0 Y 33.0 10.8 43.8 154.9* | | H / 1.0 Z 33.0 10.8 43.8 154.9* | | V / 1.0 X 33.0 10.8 43.8 154.9* | | V / 1.0 Y 33.0 10.8 43.8 154.9* | 14.46 V / 1.0 Z 33.0 10.8 43.8 154.9* 500 16.87 H / 1.0 X 33.0 15.5 48.5 266.1* 500 | H / 1.0 Y 33.0 15.5 48.5 266.1* | | H / 1.0 Z 33.0 15.5 48.5 266.1* | | V / 1.0 X 33.0 15.5 48.5 266.1* | | V / 1.0 Y 33.0 15.5 48.5 266.1* | 16.87 V / 1.0 Z 33.0 15.5 48.5 266.1* 500 19.28 H / 1.0 X 30.0 22.9 52.9 441.6** 500 | H / 1.0 Y 30.0 22.9 52.9 441.6** | | H / 1.0 Z 30.0 22.9 52.9 441.6** | | V / 1.0 X 30.0 22.9 52.9 441.6** | | V / 1.0 Y 30.0 22.9 52.9 441.6** | 19.28 V / 1.0 Z 30.0 22.9 52.9 441.6** 500 21.69 H / 1.0 X 30.0 23.2 53.2 457.1** 500 | H / 1.0 Y 30.0 23.2 53.2 457.1** | | H / 1.0 Z 30.0 23.2 53.2 457.1** | | V / 1.0 X 30.0 23.2 53.2 457.1** | | V / 1.0 Y 30.0 23.2 53.2 457.1** | 21.69 V / 1.0 Z 30.0 23.2 53.2 457.1** 500 24.10 H / 1.0 X 30.0 23.4 53.4 467.7** 500 | H / 1.0 Y 30.0 23.4 53.4 467.7** | | H / 1.0 Z 30.0 23.4 53.4 467.7** | | V / 1.0 X 30.0 23.4 53.4 467.7** | | V / 1.0 Y 30.0 23.4 53.4 467.7** | 24.10 V / 1.0 Z 30.0 23.4 53.4 467.7** 500 The frequency range was scanned from 30 MHz to 25GHz. All emissions not recorded were more Than 10 dB below the specified limit. Emissions from…

Text truncated - open the document above for the full version.

Test Setup Photos

Test Setup Photograph
