B4SXC21APan Tilt Zoom camera

HOUSE A C E G I K M O . . .. . . . . UNIT 1 3 5 7 9 11 13 15 . .. . . .. . 1. Refer to the setup and operating instructions that came with the Video Receiver, (VR31A or VR36A) and CR15A remote control (all sold separately).. 2. Install the camera in a suitable location. If you install it outdoors, run the jack through a hole in the wall, or through a window, so you can plug the power supply into an AC outlet indoors. 3. Plug the XM15A power supply’s jack into the cable on the Pan/Tilt/Zoom camera. 4. Set the Housecode dial to a letter between A and P that matches the Housecode dial on the X10 remote controls you want to use it with. Set the Unit Code dial to a number between 1 and 4. This lets you turn the camera connected to the XM15A on and off by remote control, using the CR15A remote. 5. Plug the power supply into any 120V AC outlet. 6. Set the channel switch on the camera to the same setting as the one on the VR31A or VR36A Video Receiver (A, B, C, or D). 7. Adjust the antenna if necessary to aim it in the direction of the TV that you will view the camera on. See CR15A remote control’s instructions for Pan ‘n Tilt, and zoom operation. F.C.C. CAUTION - THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: NO CHANGES OR MODIFICATIONS MAY BE MADE TO THE UNITS. ANY CHANGES MADE TO THE UNITS WILL VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
Built-in 310 MHz Receiver to work with CR15A Remote (sold separately).
CR15A Remote lets you Pan the camera from side to side, Tilt it up and down, and Zoom in remotely.
Can be turned on and off remotely (remote controlled power supply included).

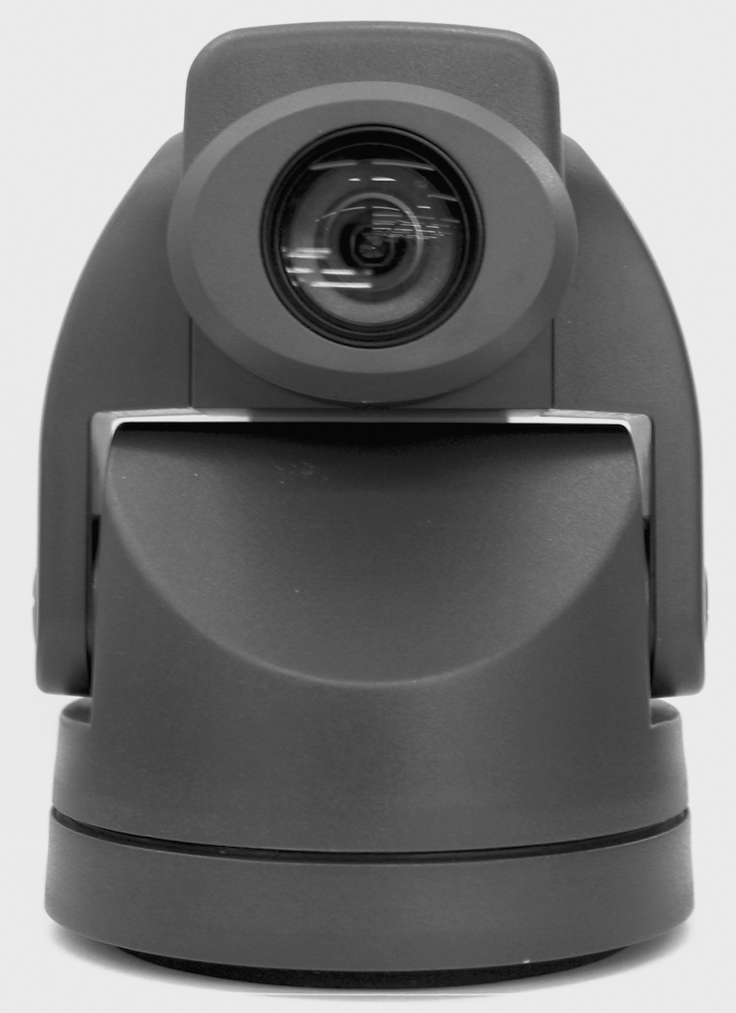

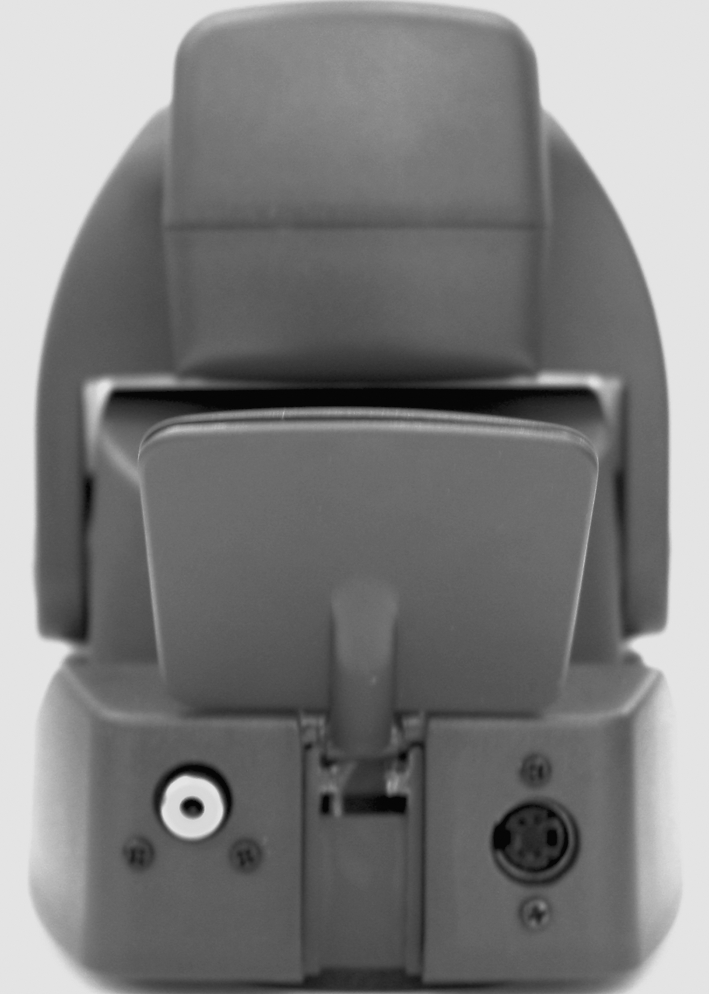

Use it outdoors to monitor your front door, back yard, or indoors to monitor a child’s bedroom, etc. Model XX21A XX21A-03/02 The XX21A includes the XC21A Pan/Tilt/Zoom Camera and XM15A remote controlled power supply. You can remotely control the camera’s position, etc., using a CR15A remote control (sold separately). The camera sends the picture and sound to a receiver that you connect to your TV, up to 100 ft. away. (Receivers and Remote Controls sold separately). Pan/Tilt/Zoom Camera X10.com, a Div. of X10 Wireless Technology, Inc. For additional help, visit www.x10.com/support XC21A Plug power supply in here. 3 Cable adapter. Indoors or Outdoors Indoors 5 Plug into any AC outlet Set the code used to turn on and off from X10 remote controls. 4 XM15A LIMITED 1-YEAR WARRANTY Please visit www.x10.com/warranty to complete your on-line warranty registration. Thank you. For help or more information on setup, please visit: Point the raised dimple on the antenna towards the Receiver’s location. 7 6 Set ABCD channel switch (underneath) to match setting on VR31A or VR36A Receiver.

310MHz Block Diagram for Zoom Pan ‘n tilt camera (XC21A) RF Receiver EEPROM Processor Camera 2.4GHz Sender RCA Connector Pan motor drive Pan sensor Tilt motor drive Tilt motor Pan motor Tilt sensor Power supply

X10.com, a div. of X10 Wireless Technology, Inc. www.x10.com/support Made in China Model No. XC21A rating label 2: 1 3/22/02 Pan/Tilt/Zoom Wireless Color Camera, Model No. XC21A FCC ID: B4SXC21A THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDI- TIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTER- FERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTER- FERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. For use with Model VR31A and VR36A Receiver, and Model XM15A Power Supply. Ratings: 16VDC, 400 mA max. For indoor/outdoor use.

XC21A Operational description: Composite video signals are FM modulated. The composite video output from a VCR or other suitable video source is connected to the RCA video jack of the XC21A. After pre-emphasis, the video is FM modulated and passed to the 2.4 GHz transmitter. The 2.4 GHz transmitter has a 4 channel selector switch to transmit the video and audio signals at either 2.411 GHz, 2.434 GHz, 2.453 GHz, or 2.472 GHz, with a bandwidth of 18 MHz, via a patch antenna. The XC21A also includes a 310 MHz superregenerative receiver, which decodes RF transmissions from a remote control (not part of this report) via a microprocessor and translates these signals into Pan Tilt and zoom commands on the camera.

1 2 3 4 ABCD 4 3 2 1 D CBA 1 System X10 LTD 1 19-Sep-2001 11:27:13 C:\ROD\SCH\ZC15-RF.SCH TitleSize: Number: Date: File: Revision: Sheet of Time: A4 RF Board for ZC15A C1 10P C16 1N C4 0.5P C17 15N ANT L1 4T5R R1456K R5 7K5 R9 47R R1556K Q1 BFT25 L3 C5 8P2 C6 39P Q2 BFS17A R6 2K7 L2 8T5R C8 470P C9 2p7 R7 15K R8 15K R10 100K R11 100K R122M2 R13 100K C11 4N7 C12 1U +5V C13 100N RF OUT C72p U1 LM358 C1447P U1 LM358 C15 100N 32 1 84 5 7 6 C3 10P Q3 BFT25 R1 56K R21K R16 330R R4 6K8 R3 2K4 D1 1N4148 C10 1N
