F.01U.381.144 Rev. 04June / 2020 BTR-30N, TR-30N, TR-32N Professional Wireless Intercom System Operating Instructions 2 BTR-30N, TR-30N, TR-32N P ROPRIETARY N OTICE The product information and design disclosed herein were origi- nated by and are the property of Bosch Security Systems, LLC Bosch reserves all patent, proprietary design, manufacturing, repro- duction, use and sales rights thereto, and to any article disclosed therein, except to the extent rights are expressly granted to others. C OPYRIGHT N OTICE Copyright 2020 by Bosch Security Systems, LLC. All rights reserved. Reproduction, in whole or in part, without prior written permission from Bosch is prohibited. *All other trademarks are property of their respective owners. W ARRANTY AND S ERVICE I NFORMATION For warranty and service information, refer to the appropriate web site below: RTS Intercoms ..............................www.rtsintercoms.com/warranty RTS Digital RTSTW AudioCom RadioCom Intercom Headsets C USTOMER S UPPORT Technical questions should be directed to: Customer Service Department Bosch Security Systems, LLC www.telex.com D ISCLAIMER The manufacturer of the equipment described herein makes no expressed or implied warranty with respect to anything contained in this manual and shall not be held liable for any implied warranties of fitness for a particular application or for any indirect, special, or consequential damages. The information contained herein is subject to change without prior notice and shall not be construed as an expressed or implied commitment on the part of the manufacturer. THE LIGHTNING FLASH AND ARROWHEAD WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF “DANGEROUS VOLTAGE” INSIDE THE PRODUCT. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER- SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF IMPORTANT INSTRUCTIONS ACCOMPANYI NG THE PRODUCT. MARKING DEFINTION IF ON PRODUCT. WARNING: APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. WARNING: THE MAIN POWER PLUG MUST REMAIN READILY OPER- ABLE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, GROUND- ING OF THE CENTER PIN OF THIS PLUG MUST BE MAINTAINED. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPRATUS TO RAIN OR MOISTURE. WARNING: TO PREVENT INJURY, THIS APPARATUS MUST BE SECURELY ATTACHED TO THE FLOOR/WALL/RACK IN ACCOR- DANCE WITH THE INSTALLATION INSTRUCTIONS. This product is AC or DC powered. BTR-30N, TR-30N, TR-32N 3 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14.Refer all servicing to qualified service personnel. Servicing is required if the apparatus is damaged in any way, such as: the power supply cord or plug is damaged, liquid is spilled or objects fall into the apparatus, the apparatus is exposed to rain or moisture, the apparatus is dropped, or the apparatus does not operate normally. 4 BTR-30N, TR-30N, TR-32N Table of Contents Important Safety Instructions ....................................3 INTRODUCTION .............................................9 General Description ..............................................9 System Features ....................................................9 Controls and Connections ...................................10 BTR-30N – Front Panel ..........................................10 BTR-30N – Rear Panel ...........................................11 Specifications ..........................................................12 TR-30N - Top Panel ................................................14 Specifications ..........................................................16 TR-32N – Top Panel ...............................................18 Specifications ..........................................................20 INSTALLATION ............................................19 Unpacking ...........................................................19 Antenna Connection ...........................................20 Antenna Polarization ...........................................20 Distance between Antennas ................................21 Antenna Placement .............................................21 Improving Reception and Increasing Range .......23 OPERATION ..................................................25 BTR-30N ............................................................25 Operation .................................................................25 Basic Operational Description ................................25 System Quick Start ...........…

Text truncated - open the document above for the full version.

Authority to Act as Agent Date: April 15, 2020 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Nic Johnson of the Nebraska Center for Excellence in Electronics (NCEE Labs) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: April 15, 2021 By: James Andersen (Signature) (Print name) Title: Principal Electrical Engineer On behalf of: Bosch Security Systems, Inc. Telephone: (402) 467- 6671

Page 1 of 1 Request for Confidentiality Date: April 19, 2020 Subject: Confidentiality Request for: Bosch Security Systems, Inc. FCC ID: B5DM540 IC: 1321A-BTR30N Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent ☐ Not Provided Block Diagrams ☒ Short Term ☐ Not Provided External Photos ☒ Short Term ☐ Permanent ☐ Not Provided Internal Photos ☐ Short Term ☒ Permanent ☐ Not Provided Operation Description/Theory of Operation ☐ Short Term ☐ Permanent ☒ Not Provided Parts List & Placement/BOM ☐ Short Term ☒ Permanent ☐ Not Provided Tune-Up Procedure ☐ Short Term ☒ Permanent ☐ Not Provided Schematics ☒ Short Term ☐ Not Provided Test Setup Photos ☒ Short Term ☐ Permanent ☐ Not Provided User’s Manual The above-mentioned company has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality (if applicable): The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered Provided to IC applications Sincerely, By: __________________________ Nic Johnson, Technical Manager, NCEE Labs

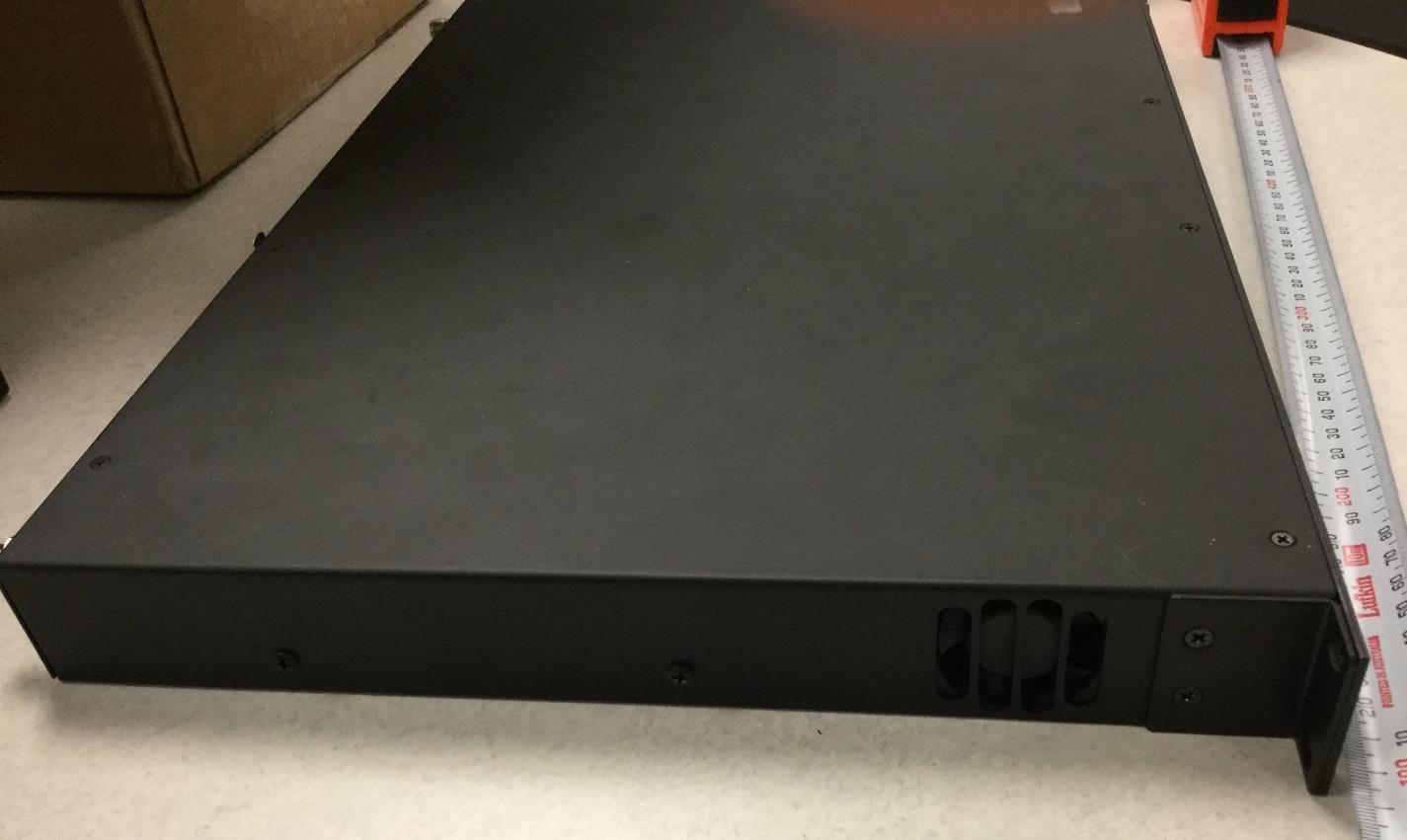

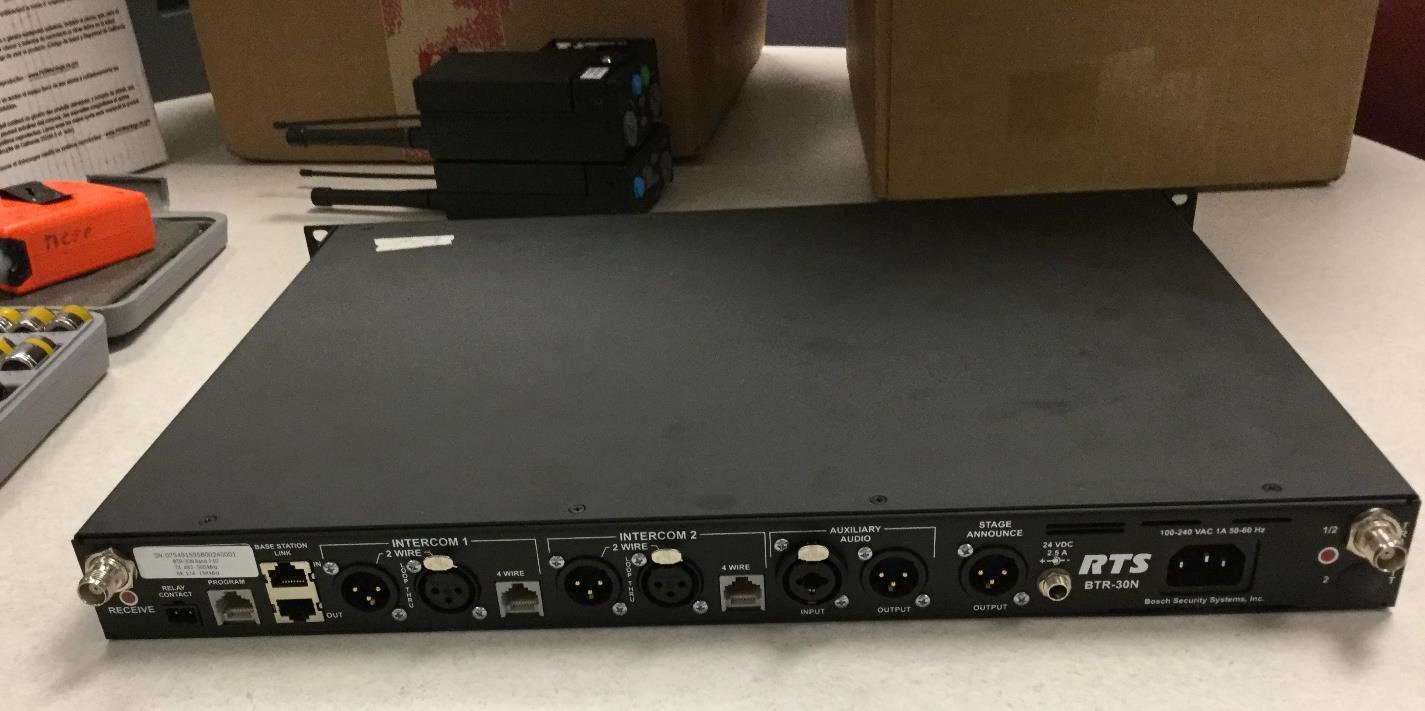

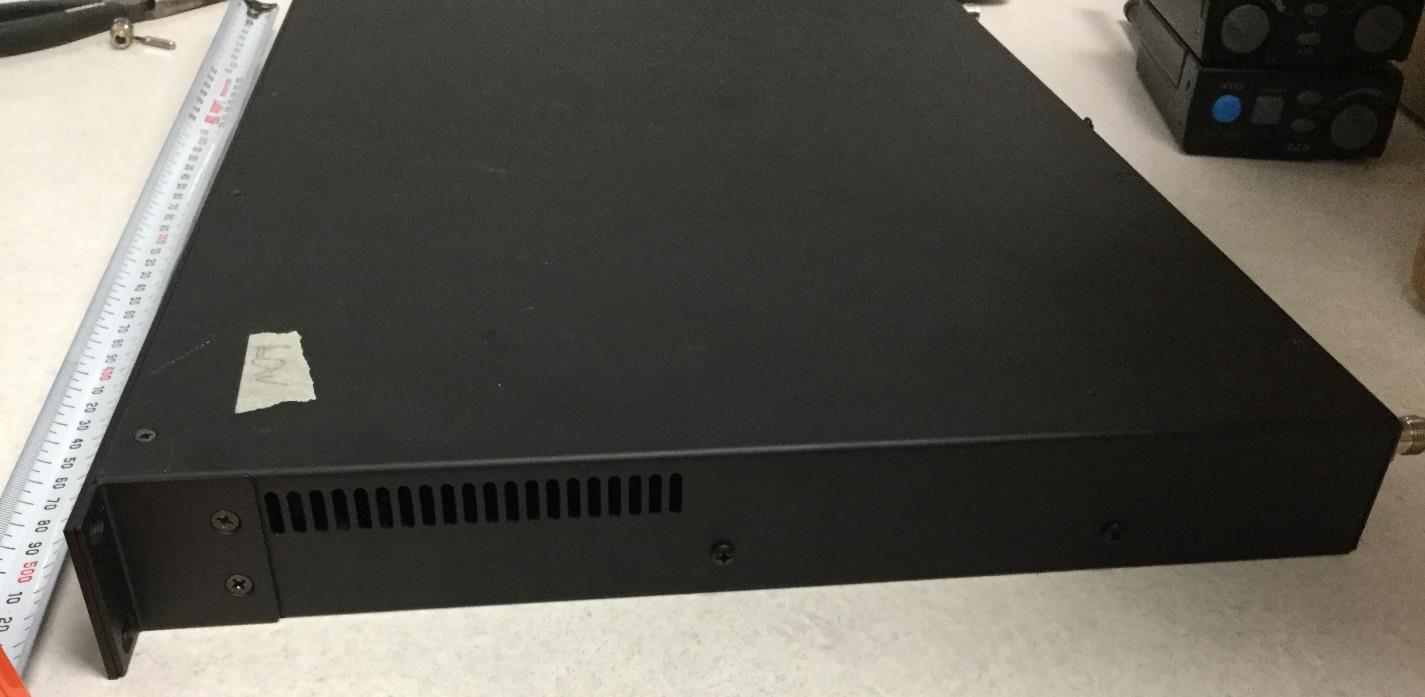

BTR-30N – External Photos BTR-30N – External Photos BTR-30N – External Photos

RoHS STANDARD ENVIRONMENT REQUIREMENT : NO BANNED SUBSTANCES ACC. TO N2580-1 Design of the label has to follow the latest Corporate Design ST Product and Packaging Labels F01U365221 Label Size 76 X 35 mm Freimaßtol. / TOLERANCES Fehl. Angaben / MISS. DETAILS Dokumentenart / DOCUMENT TYPE DRW Stueckliste besonderes Blatt / PARTS LIST ON SPECIAL SHEET Oberfläche SURFACE Datum/DATE gep.CHK. Original: Nr NO Aenderung CHANGE gueltig VALID Ers.d. / REPLACED BY de/en Blatt SHEET 1 Bemerkung / TITLE Stoff / MATERIAL aus / FROM Massstab SCALE Gewicht WEIGHT DIN A4 Gr.St. VOLUME Nr. / NO. Name/NAME gez./DWN. ges/APP Ers. f. / REPLACES 1 BL/SH gez. DWN. Product Label BTR-30N-F10 A4M TSS - F01U365221 Security Systems 10/17/2019RAJ1BUV 10/17/2019RAJ1BUVF03X0657490101

BTR-30N

BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos BTR-30N – Internal Photos

Notice in Installation Manual: FCC/IC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance specified below Frequency Conducted peak power EIRP add antenna gain 0 dBi EIRP + 0% tolerance FCC Maximum Exposure limit Field Density at 20cmCompliant? MHz dBmdBmmWmW/cm^2mW/cm^2 48223.9823.98250.000.320.0498YES 52723.9823.98250.000.350.0498YES 57223.9823.98250.000.380.0498YES EIRP = (V/m * 3 meters)^2 / (30 * 1)Controlled exp. Field Density =(EIRP)/(4*Pi*r^2)General pop.1 1 = yes G = Gain = 1 for EIRP S = Field density limit at Frequency specified Po = EIRP (mW) Note: EIRP measurements are made when the antenna is not easily connected directly to a spectrum analyzer and the antenna gain is not published. References FCC OET Bulletin 65, Edition 97-01 FCC Supplement C to OET Bulletin 65, edition 01-01

The Nebraska Center for Excellence in Electronics (NCEE) authorizes the above named company to reproduce this report provided it is reproduced in its entirety for use by the company’s employees only. Any use that a third party makes of this report, or any reliance on or decisions made based on it, are the responsibility of such third parties. NCEE accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Amended FCC/ISED TEST REPORT Prepared for: Bosch Security Systems, Inc. Address: 8601 East Cornhusker Hwy. Lincoln, NE 68507 USA Product: BTR-30N Test Report No: R20190927-20-E1D Approved By: __________________ Nic S. Johnson, NCE Technical Manager iNARTE Certified EMC Engineer #EMC-003337-NE DATE: 1 June 2020 Total Pages: 46 Report Number: R20190927-20-E1 Rev D Prepared for: Bosch Security Systems, Inc The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 2 of 46 REVI S I ON PAGE Rev. No. Date Description 0 27 February 2020 Original – NJohnson Prepared by KVepuri/CFarrington A 3 April 2020 Repeated power measurements and made changes requested by the client. Includes NCEE Labs report R20190927-20-E1 and its amendment in full B 5 May 2020 1. Radiated emissions details and data was added to the section 4.1 2. Emissions Masks data was added to the section 4.3 3. Modulation Characteristics data was added to the section 4.4 4. Includes NCEE Labs report R20190927-20-E1A and its amendment in full C 22 May 2020 Low and high frequencies were moved within the allocated band. Updated calibration table. Added plots showing center frequency to Section 4.5. D 1 June 2020 Updated Table in Section 1 and frequencies in Section 4.2. Report Number: R20190927-20-E1 Rev D Prepared for: Bosch Security Systems The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 3 of 46 C ON T EN TS Revision Page .............................................................................................................................................................. 2 1.0 Summary of test results ........................................................................................................................... 4 2.0 EUT Description ........................................................................................................................................ 5 2.1 Equipment under test ............................................................................................................................ 5 2.2 Description of test modes .................................................................................................................... 6 2.3 Description of support units ............................................................................................................... 6 3.0 Laboratory description ............................................................................................................................ 7 3.1 Laboratory description ......................................................................................................................... 7 3.2 Test Personnel ........................................................................................................................................ 7 3.3 Test equipment ....................................................................................................................................... 8 4.0 Detailed results ......................................................................................................................................... 9 4.1 Unwanted Emissions & Field Strength of emissions ................................................................... 9 4.2 Output Power ........................................................................................................................................ 13 4.3 Bandwidth and emissions mask ...................................................................................................... 18 4.4 Modulation charecteristics ................................................................................................................ 32 4.5 Frequecy Stability measurements ................................................................................................... 36 4.6 Conducted AC Mains Emissions ...................................................................................................... 40 Appendix A: Sample Calculation ....................................................................................................................... 43 Appendix B – Measurement Uncertainty .......................................................................................................... 45 REPORT END......................................................................................................................................................... 46 Report Number: R20190927-20-E1 Rev D Prepared for: Bosch Security Systems The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 4 of 46 1.0 SUMMARY OF TEST RESULTS The worst-case measurements were reported in this report. The EUT has been tested according to the following specifications: APPLIED STANDARDS AND REGULATIONS Standard Section Test Type Result FCC Part 74.861(e), 2.1046(a) Using ANSI C63.26-2015 RSS-210 Issue 10, Annex G.1 using ANSI C63.10:2013 Carrier Output Power EIRP Pass FCC Part 2.1053(a) Using ANSI C63.26-2015 Unwanted Emissions Pass FCC Part 74.861(e)(6), 2.1053(a) Using ANSI C63.26-2015 RSS-210 Issue 10, Annex G.4 using ANSI C63.10:2013 Field Strength of Spurious Radiation Pass FCC Part 74.861(e)(7), 2.1053(C) (1) Using ANSI C63.26-2015 RSS-210 Issue 10, Annex G.2 using ANSI C63.10:2013 Emission Masks And Occupied Bandwidth Pass FCC Part 2.1047 Using ANSI C63.26-2015 RSS-210 Issue 10, Annex G.5 usin…
