F.01U.381.144 Rev. 03 May / 2020 BTR-30N, TR-30N, TR-32N Professional Wireless Intercom System Operating Instructions 2 BTR-30N, TR-30N, TR-32N P ROPRIETARY N OTICE The product information and design disclosed herein were origi- nated by and are the property of Bosch Security Systems, LLC Bosch reserves all patent, proprietary design, manufacturing, repro- duction, use and sales rights thereto, and to any article disclosed therein, except to the extent rights are expressly granted to others. C OPYRIGHT N OTICE Copyright 2020 by Bosch Security Systems, LLC. All rights reserved. Reproduction, in whole or in part, without prior written permission from Bosch is prohibited. *All other trademarks are property of their respective owners. W ARRANTY AND S ERVICE I NFORMATION For warranty and service information, refer to the appropriate web site below: RTS Intercoms .............................. www.rtsintercoms.com/warranty RTS Digital RTSTW AudioCom RadioCom Intercom Headsets C USTOMER S UPPORT Technical questions should be directed to: Customer Service Department Bosch Security Systems, LLC www.telex.com D ISCLAIMER The manufacturer of the equipment described herein makes no expressed or implied warranty with respect to anything contained in this manual and shall not be held liable for any implied warranties of fitness for a particular application or for any indirect, special, or consequential damages. The information contained herein is subject to change without prior notice and shall not be construed as an expressed or implied commitment on the part of the manufacturer. THE LIGHTNING FLASH AND ARROWHEAD WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF “DANGEROUS VOLTAGE” INSIDE THE PRODUCT. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER- SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF IMPORTANT INSTRUCTIONS ACCOMPANYI NG THE PRODUCT. MARKING DEFINTION IF ON PRODUCT. WARNING: APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. WARNING: THE MAIN POWER PLUG MUST REMAIN READILY OPER- ABLE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, GROUND- ING OF THE CENTER PIN OF THIS PLUG MUST BE MAINTAINED. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPRATUS TO RAIN OR MOISTURE. WARNING: TO PREVENT INJURY, THIS APPARATUS MUST BE SECURELY ATTACHED TO THE FLOOR/WALL/RACK IN ACCOR- DANCE WITH THE INSTALLATION INSTRUCTIONS. This product is AC or DC powered. BTR-30N, TR-30N, TR-32N 3 Important Safety Instructions 1.Read these instructions. 2.Keep these instructions. 3.Heed all warnings. 4.Follow all instructions. 5.Do not use this apparatus near water. 6.Clean only with dry cloth. 7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14.Refer all servicing to qualified service personnel. Servicing is required if the apparatus is damaged in any way, such as: the power supply cord or plug is damaged, liquid is spilled or objects fall into the apparatus, the apparatus is exposed to rain or moisture, the apparatus is dropped, or the apparatus does not operate normally. 4 BTR-30N, TR-30N, TR-32N Table of Contents Important Safety Instructions ....................................3 INTRODUCTION .............................................9 General Description ..............................................9 System Features ....................................................9 Controls and Connections ...................................10 BTR-30N – Front Panel .......................................... 10 BTR-30N – Rear Panel ........................................... 11 Specifications .......................................................... 12 TR-30N - Top Panel ................................................ 14 Specifications .......................................................... 16 TR-32N – Top Panel ............................................... 18 Specifications .......................................................... 20 INSTALLATION ............................................19 Unpacking ...........................................................19 Antenna Connection ...........................................20 Antenna Polarization ...........................................20 Distance between Antennas ................................21 Antenna Placement .............................................21 Improving Reception and Increasing Range .......23 OPERATION ..................................................25 BTR-30N ............................................................25 Operation ................................................................. 25 Basic Operational Description ................................ 25 System Quick Start ..........…

Text truncated - open the document above for the full version.

FIGURE 26. BTR-30N Rear View BTR-30N, TR-30N, TR-32NOperation 29 Base Station Link This pair of RJ-45 jacks allow the passage of WTA, WTA termination control voltage, and CAN bus data between multiple base stations. Up to eight (8) base stations may be connected with the base station link. If just using WTA between bases, up to 16 base stations can be connected together. The pinout of the IN jack and OUT jack may be seen in Figure 27 and Figure 28 FIGURE 27. Base Station Link IN RJ-45 Jack Pinout FIGURE 28. Base Station Link OUT RJ-45 Jack Pinout Stage Announce (SA)/Relay The Stage Announce 3-pin XLR connector (see Figure 26) is where audio exits the base when a beltpack user presses the SA button. The pinout of the plug connector is shown in Figure 29. FIGURE 29. Stage Announce Pinouts FIGURE 30. Relay Output Schematic (Normally Open) The stage announce output is balanced audio at line level. The output level is configured in the software. A relay contact closure also activates when a beltpack user presses the SA button. The contacts are normally open (N.O.). The relay schematic is shown in Figure 30. The rating of the relay is 1 Amp at 24 volts AC or DC maximum. A Phoenix type connector (supplied) plugs into the relay contact port on the rear of the base station. This connector provides a screw-type closure for an easy connection to wires. See Figure 31. FIGURE 31. Screw Terminal Adapter FIGURE 32. BTR-30N Base Station Link Jack and Program Jack 30 OperationBTR-30N, TR-30N, TR-32N Base Station Link Jack WTA 1 and WTA 2 in the BTR-30N are two (2) independent 2- wire intercom channels. Up to 16 base stations may be connected together to share WTA audio. Do not confuse WTA audio with CAN bus data, as only eight (8) bases may be connected to share CAN bus data. Not only does the WTA Link cable pass both channels of WTA audio, it passes a logic level so the 1st base station in the chain is the only one providing a termination of the WTA intercom channels. Care must be taken to connect cables between base stations from the OUT of base one (1) to the IN of base two (2) and so forth. If the WTA link cable is passed from OUT to OUT or IN to IN, the WTA audio may terminate in multiple places and cause the WTA audio level to be greatly reduced. The base station link jacks can interface with other base stations via two (2) different types of cables: • Base Link Cable (BLC) – Straight through cable. Passes CAN data, WTA audio, and WTA termination signal. • CAN Bus Termination Cable (CTC) – Passes WTA audio and WTA termination signal, but does not pass CAN data. Acts as a termination of the CAN networks on either side of it. Detailed information on the pinout and operation of these cables can be found in “Connection of Multiple Base Stations with the Link Cables” on page 40. Program Jack This jack is only used for updating the internal software of the base station. It is typically used only by the manufacturer and service centers. FIGURE 33. Multiple Base Stations Connected via 2-Wire Cables Sharing WTA Audio FIGURE 34. BTR-30N - Front Panel BTR-30N, TR-30N, TR-32NOperation 31 Powering the Base Station The base station may be powered two (2) different ways: • Line power at the IEC receptacle. Accepts 100–240VAC, 1A max., 50 or 60Hz. • 24 VDC Power. Accepts a 5.5mm by 2.5mm screw on plug. Source must supply at least 2.5 Amps. To power on the base station, do the following: > Press the POWER button located on the far left of the base station front panel. To power off the base station, do the following: > Press and hold the POWER button. Both line power and DC power can connect to the base station at the same time. If AC line voltage drops, the base draws power from the DC input automatically. When the AC line power is restored, the base automatically switches back to AC power. There is no interruption in the base operation during these transitions. CAUTION:Do not power up a base station within three (3) seconds of the unit being turned off. Voltages within the unit need time to drop below a threshold. If powered up within the above time, the unit may boot as the wrong frequency band. WARNING:Even with the unit powered down via the power switch, some circuits within the base remain energized. To completely remove power to the unit, disconnect the power cord. Start Up Screen When the BTR-30N powers up, the first screen displayed is the Start Up splash screen. It displays for about three (3) seconds. This screen contains both the software version number and band ID of the base. Figure 35 shows a screen indicating software version sb2145L and a F10 band unit. FIGURE 35. Start Up Screen After three (3) seconds the status screen appears. NOTE:A complete screen flowchart of the base station is available in Additional Resources. Status Screen The Status screen is the main information screen of the base station. It displays a number of system items: • Frequency Group • Band of Base Station • Mode of Base Station • Transmitter 1 Power Setting • Transmitter 2 Power Setting • Beltpack Current Activity • Battery Life • Base Receiver Status FIGURE 36. Status Screen 32 OperationBTR-30N, TR-30N, TR-32N RSSI Screen RSSI stands for Received Signal Strength Indicator. This screen displays the detected signal strength of each of the four (4) receivers in the base. FIGURE 37. RSSI Screen The following are the approximate receive levels indicated by the bars after each receiver. If no beltpacks are operating, an RSSI level of two (2) bars or above may indicate interference on that frequency. A different receive channel should be selected. To access the RSSI screen, do the following: > From the status screen, press and hold MENU for two (2) seconds. To exit the RSSI screen, do the following: > press MENU to arrive back at the status screen. Group/Channel Select Screen The group/channel, group/frequency, and frequency edit screens allow the user to set the frequencies of the base station. Each screen has a slightly different…

Text truncated - open the document above for the full version.

BTR-30N, TR-30N, TR-32NOperation 59 Low Battery Alert Tone The beltpack sends an audio alert tone to the headset if battery life reaches 10%. The 1 kHz tone is heard for 0.5 seconds, every 30 seconds. The tone is only heard and set at the beltpack. To set the low battery alert tone, do the following: 1. Press SET at the battery percentage screen. A screen appears displaying Lbt oFF. The low battery tone option also flashes 2. Using the UP/DOWN arrow buttons, turn the low battery tone option on or off. 3. Press SET to accept the change. The screen now displays with AL or ni flashing. 4. Using the UP/DOWN arrow buttons, select AL or ni for Alkaline/NiMH battery gauge calibration. 5. Press SET to return to the battery gauge screen. Transmit Power The Transmit Power screen displays the current setting of the beltpack transmitter’s output power level. There are four (4) settings. Transmit Power Settings When the unit is set to auto, base station information tells the beltpack the appropriate power settings to use based upon the received signal strength level at the base station. By reducing the transmit power when possible, the battery life of the beltpack can be slightly extended and intermodulation products can be reduced. Changing the Transmit Power Setting To change the transmit power setting, do the following: 1. Push SET at the transmit power screen. 2. Using the UP/DOWN arrow buttons, select the power setting. 3. Push SET to place the unit at the indicated setting. FIGURE 75. Transmit Power, Squelch, Push-to-Talk/Push-to-Transmit Screen Auto (Default) The beltpack’s transmitter adjusts its output level according to information sent to the beltpack from the base station. It adjusts between two levels: 10 mW or 50 mW. 10The beltpack transmits at 10 mW 50The transmitter is at 50 mW 60 OperationBTR-30N, TR-30N, TR-32N Squelch Screen The Squelch screen allows the user to adjust the beltpack squelch level. To select the beltpack squelch level, do the following: 1. Push SET at the squelch screen. The squelch setting flashes. 2. Using the UP/DOWN arrow buttons, select the squelch setting. A setting of 00 holds the squelch open for testing. WARNING:Do not set the squelch to 00 while wearing headphones with the volume turned up. White noise with no signal can be uncomfortably loud. 3. Push SET to save the new squelch setting. NOTE:The beltpack employs two (2) different types of squelches. A fast acting noise-type squelch and a slower data squelch. For audio to be received by the beltpack, both a good signal-to-noise audio signal (with a noise threshold set via the user squelch settings above) and a valid data stream must be detected. Transmit Mode Screen The Transmit Mode screen is used to select the following modes: Transmit Mode Description PttPush-to-Talk. The transmitter is always on. Pressing the TALK button un-mutes the audio. The beltpack responds to the base audio mute commands. When a user disables the beltpack Portable Station Connect button, the beltpack TALK button turns off. Pt trPush-to-Transmit. The transmitter is off and audio muted until the TALK button is on. The beltpack will ignore lockout or shutdown commands from the base. Pt trlPush-to-Transmit Lockout Enabled. The transmitter is off and audio muted until the TALK button is on. The beltpack will respond to lockout commands from the base, such as First-On-Latch Out and Portable Station Connect disable. Pt trnPush-to-Transmit Lockout Enabled but no busy tone. This mode is the same as Pt trL but no “busy” tone heard in beltpack if channel is occupied. To change the transmit mode setting, do the following: 1. Push SET at the transmit mode screen. The screen flashes. 2. Using the UP/DOWN arrow buttons, select the transmit mode. 3. Push SET to save the mode change. LEDs Off/On The LED off/on screen is used to disable all LEDs. This function is useful for users who do not wish to show LEDs in the dark. To turn LEDs on or off, do the following: 1. Push SET at the LED off/on screen. 2. Using the UP/DOWN arrow buttons, select the desired mode. 3. Push SET to save the mode change. Squelch Lvl Approx. SINAD Notes 00NAOpen 0112 0220Default 0324 04NARSSI Lvl Squelch BTR-30N, TR-30N, TR-32NOperation 61 Software Version/Band The software revision and frequency band of the beltpack may be displayed from any of the main beltpack screens. To view the software revision and frequency band, do the following: > In any of the beltpack main screens, press and hold DOWN for two (2) seconds. • The first screen indicates the frequency band of the beltpack. • The second screen indicates the software revision. After displaying the information, the screen reverts back to the main screen. The screens below indicate an A10 band beltpack with 303004 version software. ClearScan™ ClearScan™ helps you find clear RF frequencies in your area. The beltpack’s receiver scans all the factory-defined groups and any set user-defined groups. The result is a list of beltpack receive groups, clear of interference. To enter ClearScan TM do the following: 1. Press and hold MENU + SET for two (2) seconds to start ClearScan TM . The beltpack display changes to ClrScn and the GP icon flashes. After about 12 seconds, the beltpack displays the first clear group. The group number flashes. 2. Using the UP/DOWN buttons, display clear groups. 3. Press SET to select a group. 4. Press MENU to bail out without selecting a group. Clear groups are displayed first. They are in group order. You can scroll down through groups using the DOWN button. The left-half of the screen gives you an indication of interference levels as you scroll through the groups. User-defined groups without a defined frequency for one of the receive channels display a u to indicate undefined. The degree of interference found for R1 and R2 displays on the far-right two (2) positions on the screen. Lock Out This function allows the user to lock the top panel and menu options. The top panel buttons still work, but t…

Text truncated - open the document above for the full version.

Authority to Act as Agent Date: April 15, 2020 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Nic Johnson of the Nebraska Center for Excellence in Electronics (NCEE Labs) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: April 15, 2021 By: James Andersen (Signature) (Print name) Title: Principal Electrical Engineer On behalf of: Bosch Security Systems, Inc. Telephone: (402) 467- 6671

Page 1 of 1 Request for Confidentiality Date: April 19, 2020 Subject: Confidentiality Request for: Bosch Security Systems, Inc. FCC ID: B5DM541 IC: 1321A-TR30N Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent ☐ Not Provided Block Diagrams ☒ Short Term ☐ Not Provided External Photos ☒ Short Term ☐ Permanent ☐ Not Provided Internal Photos ☐ Short Term ☒ Permanent ☐ Not Provided Operation Description/Theory of Operation ☐ Short Term ☐ Permanent ☒ Not Provided Parts List & Placement/BOM ☐ Short Term ☒ Permanent ☐ Not Provided Tune-Up Procedure ☐ Short Term ☒ Permanent ☐ Not Provided Schematics ☒ Short Term ☐ Not Provided Test Setup Photos ☒ Short Term ☐ Permanent ☐ Not Provided User’s Manual The above-mentioned company has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality (if applicable): The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered Provided to IC applications Sincerely, By: __________________________ Nic Johnson, Technical Manager, NCEE Labs

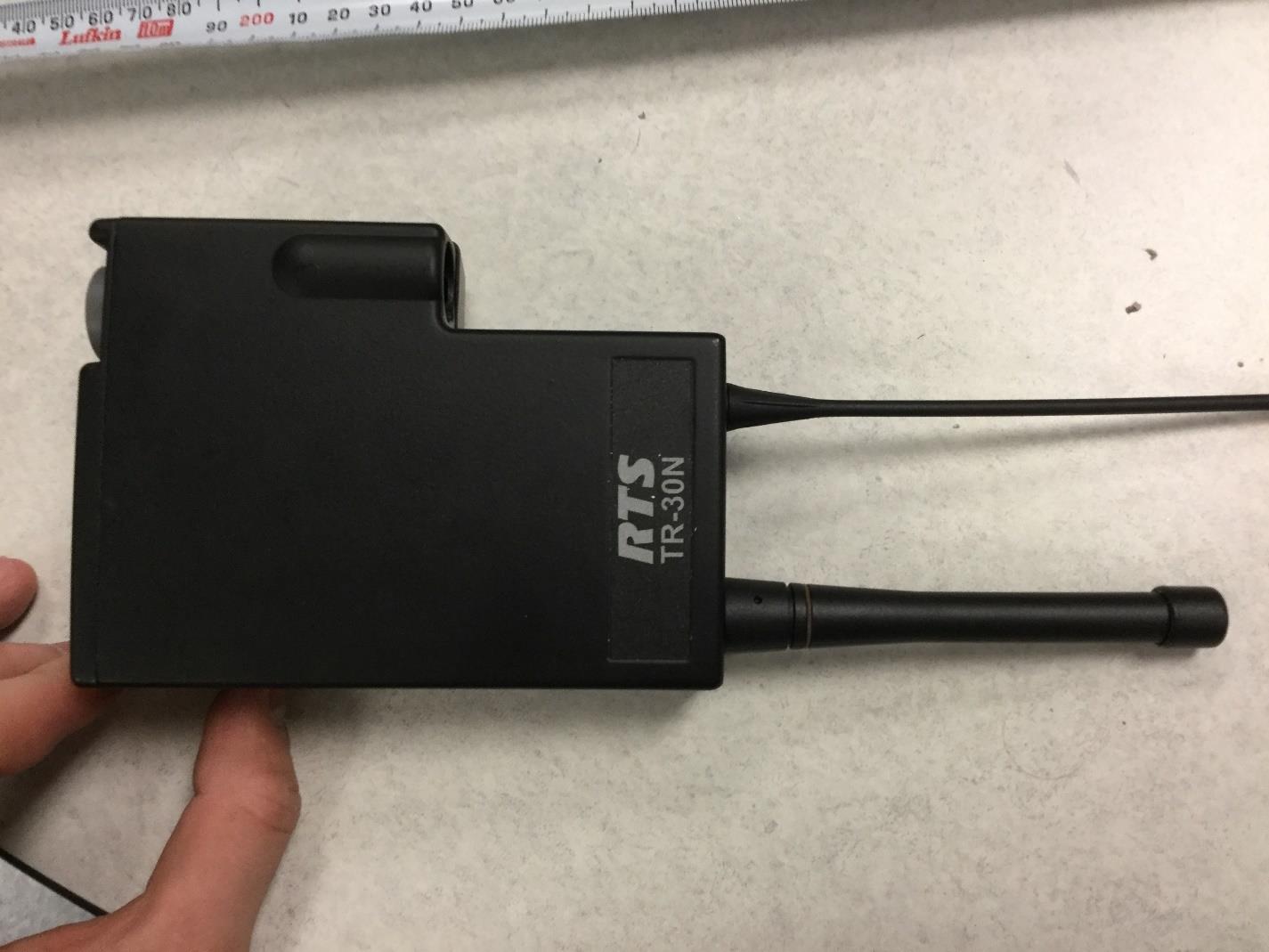

INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: B5DM541 IC: 1321A-TR30N

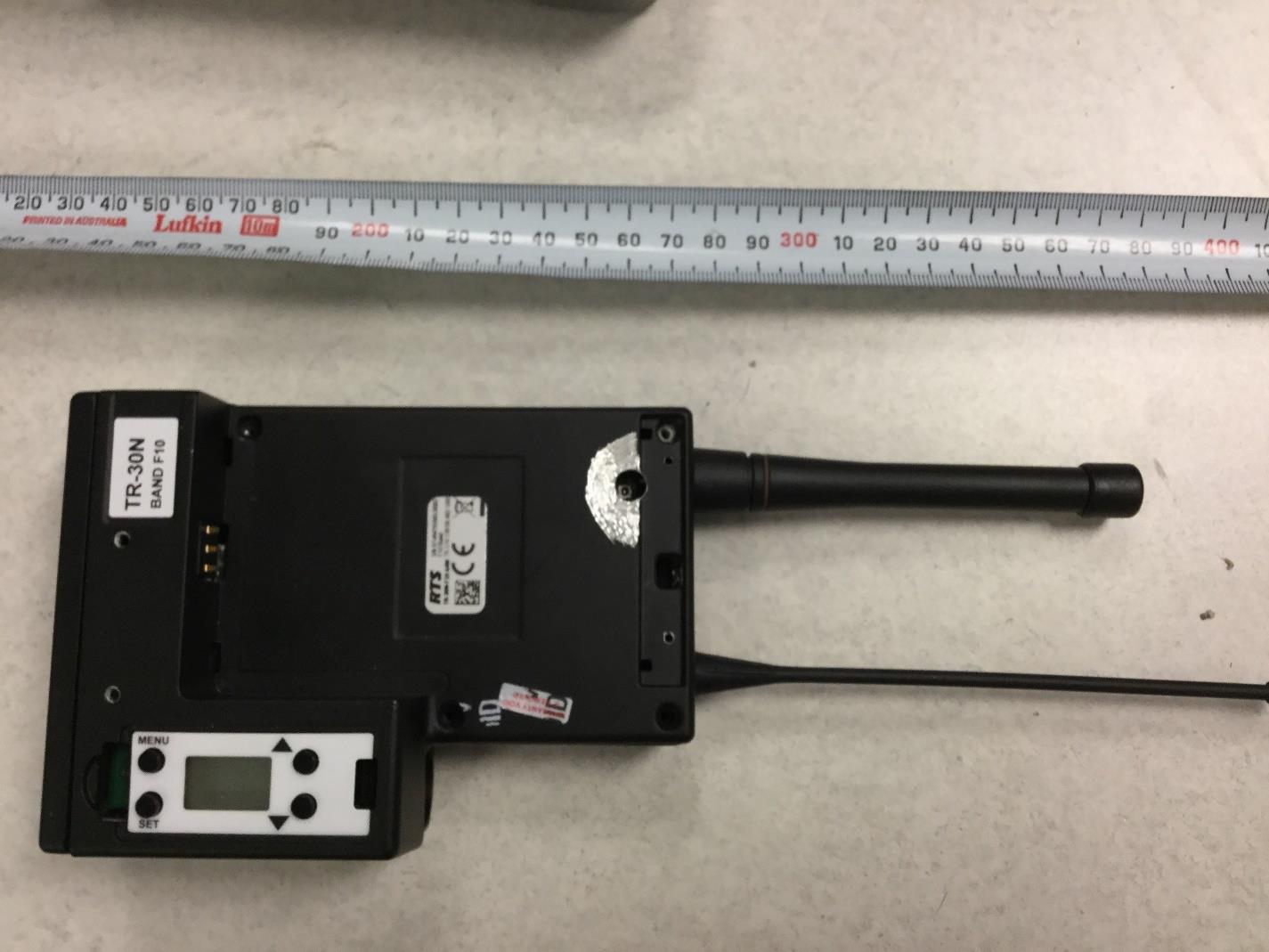

TR-30N Labels are located under battery pack. Product label FCC ID and part 15 label

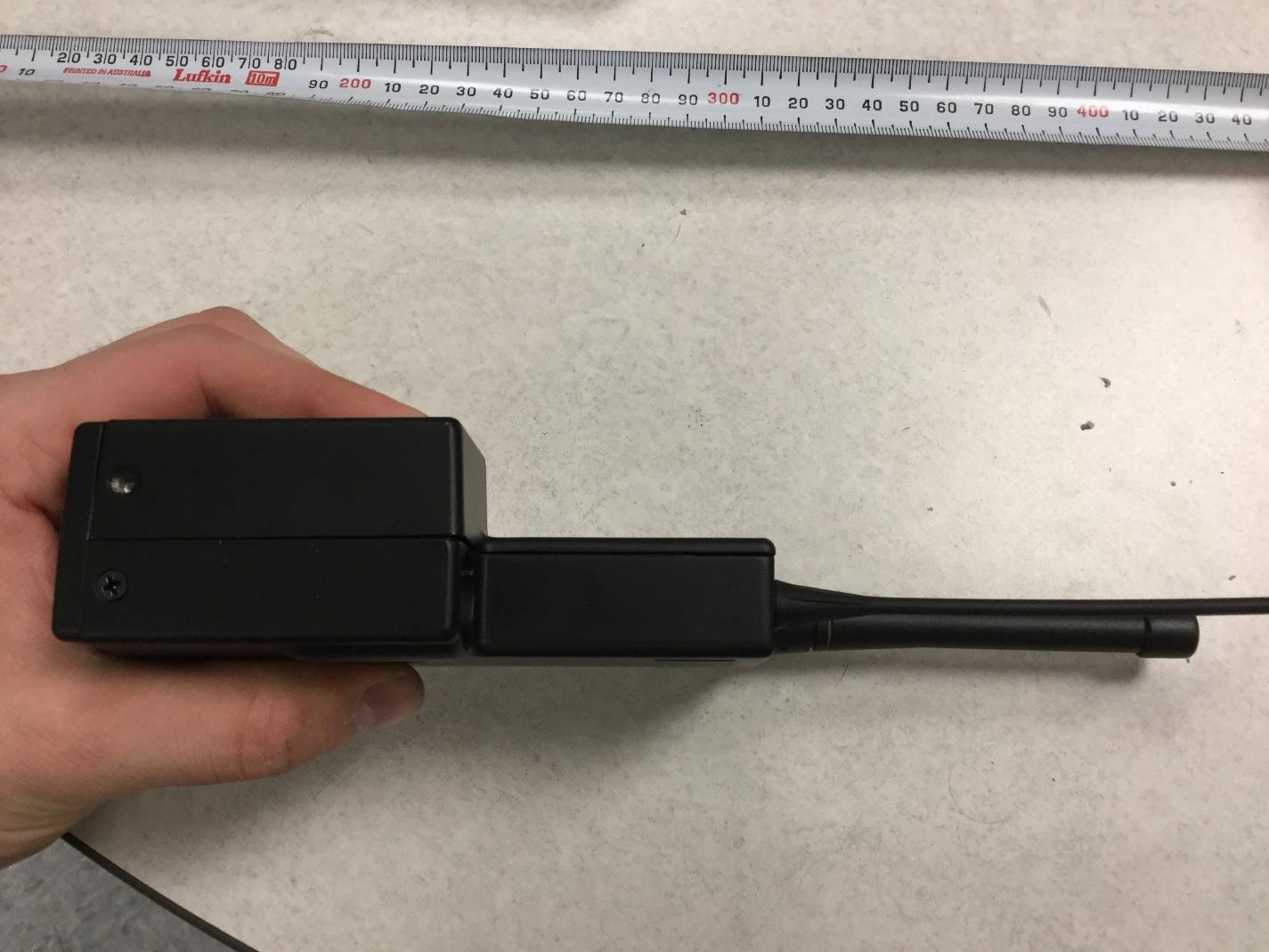

INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N See following page for removal of shield INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N INTERNAL PHOTOS – TR-30N

Page 1 of 3 FCC Portable RF exposure Exemption Calculations KDB 447498 D01 1-g10-g Limit1Contributor Duty Cycle100%1 Tune up Tolerance10%1.1 Antenna Gain-3dBi1 Min. Seperation10mm FrequencyPowerValueLimitExempt? GHzmWno unitno unitYes/No 0.174025502.293.0YES 0.198000502.453.0YES 0.215975502.563.0YES Value is calculated using KDB 447498 D01, Section 4.3.1(a) as shown in red box on following page Max power including tune-up = Power x (1 + tune-up tolerance) Page 2 of 3 Page 3 of 3

The Nebraska Center for Excellence in Electronics (NCEE) authorizes the above named company to reproduce this report provided it is reproduced in its entirety for use by the company’s employees only. Any use that a third party makes of this report, or any reliance on or decisions made based on it, are the responsibility of such third parties. NCEE accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Amended FCC/ISED TEST REPORT Prepared for: Bosch Security Systems, Inc. Address: 8601 East Cornhusker Hwy. Lincoln, NE 68507 USA Product: TR-30N Test Report No: R20190927-20-E2F Approved By: __________________ Nic S. Johnson, NCE Technical Manager iNARTE Certified EMC Engineer #EMC-003337-NE DATE: 26 May 2020 Total Pages: 40 Report Number: R20190927-20-E2 Rev F Prepared for: Bosch Security Systems, Inc. The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 2 of 40 REVI S I ON PAGE Rev. No. Date Description 0 27 February 2020 Original – NJohnson Prepared by KVepuri/CFarrington/FLane A 30 March 2020 Measurements on high channel were updated B 15 April 2020 Updated Section 2.1 C 15 April 2020 Added EIRP values D 05 May 2020 1. Radiated emissions details and data was added to the section 4.1 2. Emissions Masks data was added to the section 4.1 3. Modulation Characteristics data was added to the section 4.4 4. Frequency Stability data was updated in section 4.5 5. Includes NCEE Labs report R20190927-20-E2C and its amendment in full E 21 May 2020 Re-measured low and high channels to show that they stay within the allocated bands. F 26 May 2020 Added channel frequency measurements to Section 4.5 Report Number: R20190927-20-E2 Rev E Prepared for: Bosch Security Systems, Inc. The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 3 of 40 C ON T EN TS Revision Page .............................................................................................................................................................. 2 1.0 Summary of test results ........................................................................................................................... 4 2.0 EUT Description ........................................................................................................................................ 5 2.1 Equipment under test ............................................................................................................................ 5 2.2 Description of test modes .................................................................................................................... 6 2.3 Description of support units ............................................................................................................... 6 3.0 Laboratory description ............................................................................................................................ 7 3.1 Laboratory description ......................................................................................................................... 7 3.2 Test Personnel ........................................................................................................................................ 7 3.3 Test equipment ....................................................................................................................................... 8 4.0 Detailed results ......................................................................................................................................... 9 4.1 Unwanted Emissions & Field Strength of emissions ................................................................... 9 4.2 Output Power ........................................................................................................................................ 17 4.3 Bandwidth and emissions mask ...................................................................................................... 18 4.4 Modulation charecteristics ................................................................................................................ 29 4.5 Frequecy Stability measurements ................................................................................................... 33 Appendix A: Sample Calculation ....................................................................................................................... 37 Appendix B – Measurement Uncertainty .......................................................................................................... 39 REPORT END......................................................................................................................................................... 40 Report Number: R20190927-20-E2 Rev E Prepared for: Bosch Security Systems, Inc. The Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Page 4 of 40 1.0 SUMMARY OF TEST RESULTS The worst-case measurements were reported in this report. The EUT has been tested according to the following specifications: APPLIED STANDARDS AND REGULATIONS Standard Section Test Type Result FCC Part 74.861(e), 2.1046(a) Using ANSI C63.26-2015 RSS-210 Issue 10, Annex G.1 using ANSI C63.10-2013 Carrier Output Power EIRP Pass FCC Part 2.1053(a) Using ANSI C63.26-2015 Unwanted Emissions Pass FCC Part 2.1051 Using ANSI C63.26-2015 FCC Part 74.861(e)(6), 2.1053(a) Using ANSI C63.26-2015 RSS-210 Issue 10, Annex G.4 using ANSI C63.10-2013 Field Strength of Spurious Radiation/Antenna Port Conducted Emissions Pass FCC Part 74.861(e)(7), 2.1053(C) (1) Using ANSI C63.26-2015 RSS-210 Issue 10, Annex G.2 using ANSI C63.10-2013 Emission Masks And Occupied Bandwidth Pass FCC Part 2.1047 Using ANSI C63.26-2015 RSS-210 Issue 10, Annex G.5 using ANSI C63.10-2013 Audio Low Pass Filter, Audio Frequency Response and Modulation L…
